Thermo Scientific 05EFEETSA User manual

Installation and Operation Manual
Thermo Scientific
General Purpose, Flammable Storage, and
Explosion Proof Freezers

© 2016Thermo Fisher Scientific. All rights reserved

General Purpose, Flammable Material Storage
and
Explosion Proof Freezers
Explosion-Proof
05EFEETSA
Flammable Material Storage
05FFEETSA
General Purpose
05LFEETSA
02LREETSA

Table of Contents
Safety Information...................................................................3
Alert Signals .............................................................................3
Intended Use Statement...........................................................5
Explosion - Proof Refrigerators and Freezers ......................6
Overview...................................................................................6
Model 05EFEETSA .................................................................7
Flammable Materials Storage Refrigerators and
Freezers.....................................................................................8
Overview...................................................................................8
Model 05FFEETSA..................................................................9
General - Purpose Storage Refrigerators and Freezers.....10
Overview.................................................................................10
Model 05LFEETSA ...............................................................11
Model 02LREETSA...............................................................12
Unpacking and Installation...................................................13
Shipping Carton.....................................................................13
Unpacking...............................................................................13
Location ..................................................................................13
Clearance................................................................................13
Electrical.................................................................................14
Be Advised..............................................................................14

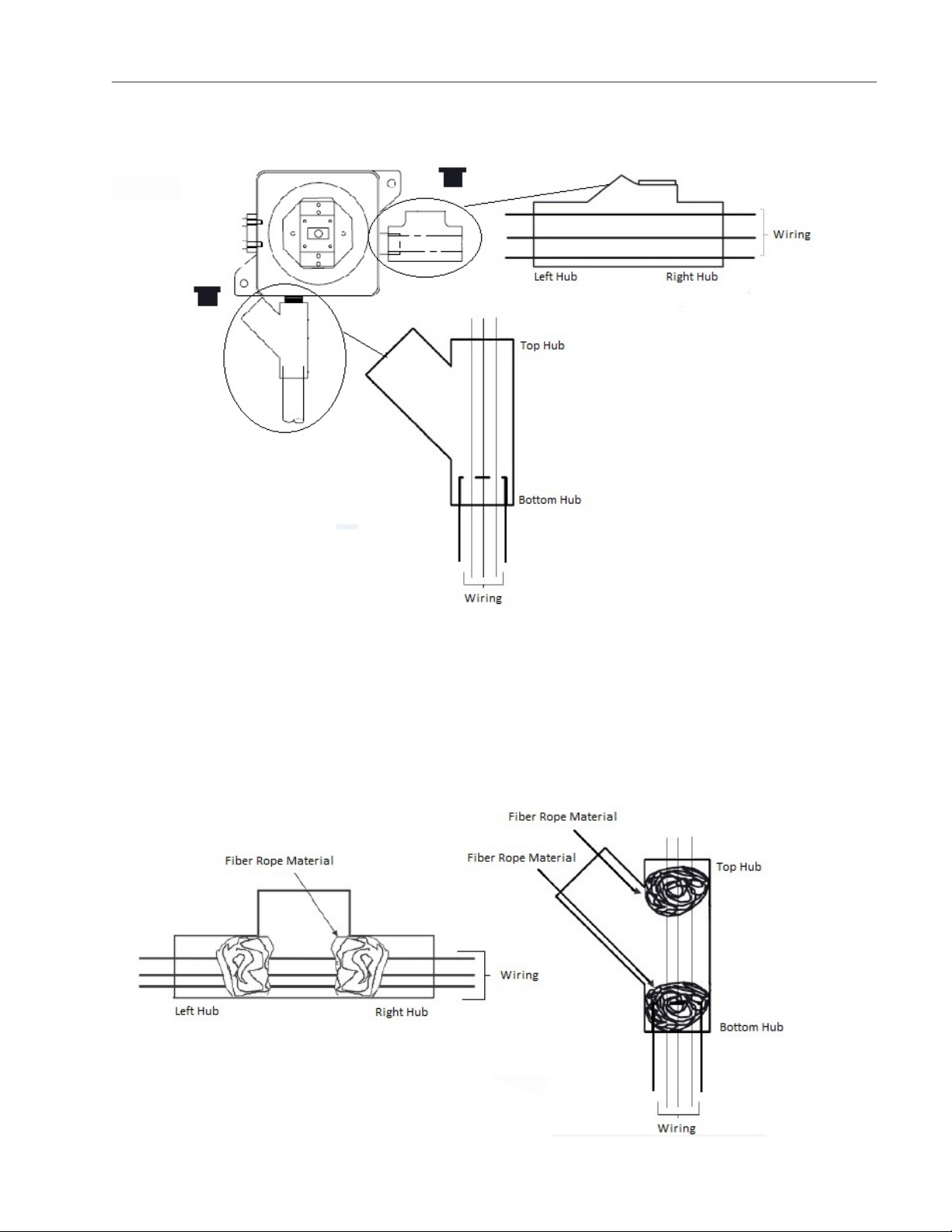

How to Seal Junction Box Conduit with Fiber and
Sealing Compound to Help Protect Against Explosions
(Explosion-Proof Units Only) ...............................................15
Operation................................................................................18
Environmental Operating Conditions .................................18
Temperature Control ............................................................18
Manual Defrost Procedure....................................................19
Material Compatibility..........................................................19
How to Save Energy...............................................................20
Safety Tips..............................................................................20
Maintenance...........................................................................21
Cleaning..................................................................................21
Interior/Exterior and Door Gaskets.....................................21
Troubleshooting.....................................................................22
Replacement Parts.................................................................23
Ordering Procedure...............................................................24
WEEE Compliance................................................................25
Warranty ................................................................................26

Safety Information
Your satisfaction and safety are important to Thermo Scientific and a complete understanding of this unit is
necessary to attain these objectives.
As the ultimate user of this apparatus, it is your responsibility to understand its proper function and operational
characteristics. This instruction manual should be thoroughly read and all operators given adequate training
before attempting to place this unit in service. Awareness of the stated cautions and warnings, and compliance
with recommended operating parameters – together with maintenance requirements – are important for safe and
satisfactory operation. The unit should be used for its intended application; alterations or modifications will void
the Warranty.
This product is not intended, nor can it be used, as a sterile or patient connected device. In addition,
this apparatus is not designed for use in Class I, II or III locations as defined by the US National
Electrical Code, unless otherwise noted.

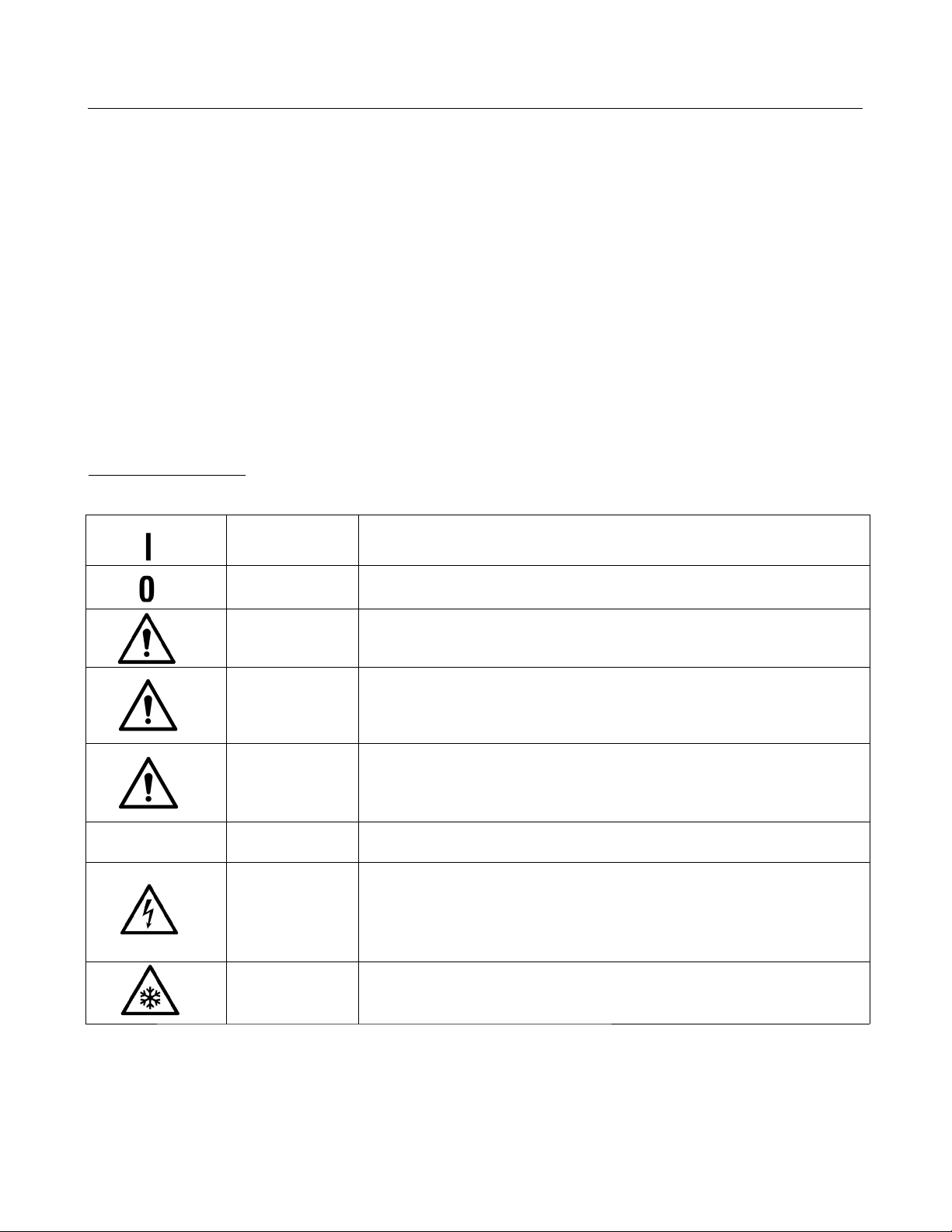

Alert Signals
ON
OFF
Safety Alert
Important operating instructions. To reduce the risk of injury or poor
performance of the unit read the user manual before putting the
equipment into operation.
WARNING Indicates an immediately hazardous situation, which if not avoided, will
result in death or serious injury.
CAUTION Indicates an immediately hazardous situation, which if not avoided, may
result in minor to moderate injury.
(No Symbol) CAUTION (Without Safety Alert Symbol) indicates a situation that may result in
property damage.
Shock Hazard
Use of this equipment involves power supplies which convert line voltage
to low voltage power. Do not modify or use power supplies other than
OEM equipment. Connection of the power supply may require a properly
grounded receptacle. Potential for electrical shock or equipment damage
exists if precautions are not followed.
Frost bite/ Low
Temperature
Avoid contact with cold freezer surfaces potential for cold burns or skin
sticking to cold surfaces.
3

DANGER RISK OF CHILD ENTRAPMENT Before you throw away your old refrigerator or
freezer:
• Take off doors
• Leave the shelves in the place so that children may not easily climb inside.
If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.
4
Safety Information

Intended Use Statement
The Refrigerators/Freezers described in this manual are for
professional use only. These products are intended for use in
research for the storage of samples or inventory in the following
temperature ranges:
Warning
Only Explosion Proof Units or
Flammable Material Storage Units
are to be used for the storage of
flammable inventory/samples.
General Purpose Freezers: -12°C to -24°C
General Purpose Refrigerators: 1°C to 8°C
Explosion proof & FMS Freezers: -12°C to -24°C
These are not considered medical devices and have therefore
not been registered with a medical device regulatory body (e.g.
FDA): that is, it has not been evaluated for the storage of
samples for diagnostic use or for samples to be re-introduced to
the body.
NOTE: Do not store corrosive materials in these units. Any damage
which occurs due to storage of corrosives will not be covered under
warranty claims.
Corrosive Materials Requiring Refrigerated or Frozen Storage
•Only use models rated as Corrosion Resistant
•Corrosion Resistant does not mean Corrosion Proof – Care in
storage is still required
•Store only corrosive reagents/samples which truly need
reduced temperature storage.
•Flammable corrosive materials require Flammable Material Storage
or Explosion Proof models labeled for the storage of corrosives
•Containers must be wiped clean of moisture and chemical
residue before being introduced into the unit and upon return
from use.
•Containers must be sealed with either vinyl tape or Parafilm ®
•Reagents/samples which release HX (X= F, Cl, Br, I) on contact
with moisture (e.g. Acyl halides, Organosilyl halides etc.) are
particularly damaging to metals.
•Volatile amines will react with HX depositing salts which will
lead to corrosion of metal surfaces.
•Volatile organic acids can exacerbate metal surfaces
already compromised, be sure these are securely sealed.
•Refrigerated compartments are cool or cold areas but they are not
to dry seal your reagents and samples.
•Bleach solutions release chlorine gas which can react with
other volatiles in the cooling chamber or directly attacks metal
surfaces.
•Periodically clean the interiors, clean up spills or leaking containers
•Failure to take precautionary actions may lead to damage not
covered by warranty claims
Parafilm ® is a registered trademark of Bemis Company, Oshkosh,
WI,
5

Explosion-Proof Refrigerators and
Freezers
Overview
Conventional refrigerators and freezers are not suitable for storing flammable
materials. Such units have components in their electrical and refrigeration
systems that can trigger explosions of flammable air-vapor mixtures inside the
unit and/or in the immediate surrounding area.
The Authority Having Jurisdiction (AHJ) determines if work areas are designated
as a hazardous location with respect to the presence of flammable gases or
vapors. Such locations are defined in (National Fire Protection Association) NFPA
70 Articles 500-501 and OSHA 29 CFR1910.307. Some of these classified areas
are expected to experience concentrations of flammable gases and/or vapors at
or above their lower flammability limits for extended periods of time.
The construction of our explosion-proof units has been
evaluated by Underwriters
Laboratories (UL) and are suitable for use in classified areas requiring
Class I, Groups C and D* protected equipment. The electrical components such
as thermostats, wiring, splices, relays and compressor motors on explosion-
proof units are safely housed within explosion-proof enclosures and conduit.
Compressor surface temperatures have been evaluated and determined to
remain below the flash point of materials found in Class I, Groups C and D.
All models have heavy-gauge, rigid, steel construction with a durable enamel
finish. Interiors have epoxy enamel or ABS plastic construction. Each unit is
insulated throughout for energy-efficient operation.
These units are ideal for storing cyclopropane, ethyl ether, ethylene, acetone,
alcohol, benzene, butane, gasoline, hexane, lacquer solvent vapors, naphtha,
natural gas or propane along with many other potentially hazardous materials.
WARNING: For FMS and EXP units where flammable materials are
stored in the cooling chamber, the cooling chamber is considered a
Class I Div1 or Class I Zone 1 hazardous location. Any monitoring
devices placed in the cooling chamber must have an intrinsically
safe rating from an appropriate certification body, such as UL,
CSA, FM etc. (this includes battery or solar powered devices).
Thermocouples for building monitoring systems must be wired
through an electrical barrier designed to provide isolation against
voltage and current spikes, which could cause a spark resulting in
fire or explosion. It is the end user's responsibility to meet these
requirements. Thermo Scientific cannot assist with the selection of
devices, recommend, approve or design any device or monitoring
circuit.
*The notation Class I, Groups C and D is an accepted abbreviation for Class I,
Div 1, Groups C and D; Class I Zone 1 Group IIB.
6

EXPLOSION-PROOF UNITS
MODEL 05EFEETSA
21.3” Wide,
Features:
• 5.0 cubic ft. under-counter freezer
• Adjustable Mechanical thermostat
• UL Listed
• Magnetic gasket
• Hermetically-sealed compressor
• Manual defrost
• White color
• 3 Wired shelves and 3 door shelves
Model Freezer Chamber
Dimensions
H x W x D inches (cm)
Total Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05EFEETSA
29.5" x 18.63" x 19"
(74.9 x 47.32 x 48.2 cm)
5.0 33.13" x 21.38" x 30.25"
(84.15 x 54.3 x 64.5 cm)
Model Electrical
Characteristics
Volts/Hz, Amps
Freezer Temp. Range
°C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
05EFEETSA
115/60, 1.1 -24 to
-12
(-11.2 to
10.4)
90 (41)
95 (43)
NOTE: Amps listed are at normal run mode, starting amps may be higher.
7

Flammable Materials
Storage Refrigerators and
Freezers
Overview
Conventional refrigerators and freezers are not suitable for storing
flammable materials. Such units have components in their electrical
and refrigeration systems that can trigger explosions of flammable air-
vapor mixtures inside the unit.
Flammable Materials Storage (FMS) refrigerators/freezers are designed for
use in locations, which are not classified by the Authority Having
Jurisdiction (AHJ) as hazardous. Under normal operating conditions the
build up or presence of flammable vapors will not occur in the environment
external to the unit. (Commonly known as “Ordinary Locations”)
FMS units are NOT designed for use in Class I, Division 1, Groups C
and D environments, which require an Explosion- Proof
Refrigerator/Freezer.
FMS units are designed and evaluated by Underwriters Laboratories (UL)
to meet the requirements of the National Fire Protection Association
Standards Nos. 45, 70 and 99. These units have no internal electrical
components that could trigger an explosion or fire of hazardous materials
inside the unit.
These units are ideal for storing cyclopropane, ethyl ether, ethylene,
acetone, alcohol, benzene, butane, gasoline, hexane, lacquer solvent
vapors, naphtha, natural gas or propane along with many other potentially
hazardous materials.
All models have heavy-gauge, rigid, steel construction with a durable
enamel finish. Interiors have epoxy enamel or ABS plastic construction.
Each unit is insulated throughout for energy-efficient operation.
WARNING: For FMS and EXP units where flammable
materials are stored in the cooling chamber, the cooling
chamber is considered a Class I Div1 or Class I Zone 1
hazardous location. Any monitoring devices placed in the
cooling chamber must have an intrinsically safe rating
from an appropriate certification body, such as UL, CSA, FM
etc. (this includes battery or solar powered devices).
Thermocouples for building monitoring systems must be wired
through an electrical barrier designed to provide isolation against
voltage and current spikes, which could cause a spark resulting
in fire or explosion. It is the end user's responsibility to meet
these requirements. Thermo Scientific cannot assist with the
selection of devices, recommend, approve or design any device
or monitoring circuit.
8

FLAMMABLE MATERIALS STORAGE UNITS
MODEL 05FFEETSA
21.3” Wide,
Features:
• 5.0 cubic ft. under-counter freezer
• Adjustable Mechanical thermostat
• UL Listed
• Magnetic gasket
• Hermetically-sealed compressor
• Manual defrost
• White color
• 3 Wired shelves and 3 door shelves
Model Freezer Chamber
Dimensions
H x W x D inches (cm)
Total Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05FFEETSA
29.5" x 18.63" x 19"
(74.9 x 47.32 x 48.2 cm)
5.0
33.13" x 21.38" x 29.5"
(84.15 x 54.3 x 74.93 cm)
Model Electrical
Characteristics
Volts/Hz, Amps
Freezer Temp. Range
°C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
05FFEETSA
115/60, 1.1 -24 to
-12
(-11.2 to
10.4)
90 (41)
95 (43)
NOTE: Amps listed are at normal run mode, starting amps may be higher.
9

General-Purpose Laboratory
Refrigerators and Freezers
Overview
These are general-purpose units available in all
refrigerators, all freezers and combination refrigerator/
freezer models. These units are intended for basic
laboratory use only. Storage of high-value, life
science materials or clinical biological materials may
require alarm, monitoring, back-up and temperature
performance features. The need to add these features
should be determined by your industrial hygienist or
safety officer. These units are not suitable for
corrosive environments.
WARNING: DO NOT store flammable materials in
General Purpose Laboratory Refrigerator / Freezers.
Risk of explosion, fire and injury may occur.
For flammable materials use either a Flammable
Material Storage Unit or an Explosion Proof Unit.
10

GENERAL PURPOSE LABORATORY UNITS
MODEL 05LFEETSA
21.3” Wide,
Features:
• 5.0 cubic ft. under-counter freezer
• Adjustable Mechanical thermostat
• UL Listed
• Magnetic gasket
• Hermetically-sealed compressor
• Manual defrost
• White color
• 3 Wired shelves and 3 door shelves
Model Freezer Chamber
Dimensions
H x W x D inches (cm)
Total Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05LFEETSA
29.5" x 18.63" x 19"
(74.9 x 47.32 x 48.2 cm)
5.0 33.13" x 21.38" x 25.75"
(84.15 x 54.3 x 65.4 cm)
Model Electrical
Characteristics
Volts/Hz, Amps
Freezer Temp. Range
°C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
05LFEETSA
115/60, 1.1 -24 to
-12
(-11.2 to
10.4)
90 (41)
95 (43)
NOTE: Amps listed are at normal run mode, starting amps may be higher.
11

GENERALPURPOSE LABORATORY UNITS
MODEL 02LREETSA
18.63” Wide,
Cube Size Refrigerator
Reversible Door Swing
Features:
• Adjustable thermostat
• Manual
defrost
• Front-mounted lock
•
1 interior shelf
• 100% CFC free
• Cold wall design
Model Refrigerator Chamber
Dimensions
H x W x D inches
(cm)
Total Vol.
Cu. Ft.
Exterior
Dimensions
H x W x D inches
(cm)
02LREETSA 15.5" x 16" x 14"
(39.37 x 40.64 x 35.56 cm)
1.8 19.0" x 18.63" x 17.25"
(48.26 x 47.32 x 43.81 cm)
Model Electrical Characteristics
Volts/Hz, Watts,
Amps
Refrig. Temp. Range
°C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
02LREETSA
115/60, 87,1.2 1° to
8°
(33.8° to
46.4°)
38 (17)
55 (25)
NOTE: Amps listed are at normal run mode, starting amps may be higher.
12

Unpacking and Installation
Shipping Carton
This should be inspected upon delivery. When received,
carefully examine for any shipping damage before
unpacking. If damage is discovered, the delivering carrier
should both specify and sign for the damage on your copy
of the delivery receipt.
Open the carton carefully making certain that all parts are
accounted for before packaging materials are discarded.
After unpacking, if damage is found, promptly report it to
the carrier and request a damage inspection promptly.
IMPORTANT: Failure to request an inspection of
damage within a few days after receipt of shipment
absolves the carrier from any liability for damage. You
must call for a damage inspection promptly.
Unpacking
Use the list below when unpacking to verify that the
complete unit has been received. Do not discard packing
materials until all is accounted for.
The following items are included in the shipment:
Refrigerator/Freezer
Operation Manual
Inspection Tag
Location
Place the unit on a floor that is strong enough to support
the unit when it is fully loaded. To level the unit, adjust the
leveling legs at the bottom. To level the unit, the leveling
legs can be either turned clockwise to raise that side of the
unit, or turn counter-clock wise to lower that side. Locate
the unit away from direct sunlight and sources of heat
(heater etc). Locate the unit in most convenient place and
near a grounded electrical outlet.
Clearance
For 02LREETSA
Allow 4" of space on the sides and the same amount of
space between the back and the wall. Allow at least
1.25" above the top of the unit.
For 05EFEETSA, 05FFEETSA, 05LFEETSA models:
Allow 1" of space on the sides. Allow at least 4" above the
top of the unit and the same amount of space between the
back and the wall.
13

14
INSTALLATION
Caution
DO NOT REMOVE, under any
circumstance, the grounding
prongs from the 3-prong power
cord supplied with all units.
Caution
DO NOT USE electrical
extension cords that may
result in voltage loss and
possible hazardous operation.
Warning
Explosion-proof units do not
come with line cords. They
require rigid conduit to be run
directly in order to seal off the
fitting on thermostat housing.
This should be done by a
licensed electrician and follow
all local electrical codes.
If any questions pertaining to
electrical safety arises, please
refer to article 501 of the
National Electrical Code.
Electrical
Units must be connected to a grounded outlet matching the
nameplate and/or the information furnished in this manual.
If you are not sure about the outlet, you should contact a
qualified electrician for assistance.
The unit should always be connected to its own individual outlet.
Be Advised
WARNING: UNLESS UNIT IS SPECIFICALLY
DESIGNED FOR COMBUSTIBLE OR FLAMMABLE
ATMOSPHERES DO NOT USE IN THE PRESENCE OF
FLAMMABLE OR COMBUSTIBLE MATERIALS OR
EXPLOSIVE GASES. DO NOT USE IN THE PRESENCE OF
PRESSURIZED OR SEALED CONTAINERS— FIRE OR
EXPLOSION MAY RESULT CAUSING DEATH.
CAUTION: BEFORE CONNECTING THE FINAL POWER
SUPPLY, CHECK THE ELECTRICAL CHARACTERISTICS
OF THE UNIT NAMEPLATE TO SEE THAT IT IS IN
AGREEMENT WITH THE POWER SUPPLIED. IN ADDITION,
POWER SHOULD BE WIRED TO THE UNIT ACCORDING
TO THE ELECTRICAL SCHEMATIC AND ALL APPLICABLE
CODES. ONLY QUALIFIED ELECTRICIANS SHOULD WORK
ON THE ELECTRICAL PORTION OF ANY UNIT
INSTALLATION.
CAUTION: STORAGE BY USER OF ANY MATERIALS IN THE
PRODUCT THAT MAY CAUSE A DETERIORATION OF THE
PRODUCT SHALL BE DEEMED TO CONSTITUTE
ABNORMAL AND IMPROPER USAGE OF THE PRODUCT
FOR PURPOSES OF THIS WARRANTY.
WARNING: RISK OF CHILD ENTRAPMENT! Before you
discard your old refrigerator or freezer:
•Remove door(s),
•Leave the shelves in place so that children may not
easily climb inside.

15
INSTALLATION
How to Seal Junction Box Conduit with Fiber
and Sealing Compound to Help Protect
Against Explosions (Explosion-Proof Units
Only):
The purpose of the procedure that follows is to build fiber rope
dams on the top and bottom hubs of the vertical conduit. The
fiber rope da m ns w
ill surround con
duit wiri ng t hat is hous ed
inside the vertical condu it.
When both the top and bottom fiber rope dams have been
pressed into place, sealing compound is poured between the
two and form s into an airtight plu g.
All of thi
s is done in order to preve
nt the very real threat of
gas entering the junction box and a resulting serious
explosion.
After the unit wir es hav e be en pu
l led throu
gh the vertical
conduit the following procedure is required:
•Turn power o
ff at the cir
cui t breaker before
proceeding.
•Place a sm
all amount of sealing compound
granules, enclosed, into a clean mixing vessel. Add
s m all am ounts of w ater whil e stirring un til a thick
pas te is formed
, then caref
ully con
tinue adding
smaller am ou nts of water until a th ick grav y
consistenc y is achiev ed— NOT WA
TERY. Dis
card
any material tha t becom es too sti ff to us e. Never
attempt to r
es tore workability by stirring in more
water.
•Locate junction box, back/top-center of unit.
•Unscr
ew con duit do med- cover.
Figure 1: Sealing the Junction Box

16
INSTALLATION
Figure 2: Conduit, Cutaway
•Insert fiber rope material down into vertical conduit opening. Pressing down firmly, work the material into
the top hub and the bottom hub and—most importantly—being sure the material COMPLETELY SURROUNDS
THE WIRING, from the top to the bottom, completely blocking this end of the vertical conduit.
Insert fiber rope material down into horizontal conduit opening. Pressing down firmly, work the material into
the left hub and the right hub and—most importantly—being sure the material COMPLETELY SURROUNDS
THE WIRING, from the top to the bottom, completely blocking this end of the horizontal conduit.
•

17
INSTALLATION
•Pour sealing compound down in between the two fiber rope dams filling the remaining space. Pour slowly,
being careful not to trap air bubbles. Immediately wipe off any spilled sealing compound.
•Screw conduit domed-cover back onto conduit opening.
NOTE: INITIAL SETUP OF SEALING COMPOUND WILL OCCUR IN APPROXIMATELY 30
MINUTES HOWEVER, THE SEALING COMPOUND REQUIRES A MINIMUM OF 8 HOURS ABOVE
32ºF TO DEVELOP SUFFICIENT STRENGTH TO WITHSTAND EXPLOSIONS.

18
Operation
EnvironmentalOperating Conditions
2
II
2000 Meters MSL (Mean Sea Level)
80% maximum, non-condensing
115V 60Hz AC
±10% of normal rated line
16ºC to 32ºC
This product is intended for use indoors only
POLLUTION DEGREE*:
INSTALLATION CATEGORY*:
ALTITUDE:
HUMIDITY:
ELECTRICAL SUPPLY:
VOLTAGE TOLERANCE:
AMBIENT TEMPERATURE RANGE:
PRODUCT USAGE:
*Refer to IEC 664-1
Temperature Control
The freezer temerature can be adjusted by the
Cold Control Knob. Freezer temperature will
become lower as the control Knob is set
closer to the "MAX" position.
