Thermo Scientific MaxQ SHKA4000 User manual

MQ 7000 Sh k
Visit us online to register your warranty
www.thermoscientific.com/labwarranty
User Manual
MaxQ 4000 Incubated and
efrigerated Shakers
Models SHKE4000 and SHKA4000
Operating Manual and Parts List 057-287-00 (7004342) Rev. 16

Thermo Scientific
MANUAL NUMBE 057-287-00 (7004342)
16 40722 7/10/17 Added gas springs section to Maitinence bpg
15 41343 5/02/17 Added F-Gas statement, removed declaration of certification bpg
14 40673 4/20/17 Updated voltage information bpg
13 40453 9/13/16 Circuit breaker P/N in Replacement Parts from 330-250 & 330-399 to 330-138-00 ccs
12 40139 4/15/15 Updated warranty information ccs
11 31361 7/18/14 Removed CE reference from pg 2-5 ccs
10 31164/OS-775 7/9/14 Added care and cleaning of acrylic lid to Section 3 ccs
9 30954 4/10/14 Updated Setting TImer for Continuous Shaking Step 3 - pg 5-6 ccs
Preface
Incubated and Refrigerated Shakers i
Models covered in this manual
Model number Voltage
SHKA4000 (4320) 120V
SHKA4000-1CE (4321) 220-240V
SHKA4000-5 (4322) 120V
SHKA4000-6CE (4323) 220-240V
SHKA4000-7 (4338) 120V
SHKA4000-8CE (4339) 220-240V
SHKE4000 (4328) 120V
SHKE4000-1CE (4329) 220-240V
SHKE4000-5 (4330) 120V
SHKE4000-6CE (4331) 220-240V
SHKE4000-7 (4342) 120V
SHKE4000-7 PN (4343) 100V
SHKE4000-8CE (4344) 220-240V

Thermo Scientificii Incubated and Refrigerated Shakers
Preface
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
CAUTION
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject
to change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
©2010 Thermo Fisher Scientific. All rights reserved.

Thermo Scientific Incubated and Refrigerated Shakers iii
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
ot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
WEEE Compliance: Thermo Fisher Scientific has contracted with companies for recycling/disposal in
each EU Member State. For further information, send an email to [email protected].
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Thermo Scientificiv Incubated and Refrigerated Shakers
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermofisher.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Pagewww.unitylabservices.com
Our staff can provide information on pricing and give you quotations. We canSales Support
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation orService Support
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
Thermo Fisher Scientific (Asheville) LLC
401 Millcreek Road, Box 649
Marietta, OH 45750
International customers, please contact your local Thermo Scientific distributor.

Incubated and Refrigerated Shakers vThermo Scientific
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

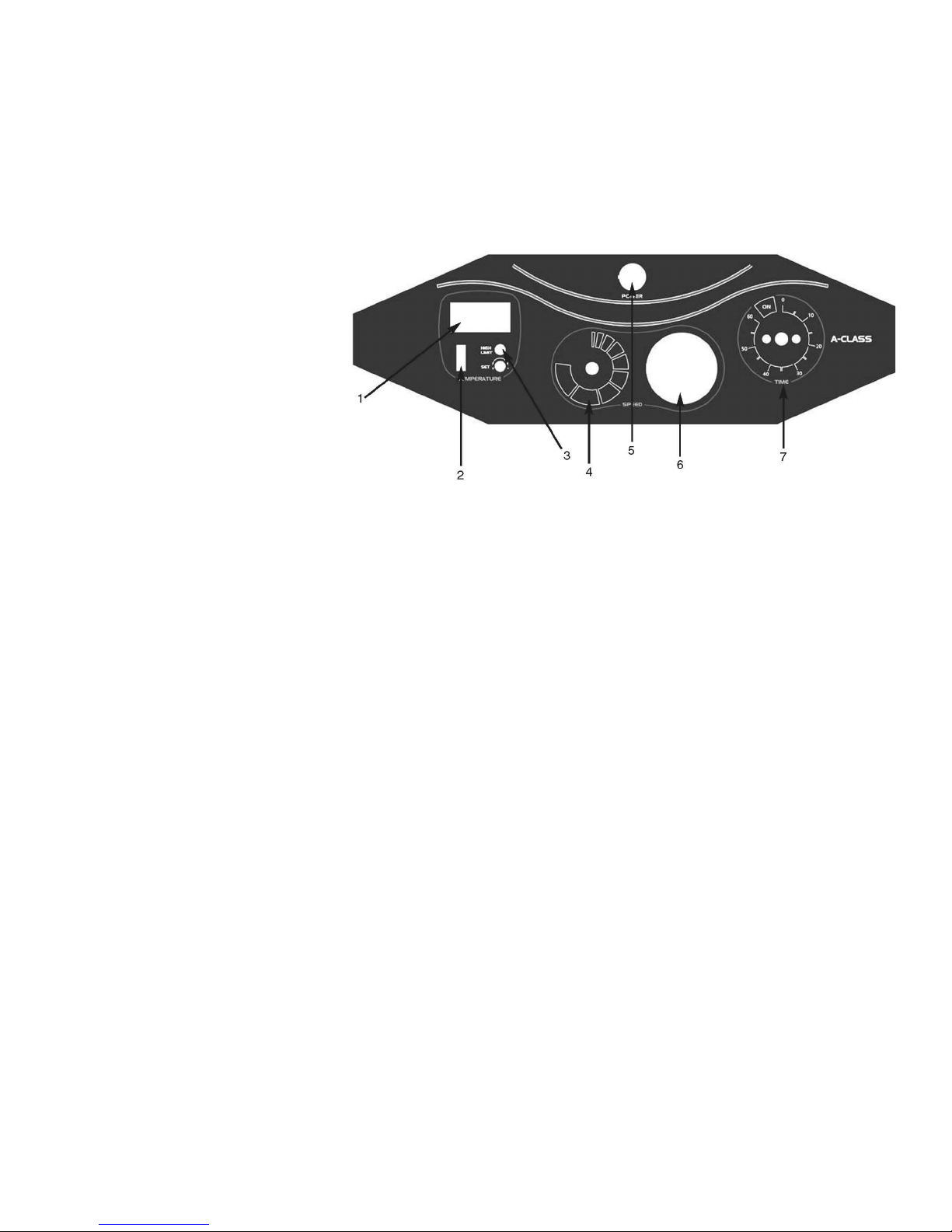

Control Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
A-Class Control Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
E-Class Control Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Unpacking and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Platform Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Test Tube Rack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Flask Clamp Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
A-Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Temp Controller -Setting Temperature . . . . . . . . . . . . . . . . . . . . . . . 5-2
Temperature Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
E-Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Temperature Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
AC Power Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
Setting Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Setting Timer for Continuous Shaking . . . . . . . . . . . . . . . . . . . . . . . 5-6
Setting Timer for Timed Shaking . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
RS232 Communication Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-7
RS232 Interface Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Setting igh-Limit Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Optional Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Setting Low-Limit Control (Refrigerated) . . . . . . . . . . . . . . . . . . . . . 5-9
Optional Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Defrost Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Section 1
Section 2
Section 3
Section 4
Section 5

vi Incubated and Refrigerated Shakers Thermo Scientific
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Gas Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Platform Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Platform Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
For A-Class Series Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Care and Cleaning of Acrylic Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
eplacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Ordering Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Table of Contents
Section 6
Section 8
Section 7

Incubated and Refrigerated Shakers 1-1Thermo Scientific
Section 1 Safety Information
This manual contains important operating and safety information. The
user must carefully read and understand the contents of this manual prior
to the use of this equipment.
Your Thermo Scientific MaxQ 4000 Shaker has been designed with
function, reliability, and safety in mind. It is your responsibility to install
it in conformance with local electrical codes. For safe operation, pay
attention to Notes, Cautions, Warnings throughout the manual.
Wa nings
To avoid electrical shock, always:
1. Use a properly grounded electrical outlet of correct voltage and current
handling capacity.
2. Disconnect from the power supply prior to maintenance and servicing.
To avoid pe sonal inju y:
1. Do not use in the presence of flammable or combustible materials; fire
or explosion may result. This device contains components which may
ignite such materials. Not rated for use in hazardous atmospheres.
2. Wear appropriate eye and hand protection when handling hazardous
chemicals.
3. Refer servicing to qualified personnel.
4. Do not modify construction and/or assembly of equipment.
5. Do not remove tags, labels, decals, or other information from the unit.
6. Stand clear of equipment when it is operating.
7. If shaking action will result in the evolution of gases or fumes, carry
out the operation in a well-ventilated laboratory hood.

1-2 Incubated and Refrigerated Shakers Thermo Scientific
Section 1
Safety Information
To avoid pe sonal inju y (continued):
8. Use equipment only for its intended purpose. Use only the accessories
and attachments that are shipped with the equipment or are specified
for it. Substituting other attachments or accessories can produce
hazards or make the unit inoperative.
9. Perform regular maintenance service as specified in this manual and
keep unit in good repair. Do not operate with known defects.
10. Do not use the shaker to mix flammable materials or where the
transfer of mechanical energy to glass could cause glass breakage.

Incubated and Refrigerated Shakers 2-1Thermo Scientific
Section 2 General Specifications
Model
number
All Analog
“A” Series units
All Analog
“A” Series units
All Digital
“E” Series units
All Digital
“E” Series units
Exterior Unit Dimensions
Length 32” (81.3 cm) 32” (81.3 cm) 32” (81.3 cm) 32” (81.3 cm)
Width 22.5” (57.2 cm) 22.5” (57.2 cm) 22.5” (57.2 cm) 22.5” (57.2 cm)
Height 22” (55.9 cm) 22” (55.9 cm) 22” (55.9 cm) 22” (55.9 cm)
Electrical - Standard Temperature
Voltage AC 120 220-240 120 220-240
Amperage 5.0 3.0 5.0 2.5
Wattage 625 725 625 625
Frequency 60 50/60 60 50/60
High Temperature
Voltage AC 120 220-240 120 220-240
Amperage 9.0 5.0 9.0 4.5
Wattage 1100 1200 1100 1100
Frequency 50/60 50/60 50/60 50/60
efrigerated
Voltage AC 120 220-240 120 220-240
Amperage 14.0 7.0 14.0 7.0
Wattage 1500 1500 1500 1500
Frequency 60 50 60 50

2-2 Incubated and Refrigerated Shakers Thermo Scientific
Section 2
General Specifications
Model number All Analog
“A” Series units
All Analog
“A” Series units
All Digital
“E” Series units
All Digital
“E” Series units
Speed Accuracy 40 to 400 rpm, ±10 rpm 40 to 400 rpm, ±10 rpm 15 to 500 rpm, ±1 rpm 15 to 500 rpm, ±1 rpm
Timer Continuous or timed opera-
tion from 1-60 min.
Continuous or timed opera-
tion from 1-60 min.
Continuous or timed operation
0.1-999 hours or 0.1-999 mins.
Continuous or timed operation
0.1-999 hours or 0.1-999 mins.
Display
3 individual LED displays
indicate temperature in 1°C
increments. Analog
tachometer displays speed
in rpm.
3 individual LED displays
indicate temperature in 1°C
increments. Analog
tachometer displays speed
in rpm.
3 individual LED displays indi-
cate temperature, time and
speed simultaneously. 3 charac-
ters height 1/2 inch (1.27 cm)
3 individual LED displays indi-
cate temperature, time and
speed simultaneously. 3 charac-
ters height 1/2 inch (1.27 cm)
Mutable Alarms None None
Audible portion of the alarm
can be silenced for a period of
1 hour without deactivating the
actual alarm condition by
depressing any key.
Audible portion of the alarm can
be silenced for a period of 1
hour without deactivating the
actual alarm condition by
depressing any key.
Motor Permanent Magnet DC Permanent Magnet DC Solid State Brushless DC Solid State Brushless DC
Soft Start Feature None None Software algorithms prevent
sudden start/stops.
Software algorithms prevent
sudden start/stops.
RS232 Interface * None None Monitor speed, temperature in
°C and time with a computer.
Monitor speed, temperature in
°C and time with a computer.
Recorder Output * None None
10 mv/°C output monitors tem-
perature with external chart
recorder.
10 mv/°C output monitors tem-
perature with external chart
recorder
Intended Use
Orbital shakers are designed to provide increased aeration in a stable
temperature environment.
Unintended Use
1) Not intended for use in Class I or II applications as defined in 21 CFR
2) Not intended for mixtures of flammable materials

Incubated and Refrigerated Shakers 2-3Thermo Scientific
Section 2
General Specifications
Optional Platform Dimensions - in. (cm)
Catalog Number L xW
30110 Universal 18” x 18” (45.7 x 45.7 cm)
Model number All Analog
“A” Series units
All Analog
“A” Series units
All Digital
“E” Series units
All Digital
“E” Series units
Speed None None
Audible with flashing
LED indicate when
speed deviates more
than 10% of set point.
Audible with flashing
LED indicate when
speed deviates more
than 10% of set point
Speed Shut off None None
When speed deviates
10% of set point, unit
will shut down immedi-
ately.
When speed deviates
10% of set point, unit
will shut down immedi-
ately.
Timer None None
Beeps twice when
time has expired.
Shaking motion stops.
Beeps twice when
time has expired.
Shaking motion stops.
Unbalanced Load None None
If the unit is running
in an unbalanced con-
dition, an alarm will
sound and the shaker
will stop until the end
user corrects the condi-
tion. The speed display
will flash “bAL” on
speed panel LED.
If the unit is running
in an unbalanced con-
dition, an alarm will
sound and the shaker
will stop until the end
user corrects the condi-
tion. The speed display
will flash “bAL” on
speed panel LED.

The MaxQ 4000 series of bench top, incubated and refrigerated shakers
are available in either analog or digital control configurations:
• A-Class shakers: S KA4000, S KA4000-1CE, S KA4000-5,
S KA4000-6CE, S KA4000-7, S KA4000-8CE: control
temperature by a Proportional/Integral/Derivative (PID)
microprocessor-based controller. Solid-state control maintains time and
speed and is adjustable with rotary dials. Analog tachometer displays
speed in RPM, verifying accuracy of speed setting. Refrigerated units
feature environmentally safe CFC free insulation and coolant.
• E-Class shakers: S KE4000, S KE4000-1CE, S KE4000-5,
S KE4000-6CE, S KE4000-7, S KE4000-8CE: control
temperature, time and speed by a Proportional/Integral/Derivative
(PID) microprocessor-based controller that is adjustable with switches
on a keypad in 1 rpm increments. Refrigerated units feature
environmentally safe CFC free insulation and coolant. Flashing display
indicates power interruption. Pressing any key will clear display. Non-
volatile memory maintains speed and time set points in the event of a
power interruption. Speed and time set points are automatically
reactivated after power is restored.
• Temperature range and accuracy follow. All units have a uniformity of
±0.5°C at 37°C in flask:
Standa d Tempe atu e: S KA4000, S KA4000-1CE, S KE4000,
S KE4000-1CE,
10°C above ambient to 60°C, ±0.1°C at 37°C in flask.
High Tempe atu e: S KA4000-5, S KA4000-6CE, S KE4000-5,
S KE4000-6CE,
10°C above ambient to 80°C, ±0.1°C at 37°C in flask.
Ref ige ated: S KA4000-7, S KA4000-8CE, S KE4000-7,
S KE4000-8CE,
15°C below ambient to 60°C, ±0.1°C at 37°C in flask. Refrigeration
system needs to be turned off whenever the set point is at or above
32°C.
2-4 Incubated and Refrigerated Shakers Thermo Scientific
Section 2
General Specifications

In addition, all versions offer:
• Space efficient tubular heaters.
• Drive interrupt halts shaking action when lid is opened.
• All set points are retained by non-volatile memory that automatically
reactivates after power is restored.
• Visual, user adjustable over-temperature safety signal with independent
thermostat controls the heat if main controller fails.
• 3/4 inch (1.9 cm) triple eccentric orbital drive.
• 6 permanently lubricated ball bearings.
• 50 lb (22.7 kg) platform load capacity at safe speeds less than 400 rpm
for A-Class shakers and less than 500 rpm for E-Class shakers.
Envi onmental Ope ating Conditions
Pollution Degree 2**
Installation Category II**
Altitude . . . . . . 2000 meters MSL (Mean Sea Level)
Relative umidity . . .20% to 80% maximum, non-condensing
Electrical Supply . . . . . . . . . . 120 VAC or 240 VAC
Voltage Tolerance . . . . . . +10% of normal rated line
Temperature . . . . . . . . . . . . . . . . . . . . 15°C to 32°C
Product Usage . . . . . . . . . . . . . . . . . Indoor use only
**Refer to IEC 664-1
Caution Operation of the shaker in a CO2 enriched atmosphere is not
recommended. The formation of carbonic acid could cause electrical
failures. s
Incubated and Refrigerated Shakers 2-5Thermo Scientific
Section 2
General Specifications

Fluorinated Greenhouse Gases
Compliant with REGULATION (EU) No 517/2014 OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL on fluorinate greenhouse gases.
This pro uct contains fluorinate greenhouse gases in a hermetically seale
system. If a leak in the seale system is etecte , the operator shall repair
without un ue elay.
The following mo el is esigne for use with the following amounts of flu-
orinate greenhouse gases:
Decla ation of Confo mity
Copies of the Declaration of Conformity are available upon request.
2-6 Incubated and Refrigerated Shakers Thermo Scientific
Section 2
General Specifications
Model Refrigerant Amount (kg) GWP
S KE4000-8CE R-134a 0.227 1430

Incubated and Refrigerated Shakers 3-1Thermo Scientific
Section 3 Control Panels
1. Temperature Controller: Maintains chamber temperature.
2. Temperature Switch: Activates heater-allowing controller to maintain
temperature.
3. Temperature igh-Limit Light: Illuminates when high limit
thermostat is controlling chamber temperature.
4. Speed Control: Sets platform rotation speed.
5. Power Switch: Turns power on and off to shaker.
6. Speed Tachometer: Analog display of platform rotation speed.
7. Time(r): Allows user to choose either continuous or timed operation.
A-Class Control Panel
Features
Figure 3-1. A-Class Control Panel

3-2 Incubated and Refrigerated Shakers Thermo Scientific
Section 3
Control Panel Operation
E-Class Control Panel
Features
1. Speed Display: 3 digit LED indicates actual or set point speed
2. Up Arrow Key: Increases platform rotation speed
3. Down Arrow Key: Decreases platform rotation speed
4. Speed Light: Red light Illuminates when a locked rotor or over-speed
condition exists
5. RPM Light: Illuminates to indicate actual speed
6. Set RPM Light: Illuminates when speed is being set
7. Stop Switch: Stops platform rotation
8. Start Switch: Starts platform rotation
9. Power Switch: Turns power on and off to shaker
10. Up Arrow key: Increases shaking time
11. Down Arrow key: Decreases shaking time
12. Time(r) Display: 3 digit LED indicates time remaining or elapsed time
13. Set Time: Illuminates when time is being set
14. Timer/Elapsed: Allows the user to choose elapsed time operation,
elapsed, or timed operation, timer.
15. ours/Minutes Switch: Allows user to choose timing operation in
either hours or minutes
Figure 3-2. E-Class Control Panel

Incubated and Refrigerated Shakers 3-3Thermo Scientific
Section 3
Section title
16. Minutes: Timer indicates minutes
17. ours: Timer indicates hours
18. Elapsed Timer Light: Indicates accumulated time
19. Temperature Display: 3 digit LED indicates chamber temperature
20. Up Arrow Key: Increases temperature
21. Down Arrow Key: Decreases temperature
22. igh-Limit Light: Indicates high-limit control has been activated
23. Water Light: This display has no function on this unit
24. eat On Light: Indicates heaters are energized
25. Set Temp Light: Indicates temperature can be set
26. eat On Switch: Turns on heat
27. eat Off Switch: Turns off heat
E-Class Control Panel
Features (continued)

Incubated and Refrigerated Shakers 4-1Thermo Scientific
Section 4 Unpacking and Installation
The shipping carton should be inspected upon delivery. When received,
carefully examine for any shipping damage before unpacking. If damage is
discovered, the delivering carrier should specify and sign for the damage on
your copy of the delivery receipt.
Open the carton carefully making certain that all parts are accounted for
before packaging materials are discarded. After unpacking, if damage is
found, promptly report it to the carrier and request a damage inspection
properly.
Important Failure to request an inspection of damage within a few days
after receipt of shipment absolves the carrier from any liability for damage.
Call for a damage inspection promptly.
Use the packing list below when unpacking to verify that the complete
unit has been received. Do not discard packing materials until all is
accounted for.
The following items are included in the shipment:
Inspection Tag- 528-028-00
Mounting Plate Mat- 790-316-13
Thumbscrew Knob (4) - 562-184-10
Male Connector (E-class only)- 420-359-00
If any items are missing, contact Technical Services.
Put the shaker on a level table or bench capable of supporting the weight
of the shaker with any accessories while in operation. Place shaker near an
electrical outlet that matches the unit nameplate requirements. Allow
approximately 2” (5 cm) of clearance around the unit for free air
convection, accessory attachments and user convenience. Shakers with
refrigeration should be placed near an accessible drain. Route the drainage
tube on the back of the unit to this drain.
Unpacking
Location

4-2 Incubated and Refrigerated Shakers Thermo Scientific
Section 4
Unpacking and Installation
Electrical
equirements
S KA4000 and S KE4000 Series shakers require a 120VAC, 60 z
power source. They are supplied with a 3-wire line cord and should be
plugged into an outlet designed for 3-prong plugs. If an extension cord is
used, it also should be the 3-wire grounded type. For an outlet designed to
accept 2-prong plugs (ungrounded), it is required that a qualified
electrician replaces the outlet with a new, grounded type.
S KA4000-1CE and S KE4000-1CE Series shakers require a 220-
240VAC, 50/60 z power source. Power cords are supplied.
If a plug must be installed, use only the 3-prong grounded type, rated for
the unit load requirements and matching the power outlet. Make sure the
green ground wire is secured to the plug ground terminal.
To eliminate hazard of electrical shock, make sure floor around shaker is
dry. In the event of accidental spilling or splashing of liquids, clean up
and/or neutralize the spilled liquids before continuing.
Disconnect the shaker from the power source when not in use.
Warning Do not operate shaker with a damaged electrical cord. s
1. Select the appropriate platform for the vessels to be shaken. A wide
variety of platforms and accessories are available:
• Dedicated platforms have the maximum number of flask clamps
attached for safe operation.
• Combination platforms allow the user to shake a wide variety of
different sized vessels on the same platform.
2. Carefully position the platform horizontally over the shaker’s mounting
plate, aligning the 4 mounting holes.
3. Position one of the thumbscrews provided through each of the 4-
platform mounting holes and tighten securely.
Caution Do not operate shaker with an unbalanced load. Platforms should
be loaded for optimum stability and operation. Do not lift shaker by the
platform. s
Platform Installation
