Thermo Scientific MF02PA-SAEE-TS User manual

Thermo Fisher Scientific General Purpose-Counter Top Series
Laboratory Freezers
User Manual
General Purpose Models: MF02PA-SAEE-TS
327905H01 Rev. B October 2016
Visit us online to register your warranty
www.thermofisher.com

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in
damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are subject
to change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising from or related to
the use of this manual.
© 2016 Thermo Fisher Scientific Inc. All rights reserved.

Table of Contents
Table of Contents
Intended Use and Special Warnings ......................................2
Positioning & Safely Using your GP Series Freezer.............3
Transporting & Moving your GP Series Freezer.................4
Energy Saving Tips..................................................................4
Important Information............................................................5
Product Information................................................................6
Environmental Operating Conditions ..................................6
Product Details.........................................................................7
Controller Overview & Operation.........................................8
Anticipated Operational/Field Environment ........................8
Default Settings.................................................................... 9
Viewing & Resetting Minimum &
Maximum Temperatures...................................................... 9
Changing Factory Set Point ...............................................10
Switching Temperature Scale Between Celsius (°C) and
Fahrenheit (°F) ...................................................................10
Changing Remote Alarm Contacts ....................................11
Warning Alarms ....................................................................12

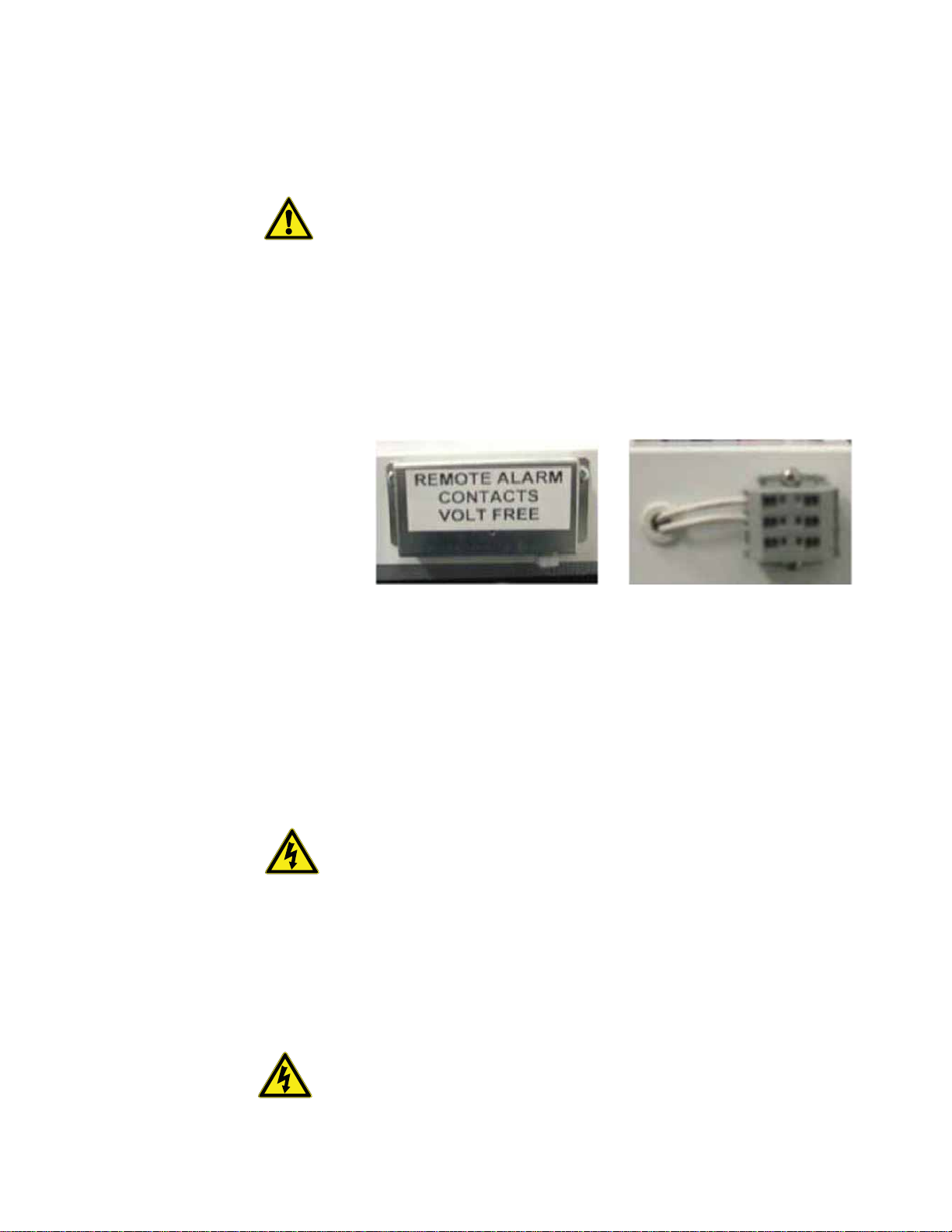

Remote Alarm Contacts........................................................13
Access Port..............................................................................14
Maintenance & Service Of Your GP Series Freezer..........15
Defrosting ...........................................................................15
Cleaning .............................................................................16
Storage ...............................................................................16
Electrical Connection ............................................................17
Troubleshooting.....................................................................18

Thermo Fisher Scientific General Purpose Countertop Series User Manual 1
This symbol used alone indicates important operating instructions which
reduce risk of injury or poor performance of the unit. Please read the
manual completely before use.
In this manual, the words WARNING and CAUTION mean the following:
WARNING: A situation which, if not avoided, could result in serious
injury or death.
CAUTION: A situation which, if not avoided, may result in minor or
moderate injury, impaired performance, or damage to the equipment.
CAUTION: Before installing, using or maintaining this product, please be
sure to read this manual and product warning labels carefully. Failure to
follow these instructions may cause this product to malfunction, which
could result in injury or damage.
WARNING: Potential danger of electric shock which, if not avoided, could
result in serious injury or death.

Intended Use and Special Warnings
2 User Manual Thermo Fisher Scientific General Purpose Countertop Series
1 Intended Use and
Special Warnings This equipment is tested in compliance with established regulations and
then shipped ready for use. This equipment is intended for general purpose
cold storage and is not to be used in the presence of explosive gases or
mixtures and / or close to sources with high magnetic or electric fields.
WARNING: This unit is not a medical device, and it has not been
registered with a medical device regulatory body (e.g. FDA). The product
has not been evaluated for the storage of samples for diagnostic use, nor for
samples to be re-introduced into the body.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Thank you for purchasing this GP Series cold storage equipment. Before
you first use this laboratory freezer please carry out the following actions:
• Check that the freezer has not been damaged in any way during
transportation.
• If any damage is found it must be reported to your local dealer
immediately.
• Ensure all packaging has been removed, including cardboard,
polystyrene and any tape used to hold shelves in place for
transportation.
• The freezer has been cleaned prior to dispatch; however, we advise that it
should be cleaned using lukewarm water containing a mild detergent
and a soft cloth.
• We recommend that the freezer should be left in an upright position for
24 hours prior to switching on.
• This equipment is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the equipment by a person responsible for
their safety.
• Children should not be allowed to play with the equipment.

Positioning & Safely Using your GP Series Freezer
Thermo Fisher Scientific General Purpose Countertop Series User Manual 3
2 Positioning &
Safely Using your
GPSeries Freezer
CAUTION: To reduce the risk of the unit falling over, do not tip
beyond 10°.
• Make sure the equipment is placed in a dry, well ventilated site, away
from heat sources.
• The equipment must be placed on a level surface. If necessary, adjust the
feet on the product so the equipment remains level during operation.
• The equipment should have sufficient clearance around it to provide
adequate ventilation – 2'' at each side, 3'' at the rear and 1'' at the top.
• Before ANY maintenance activity, pull the plug out of the socket by
gripping the plug, DO NOT pull on the plug cord.
• DO NOT use extension cords.
• If the main power supply cord is damaged, it should be replaced by a
qualified service engineer.
• DO NOT attempt any repairs to the equipment yourself (apart from
those highlighted in the Maintenance and Service Section). Repairs
carried out by someone without the relevant training are putting their
personal safety at risk and will invalidate your warranty.
CAUTION: Use this equipment only in the way described in the product
literature and in this manual.
• Before using it, verify that this equipment is suitable for its intended use.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
• DO NOT modify system components, especially the controller. Use
Thermo Scientific exact replacement equipment or parts. Before use,
confirm that the product has not been altered in any way.
• Equipment must be properly grounded in conformity with National
and Local Electrical codes. Never connect the equipment to overloaded
power sources.
• Disconnect the unit from all power sources before cleaning,
troubleshooting, or performing other maintenance on the product or its
controls.

Transporting & Moving your GP Series Freezer
4 User Manual Thermo Fisher Scientific General Purpose Countertop Series
3 Transporting &
Moving your GP
Series Freezer
The freezer must always be moved in the vertical position. The cabinet must
not be tilted anymore than 10°. In the event that the cabinet is tilted more
than 10°, the power supply must not be connected until the equipment has
stood upright for at least 24 hours.
4 Energy Saving
Tips This equipment is cooled by energy-efficient R600a refrigerant. To keep
running costs as low as possible always:
• Position the equipment away from heat sources.
• Make sure the air can circulate freely around the equipment, don't block
ventilation grid.
• Ensure that products being stored are below room temperature before
placement inside the unit.
• Make sure the door is opened as little as possible while in use and closed
as quickly as possible to prevent unnecessary temperature fluctuations.

Important Information
Thermo Fisher Scientific General Purpose Countertop Series User Manual 5
5 Important
Information The freezer contains environment-friendly, non ozone depleting refrigerant
R600a. As R600a is a flammable gas, it is important to avoid damage to the
refrigeration circuit during transport and installation. If the refrigeration
circuit is damaged, avoid using a naked flame in the vicinity of the
equipment and connecting power to the equipment. Also make sure there is
good ventilation in the room. If you are in doubt, please contact your
supplier.
CAUTION: Keep ventilation openings, in the equipment enclosure or in
the built–in structure, clear of obstruction.
CAUTION: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
Note The power cord serves as the main disconnecting device.

Product Information
6 User Manual Thermo Fisher Scientific General Purpose Countertop Series
6 Product
Information This freezer has been designed and built with the intention of the product
being used within a laboratory and is designed to store contents between
-18°C to -30°C (-0.4°F to -22°F).
See below for specific product information:
6.1 Environmental
Operating Conditions
Model Height
Inches
(mm)
Width
Inches
(mm)
Depth
Inches
(mm)
Weight
lbs
(Kg)
Refrigerant
type Ambient/ Room
working
temperat
ure
No. of
shelves Door type
MF02PA-S
AEE-TS 20.8
(528) 18.7 (475) 19.7 (500) 37.4
(17) R600a 1 1 Solid
Pollution degree 2
Installation category II
Altitude 2000 m MSL (mean sea level)
Humidity max 80% -non condensing
Voltage tolerance ±10%
Ambient temperature 15°C to 32°C (59°F to 90°F)
Product usage Indoor use only

Product Details
Thermo Fisher Scientific General Purpose Countertop Series User Manual 7
7 Product Details
1. Lock
2. Electronic Controller
3. Door Handle
4. Wire Shelf
5. Plastic Tray
6. Adjustable foot (2 at front of equipment)
Contact your local representative for information on spare parts.

Controller Overview & Operation
8 User Manual Thermo Fisher Scientific General Purpose Countertop Series
8 Controller
Overview &
Operation
1. Menu
2. Lock keypad
3. Maximum temperature / Up
4. Power
5. Mute
6. Minimum temperature / Down
7. Set / Enter
8.1 Anticipated
Operational/Field
Environment
21 3
4567
Environment Units Nominal Minimum Maximum
Minimum Starting Temperature °C 15
Lab / Room Relative Humidity % RH 50 80
Lab / Room Temperature °C 20 15 32
Voltage “V” VAC 115 -10% +10%
Frequency “V” Hz 60
Design Life Expectancy years 7
Altitude Up to 2000 m
Fuse Rating 10A, 250V, High Breaking Capacity, Fast Acting
Transient Over Voltages Up to the levels of “overvoltage category II”
Pollution Degree Pollution degree 2 (in most cases)

Controller Overview & Operation
Thermo Fisher Scientific General Purpose Countertop Series User Manual 9
8.2 Default Settings
When prompted enter Password as “22”.
8.3 Viewing & Resetting
Minimum &
Maximum Temperatures
Parameter Description Default Setting
AL Low Temperature Alarm Threshold -30°C (-22°F)
AH High Temperature Alarm Threshold -11°C (12.2°F)
/5 Temperature Setting °C/°F 0 for °C
St Temperature Set Point -20°C ( -4°F)
r1 Maximum Set Point -19°C (-2.2°F)
r2 Minimum Set Point -21°C (-5.8°F)
rd Control Delta 2°C (35.6°F)
Function Press Hold button(s) down for Example
screen
To view Maximum temperature
N.B. Display maximum since last reset 3 seconds
To view Minimum temperature
N.B. Display minimum since last reset 3 seconds
To reset temperature
N.B. This will delete all previous values 3 seconds

Controller Overview & Operation
10 User Manual Thermo Fisher Scientific General Purpose Countertop Series
8.4 Changing Factory
Set Point (The set point is the point at which the normally unit holds the temperature
at; in rare circumstances such as high/low room temperatures it may be
necessary to adjust this slightly. Changing the factory setting is not
recommended.)
8.5 Switching
Temperature Scale
Between Celsius (°C) and
Fahrenheit (°F)
Function Press Hold button(s)
down for Example screen
To change
the set point 3 seconds
followed by Once
followed by 1 second
followed by /
(Increase/Decrease) upto 10 times
followed by 1 second
followed by 5 seconds
Note: Set point can be increased or decreased in ± 0.1°C increments by a
MAXIMUM of 1°C.
Function Press Hold button(s)
down for Example screen
To change
temperature
scale 3 seconds
followed by Two times
followed by 1 second
followed by / Once
followed by 1 second
followed by 5 seconds

Controller Overview & Operation
Thermo Fisher Scientific General Purpose Countertop Series User Manual 11
8.6 Changing Remote
Alarm Contacts Function Press Hold button(s)
down for Example screen
To change the
alarm contact
state 3 seconds
followed by Three times
followed by 1 second
followed by / Once
followed by 1 second
followed by 5 seconds
Note: NO = Normally Open, NC = Normally Closed.

Warning Alarms
12 User Manual Thermo Fisher Scientific General Purpose Countertop Series
9 Warning Alarms This freezer has been designed to provide both an audible and visual alarm
should any of the following situations occur:
• Internal temperature goes outside the set parameters, either too high or
too low.
If these alarms occur, this can be muted by pressing on the controller.

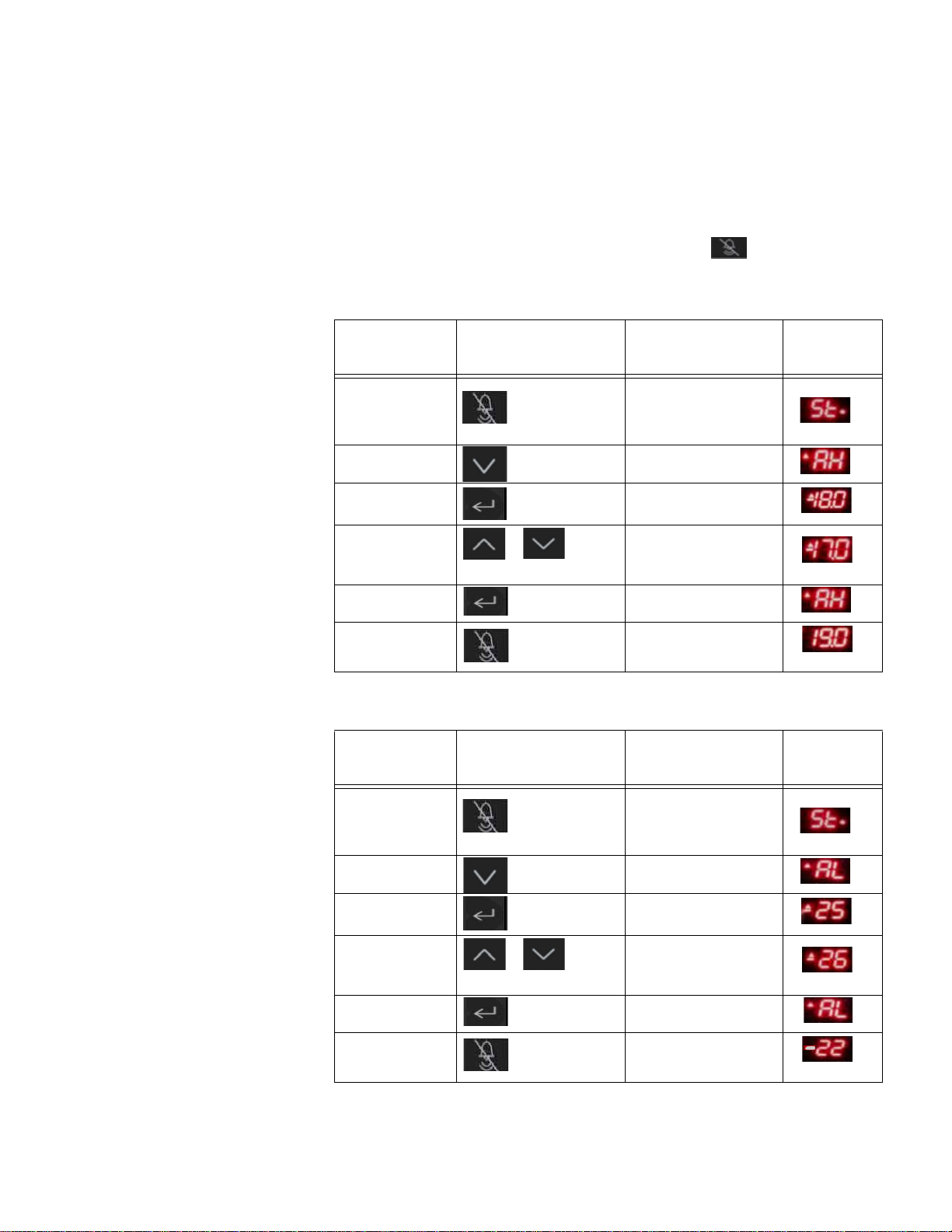

High Alarm Section:
Low Alarm Section:
Function Press Hold button(s)
down for Example screen
To change the
high alarm
setpoint 5 seconds
followed by 6 times
followed by 1 second
followed by /
(Increase/Decrease) Untill required high
alarm set point
followed by 1 second
followed by 5 seconds to go back
to standard display
Function Press Hold button(s)
down for Example screen
To change the
low alarm
setpoint 5 seconds
followed by 7 times
followed by 1 second
followed by /
(Increase/Decrease) Untill required low
alarm set point
followed by 1 second
followed by 5 seconds to go back
to standard display

Remote Alarm Contacts
Thermo Fisher Scientific General Purpose Countertop Series User Manual 13
10 Remote Alarm
Contacts All GP series laboratory freezers include remote alarm contacts and these
terminal contacts enable the user to connect to a remote control station;
these contacts can be found on the rear of the cabinet.
CAUTION: These contacts must only be accessed by a competent
electrician.
In order to use these contacts the following must be carried out:
1. The freezer MUST be disconnected from the power supply before
removing the terminal cover.
2. Unscrew the cover (Figure 1) on the right hand side of the rear of the
cabinet to expose the connectors (Figure 2).
3. Use the right hand outer positions that correspond to the left hand cable
positions for your connections using 0.75mm cable stripped to 0.6mm.
4. Depress the larger slot above the cable entrance on the right hand side
with a small electrical screwdriver. This allows the cable to be inserted
into the slot directly below.
WARNING: Note that the contacts supplied are voltage free. A voltage of
120VAC or 1 to 28VDC can be connected at the contacts. The maximum
load must not exceed 2A.
In a normal condition (i.e. no alarm) with the default menu settings, the
relay CLOSES the contact for the remote alarm facility. In an alarm
condition the relay OPENS the contact for the remote alarm facility. In the
case where the facility needs the contacts to close for an alarm condition,
refer to Section 8.6 for reversing the relay operation.
WARNING: For Alarm Remote Terminals any wiring connected to these
terminals shall be protected from mains voltage by reinforced or double
insulation.
Figure 1. Figure 2.

Access Port
14 User Manual Thermo Fisher Scientific General Purpose Countertop Series
11 Access Port All GP freezers are provided with Access port that is located at the rear of the
unit.
IMPORTANT NOTE These units are intended for General Purpose Cold
storage. In case critical samples are stored, we recommend the use of a independent
temperature monitoring system which continuously monitors freezer performance.
Internal View Rear View
Note The manufacturer recommends keeping the access port cap and plug in
place when the access port is not in use.

Maintenance & Service Of Your GP Series Freezer
Thermo Fisher Scientific General Purpose Countertop Series User Manual 15
12 Maintenance &
Service Of Your GP
Series Freezer

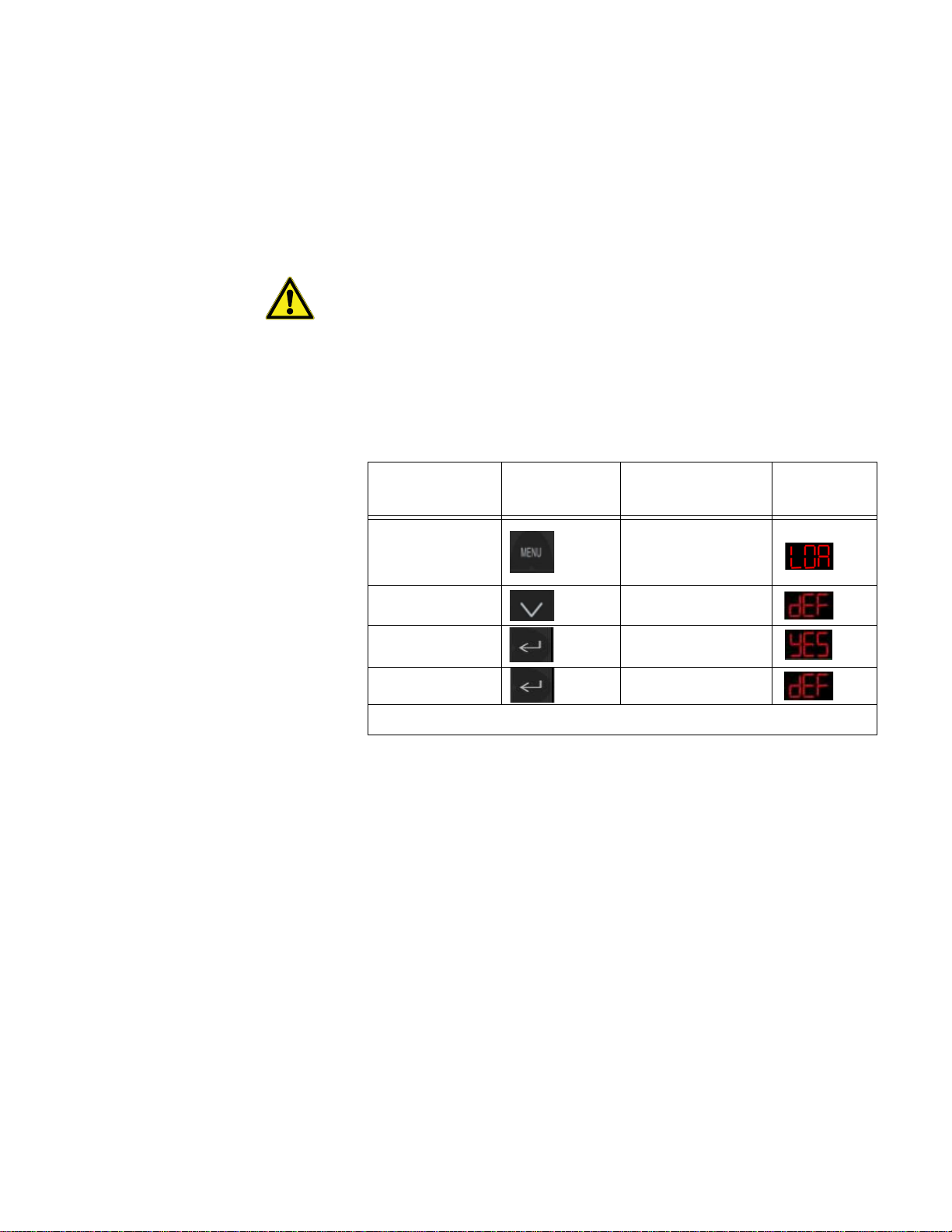

12.1 Defrosting
CAUTION: When defrosting your freezer, never use sharp or heavy tools
such as chisels or scrapers. Damage to the equipment can result. Let the ice
melt enough so that it can be easily removed.
Alternatively, a non-scheduled defrost can sometimes be carried out as
follows:
Function Press Hold button(s)
down for Example screen
To carry out a
non-scheduled
defrost 3 seconds
followed by Four times
followed by 1 second
followed by 1 second
N.B. This does not replace the automatic defrost function on relevant models.

Maintenance & Service Of Your GP Series Freezer
16 User Manual Thermo Fisher Scientific General Purpose Countertop Series
12.2 Cleaning • Your freezer should be cleaned regularly.
• Before cleaning you MUST switch off and disconnect your freezer from
the power supply.
• The whole freezer except the door gasket can be cleaned with mild
cleaning detergent.
• The door gasket should be cleaned with water only and wiped dry.
• The handle should be cleaned regularly with soap and water.
• Remove shelves and wipe with a soft cloth. DO NOT put them in a
dishwasher.
• Detergents containing abrasives or acids are not suitable for cleaning.
Do not use abrasive scouring powders, waxes, solvents, furniture polish,
undiluted detergents or cleansers containing petroleum products on the
surfaces of units.
• Use 2 tablespoons of baking soda in 1 quart of warm water.Be sure to
wring excess water out of sponge or cloth before cleaning around
controls, light bulb or any electrical parts.
• When all cleaning has been completed and accessories replaced,
reconnect the plug with dry hands.
12.3 Storage If the freezer is to remain unused for a period of time (e.g. during
refurbishment work) switch the equipment off by pressing the power button
and disconnect the power supply to the cabinet at the wall socket. It is also
advised that the equipment is unplugged from the power supply. Empty,
defrost and clean the freezer. Make sure the door is left slightly ajar to
prevent any bad odors forming within the cabinet.

Electrical Connection
Thermo Fisher Scientific General Purpose Countertop Series User Manual 17
13 Electrical
Connection The equipment is intended for connection to alternating current. The
connection values for voltage (V) and frequency (Hz) are declared on the
name plate in the cabinet. Power must be connected via a wall socket with a
switch. It is strongly recommended that the wall socket is easily accessible.
All earthing requirements are stipulated by the Local Electricity Authority.
The cabinet plug and wall socket should give correct earthing. If in doubt,
contact your local supplier or an authorized electrician.
WARNING: THIS EQUIPMENT MUST BE EARTHED.
The flexible cord (mains lead) fitted to this equipment has three cores for
use with a 3-pin moulded plug. The cores in the mains lead are colored in
accordance with the following code:
GREEN: EARTH
WHITE: NEUTRAL
BLACK: LIVE
These colors might not correspond with the color markings identifying the
terminals in your plug.
Note
First Connection to the mains:
• The equipment provides information about the higher temperature
(Hi alarm) until the moment of cooling.
• The alarm feature contains “Hi” caption on the display. To cancel the alarm,
press any button.
• Until the moment of cooling, the alarm is repeated every 15 minutes. Such
an operating mode is normal until the required temperature settings are
reached.
• The power cord serves as the main disconnecting device.
