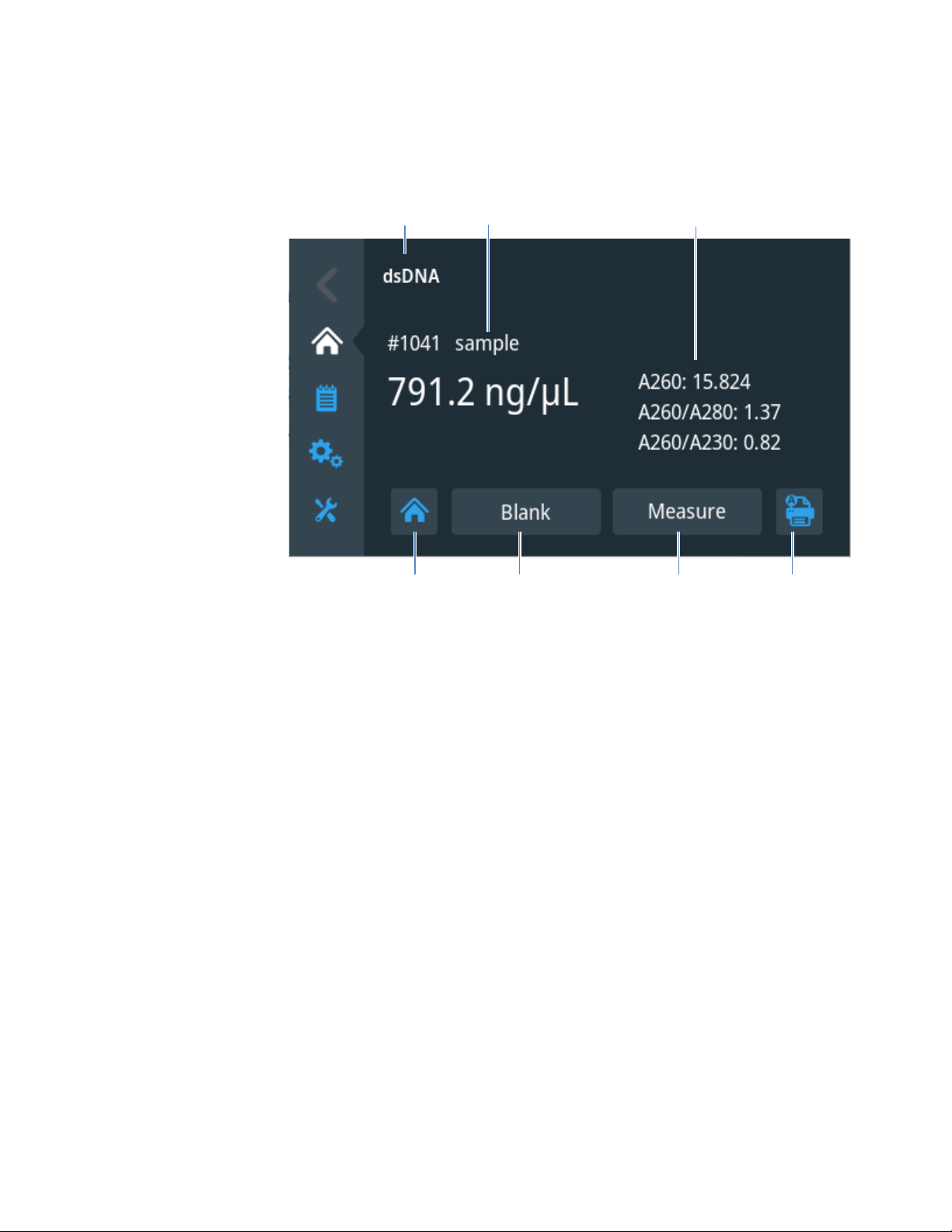

Nucleic Acid Measurement Screen . . . . . . . . . . . . . . . . . . . . . . . . . .11
Nucleic Acid Calculations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

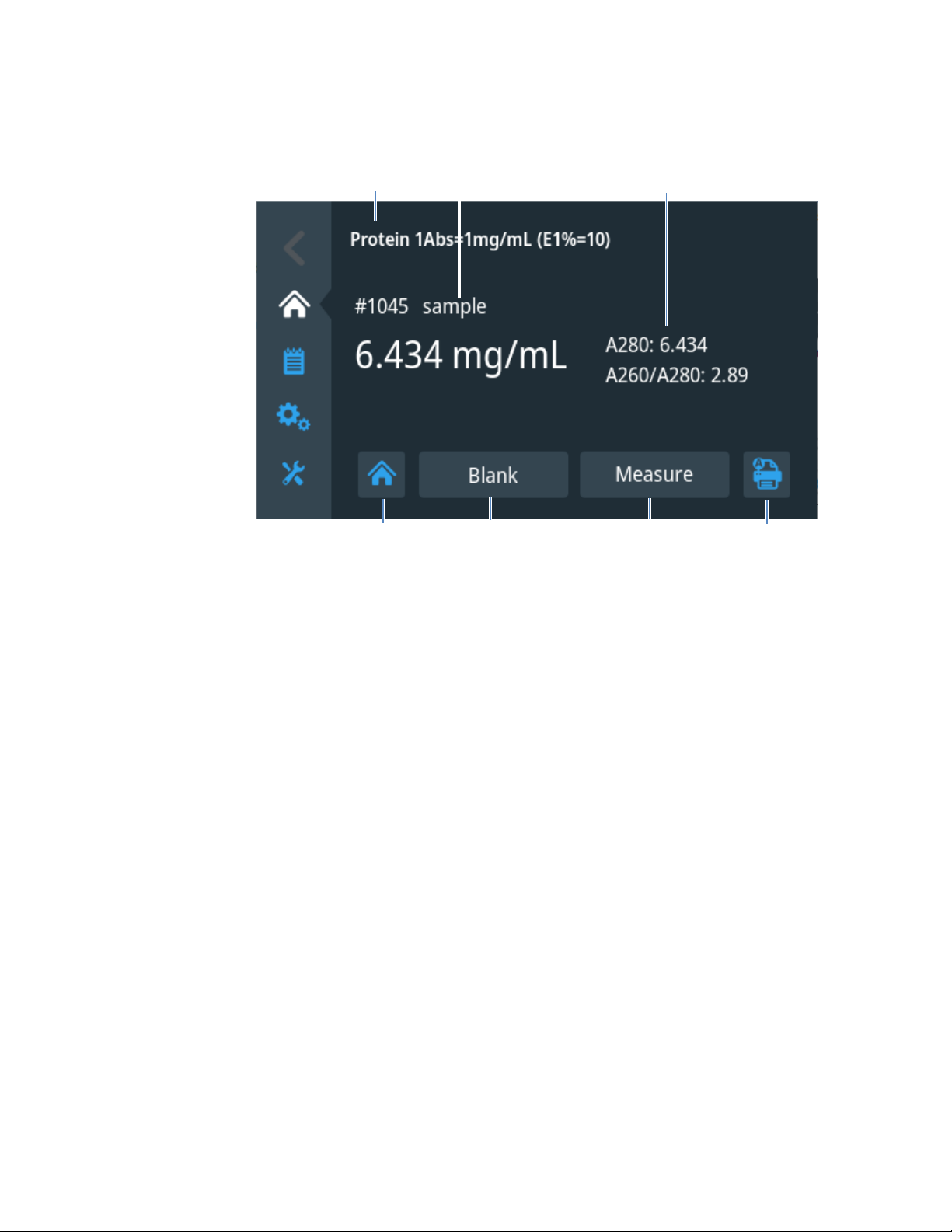

Protein Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Making a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Protein Measurement Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Protein Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Transferring Data From Instrument to Computer . . . . . . . . . . . . . . . . . .16
Helpful Information for Measuring Samples . . . . . . . . . . . . . . . . . . . . . .17
Sample Volume Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Sample Measurement Accuracy and Reproducibility . . . . . . . . . . . . .17
Sample Homogeneity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Sample Carryover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
A260/A280 Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Run a Blanking Cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Effect of Evaporation and Solvent Usage . . . . . . . . . . . . . . . . . . . . . .21
Using NanoDrop Lite Plus With Optional Printer. . . . . . . . . . . . . . . . . . .21
Troubleshooting Paper Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Printing Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Printer Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Performance Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Reconditioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Solvent Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Decontamination of Upper and Lower Pedestals . . . . . . . . . . . . . . . .31
Contents

Contents
iv NanoDrop Lite Plus User Guide Thermo Scientific
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Thermo Scientific NanoDrop Lite Plus User Guide 5
1
NanoDrop Lite Plus User Guide
The Thermo Scientific™ NanoDrop™ Lite Plus is a small, stand-alone UV
spectrophotometer developed specifically for microvolume measurements of nucleic
acids and purified proteins. The NanoDrop Lite Plus comes with preloaded software
and is designed to be used without a computer. The NanoDrop Lite Plus can also be
connected to an accessory printer for printing measurement information on labels.
The sample retention system of the NanoDrop Lite Plus is identical to that used in all
NanoDrop instruments: surface tension is used to hold 1-2 μL of sample between
two stainless steel pedestals that contain optical fibers. The patented sample
retention system enables the measurement of highly concentrated samples without
the need for dilutions.
The NanoDrop Lite Plus measures the sample absorption at 230, 260, and 280 nm
and corrects for scattering and background effects in the sample with light from a
reference wavelength at 340 nm.

1NanoDrop Lite Plus User Guide
General Safety
6 NanoDrop Lite Plus User Guide Thermo Scientific
General Safety
The power supply can remain plugged into the NanoDrop Lite Plus while the
instrument is not in use. When the instrument is plugged in but not in use, the power
consumption is ~3 W at idle, 18 W at working conditions.
NanoDrop Lite Plus Basic Operation
Installation

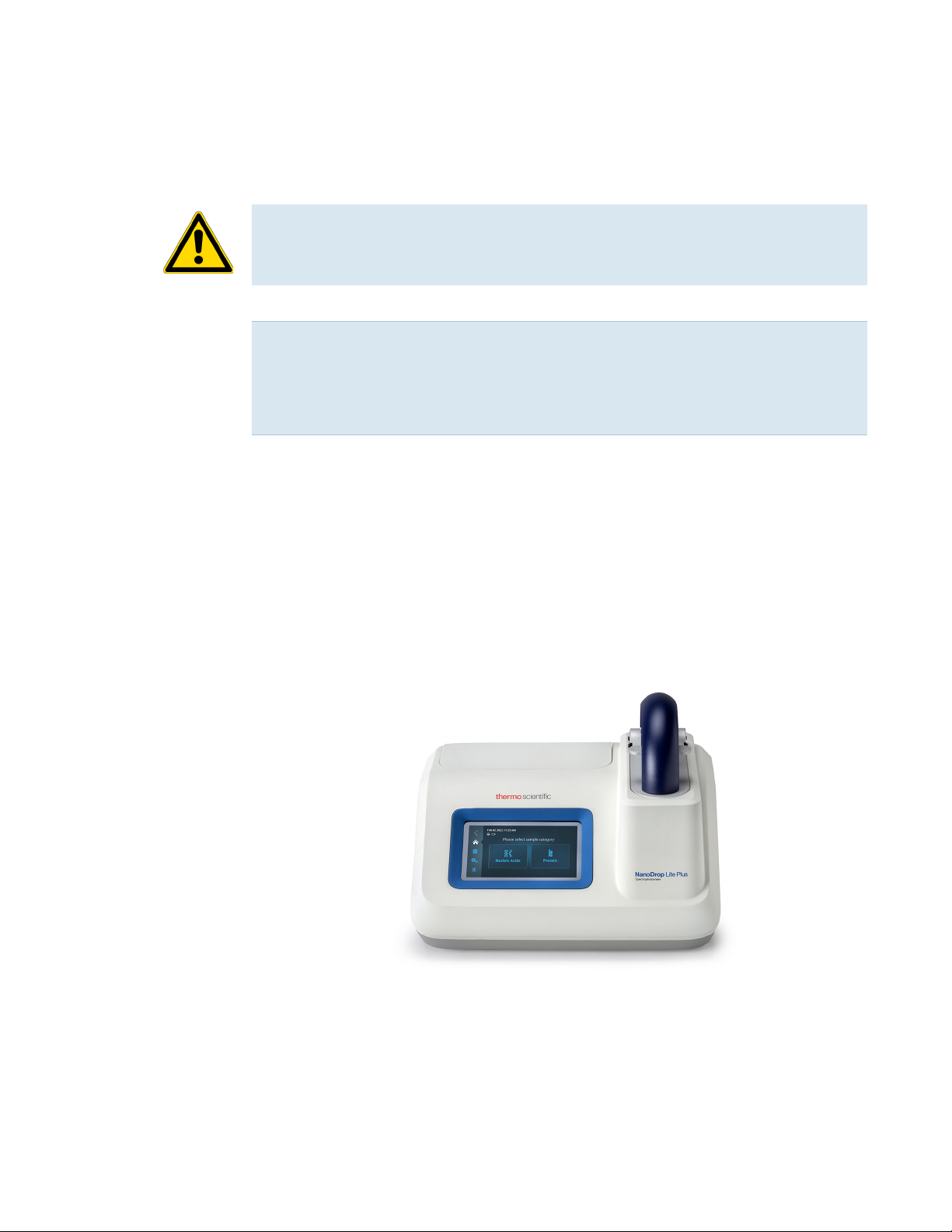

CAUTION Operating the instrument with the cover off exposes the operator to
the instrument’s sharp metal edges and delicate fiber optics. Removal of the
cover may also void the warranty.
Note The NanoDrop Lite Plus is supplied with a 12 V power supply. Use only
the power supply provided with the instrument. The unit also comes with a
grounded power cord. Plug this cord into a properly grounded outlet. Use of the
instrument in a manner not specified by the manufacturer may impair the
protection provided by the supplied power cord and power supply.

1 NanoDrop Lite Plus User Guide
NanoDrop Lite Plus Basic Operation
Thermo Scientific NanoDrop Lite Plus User Guide 7
USB for
data transfer
USB*
DC power
On/Off switch
Printer dock connector
* For factory calibration only

1NanoDrop Lite Plus User Guide
NanoDrop Lite Plus Basic Operation
8 NanoDrop Lite Plus User Guide Thermo Scientific

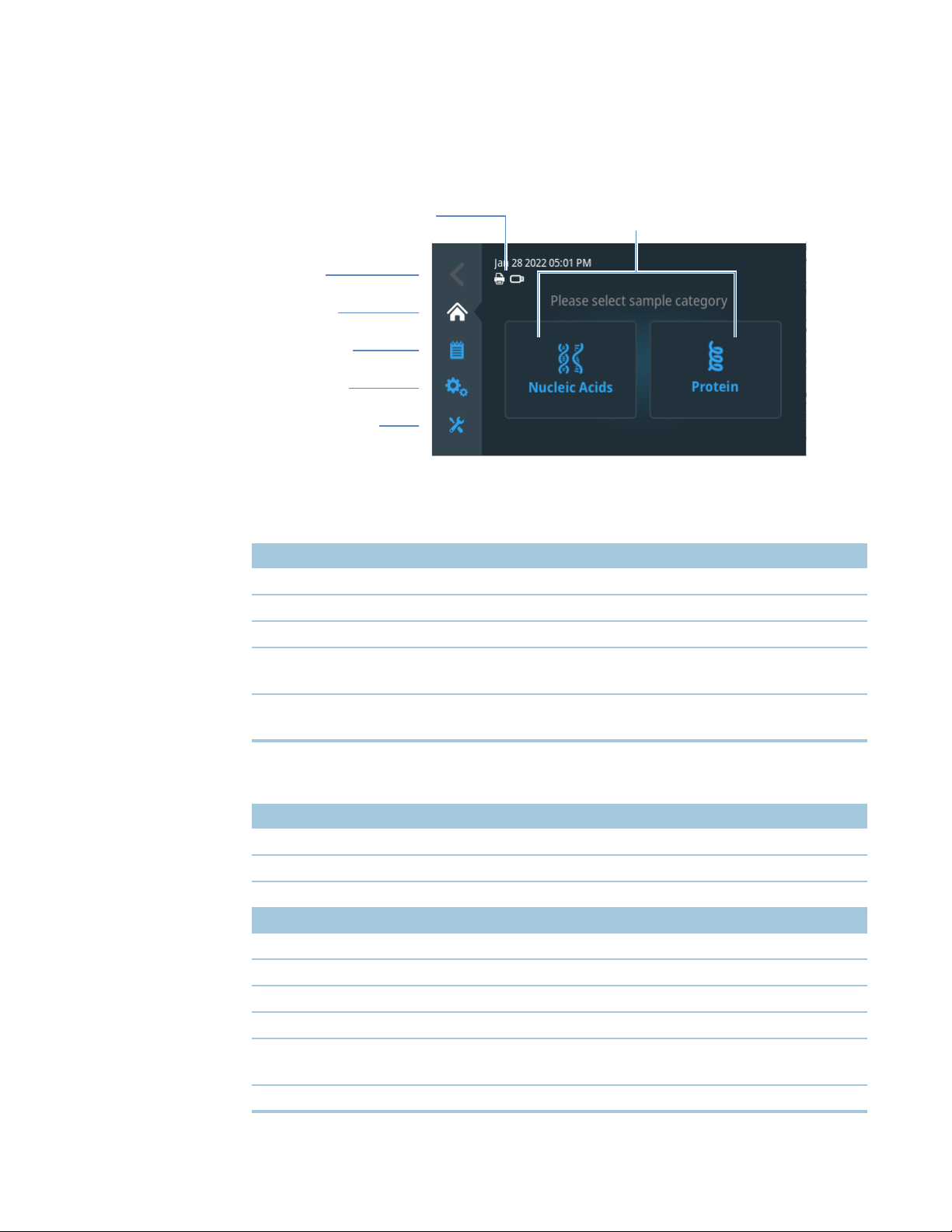

Menu Selection
Table 1.Navigation menu
Menu option Function
Back Return to the previous screen
Home Return to the Home screen
History View and export sample history
Settings View and configure instrument parameters such as display
settings, printers, and instrument info.
Maintenance Perform performance verification, instrument diagnostics
and software updates.
Table 2.Sample category reference settings
Nucleic Acids
dsDNA factor = 50
ssDNA factor = 33
RNA factor = 40
Protein
Protein (1 Abs= 1 mg/mL) Default general reference setting
Protein (IgG) E1%=13.7
Protein (BSA) E1%=6.7
Lysozyme E1%=26.4
Other protein (+ MW) User entered molar extinction coefficient
and molecular weight
Other protein (1%) User entered mass extinction coefficient
Settings
History
Home
Back
Maintenance
Connected hardware Applications
NanoDrop Lite Plus Home screen

1 NanoDrop Lite Plus User Guide
NanoDrop Lite Plus Basic Operation
Thermo Scientific NanoDrop Lite Plus User Guide 9
Settings screen
Maintenance screen
Measurement Basics
The NanoDrop Lite Plus spectrophotometer uses surface tension to hold a small
volume of sample between two pedestals. The patented sample retention system
enables the measurement of highly concentrated samples without the need for
dilutions. A fiber optic cable embedded in the upper pedestal leads to a xenon light
source. A second cable embedded in the lower pedestal leads to a detector. When
the instrument arm is down, the sample forms a liquid column, essentially bridging
the gap between the two fiber optic cables.
Raise the arm and pipette the sample onto the lower pedestal.
1. Lower the arm and initiate a measurement.
The sample column is automatically drawn between the upper and lower
pedestals and the measurement is made.
2. When the measurement is complete, raise the arm and wipe the sample from
both the upper and lower pedestals using a dry, lint-free laboratory wipe.
Tip Simple wiping with a dry laboratory wipe is sufficient to prevent sample
carryover in subsequent measurements.

1NanoDrop Lite Plus User Guide
Nucleic Acid Measurements
10 NanoDrop Lite Plus User Guide Thermo Scientific
Nucleic Acid Measurements
Nucleic acid samples can be easily checked for concentration and purity using the
NanoDrop Lite Plus spectrophotometer. To measure nucleic acid samples (dsDNA,
ssDNA and RNA) from the Home screen, select Nucleic Acids and select the
appropriate Nucleic Acid application.
Making a Measurement
1. From the Home screen, select Nucleic Acids and select the appropriate
sample type.
For DNA measurements, select either the dsDNA or ssDNA assay.
2. Following the on-screen instructions, establish a blank by pipetting 1-2 μL of the
blanking buffer onto the bottom pedestal, lower arm and select Blank.
3. When measurement is complete, raise the arm and wipe the buffer from both the
upper and lower pedestals using a dry laboratory wipe.
4. Measure sample by pipetting 1-2 μL of sample onto the bottom pedestal, lower
arm and select Measure.
5. Wipe the upper and lower pedestals using a dry laboratory wipe and the
instrument is ready to measure the next sample.
Note Use a fresh aliquot of sample for each measurement.
