Sorvall WX+ Ultracentrifuge

General description
The Thermo Scientific™ Sorvall™ WX+ Ultracentrifuge is designed to separate liquid-suspended materials
having different densities and particle size.
The series is a series of products that pursue user-friendliness and reliability based on our many
years of experience in developing centrifuges. This series offers many new features that we are
confident of satisfying your requirements. These features include the following.
1. Maximum speed is 100,000 rpm (803,000 x g). (WX100+)
2. The touchscreen with easy-to-see color liquid crystal screen is incorporated.
3. The displayed language can be switched over between English and Japanese.
4. Color touch-sensitive liquid crystal display and graphic user interface with high contrast against
back screen in black color enable you to easily operate the system or select various menus
and functions by touching the icon on the display.
5. The real-time control feature enables setting a start time or finish time, thus letting you run your
machine at desired date and time.
6. Centrifugal force (RCFmax and RCFavg) can be displayed and set (Note1).
7. Thousand varieties of 30 stepped mode can be programmed for a wide range of applications
such as step running.
8. Various alert indication can notify users of the causes and necessary actions of the troubles.It
can realize troubleshooting easier and quicker.
9. The current centrifuge status is identified at a glance by the signal light of the upper front
edge of this centrifuge.
10. Space saving design. The installation area required is 0.72 m2 (800 x 900 mm). Lower top deck
makes it easy to install and remove the rotor.
11. These products spin very quietly, and are thus well suited for personal use.
12. Samples can be easily balanced visually.
13. A CFC-free thermomodule cooling system is employed featuring a powerful cooling capacity.
14. In addition to door lock and an imbalance detector, dual overspeed detection system is
incorporated for overspeed detection for even greater safety.
Note1: RCF = Relative Centrifugal Force
4

SAFETY NOTICES
Safety reminders
Carefully read and fully understand the following safety instructions.
●Operate your instrument according to the instruction manual.
●Be sure to observe the all safety precautions in the instruction manual and safety
instructions on your instrument. If neglected, personal injury and/or instrument damage
can be caused.
●If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
●The safety reminders are indicated as shown below. The signal words "DANGER",
"WARNING" and "CAUTION" are indicated together with the hazard alert symbols in this
manual.
"NOTE" indicates a note which has no direct bearing on personal safety.
Do not perform any operation not specified in the instruction manual. If any problem is
found on your instrument, contact a Thermo Fisher Scientific authorized sales/service
representative.
Although the safety precautions in the instruction manual and safety instructions on your
instrument have been fully considered, an unexpected situation may arise. Observe the
instructions in the instruction manual and always be careful yourself when operating this
instrument.
DANGER：This note indicates an imminently hazardous situation, which if not
strictly observed, could result in personal severe injury or possible
death.
WARNING：This note indicates a potentially hazardous situation, which if not
strictly observed, could result i
n personal severe injury or possible
death.
CAUTION：This note indicates a potentially hazardous situation, which if not
strictly observed, could result in personal injury or severe damage
to the instrument.
This hazard alert symbol indicated together wit
h a signal word is a reminder
to emphasize important safety instructions.
i

SAFETY NOTICES
○Mechanical Safety
●Do not open the door while the rotor is spinning.
●Do not attempt to slow or stop the spinning rotor by hand.
●Do not incline or move the instrument while the rotor is spinning. Do not
place any object on the instrument or lean on the instrument.
●Do not attempt to unlock the door forcefully while the rotor is spinning.
●The centrifuge itself may move if the rotor fails during high-speed rotation.
Make sure there is a 30 cm area around the centrifuge that will allow for such
movement and do not allow individuals to enter into that area during
operation. Also do not place dangerous objects such as flammable or
explosive materials on top of the centrifuge or in the surrounding area.
●The overspeed decal must match the maximum speed of the rotor, because
the overspeed decal is a critical component that detects the over-speed of
the rotor: If an overspeed decal that is not compatible with the rotor is
attached, the rotor could break, resulting in damage to the ultracentrifuge.
●
Repairs, disassembly, and other modifications to the centrifuge are strictly prohibited
unless performed by a Thermo Fisher Scientific authorized sales/service representative.
●Do not use the other’s manufacturer’s rotor without Thermo Fisher Scientific's
permission.
●Check the chemical resistance chart attached to the rotor, and do not use
any sample inapplicable to the rotor (including the buckets). Using such a
sample could corrode the rotor (including the buckets).
●
Do not exceed the allowable maximum rated speed of the rotor or buckets in use.
●Do not use corroded, scratched or cracked rotor, buckets and assemblies.
Check that the rotor, buckets and assemblies are free of such abnormalities
before operation.
●When using a swing rotor, check that the buckets are properly engaged with
the rotor pins before operation. Wrong setting can cause severe damage to
the instrument. Make sure that all the rotor buckets are of the same type.
●If abnormal sound or vibration occurs, stop the operation immediately and
contact a Thermo Fisher Scientific authorized sales/service representative.
●Before using a rotor, be sure to read through the rotor instruction manual.
●Check the chemical resistance chart attached to the rotor, and do not use any
sample inapplicable to the tubes, tube caps, bottles, or bottle caps, etc.
Using such a sample could corrode or deteriorate such parts and the sample
leakage might occur.
●Use the rotor tubes and bottles within their actual capacities (see the
instruction manual).
●Do not use tubes/bottles that have exceeded their life expectancy. Failure to
do so could result in damage of tubes/bottles and the rotor and the centrifuge.
The life expectancy of tubes/bottles depends on factors such as the
characteristics of samples, speed of the rotor used, and temperature.
Always check for deterioration and damage (cracks, deformation, and so on) on
tubes/bottles before using them. Do not use the tubes/ bottles if you find such a problem.
●Mount the rotor onto the drive shaft gently and properly.
●Do not drop the rotor or apply excessive force to the drive shaft to avoid
damage to the drive shaft.
WARNING：
CAUTION：
ii

SAFETY NOTICES
●Install the rotor carefully and securely on the drive shaft (crown) in the rotor
chamber. Always place the rotor pin in the drive hole (crown hole) apart from
the crown pin.
●Take care not to get your hands or fingers caught in the door of the
centrifuge.
●Maximum rotor speed depends on the tubes or adapters to be used. Follow
the instructions on the rotor instruction manual.
●Approximately even quantities of sample in the tubes are sufficient for
balancing, and extremely different sample quantities must be avoided.
●Clean the inside of the drive hole (crown hole) of the rotor and the surface of
the drive shaft (crown) of the centrifuge once a month.
●Storing the rotor on the shelf is permitted if the shelf is taken necessary
countermeasures against earthquakes not to drop the rotor.
●Do not pour any solution such as water, detergent, or disinfectant directly into the
rotor chamber. Be careful not to leak the sample. Failure to do so might cause
the bearings of the drive unit and/or the sensors to corrode or deteriorate.
●Use the rotor log book to manage the life of the rotor.
●It is important to manage the life of the rotor. The life of each rotor is specific
and dependent upon the frequency and the total running time. Do not use
rotors whose lives have expired. If used, the machine can be seriously
damaged. (Follow the rotor instruction manual.)
●For details of the Zonal centrifugation, see the Zonal Rotor instruction manual.
●Do not press the touchscreen with a sharp-pointed object such as a ballpoint
pen.
●Be sure to remove the rotor from the rotor chamber when centrifuge is not
used for a long time or when the machine is moved. Otherwise the drive shaft
(crown) may be damaged.
○Safety during installation and maintenance
●To avoid electrical shock hazards, follow below when servicing the
centrifuge.
1) Be sure to turn off the POWER switch and turn off the distribution board of
your centrifuge room if your centrifuge is equipped with a three wire
power cord. Then wait at least three minutes and then remove the covers
from the centrifuge.
2) Be sure to turn off the POWER switch and unplug the power cord from the
receptacle if your centrifuge is equipped with a power cord with a plug.
Then wait at least three minutes and then remove the covers from the
centrifuge.
●When a power failure occurs during operation, it takes 3 hours or more for
the running rotor to stop completely because the rotor chamber is
depressurized and has less air to stop the rotor. Be sure to leave sufficient
time before opening the door of the rotor chamber.
●For maintenance and repairing of the rotors, tubes, etc., see the rotor
instruction manual and the rotor, tube, bottle, and cap instruction manual.
●After installation and before any test-run, this ultracentrifuge always needs
the internal check by a Thermo Fisher Scientific authorized sales/service
representative.
●Repairs, disassembly, and other modifications to the centrifuge are strictly
prohibited unless performed by a Thermo Fisher Scientific authorized
sales/service representative.
WARNING
：
CAUTION
：
DANGER
：
iii

SAFETY NOTICES
●If the centrifuge is exposed to ultraviolet rays for a long time, the color of the
covers may be changed or the coating may be peeled off. After use, cover
the centrifuge with a cloth to protect it from direct exposure.
○Electrical Safety
●Your centrifuge must be grounded properly to avoid electrical shock hazards.
●Do not place containers holding liquid in the rotor chamber or on or near the
instrument. If they spill, liquid may get into the instrument and damage
electrical components.
●If the machine will not be used for a long time, turn off the main circuit
breaker.
○Safety against Risk of Fire
●This centrifuge is not explosion proof centrifuge. Never use explosive or
flammable samples or materials that chemically react vigorously. Do not
centrifuge such materials in this instrument nor handle or store them near the
instrument.
○Chemical and Biological Safety
●Take all necessary safety measures before using samples that are toxic or
radioactive, or blood samples that are pathogenic or infectious. You use such
samples at your own responsibility.
●Take all necessary safety measures when Risk Group Ⅱ materials (as
identified in the World Health Organization “Laboratory Biosafety Manual”)
are handled, and that more than one level of protection shall be provided in
the case of materials of a higher group.
●If the centrifuge, rotor, or an accessory is contaminated by samples that are
toxic or radioactive, or blood samples that are pathogenic or infectious, be
sure to decontaminate the item according to good laboratory procedures and
methods.
●If there is a possibility that the centrifuge, rotor, or an accessory is
contaminated by samples that might impair human health (for example,
samples that are toxic or radioactive, or blood samples that are pathogenic or
infectious), it is your responsibility to sterilize or decontaminate the centrifuge,
rotor, or the accessory properly before requesting repairs from a Thermo
Fisher Scientific authorized sales/service representative.
●It is your responsibility to sterilize and/or decontaminate the centrifuge, rotor,
or parts properly before returning them to a Thermo Fisher Scientific
authorized sales/service representative.
Notice for an Earthquake
Depending on the magnitude, an earthquake might damage centrifuge. If you observe some
abnormality, stop using the centrifuge immediately and ask for inspection by the Thermo Fisher
Scientific service representative.
WARNING
：
WARNING
：
CAUTION
：
CAUTION
：
WARNING
：
iv

SAFETY NOTICES
Precaution indications in this Manual
The followings informations indicate the precaution indications and the chapters/sections
which mention them in this manual.
1.Indication of DANGER
To avoid electrical shock hazards, follow below when servicing the centrifuge.
1) Be sure to turn off the POWER switch and turn off the distribution board of your
centrifuge room if your centrifuge is equipped with a three wire power cord. Then wait
at least three minutes and then remove the covers from the centrifuge.
2) Be sure to turn off the POWER switch and unplug the power cord from the receptacle if
your centrifuge is equipped with a power cord with a plug. Then wait at least three
minutes and then remove the covers from the centrifuge.
(Section 3-5, Chapter 4, Chapter 5, and Chapter 6)
2.Indication of WARNING
1. The overspeed decal must match the maximum speed of the rotor, because the
overspeed decal is a critical component that detects the over-speed of the rotor: If an
overspeed decal that is not compatible with the rotor is attached, the rotor could break,
resulting in damage to the ultracentrifuge. (Section 2-2-4)
1. This centrifuge is not explosion proof centrifuge. Never use explosive or flammable
samples or materials that chemically react vigorously. Do not centrifuge such materials in
this instrument nor handle or store them near the instrument.
2. Take all necessary safety measures before using samples that are toxic or radioactive, or
blood samples that are pathogenic or infectious. (Section 3-1)
Do not incline or move the instrument while the rotor is spinning. Do not place any object on
the instrument or lean on the instrument. (Section 3-2)
The centrifuge itself may move if the rotor fails during high-speed rotation. Make sure there
is a 30 cm area around the centrifuge that will allow for such movement and do not allow
individuals to enter into that area during operation. Also do not place dangerous objects such
as flammable or explosive materials on top of the centrifuge or in the surrounding area.
(Section 3-2 and Chapter 6)
1. Never open the door during rotation.
2. Never touch the rotor during rotation. (Section 3-5)
It can take more than three hours for the rotor to come to a complete stop because the rotor
chamber is under vacuum. Before opening the door, wait until the rotor comes to a stop.
(Section 3-5)
Never touch the rotor while it is rotating. (Section 3-5)
1. If the centrifuge, rotor, or an accessory is contaminated by samples that are toxic or
radioactive, or blood samples that are pathogenic or infectious, be sure to decontaminate
the item according to good laboratory procedures and methods.
2. If there is a possibility that the centrifuge, rotor, or an accessory is contaminated by
samples that might impair human health (for example, samples that are toxic or radioactive,
or blood samples that are pathogenic or infectious), it is your responsibility to sterilize or
decontaminate the centrifuge, rotor, or the accessory properly before requesting repairs
from a Thermo Fisher Scientific authorized sales/service representative.
v

SAFETY NOTICES
3. It is your responsibility to sterilize and/or decontaminate the centrifuge, rotor, or parts
properly before returning them to a Thermo Fisher Scientific authorized sales/service
representative. In such cases, copy the decontamination sheet at the end of this manual and
fill out the copied sheet, then attach it to the item to be returned.
Thermo Fisher Scientific may ask you about the treatment for the centrifuge, rotor or the part
if the decontamination is checked and judged as insufficient by Thermo Scientific. It is your
responsibility to bear the cost of sterilization or decontamination.
(Chapter 4 and Chapter 5)
Unspecified repairs, remodeling or disassembly of the centrifuge that is not listed in Table 5-1
is strictly prohibited by any person other than a Thermo Fisher Scientific authorized
sales/service representative. (Section 5-1)
Before changing the power voltage by manually selecting desired tapping on the internal
transformer, turn off power to the ultracentrifuge, then unplug the power cord from the wall
outlet. Changing the voltage without doing so exposes you to the possibility of electrical
shock. (Chapter 6)
Your ultracentrifuge must be grounded properly. (Chapter 6)
Do not touch the power cord with wet hands to avoid electrical shocks. (Chapter 6)
Do not hold the cord when disconnecting the power cord from the receptacle. Hold the plug
when disconnecting it. (Chapter 6)
3.Indication of CAUTION
1.When replacing the overspeed decal with a new one, be very careful not to damage the
overspeed decal and rotor body. (Section 2-2-4)
Do not place containers holding liquid in the rotor chamber, on the centrifuge, or near the
centrifuge. Liquid, if spilt, could get into the instrument and damage electrical and mechanical
components. (Section 3-1)
1. Do not press the touchscreen with a sharp-pointed object such as a ballpoint pen.
2. If abnormal sound or vibration occurs, stop the operation immediately and contact a
Thermo Fisher Scientific authorized sales/service representative. (Section 3-2)
If you have selected a rotor in the Rotor Management screen, be sure to check that the
selected rotor (in the Rotor Management screen) and the rotor that is installed in the
centrifuge have an identical serial number. (The rotor serial number is also displayed in the
Rotor indicator field in the Run screen.) If the serial number of the selected rotor differs from
the serial number of the rotor installed in the centrifuge, you cannot control total run time and
the total number of runs of both rotors. (Section 3-2-3)
Take care not to get your hands or fingers caught in the door of the centrifuge.
(Section 3-2-5)
vi

SAFETY NOTICES
Zonal centrifugation includes operations where the rotor will turn while the door is open. Be
sure to read though the “Zonal rotor instruction manual” before operation. (Section 3-4-3)
The cap is installed by hand on the rotor when it is turning. Perform this operation with care
and be sure to follow the instructions in the instruction manual. (Section 3-4-3)
The cap is removed by hand from the rotor and the seal assembly is installed when the rotor
is turning. Perform this operation with care and be sure to follow the instructions in the
instruction manual. (Section 3-4-3)
Never conduct operations in a manner other than as described in this operation manual.
(Section 3-5)
When the centrifuge will not be used for a long time, keep the power breaker off.
(Section 3-5)
Do not perform any operation not specified in this manual. If any problem is found on your
centrifuge, contact a Thermo Fisher Scientific authorized sales/service representative.
(Chapter 4 and Chapter 5)
Using cleaning or sterilization method other than recommended in this instruction manual
may cause corrosion or deterioration of this centrifuge. Refer to chemical resistance chart
attached to the rotor or contact Thermo Fisher Scientific. (Chapter 4)
For sterilization of the surface of the centrifuge and the rotor chamber, wipe them with a cloth
dampened with 70% ethanol. Using the method other than the above method might cause
corrosion or deterioration of the centrifuge. Refer to the chemical resistance chart provided
with the rotor, or contact Thermo Fisher Scientific. While we recommend that 70% ethanol
is used for sterilization, no guarantee of sterility or disinfection is expressed or implied.
When sterilization or disinfection is a concern, consult your laboratory safety officer
regarding proper methods to use. (Chapter 4)
Do not pour any solution such as water, detergent and disinfectant directly into the rotor
chamber. Otherwise, the bearings of the drive unit may be corroded or deteriorated.
(Section 4-1)
Clean the inside of the drive hole (crown hole) of the rotor and the surface of the drive shaft
(crown) of the centrifuge once a month. If the drive hole or the drive shaft is stained or any
foreign matter is adhered, the rotor may be improperly installed and come off during
operation. (Section 4-2)
Your ultracentrifuge can be damaged if connected to a wrong voltage. Check the voltage
before plugging the ultracentrifuge into a power source. (Chapter 6)
Be sure to remove the rotor from the rotor chamber when centrifuge is moved. After
installation and before any test-run, this ultracentrifuge always needs the internal check by a
Thermo Fisher Scientific authorized sales/service representative. (Chapter 6)
vii

viii

SAFETY NOTICES











































AVERTISSEMENT
Ne pas ouvrir le couvercle de la
chambre à air durant la rotation.
Si vous êtes confrontés à une panne
de courant, veuillez vous référer aux
instructi ons du manuel.
S310564
 WARNING
Do not loosen the vacuum release
screw during rotation. In the event of a
power outage, operate according to the
instruction manual.
AVERTISSEMENT
Ne ja mais uti lise r de m atériau capable de produire
des vapeurs inflammables ou explosives.
Assu rez-vous de prendre les précautions
nécessaires avant de trier des matières
radioactives, toxiques ou pathogènes.
S310568
 WARNING
Never u se any material capable of producing
flammable or explosive vapors.
Be sure to take the necessa ry precautions before
separating radioactive, to xic o r pathog enic
materials.
Risque de choc électrique
.
Débranchez le cordon
d'alimentation avant
l'entretien et attendre au
moins trois minutes.
AVERTISSEMENT

Risk of electrical shock.
Disconnect equipment
from power supply
before servicing and wait
for at least three
minutes.
WARNI NG
S31056
6
 CAUTION
T h i s co v e r should only be removed for
power outages or other situations that
are absolutely necessary. Always ma ke
sure that the power source is off and
follow the instructions in the manual.
 ATTENTION
Ce couvercle doit uniquement être
retiré en cas de panne de courant et
d'autres situations qui rendent la
manipulation absolument nécessaire.
Assu rez-vou s toujours que la source
d'alimentation est coupée et suivez
les inst ructions du manuel.
S3105582

Table of Contents
1. Specifications ······························································································ 1-1
2. Description ·································································································· 2-1
2-1 External View of Ultracentrifuge ································································· 2-1
2-2 Structure ······························································································· 2-2
2-2-1 Touchscreen and External Connection ··················································· 2-2
2-2-2 Rotor Chamber ················································································ 2-6
2-2-3 Safety Devices ················································································ 2-7
2-2-4 Rotor overspeed decal ······································································· 2-8
3. Operation ···································································································· 3-1
3-1 Run Preparation ······················································································ 3-3
3-1-1 Starting up the Centrifuge ··································································· 3-3
3-1-2 Rotor and Tubes Preparations and Precautions ······································· 3-4
3-2 Basic Operation ······················································································ 3-5
3-2-1 Setting Run Parameters ····································································· 3-5
3-2-2 Acceleration and Deceleration Modes ···················································· 3-10
3-2-3 Rotor Selection ················································································ 3-11
3-2-4 Logging in as a User ········································································· 3-14
3-2-5 Operation Procedures ······································································· 3-16
3-3 How to Use the Function Selection Area ······················································ 3-19
3-3-1 Programmed Operation ····································································· 3-20
3-3-1-1 Program Registration Procedures ··············································· 3-23
3-3-1-2 Programmed Operation Procedures ············································ 3-37
3-3-1-3 Step-Mode Operation Procedures ··············································· 3-41
3-3-2 RCF (Relative Centrifugal Force) Display and Setting Function ···················· 3-49
3-3-3 ω2T Operation ················································································ 3-52
3-3-4 RTC (Real-Time Control) Operation ······················································ 3-54
3-4 Features of the MENU Screen ··································································· 3-58
3-4-1 Outputting and Reusing Run History and Run Parameters ···························· 3-60
3-4-2 Rotor Catalog ·················································································· 3-64
3-4-3 Zonal Operation Procedures ······························································ 3-66
3-4-4 Defrost ·························································································· 3-70
3-4-5 Customizing ···················································································· 3-72
(1) Zoom display setting ····································································· 3-73
(2) Stop signal setting ········································································ 3-73
(3) Sound volume adjustment ······························································ 3-74
(4) Backlight adjustment and dimming backlight mode setting ······················ 3-74
(5) Language switch button ································································· 3-75
(6) Schedule ··················································································· 3-75
(7) Date/time setting ·········································································· 3-78
(8) Status display (LED Indicator) lamp setting ········································· 3-79
(9) Economy mode setting ·································································· 3-82
ix

Table of Contents
3-4-6 Admin Function ··············································································· 3-84
(1) User management ········································································ 3-85
(2) User lockout ··············································································· 3-90
(3) Rotor management ······································································· 3-92
(4) Run time indication ······································································· 3-98
(5) Actual run timer ··········································································· 3-98
(6) Vacuum level ·············································································· 3-99
(7) Zonal speed ··············································································· 3-99
(8) LAN communications ···································································· 3-100
3-4-7 Instrument ID, Service Contact Information ············································· 3-101
3-5 Happenings when Power Failure Occurs ····················································· 3-103
4. Maintenance ······························································································· 4-1
4-1 Rotor Chamber ······················································································· 4-2
4-2 Drive Shaft (Crown) ················································································· 4-2
4-3 Cabinet ································································································· 4-3
4-4 Others ·································································································· 4-3
5. Troubleshooting ························································································· 5-1
5-1 Alert Indicators ······················································································· 5-2
5-2 Diagnosed Problems-Requiring Maintenance ··············································· 5-4
5-3 User-Corrected Problem ··········································································· 5-4
6. Installation ·································································································· 6-1
7. Warranty for the WX Plus Ultra Series Centrifuge ····································· 7-1
8. Supply List ·································································································· 8-1
x

1. Specifications
Model Sorvall WX100 Plus Sorvall WX90 Plus Sorvall WX80 Plus
Maximum speed 100,000 rpm 90,000 rpm 80,000 rpm
Maximum RCF* 802,000 x g
(T-8100)
692,100 x g
(T-890)
602,600 x g
(T-880)
Speed control accuracy ±10 rpm（1,000 rpm to maximum speed）
Acceleration/deceleration
control
10-stage variable acceleration control, 10-stage braked deceleration
control, plus coasting deceleration
Rotor temperature
control/display accuracy ±0.5 ℃（set temperature is from 0 ℃ to 40 ℃）
Set speed 1,000 rpm to maximum speed in increments of 100 rpm
Set time One minute to 999 hours and 59 minutes in increments of one minute,
“Hold” for continuous operation
Vacuum system
Oil rotary vacuum pump and oil diffusion pump combined
Ultimate vacuum: below 1.3 Pa (0.01 Torr) (This value reaches within 15
minutes after the rotor starts rotating.)
Noise level 51 dB (A scale)
(measured 1m in front of the instrument)
Maximum heat
dissipation into room 1 kW or less
Cooling method Thermo-module cooling (CFC/HCFC/HFC-free)
Screen display and
operation Color touch-sensitive LCD (65,000 colors)
Interface USB x2, LAN x1
Applicable rotors A rotor with an overspeed decal
* RCF is an acronym for relative centrifugal force.
1. Specifications
1-1

Model Sorvall WX100 Plus Sorvall WX90 Plus Sorvall WX80 Plus
Dimensions
Width: 790 mm; Depth: 690 mm; Height: 880 mm
Depth with safety cover mounted: 890 mm
Height to the handle of the centrifuge door: 925 mm
Weight 390 kg
Power requirement**
Supply required
Single phase 50/60 Hz
208, 220 Vac+/-10 %, 20 A maximum (normally 8 A)
230, 240 Vac+/-10 %, 16 A maximum (normally 7 A)
Environmental conditions
• Ambient temperature for operation: 2 °C to 40 °C
• Ambient Temperature for performance guarantee : 10 °C to 30 °C
• Indoor use
• Altitude up to 2000 m
•Maximum relative humidity 80 % for temperatures up to 31 °C
decreasing linearly to 50 % relative humidity at 40 °C;
• Pollution degree: 2
• Overvoltage category Ⅱ
** The voltage to be used is the one that you specified when purchasing the centrifuge.
The Sorvall WX Plus Ultra series centrifuges satisfies CE marking requirements. The CE marking is an
international symbol which shows that the product conforms to EC directives.
Standards concerning these directives are as follows:
• Product safety (EN 61010-1 and EN 61010-2-020)
• Electromagnetic compatibility (EN 61326-1)
1. Specifications
1-2

2. Description

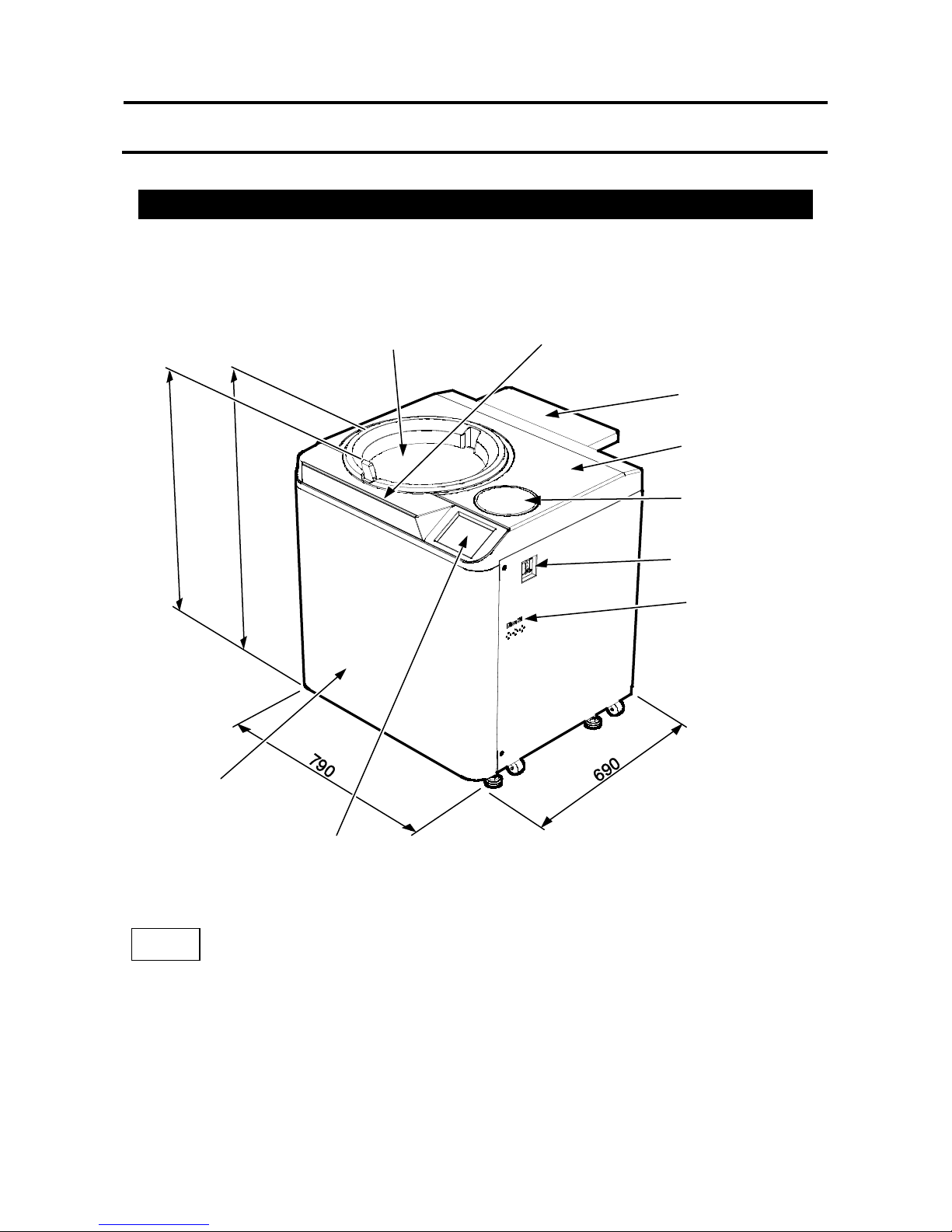

2-1 External View of Ultracentrifuge
The Sorvall WX+ Ultra series centrifuges are floor-standing types. These three types of ultracentrifuges
have the same external view, except for the model name printed on front cover and the same
dimensions. The following is the external view of the Sorvall WX100+ Ultracentrifuge.
Fig. 2-1 External view of Sorvall WX100+ Ultracentrifuge
2. Description
2-1 External View of Ultracentrifuge
NOTE
Unit: (mm)
External Connection
* This height is measured from level floor surface.
Touchscreen
(display/operation)
Front Cover
POWER Switch
Top Deck
Safety Cover
Door
LED Indicator
Rotor Mat
※
925
※
880
2-1

(6) On-screen keypad
2-2 Structure
2-2-1 Touchscreen and External Connection
The touchscreen with color liquid crystal screen is incorporated in the Sorvall WX+ Ultra series
centrifuges. You can set the run parameters, perform the operation, and display a run history,
programmed operation, and user customizations screens by pressing the screen.
Fig. 2-2-1 shows the touchscreen.
The following screen appears by pressing the [SPEED], [TIME], or [TEMP] button.
(4)
[STOP]
button
(3)
[START]
button
(2) [VACUUM]
button/Indicator
2-2 Structure
2-2-1 Touchscreen and External Connection
Fig. 2
-2-1 Touchscreen
【Display at the normal operation】
(1) Display Areas
(5) Function
Selection Area
Tabs of each screen
【Display when setting the run conditions such as the speed etc.】
2-2

2-2-1 Touchscreen and External Connection
No. Name and symbol Functions and actions
①
Display areas
SPEED area
(RCFarea)
TIME area
TEMP area
These areas display various types of information.
The SPEED (RCF), TIME, and TEMP areas display the current status in the upper part
and the specified setting in the lower part. (For settings, see section 3-2-1.)
● SPEED (Rotational speed indicator)
(Upper part) Displays the speed in increment of 10 rpm when lower than 5,000 rpm,
and in increments of 100 rpm when 5,000 rpm or more.
(Lower part) Used to set and display a speed from 1,000 to the maximum speed in
increments of 100 rpm. The lower two digits (1 and 10 positions)
display zeros.
For details on RCF, see section 3-3-2.
● TIME (Running time indicator)
(Upper part) Displays the remaining operation time. If the running time is set to
HOLD , the upper part displays the elapsed time.
(Lower part) Used to set, and display, a range from 1 minute to 999 hours 59
minutes in increments of minutes and hours.
 TEMP (Temperature indicator)
(Upper part) Displays the temperature in increments of 0.1 °C.
(Lower part) Used to set, and display, a temperature in the range from 0 °C to
40 °C, in increments of 0.1 °C
When the pressure in the rotor chamber equals the atmospheric pressure, the
temperature of the inside of the rotor chamber is kept at 25 ℃ to prevent
condensation.
Rotor indicator field
● Press this field to select the desired rotor.
ACCEL/DECEL
field
User area
● Press this field to set the acceleration and deceleration rate
ACCEL: Displays acceleration modes 1 through 9, along with 0.
DECEL: Displays deceleration modes 1 through 9, along with 0 and free coasting
(F).
●Press this area to select the desired user (see section 3-4-6).
②
[VACUUM] button ● Press this button to turn the vacuum pump on or off.
When the vacuum pump is turned off, the pressure in the rotor chamber will change
to
equal the atmospheric pressure. (While the rotor is rotating, you can not turn off
the vacuum pump.)
Temperature control starts as soon as the vacuum pump is turned on.
2-3
〔Functions of the Run screen〕
or

2-2-1 Touchscreen and External Connection
〔
Functions of the Run screen
〕
No. Name and symbol Functions and actions
②
●
The following four stages are displayed, depending on the vacuum of the
rotor chamber.
Atmospheric state.
The vacuum pump is not active.
Low vacuum. The rotor waits at 4
,000 rpm until the
vacuum reaches medium level.
（3）Medium vacuum.
（4）High vacuum.
●The orange LED light blinks until the pressure in the rotor chamber equals
the atmosphere pressure.
●“Now open the door” is displayed (see below) after the pressure in the
rotor chamber equals the atmosphere pressure.
③
●Press this button to start rotor rotation.
If [VACUUM] is off, pressing this button starts the vacuum pump and
starts temperature control.
④
●Press this button to stop rotor rotation.
⑤
Function Selection area
This centrifuge incorporates a number of features, such as step-mode
operation and RTC (Real Time Control) operation. Buttons for these features
are displayed and specified in the Function selection area.
●Press this button to select the step-mode operation etc (see section 3-3-1).
●Press this button to display and set RCF (see section 3-3-2).
●Press this button to set ω2T (see section 3-3-3).
●Press this button to select the RTC (Real Time Control) operation (see
section 3-3-4).
[PROGRAM]
button
[RCF] button
If the sample is sensitive to temperature increases, press
the
[START] button when the chamber is at a high vacuum
level.
NOTE
（1
）
（2
）
[
VACUUM] button
2-4
[START] button
[STOP]
button
[ω2T] button
[RTC] button

〔運転条件入力部の機能〕
2-2-1 Touchscreen and External Connection
No. Name and symbol Functions and actions
⑥
On-screen keypad
When entering the deceleration
rate, [FREE] is displayed in
place of [Hold].
●Use the on-
screen keypad to enter numeric values for run
parameters.
When entering a time: Switches from hours to minutes
When entering the operation time: Sets continuous running.
When entering deceleration conditions: Sets free coasting.
Press this to cancel input (for example, if you enter the wrong
number or the wrong value for a run parameter).
Press this to save the entered setting.
Press this to close the keypad display.
[Hold]
No.
Name and symbol
Functions and actions
⑦
USB (host side)
●Use the USB connection to output the operation history of the
centrifuge to a USB flash drive.
⑧
USB (device side)
●Use for connecting the provided “himac ASSIST”
or use for
maintenance.
⑨
LAN
●Use for connecting the “himac LogManager” (option).
⑦
⑨
2-5
〔
External connection
〕
〔
Functions of the Run screen
〕
[FREE]
⑧
[ : / . ]
[CE]
[Enter]
[X]

2-2-2 Rotor Chamber

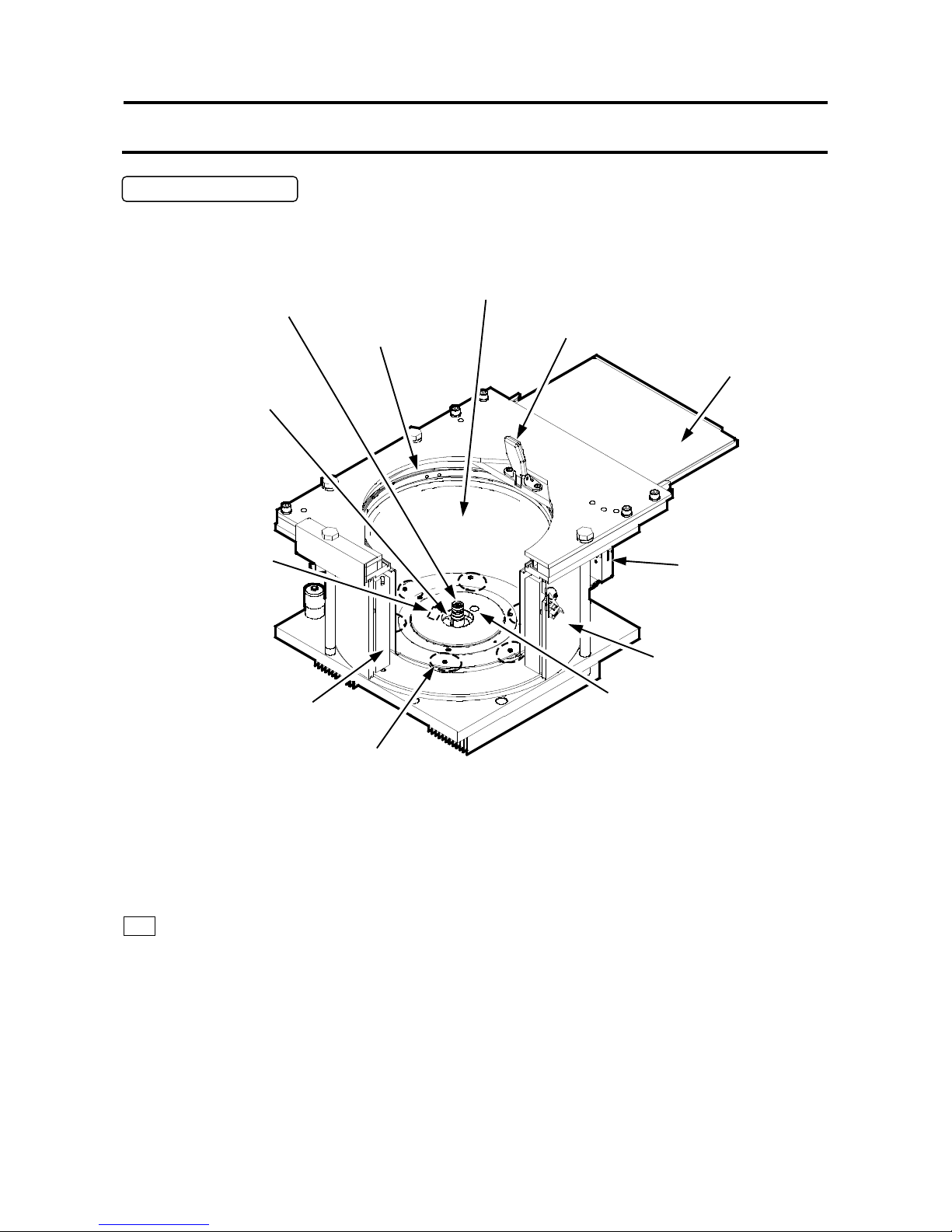

The structure of the rotor chamber (vacuum chamber) is shown in Fig. 2-2-2.
Fig. 2-2-2 Rotor chamber
Note：If sample or water drops to the window of the temperature sensor, it may cause an incorrect detection.
Whenever the sensor is wet, wipe it with a clean, dry cloth. Take care not to scratch the surface of the
sensor.
Drive shaft (crown)
Chamber door seal Handle
Chamber
door
Door lock system
Temperature sensor (measuring
the temperature of the rotor)
Vacuum chamber
Bowl (Rotor Chamber)
Thermoelectric cooling element
(cooling the rotor)
Protective steeling ring
Overspeed detector
(detecting any instance
exceeding the maximum
allowable speed of the rotor)
Speed sensor
2-2-2 Rotor Chamber
2-6
