thomann Ignition 2bright Pint FC150 IP User manual

2Bright Expo 575 WW,
2Bright Expo 575 CW
LED Spotlight
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
22.08.2023, ID: 542631, 542633

Table of contents
1 General information................................................................................................................................. 5
1.1 Symbols and signal words............................................................................................................... 5
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
5 Starting up.................................................................................................................................................. 16
6 Connections and controls................................................................................................................... 18
7 Operating.................................................................................................................................................... 20
7.1 Main menu.......................................................................................................................................... 20
7.2 Menu overview................................................................................................................................. 24
7.3 Functions in DMX mode................................................................................................................ 25
8 Technical specications....................................................................................................................... 26
9 Plug and connection assignments.................................................................................................. 29
10 Troubleshooting...................................................................................................................................... 30
11 Cleaning....................................................................................................................................................... 32
12 Protecting the environment.............................................................................................................. 33
Table of contents
2Bright Expo 575 WW, 2Bright Expo 575 CW 3
LED Spotlight

42Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
2Bright Expo 575 WW, 2Bright Expo 575 CW 5
LED Spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
62Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

Warning signs Type of danger
Warning – danger zone.
General information
2Bright Expo 575 WW, 2Bright Expo 575 CW 7
LED Spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
82Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a
safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and
arrange repair. If in doubt, seek advice from a qualied electrician.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury and considerable damage by falling. When instal‐
ling and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a
secondary safety attachment, such as a safety cable or a safety chain.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
Safety instructions
2Bright Expo 575 WW, 2Bright Expo 575 CW 9
LED Spotlight

NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Risk of overheating and risk of re when operated with closed barn doors!
If the spotlight is operated with the barn doors closed, there is a risk of overheating and re. In addition, even short-term operation
with the barn doors closed can reduce the service life of the LEDs. Operate the device only with open barn doors.
NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can
overheat and cause res. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temper‐
atures above 40 °C. Always ensure sucient ventilation at the operating location.
NOTICE!
Fire hazard due to burning glass eect of the optical lenses!
The optical lenses of the device focus the light and can act like burning glass when exposed to sunlight. Keep unmounted optical
lenses away from direct sunlight. Never leave lenses lying around in the open.
Safety instructions
10 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
NOTICE!
Risk of re by exceeding the maximum current
The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the
power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst
into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,
make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specications
in the technical specications for the device. Only use power cords with a cable cross-section designed for the required current
intensity when connecting the devices in series.
Safety instructions
2Bright Expo 575 WW, 2Bright Expo 575 CW 11
LED Spotlight

3 Features
Powerful and exible LED spotlight for showrooms, studios, exhibition booths, etc.
nLED conguration
–2Bright Expo 575 WW: 31 warm white LEDs
–2Bright Expo 575 CW: 31 cold white LEDs
nReplacement for 575 W daylight lamps
nControl via DMX (2 channels) as well as via buttons and display on the unit
nLockable connections (Power Twist) for self-supply and to supply further devices
nSturdy bracket for secure attachment to trusses or rm footing on the ground
nIncludes safety cable, barn doors, diuser and colour lter frame
nOptional accessories
– 2Bright Expo 575 15° Lens Kit (item no. 542635)
– 2Bright Expo 575 35° Lens Kit (item no. 542636)
nSpare parts
– 2Bright Expo 575 Barndoor (item no. 543174)
– 2Bright Expo 575 Diusor (item no. 543176)
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
12 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation
2Bright Expo 575 WW, 2Bright Expo 575 CW 13
LED Spotlight

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
NOTICE!
Potential property damage due to unsuitable stands!
If the device is mounted on an unsuitable stand, there is a risk that the stand will
fall over and cause damage.
Only use stands whose maximum bearing capacity is at least as high as the
weight of the device. Always ensure that the stand is stable.
Installation
14 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
You can install the unit in hanging or standing position. When in use, the device must always
be attached to a solid surface or an approved truss. Use the openings provided on the two-
piece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
The safety cable must be attached to the safety cable eyelet on the back of the device.
Please note that this device must not be connected to a dimmer.
Mounting options
Installation
2Bright Expo 575 WW, 2Bright Expo 575 CW 15
LED Spotlight

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).

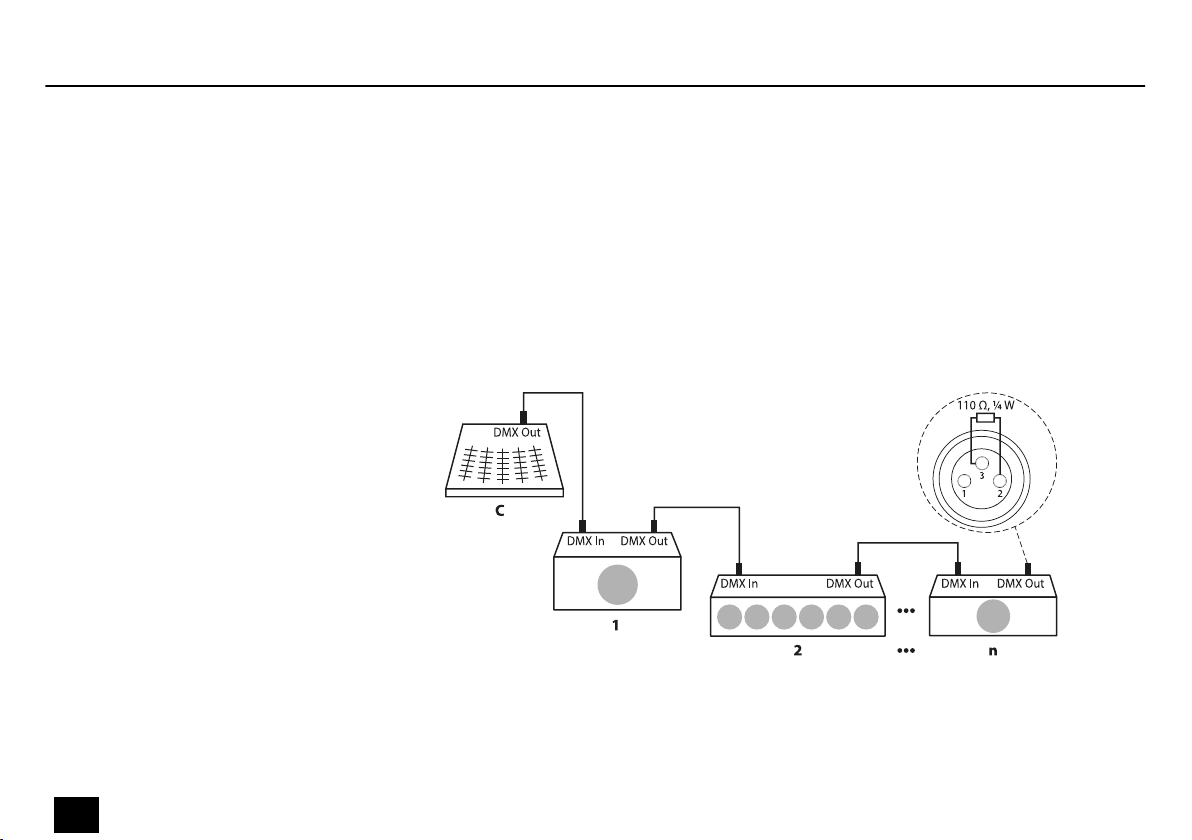

Connections in DMX mode
Starting up
16 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connect the device to the power supply to start operation.
Connections in master/slave
mode
Starting up
2Bright Expo 575 WW, 2Bright Expo 575 CW 17
LED Spotlight

6 Connections and controls
MENU UP DOWN ENTER
2bright Expo 575
100-240V~50/60Hz
$
&
'
%
(
#
Connections and controls
18 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight

1[DMX In] | DMX input, designed as XLR panel plug, 3-pin
2[DMX Out] | DMX output, designed as XLR panel socket, 3-pin
3 Display and control buttons
[MENU] | activates the main menu and toggles between menu items. Closes an opened submenu.
[UP] | increases the displayed value by one.
[DOWN] | decreases the displayed value by one.
[ENTER] | selects an option of the respective operating mode.
4[F3AL250V] | fuse holder
5 Safety cable eyelet
6[Power In] | lockable input socket (Power Twist) for the power supply of the device
7[Power Out] | lockable output socket (Power Twist) for powering a connected device
Connections and controls
2Bright Expo 575 WW, 2Bright Expo 575 CW 19
LED Spotlight

7 Operating
7.1 Main menu
1. Press [MENU] to activate the main menu.
2. Use [UP] or [DOWN] to select the desired parameter or to change the respectively dis‐
played value.
3. When the display shows the desired parameter or value press [ENTER] to enter the
respective submenu or to conrm a new value.
4. To return to the previous menu level without changes, press [MENU].
1. Press [MENU] to activate the main menu.
2. Use [UP] or [DOWN] until the display shows ‘Address’ and conrm with [ENTER].
3. Use [UP] or [DOWN] to select a value between ‘Add: 001’ and ‘Add: 512’ to set the
desired DMX address and conrm with [ENTER].
Make sure that this number matches the conguration of your DMX controller. This set‐
ting is only relevant when the device is controlled via DMX.
4. To return to the previous menu level without changes, press [MENU].
DMX address
Operating
20 2Bright Expo 575 WW, 2Bright Expo 575 CW
LED Spotlight
