TiLite ZRA User manual

TiLite ZRA
Technical Manual
1426 East Third Avenue Kennewick, Washington 99337 Toll Free: [phone] Fax: [phone] Web: www.TiLite.com
SPEC0077 REV A 7/1/03
™

TiLite™ ZRA AXLE ASSEMBLY
HD100328 - 10-24 X 1-1/2" SOCKET HEAD CAP SCREW, BLACK
CP102056 - FOOTREST TUBE EXPANSION CLAMP A 1.25 X .065 WALL
CP102057 - FOOTREST TUBE EXPANSION CLAMP B 1.25 X .065 WALL
CP102061 - ENDCAP 1.25 X .065
CP101864 - PEDIATRIC CHAIR BACKREST BUSHING
ZRA FRAME WITH FOLDING BACK
CP102075 - 5/16-24 X 2" W/ 1-5/8"
SHOULDER BUTTON HEAD SOCKET CAP
TiLite™ ZRA FRAME ASSEMBLY
CP102293 - ZRA CAMBER MOUNT
WEBBED RIGHT HAND
CP102050 - CAMBERTUBE MOUNT
MONOTUBE RIGID RT
HD100333 - 1/4-28 NYLOCK
NUT, BLACK ZINC PLATE
CP102060 - CAMBERTUBE
MOUNT MONOTUBE RIGID LT
CP102294 - ZRA CAMBER
MOUNT WEBBED LEFT HAND
CP102295 - TOE CLAMP 1 1/4
CAMBER MOUNT
CP102296 - TOE CLAMP 1 1/4
CAMBER MOUNT WITH HOLE
HD100341 - 1/4-20 X 3/4" SOCKET
HEAD CAP SCREW, BLACK ZINC
HD100332 - 1/4-20 X 1" SOCKET
HEAD CAP SCREW, BLACK
HD100327 - 1/4-28 X 3/4" SOCKET
HEAD CAP SCREW, BLACK
SPEC0078 REV B DVB 6/29/04 APPROVED: ________________________ FILENAME: SPEC0078.PDF

TiLite™ CASTER ASSEMBLY
NOTE:
3", 4", 5" Casters Use Middle Hole
6" Casters Use Bottom Hole Only
CP102093 - ZRA CASTER
EXTENSION 1/2"
CP102279 - BEARING
FORK STEM 2004
CP102289 - BEARING FORK
STEM W/ ½" EXT 2004
CP102093 - ZRA CASTER
EXTENSION 1/2"
CP102048 - CASTER CAP
BEARING FORK
HD100353 - 3/8" AN
WASHER STAINLESS STEEL
HD100352 - 3/8-24
NYLOCK NUT JAM HEIGHT
CP102142 - CASTER
MOUNT DOWEL Ø.437
CP102046/CP102058 -
CASTER MOUNT FOR
BEARING FORK
HD100330 - 1-1/8"
INTERNAL RETAINING
RING
HD100085 - 5"-8"
CASTER AXLE
CP102049 - BEARING
FORK
HD100084/CP100007 -
FORK SPACER HD100331 - 10-32 X 3/8"
TRUSS HEAD SCREW
CP102064 - ENDCAP
1.25 OD X .125 WALL
HD100011 - BEARING 1/2"
I.D. X 1-1/8 O.D. X 5/16 W
HD100333 - 1/4-28
NYLOCK NUT
HD100132 - 8-32 X 3/16"
SOCKET SET SCREW
HD100324 - 1/4-28 X
1 3/4 BHCS
CP102290 - BEARING FORK
STEM W/ 1" EXT 2004
SPEC0079 REV B DVB 6/29/04 APPROVED: ________________________ FILENAME: SPEC0079.PDF

TiLite™ ZRA SWING AWAY ARMREST ASSEMBLY
9" - 12" Position 11" - 14" Position
HD100222 - NYLINER, 1.000 I.D. X 1.125 LG
CP102066 - ZRA ARMREST RECIEVER
CP101296 - XC ARMPIN EXTERNAL THREAD
CP101295 - XC ARMRESTPIN INTERNAL THREAD
HD100134 - END CAP 1" X .083 WALL TUBING
CP102073 - ZRA SPORT ARMREST TUBE LEFT
CP102074 - ZRA SPORT ARMREST TUBE RIGHT
HD100112 - FOAM GRIP FOR 1" TUBING,
.940 I.D. X .125 WALL X 12" LONG
SPEC0080

8.188ï.010 DIM "A"
8.250ï.030
TRIM LINE
PART NUMBER
CP100862
CP100863
CP100864
MOUNTING WIDTH
10¼"-12¾"
13¼"-15¾"
16¼"-17¼"
DIM "A"
5.250
6.750
0.000

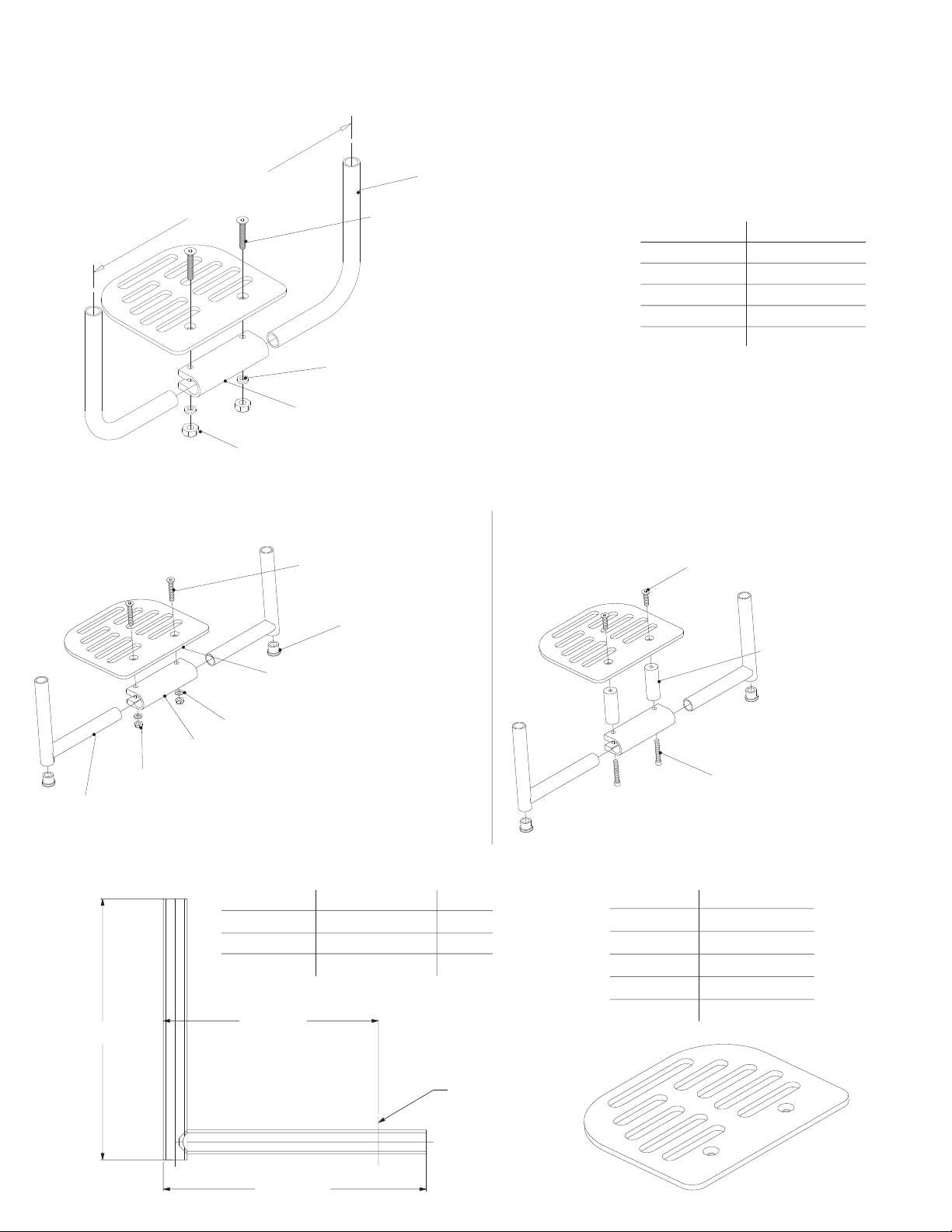

TiLite™ ZRA ANGLE ADJUSTABLE
FOOTPLATE ASSEMBLIES
HD100337 - 1/4-20 X 1-1/2" SOCKET
HEAD CAP SCREW, BLACK ZINC
HD100336 - 1/4-20 X 3/4" FLAT HEAD
SOCKET CAP SCREW, BLACK ZINC
FOR 9"-11"
CP102078 - 2" HIGHMOUNT
FOOTPLATE EXTENSION
FOR 7"-9"
CP102079 - 4" HIGHMOUNT
FOOTPLATE EXTENSION
FOR 7"-11" SEAT TO FOOTREST
HIGH MOUNT EXTENSION TABLE
PART NUMBER
CP100855
CP100856
CP100857
CP100858
CP101983
MOUNTING WIDTH
10¼"-11¼"
11¾"-12¾"
13¼"-14¼"
14¾"-15¾"
16¼"-17¼"
FOOTPLATE TABLE
CP100854 - ANGLE ADJUSTABLE FOOTREST CLAMP
HD100127 - END CAP
3/4" X .083 WALL
HD100333 - 1/4-28 NYLOCK NUT, BLACK ZINC PLATE
HD100056 - 1/4" AN WASHER .260 I.D. .500 O.D. .0625
THICK, YELLOW ZINC PLATED
FOR 11"-13½" SEAT TO FOOTREST
SEE FOOTPLATE TABLE
HD100338 - 1/4-28 X 1-1/2" LONG
FLAT HEAD CAP SCREW, BLACK ZINC
SEE HIGH MOUNT EXTENSION TABLE
CP100860
PART NUMNBER
CP100859
CP100859
CP100860
CP100861 16¼"-17¼"
14¾"-15¾"
13¼"-14¼"
11¾"-12¾"
10¼"-11¼"
MOUNTING WIDTH
EXTENSION TABLE
MOUNTING
WIDTH
SEE EXTENSION TABLE
HD100338 - 1/4-28 X 1-1/2" LONG
FLAT HEAD CAP SCREW, BLACK ZINC
CP100854 - ANGLE ADJUSTABLE FOOTREST CLAMP
HD100333 - 1/4-28 NYLOCK NUT, BLACK ZINC PLATE
HD100056 - 1/4" AN WASHER .260 I.D. .500 O.D. .0625
THICK, YELLOW ZINC PLATED
SPEC0081

USE VIBRATITE (RED):
2X BACKREST RELEASE BAR SCREW
2X ARMREST PIN
USE VIBRATITE (RED):
2X LUGGAGE CARRIER SCREWS
2X BACKREST EXT. SCREW
4X TRUSS HEAD SCREW
USE LOCTITE 7649 (PRIMER)
AND LOCTITE 262 (RED):
2X CASTER STEM
2X CASTER STEM SET SCREW
USE VIBRATITE (RED):
2X AXLE SLEEVES
TiSport Controlled Document
Doc number: SPEC0082
Revision D
Authored By: D. BERRIOCHOA
Date: 7/29/04
Approved By:_________________________ Date:_________________
Title: TiLite™ ZRA LOCTITE CHART
PAGE 1 OF 1
APPLY 7/8” WIDE VIBRATITE STRIP
ALONG THE CENTER OF SLEEVE
AROUND THE DIAMETER. APPLY
DRY LUBE AFTER VIBRATITE IS DRY.
USE VIBRATITE (RED):
2X FROG LEGS STEMS
2X CASTER STEM SET SCREW
FOR FROG LEGS FORKS:
