Time Electronics 5069 Ins-Cal User manual

User Manual
5069 InsCal
Insulation Tester Calibrator
Version 2.2
July 2021
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA, United Kingdom.
T: [phone] | F: [phone]
[e-mail] | www.timeelectronics.com

© 2021 Time Electronics Ltd.
All rights reserved.
Nothing from this manual may be multiplied, or made public in any form or manner, either
electronically or hard copy, without prior written consent from Time Electronics Ltd.
This also applies to any schematics, drawings and diagrams contained herein.
This manual provides operating and safety instructions for the Time Electronics product.
To ensure correct operation and safety, please follow the instructions in this manual.
Time Electronics reserves the right to change the contents, specifications and other
information contained in this manual without notice.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 3 of 15
Contents
1General Description.......................................................................................................................4
2Supplied Items ...............................................................................................................................5
3Specifications ................................................................................................................................6
3.1 Technical Specification..........................................................................................................................6
3.2 General Specification ............................................................................................................................6
3.3 Ordering Information.............................................................................................................................. 6
4Controls..........................................................................................................................................7
4.1 Descriptions of Controls ........................................................................................................................7
5Operation........................................................................................................................................8
5.1 Operational Guidelines ..........................................................................................................................8
5.2 Typical Operation Procedure .................................................................................................................9
5.2.1 Initial Setup ........................................................................................................................................................9
5.2.2 Voltage Measurement......................................................................................................................................10
5.2.3 Current Measurement......................................................................................................................................11
5.2.4 Insulation Resistance Verification....................................................................................................................12
5.2.5 Example Connection Diagram .........................................................................................................................13
6Warranty and Servicing............................................................................................................... 14

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 4 of 15
1General Description
This precision instrument is an insulation meter tester and calibrator in one, specifically
designed to test and calibrate insulation test sets and megohm meters with varying ranges.
It consists of a high precision resistance box, a voltmeter and a milliamp meter.
It is constructed from very high insulation materials, including its case, and is fully isolated
from any external circuits including the mains supply.
All of the rotary selector switches are manufactured by Time Electronics, using special high
voltage low leakage wafers; the contacts are self-cleaning. This feature means they should
require no maintenance.
All parts of the instrument, including the bared leads provided (after custom 10 kV rated
probes are fitted) have been tested for safety up to ten kilovolts.
The three functions, Voltage Measure, Current Measure, and Source Resistance are
selected and used separately.
Maximum voltage is dependent upon humidity levels. Below 50% relative humidity is
recommended.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 5 of 15
2Supplied Items
5069 InsCal Insulation Tester Calibration System
Accessories in the box:
Wallet 10 kV lead 5 kV Lead Set Battery charger

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 6 of 15
3Specifications
3.1 Technical Specification
Insulation Resistance
3 x spot values: 100 kΩ, 200 kΩ, 500 kΩ……..Accuracy: 1%...............Max. Volts: 500 V
3 x spot values: 1 MΩ, 2 MΩ, 5 MΩ……………Accuracy: 1%...............Max. Volts 2 kV
9 x 10 MΩ.........Voltage Coeff: < 2 ppm/V…….Accuracy: 1%...............Max. Volts 1 kV
9 x 100 MΩ......Voltage Coeff: < 2 ppm/V…….Accuracy: 1%...............Max. Volts 6 kV
9 x 1 GΩ...........Voltage Coeff: < 5 ppm/V…….Accuracy: 1%...............Max. Volts 6 kV
10 x 10 GΩ……Voltage Coeff: <= 0.5 ppm/V...Accuracy: 5%...............Max. Volts 10 kV
All resistors have a temperature coefficient of 250 ppm.
Switches are a purpose-built design, with break-before-make, silver plated, self-cleaning contacts.
NOTE: The maximum voltage applied must be limited to the rating of the lowest decade being used.
For example, if 100 MΩ and 10 MΩ decades are used, the maximum applied voltage will be limited to 1 kV.
Volt-Meter
Low Range ................. 0 to 1.999 kV, resolution 1 V; 1% of full-scale reading.
High Range ................. 0 to 10.0 kV, resolution 10 V; 1% of full-scale reading.
At 10 kV the humidity limit should be below 50%.
Terminal impedance ... 1 GΩ
Milli-Amp Meter
Low Range ................. 0 to 2 mA; 1% of full-scale reading.
High Range ................. 0 to 20 mA; 1% of full-scale reading.
Terminal impedance ... 447 Ω(this includes the discharge resistor for short circuit test).
3.2 General Specification
Environmental ............. Operating temperature 20 to 26 ºC. Humidity below 50%.
Power.......................... Internal battery, 6 V re-chargeable NiMH, >150hrs between charges.
Dimensions/Weight ..... W 406 x H 175 x D 330mm / 4.4 kg.
Supplied with............... Safety connection leads with bare ends to allow custom probes
(10 kV rated), 4 mm 5 kV test lead set, wallet to carry test leads and
mains battery charger (230 V 50 Hz).
3.3 Ordering Information
5069............................ Insulation Tester Calibrator (InsCal)
C189 ........................... Traceable calibration certificate (Factory)
C112 ........................... Accredited calibration certificate (ISO 17025)

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 7 of 15
4Controls
4.1 Descriptions of Controls
•On/Off Button: To power the voltage/current meter on or off.
•Charging Socket. A socket to recharge the 5069 voltage/current meter.
•Voltage/Current Meter: Displays the O/C voltage or S/C current when used.
•V or I Range Selection Button: Select the range to use for the V or I measure function.
•Function Selectors: Use to select the required function.
•Resistance 100 kΩ to 5 MΩ Set Points:Spot resistance values used individually.
•Decades Resistance Ranges: Rotate knobs to set required resistance values.
•4 mm Recessed Sockets: Used to connect the 5069 to the insulation tester (UUT).
V/I Meter
Charging
socket
Voltage/Current
Meter
Resistance
100 kΩto 5 MΩ
Set Points
Decade
Resistance
10 MΩto 90 MΩ
Decade
Resistance
100 MΩto 900 MΩ
Decade
Resistance
1 GΩto 9 GΩ
Decade
Resistance
10 GΩto 100 GΩ
4 mm recessed
UUT connection
sockets
V or I Range
Selection
Button
V/I Meter
On/Off button
Function
Selectors

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 8 of 15
5Operation
5.1 Operational Guidelines
Notes:
1. UUT: stands for Unit Under Test (i.e. the insulation tester or the megohm meter).
2. Wherever possible use the manufacturer of the UUT’s supplied test leads.
The 5069 can measure test voltages generated by a UUT up to 10 kV.
Be aware that the test voltage for high resistance measurements is dangerous and can
cause electric shock!
Always remove the battery charger leads from both the 5069 and the UUT before
starting the calibration setup.
Use only the measuring leads supplied with the UUT or those supplied with the 5069.
When checking high resistance values the leads may pick up electrical interference,
which can cause a disturbance to the readings obtained. Some manufactures fit a
guard connection for use with dedicated leads, this will stabilise the readings.
It is not recommended to operate the resistance decade switches while a test is made.
This will not automatically do any damage but may cause arcing and create transients
which could give false readings on the UUT display due to the fact that the switch is
break-before-make between each resistor. This will ensure that contact arc is
suppressed with high relative humidity.
Avoid opening the 5069 case lid in the rain or in steamy conditions for the moisture
will impair the readings.
Observe safety at all times and if possible, carry out the tests in a low humidity
environment.
Note: Insulation testers will vary, and the controls may be different than those referenced in this manual.
However, the testing principles should still apply.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 9 of 15
5.2 Typical Operation Procedure
5.2.1 Initial Setup
1) Check the battery on both 5069 V/I Meter and Insulation Tester.
Make sure their batteries are fully charged.
2) Complete the setup procedure for the insulation tester (UUT).
3) Connect the selected test leads to the 4 mm recessed sockets
of the 5069.
NOTE: If the UUT’s own test leads are available, use them as
first choice.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 10 of 15
5.2.2 Voltage Measurement
The 5069 voltmeter will display the voltage output from the insulation tester.
Perform the following procedure to measure the voltage.
1) Adjust the pointer at zero on the UUT (Analogue meter display, if required).
2) On the 5069, select the O/C VOLTS function using the rotator knob.
3) Using ‘Range Selection Button’ under the display, choose the required voltage range:
2 kV or 10 kV.
4) Using the selected high voltage test leads, connect the 5069 to the UUT, observing their
polarities.
5) Select voltage range on UUT, and press the test button.
6) When the reading has stabilised, record the O/C voltage reading on the 5069 voltmeter.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 11 of 15
5.2.3 Current Measurement
The 5069 current meter will display the equivalent current output of the Insulation tester.
Perform the following procedure to measure the current.
1) On the 5069, select the S/C CURRENT function using the rotator knob.
2) Using ‘Range Selection Button’ under the display, choose the required current range:
2 mA or 20 mA.
3) Press the test button on the UUT, and record the current reading on the 5069 display.
Ensure the output of the UUT is turned off after test.
4) Return the 5069 setting to O/C Voltage, and repeat the Voltage Measurement procedure
above (5.2.2). This is to check the voltage has recovered. Switch off the output from the UUT.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 12 of 15
5.2.4 Insulation Resistance Verification
Note: The O/C V and S/C I display can be turned off when
using the resistance function to conserve battery life.

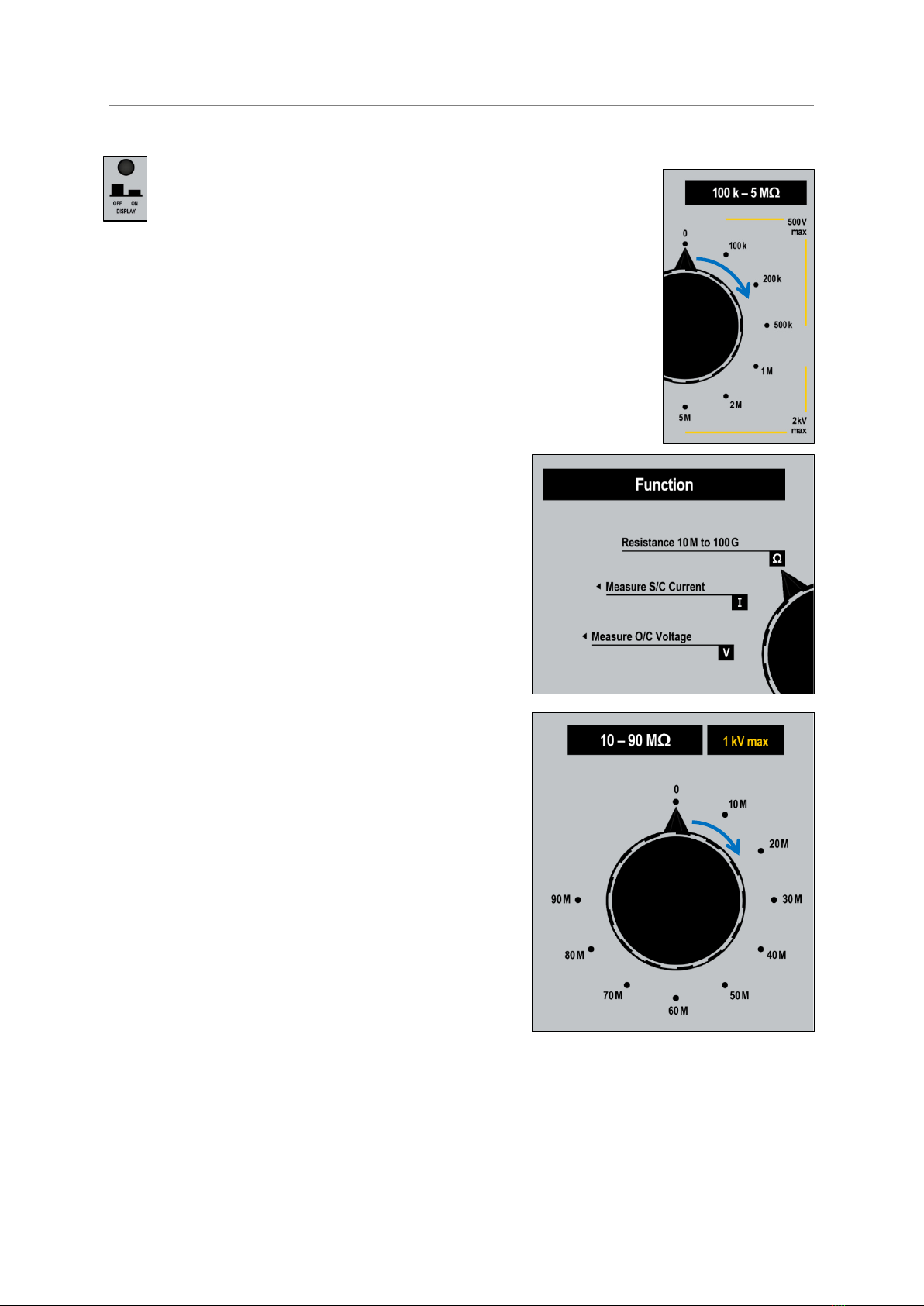

1) If using the 100 kΩ to 5 MΩ set points, select the required
resistance.
Ensure that the voltage set on the UUT does not exceed this voltage
rating shown on the panel.
2) If using the decades, select the RESISTANCE
function using the rotator knob.
3) Then set the decade resistance knobs to the
value required.
Note the allowed voltage of the resistance ranges as
shown on the 5069 panel.
When using multiple decades, the maximum voltage
is that of the lowest decade.
Ensure that the voltage set on the UUT does not
exceed this voltage rating.
4) Press the test button on the UUT.
Note that on the higher resistance ranges, due to the very low currents present, the
display on the UUT may fluctuate and take time to settle, please follow any precautions
given by the tester manufacturer.
5) Proceed and record all test results, noting the allowed errors of the 5069 and also for that
of the UUT.

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 13 of 15

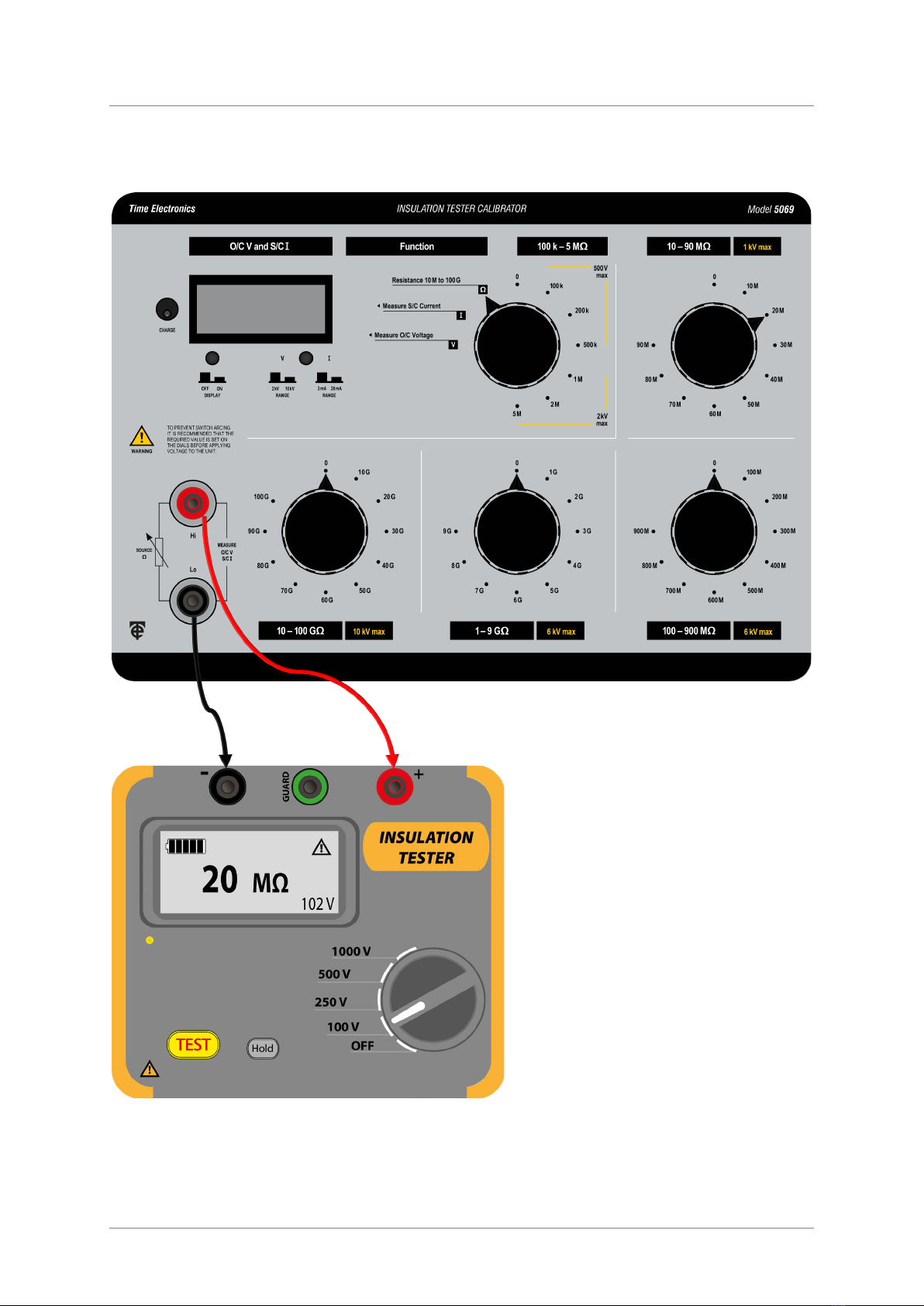

5.2.5 Example Connection Diagram

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 14 of 15
6Warranty and Servicing
Warranty
The Time Electronics products carry a one-year manufacturer’s warranty as standard.
Time Electronics products are designed and manufactured to the highest standards and
specifications to assure the quality and performance required by all sectors of industry.
Time Electronics products are fully guaranteed against faulty materials and workmanship.
Should this product be found to be defective, please contact us using the below details.
Inform us of the product type, serial number, and details of any fault and/or the service
required. Please retain the supplier invoice as proof of purchase.
This warranty does not apply to defects resulting from action of the user such as misuse,
operation outside of specification, improper maintenance or repair, or unauthorized
modification. Time Electronics’ total liability is limited to repair or replacement of the product.
Note that if Time Electronics determine that the fault on a returned product has been caused
by the user, we will contact the customer before proceeding with any repair.
Calibration and Repair Services
Time Electronics offers repair and calibration services for all the products we make and sell.
Routine maintenance by the manufacturer ensures optimal performance and condition of the
product. Periodic traceable or accredited calibration is available.
Contacting Time Electronics
Online:
Please visit www.timeelectronics.com and select Support Request from the Contact links.
From this page you will be able to send information to the Time Electronics service team
who will help and support you.
By phone:
[phone]
By email:
[email protected]

Time Electronics User Manual
5069 Insulation Tester Calibrator v2.2
5069 Insulation Tester Calibrator Page 15 of 15
Returning Instruments
Prior to returning your product please contact Time Electronics. We will issue a return
merchandise authorization (RMA) number that is to accompany the goods returning.
Further instructions will also be issued prior to shipment. When returning instruments, please
ensure that they have been adequately packed, preferably in the original packing supplied.
Time Electronics Ltd will not accept responsibility for units returned damaged.
Please ensure that all units have details of the service required and all relevant paperwork.
Send the instrument, shipping charges paid to:
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA.
United Kingdom.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.timeelectronics.com
Disposal of your old equipment
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences
for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city
office, waste disposal service or return to Time Electronics.
