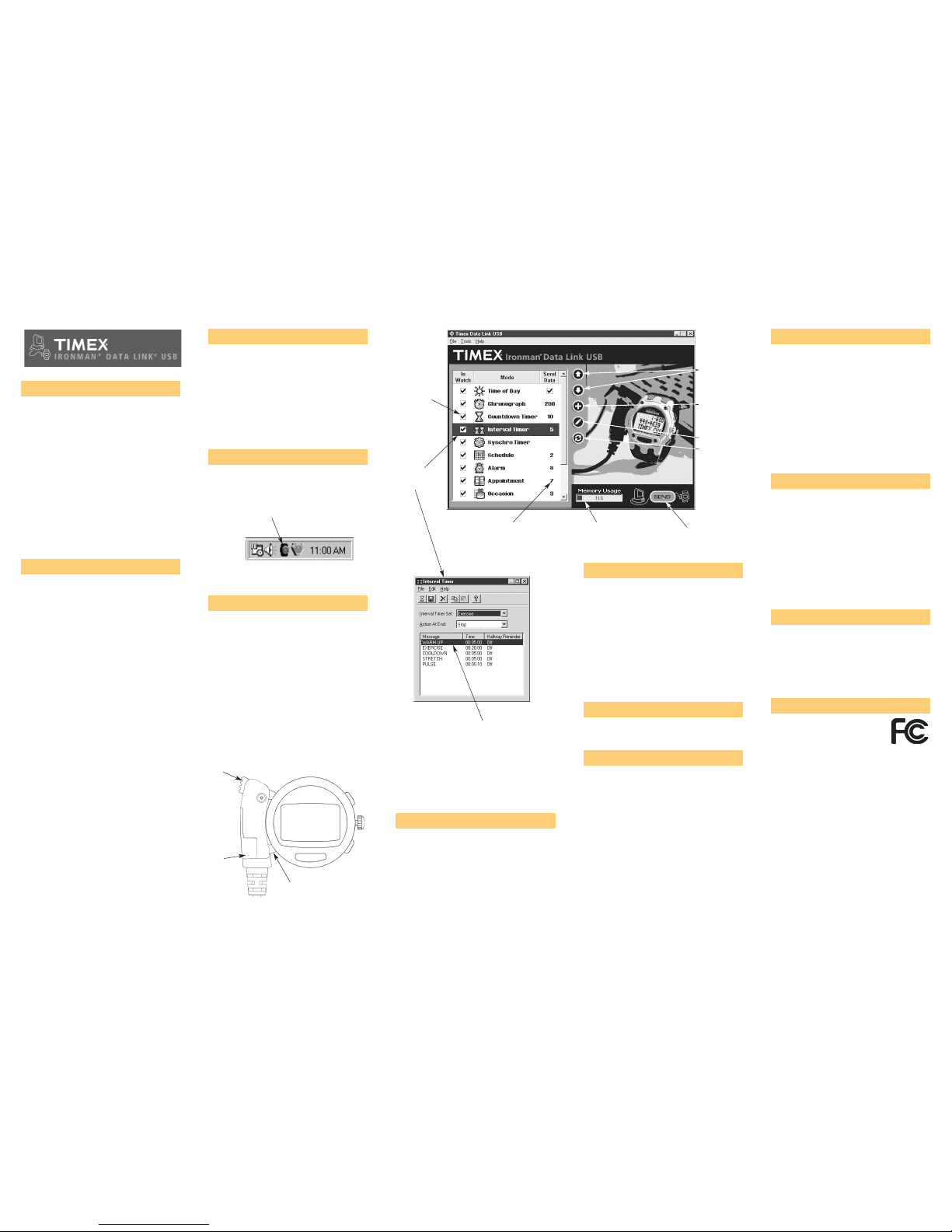

Timex Ironman Data Link USB User manual

Congratulations on your purchase of the
Timex®Ironman* Data Link®USB watch.
fIt’s a feature-rich Ironman sport watch.
fIt’s a PDA for your wrist.
This simple guide will get you started with
your new Timex Ironman Data Link USB
watch and help you use the many features
of the watch and software.
For complete instructions on using this
watch, see the Watch Help and Software
Help in the software. Printable versions
are loaded automatically onto your
computer when you install the Timex Data
Link USB software.
WHAT YOU NEED
QUICK START GUIDE
INSTALL THE SOFTWARE
While a computer is not needed for most
watch functions, the software makes
watch setting easy and unlocks powerful
features such as appointment and contact
management. Every feature can be set
simply and easily with a computer.
You need the following to take advantage
of all the watch functions:
fThe included CD-ROM with the Timex
Data Link®USB software.
fThe supplied USB cable.
fA PC with the following configuration:
• Microsoft®Windows®98 2nd Ed.,
2000 (with Service Pack 1 or higher),
ME, XP or higher operating system
• 30 MB of free hard disk space
• USB port
The mini CD-ROM works in any standard
CD-ROM drive with a tray; place the CD-
ROM in the center of the tray. Visit
www.timex.com to download the software
if you have any trouble.
To install the software, load the CD-ROM
into your computer. A menu should
automatically appear (if not, run
INTRO.EXE on the CD). Select "Install
Timex Data Link USB." If you wish to keep
track of your workouts on the PC, you
may also select "Install Timex Trainer."
BATTERY
The life of a factory-installed battery is
estimated to be about 2 years, but battery
life will vary depending on actual usage.
When the watch's battery is low, the
message LO BATT is displayed in place of
the date, at the beginning of each day.
The reminder disappears when you
change the display. You should replace
the battery as soon as possible. While the
watch will continue to run, a low battery
may cause communication problems.
To avoid permanent damage to the watch,
Timex strongly recommends that you
have the battery replaced by a jeweler.
WATER RESISTANCE
This watch is rated as water resistant as
marked on the watch. A 100 m water-
resistant watch withstands pressure to 172
p.s.i. (equals immersion to 330 feet or 100
meters below sea level). A 50 m water-
resistant watch withstands pressure to 86
p.s.i. (equals immersion to 165 feet or 50
meters below sea level).
Do not press the watch buttons while
under water, as the watch will not remain
water resistant.
TECHNICAL SUPPORT
If you have any questions about the
operation of your watch or its software,
please refer to the Watch Help and the
Software Help. For any questions not
answered by the Help, check the Timex
website or call the support line:
• Website: http://www.timex.com
• Technical support line in the US and
Canada: 1-800-328-2677
• Technical support line from other than
US and Canada: 1-501-370-5775
CONNECT THE WATCH
Connect the USB cable to your watch as
follows:
1. Insert the rectangular end of the USB
cable into an open USB port on your
PC.
2. Hook the bottom of the connector on
the other end of the cable to the left
side of the watch below the contacts.
3. Pull the connector lever open and hook
the upper end of the connector to the
watch.
4. The software automatically reads the
watch’s data.
Connector
Lever
USB
Connector
Connector
Hook
Indicates how much of the watch data
memory will be used by the data you
have selected to send. If it is more than
100%, select less data to send.
Click here to send data
from the computer to
the watch.
Double-click on
a mode to edit
its data.
IMPORTANT
The Timex Ironman Data Link USB Watch
is not a medical device. It should not be
used in the diagnosis, treatment, or
prevention of any disease or other
medical condition. Users should have
alternate methods for such purposes.
RUN THE SOFTWARE
The installation will place a watch icon in
the system tray at the lower right of the
screen. You may start the software by
double-clicking on this icon or simply
connect the watch, and it will start
automatically.
TRY IT OUT
The software comes loaded with sample
data, so if you want to try sending data to
your watch right away, just click the SEND
button in the software. Then disconnect
the watch and you should see the data in
the watch. See the other side of this sheet
for instructions on operating the watch.
SEND TO THE WATCH
Click the SEND button to download the
information to your watch.
*IRONMAN is a registered trademark of World Triathlon
Corporation. TIMEX, DATA LINK, and NIGHT-MODE are
registered trademarks of Timex Corporation. Microsoft,
Windows, and Outlook are registered trademarks of
Microsoft Corporation in the U.S. and in other countries.
INDIGLO is a registered trademark of Indiglo Corporation in
the U.S. and other countries.
Check the modes
you want to be in
the watch and
uncheck the ones
you don't want.
Number of
data entries
to be sent.
Move mode up
or down in the
list (reflected in
the watch).
Add a mode.You
can have multiple
versions of one
mode (e.g., two
Contact modes,
one business and
one personal).
Edit mode data.
Refresh auto-
imported data
(see Software
Help).
COMPLIANCE
FCC Notice: Tested To Comply
With FCC Standards FOR
HOME OR OFFICE USE.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation. Caution: Any changes or
modifications not expressly approved by
Timex Corporation could void the user’s
authority to operate this equipment.
Industry Canada Notice: This Class B
digital apparatus complies with Canadian
ICES-003. Cet appareil numérique de la
classe B est conforme à la norme NMB-
003 du Canada.
ENTER YOUR INFORMATION
You can add your contacts, appointments,
alarms, and other data in three ways:
1. Enter information directly into the
Timex software.
2. Import from Microsoft®Outlook®
messaging and collaboration client.
3. Import from a .csv file (this is a Save
As option in spreadsheet applications).
With the software you can also set up
your chronograph and timers. See the
Watch Help for detailed instructions.
Double-click on an
entry to edit it.
© 2003 Timex Corporation. All rights reserved.
D: 990-095001
G: 991-094067

WATCH DISPLAY
WATCH CONTROLS
fMODE Button
Press the MODE button to cycle through the watch
modes.
fCrown
Scrolling – In any mode (other than Time of Day),
turn the Crown to scroll through the entries.
INDIGLO®night-light – Patented (U.S. Patent
Numbers 4,527,096 and 4,775,964)
electroluminescent technology used in the
INDIGLO night-light illuminates the entire watch
face at night and in low-light conditions. Press the
crown to activate; hold for 4 seconds to activate
NIGHT-MODE® feature (U.S. Patent Number
4,912,688). for 8 hours (see Options).
Setting – Pull the Crown out to set. Turn the Crown
to change the flashing item’s value. Press the
MODE button to advance to the next item or
STOP/RESET to return to the previous item. Push
the Crown in to save your changes and return to
the normal display.
TIME OF DAY COUNTDOWN TIMER
ALARM
fSetting
Pull out the Crown to set. Turn the Crown to change
the flashing item’s value. Press MODE to set the
time, time format, date, date format, year, day of the
week or week number, and time zone name. Push in
the Crown to save your changes.
fTime Zones
Press STOP/RESET once and hold it to display the
second time zone; press twice and hold to display
the third time zone. Continue holding to switch to
the displayed time zone.
fNext Appointment/Occasion
Press START/SPLIT once and hold to display the next
Appointment; press twice and hold to display the
next Occasion.
CHRONOGRAPH
To start the chronograph Press START/SPLIT
To take a split Press START/SPLIT
To stop the chronograph Press STOP/RESET
To restart the
chronograph
or
Press START/SPLIT
Pull out and turn
the Crown
To clear the workout
or
To store the workout
Press and hold
STOP/RESET
To recall a stored
workout when the chrono
is reset (at zero)
then
To review lap/split times
or
To delete a workout
Turn the Crown to scroll
the entries
Turn the Crown one click
Hold STOP/RESET
To view the notes Turn the Crown
To delete a note Hold STOP/RESET
INTERVAL TIMER
Tip
•Use the PC software to set the watch; it’s much
easier than using the buttons.
Tip
•After setting an interval, press START/SPLIT to go
to the next interval.
Tip
• The symbol AP appears when an appointment is
scheduled within the next 3 days.
Tips
• Lap/split times can be recalled while the
chronograph is running or after it is stopped.
• When you take a split, the display freezes for 10
seconds, then resumes with the next lap. Press
MODE to immediately display the next lap.
• When the chronograph is reset (at zero), you can
change the format of the display. Pull the Crown
out and turn to select the positions of the lap and
split times or the time of day.
Time an event and record lap or segment times that
you can review during or after the event.
fOperation
This is a sequence of linked countdown timers.
When one countdown timer interval ends, an alert
sounds and the next interval starts. Operation and
setting are otherwise similar to the Countdown
Timer.
Enter and retrieve short messages.
fOperation
A countdown timers counts backward to zero from a
time you set. You can set multiple countdown timers
on your watch
fOperation
To start the timer Press START/SPLIT
To view the timers Turn the Crown
To stop the timer Press STOP/RESET
Hold STOP/RESET
To resume countdown
or
To reset the timer
Press START/SPLIT
To arm or disarm an
alarm Press START/SPLIT
To change to ON, OFF, or
AUTO
Press START/SPLIT or
STOP/RESET
To set the ON and OFF
times
Pull out the Crown, turn
the Crown, press MODE
To view the list of alarms Turn the Crown
To delete an alarm Hold STOP/RESET
Tip
• Activate the Halfway reminder by pressing
STOP/RESET before starting the timer.
Tips
• When setting the time of an alarm, press
START/SPLIT to switch between 5 minute and 1
minute increments.
• The alarm icon appears only when an alarm is set
to alert within 12 hours.
NOTE
Set one or more alarms.
fOperation
OPTIONS
Access three watch options. Turn the Crown to
choose among them.
fNIGHT-MODE® Feature
When this feature is activated, the INDIGLO®night-
light is turned on whenever a button is pressed. It
can be set to OFF, ON, or AUTO. When ON, the
NIGHT-MODE feature is active for 8 hours. AUTO
activates it between the ON and OFF times you set.
When an alarm alert sounds, press any button to
silence it. If not silenced, it repeats once in 5
minutes.
fSetting
To set an alarm, turn the Crown to display an
existing or unused alarm and pull out the Crown.
Turn the Crown to change the flashing item’s value.
Press MODE to set the time, active day(s), and
message. Push in the Crown to save your changes.
APPOINTMENT
This feature informs you of appointments.
fOperation
ADDITIONAL MODES
Other modes can be downloaded to the watch with
the PC software. See the Software Help.
DEMO
Your watch may be preloaded with a running Demo
mode. You may exit the demo by pressing the MODE
button. The demo is deactivated when you set the
date or send data to the watch.
When an alert sounds, press any button to silence it.
If not silenced, it repeats once in 5 minutes.
fSetting
To set an appointment, turn the Crown to display an
existing or unused appointment and pull out the
Crown. Turn the Crown to change the flashing item’s
value. Press MODE to set the time, recurrence, alert
time, and message. Push in the Crown to save your
changes.
To change to ON, OFF, or
AUTO
Press START/SPLIT or
STOP/RESET
To change between ON
and OFF
Press START/SPLIT or
STOP/RESET
To set the ON and OFF
times
Pull out the Crown, turn
the Crown, press MODE
fChime
When this feature is activated, the watch chimes at
each hour. It can be set to OFF, ON, or AUTO. When
ON, the watch chimes every hour. AUTO activates
the chime between the ON and OFF times you set.
fButton Beep
When this feature is activated, the watch beeps with
each button press.
fSetting
To edit or create a note, turn the Crown to display an
existing or unused note and pull out the Crown. Turn
the Crown to change the character at the cursor.
Press MODE to move to the next position. Push in
the Crown to save your changes.
To arm or disarm an
appointment Press START/SPLIT
To view appointments Turn the Crown
To delete an appointment Hold STOP/RESET

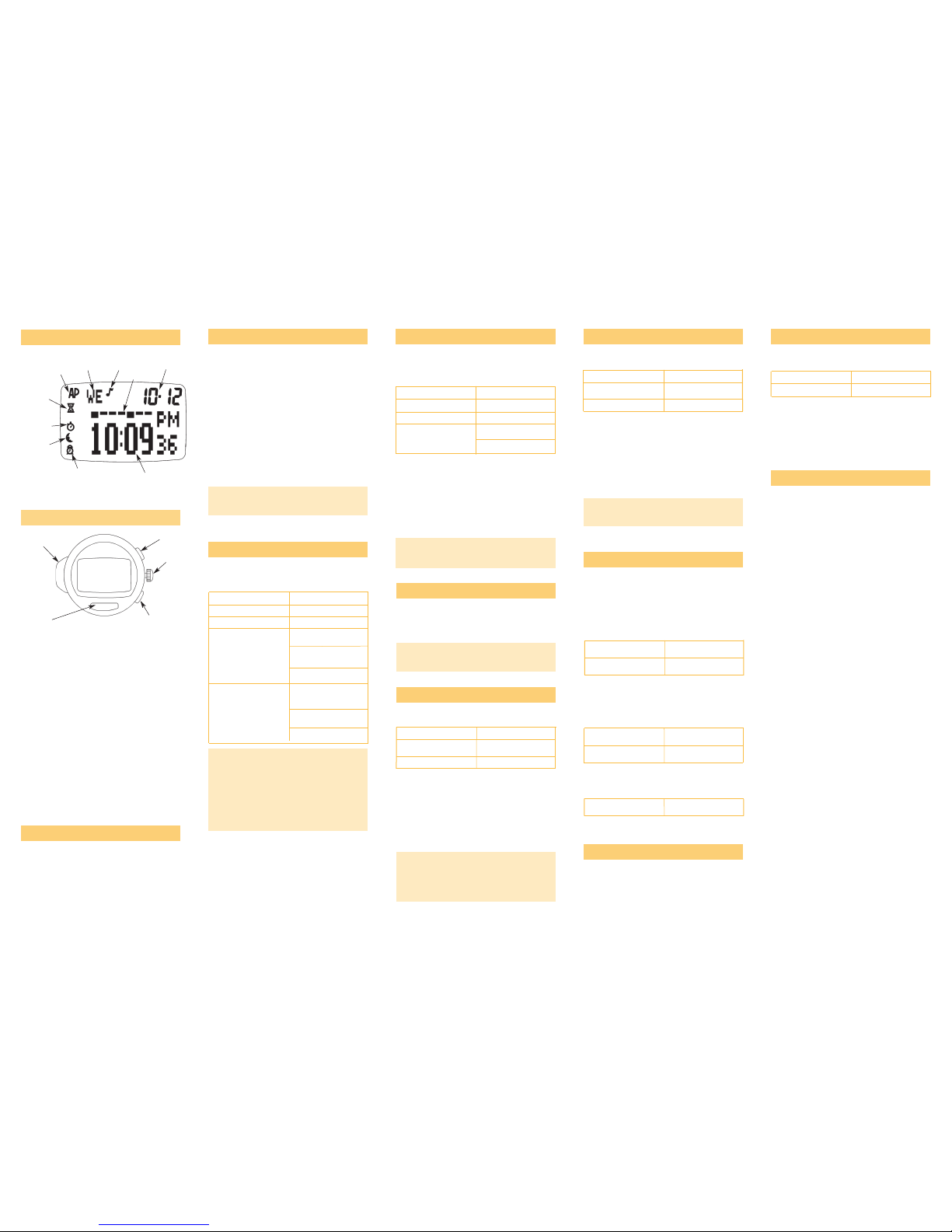

MODE
Crown
STOP/
RESET
START/
SPLIT
USB
Connector
Chime
ON
Appointment
within 3 Days
Countdown
Timer
Running
Chronograph
Running
NIGHT-MODE
Feature ON
Alarm or Appt Alert
within 12 Hours
When the countdown finishes, an alert sounds until
you press any button or the Crown.
fSetting
To set a timer, turn the Crown to display a timer
and pull out the Crown. Turn the Crown to change
the flashing item’s value. Press MODE to set the
hours, minutes, seconds, and the action at the end:
STOP, REPEAT, or (start) CHRONO. Push in the
Crown to save your changes.
Day of the
Week
Timeline
Date
Time in
HH:MM ss Format WARRANTY
To obtain warranty service, please return your watch to
Timex, one of its affiliates or the Timex retailer where
the product was purchased, together with a completed
original Product Repair Coupon or, in the U.S. and
Canada only, the completed original Product Repair
Coupon or a written statement identifying your name,
address, telephone number and date and place of
purchase. Please include the following with your watch
to cover postage and handling (this is not a repair
charge): a US$ 7.00 check or money order in the U.S.; a
CAN$6.00 cheque or money order in Canada; and a UK£
2.50 cheque or money order in the U.K. In other
countries, Timex will charge you for postage and
handling. NEVER INCLUDE A SPECIAL WATCHBAND OR
ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR
SHIPMENT.
For the U.S., please call 1-800-448-4639 for additional
warranty information. For Canada, call 1-800-263-0981.
For Brazil, call 0800-168787. For Mexico, call 91-800-01-
060. For Central America, the Caribbean, Bermuda and
the Bahamas, call [phone] (U.S.). For Asia, call
852-2815-0091. For the U.K., call 44 208 687 9620. For
Portugal, call 351 212 946 017. For France, call 33 3 81 63
42 00. For Germany, call 49 7 231 494140. For the Middle
East and Africa, call 971-4-310850. For other areas,
please contact your local Timex retailer or Timex
distributor for warranty information.
TIMEX INTERNATIONAL WARRANTY (U.S. – LIMITED
WARRANTY) Your TIMEX® product is warranted against
manufacturing defects by Timex Corporation for a
period of ONE YEAR from the original purchase date.
Timex and its worldwide affiliates will honor this
International Warranty. Please note that Timex may, at
its option, repair your product by installing new or
thoroughly reconditioned and inspected components or
replace it with an identical or similar model.
IMPORTANT – PLEASE NOTE THAT THIS WARRANTY
DOES NOT COVER DEFECTS OR DAMAGES TO YOUR
PRODUCT: 1) after the warranty period expires; 2) if the
product was not originally purchased from an
authorized Timex retailer; 3) from repair services not
performed by Timex; 4) from accidents, tampering or
abuse; and 5) lens or crystal, strap or band, watch or
transceiver case, attachments or battery. Timex may
charge you for replacing any of these parts.
THIS WARRANTY AND THE REMEDIES CONTAINED
HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR PARTICULAR PURPOSE. TIMEX IS NOT
LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some countries and
states do not allow limitations on implied warranties
and do not allow exclusions or limitations on damages,
so these limitations may not apply to you. This warranty
gives you specific legal rights and you may also have
other rights which vary from country to country and
state to state.
