Titan TI-7700 User manual

Instruction Manual TI-7700

1
Table of Contents
Thank you for purchasing the TI-7700 Massage Chair.
Before using your massage chair, please read the contents of this instruction
manual and refer to it when needed.
Luxury Features ................................................... 2
Safety Precautions .............................................. 3-4
Chair Components .............................................. 5-6
Chair Installation & Moving .................................. 7-14
Grounding Instructions ........................................ 15
Chair Specifications ............................................. 16
Controller Diagram ............................................... 17-22
Troubleshooting & Product Maintenance .............. 23
Warnings ............................................................... 24

2
Luxury Features
01
The operation of massage chair is controlled by a microcomputer that performs various
intelligent massage methods and combinations, like Kneading, Tapping, Shiatsu,
Rolling, and Air massage. All these methods massage accurately on the acupressure
points, to effectively alleviate fatigue, promote metabolism and improve blood
circulation.
● Designed with Zero-Gravity adjustment can be set for the most comfortable massage
position combined with various types of massage function to achieve more effective
intense massage.
● Uniquely designed s-track to follow the contour of your back.
● Shoulder massager can be adjusted with wide or narrow position according to the
user’s need and a more effective massage.
● Massage angle can be adjusted according to the user’s need and a more effective
massage.
● Particularly air squeeze design for shoulders, arms, hands, thighs and calves make
the massage more effective.
● Heating therapy in the lumbar.
● Controller is direct and easy for operation.
● The ergonomic design is a result of dedicated research to cease the best massage
solution.

3
Safety Precautions
02
When using the massage chair, basic precautions should always be followed to reduce
the risk of electric shock, burns, fire or injury to persons. Please read the following
precautions before using the massage chair.
● Make sure the power plug is securely inserted into a proper electrical outlet to reduce
the risk of short-circuit and fire.
● Always unplug the massage chair from the electrical outlet immediately after using
and before cleaning.
● DO NOT use the massage chair in areas where the humidity is high such as a sauna
or steam room.
● DO NOT use the massage chair outdoors and avoid areas with direct sunlight.
● If the electricity is off, turn the power switch to the OFF position and unplug the
massage chair from the electrical outlet to prevent any damages to the chair when the
electricity comes back on.
● Never plug/unplug the power cord plug socket with wet hands.
● Close and continuous supervision is necessary when the massage chair is used by,
on or near children or disabled persons.
● No more than one person should use the massage chair at a time.
● The massage chair is intended for use as described in the Instruction Manual. Do not
use any attachments other than those recommended by the manufacturer.
● DO NOT attempt to stand or sit on the backrest, armrest or footrest in order to
prevent accident, injury or damage to the chair.
● Avoid falling asleep while using the massage chair.
● Always keep the massage chair clean, and never insert any objects into or around
the gaps of the massage chair.
● DO NOT move the massage chair by pulling on the power supply cord.
● Make sure there are no children, pets or other obstacles behind or underneath the
massage chair.

4
● If you find any rips or tears in the fabric of the massage chair, contact the service
department and stop using the chair immediately.
● This massage chair is designed for household use and should not be used in
non-residential settings.
● Please consult your doctor if you are in doubt as to whether or not you should use
this massage chair.
● Please consult a doctor before using the massage chair if you are pregnant,
undergoing any medical treatment, using a medical electronic device such as a
pacemaker, or are experiencing any of the following: Malignant tumor, heart disease,
back pain, abnormal or curved back bone, osteoporosis or acute illness.
● If you experience pain while using the massage chair, stop using the chair
immediately and consult your doctor.
● Never use a massage function on swollen or inflamed parts of the body.
● DO NOT use the massage chair for more than 30 minutes at a time.
● DO NOT use the massage chair where aerosol (spray) products are being used or
where oxygen is being administered.
● This massage chair is a non-professional product designed to provide a comfortable
massage and should not be substituted for appropriate medical treatment.
● Never operate the appliance with the air openings blocked. Keep the air openings
free of lint, hair, and the like.
● Temperatures sufficiently high to cause burns may occur regardless of the control
setting. Do not use on an invalid or on a sleeping or unconscious person. Check the
skin in contact with the heated area of the appliance frequently to reduce the risk of
blistering.
● Burns may result from improper use.
● Do not crush-avoid sharp folds.
● Keep children away from extended foot support (or other similar parts.)
● DO NOT WET-DO NOT USE

5
Chair components
03
Wheels
Pillow Pad
Backrest
Backrest Pad
Shoulder massager
Arm massager
Side Panel Seat Pad
Controller
Footrest

6
Massage Position
2 Air bags
8 Air bags
2 Air bags
8 Air bags
8 Air bags
Vibration
Roller
Heater

at least 24”at least 24”
7
04 Chair Installations
Ensure sufficient spaces around massage chair, please leave 24” of spaces behind
the backrest and 24” of spaces at the front of massage chair when recline backrest
and elevate leg rest.
Step 1:
● Use the diagonal pliers to cut off the cable tie which binds the stopper of the backrest
and take off the packing material of the backrest actuator, where both of them are
located underneath the seat pad.

8
● Lift the backrest and find the air hose at the bottom of the backrest, and then insert
the air hose into the cable tie which binds all air hoses, finally, connect the air hose
with the air connector underneath the seat part.
Note: 2 people are required to attach the air hoses connectors on the backrest, one
person steadies the backrest and to avoid it fall down, the other person to connect the
connectors.
● Lower the backrest into the seat brackets, securely lock the flat head bolts into
sides of the seat.
Note: Carefully unwrap the armrest to avoid scratching during installation.
A: Flat Head Bolt (on the backrest)
B: Holder (on the seat part)
B
A

9

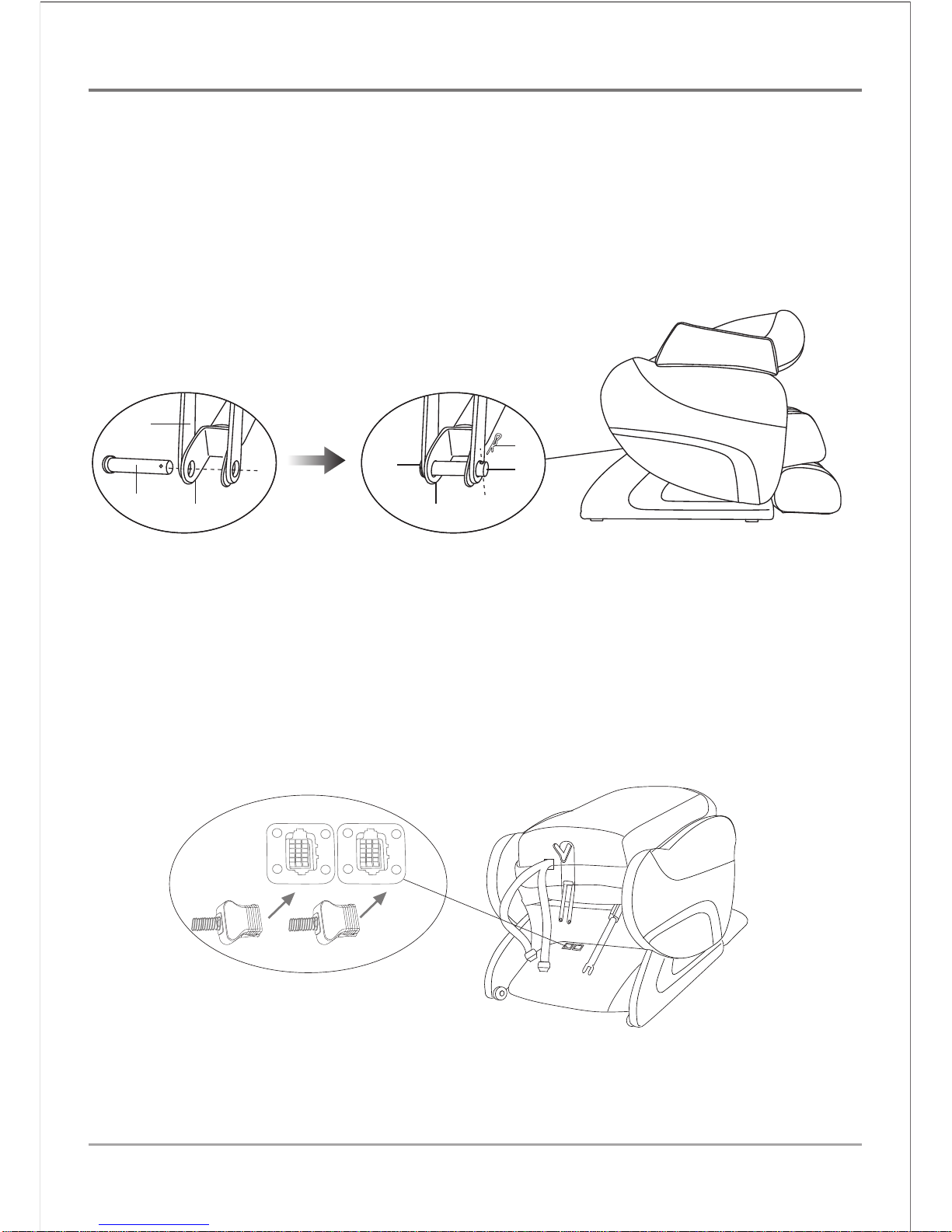

Step 2:
Attach the connecting rod and the U stay fork of the reclining actuator with the flat
head rivet and secure with a split pin as demonstrated.
A. Connecting rod ( on the backrest )
B. U stay fork of reclining actuator ( on the seat )
C. Flat head rivet
D. Split pin
Step 3:
Insert the wire plugs into the seat as demonstrated in below picture.
Note: Insert black to black and grey to grey, otherwise damage to the chair may be
caused. Once insert please ensure tight connected against hearing “Click” sound.
Black
Grey
Grey
Black
Grey
Black
AC
D
B
A
CB

10

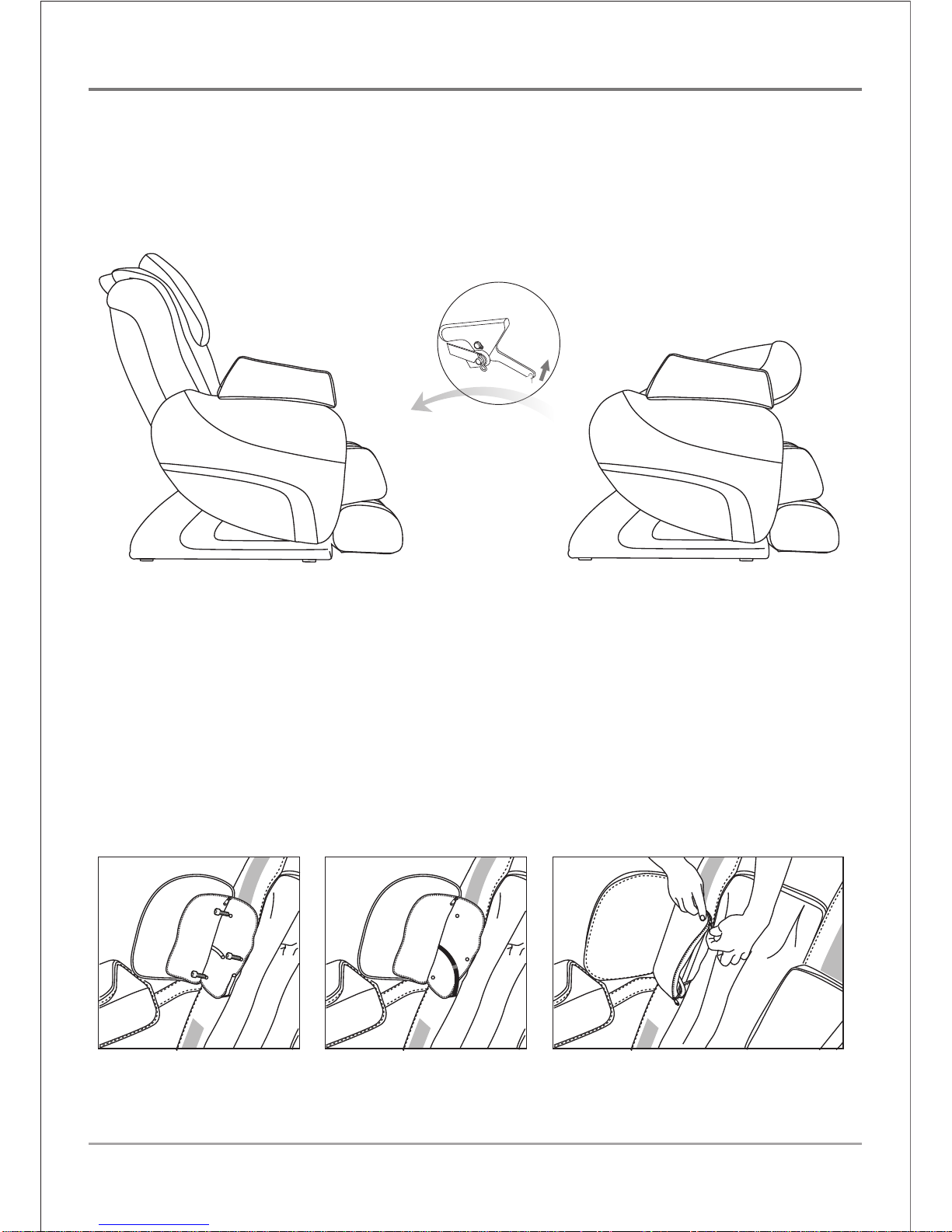

Step 4:
Unfold the backrest until you hear a “click” sound.
Note: To refold the backrest, press the “stopper” as demonstrated in PIC 1.
Step 5: Install Shoulder Panels
● Align shoulder panel to base plate.
● Attach closely the shoulder panel to base plate by tightening with screws (3pcs)
while you could see the unblocked hole as shown in PIC 2.
● Connect air hose from shoulder panel to backrest as shown in PIC 3.
● Zip the shoulder outer coating as shown in PIC 4.
● Repeat above steps for another side.
Note: Shoulder panels could be attached to wide position or narrow position according
to user’s need, and there are two kind of different unblocked holes for available.
PIC 1
PIC 2 PIC 3 PIC 4

11

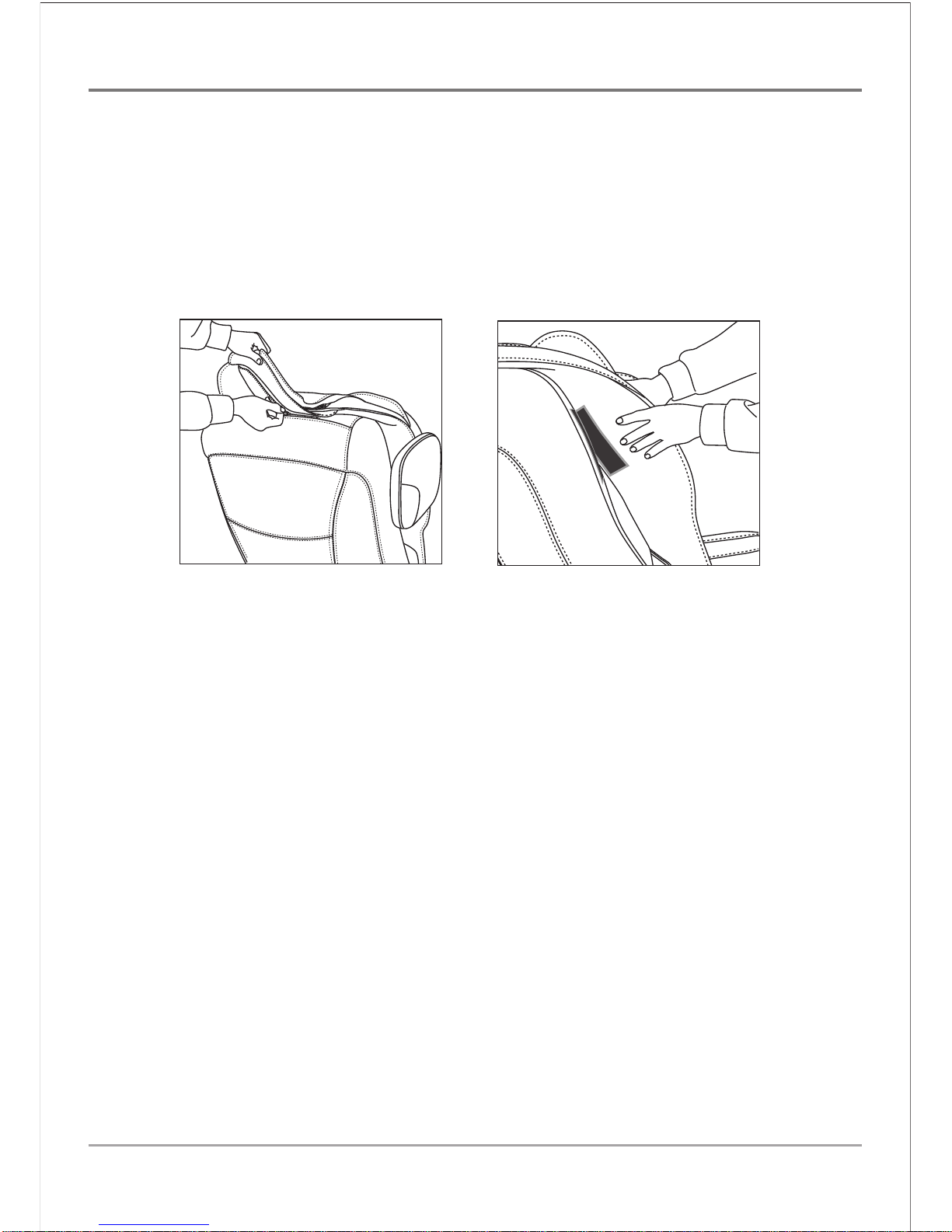

Step 6:
Attach the backrest pad and the pillow
A: Attach the backrest pad with the zipper.
B: Attach the pillow pad using the hook and loop fasteners.

12

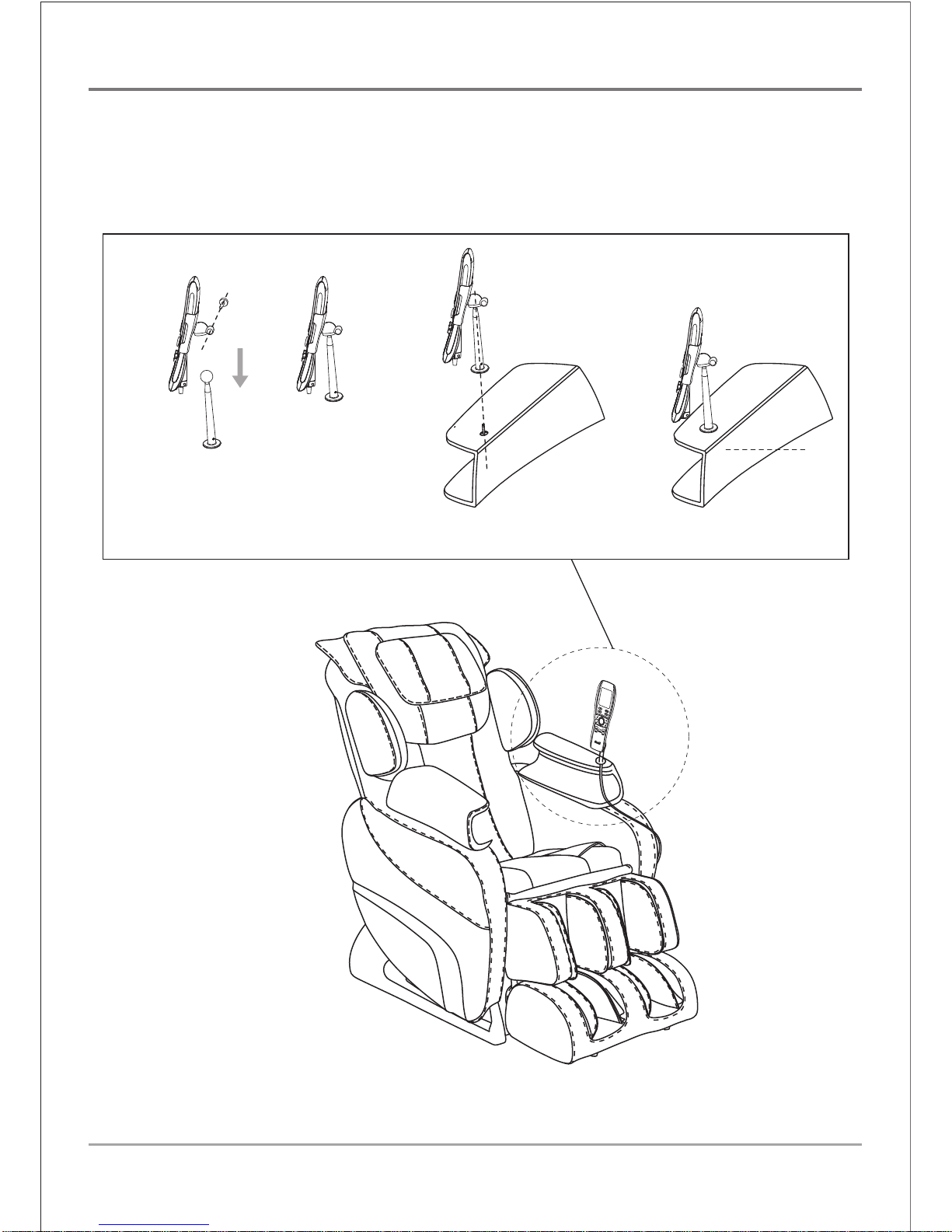

Step 7:
Install the remote controller stand by tightening the screws as demonstrated in PIC 6
PIC 5

13
Step 9:
Remove the spare pad located in the backrest cover for a deeper massage.
Step 8:
Connect the wire plug.

14
Lift up the footrest then recline the chair to approximate 45°to easily move the chair
around the house with a slight pull of push.
Caution!
1. Before moving the chair, please put the footrest back into the original position.
Otherwise,injuries might occur in the process of moving.
2. Avoid moving the massage chair when there is someone seated on it.
3. Placing a mat underneath the massage chair is advisable, as the moving process
might leave scratches on the floor surface.
Moving the Chair
45°

15
05 Grounding Instructions
This product must be grounded. If it should malfunction or break down, grounding
provides a path of least resistance for the electric current to reduce the risk of
electric shock. This product is equipped with a cord with an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
Danger-Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service technician if you
provided with the product-if it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
This product is for use on a nominal 120V circuit and has grounding plug that looks
like that plug illustrated below. Make sure that the product is connected to an outlet
having the same configuration as the plug. No adapter should be used with this
product.
Grounded Outlet Box
Grounding Pin
Grounded Outlet

16
06 Chair Specifications
Model No.
Rated Voltage
Rated Frequency
Rated Power Consumption
Timer
Max Time Rate
Dimensions(LxWxH)
Weight
Length of Wire
Usage Condition
Storage Condition
Safety feature
Using benefits
Description Specifications
TI-7700
110-120V ~
50/60Hz
150W
5/10/15/25/30 minutes
30 minutes
Product carton: 48.4” x 30.3" x 33.9"
Product gross weight: 205 lbs
Product net weight: 181 lbs
Controller wire: 1.3m
Power supply wire: 2.2m
Environment temperature: 10°-40°
Contrasting humidity level: 30-85RH
Storage temperature: 20°-60°
Storage humidity level: 30-85RH
Equipped with overheated and power surge
safety protection
Increasing blood circulation;
Relieving muscular fatigue

17

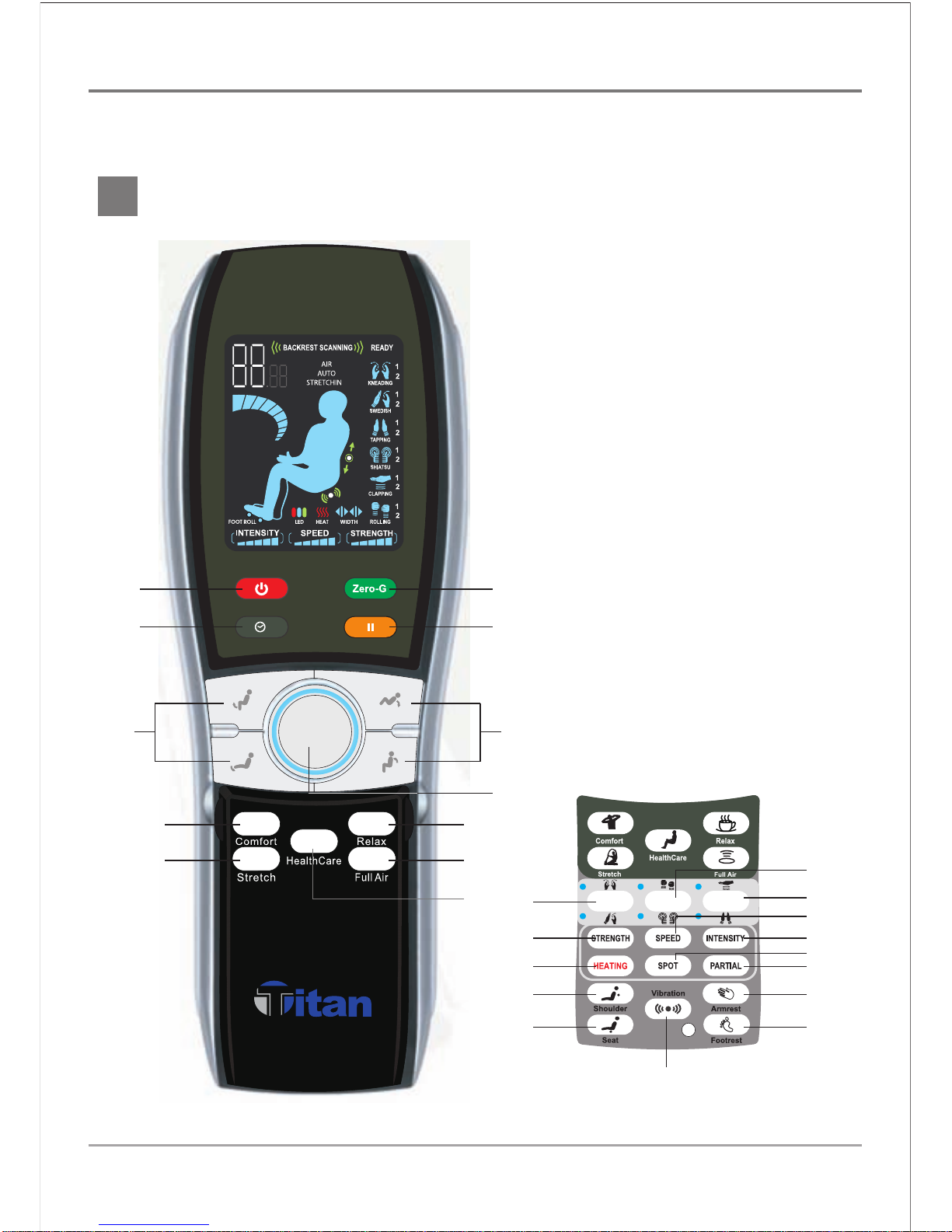

07 Controller Diagram
1
2
3
4
5/67/8
9
10
12 22
13
14
23
25
24
15
19
16
17
18
28
20
21
26
27
11

18
Connect to the power supply, and turn the power switch to “︱” position, the chair is now
in idle mode. During the idle mode, only five functions are available:” ON/OFF, Recline
Backrest, Raise Backrest, Elevate Leg rest, Recline Leg rest” and Pause.
CONTROL BUTTONS FOR THE MASSAGE CHAIR
1. ON/OFF
The Start/ Stop Control Button
Press once on this button to start the massage chair, the backrest is reclined
automatically for 3 seconds and the leg rest is elevated automatically for 5 seconds to
the specified position, and then press any massage function button to conduct
massage functions.
Press this button again to stop all massage functions and the massage rollers return to
original position.
Note: You can adjust angle of backrest and leg rest further to desired position.
2. Timer
Time Interval Control Button
When a massage function is activated the time is automatically set for 15-minute.
Every time this button is pressed, the time interval will change in the following
sequence:
20>25>30>5>10>15- minutes
Note: The backlight of the remote controller will automatically light up followed by five
beeps when one minute remains on the timer.
3. Zero-G
Press this button once to active the Zero-G1 function.
Press the button again to active the Zero-G2 function.
Press the button the third time to stop the Zero-G function.
Note: If the button is pressed in the process of the chair moving to zero-G1 or Zero-G2
position, the massage chair will confirm the position before getting the preset Zero-G1
or Zero-G2 position.
4. Pause
Press this button once to stop all massage functions and pause the chair to idle mode.
Press the button again to resume the original massage function.

19
5/6. Recline/Restore
Angle Adjustment Control Button for Backrest
Press this button continually to adjust the backrest to a comfortable position.
Loose the button to confirm the position.
7/8. Elevate/Restore Footrest
Angle Adjustment Control Button for Footrest
Press this button continually to adjust the footrest to a comfortable position.
Loose the button to confirm the position.
Full Body Auto Program
If one of the five auto programs is activated before the auto scan of the full body, the
massage chair will automatically do a height scan for the back. At the same time the
user can manually adjust the massage height to the preferred level.
The following are the auto programs available:
9. Comfort
10. Stretch
11. Healthcare
12. Relax
13. Full Air
Auto Air Squeeze Control Button
Press this button once to activate the shoulder, arm, seat, calves and feet auto air
squeeze function.
Press the button again to stop the auto air squeeze function.
Note: Press the “Intensity” button to adjust the intensity of air function while auto air
squeeze function is activated.
Setting Lumbar Heating
14. Heating
Heating Function Start/Stop Control Button
Press this button once to activate the heating function for the lumbar area.
Press the button again to stop the heating function.
