Titan TTB1300PRW User manual

EN
TTB1300PRW
1300W High
Pressure Washer
EAN: 5059340124117
Ref. No.: 888KH
Read the instructions before using the product.
CAUTION: BX220IM
Original Instructions_TTB1300PRW_V2_20200825_95813-FK
95813_IM_TTB1300.indd 195813_IM_TTB1300.indd 1 2020/9/23 上午9:222020/9/23 上午9:22

EN
37
37
38
35
30
25
22
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
21
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
03
04
11
14
Getting started...
Safety information
Your product
Before you start
Congratulations on your purchase of a power tool from
Kingfisher International Products B.V. We want you to continue getting
the best performance from it so this handbook includes information on
safety, handling and care. Please retain this handbook in case you
need to refer to any of the information in the future.
Your power tool comes with a 2 years guarantee, so should
it develop a fault within this period contact your retailer.
GARANTIE
This product carries a guarantee of 2 years. If your product develops a
item was purchased.
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in
the UK.
For any enquiries relating to the guarantee please refer to your retailer.
1300W High Pressure Washer TTB1300PRW
2
95813_IM_TTB1300.indd 295813_IM_TTB1300.indd 2 2020/9/23 上午9:222020/9/23 上午9:22

EN
37
37
38
35
30
25
22
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
21
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
03
04
11
14
Getting started...
Safety information
Your product
Before you start
3
95813_IM_TTB1300.indd 395813_IM_TTB1300.indd 3 2020/9/23 上午9:222020/9/23 上午9:22

4
EN
Getting started...
Safety information TTB1300PRW by TITAN
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for high pressure cleaner
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of high pressure cleaners,
aerosols may be formed. Inhalation of aerosols can
be hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons,
live electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray
ammable liquids.
7. WARNING: High pressure cleaners shall not be used
by children or untrained personnel.
8. WARNING: High pressure hoses, fittings and
couplings are important for the safety of the product.
Use only hoses, ttings and couplings recommended
by the manufacturer.
95813_IM_TTB1300.indd 495813_IM_TTB1300.indd 4 2020/9/23 上午9:222020/9/23 上午9:22

5
EN
Getting started...
Safety information
TTB1300PRW by TITAN
9. WARNING: To ensure machine safety, use only
original spare parts from the manufacturer or
approved by the manufacturer.
10. WARNING: Water that has flowed through backflow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inflammable or toxic
liquids, or liquids with characteristics incompatible
with its proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is fitted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identied and are potentially hazardous.
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
95813_IM_TTB1300.indd 595813_IM_TTB1300.indd 5 2020/9/23 上午9:222020/9/23 上午9:22

6
EN
Getting started...
Safety information TTB1300PRW by TITAN
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun firmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can
be connected directly to the mains drinking water
supply only if the supply hose is tted with a backow
preventer device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
Safety warnings
95813_IM_TTB1300.indd 695813_IM_TTB1300.indd 6 2020/9/23 上午9:222020/9/23 上午9:22

7
EN
Getting started...
Safety information
TTB1300PRW by TITAN
33. The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
95813_IM_TTB1300.indd 795813_IM_TTB1300.indd 7 2020/9/23 上午9:222020/9/23 上午9:22

8
EN
Getting started...
Safety information TTB1300PRW by TITAN
7. Prolonged use of the product exposes the user
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. fingers going white; as well as specific
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear
protective gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1.
Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2.
Switch off and disconnect from the power supply
if there are malfunctions. Have the machine
checked by a qualified professional and repaired, if
necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers can
arise in connection with the structure and design of
this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
Safety warnings
95813_IM_TTB1300.indd 895813_IM_TTB1300.indd 8 2020/9/23 上午9:222020/9/23 上午9:22

9
EN
Getting started...
Safety information
TTB1300PRW by TITAN

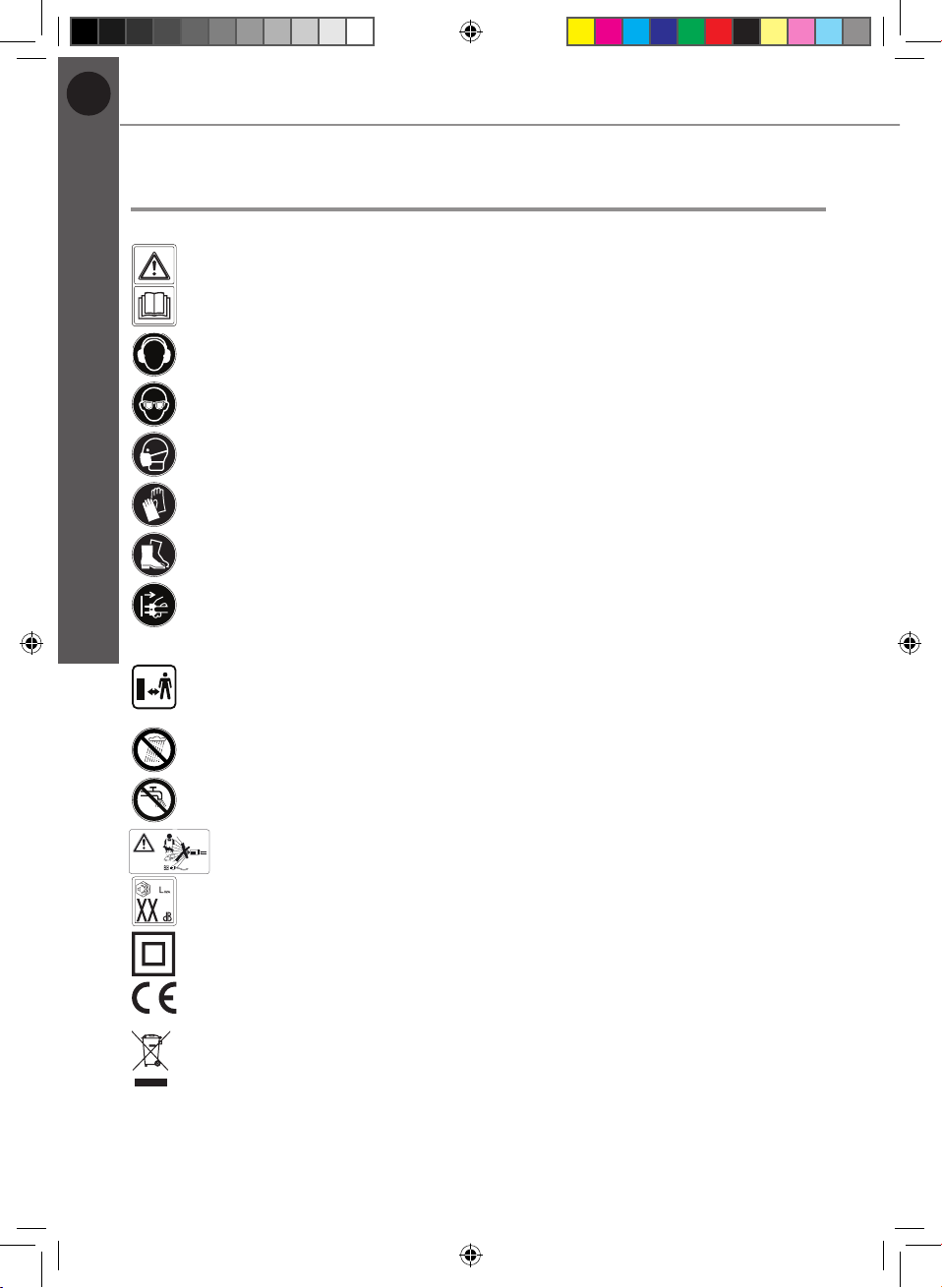

Symbol
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
V~ Volt, (alternating voltage) kg Kilogram
Hz Hertz dB(A) Decibel (A-rated)
W Watt m/s² Metres per second
squared
/min or
min-1
Per minute MPa Mega Pascal, pressure
unit
mm Millimetre bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
Note / Remark.
Caution / Warning.
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them
to reduce hazards like personal injuries and damage to property.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
3. Danger of injury and property damage caused by
ying objects.
95813_IM_TTB1300.indd 995813_IM_TTB1300.indd 9 2020/9/23 上午9:222020/9/23 上午9:22

TTB1300PRW by TITAN
10
EN
Getting started...
Safety information TTB1300PRW by TITAN
Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must not
come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water mains.
Do not direct the water jet onto people, animals, electrical equipment
or onto the product itself.
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
Symbol
95813_IM_TTB1300.indd 1095813_IM_TTB1300.indd 10 2020/9/23 上午9:232020/9/23 上午9:23

11
EN
Getting started...
Your product
TTB1300PRW by TITAN TTB1300PRW by TITAN
Your product
17 18 19 20
16
8
93
7
12
14
5
1
2
4
6
10
11 13
15
21
1. Transportation handle 12. Extension lance
2. Fast high pressure hose release button 13. Accessories holder
3. Accessories storage compartment
(extension lance)
14. Water inlet
4. Supply cord with plug 15. Soap tank
5. On/off switch I/O 16. Pressure hose
6. Water outlet 17. Rotary nozzle
7. Accessories storage compartment
(spray gun)
18. Vario nozzle
8. Spray gun 19. Water inlet hose adaptor
9. Accessories storage compartment
(Vario nozzle & Rotary nozzle)
20. Cleaning needle
10. Hose holder / handle 21. Screws x 4
11. Power cord storage
95813_IM_TTB1300.indd 1195813_IM_TTB1300.indd 11 2020/9/23 上午9:232020/9/23 上午9:23

12
EN
Getting started...
Your product TTB1300PRW by TITAN
Technical specications
General
> Rated voltage/frequency : 220 – 240 V ~ / 50 Hz
> Rated input : 1300 W
> Rated pressure : 6.7 MPa
> Max. allowable pressure : 10 MPa
> Max. inlet water pressure : 1 MPa
> Rated ow : 4.5 l/min
> Max. rated ow : 6.5 l/min
> Rated temperature : 50°C
> Gun kickback force at max. pressure : 9.1 N
> Protection class :
> Degree of protection : IPX5
> Weight : 5,2 kg
> Dimensions
High pressure hose
: 220 X 240 X 460 mm
> Allowable pressure : 12 MPa
> Maximum temperature : 60 °C
> Length
Water hose (not supplied)
: 6 m
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length
Sound level
: 10 m
> Sound pressure level LpA : 69.4 dB(A)
> Uncertainty KpA : 2.50 dB(A)
> Measured sound power level LWA : 80.9 dB(A)
> Uncertainty KWA : 2.50 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by 2005/88/EC)
Vibration level
: 83 dB(A)
> Declared vibration emission value ahd: : < 2.5 m/s²
> Uncertainty K : 1.0 m/s²
95813_IM_TTB1300.indd 1295813_IM_TTB1300.indd 12 2020/9/23 上午9:232020/9/23 上午9:23

13
EN
Getting started...
Your product
TTB1300PRW by TITAN TTB1300PRW by TITAN
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
Rating Label Explanation
TTB1300PRW
TT = TITAN
B = 240V AC
1300 = 1300W
PRW = Pressure washer
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
95813_IM_TTB1300.indd 1395813_IM_TTB1300.indd 13 2020/9/23 上午9:232020/9/23 上午9:23

14
EN
Getting started...
Before you start TTB1300PRW by TITAN
Unpacking
You will need
Assembly
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product is heavy, ask another person for assistance
if required!
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
(items not supplied) (items supplied)
Suitable personal protective equipment Spray gun (8)
Water hose Pressure hose (16)
Rotary nozzle (17)
Vario nozzle (18)
Water inlet hose adaptor (19)
Extension lance (12)
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
95813_IM_TTB1300.indd 1495813_IM_TTB1300.indd 14 2020/9/23 上午9:232020/9/23 上午9:23

15
EN
Getting started...
Before you start
TTB1300PRW by TITAN TTB1300PRW by TITAN
Fig. 1Fig. 2
13
1
1. Assemble the product completely before use. Attach the accessories holder
(13) to the back of the washer using two screws (21) (Fig. 1). Then attach
the handle (1) using two screws (21) (Fig. 2). Tighten the screws (21) using a
suitable crosshead screwdriver.
2. Screw the water inlet hose connector (19) to the water inlet (14) (Fig. 3).
19
3. Attach a suitable water hose to the water supply and then attach the other
end to the water hose inlet connector (19) of the product (Fig. 4).
Ø12.7mm
19
NOTE: There is a lter in the connector (19) that products the product
against larger particles. Please ensure that this is xed appropriately.
Do not use the connector without the lter
Fig. 3
Fig. 4
95813_IM_TTB1300.indd 1595813_IM_TTB1300.indd 15 2020/9/23 上午9:232020/9/23 上午9:23

16
EN
Getting started...
Before you start TTB1300PRW by TITAN
Pressure hose and spray gun
1. Push the latch (8c) on the spray gun (8) to open the connecting port
and insert the connector of the high pressure hose (16) (Fig. 5)
2. Release the latch (8c) to lock the hose (16) in place.
Check the connection by pulling on the hose. It should not pull out.
8c
16
8
High pressure hose
1. Connect the high pressure hose (16) to the water outlet (6) (Fig. 6).
2. Check the connection by pulling on the hose. It should not pull out.
16
6
Fig. 6
Fig. 5
Accessories
A choice of lances and accessories are supplied with this product. Please check
the technical specication of any accessories that you purchase to ensure they
are compatible with this product.
Attaching
1. Select the suitable accessory, align the tongues with the grooves of the
connecting port (8a) and insert it.
NOTE: There is a spring in the connecting port of the spray gun (8).
This has to be pressed down and may require some pressure.
Assembly
95813_IM_TTB1300.indd 1695813_IM_TTB1300.indd 16 2020/9/23 上午9:232020/9/23 上午9:23

17
EN
Getting started...
Before you start
TTB1300PRW by TITAN TTB1300PRW by TITAN
2. Securely t the accessory by turning it clockwise to lock it in place (Fig. 7).
1.
8
2.
3.
12
8a

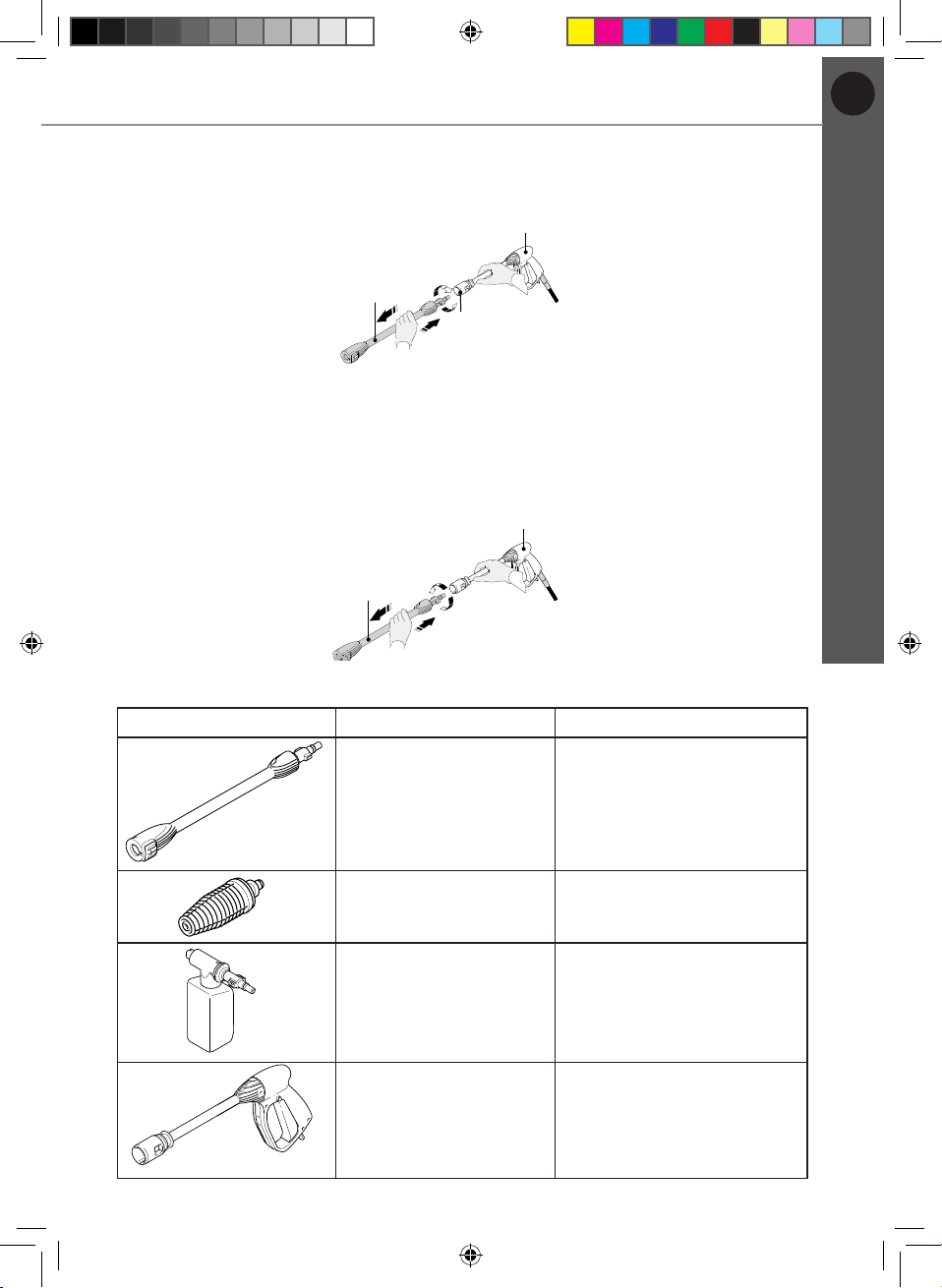

Fig. 7, attachment method shown with extension lance (12)
Removing
Press the accessory towards the spray gun (8) and turn it anti-clockwise to
remove it (Fig. 8).
1.
8
2.
3.
12
Fig. 7
Fig. 8
Illustration Description Application
Extension lance (12) Extension to be used in
conjuction with the spray
gun and nozzle.
Rotary nozzle (17) To be used for high pressure
cleaning in conjunction with
the extension lance.
Soap tank (15) Low pressure setting to
apply detergent.
To be used in conjunction
with the spray gun.
Spray gun (8) To be used in conjuction
with extension lance
95813_IM_TTB1300.indd 1795813_IM_TTB1300.indd 17 2020/9/23 上午9:232020/9/23 上午9:23

18
EN
Getting started...
Before you start TTB1300PRW by TITAN
Fig. 9
High pressure hose (16) To be used in conjuction
with spray gun.
Vario nozzle (18) Fan and pin jet to be used
in conjunction with the
extension lance.
Rotary nozzle
The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
1. Always attach the extension lance (12) when using the rotary nozzle (17)
(Fig. 9).
8
12
1.
2.
3.
17
18
12a
4.
5.
WARNING! Never use the rotary nozzle without extension lance - danger
of injury!
2. Press the unlock button (12a) and attach the rotary nozzle (17) to the
extension lance (12). Release the button (12a) to secure the nozzle in
place (Fig. 10).
3. Check if the rotary nozzle (17) is attached properly by pulling on it.
It should not pull out.

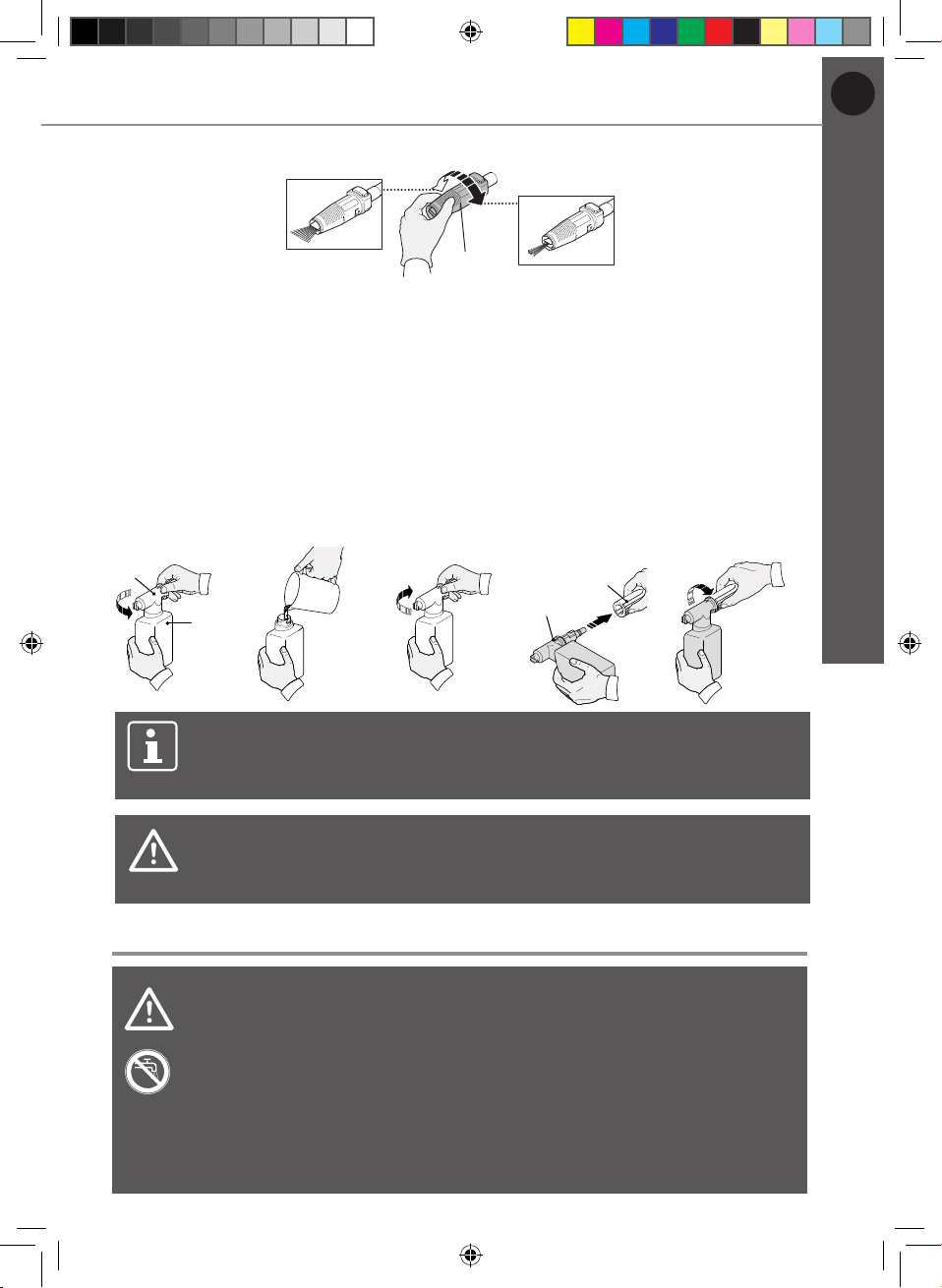

Vario nozzle
The vario nozzle is intended for a large choice of applications and cleaning effects.
1. Always use the vario nozzle (18) with the extension lance (12) attached (Fig. 9).
2. Turn the vario nozzle to adjust the water jet according to the surface to be
cleaned (Fig. 10).
3. Use the fan spray to clean wood decks, siding, vehicles etc.
4. Always start using the fan spray and begin spraying from a minimum 30 cm
away to avoid damaging the surface of the material being cleaned.
5. Use the pin spray for maximum cleaning effect.
Accessories
95813_IM_TTB1300.indd 1895813_IM_TTB1300.indd 18 2020/9/23 上午9:232020/9/23 上午9:23

19
EN
Getting started...
Before you start
TTB1300PRW by TITAN TTB1300PRW by TITAN
18
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, ush your eyes with clean
water and seek immediate medical attention!
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
Soap tank
Use the soap tank (15) to apply detergent. Some cleaning tasks can be
completed with water alone, but for most tasks the removal of dirt becomes
more effective if a detergent is used.
1. Remove the detergent sprayer (15a) from tank (15b) by turning it
counterclockwise.
2. Add detergent to the tank (15b).
3. Assemble the tank (15b) with detergent sprayer (15a).
4. Securely t the soap tank into the port connection (8a) of spray gun (8)
by turning it clockwise to lock it in place (Fig. 11).
Connection to the water supply
→ → → →
8a
15b
15a
15
Fig. 11
Fig. 10
WARNING!
Although this product is suitable for attachment
to the drinking water supply local regulations may prohibit the
connection to drinking water connections!
Observe the regulations of your local utility company when
connecting the product to a water supply line! If it is prohibited
to connect to the drinking water facility, you must use a backow
preventor which corresponds to EN 12729 type BA. Make sure
that the hose is at least a diameter of 12.7 mm (1/2") and is
reinforced!
95813_IM_TTB1300.indd 1995813_IM_TTB1300.indd 19 2020/9/23 上午9:232020/9/23 上午9:23

20
EN
Getting started...
Before you start TTB1300PRW by TITAN
If your water supply is potable water, ensure that the pressure washer
is connected to a non-return valve system (type BA).
A Type BA system prevents the contamination of drinking water and
must be connected to the water tap output.
The check valve is sold separately in stores.

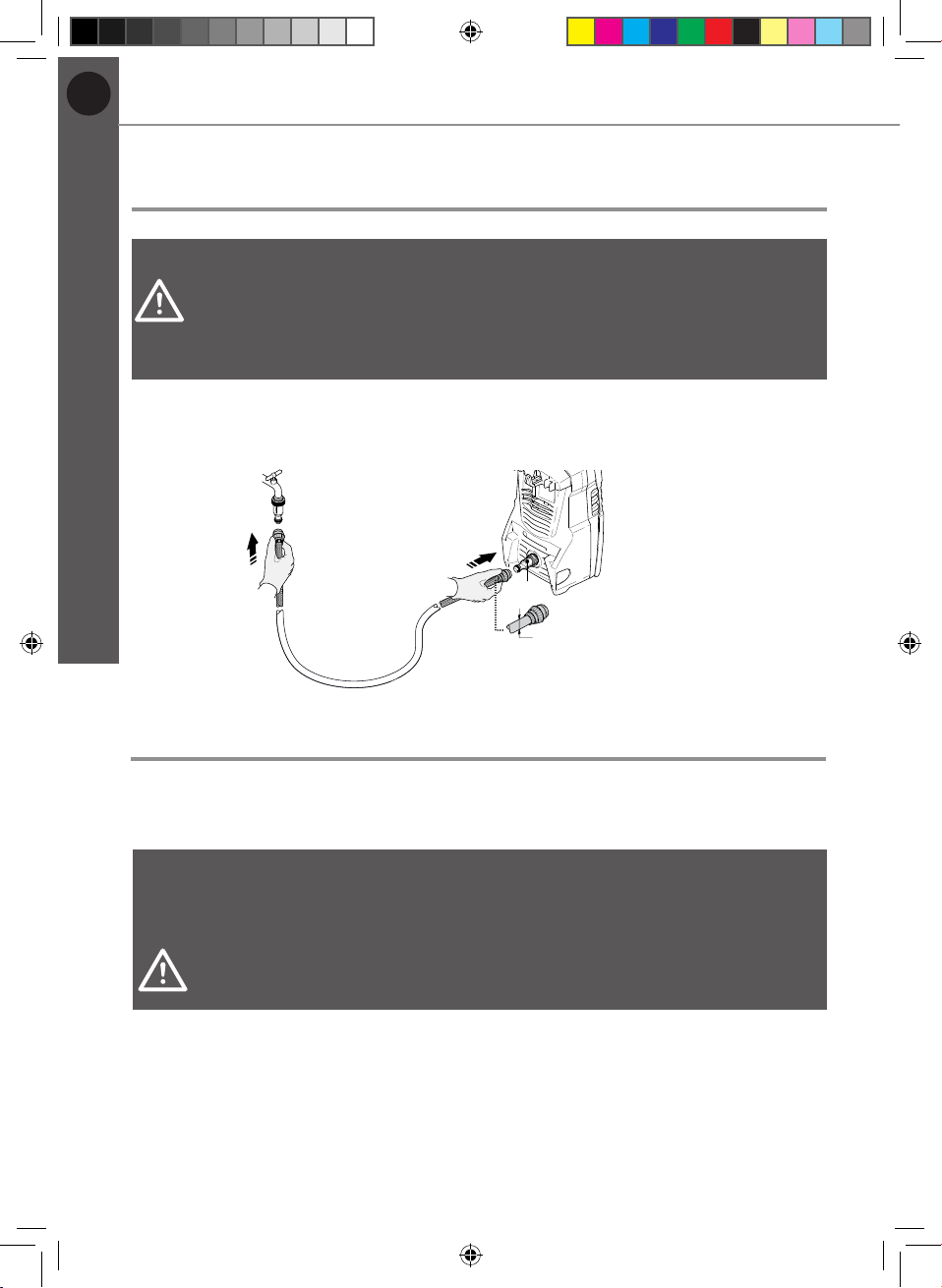

Attach a suitable water hose to the water supply and then attach the other end
to the water hose inlet connector (19) of the product (Fig. 12).
Ø12.7mm
19 Fig. 12
1. Make sure the on/off switch (5) is in its off position.
2. Connect the plug (4) with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
If using an extension cord it must be suitable for outdoor use with sockets
protected against water splashing. Ensure the extension cord is of the
proper size and type for your product (≥1.5 mm²)! Always use a residual
current device (RCD) protected supply.
Your product is now ready to be used.
35
37
37
38
30
25
22
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
In more
detail...
Connection to the water supply
Connection to the power supply
95813_IM_TTB1300.indd 2095813_IM_TTB1300.indd 20 2020/9/23 上午9:232020/9/23 上午9:23
