Titan TTB669PRW User manual

Original Instructions_TTB669PRW_GB_V3_150818
TTB669PRW
High Pressure
Cleaner 1800W
Barcode: 5052931516438
Ref. No.: 5014J
WARNING: Read the instructions before using the product!
O
F
F
/
O
I
/
O
N
MNL_TTB669PRW_TIT_GB_V03_150818.indd 1 8/18/15 4:16 PM

Congratulations on your purchase of a power tool from
Kingfisher International Products Limited. We want you to continue
getting the best performance from it so this handbook includes
information on safety, handling and care. Please retain this handbook
in case you need to refer to any of the information in the future.
Your power tool comes with a 2 years guarantee, so
should it develop a fault within this period contact your retailer.
GUARANTEE
This product carries a guarantee of 2 years. If your product develops
the item was purchased.
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (Such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in
the UK.
For any enquiries relating to the guarantee please refer to your retailer.
High Pressure Cleaner 1800W - TTB669PRW
MNL_TTB669PRW_TIT_GB_V03_150818.indd 2 8/18/15 4:16 PM

EN
03
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
42
43
41
32
36
28
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
EC declaration of conformity
27
03
04
12
15
Getting started...
Safety information
Your product
Before you start
MNL_TTB669PRW_TIT_GB_V03_150818.indd 3 8/18/15 4:16 PM

04
Getting started...
EN TTB669PRW by TITAN
Safety information
Safety warnings
>Product shall not be used by children. Children should
be supervised to ensure that they do not play with the
product.
>This product can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
product in a safe way and understand the hazards
involved.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR YOUR REFERENCE
High pressure cleaner safety warnings
>If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a safety hazard.
>WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
product.
>WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons, live
electrical equipment or the product itself.
>WARNING: Do not use the product within range of
persons unless they wear protective clothing.
>WARNING: Wear appropriate Personnel Protection
Equipment (PPE) while operating the product.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 4 8/18/15 4:16 PM

05
Getting started...
EN
TTB669PRW by TITAN Safety information
>WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
>WARNING: Risk of explosion – Do not spray ammable
liquids.
>WARNING: This product shall not be used by children
or untrained personnel.
>WARNING: High pressure hoses, ttings and couplings
are important for the safety of the product. Use only
hoses, ttings and couplings recommended by the
manufacturer.
>WARNING: Only use original spare parts from the
manufacturer or approved by the manufacturer
to ensure product safety. The use of non-original
accessories and any other accessories not specically
intended for the model in question is prohibited.
>WARNING: Consider water that has own through
backow preventers to be non-potable.
>WARNING: Switch the product off and disconnect it
from the power supply removing the power plug from the
socket outlet before assembly, cleaning, adjustments,
maintenance, storage and transportation or converting
the product to another function.
>WARNING: Do not use the product if the power cord or
any part of the product is damaged, e. g. safety devices,
high pressure hoses, trigger gun. Never use the product
if the high pressure hose is damaged.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 5 8/18/15 4:16 PM

06
Getting started...
EN TTB669PRW by TITAN
Safety information
Safety warnings
>WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. The plug and socket must
be of watertight construction. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
>WARNING Always switch off the mains disconnecting
switch when leaving the product unattended.
>Have the electric supply connection to be made
by a qualied electrician and in compliance with
IEC 60364-1. It is recommended that the electric supply
to this product should include either a residual current
device that will interrupt the supply if the leakage current
to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
>Never use the product with inammable or toxic liquids,
or liquids with characteristics incompatible with its
proper operation.
>Never use the product outdoors in the rain.
>Never touch the plug and/or socket with wet hands.
>Never lock the gun trigger in the operating position.
>Check that the product is tted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identied and are potentially hazardous.
>Never tamper with or adjust the setting of the safety
valve or the safety devices.
>Never change the original diameter of the adjustable
nozzle.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 6 8/18/15 4:16 PM

07
Getting started...
EN
TTB669PRW by TITAN Safety information
>Never leave the product unattended when it is
connected to the power supply.
>Never move the product by pulling on the electrical
power cord.
>Do not allow vehicles to drive over the pressure hose.
>Do not move the product by pulling on the pressure
hose.
>When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
>Protect all electrical conductors against the water jet.
>During start-up, the product may generate interference
on the electricity supply system.
>High pressure may cause parts to rebound: wear all the
protective clothing and equipment needed to ensure the
operator’s safety.
>Be aware of kick-back: grip the gun rmly when pulling
the trigger.
>Comply with the regulations of the local water supply
authority. Under EN 12729 (Type BA) the product can
be connected directly to the mains drinking water supply
only if the supply hose is tted with a backow preventer
device with drainage facility.
>Have maintenance and/or repair work on electrical
components to be carried out by qualied staff.
>Discharge residual pressure before disconnecting the
hose from the product.
>Check before each use, and at regular intervals, that all
metal fasteners are tight and the product’s components
are in good condition; inspect for broken or worn parts.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 7 8/18/15 4:16 PM

08
Getting started...
EN TTB669PRW by TITAN
Safety information
Safety warnings
>Use only detergents compatible with the high pressure
hose / electrical power cord cladding materials.
>Use only authorised electrical extension cords with
suitable conductor gauge.
Maintenance and storage
>Disconnect the product from the power supply and
check for damage after use.
>Disconnect the product from the power supply before
carrying out maintenance or cleaning work.
>Use only the manufacturer’s recommended replacement
parts and accessories.
>Inspect and maintain the product regularly. Have the
product repaired only by an authorised service centre or
similar qualied specialist.
>When not in use, store the product out of the reach of
children.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit
the time of operation, use low-vibration and low-noise
operating modes as well as wear personal protective
equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
>Only use the product as intended by its design and
these instructions.
>Ensure that the product is in good condition and well
maintained.
>Use correct accessories for the product and ensure they
in good condition.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 8 8/18/15 4:16 PM

09
Getting started...
EN
TTB669PRW by TITAN Safety information
>Keep tight grip on the handles/grip surface.
>Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
>Plan your work schedule to spread any high vibration
tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
>Always be alert when using this product so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
>Switch off and disconnect from the power supply if
there are malfunctions. Have the garden power tool
checked by a qualied professional and repaired, if
necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
>Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
>Danger of injury and property damage caused by ying
objects.
>Injuries and damage to property due to broken
accessories or the sudden impact of hidden objects
during use.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 9 8/18/15 4:16 PM

TTB669PRW by TITAN
Safety information
EN
Getting started...
10
Safety warnings
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
Symbols
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them to
reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) bar Pressure unit
Hz Hertz °C Degree Celsius
W Watt Ø Diameter
l/min Litres per minute mm Millimetre
m Metres kg Kilogram
N Newton dB(A) Decibel (A-rated)
MPa Mega Pascal, pressure
unit
m/s² Metres per second
squared
IPX5 The product is protected against water (out of a nozzle) from all
directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week
of manufacturing (Wxx).
Lock / to tighten or secure. Unlock / to loosen.
Note / Remark. Caution / Warning.
Read the instruction
manual.
Wear hearing protection.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 10 8/18/15 4:16 PM

TTB669PRW by TITAN Safety information
Getting started...
EN
11
Wear eye protection. Wear protective gloves.
Wear protective, slip-
resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.
Do not expose the product to rain or wet conditions.
Always ensure that other people and pets remain at a safe
distance from the product when it is in operation. In general,
children must not come near the area where the product is.
Local regulations can prohibit connection of the product to
drinking water supply equipment.
Do not direct the water jet onto people, animals, electrical
equipment or onto the product itself.
Do not reach the patio cleaner as long as the motor is running.
Wait until all components have completely stopped before
touching them.
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped
with enhanced or double insulation.
The product complies with the applicable European directives
and an evaluation method of conformity for these directives was
done.
WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 11 8/18/15 4:16 PM

TTB669PRW by TITAN
EN
Getting started...
12
Your product
Your product
O
F
F
/
O
I
/
O
N
1
2
2a
3
4
4a
5
6
7
8
11
12
13
14
15
16
17
9
10
2d
2c
2b
8a
2e
2f
21 22 23 24
18 19 20 20a 20b
MNL_TTB669PRW_TIT_GB_V03_150818.indd 12 8/18/15 4:16 PM

TTB669PRW by TITAN Your product
Getting started...
EN
13
1. Transportation handle
2. Spray gun
a. Lance connection port
b. Hose release
c. Hose connection port
d. Trigger
e. Trigger lock
f. Handle
3. Upper spray gun
(with pressure lance) holder
4. Pressure lance
a. Nozzle connection port
5. Lower spray gun
(with pressure lance) holder
6. Water outlet
a. Cap*
7. On/off switch (“I/ON”/“OFF/O”)
8. Pressure hose
a. Locking sleeve
9. Nozzle holder
10. Power cord with plug
11. Air vents
12. Wheel (x 2)
13. Water inlet
a. Cap*
14. Detergent attachment
a. Tank
b. Tube*
c. Cover*
15. Extension lance holder
16. Handle release button
(Transportation handle adjustment)
17. Pressure hose holder
18. Variable spray nozzle
19. Rotary nozzle
20. Patio brush
a. Angle connector
b. Rotating nozzle
21. Extension lance
22. Water hose connector
a. Washer*
b. Filter*
23. Cleaning needle
24.
Long screw (x 3)
NOTE: Parts marked with * are not shown in this overview. Please
refer to the respective section in the instruction manual.
Technical specications
General
>Rated voltage, frequency : 220 - 240 V~ , 50 Hz
>Rated power input : 1800 W
>Protection class :II
> Degree of protection : IPX5
> Weight : approx. 8 kg
> Dimensions : approx. 331 x 323 x 779 mm
> Rated pressure PN : 90 bar (9 MPa)
> Max. inlet water pressure : 7 bar (0.7 MPa)
> Max. permissible pressure PSmax :130 bar (13 MPa)
>Rated ow Q :6.0 l/min
MNL_TTB669PRW_TIT_GB_V03_150818.indd 13 8/18/15 4:16 PM

TTB669PRW by TITAN
Your product
EN
Getting started...
14
Technical specications
>Maximum rated ow Qmax :7.2 l/min
>Rated temperature T : max. 50 °C
>Gun kickback force at maximum
pressure
:9.4 N
Pressure hose
>Permissible pressure : 160 bar (16 MPa)
>Maximum temperature : 60 °C
>Length : 6 m
Water hose (not supplied)
>Quality :reinforced
>Diameter : min. ø 12.7 mm (1/2”)
>Max. length : 10 m
Sound values
>Sound pressure level LpA :79 dB(A)
>Uncertainty KpA :3 dB(A)
>Sound power level LWA :92 dB(A)
>Uncertainty KWA :3 dB(A)
Hand arm vibration values
>Hand arm vibration ah:1.8 m/s² (< 2.5 m/s²)
>Uncertainty K : 1.5 m/s²
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards EN ISO 3744 and EN ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total. Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration.
Proper measures include among others regular maintenance and
care of the product and accessories, keeping hands warm, periodical
breaks and proper planning of work processes.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 14 8/18/15 4:16 PM

TTB669PRW by TITAN
Getting started...
EN
15
Before you start
Unpacking
> Unpack all parts and lay them on a at, stable surface.
> Remove all packing materials and shipping devices, if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
nd that parts are missing or show damage do not use the product but contact
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts! There
is a danger of choking and suffocation!
You will need
(items not supplied)
suitable personal protective equipment
suitable crosshead screwdriver
detergent
water hose
lubricant
(items supplied)
spray gun (2)
pressure lance (4)
pressure hose (8)
detergent attachment (14)
variable spray nozzle (18)
rotary nozzle (19)
patio brush (20)
extension lance (21)
water hose connector (22)
cleaning needle (23)
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
MNL_TTB669PRW_TIT_GB_V03_150818.indd 15 8/18/15 4:16 PM

TTB669PRW by TITAN
Before you start
EN
Getting started...
16
Assembly
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.

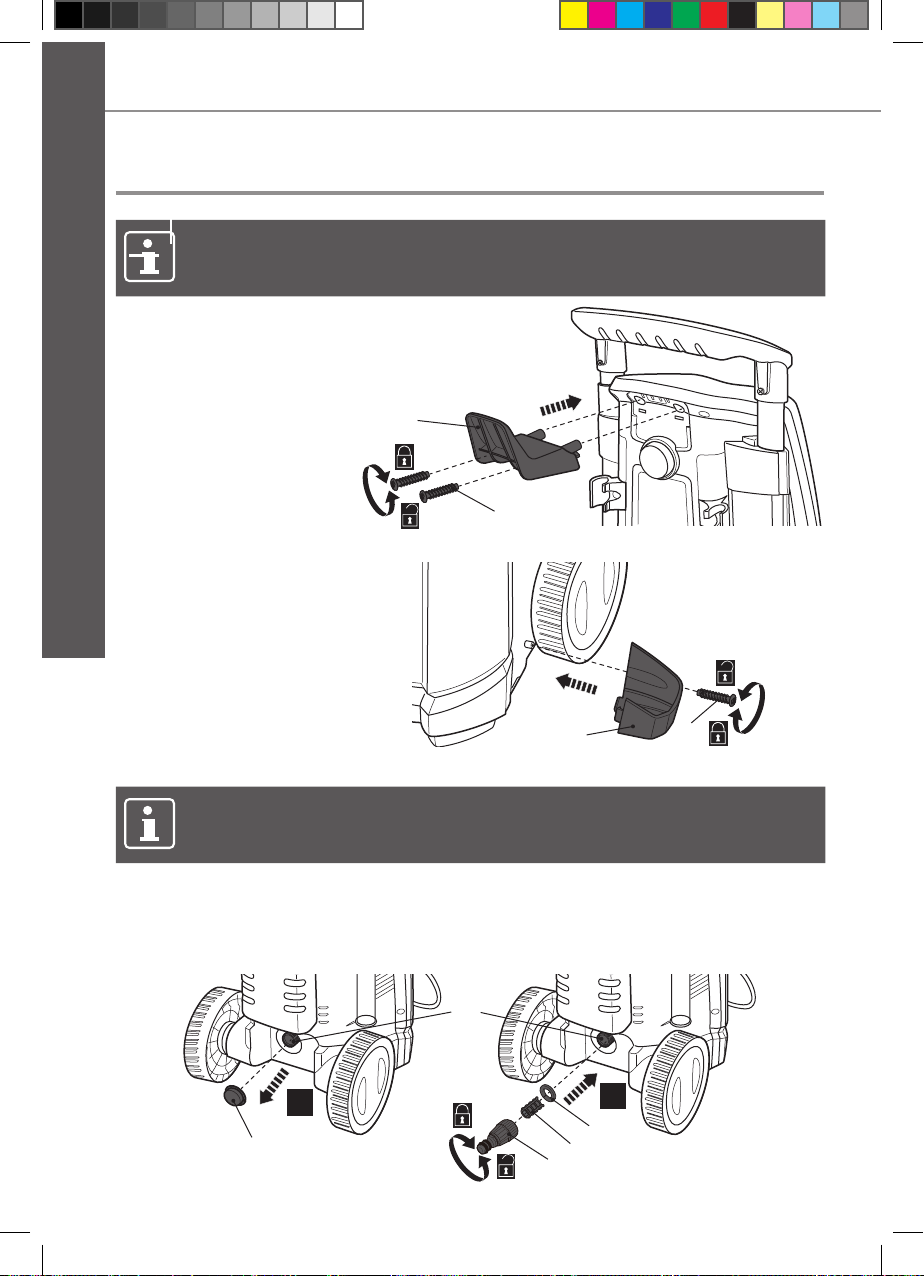

Holders
> Align the mounting
holes and assemble the
pressure hose holder
(17) onto the product.
> Secure the connection
with the long screws
(24) (Fig. 1).
17
Fig. 1
> Align the mounting hole
and assemble the lower
spray gun (with pressure
lance) holder (5) onto
the product.
> Secure the connection
with the long screw (24)
(Fig. 2). 24
5
Fig. 2
NOTE: Variable spray nozzle (18) and rotary nozzle (19) can be stored
on the nozzle holder (9) while not used.
Water hose connector
> Remove the cap (13a) from the water inlet (13) (Fig. 3, step 1).
> Screw the water hose connector (22) to the water inlet (13) (Fig. 3, step 2).
13a 2222b
22a
13
1. 2.
Fig. 3
MNL_TTB669PRW_TIT_GB_V03_150818.indd 16 8/18/15 4:16 PM
24

TTB669PRW by TITAN
Before you start
Getting started...
EN
17
NOTE: The water hose connector (22) is supplied with an insulating
washer (22a).
The water hose connector (22) contains a lter (22b) to protect the
product against larger particles. Ensure that this is xed appropriately.
Do not use the water hose connector without a washer and lter.
Pressure hose
> Push the hose release (2b) and hold
it in position (Fig. 4, step 1).
> Insert the connector of the pressure
hose (8) into the hose connection
port (2c) of the spray gun (2). Ensure
it snaps in place (Fig. 4, step 2).
> Release the hose release (2b)
afterwards.
2.
1.
2b
2c
8
Fig. 4
> Remove the cap (6a) from the water outlet (6) (Fig. 5, step 1).
> Screw the pressure hose locking sleeve (8) to the water outlet (6). Make sure
the connection is properly tightened (Fig. 5, step 2).
8a
6a 6
6
1. 2.
Fig. 5
Accessories
A choice of accessories is supplied in the scope of the delivery of this product.
Please check the technical specication of any accessories that you purchase to
ensure they are compatible with this product.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 17 8/18/15 4:16 PM

TTB669PRW by TITAN
Before you start
EN
Getting started...
18

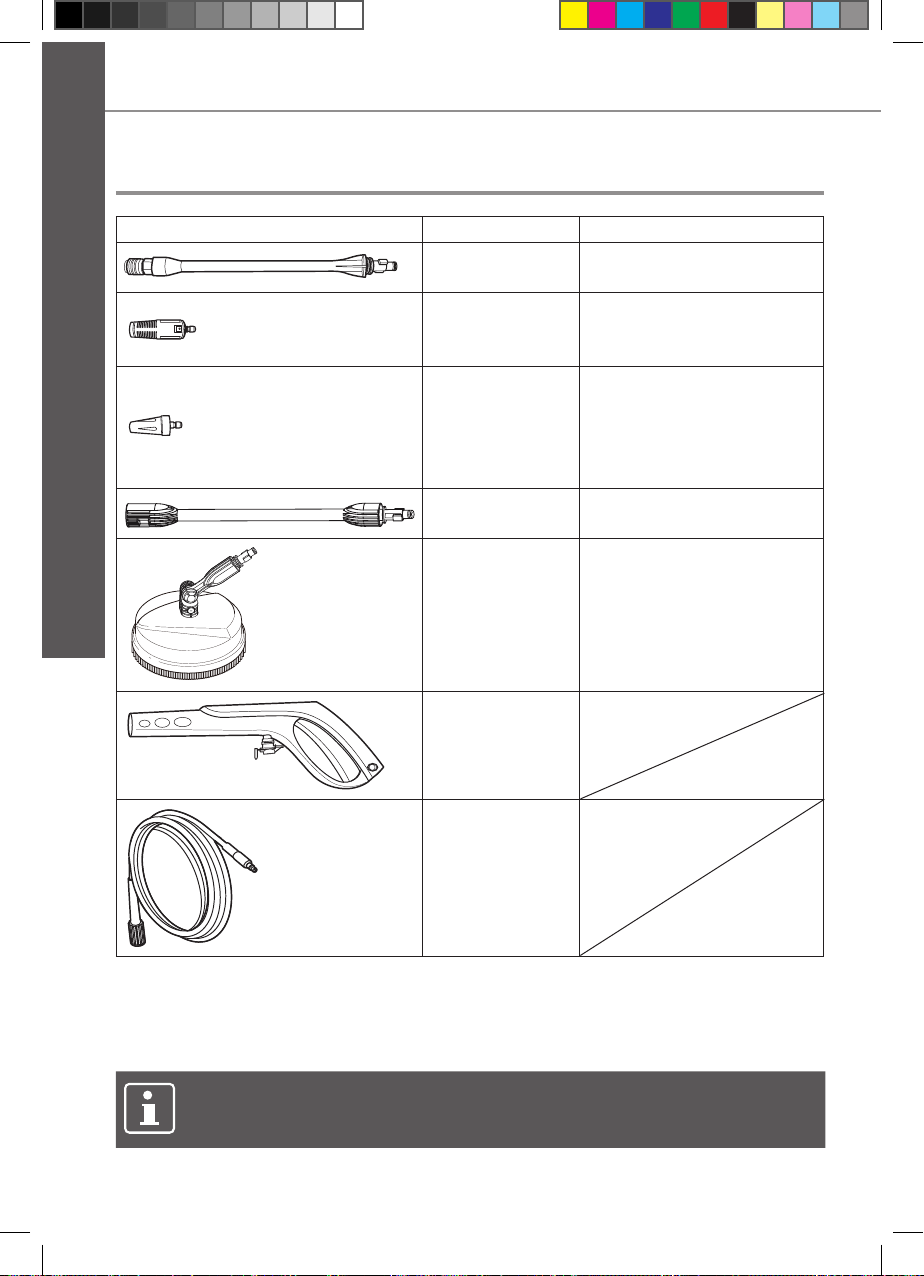

Accessories
Illustration Description Application
Pressure lance
(4)
To be used with nozzles
(18, 19)
Variable spray
nozzle (18)
To apply detergent and
clean wood decks, siding,
vehicles etc.
rotary nozzle
(19)
To clean hard surfaces
from dirt.
While in use, the rotation
of the water jet provides a
greater washing power.
Extension lance
(21)
To be used with patio
brush (20)
Patio brush (20)
To clean oors, e. g.
garden path or courtyards
To be used in conjunction
with the extension lance
(21)
Spray gun (2)
Pressure hose
(8)
Pressure lance

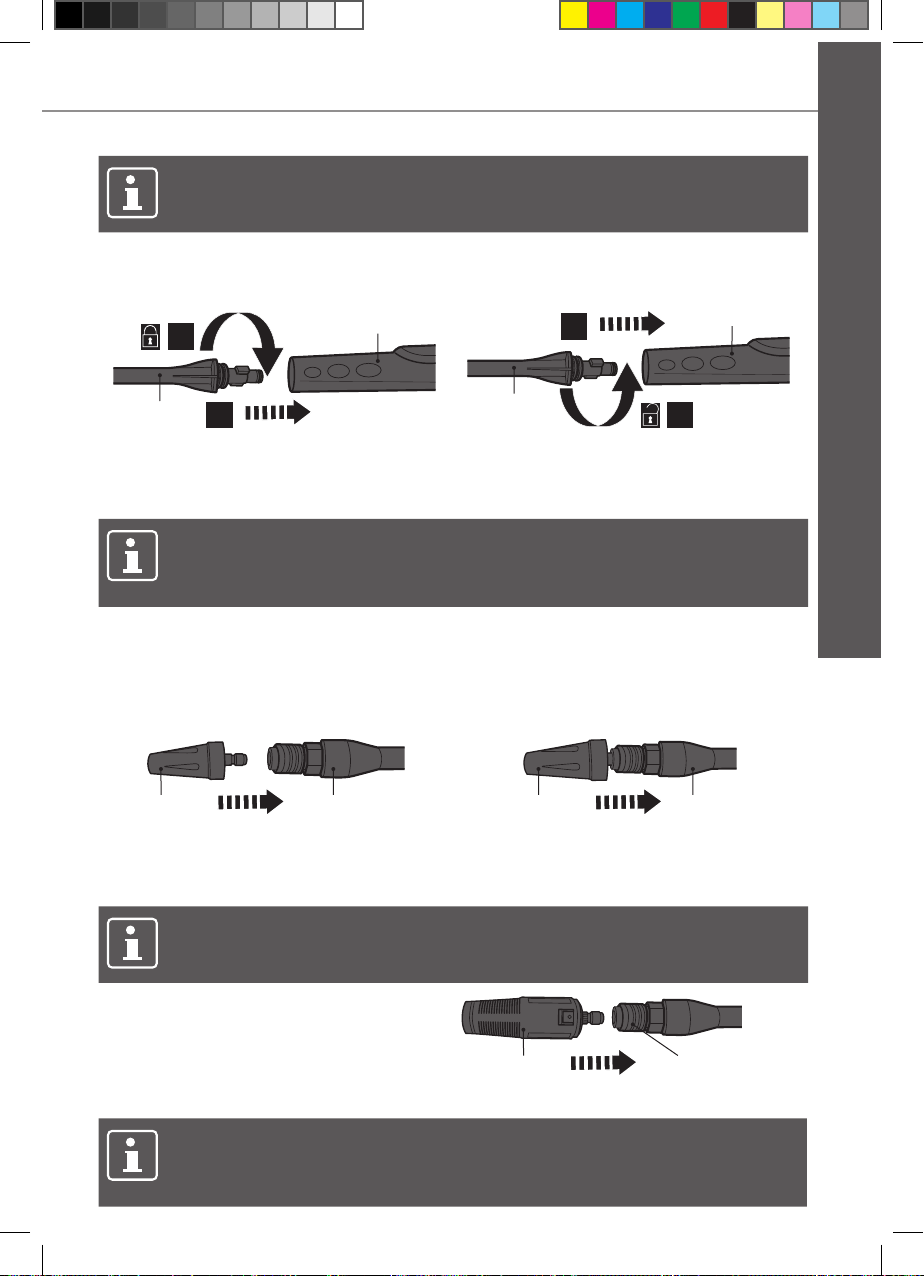

> Align the tongues of the pressure lance (4) with the grooves of the lance
connection port (2a) of the spray gun (2) and insert it (Fig. 6, step 1).
NOTE: There is a spring in the connection port of the spray gun (2).
The spring has to be pressed down and might need some pressure.
> Securely t the pressure lance (4) by turning it clockwise and letting it lock into
place (Fig. 6, step 2).
MNL_TTB669PRW_TIT_GB_V03_150818.indd 18 8/18/15 4:16 PM

TTB669PRW by TITAN
Getting started...
EN
19
Before you start
NOTE: After connection with the pressure lance (4), a 90° rotation can
be applied to the spray gun (2).
> To remove the pressure lance (4), press it towards the lance connection port
(2a) of the spray gun (2) and turn it anticlockwise to remove it (Fig. 7).
2a
41.
2.
2a
4
1.
2.
Fig. 6 Fig. 7
Rotary nozzle
NOTE: Use the rotary nozzle (19) to clean hard surfaces from dirt.
While in use, the rotation of the water jet provides a greater washing
power.
> Align the rotary nozzle (19) with the nozzle connection port (4a) of the
pressure lance (4) and push it until it snaps in place (Fig. 8).
> To remove the nozzle, pull the sleeve of the nozzle connection port (4a) of the
pressure lance (4) backward (Fig. 9).
4a
19 4a 19
Fig. 8 Fig. 9
Variable spray nozzle
NOTE: Use the variable spray nozzle (18) to apply detergent and
clean wood decks, siding, vehicles etc.
> Align the variable spray nozzle
(18) with the nozzle connection
port (4a) of the pressure lance
(4) and push it until it snaps in
place (Fig. 10).
4a
18
Fig. 10
NOTE: Check the jet position when connecting the variable spray
nozzle (18) to the nozzle connection port (4a) of the pressure lance
(4).
MNL_TTB669PRW_TIT_GB_V03_150818.indd 19 8/18/15 4:16 PM

TTB669PRW by TITAN
Before you start
EN
Getting started...
20
Accessories

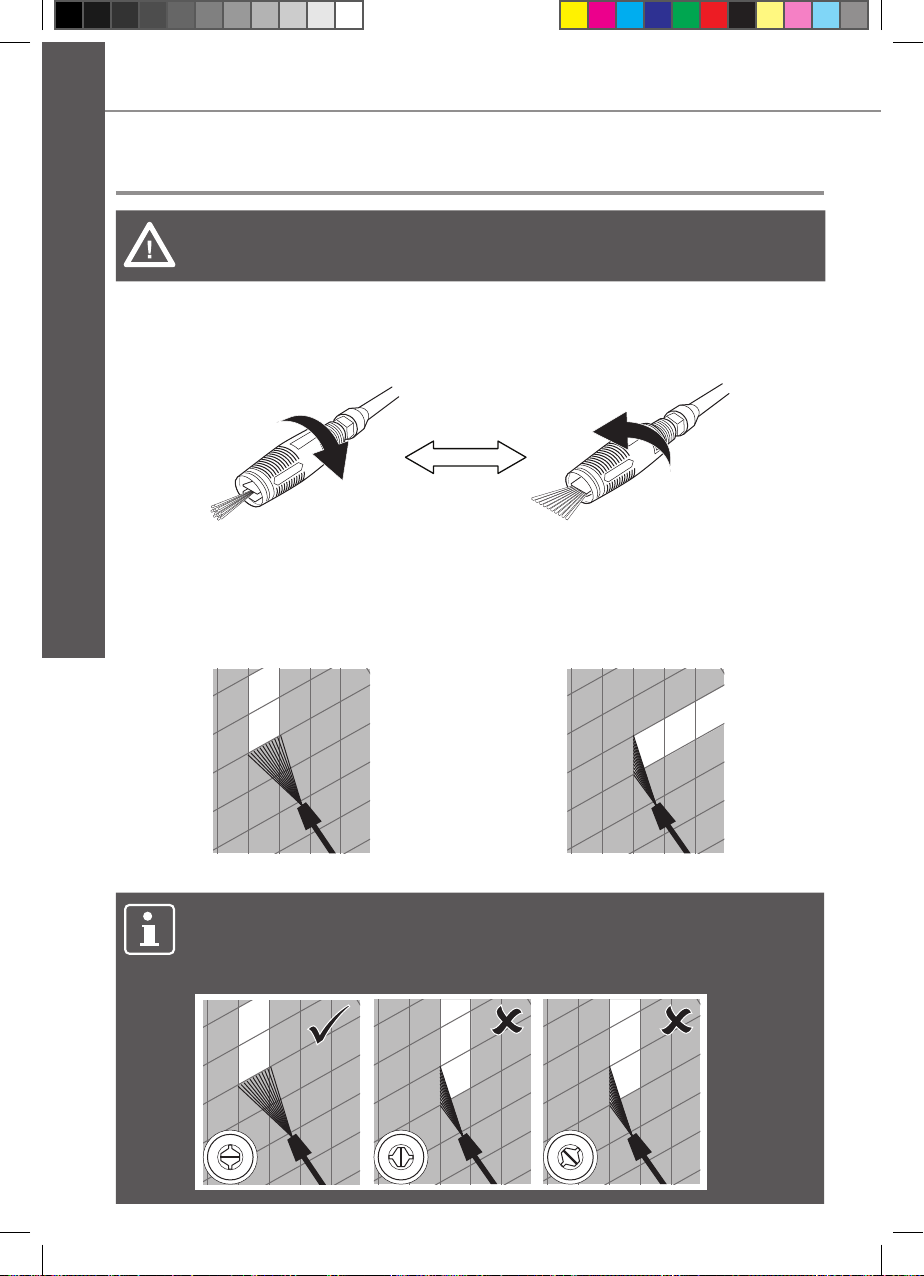

WARNING! Do not attempt to adjust the variable spray nozzle when
the trigger (2d) is pressed.
> Turn the variable spray nozzle (18) to adjust the water jet according to the
surface you want to clean. The double arrow on the nozzle indicates the
direction of the desired application (Figs. 11 - 12).
STREAM - FAN
Fig. 11 Fig. 12
> Turn the spray gun (2) to orientate the fan jet in a better way (Figs. 13, 14).
> Always start using the fan spray and begin spraying from a minimum 30 cm
away to avoid damaging the surface of the material you are cleaning.
Fig. 13 Fig. 14
NOTE: While working from top to bottom, ensure that the metal plates
of the variable spray nozzle (18) are perpendicular to the spray gun for
a better result.
MNL_TTB669PRW_TIT_GB_V03_150818.indd 20 8/18/15 4:16 PM
