Titan TTM2700PRW User manual

EN
TTB2700PRW
Pressure Washer
EAN: 5059340339016
Read the instructions before using the product.
CAUTION: BX220IM
Original Instructions_TTB2700PRW_V0_20210802_96262-HJ
96262_IM_TTB2700_4L.indb 196262_IM_TTB2700_4L.indb 1 2021/9/16 下午5:072021/9/16 下午5:07

96262_IM_TTB2700_4L.indb 296262_IM_TTB2700_4L.indb 2 2021/9/16 下午5:072021/9/16 下午5:07

3
EN
Getting started...
TTB2700PRW byTITAN
EN
38
39
40
36
31
29
24
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
23
03
04
11
14
Getting started...
Safety information
Your product
Before you start
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
EN
96262_IM_TTB2700_4L.indb 396262_IM_TTB2700_4L.indb 3 2021/9/16 下午5:072021/9/16 下午5:07

4
EN
Getting started...
TTB2700PRW byTITAN
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for high pressure cleaner
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of high pressure cleaners,
aerosols may be formed. Inhalation of aerosols can
be hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons,
live electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray
ammable liquids.
7. WARNING: High pressure cleaners shall not be used
by children or untrained personnel.
8. WARNING: High pressure hoses, fittings and
couplings are important for the safety of the product.
Use only hoses, ttings and couplings recommended
by the manufacturer.
Safety information
96262_IM_TTB2700_4L.indb 496262_IM_TTB2700_4L.indb 4 2021/9/16 下午5:072021/9/16 下午5:07

5
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
9. WARNING: To ensure machine safety, use only
original spare parts from the manufacturer or
approved by the manufacturer.
10. WARNING: Water that has flowed through backflow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inflammable or toxic
liquids, or liquids with characteristics incompatible
with its proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is fitted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identied and are potentially hazardous.
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
Safety information
96262_IM_TTB2700_4L.indb 596262_IM_TTB2700_4L.indb 5 2021/9/16 下午5:072021/9/16 下午5:07

6
EN
Getting started...
TTB2700PRW byTITAN
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun firmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can
be connected directly to the mains drinking water
supply only if the supply hose is tted with a backow
preventer device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
Safety warnings
Safety information
96262_IM_TTB2700_4L.indb 696262_IM_TTB2700_4L.indb 6 2021/9/16 下午5:072021/9/16 下午5:07

7
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
33. The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
Safety information
96262_IM_TTB2700_4L.indb 796262_IM_TTB2700_4L.indb 7 2021/9/16 下午5:072021/9/16 下午5:07

8
EN
Getting started...
TTB2700PRW byTITAN
7. Prolonged use of the product exposes the user
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. fingers going white; as well as specific
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear
protective gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1.
Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2.
Switch off and disconnect from the power supply
if there are malfunctions. Have the machine
checked by a qualified professional and repaired, if
necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers can
arise in connection with the structure and design of
this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
Safety warnings
Safety information
96262_IM_TTB2700_4L.indb 896262_IM_TTB2700_4L.indb 8 2021/9/16 下午5:072021/9/16 下午5:07

9
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
Symbol
WARNING! This product produces an electromagnetic eld during
operation! This field may under some circumstances interfere with
active or passive medical implants! To reduce the risk of serious or
fatal injury, we recommend persons with medical implants to consult
their doctor and the medical implant manufacturer before operating
this product!
V~ Volt, (alternating voltage) kg Kilogram
Hz Hertz dB(A) Decibel (A-rated)
W Watt m/s² Metres per second
squared
/min or
min-1
Per minute MPa Mega Pascal, pressure
unit
mm Millimetre bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
Note / Remark.
Caution / Warning.
Read the instruction manual.
Wear hearing protection.
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them
to reduce hazards like personal injuries and damage to property.
3. Danger of injury and property damage caused by
ying objects.
Safety information
96262_IM_TTB2700_4L.indb 996262_IM_TTB2700_4L.indb 9 2021/9/16 下午5:072021/9/16 下午5:07

10
EN
Getting started...
TTB2700PRW byTITAN
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must not
come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water mains.
Do not direct the water jet onto people, animals, electrical equipment
or onto the product itself.
Lock both brakes during operation.
Unlock both brakes during transportation.
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
UK Conformity Assessed.
Symbol
Safety information
96262_IM_TTB2700_4L.indb 1096262_IM_TTB2700_4L.indb 10 2021/9/16 下午5:072021/9/16 下午5:07

11
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
Your product
5
7
6
8
9
1
4
2
3
8a
14
13
17
10
11
12
16
40
18
19
20
21
22
23
24
25
40
15
15c
15a
15b
Your product
96262_IM_TTB2700_4L.indb 1196262_IM_TTB2700_4L.indb 11 2021/9/16 下午5:072021/9/16 下午5:07

12
EN
Getting started...
TTB2700PRW byTITAN
Technical specications
1. Transportation handle 15. Soap tank
2. Hose reel a) Sprayer head
3. Pressure hose b) Suction tube
4. Winding handle c) Tank body
5. Front wheel (X2) 16. On/off switch 0/1/2
6. Water inlet 17. Lock-off button
7. Extension lance 18. Rotary nozzle (X2)
8. Spray gun holder 19. Rotary nozzle adaptor
a. Fixing screw 20. 5 in 1 nozzle
9. Spray gun 21. Water inlet hose adaptor with water lter
10. Accessories chamber 22. Short extension lance
11. Supply cord 23. Rotary brush
12. Supply cord holder (X2) 24. Aquasweeper
13. Rear wheel (X2) 25. Cleaning needle
14. Brake pedal (X2)
General
> Rated voltage/frequency : 220 – 240 V ~ / 50 Hz
> Rated input : 2700 W
> Rated pressure : 10.5 MPa
> Max. allowable pressure : 15.5 MPa
> Max. inlet water pressure : 1 MPa
> Rated ow : 9 l/min
> Max. rated ow : 14.16 l/min
> Rated temperature : 50°C
> Gun kickback force at max. pressure : < 2.5 Nm
> Protection class :
> Degree of protection : IPX5
> Weight : 17.2 kg
> Dimensions
High pressure hose
: 441 X 479 X 864 mm
> Allowable pressure : 20 MPa
> Maximum temperature : 60 °C
> Length
Water hose (not supplied)
: 10 m
Your product
Your product
96262_IM_TTB2700_4L.indb 1296262_IM_TTB2700_4L.indb 12 2021/9/16 下午5:072021/9/16 下午5:07

13
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length
Sound level
: 10 m
> Sound pressure level LpA : 82.6 dB(A)
> Uncertainty KpA : 2.50 dB(A)
> Measured sound power level LWA : 94.1 dB(A)
> Uncertainty KWA : 2.50 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by 2005/88/EC)
Vibration level
: 97 dB(A)
> Declared vibration emission value ahd: : <2.5 m/s²
> Uncertainty K : 1.0 m/s²
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
Rating Label Explanation
TTB2700PRW
TT = TITAN
B = 230-240V AC
2700 = 2700W
PRW = Pressure washer
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
Your product
96262_IM_TTB2700_4L.indb 1396262_IM_TTB2700_4L.indb 13 2021/9/16 下午5:072021/9/16 下午5:07

14
EN
Getting started...
TTB2700PRW byTITAN
Unpacking
You will need
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product is heavy, ask another person for assistance
if required!
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
(items not supplied) (items supplied)
Suitable personal protective equipment Extension lance (7)
Crosshead screwdriver Spray gun holder (8)
Water hose Fixing screw (8a)
Spray gun (9)
Soap tank (15)
Rotary nozzle (18)
Rotary nozzle adaptor (19)
5 in 1 nozzle (20)
Water inlet hose adaptor with water lter (21)
Short extension lance (22)
Rotary brush (23)
Aquasweeper (24)
Cleaning needle (25)
Before you start
96262_IM_TTB2700_4L.indb 1496262_IM_TTB2700_4L.indb 14 2021/9/16 下午5:072021/9/16 下午5:07

15
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
Spray gun holder
1. Slide the spray gun holder (8) to the
product and secure it with the screw (8a)
(Fig. 1).
Pressure hose
1. Insert the connector (3a) of the pressure
hose (3) into the hose connection port
(9a) of the spray gun (9). Ensure it snaps
in place (Fig. 2). Press the release button
(9b) to unlock if necessary.
8a
8
Fig. 1
9
9b
9a
3
3a
Click
Fig. 2
Fig. 2
Fig. 1
Aquasweeper
1. Align the tongues(24a) of the aquasweeper
with the grooves of the angle connector(24b).
Ensure it snaps in place (Fig.3).
2. Press the release button (24c) to unlock if
necessary. 24a
24b
24c
Fig. 3
Assembly
WARNING!
The product must be fully assembled before operation! Do not
use a product that is only partly assembled or assembled with damaged parts!
Follow the assembly instructions step-by-step and use the pictures provided
as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely assembled!
Before you start
96262_IM_TTB2700_4L.indb 1596262_IM_TTB2700_4L.indb 15 2021/9/16 下午5:072021/9/16 下午5:07

16
EN
Getting started...
TTB2700PRW byTITAN
Illustration Description Application
Extension lance (7) To be used in conjunction
with the spray gun, short
extension lance, rotary
nozzle adaptor and 5 in 1
nozzle.
Short extension lance
(22)
To be used in conjunction
with the spray gun,
extension lance and patio
brush.
Rotary nozzle (18) X2 To be used for high
pressure cleaning in
conjunction with the rotary
nozzle adaptor.
Rotary nozzle adaptor
(19)
To be used in conjunction
with the extension lance
and rotary nozzle/5 in 1
nozzle.
5 in 1 nozzle (20) Fan and pin jet to be used
in conjunction with the
extension lance/rotary
nozzle adaptor.
Soap tank (15) High pressure setting to
apply detergent.
To be used in conjunction
with the spray gun.
Rotary brush (23) and
adaptor (23a)
Cleaning of wheels.
To be used in conjunction
with the spray gun and
extension lance.
Aquasweeper (24) Cleaning of floors, e.g.
garden path or courtyards.
To be used in conjunction
with the short extension
lance and extension lance.
Accessories
Two extension lances (7, 22) and several accessories are supplied with this
product.
Please check the technical specication of any accessories that you purchase
to ensure they are compatible with this product.
40
Before you start
96262_IM_TTB2700_4L.indb 1696262_IM_TTB2700_4L.indb 16 2021/9/16 下午5:072021/9/16 下午5:07

17
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
Attaching accessories
1. Align and insert the tongues (7a) of the extension lance (7) into the grooves
of the spray gun (9) connection port. (Fig. 4, step 1).
2. Securely t the extension lance (7) by turning it clockwise to lock it in place
(step 2). Ensure the arrow on the spray gun aligns with the arrow on the
extension lance.
Removing accessories
1. Press the release button (7b) (Fig. 6, step 1) and remove the nozzle (step 2).
2. Press the extension lance (7) towards the spray gun (9) (Fig. 7, step 1) and
turn it anti-clockwise (step 2) to remove it (step 3).
3. Align the tongues (20a) of the 5 in
1 nozzle with the grooves of the
extension lance (7) connection port
(Fig. 5).
4. Insert the 5 in 1 nozzle into the
connection port all the way to the
end. Ensure it engaged properly.
9
7a
7
1.
2.
Fig. 3
40
20a
7
Click
Fig. 4
7b
1.
2.
Fig. 5
1.
2. 3.
7
9
Fig. 6
Fig. 7
Fig. 5
Fig. 4
Fig. 6
Before you start
96262_IM_TTB2700_4L.indb 1796262_IM_TTB2700_4L.indb 17 2021/9/16 下午5:072021/9/16 下午5:07

18
EN
Getting started...
TTB2700PRW byTITAN
5 in 1 nozzle
The 5 in 1 nozzle is intended for a large choice of applications and cleaning
effects.
Rotary nozzle and rotary nozzle adaptor
The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
1. Attach the extension lance (7) onto
the spray gun (9) (Fig. 8).
2. Attach the rotary nozzle adaptor (19)
onto the extension lance.
3. Attach both rotary nozzles (18) onto
the rotary nozzle adaptor.
1. Attach the extension lance (7)
onto the spray gun (9) (Fig. 10).
2. Attach the 5 in 1 nozzle (20)
onto the extension lance.
4. Turn the spray gun (9) to orientate
the fan jet in a better way (Fig. 9).
NOTE: This two rotary nozzles model can work only under II POWER
UNIT (dual motor) mode. See chapter “on/off switch”. It can increase
the cleaning speed up to 70%.
97
19 18
Fig. 8
40
9
20 20
18 19
20b
7
Click
Fig. 9
Fig. 9
Fig. 8
Fig. 10
Accessories
Before you start
96262_IM_TTB2700_4L.indb 1896262_IM_TTB2700_4L.indb 18 2021/9/16 下午5:072021/9/16 下午5:07

19
EN
Getting started...
TTB2700PRW byTITAN TTB2700PRW byTITAN
3. The 5 in 1 nozzle can also be attached onto the rotary nozzle adaptor (19)
and works with the rotary nozzle (20) if required.
4. Turn the nozzle (20) to adjust the required setting. The arrow (20b) on the
nozzle points to the selected application indicated with symbols on the
nozzle.
5. Use the pen spray (0°) for maximum cleaning effect. The washing height is
up to approx. 5 m.
6. Use the fan spray (15°/40°) to clean sensitive surface such as wood decks,
siding, vehicles etc.
7. Use 0+for low pressure water column.
8. Use 40+for low pressure water curtain.

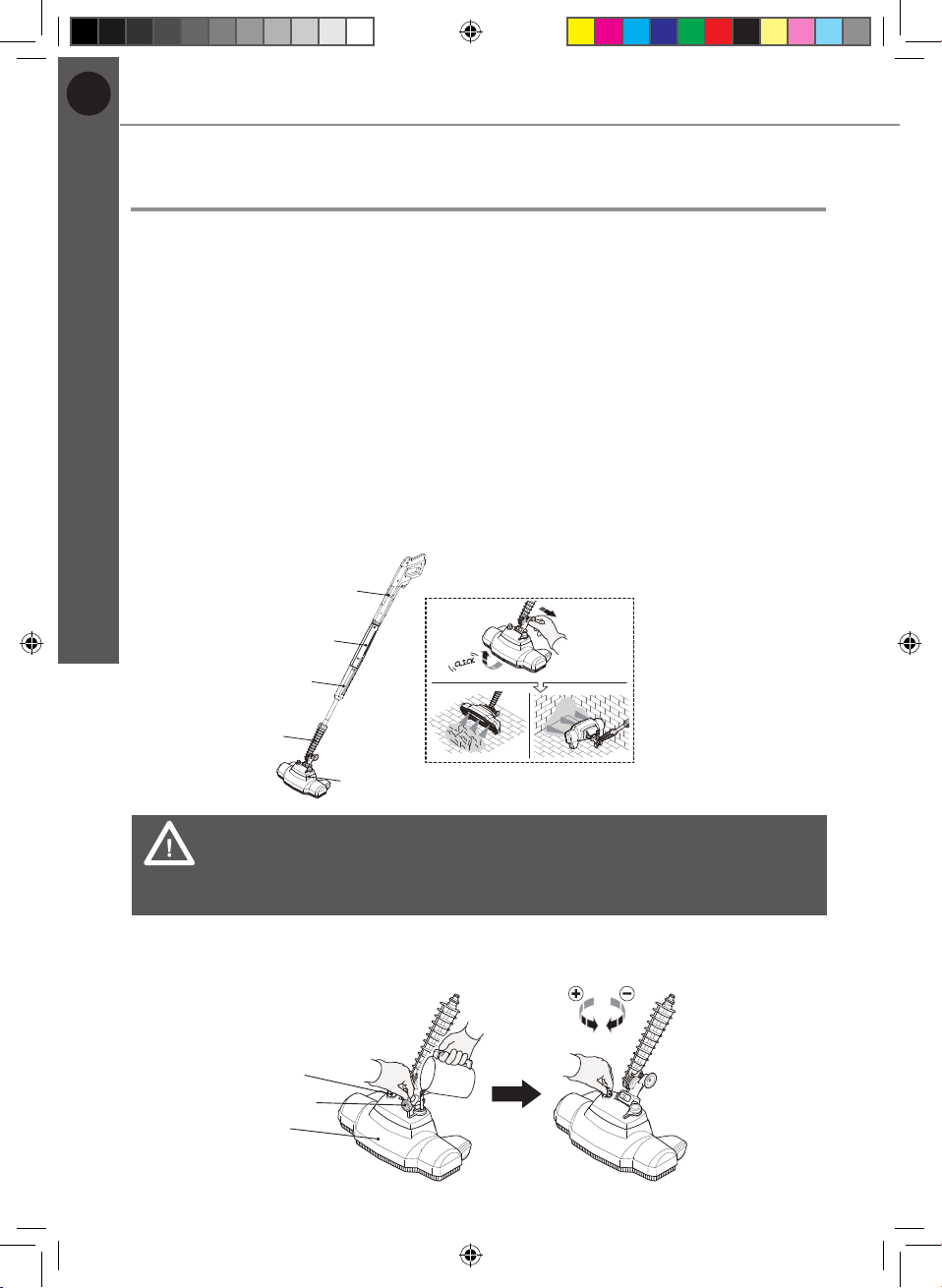

Aquasweeper
The aquasweeper is specially designed to clean large at surfaces.

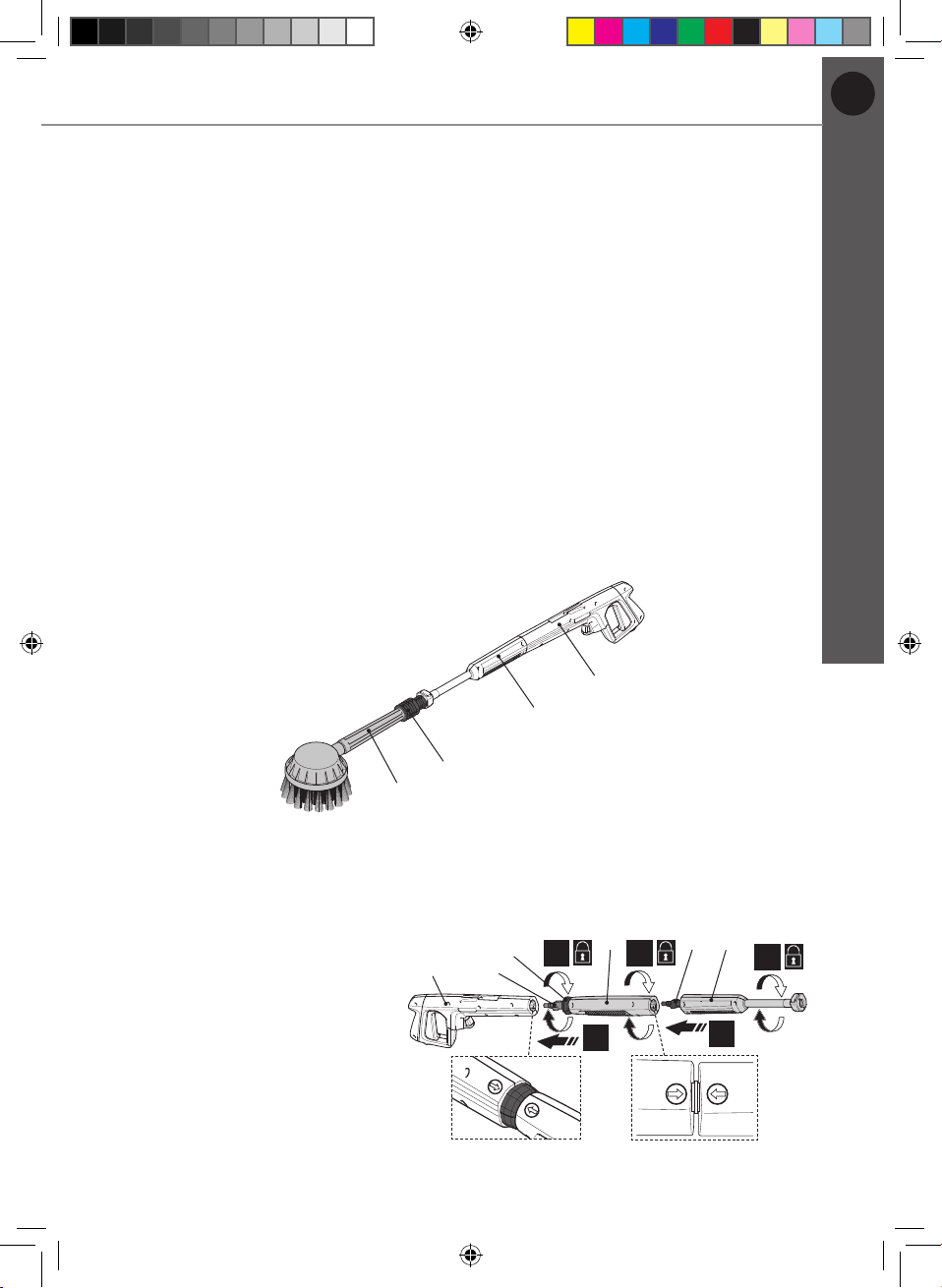

Rotary brush
The rotary brush is specially designed to clean rims and vehicle wheels.
1. Attach the extension lance (7) onto the spray gun (9) (Fig. 11).
2. Attach the rotary brush (23) onto the extension lance.
3. Slightly rotate the rotary brush to ensure it faces the proper position if
necessary.
Fig. 11
Fig. 12
23
23a
7
9
Fig. 10
3. 2. 5.
1. 4.
22a
22b 22 7a 7
9
Fig. 11
1. Always attach the short
extension lance (22) when
using the Aquasweeper.
2. Align and insert the tongues
(22a) of the short extension
lance (22) into the grooves of
the spray gun (9) connection
port. (Fig. 12, step 1).
Before you start
96262_IM_TTB2700_4L.indb 1996262_IM_TTB2700_4L.indb 19 2021/9/16 下午5:072021/9/16 下午5:07

20
EN
Getting started...
TTB2700PRW byTITAN
Fig. 14
Fig. 13
3. Turn the short extension lance (22) clockwise to lock it in place (step 2).
Ensure the arrow on the spray gun aligns with the arrow on the short
extension lance.
4. Securely fit the short extension lance (22) by turning the sleeve (22b)
clockwise (step 3).
5. Align and insert the tongues (7a) of the extension lance (7) into the grooves
of the short extension lance (22) connection port (step 4).
6. Securely t the extension lance (7) by turning it clockwise to lock it in place
(step 5). Ensure the arrow on the short extension lance aligns with the arrow
on the extension lance.
7. Attach the Aquasweeper (24) onto the extension lance (7) (Fig. 13).
8. The angle of the connector (24a) can be adjusted by two position.
WARNING! The
aquasweeper is only intended to be used on flat
patio surfaces! Do not attempt to use it on steps. Never attempt to
touch the spray nozzle and always attach the short extension lance
(22) while operating.
9. Open the cap (24b) and ll in suitable detergent and close the cap afterwards
(Fig. 14).
Fig. 13
24
24b
24c
24
7
24a
22
9
Accessories
Before you start
96262_IM_TTB2700_4L.indb 2096262_IM_TTB2700_4L.indb 20 2021/9/16 下午5:072021/9/16 下午5:07
