TK-STAR TP-GPS806 User manual

TP-GPS806 GPS TRACKER
USER MANUAL
PREFACE
Thank you for purchasing TKSTAR GPS tracker. This manual shows how to operate the device smoothly in
details, please make sure to read this manual carefully before using the device. Please be noted that any
update of the manual is made without prior notice. Each time the update of the manual will be released in the
latest product sales. The manufacturer won’t assume any legal responsibility for any errors or omissions made
in this manual.

1 SUMMARY
Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any
remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual
positioning.
Content
Specs.
Dim.
77*27*15mm （3.0”*1.0”*0.6”）
Weight
360 g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5m
Car Input Charger
DC 10V-80V
Back-up battery
Chargeable 3.7V 150mAh Li-ion battery
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing

2.Hardware Description
Wire connection explanation:
Power, ACC, Oil/Electric control line (4 Pin)
1, This device is standard for power supply 10V-80V DC. Pls choose the original factory power
line. Red line for power positive, black line for power negative. When installation, power
negative, pls choose separately grounding or iron, do not connect with other ground.
2, ACC line (Orange) connects with vehicle ACC switch, to confirm if vehicle has ignited and
started.
3, Oil/electric Cut line (Yellow) connect with the thin yellow line of Relay. (Relay is optional
accessory.)
接线说明：
电源、ACC、断油电控制线（4Pin）
1.本设备标准供电为 10V-80VDC，请选用原厂提供的电源线，红色线为电源正极，黑色为电源负极；安
装时电源负极请选择单独接地或搭铁，勿与其他地线共接；
2. ACC 线（橙色线）接车辆的 ACC 开关；判断车辆是否点火启动。
3. 断油电控制线（黄色线）接继电器上的细黄线。（继电器为选配配件）

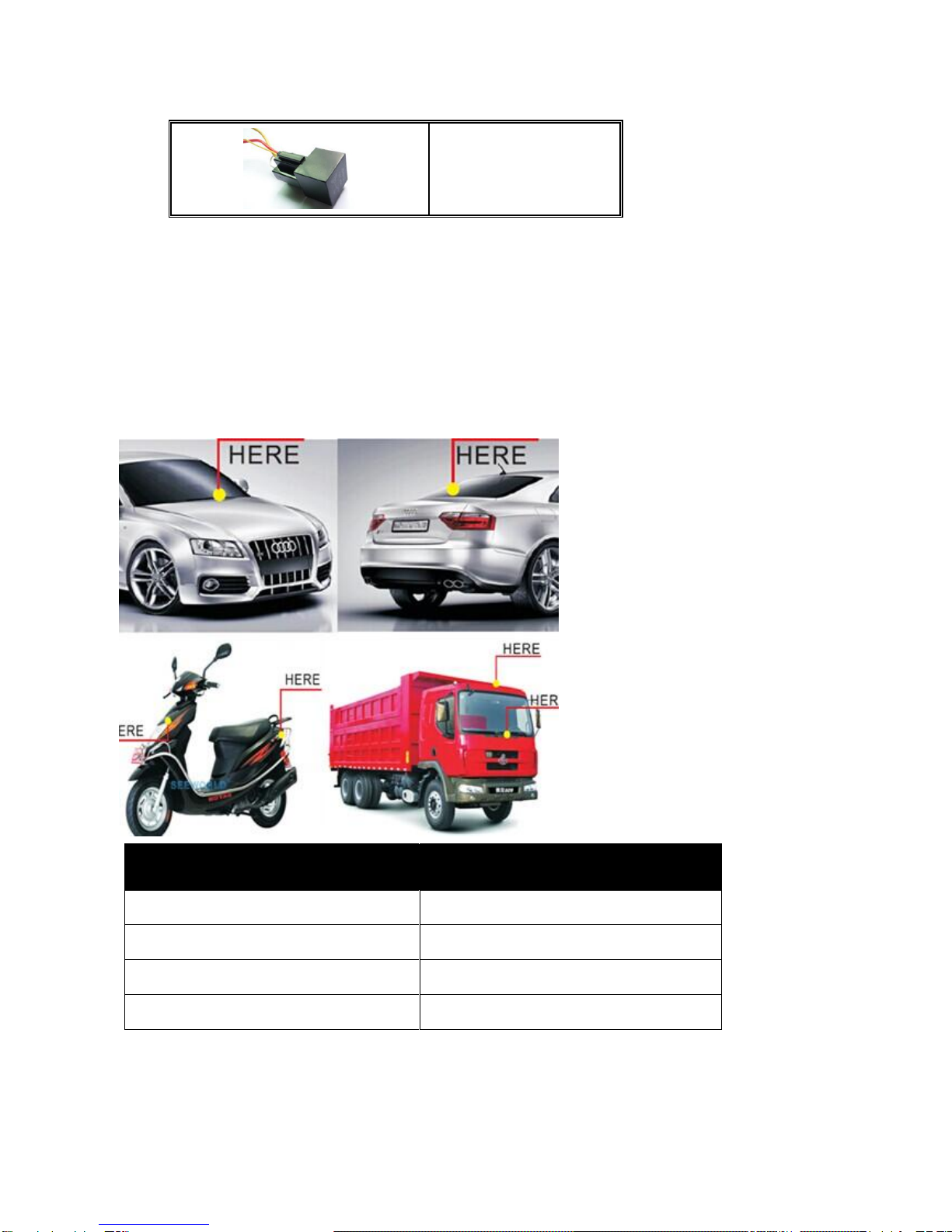

The Place of the tracker in the Vehicle :
Front windshield decorative below the covert
Front panel (skin for non-metal material) around the shadow
Rear window below decorative
INDICATOR LIGHT STATUS
MEANING
Yellow light -Solid
No GPRS signal
Yellow light -Flash
GPRS connection
Blue light -Solid
No GPS signal
Blue light -Flash
GPS connection
Note: GSM SIM CARD INSTALLATION GUIDE: Only GSM SIM card works in this model
Relay(选配)

3.TURN ON THE DEVICE
Open the rubber cover, insert the SIM card(chip up) to the slot.
The indicator light is on when SIM card is inserted.
After device is on, pls connect device with car based on above wire connection diagram.
The device gets GPS location when there is GPS signal and gets LBS location when there is no GPS
signal.
The device automatically turns off when the SIM card is removed.
4.SMS TRACKING
4.1. Call the SIM card phone number in tracker,you will receive a Google Maps link of position,
or sending message “G123456#” to SIM card phone number in tracker .
E.g:
4.2. Admin number setting (After admin number setting, all SMS operations to the device are under this
number only.)
Command: admin123456 phone number（This phone number is your own mobile phone number , not the
SIM card number in tracker .）
Reply：admin ok
E.g：admin123456 13265790180
When the unit is in over-speed alarm, shake sensor alarm, or low battery alarm, it will send alert to the admin
number.（13265790180）
Admin number Canceling:
Command ：noadmin123456

Reply：noadmin ok
4.3. Over-speed Alarm setting（It works only in continuous positioning mode.）
Over-speed Alarm setting:

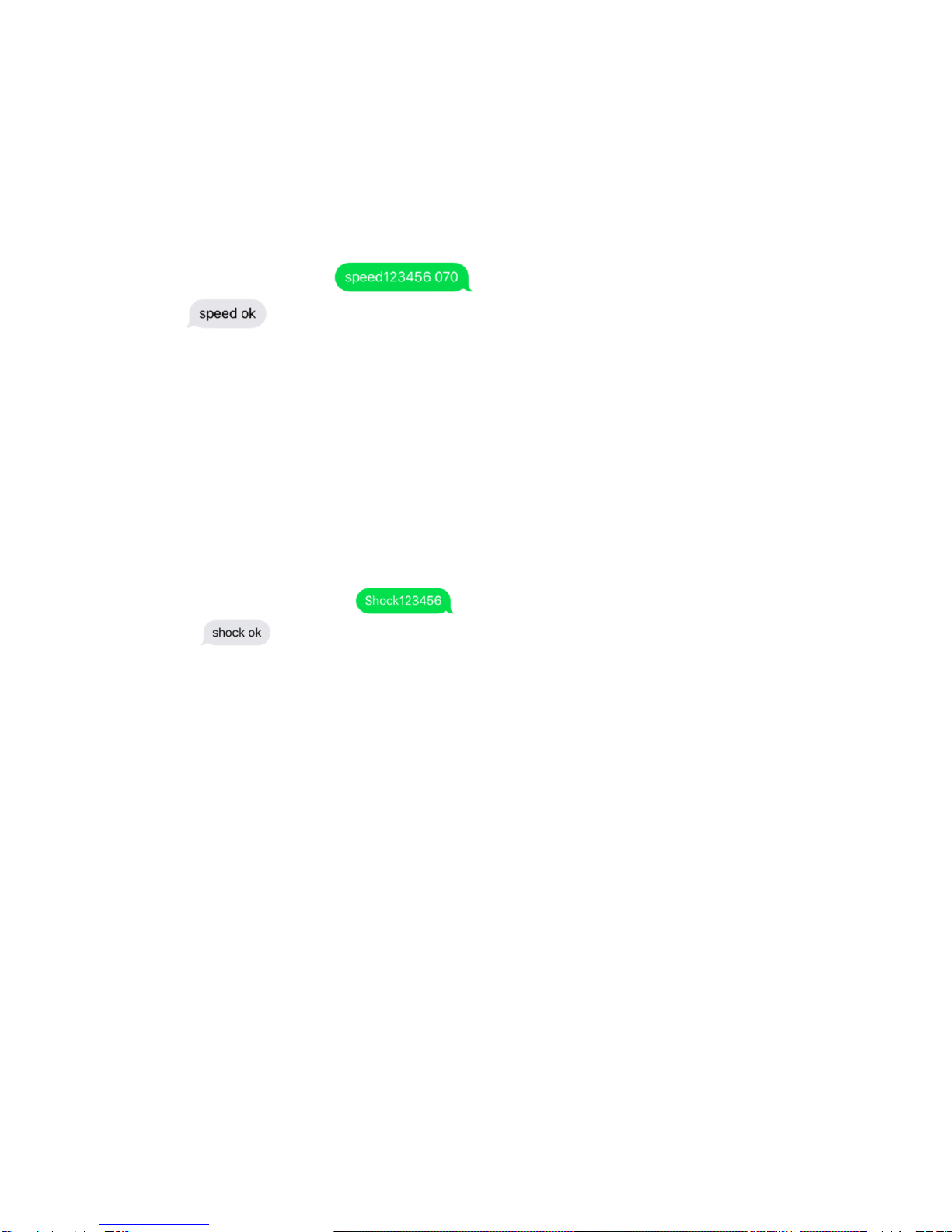

Command ：speed123456 070（Suppose speed is 70km/h）
Reply：speed ok
E.g：
When the unit speed is over 70km/h, it will send message “speed alarm!” to the admin number every 5
minutes.
Over-speed Alarm canceling ：
Command ：nospeed123456
Reply：nospeed ok
4.4. ShakeAlarm setting
Command：shock123456
Message Reply：shock ok
E.g：
Note:Pls keep the tracker being stationary for 5 minutes, this function will work.
The tracker will send SMS “sensor alarm!” to the admin number when the unit get shocked.
Shake alarm Canceling:
Command：noshock123456
Reply：noshock ok
4.5.Remove Alarm setting (Default factory setting is on. )
Command：remove123456
Message Reply：remove ok
E.g：

Note: After the device black/red lines connect with car battery, when it is taken down illegally, it will send
“remove alarm!”info to admin number and SOS number by SMS. 设备黑红线链接汽车电瓶后被非法拆掉
产生报警信息 ”remoe alarm!”发短信给中心号码和 SOS 号码。（出厂默认打开）
Remove Alarm Canceling:
Command：noremove123456
Reply：noremove ok
4.6.ACC Alarm setting
Command：acc123456
Message Reply：acc set ok
E.g：
Note: After Orange line connects with car ACC line, if you setACC alarm, when the car ignition turns on
and starts, it will send “ACC on!”to admin number and SOS number by SMS.橙色线链接汽车 ACC 线后，
设置此 ACC 报警，当汽车被点火启动后 产生报警 ”ACC on!”发短信给中心号码和 SOS 号码。（出厂默认
关闭）
ACC Alarm Canceling:

Command：noacc123456
Reply：acc set ok
4.7 油路控制设置：
Cut off the Oil and Power setting：
Command：stop123456
Message Reply：stop ok
It will stop your car engine as well, at the same time. It will remain the immobile
state until receiving the next SMS command of resuming the oil and power once
receiving SMS command to cut off the oil and power system.
Resume the Oil and Power setting：
Command：resume123456
Message Reply：resume ok
Note: Only when you install Relay, Oil-cut command come into effect. 油路控制指令需要安装继电器
(Relay )后才能生效，
4.8 Terminal (local) Time Setting(factory setting GMT 0)
Command：timezone123456 local time zone
Reply：time ok!
E.g：timezone123456 +1timezone123456 -1Timezone123456 0
4.9Reset Hardware
Command：begin123456
Reply：begin ok
E.g：
5. EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE

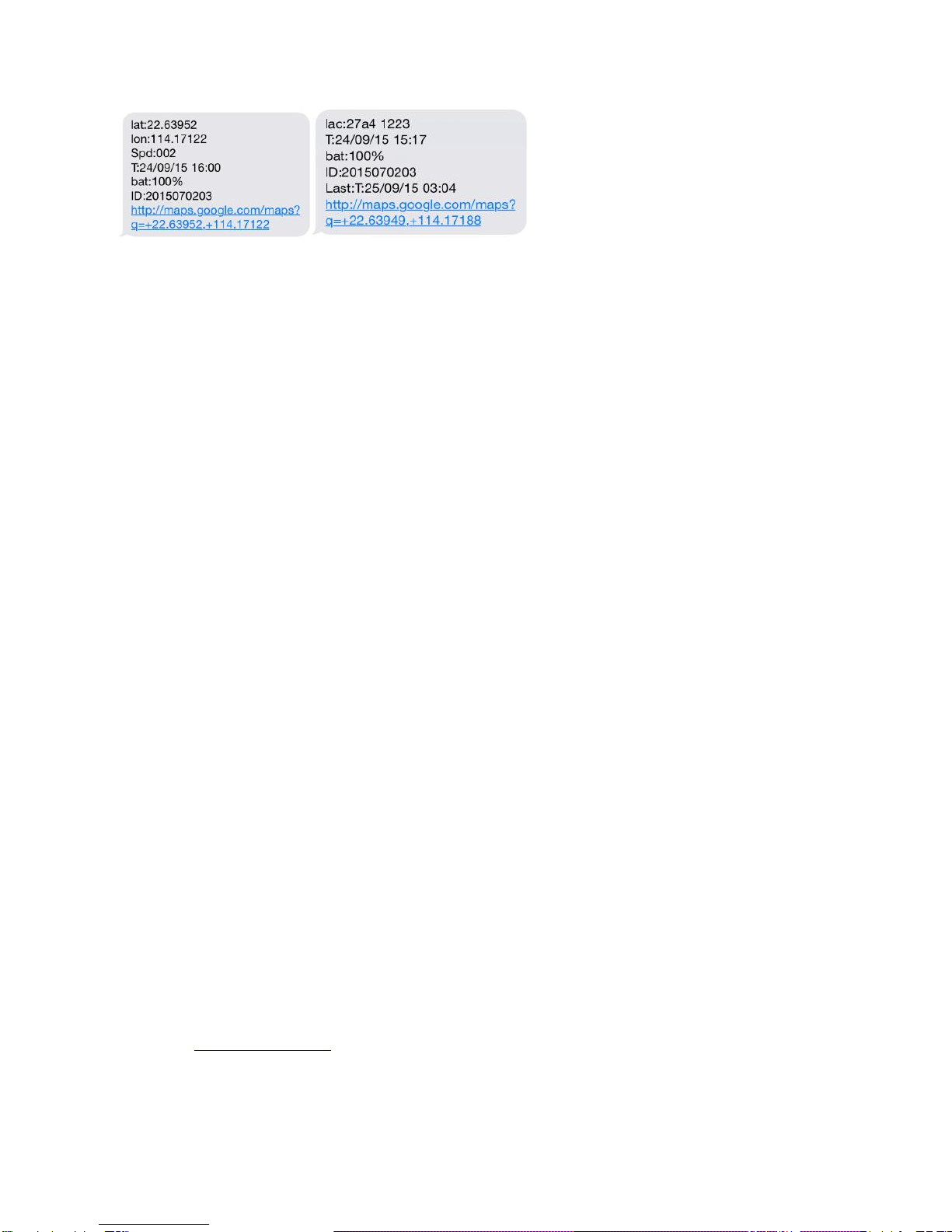

Pic（1）Pic（2）
Pic 1：Replied real-time tracking information under GPS satellites signal.
Lat:22.63952 lon:114.17122 Positioning of the latitude and longitude values.
Spd：000 This refers to the device moving speed. The unit is km/h.
T:24/09/15 16:00 real-tracking time, the Default is London time. You can set language and
time zone inAPP.
Bat：100% The battery value is between 10% and 100%. Once it is less than 30%, it
alarms.
2015070203: Device IMEI No. to log in APP and platform.
Google Link: This is the link to the Google map showing the position of the device.
Pic 2：Replied LBS tracking information without GPS satellites signal.
Lac:27a4 1223: Real-time LBS positioning data.
T:24/09/15 15:17 LBS positioning time.
Bat：100% The battery value is between 10% and 100%. Once it is less than 30%, it
alarms.
Last：T:25/09/15 03:04 This is the time when tracker got last GPS signal
Google Link：This is the position of last gps signal appeared
6. 0 START ONLINE TRACKING
Pls activate GPRS by sending command “gprs123456” when the tracker is on, and set APN by following steps.
Every sim card carrier has own APN content, we have two methods to find out apn content : check sim card
carrier on internet or put sim card into cell phone to find out APN
Two steps to set apn:
1), Turn on gprs function by sending command “gprs123456”
2),Set apn by sending command “apn123456 content” , “apnuser123456 content” ,“apnpasswd123456 content”
pls note the content is from SIM card carrier , there is small blank after 123456 in every command.
6.1 WEBSITE TRACKING
Platform :www.mytkstar.net
Select “Log in by IMEI” on the bottom of screen
IMEI No. : on the back side of cover
Password: 123456

6.2 APPLICATIONS FOR ANDROID/IOS
Search “TKSTAR GPS“ in the Apple App Store/Google Play
Store or Scan the QR Code to install the applications on
your cell phone.
Select “Log in by IMEI” on the bottom of screen
Server: www.mytkstar.net
IMEI : on the back side of cover
Password: 123456
6.3 Turn on GPRS function by sending command “GPRS123456” to the tracker, and set the
APN for the tracker, then its online tracking by APP and platform works. (if you did it
already in 6.0, no need to it one more time )
COMMAND INSTRUCTION TO SET APN
INSTRUCTION
COMMAND
REPLY
Turn on GPRS
GPRS123456
GPRS OK
Set APN
( any existing will be replaced)
apn+123456+space+apn content
apn ok
Set APN username
apnuser+123456+space+conten
t
apnuser ok
Set APN password
apnpasswd+123456+space+con
tent
apnpasswd ok

E.g:
For tesco mobile SIM card in UK, we got APN information below.
APN name:prepay.tesco-mobile.com
APN username:tescowap
APN password:password
Send SMS to set apn below
1.gprs123456
2.apn123456 prepay.tesco-mobile.com
3.apnuser123456 tescowap (no need to set if without apnuser)
4.apnpasswd123456 password (no need to set if without password)
7. Notices:
1.GPS tracking can be worked outdoor.
2.Please make sure GSM SIM card supports making calls, sending messages, GPRS
network.
3.Please make sure GSM SIM card is with sufficient balance.
4.Please make sure the GSM card has opened the call shows and turned off the call
transfer.
5.Please insert the GSM phone card correctly.
6.Do not assembly and disassembly device at will.
8. FAQ and processing methods.
FAQ
Instructions/Solutions
Fail to turn it on
Please check if battery is charged
No GSM signal
Please check if SIM card installed correctly.
Please check if SIM card is GSM network.
Don’t turn on the PIN code
no calls can be diverted
Please check if voltage of the power is normal

Please check if voltage of the power is normal
电源电压是否正常

No GPS
Amore open view of the sky is recommended to make sure the device can
receive the GPS signal normally.
No reply to SMS
command
Password wrong or the format is wrong.
No reply to calling & No
alarm message
Authorized / admin phone number is incorrect or has not setup
SMS position OK, cannot
use the APP and web
platform
Pls check if APN is correctly set. And pls find out the correct APN content of
the SIM card. (Pls refer to 6.3 setting.)
Platform position is
difference from the actual
position.
No uploading position time or no GPS signal: call the device phone number and
receive the position message. If it shows like Pic 2, it means no GPS signal. The
position is the last GPS positioning location; If it shows like Pic 1, it means the
device doesn’t reach the uploading time.
