ECS H67H2-A3 User manual

Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
TrademarkRecognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing
this device. Changes or modifications not expressly approved by the system’s manu-
facturer could void the user’s authority to operate the equipment.

ii
Preface
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interfer-
ence that may cause undesired operation.
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur
le matériel brouilieur du Canada.
AbouttheManual
The manual consists of the following:
Describes features of the
motherboard.
Go to Hpage 1
Describes installation of
motherboard components.
Goto Hpage 7
Go to Hpage 25
Goto Hpage 51
Describes the motherboard
software
Chapter 2
Installing the Motherboard
Chapter 1
Introducing the Motherboard
Chapter 3
UsingBIOS
Chapter 4
Using the Motherboard Software
Chatper 7
TroubleShooting
Provides basic trouble shoot
ing tips page 73
Go to H
Go to
Chapter 5
SettingUp eJIFFY
Describes the eJIFFY setting
up
Hpage 55
Provides information on using
the BIOS Setup Utility.
Go to
Chapter 6
Intel®®
®®
®
Matrix Storage Manager
RAIDConfigurations
Describes the Intel®Matrix
Storage Manager RAID
Configurations
Hpage 67

iii
Chapter 2 77
77
7
Installing the Motherboard 7
SafetyPrecautions............................................................................7
Choosinga ComputerCase.............................................................7

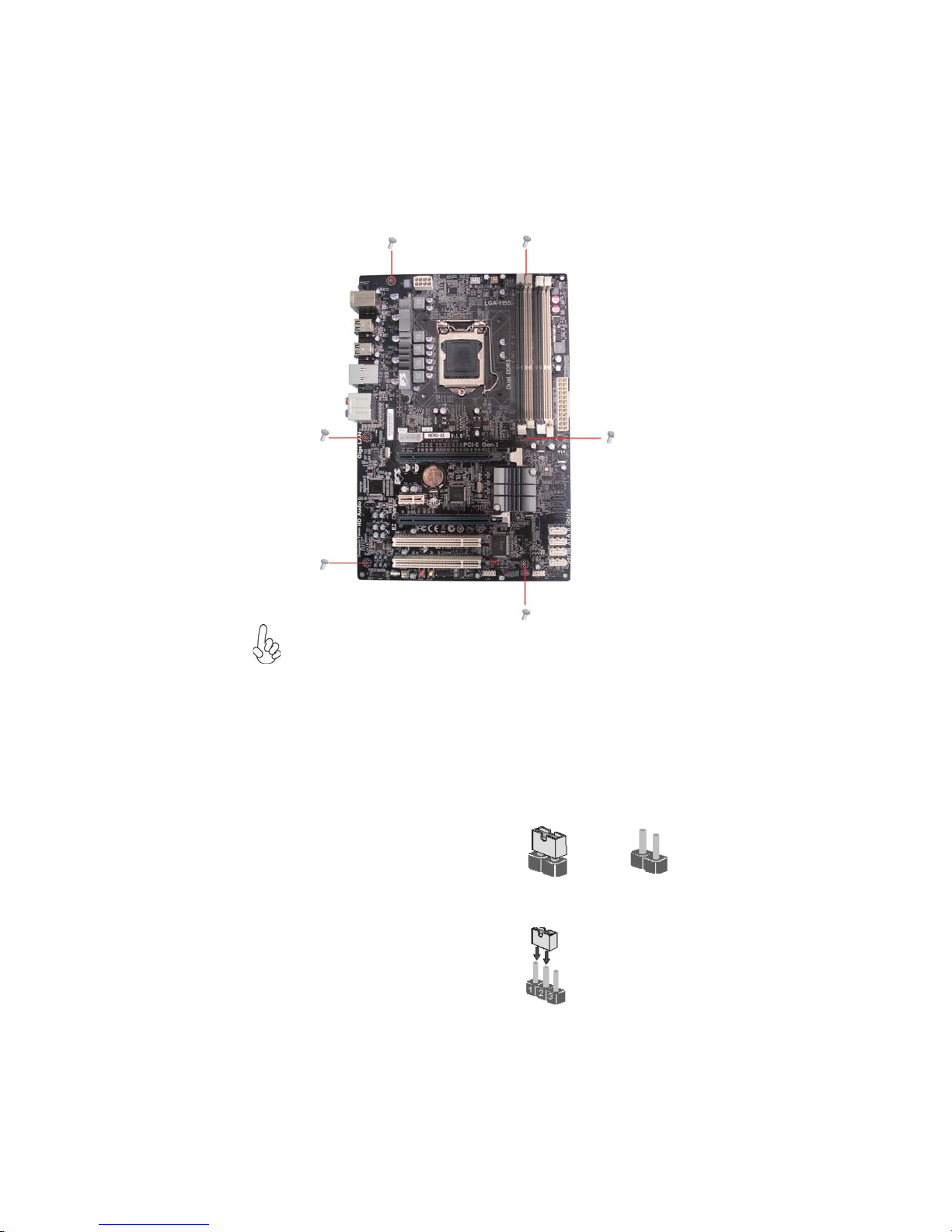

Installingthe Motherboard in a Case............................................7
CheckingJumperSettings...............................................................8
Setting Jumpers........................................................................8
Checking Jumper Settings........................................................9
Jumper Settings........................................................................9
InstallingHardware........................................................................10
Installing the Processor.........................................................10
Installing Memory Modules...................................................12
Expansion Slots......................................................................14
Connecting Optional Devices.................................................16
Installing a SATA Hard Drive................................................19
Connecting I/ODevices............................................................... 20
ConnectingCase Components.....................................................21
Front Panel Header................................................................24
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS
Preface i
Chapter 1 1
IntroducingtheMotherboard 1
Introduction...................................................................................1
Feature............................................................................................2
Specifications................................................................................4
MotherboardComponents..........................................................5
Chapter 3 25
UsingBIOS 25
AbouttheSetupUtility................................................................. 25
The Standard Configuration........................ ...........................25
Entering the Setup Utilities......................................................25
Resetting the Default CMOS Values.....................................26
UsingBIOS......................................................................................26
BIOS Navigation Key.............................................................27
Main Menu.............................................................................27
Advanced Menu......................................................................28
Chipset Menu..........................................................................37
M.I.B.III(MB Intelligent Bios III) Menu..................................40
Boot Menu...............................................................................45

iv
Security Menu.........................................................................46
Save & Exit Menu...................................................................47
Updating the BIOS..................................................................49
Chapter 4 5151
5151
51
UsingtheMotherboardSoftware 51
AbouttheSoftwareDVD-ROM/CD-ROM...................................51
Auto-installingunderWindowsXP/Vista/7..................................51
Running Setup.........................................................................52
ManualInstallation...........................................................................54
UtilitySoftwareReference.................................................................54
Chapter 7 7373
7373
73
TroubleShooting 73
Startup problems duringassembly..............................................73
Startup problems after prolong use............................................74
Maintenanceandcare tips..............................................................74
BasicTroubleshootingFlowchart...................................................75
Chapter 5 5555
5555
55
SettingUpeJIFFY 55
Introduction....................................................................................55
Installationand BIOSSetup..........................................................56
EnteringeJIFFY....................................................................................59
FeaturesIcons.....................................................................................60
UsageFAQ...........................................................................................61
Chapter 6 6767
6767
67
Intel®MatrixStorageManagerRAIDConfigurations 67
Beforecreating aRAID set............................................................67
Entering Intel®MatrixStorage Manager RAID BIOS utility....68
CreatingaRAID set........................................................................69
DeletingaRAID set........................................................................71
Resettingdisks toNon-RAID.......................................................72
ExitingSetup....................................................................................72

1
IntroducingtheMotherboard
Chapter1
IntroducingtheMotherboard
Introduction
Thank you for choosing H67H2-A3 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1155
socket for 2nd Generation Intel® CoreTM Family/Pentium/Celeron processors to reach
the optimum system performance for high-end business or personal desktop mar-
ket.
This motherboard is based on Intel® H67 Chipset for best desktop platform solution.
H67 is a single-chip, highly integrated, high performance Hyper-Threading periph-
eral controller, unmatched by any other single chip-device controller. This
motherboard supports up to 16 GB of system memory with dual channel DDR3
1333/1066 SDRAM. It supports two* PCIe x16 Gen 2 graphic interface, that
allows you install up to two graphic cards with multiple GPU running at PCIe Gen
2 speed. It provides two PCI rev 2.2 slots and one PCI Express x1 rev 2.0 slot for
extending usage. It implements an EHCI compliant interface that provides four-
teen USB 2.0 ports (eight rear I/O ports and three headers support additional six
USB ports and one of Front USB 2.0 headers provide EZ charger technology,
please reference chapter 2 parts of Front Panel USB headers to check the detail
information). This motherboard implements optional USB 3.0 chip which pro-
vides two optional USB 3.0 ports* at rear I/O with blue connectors also.
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including one PS/2 mouse and keyboard combo connector, one CLR_CMOS button,
one LAN port, eight USB 2.0 ports, which includes two USB ports with optional
USB 3.0 specification running at 5Gb/s, and audio jacks for microphone, line-in and
8-ch line-out.
In addition, this motherboard comes with a power button and a reset button.
*One PCIe x16 runs at PCIe x4 bandwith.

2
IntroducingtheMotherboard
Feature
• Accommodates 2nd GenerationIntel® CoreTM Family/Pentium/Celeron pro-
cessors
• Supports “Hyper-Threading” technology CPU
“Hyper-Threading” technology enables the operating system into thinking
it’s hooked up to two processors, allowing two threads to be run in parallel, both
on separate “logical” processors within the same physical processor.
The motherboard uses an LGA1155 type of socket that carries the following
features:
Processor
Chipset
• Supports DDR3 1333/1066 DDR3 SDRAM with Dual-channel architec-
ture
• Accommodates four unbuffered DIMMs
• Up to 4 GB per DIMM with maximum memory size up to 16 GB
Memory
Audio
• 7.1+2 Channel High DefinitionAudio Codec
• Meets Microsoft WLP3.x (Windows Logo Program) audio
requirements
• All DACs supports 44.1k/48k/96k/192kHz sample rate
• Software selectable 2.5V/3.2V/4.0V VREFOUT
• Direct Sound 3D. compatible
• Power Support: Digital: 3.3V; Analog: 5.0V
The Intel®H67 Chipset is a single-chip with proven reliability and performance.
• Supports PCI Express x16 Gen2 slot
• Compliant with PCI Rev 2.2 interface
• Supports one PCI Express x1 Gen2 slot
• Supports two PCI slots
• Integrated four SATA 3.0 Gb/s Host Controllers and two SATA 6.0 Gb/
s Host Controllers
• Fourteen USB 2.0 ports supported
• Serial Peripheral Interface (SPI) support
• Enhanced DMA Controller, interrupt controller, and timer functions
• Intel®High DefinitionAudio Controller
Giga LAN
• Supports PCI ExpressTM 1.1
• Integrated 10/100/1000 transceiver
• Wake-on-LAN and remote wake-up support

3
IntroducingtheMotherboard
The motherboard comes with the following expansion options:
• Two PCI Express x16 slots for Graphic Interface (the second is x4
bandwidth)
• One PCI Express x1 slot
• Two 32-bit PCI v2.2 compliant slots
• Six 7-pin SATA connectors (2 x SATA 6Gbit/s and 4 x SATA 3Gbit/s)
Expansion Options
The motherboard has a full set of I/O ports and connectors:
Integrated I/O
• OneCLR_COMSbutton
• One LAN port
• Eight USB 2.0 ports
• One PS/2 mouse and keyboard comb connector
• Audio jacks for microphone, line-in and 8-ch line-out
The firmware can also be used to set parameters for different processor clock
speeds.
• Power management
• Wake-up alarms
• CPUparameters
• CPUandmemorytiming
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
1. Some hardware specifications and software items are subject to change
without prior notice.
2. Due to chipset limitation, we recommend that motherboard be operated
in the ambiance between 0 and 50 °C.

4
IntroducingtheMotherboard
Specifications
• LGA1155 socket for 2nd Generation Intel® CoreTM Family/
Pentium/Celeron processors
• Supports “Hyper-Threading” technology CPU
• DMI5.0GT/S
CPU
• Intel®H67Chipset
• Dual-channel DDR3 memory architecture
• 4 x 240-pin DDR3 DIMM sockets support up to 16 GB
• Supports DDR3 1333/1066
• 2 x PCI Express Gen2 x16 slots
• 1 x PCI Express x1 slot
• 2 x PCI slots
• Supported by Intel®H67 Chipset
- 4 x SATA 3.0 Gb/s Host Controllers
- 2 x SATA 6.0 Gb/s Host Controllers
• Supports RAID 0/1/5/10
• RealtekALC8928-ChHD audio CODEC
• Compliant with HD audio specification
• 1 x PS/2 keyboard & PS/2 mouse combo connector
• 1 x CLR CMOS button
• 8 x USB2.0 ports (including 2 x USB ports with optional USB
3.0 specification running at 5 Gb/s)
• 1 x RJ45 LAN connector
• 1 x Audio port with 6 audio jacks (Center/Subwoofer
Speaker Out/Rear Speaker Out/Side Speaker Out/Line
in, microphone in, line out)
Chipset
Memory
Expansion
Slots
Storage
Audio
GigaLAN
RearPanelI/O • Realteck RTL8111E Gigabit Lan
• 1 x 24-pin ATX Power Supply connector, 8-pin 12V connec-
tor
• 1 x ATX4P connector
• 2 x Serial ATA 6Gb/s connectors
• 4 x Serial ATA 3Gb/s connectors
• 3 x USB2.0 headers support additional six USB 2.0 ports
(F_USB2 supports EZ Charger)
• 1 x Front panel audio header
• 1 x SPDIF out header
• 1 x Front panel header
• 1 x ME UNLOCK header
• 1 x CASE header
• 1 x Reset button
• 1 x Power button
• 1 x COM header
• CPU_FAN/SYS_FAN/PWR_FAN connectors
InternalI/O
Connectors &
Headers
• AMI BIOS with 32 Mb SPI Flash ROM
• SupportsECSM.I.BIIIUtility
• SupportsACPI&DMI,Plugand Play,STR(S3)/STR(S4)/S1,
Hardware monitor
SystemBIOS

5
IntroducingtheMotherboard
MotherboardComponents
• ATX Size, 305mm x 210mm
Form Factor
• Audio, LAN, can be disabled in BIOS
• F7 hot key for boot up devices option

6
IntroducingtheMotherboard
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
LGA1155 socket for 2nd Generation Intel®CoreTM Famil
y
/
Pentium/Celeron processors
2. CPU_FAN CPU cooling fan connector
3. SYS_FAN System cooling fan connector
4. DDR3_1~4 240-pin DDR3 SDRAM slots
5. ATX_POWER Standard 24-pin ATX power connector
6. SPK Internal speak header
7. SPI_DEBUG SPI Debug header-for factory use only
8. SATA1~2 Serial ATA connectors (SATA1~2 support SATA 6Gb/s)
9. SATA3~6 Serial ATA connectors (SATA3~6 support SATA 3Gb/s)
10. F_PANEL Front panel switch/LED header
11. F_USB3 Front panel USB header
12. ME_UNLOCK ME unlock header-for factory use only
13. CASE CASE open header
14. F_USB2 Front panel USB header (F_USB2 supports EZ Charger)
15. CLR_CMOS Clear CMOS jumper
16. F_USB1 Front panel USB header
17. COM Onboard serial port header
18. RST_BTN Reset button
19. PWR_BTN Power on button
20. PWR_FAN Power cooling fan connector
21. SPDIFO SPDIF out header
22. F_AUDIO Front panel audio header
23. PCI1~2 32-bit add-on card slots
24. PCIEX16_T PCI Express x16 slot with x4 bandwith
25. PCIE PCI Express x1 slot
26. PCIE16X PCI Express slot for graphics interface
27. ATX4P Auxiliary power connector for graphic card
28. ATX12V 8-pin +12V power connector
1. CPU Socket

7
InstallingtheMotherboard
Chapter2
InstallingtheMotherboard
SafetyPrecautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid dam-
age from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
There are many types of computer cases on the market. The motherboard complies
with the specifications for the ATX system case. Some features on the motherboard
are implemented by cabling connectors on the motherboard to indicators and switches
on the system case. Make sure that your case supports all the features required.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries an ATX form factor of 305 x 210 mm. Choose a case that
accommodates this form factor.
Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.
ChoosingaComputerCase
InstallingtheMotherboardinaCase

8
InstallingtheMotherboard
Do not over-tighten the screws as this can stress the motherboard.
CheckingJumperSettings
This section explains how to set jumpers for correct configuration of the motherboard.
SettingJumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT.
SHORT OPEN

9
InstallingtheMotherboard
Checking Jumper Settings
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
JumperSettings
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save and Exit Setup”.
Jumper Type Description Setting (default)
CLR_CMOS 3-pin Clear CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn off the system.
CLR_CMOS
1

10
InstallingtheMotherboard
InstallingHardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure that
you DO NOT scratch the motherboard or any of the surface-mount resis-
tors with the clip of the cooling fan. If the clip of the cooling fan scrapes
across the motherboard, you may cause serious damage to the motherboard
or its components.
On most motherboards, there are small surface-mount resistors near the
processor socket, which may be damaged if the cooling fan is carelessly
installed.
Avoid using cooling fans with sharp edges on the fan casing and the clips.
Also, install the cooling fan in a well-lit work area so that you can clearly
see the motherboard and processor socket.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system bus
frequency for the processor. You may be able to change the settings in the system
Setup Utility. We strongly recommend that you do not over-clock processors or
other components to run faster than their rated speed.
This motherboard has an LGA1155 socket. When choosing a processor, consider the
performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity
of internal cache memory and external cache memory.
Warning:
1. Over-clocking components can adversely affect the reliability of the
system and introduce errors into your system. Over-clocking can perma-
nently damage the motherboard by generating excess heat in components
that are run beyond the rated limits.
2. Always remove the AC power by unplugging the power cord from the
power outlet before installing or removing the motherboard or other
hardware components.
Fail-Safe Procedures for Over-clocking
When end-users encounter failure after attempting over-clocking, please take the
following steps to recover from it.
1. Shut down the computer.
2. Press and hold the “Page Up Key (PgUp)” of the keyboard, and then boot the PC
up.
3. Two seconds after the PC boots up, release the “Page Up Key (PgUp)”.
4. The BIOS returns to the default setting by itself.

11
InstallingtheMotherboard
A. Opening of the Load Plate
· Put your thumb on the tail of the load
plate and press the tail down.
· Rotate the load plate to fully open
position.
B. Disengaging of the Load Lever
· Hold the hook of lever and pull it to the
left side to clear retention tab.
· Rotate the load lever to fully open
position.
C. Removing the Cap
· Be careful not to touch the contact at
any time.
D. Inserting the Package
· Graspthe package.Ensure tograsp on
the edge of the substrate.
· Make sure pin 1 indicator is on your
bottom-left side.
· Aimatthesocketandplacethepackage
carefully into the socket by purely
vertical motion.
E. Closing the Load Plate
· Rotate the load plate onto the package
IHS (Intergraded Heat Spreader).
· Engage the load lever while pressing
down lightly onto the load plate.
· Secure the load lever with the hook
under retention tab.
F. Fasten the cooling fan supporting base
onto the CPU socket on the motherboard.
G. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the
CPU cooling fan user’s manual for more
detail installation procedure.
CPU Installation Procedure
The following illustration shows CPU installation components.

12
InstallingtheMotherboard
Installing Memory Modules
This motherboard accommodates four memory modules. It can support four 240-pin
DDR3 1333/1066. The total memory capacity is 16 GB.
You must install at least one module in any of the four slots. Total memory capacity
is 16 GB.
ff Channel A: DDR3_1, DDR3_3
Channel B: DDR3_2, DDR3_4
The four DDR3 memory sockets (DDR3_1, DDR3_2, DDR3_3 and DDR3_4) are
divided into two channels and each channel has two memory sockets as following:
1. To achieve better airflow rates and heat dissipation, we suggest that
you use a high quality fan with 3800 rpm at least. CPU fan and
heatsink installation procedures may vary with the type of CPU fan/
heatsink supplied. The form and size of fan/heatsink may also vary.
2. DO NOT remove the CPU cap from the socket before installing a
CPU.
3. Return Material Authorization (RMA) requests will be accepted
only if the motherboard comes with the cap on the LGA1155 socket.
Due to Intel CPU spec definition, the system will not boot if only one
DIMM is installed in DDR3_1 or DDR3_3. Follow the table above for
recommended memory configuration.
Recommend memory configuration
ff
DDR3_1 DDR3_2 DDR3_3 DDR3_4
1 DIMM -- Populated -- --
1 DIMM -- -- -- Populated
2 DIMMs -- Populated -- Populated
3 DIMMs Populated Populated -- Populated
3 DIMMs -- Populated Populated Populated
4 DIMMs Populated Populated Populated Populated
Mode Sockets
DDR3 SDRAM memory module table
Memory module Memory Bus
DDR3 1333 667 MHz
DDR3 1066 533 MHz

13
InstallingtheMotherboard
Do not remove any memory module from its antistatic packaging
until you are ready to install it on the motherboard. Handle the
modules only by their edges. Do not touch the components or metal
parts. Always wear a grounding strap when you handle the modules.
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Installany remaining DIMM modules.
1. For best performance and compatibility, we recommend that users
give priority to the white DIMMs (DDR3_2/DDR3_4 when installing
DIMMs.
2. We suggest users not mix memory type. It is recommended to use
the same brand and type memory on this motherboard.
* For reference only

14
InstallingtheMotherboard
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect them
to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can in-
crease the motherboard’s capabilities by adding hardware that performs tasks that are
not part of the basic system.
Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually
configure the card before installation.
This motherboard is equipped with two standard PCI slots. PCI
stands for Peripheral Component Interconnect and is a bus stan-
dard for expansion cards, which for the most part, is a supple-
ment of the older ISA bus standard. The PCI slots on this board
are PCI v2.2 compliant.
PCI1~2 Slots
Expansion Slots
The PCI Express x1 slot is fully compliant to the PCI Express
Base Specification revision 2.0.
PCIE Slot
PCIE16X Slot The PCI Express x16 slot is used to install external PCI Express
graphics cards that is fully compliant to the PCI Express Base
Specification revision 2.0.
PCIE16X_T Slot The PCI Express x16 slot with x4 bandwith is fully compliant
to the PCI Express Base Specification revision 2.0.

15
InstallingtheMotherboard
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
2. The onboard PCI interface does not support 64-bit SCSI cards.
1. For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.
* For reference only

16
InstallingtheMotherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
F_AUDIO:Front Panel Audioheader
This header allows the user to install auxiliary front-oriented microphone and line-
out ports for easier access.
1PORT 1L 2 AUD_GND
3PORT 1R 4PRESENCE#
5PORT 2R 6 SENSE1_RETURN
7SENSE_SEND 8KEY
Pin Signal Name Pin Signal Name
9PORT 2L 10 SENSE2_RETURN
SATA1/2: SerialATAconnectors
These connectors are used to support the Serial ATA devices for the highest data
transfer rates (6.0 Gb/s), simpler disk drive cabling and easier PC assembly. It doubles
the transfer rate of current SATA 3.0Gb/s interface.
1Ground 2TX+
3TX- 4Ground
5RX- 6RX+
7Ground --
Pin Signal Name
Pin Signal Name
