Topac HFZ05DV User manual

MODEL: HFZ05DV
BATTERY CHARGER
OPERATOR'S MANUAL
Please save these instructions. This manual contains important safety and operating
instructions. Read all instructions and follow them with each use of this product.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ……………...………………………………. 2
PERSONAL SAFETY PRECAUTIONS ……………...………………………………. 2
3.………………………………...……………LENAPLORTNOC
OPERATING INSTRUCTIONS ……………...………………………………. 4
TROUBLESHOOTING FAULT CODES ……………………...………………………. 9
MAINTANANCE INSTRUCTIONS ……………...………………………………. 8
8.………………………………...……………ATADLACINHCET
www.topacdc.com Amazon Store Facebook
1

IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS. This manual contains important safety and operating
instructions. You may need to refer to these instructions at a later date.
2. CAUTION. To reduce risk of injury, charge only wet cell, lead-acid, automotive type
rechargeable batteries. Other types of batteries may burst causing personal injury and
property damage.
3. Do not expose charger to rain or snow.
4. Use of an attachment not recommended or sold by the battery charger manufacturer may
result in a risk of fire, electric shock, or injury to persons.
5. To reduce risk of damage to electric plug and cord, pull plug rather than cord when
disconnecting charger.
6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
7. An extension cord should not be used unless absolutely necessary. Use of improper
extension cord could result in a risk of fire and electric shock. If an extension cord must be
used, make sure:
a. That pins on plug of extension cord are the same number, size, and shape as those of
plug on charger;
b. That extension cord is properly wired and in good electrical condition;
c. If the length of the extension cord is less than 15 meter, use a 0.75mm2cord, If 30 meter -
1mm2, 60 meter -1.5mm2.
8. Do not operate charger with damaged cord or plug, replace the cord or plug immediately.
9. Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualified serviceman.
10.Do not disassemble charger; take it to a qualified serviceman when service or repair is
required. Incorrect reassembly may result in a risk of electric shock or fire.
11.To reduce risk of electric shock, unplug charger from outlet before attempting any
maintenance or cleaning. Turning off controls will not reduce this risk.
12. WARNING - RISK OF EXPLOSIVE GASES
a. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES
GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS
REASON IT IS OF UTMOST IMPORTANCE TO READ THIS MANUAL AND FOLLOW THE
INSTRUCTIONS EXACTLY EACH TIME BEFORE USING CHARGER.
b. To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity of
battery. Review cautionary marking on these products and on engine.
PERSONAL SAFETY PRECAUTIONS
1. Someone should be within range of your voice or close enough to come to your aid when
you work near a lead-acid battery.
2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or
eyes.
3. Wear complete eye protection, and clothing protection. Avoid touching eyes while working
near battery.
4. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enter eyes, immediately flood eyes with running cold water for at least 10 minutes and get
medical attention immediately.
5. NEVER smoke or allow a spark or flame in vicinity of battery or engine.
6Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or
short circuit battery or other electrical part that may cause explosion.
7. Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery. A lead-acid battery can produce a short circuit current high
enough to weld a ring or the like to metal, causing a severe burn.
8. Use the charger for charging a LEAD-ACID battery only. It is not intended to supply power
to a low-voltage electrical system other than in a starter motor application. Do not use battery
charger for charging dry-cell batteries that are commonly used with home appliances. These
batteries may burst and cause injury to persons and damage to property.
9. NEVER charge a frozen battery.

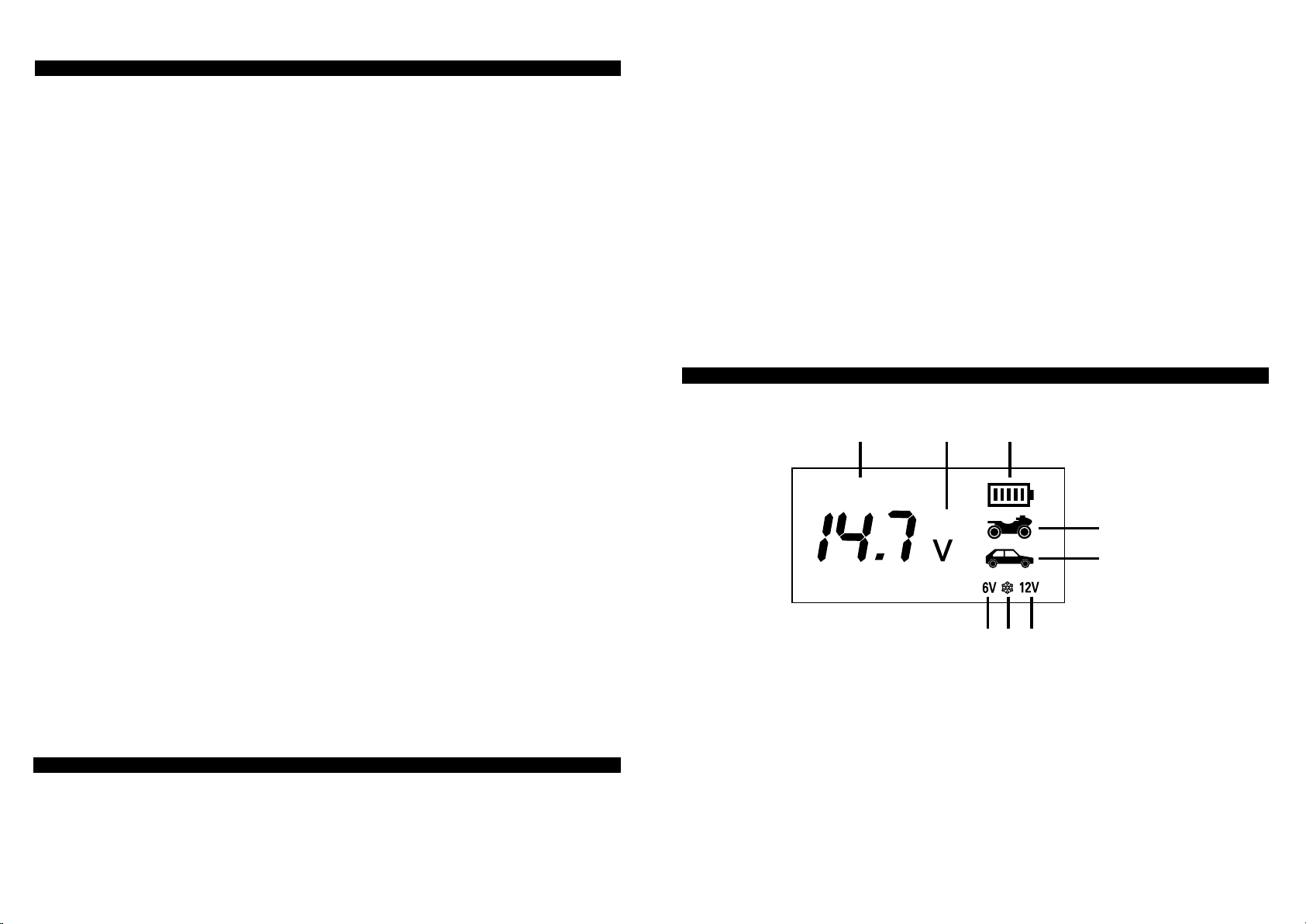

CONTROL PANEL
2 3
①
②
③④ ⑤
⑥
⑦
%
⑧
①The icon will indicate 2.5A Charge Rate, which is used for charging the small capacity
batteries used in motorcycle, ATV, snowmobile, personal watercraft, garden tractor and golf car.
②The icon will indicate 5A Charge Rate, which is used for faster charging of small-to-large
capacity automotive, marine, deep cycle and farm tractor batteries.
③The icon will appear when selecting the mode of charging in cold state, which means the
max charging voltage is 0.2V than usual.
④“6V” will appear when selecting the charge for the 6V batteries.
⑤“12V” will appear when selecting the charge for the 12V batteries.

OPERATING INSTRUCTIONS
PREPARING TO CHARGE
a. If necessary to remove battery from vehicle to charge, always remove the grounded
terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause
an arc.
b. Be sure area around battery is well ventilated while battery is being charged. Gas can be
forcefully blown away by using a piece of cardboard or other non-metallic material as a fan.
c. Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.
d. Add distilled water in each cell until battery acid reaches level specified by battery
manufacturer. This helps purge excessive gas from cells. Do not overfill. For a battery
without cell caps, carefully follow manufacturer's recharging instructions.
e. Study all the battery manufacturer's specific precautions such as removing or not
removing cell caps while charging and recommended rates of charge.
f. Determine voltage of battery by referring to car owner's manual and make sure that output
voltage is set at correct voltage. If charger has adjustable charge rate, charge battery initially
at lowest rate.
CHARGER LOCATION
a. Locate charger as far away from battery as output cables permit.
b. Never place charger directly above battery being charged; gases from battery will corrode
and damage charger.
c. Never allow battery acid to drip on charger when reading gravity or filling battery,
d. Do not operate charger in a closed-in area, or restrict ventilation in any way.
e. Do not set a battery on top of charger.
f. Locate the charger at least 18” above the floor.
g. Do not place the charger where rain, snow, or other moisture could drip on it.
DC CONNECTION PRECAUTIONS
a. Connect and disconnect DC output clamps only after setting any charger switches to off
position and removing AC cord from electric outlet. Never allow clamps to touch each other.
b. Attach clamps to battery posts and twist or rock back and forth several times to make a
good connection. This tends to keep the clamps from slipping off terminals and helps to
reduce risk of sparking.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK NEAR
BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR
BATTERY:
a. Position AC and DC cords to reduce risk of damage by hood, door, or moving engine part.
b. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
c. Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger
diameter than NEGATIVE (NEG, N, -) post.
d. Determine which post of battery is grounded (connected) to the chassis. If negative post is
grounded to chassis (as in most vehicles), see item "e". If positive post is grounded to the
chassis, see item "f".
e. For negative-grounded vehicle, connect POSITIVE (RED) clamp from battery charger to
POSITIVE (POS, P, +) ungrounded post of battery.
Connect NEGATIVE (BLACK) clamp to vehicle chassis or engine block away from battery.
Do not connect clamp to carburetor, fuel lines, or sheet metal body parts. Connect to a heavy
gage metal part of the frame or engine block.
f. For positive-grounded vehicle, connect NEGATIVE (BLACK) clamp from battery charger to
NEGATIVE (NEG, N, -) ungrounded post of battery. Connect POSITIVE (RED) clamp to
vehicle chassis or engine block away from battery. Do not connect clamp to carburetor, fuel
lines, or sheet-metal body parts. Connect to a heavy gage metal part of the frame or engine
block.
g. When disconnecting charger, disconnect AC cord, remove clamp from vehicle chassis,
and then remove clamp from battery terminal.
h. See operating instructions for length of charge information.
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE. A SPARK NEAR THE
BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR
BATTERY:
a. Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger
diameter than NEGATIVE (NEG, N, -) post.
b. Connect POSITIVE (RED) charger clamp to POSITIVE (POS, P, +) post of battery.
c. Position yourself and free end of cable as far away from battery as possible - then connect
NEGATIVE (BLACK) charger clamp to free end of cable.
d. Do not face battery when making final connection.
e. When disconnecting charger, always do so in reverse sequence of connecting procedure
and break the first connection while as far away from battery as practical.
f. A marine (boat) battery must be removed and charged on shore. To charge it on board
requires equipment specially designed for marine use.
AC POWER CORD CONNECTION INSTRUCTIONS
The plug must be plugged into an outlet that is properly installed in accordance with all local
codes and ordinances.
DANGER. Never alter AC cord or plug provided - if it will not fit outlet, have proper outlet
installed by a qualified electrician. Improper connection can result in a risk of an electric
shock.
LENGTH OF CHARGE
The following instruction will allow you to determine how long it will take to bring a specific
battery to full charge.
a. Test the battery for state of charger with
a hydrometer or electronic percent-of-charge tester.
4 5
⑥The icon will indicate the charging process.
⑦The numbers or characters will indicate the battery voltage or the error code.
⑧At first V will display on the screen indicating the detail voltage, and then change to %
display indicating the percentage of charging.
MODE SELECTION BUTTON
Press the Mode Selection Button to select one of the 6 charging modes.
Mode 1: 6V 2.5A (Icon ①+ ④will appear)
Mode 2: 6V 2.5A in the cold state (Icon ①+ ③+ ④will appear)
Mode 3: 12V 2.5A (Icon ①+ ⑤will appear)
Mode 4: 12V 2.5A in the cold state (Icon ①+ ③+ ⑤will appear)
Mode 5: 12V 5A (Icon ②+ ⑤will appear)
Mode 6: 12V 5A in the cold state (Icon ②+ ③+ ⑤will appear)

b. Determine the size of the battery in Amp-Hour or Reserve Capacity. If the ratings are not
printed on the battery, contact your local battery dealer for this information. These are the
only ratings that can be used to determine length to charging time.
c. Use the battery rating, the charge level of the battery, and amp setting to be used on the
charger in the formula provided below.
Amp Hour Rating of Battery × Percent of Charged Needed × 1.25 = Hours to Charge
Amp Setting Selected On Charger
NOTE: The length of charge times are approximate and varies from the battery to
battery. Always follow the battery manufacturer’s specific charging instructions.
CHARGING
NOTE: Before using the charger, please review all safety and connection directions.
Failure to do so can damage battery and cause serious injury or death.
AUTOMATIC CHARGE STAGE
6 7
•Connect the charger to battery per the operating instructions.
•Connect the charger to AC outlet.
•Select the appropriate charging mode for your batteries.
•If the charger does not detect a properly connected battery, the Reverse Polarity Indicator
LED will light or the Error Code will appear on LCD display until such a battery is detected.
Charging will not begin while the Reverse Polarity Indicator LED is on or the error code
appears. When the charging begins, the charging process Icon on LCD display will appear.
•When charging is completed, unplug the charger from the AC outlet first and then disconnect
the batteries with charger.
Automatic Micro Process Control Unit Charge:
Stage 1 - Diagnosis: Analyze if the battery can accept a charge or not, and then prevent
charging from proceeding on the a defective battery;
Stage2- Desulphation: The charger can rescue most drained batteries with voltages up to a
Min 1.5±0.5V
Stage 3 - Pre-charge: If the battery voltage is less than 12V, charge it at the smaller
current,which will protect the battery better;
Stage 4 - Soft start: Charge the battery to the maximum current gradually and never sudden-
ly.
Stage 5 - CC1/CC2/CC3 (Constant Current): The charger automatically adjusts the current
according to the battery status in constant current, which benefits the battery for a long life;
Stage 6- CV (Constant Voltage): The battery is charged to nearly full, and will top off at 14.6V
DC;
Stage 7 - Resting: The charger will cut off with full charged statement, and achieves the high
energy efficiency;
Stage 8-Recond: When it is fully charged and low to 12.8V within 2min, the charger will judge
automatically.
Stage 9 - Restoring: The charger monitors a fully charged battery automatically. If the battery
falls below 12.8V DC, the charger will restart from stage 4 to stage 7.
ADDITIONAL FEATURES
a. REVERSE POLARITY PROTECTION
The REVERSE POLARITY INDICATOR LED will light and the power will not be sent to
output cables if a reverse connection is detected.
b. SHORT CIRCUIT PROTECTION
This protection is triggered if the charger detects less than 0.5V across the clamps, and no
power will be sent to output cables. Refer to Error Code of “Er1” in the section of TROUBLE-
SHOOTING ERROR CODES.
c. OVER-VOLTAGE PROTECTION
When the charger is set to charge in a different voltage than the detected voltage of the
battery, this protection will be engaged. Refer to Error Code of “Er1” in the section of TROU-
BLESHOOTING ERROR CODES.
d. BATTERY DIAGNOTICS FUNCTION
The charger continuously monitors battery condition and may report certain charging failures
as fault codes. Refer to Error Code of “Er1” and “Er2” in the section of TROUBLESHOOTING
ERROR CODES. Conditions that cause the errors include: if the battery voltage does not rise
appropriately during the charging process (indicating a shorted cell) or if the maximum
charge time has been exceeded, etc.
e. BATTERY RECONDITIONING FUNCTION
If a battery is discharged deeply, it could become sulphated and unable to accept a charge.
Reconditioning Function may help reverse the effects of sulphation and restore a batteries
ability to accept a charge. If the charger detects a sulphated battery, it will automatically
activate Battery Reconditioning Function. If successful, normal recharging will resume after
the battery is desulphated. If unsuccessful at desulphating the battery, refer to Error Code of
“Er2” in the section of TROUBLESHOOTING ERROR CODES.
Automatic Battery Charger features 9-stage, high-efficiency charging technology, built-in
Micro process control IC that ensures fast, safe and complete charging of serviceable batteries.
High Frequency (Switch Mode) Smart Charging Stages

TROUBLESHOOTING ERROR CODES
Condition Possible Causecode Solution
Er1
Er2
Er3
MAINTENANCE INSTRUCTIONS
This charger requires minimal maintenance. As with any appliance or tool, a few common
sense rules will prolong the life of the battery charger.
ALWAYS BE SURE THE CHARGER IS UNPLUGGED BEFORE PERFORMING ANY
MAINTENANCE OR CLEANING.
1. Store in a clean, dry place
2. Coil up the cords when not in use.
3. Clean the case and cords with a slightly damp cloth.
4. Clean any corrosion from the clamps with a solution of water and baking soda.
5. Examine the cords periodically for cracking or other damage and have them replaced if
necessary.
6. WARNING: All other service should be done by qualified personnel only.
TECHNICAL DAT
A
f. OVERHEAT PROTECTION
The charger is designed to decrease the charging current and even shut itself off if overheat-
ing is detected. Once the charger cools down, it will resume charging automatically. Refer to
Error Code of “Er3” in the section of TROUBLESHOOTING ERROR CODES.
g. MODE-SETTING MEMORY FUNCTION
The microprocessor inside the charger has mode-setting memory function, which means the
charger can remember the mode the users set last time, and if the same mode this time just
press mode button to start charging. This function can erase the users’ worry about forgetting
the setting for their owner batteries and shorten the setting time for the users’ convenience.
The housing of the charger is water resistant (IP 65). The first digit ”6" means protection of
humans against the access to dangerous parts by means of a wire – dust-proof protection.
The second digit ”5" means the protection against the stream of water (12,5 l/min) poured on
the housing from any direction. IP 65 apply to housing only, not clamps and AC power lead.
8 9
The battery voltage is
less than 0.5V before
charging.
The charge does not
begin.
The battery voltage is
0.5V - 1.5V before
charging.
The battery voltage is
less than 11V after 4
minutes of charging.
The battery is not full
charged after 24-hour
charge.
The battery voltage is
less than 12V in 2
minutes after full
charged.
The temperature of the
charger is too high.
The battery is defective.
The battery clamps are
disconnected with the
battery.
The battery clamps are
connected each other.
Connect the battery firmly
and correctly.
Confirm that battery
voltage is matched with
the mode.
Replace the battery.
Replace the battery.
Disconnect the load and
attempt to charge again.
Select a higher charge
rate.
Replace the battery.
Ensure adequate
ventilation. The charger
will resume charging after
cooling.
The battery is defective.
The battery is defective.
A load may be connected
to the battery.
The charge current is too
low.
The battery is sulphated
beyond reconditioning.
High ambient tempera-
ture.
Replace the battery.
Model HFZ05DV
Input 120VAC 60Hz
Output 6VDC 2.5Amp
12VDC 2.5/5Amp
The battery voltage is
not matched with the
selected mode.
