Topdon BTMOBILE lite User manual

12V Wireless Battery and System Tester
USER MANUAL
BTMOBILE lite

EN
3
English
Welcome
Thank you for purchasing the TOPDON BT MOBILE lite wireless battery tester.
Please read and understand this manual carefully before using this product.
If any issues arise from the operation of this product, welcome to contact
[email protected] for ofcial technical support.
About
BT MOBILE lite is a 12V wireless battery and system tester, adopting the
most advanced conductance detection technology and reverse polarity
protection technology to provide key information about battery health for
technicians, professionals, so as to identify battery and charging problems
quickly, easily and accurately.
Package List
1.BT MOBILE lite Wireless Battery Tester 2.User Manual

EN
4 5
Compatibility
Please be noted that battery type and CCA values (Cold Cranking Amp)
marked on the battery label. Please refer to it before using BT MOBILE lite.
1.Regular Flooded
2.AGM Flat plate
3.AGM Spiral
4.GEL
5.EFB
*Note: If your vehicle battery is not the battery mentioned above and you
are not sure about which type it is, please choose AGM to conduct test, and
the error is within 10%.

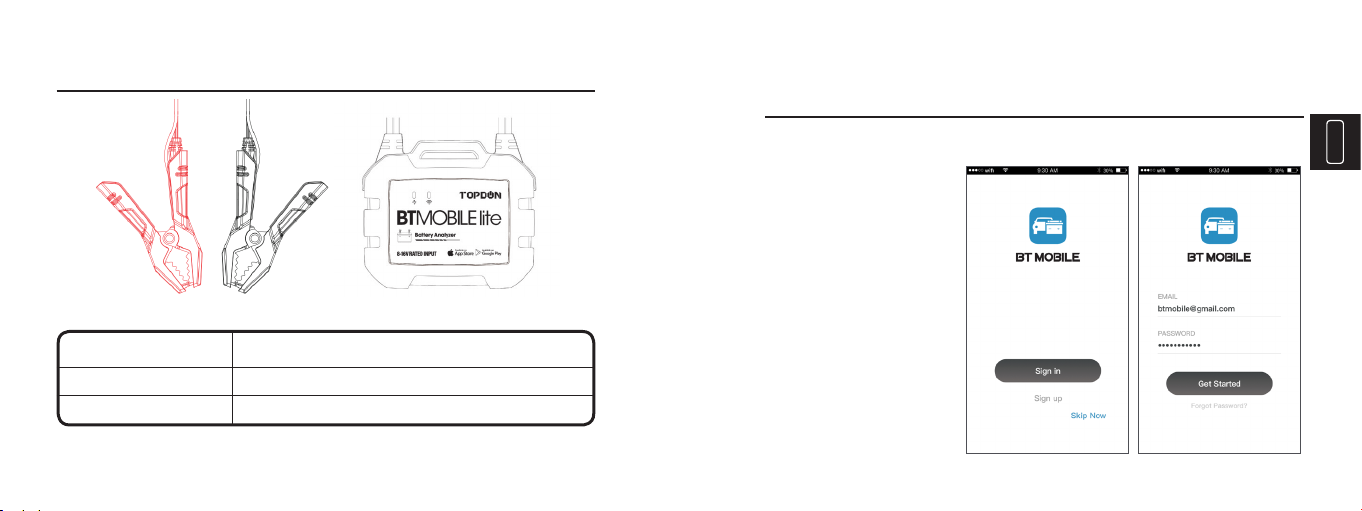

Features
Successful Bluetooth Connection
Good Battery ConnectionSolid Green
Solid Blue
LED Indicator
Indicator Display
Battery Status

EN
6 7
APP Installation & Setup
Installation:
Download and install the App: “BT MOBILE” in Apple Store or Google Play.
*Note: For Apple devices, update to iOS 8.0 or later; Android devices, OS 4.3
or later.
For the rst time, you can
choose to register with
email or skip login.
Setup:
Drop-down Menu Function:

EN
8 9
Operation Introduction
Before Test:
Before you test a battery in a vehicle, turn off the ignition, all accessories,
and loads. Close all of the vehicle’s doors and trunk lid.
Make sure the battery terminals are clean. Use a wire brush to clean
them, if necessary.
Connect the RED (+) Positive Battery Clamp to the (+) positive battery
terminal, and connect the BLACK (-) Negative Battery Clamp to the (-)
negative battery terminal. Ensure that the clamps are securely attached
to the correct terminals.
Open the Bluetooth on the mobile phone.
Test Introduction
• BATTERY TEST: Display SOH (State of Health), SOC (State of Charge),
Voltage, Current, Rating, and the readable analysis results on App;
• CRANKING TEST: Analyze the actual cranking voltage and the cranking
time to help you quickly gure out the whole state of the starting system;
1.
5.
2.
3.
4.
1.Battery Test (for 12V battery)
Open the APP on your mobile device and log in.
Click the flashing Bluetooth logo in the upper right corner of the home
screen, to enter the connection interface, and search for the matching
device name.
*Note: This tester works best if the battery connectors have been removed
and the battery posts have been cleaned. Any corrosion between the tester
clamps and the battery connectors, or between the battery connectors and
the battery posts, will degrade the tester’s efciency.
1)
2)
• CHARGING TEST: Test different parts of the charging system, including
generator, rectier, rectier diode, and so on for a reliable charging
volt value.
If the Bluetooth connection is successful,
the Bluetooth logo will stop flashing.
Click the matching device name to
connect.
3)
4)

EN
10 11

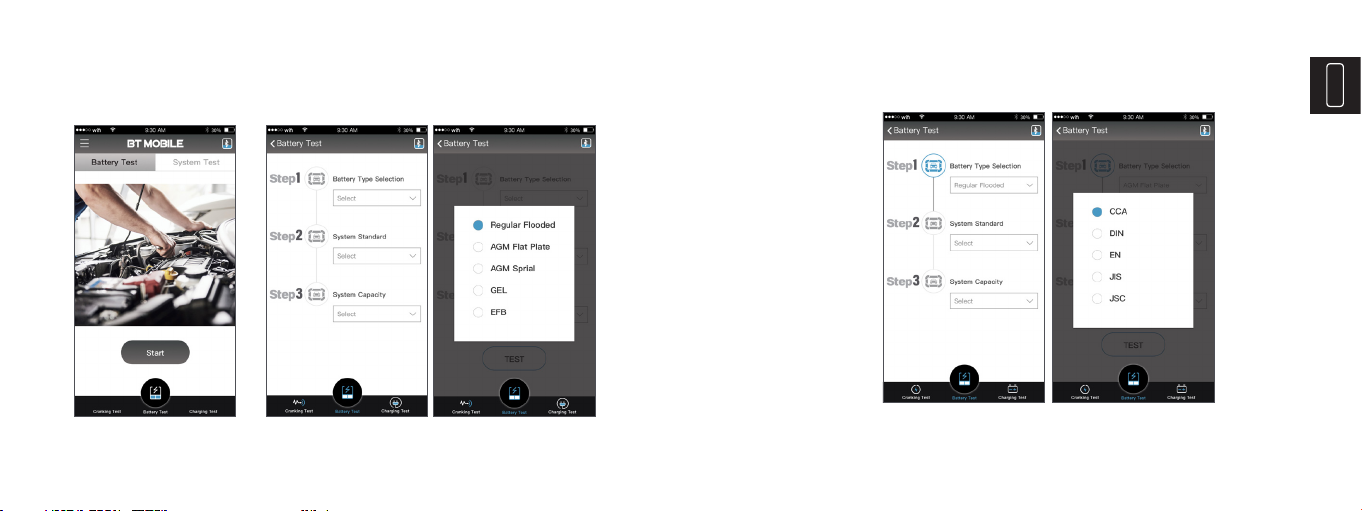

Click “Battery Test”
on the home screen
and click “Start”
5) Select the battery standard marked on the battery label, and click “OK” to
conrm.
7)Select the battery type and click
“OK” to conrm.
6)
*Note: If the battery is JIS standard, please refer to the table for value
and select CCA (SAE) as the test standard (please Google JIS to CCA).

EN
12 13

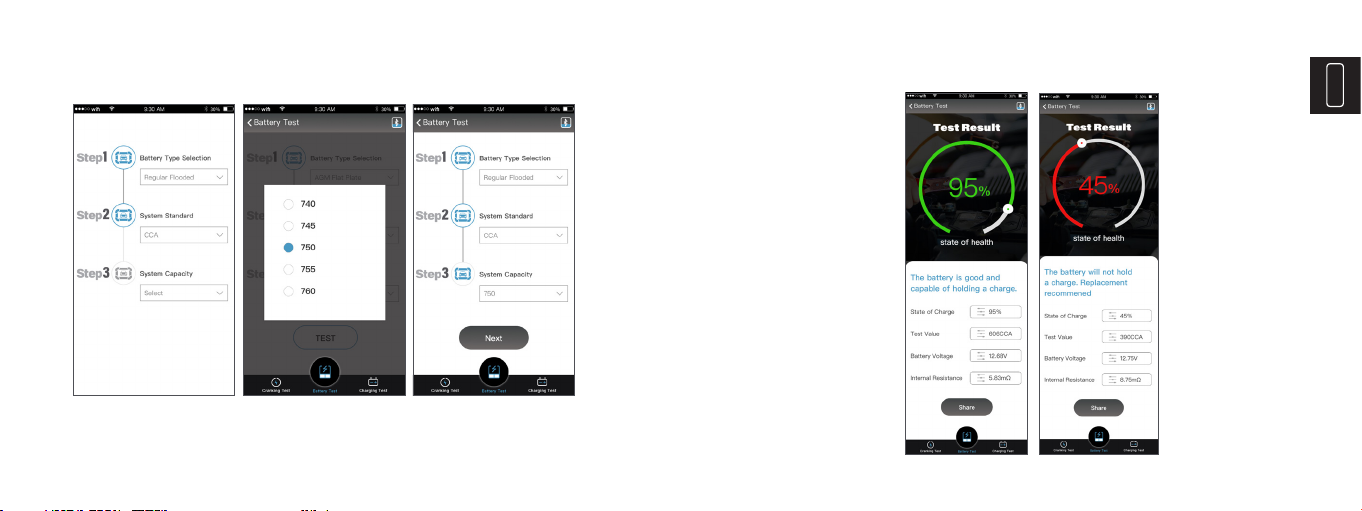

Select battery capacity value marked on the battery label and
click “OK” to conrm.
Click “Next” and wait a few seconds for results.
Drop down to share the results.8)
9)
10)

EN
14 15

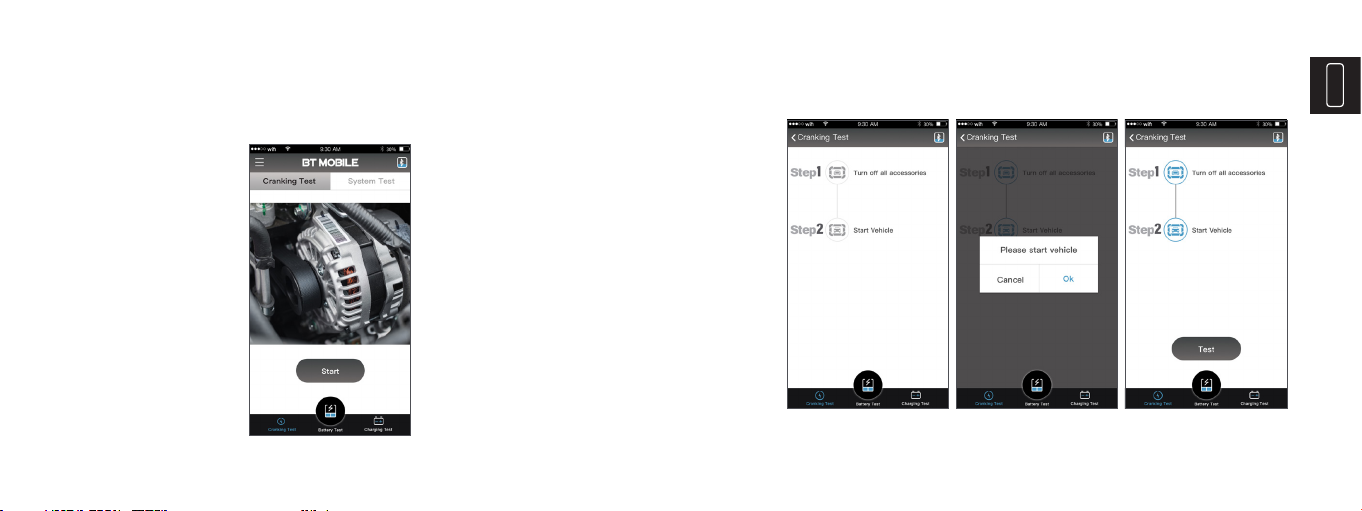

2. Cranking Test
Click “Cranking Test” on the home screen, and then click “Start”.
The engine and all other accessory loads must be OFF during the test.
1)
Follow the steps and start the vehicle.2)
Click “Test” to get the results.3)

EN
16 17
Drop down to share the results.4) 3. Charging Test
Click “Charging Test” on the home screen, then click “Start”.
The engine must be ON during the test.
1)

EN
18 19

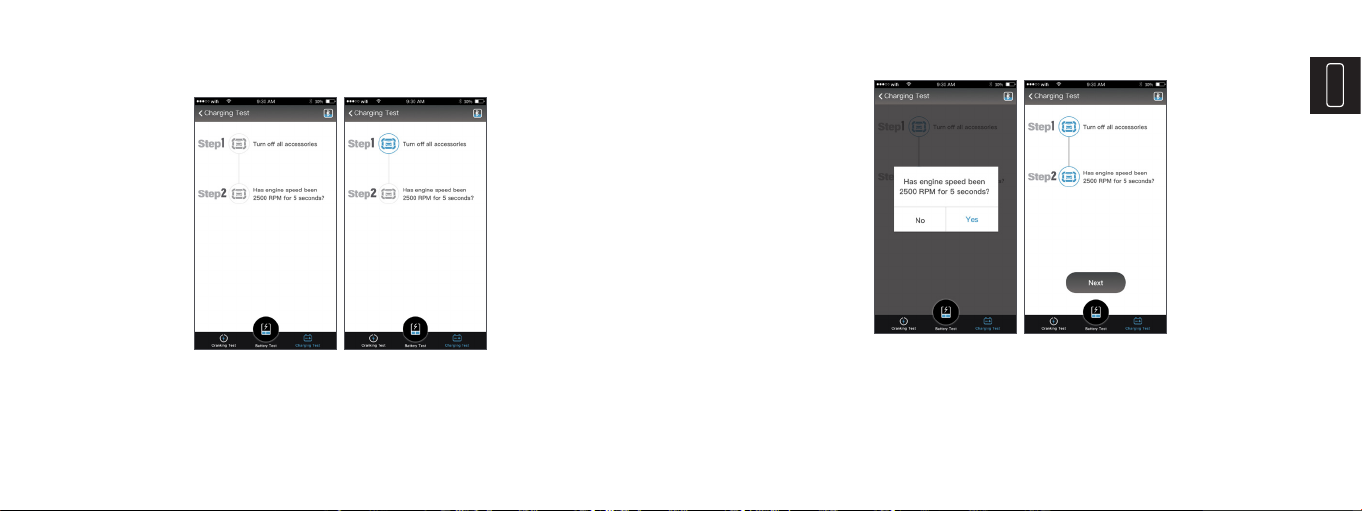

Follow the steps and start the vehicle.
Step on the accelerator, increase the number of RPM to 2500, keep it
for 5 seconds.
2)
3)

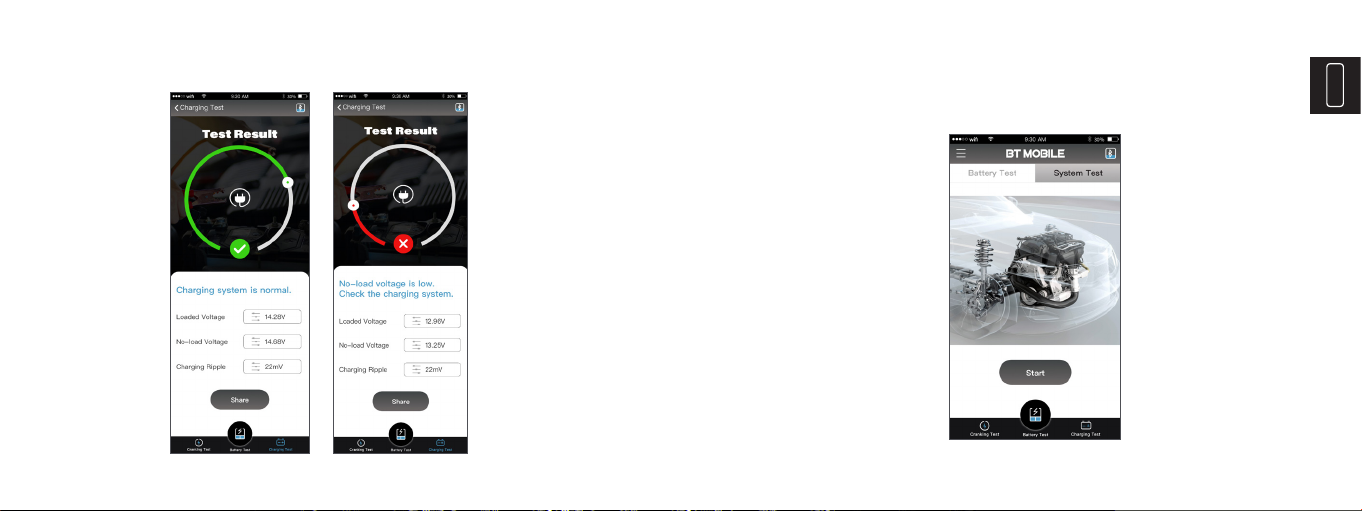

Click “Next” to get the results.4)

EN
20 21
4. System Test (Overall Test for Battery)
Select “System Test” in the upper right corner, or swipe the home
screen left to the system test options.
1)
Drop-down to share the results.
5)

EN
22 23
Click “System Test” to access to each test result report.3)
Drop down to share test results.4)
Click “Start” to enter System Test operation interface and complete all
tests (refer to Battery Test, Cranking Test, Charging Test for details).
Click the right arrow to access to each test result report.
2)

EN
24 25
Warnings
Warranty
TOPDON Two Years Limited Warranty
The TOPDON Company warrants to its original purchaser that TOPDON
products will be free from defects in material and workmanship for 24
months from the date of purchase (Warranty Period). For the defects
reported during the Warranty Period, TOPDON will, according to the
technical support analysis and conrmation, either repair or replace the
defective part or product.
This limited warranty is void under the following conditions:
DO NOT place the tester near the engine or exhaust pipe to avoid
damage from high temperatures.
DO NOT smoke, cause sparks, or strike matches near the battery
when testing.
DO NOT remove battery clamps while testing.
DO NOT put the tester into a highly humid or dusty environment.
DO NOT disassemble the tester.
Notice:All information in this manual is based on the latest information
available at the time of publication and no warranty can be made for its
accuracy or completeness. TOPDON reserves the right to make changes at
any time without notice.
Technical Specication
Working Temperature: -20°C~65°C (-4°F~140°F)
Storage Temperature: -20°C~70°C (-4°F~158°F)
Dimensions: 81*68*27 mm (3.19*2.68*1.06 inches)
Weight: 250 g (8.81 oz)
Misused, disassembled, altered, or repaired by a non-TOPDON technical
repair specialist.
Careless handling and violation of operation.

EN
26 27
FAQCautions
Use this tester in accordance with these instructions, taking into
account the working conditions and the work to be performed.
Hazardous results could occur if the tool is used for purposes not
intended.
Before testing, make sure the battery terminals are clean. Grease and
dust could result in inaccurate test results.
Wear eye protection when working around batteries.
Check the insulation layer of the battery clamps is in good condition (no
damage, bareness, or disconnection) to avoid electric shock.
Test in a well-ventilated area. Vehicle exhaust contains toxic carbon
monoxide.
Keep hair, hands, and clothing as well as tester leads and cords away
from moving blades and belts.
Keep the tester out of the reach of children.
Q: Is BT MOBILE lite able to test vehicle alternator?
A: It can test the alternator.
Q: Is BT MOBILE lite able to test motorcycle batteries?
A: It can test the 12V battery, between 100 and 2000 CCA. If the motorcycle
battery is within these values, then yes.
Q: How to set the CCA range?
A: You can set the data near to the CCA standard number of your battery.
Q: Is BT MOBILE lite able to test 12V deep cycle batteries?
A: Yes.
Q: Will BT MOBILE lite work with marine batteries?
A: Yes, it can work with marine batteries.

28
Español
Q: What do SOH, SOC, and BAT mean?
A: The SOH refers to the “State of Health”. The SOC is the “State of Charge”
and the BAT is the “Resistance Value” of the battery.
Q: Will this accurately load test ATV batteries?
A: Yes, it can accurately load test ATV batteries.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.Any changes
or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

30 31
ES
Bienvenido
Gracias por comprar el Téster de batería inalámbrico TOPDON BT MOBILE
lite.Por favor lea y comprenda este manual cuidadosamente antes de usar
este producto.
Acerca del producto
BT MOBILE lite es un téster inalámbrico de batería y sistema de 6V / 12V,
que adopta la tecnología más avanzada de detección de conducción y de
protección de polaridad inversa para proporcionar información clave sobre
el estado de la batería para técnicos, profesionales, para identicar de
manera rápida, fácil y precisa problemas de batería y carga.
Lista del paquete
1.BT MOBILE lite Téster de batería inalámbrico 2.Manual de usuario
Compatibilidad
Please be noted that battery type and CCA values (Cold Cranking Amp)
Tenga en cuenta que el tipo de batería y los valores de CCA (Amperes de
arranque en frío) están marcados en la etiqueta de la batería. Por favor,
referirse a ello antes de usar BT MOBILE lite.
1. Regular con electrolito líquido
2. Placa plana AGM
3. Espiral AGM
4. GEL
5. EFB
NOTA: Si la batería de su vehículo no es la batería mencionada
anteriormente y usted no está seguro de qué tipo es, por favor elija AGM
para realizar la prueba, y el rango de error está dentro del 10%.

32 33
ES
Características
Conexión Bluetooth exitosa
Buena conexión de batería
Verde solido
Azul estable
Indicador LED
Mostrar indicador
Estado de la batería
INSTALACIÓN Y CONFIGURACIÓN DE LA
APLICACIÓN
Instalación:
Descargue e instale la aplicación: "BT MOBILE" en Apple Store o Google Play.
NOTA: Para dispositivos
Apple, actualice a iOS 8.0
o posterior; Dispositivos
Android, OS 4.3 o posterior.
Por primera vez,
usted puede optar por
registrarse con correo
electrónico u omitir inicio
de sesión.
Configurar:

34 35
ES
Desplegar función de menú:Introducción a la operación
Antes de la prueba:
Antes de probar una batería en un vehículo, apague el encendido, todos
los accesorios y cargas. Cierre todas las puertas y la tapa del maletero
del vehículo.
Asegúrese de que los terminales de la batería estén limpios. Use un
cepillo de alambre para limpiarlos, si es necesario.
NOTA: Este téster funciona mejor si se quitan los conectores de la
batería y si se han limpiado los bornes de la batería. Cualquier corrosión
entre las abrazaderas del téster y los conectores de la batería, o entre
los conectores de la batería y los bornes de la batería, degradará la
eciencia del téster.
Conecte la abrazadera ROJA (+) de batería positiva al terminal de batería
positivo (+) y conecte la abrazadera NEGRA (-) de batería negativa al
terminal de batería negativa (-). Asegúrese de que las abrazaderas estén
unidas de forma segura a los terminales correctos.
Abra el Bluetooth en el teléfono móvil.
1.
2.
3.
4.

36 37
ES
Introducción de prueba
• PRUEBA DE BATERÍA: Muestra SOH (estado de salud), SOC (estado
de carga), voltaje, corriente, clasicación y los resultados de análisis
legibles en la aplicación;
• PRUEBA DE ARRANQUE: Analiza el actual voltaje de arranque y el
tiempo de arranque para ayudarlo a descubrir rápidamente todo el
estado del sistema de arranque;
• PRUEBA DE CARGA: Prueba diferentes partes del sistema de carga,
incluidos el generador, el recticador, el diodo recticador, etc. para
obtener un valor de voltaje de carga conable.
5.
1. Prueba de batería (para batería de 12V)
Abra la aplicación en su dispositivo móvil e inicie sesión.
Haga clic en el logotipo de Bluetooth que parpadea en la esquina superior
derecha de la pantalla de inicio para ingresar a la interfaz de conexión
y buscar el nombre del dispositivo correspondiente (si la conexión de
Bluetooth es exitosa, el logotipo de Bluetooth deja de parpadear).
1)
2)
Haga clic en "Prueba de
batería" en la pantalla de
inicio y haga clic en "Iniciar".
4)
Haga clic en el nombre del dispositivo
correspondiente para conectarse.
3)
Seleccione el tipo de batería y haga clic
en "Aceptar" para conrmar.
5)
