Hantek DPO6000 Series User manual

DPO6000, MPO6000 Series
Digital Fluorescent Oscilloscope
Product Manual
V 1.3

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
Copyright Statement
Copyright
Qingdao Hantek Electronic Co., Ltd.
Statement
Qingdao Hantek Electronic Co., Ltd. reserves the right to amend this document without
prior notice. Qingdao Hantek Electronic Co., Ltd. promises that the information provid-
ed is correct and reliable, but does not guarantee that this document is infallible. Please
make sure that the specifications of relevant technical documents used are the latest
and valid version yourself before using this product. If you require the cooperation of
products, patents or works of a third party when your company using the documents or
products of Qingdao Hantek Electronic Co., Ltd., your company shall be responsible for
obtaining the consent and authorization of the third party. The aforesaid consent and
authorization is not the responsibility of our company to guarantee.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
Technical Support
If you have any question or ambiguity in the process of using products of Qingdao
Hantek Electronic Co., Ltd., you can get the service and support through the following
ways:
A: Please contact the local dealer of Qingdao Hantek Electronic Co., Ltd.;
B: Please contact the local office directly under Qingdao Hantek Electronic Co., Ltd;
C: Please contact the headquarters of Qingdao Hantek Electronic Co., Ltd.
Contact Method of our company:
Qingdao Hantek Electronic Co., Ltd.
http://www.hantek.com/en/index.html
Address: 35# Building No.780 Baoyuan Road, High-tech District, Qingdao China
Zip Code: 266114
Telephone: [phone]
Fax: [phone]
Email: [email protected]om
Technical Support:
Telephone: [phone]
Email: [email protected]

1
Summary of general safety matters
General Safety Summary
Read the following safety precautions carefully to avoid injury and prevent damage to
this product or any product connected to this product. To avoid possible danger, be sure
to use this product as specified.
Avoid fire and personal injury.
Only professionally authorized personnel should perform repairs.
Use the correct power cord.
Use only the power cord specified for this product in your country.
Connect and disconnect properly.
Before connecting the probe to the circuit under test, please connect the probe to the
oscilloscope; before disconnecting the probe from the oscilloscope, disconnect the
probe from the circuit under test.
Ground the product.
To avoid electric shock, the product is grounded through the grounding conductor of the
power cord. The grounding conductor must be connected to ground. Before connecting
the input or output of the product, be sure to ground the product properly.
Connect the probe properly.
If using a probe, the probe ground must be connected to the ground. Do not connect
the probe ground lead to high voltage, otherwise, dangerous voltage may be generated
on the oscilloscope and probe connector, control equipment or other surfaces, which
may cause injury to the operator.
View all terminal ratings.
To avoid fire or the impact of excessive current, check all ratings and markings on the
product. Please consult the product manual for details on ratings before connecting the
product.
Use proper overvoltage protection.
Make sure that no over voltages (such as those caused by lightning) reach the product.
Otherwise, the operator may be exposed to electric shock.
Do not open the cover.
Do not operate the product with the cover or panel open.
Maintain proper ventilation.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
2
Poor ventilation will increase the temperature of the instrument and cause damage to
the instrument. Good ventilation should be maintained during use, and the vents and
fans should be checked regularly.
Use a suitable fuse.
Only use fuses specified for this product.
Avoid exposed circuits.
Do not touch exposed connectors and components after power is turned on.
Do not operate the product if you suspect it is malfunctioning.
If the user suspects that this product has been damaged, have it inspected by qualified
service personnel.
Do not operate in a humid environment.
To avoid the danger of short circuit or electric shock inside the instrument, do not oper-
ate the instrument in a humid environment.
Do not operate in a flammable or explosive environment.
To avoid damage to the instrument or personal injury, do not operate the instrument in a
flammable or explosive environment.
Keep the surface of the product clean and dry.
To prevent dust or moisture in the air from affecting the performance of the instrument,
keep the product surface clean and dry.
Anti-static protection.
Static electricity can cause damage to the instrument. Test in an anti-static area when-
ever possible. Before connecting the cable to the instrument, ground its inner and outer
conductors briefly to discharge static electricity.
Pay attention to handling safety.
In order to avoid the instrument falling down during transportation, which may cause
damage to the buttons, knobs, or interfaces on the instrument panel, please pay atten-
tion to transportation safety.
Safety terms and symbols
Product terminology. The following terms may appear on the product:
DANGER
It indicates that if you do this, you may cause immediate damage to the user.
WARNING

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
3
It indicates that the user may not immediately harm the user if they do this.
CAUTION
It indicates that the user may cause damage to this product or other property if this
operation is performed.

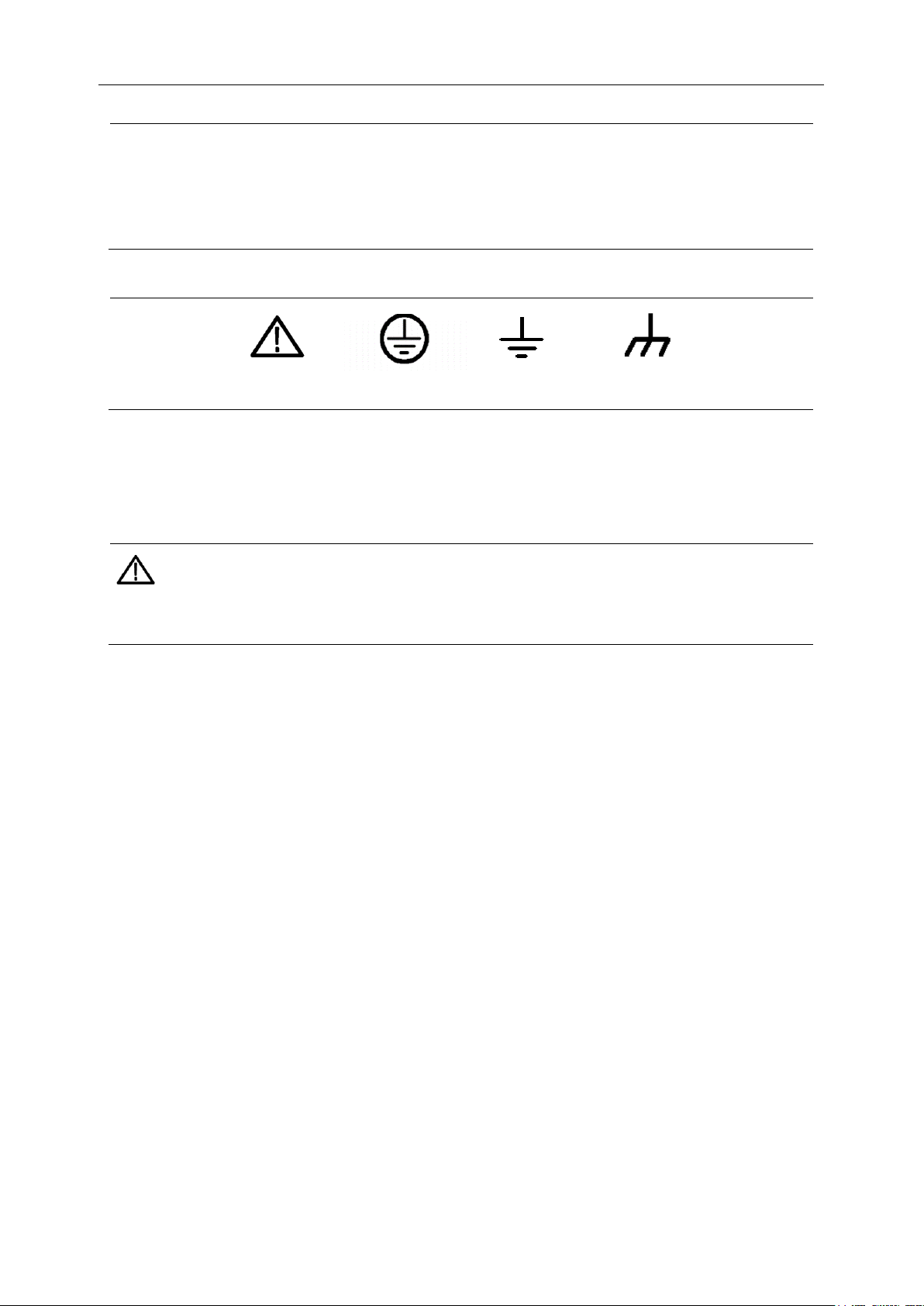

Product symbol. The following symbols may appear on the product:
Safety Warning Protective Test Ground Shell Earth Terminal
Measurement category
Measurement category DPO6000 / MPO6000 series digital oscilloscopes can perform
measurement under measurement category I.
WARNING
This oscilloscope is only allowed to be used in the specified measurement
category.
Measurement category definition
Measurement category I
Refers to measurements on circuits that are not directly connected to the mains. For
example, make measurements on circuits that are not derived from a main power
source, especially those that are protected (internal). In the latter case, the transient
stress changes. Therefore, users should understand the instantaneous ability of the
device.
Measurement category II
Refers to measurements made on circuits directly connected to low-voltage equipment.
For example, make measurements on home appliances, portable tools, and similar de-
vices.
Measurement category III
Refers to measurements in construction equipment. For example, power distribution
boards, circuit breakers, wiring (including cables, bus bars, junction boxes, switches,
sockets) in fixed equipment, and equipment for industrial use and certain other equip-
ment (for example, fixed motors permanently connected to fixed equipment) Take
measurements.
Measurement category IV

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
4
Refers to measurement at the source of the low-voltage equipment. Examples are elec-
tricity meters, measurements on major overcurrent protection devices, and measure-
ments on pulse control units.
Ventilation requirements
The oscilloscope is forcedly cooled by a fan. Ensure that the intake and exhaust areas
are free of obstructions and free-flowing air. To ensure adequate ventilation, when using
the oscilloscope in a workbench or rack, ensure that there is a gap of at least 10 cm on
its sides, above, and behind.
WARNING
Poor ventilation will increase the temperature of the instrument and cause
damage to the instrument. Good ventilation should be maintained during use. Reg-
ularly check the vents and fans.
Working environment
Temperature
During operation: 0℃ to +50℃
Non-operating: -40℃ to +70℃
Humidity
0℃ to +30℃: 95% relative humidity
+30℃ to +40℃: 75% relative humidity +40℃ to +50℃: 45% relative humidity
WARNING
To avoid the danger of short circuit or electric shock inside the instrument,
do not operate the instrument in a humid environment.
Altitude
When operating: below 3000 meters
Non-operating: below 15000 meters
Daily maintenance and cleaning
Daily maintenance
When storing or placing the oscilloscope, do not expose the LCD monitor to direct sun-
light for a long time.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
5
Clean
According to the requirements of operating conditions, check the oscilloscope and
probe frequently. Please clean the outer surface of the instrument according to the fol-
lowing steps:
Use a lint-free cloth to remove dust from the outside of the oscilloscope and probe. Be
careful not to scratch the smooth display filter.
Clean the oscilloscope with a soft cloth dampened with water. For more thorough
cleaning, use 75% isopropyl alcohol in water.
CAUTION
To avoid damaging the surface of the oscilloscope or probe, do not use any
corrosive or chemical cleaning agents.
Equipment recycling
Production of this equipment requires the extraction and use of natural resources. If
this product is not disposed of properly, some of the substances contained in the device
may be harmful to the environment or human health. To avoid release of harmful sub-
stances into the environment and reduce the use of natural resources, it is recom-
mended that this product be recycled by appropriate methods to ensure that most ma-
terials can be reused correctly.
Introduction to DPO6000 / MPO6000 Series
Digital Phosphor Oscilloscope
DPO6000 / MPO6000 series oscilloscopes have extremely high memory depth, ultra-
wide dynamic range, good display effect, and high waveform capture rate and up to 16
trigger functions, 5 serial decoding functions, which are communication, aerospace, na-
tional defense, embedded Instrumentation in many industries and fields such as em-
bedded systems, computers, research and education.
Main feature:
★The real-time sampling rate of the analog channel is 1GSa/s, the standard configura-
tion is 64Mpts, and the maximum memory depth is 128Mpts (6000EDU series).
★Digital channel real-time sampling rate 1GSa/s
CAUTION
To avoid damaging the oscilloscope or probe, do not place it in mist, liquid
or solvent.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
6
★200MHz, 100MHz and 80MHz analog channel bandwidths are available
★4 analog channels, 16 (4*4) digital channels (MPO6000 series; DPO6000 series can
be upgraded to use digital channels by purchasing LP104 digital probe)
★Two / three-channel signal source (MPO6000EDU is three channels) Built-in 13 kinds
of waveforms, 4 groups of arbitrary waveforms, 200MSa/s sampling rate, 8Kpts wave-
form length
★60,000 wfms/s (point display) / 400,000 wfms/s (point display fast acquisition mode)
waveform capture rate
★Segmented acquisition function, supports up to 80,000 segments
★256-level grayscale display
★Ultra-low noise floor, ultra-wide vertical dynamic range from 500uV/div to 10V/div
★7-inch WVGA (800*480) TFT widescreen, vivid colors, low power consumption, and
long life
★7-inch capacitive touch screen, support multi-touch
★Adjustable waveform brightness and display brightness
★Up to 16 trigger functions, including 5 protocol triggers
★Provide 5 kinds of serial decoding options
★42 kinds of waveform parameter automatic measurement (statistic function optional)
★5-digit digital voltmeter and 6-digit hardware frequency meter function
★Bode plot function (optional signal source function)
★Event search function
★Dual window display function
★Built-in FFT function
★Multiple waveform mathematical operation function
★Standard ports: USB Device, USB Host, LAN
★WIFI (6000EDU series)
★Optional interface: HDMI, UART, AUX
★Pass/fail, trigger output (standard for MPO6000EDU, optional for non-MPO6000EDU)
★Meets LXI CORE 2011 DEVICE-type instrument standards, enabling rapid, economi-
cal, and efficient creation and reconstruction and reconfiguration of test systems
★Support remote command control

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
7
★Embedded help for easy access to information
★New and exquisite industrial design, convenient operation

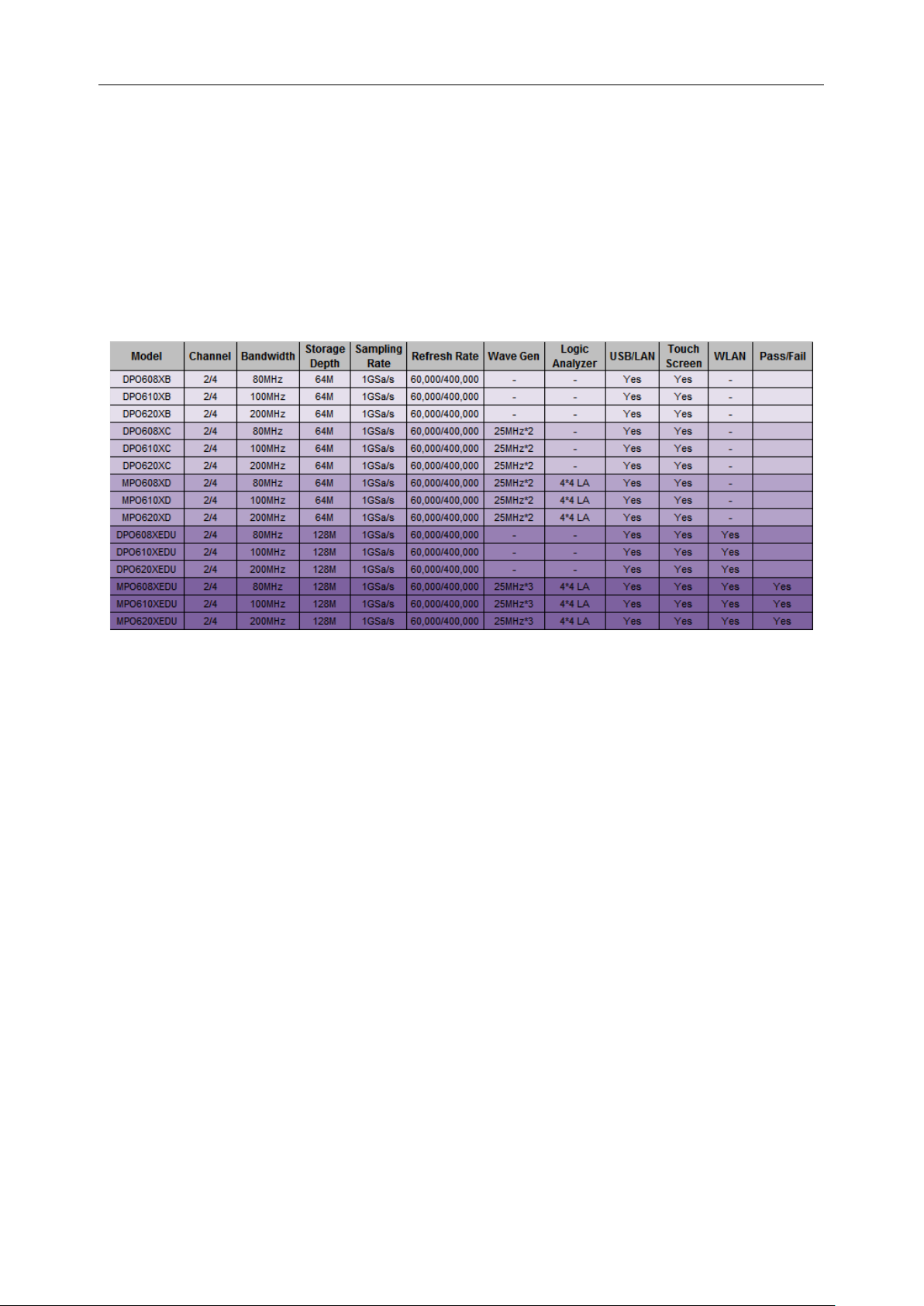

Product model list
The MPO6000 / DPO6000 series includes the following models. Unless otherwise
specified, this manual uses the MPO6204EDU as an example to explain the functions
and operation methods of the oscilloscope.
Quick Start
This chapter describes the precautions when using the oscilloscope for the first time,
the front and rear panels of the oscilloscope, the user interface, and how to use the
built-in help system.
General inspection
Checking the shipping packaging
If you find that the packaging carton or foam protective pad is seriously damaged,
please keep it until the whole machine and accessories pass the electrical and me-
chanical tests.
Check the whole machine
If you find that the appearance of the instrument is damaged, that the instrument is not
working properly, or that it fails the performance test, please contact the dealer respon-
sible for this business.
Check random accessories
If you find that the accessory is missing or damaged, please contact the dealer respon-
sible for the business. Details of the attachments provided are described in "Appendix A:

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
8
Attachments" at the end of this note.
Physical dimension
318 mm
150 mm
Front view
140 mm
Top view
Ready to use the instrument
Adjusting the bracket
Properly adjust the stand so that it is upright, tilt the oscilloscope upward, and place the
oscilloscope stably, so as to better operate and observe the display screen.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
9
Adjust the support feet
Connect the power cord as required
The specifications of the AC power source that this oscilloscope can input are: 100-
120Vac, 50/60/400Hz; 100-240Vac, 50/60Hz; 50W max.
Connect the oscilloscope to an AC power source using the power cord provided in the
accessory (shown below).
Power
jack
Connect the power supply
Startup check
When the oscilloscope is powered on, press the power switch in the lower left corner of
the front panel to start the oscilloscope. During startup, the oscilloscope performs a se-
ries of self-tests. During the self-test, the keyboard indicators light up according to a
certain sequence of rules. After the self-test ends, the startup screen appears.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
10
Probe inspection
Safety

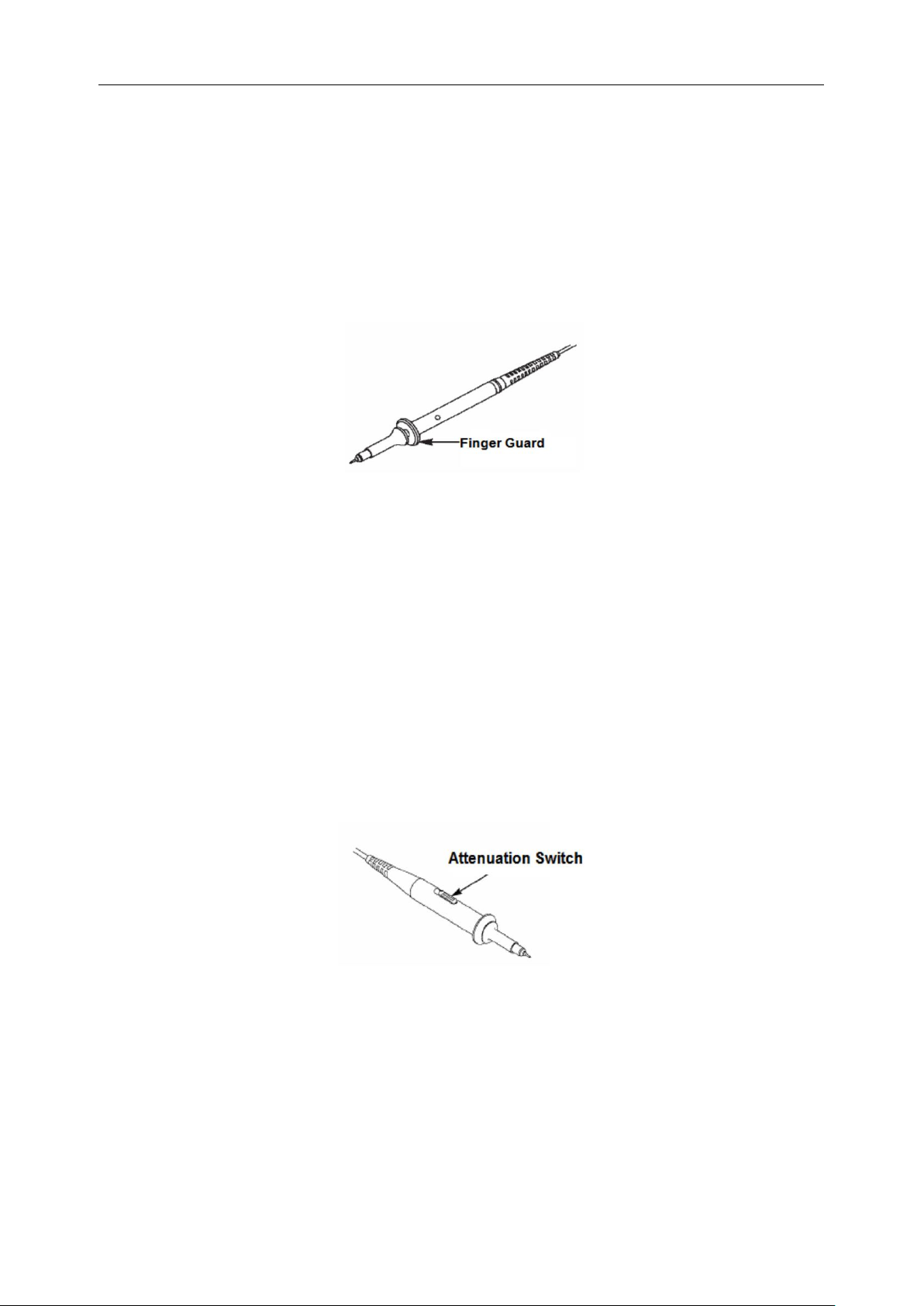

When using the probe, to avoid electric shock, keep your fingers behind the safety ring
on the probe body. Do not touch the metal part on the top of the probe when the probe
is connected to a high voltage power supply. Before making any measurements, con-
nect the probe to the oscilloscope and ground the ground terminal.
Probe attenuation setting
Probes have different attenuation coefficients, which affect the vertical scale of the sig-
nal. The "Probe Check" function verifies that the probe attenuation options match the
probe attenuation.
Press the "Vertical Menu" button (such as the [CH1] menu button) to select a probe op-
tion that matches the probe attenuation coefficient.
Make sure the "Attenuation" switch on the probe matches the "Probe" option in the os-
cilloscope, and set the switches to X1, X10.
When the Attenuation switch is set to X1, the probe limits the oscilloscope's bandwidth
to 6MHz. When the "Attenuation" switch is set to X10, the oscilloscope has full band-
width.
Connect the probe
DPO6000 series oscilloscopes are equipped with passive probes as standard, and
MPO6000 series are equipped with passive and digital probes as standard.
Connect the passive probe:
1. Connect the BNC end of the probe to the analog channel input on the front panel of
the oscilloscope.

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
11
2. Connect the probe ground alligator clip or ground spring to the circuit ground termi-
nal, and then connect the probe to the circuit under test.
Connect the logic probe:
1. Connect one end of the digital probe to the digital channel input interface on the front
panel of the oscilloscope (the digital probe has no direction).
2. Connect the other end of the digital probe to the signal under test. The MPO6000 se-
ries comes standard with four LP104 digital probes.
Check the probe voltage
Each time you connect a probe to an input channel, you should perform a probe check.
Use the "Vertical Menu" button; for example, press the CH1 menu button to set the
probe attenuation coefficient.
Manual probe compensation
When connecting the probe to any input channel for the first time, make this adjustment
to match the probe to the input channel. Uncompensated or compensated probes can
cause measurement errors or errors. To adjust the probe compensation, follow these
steps:
1. Set the probe option attenuation to 10X in the Channel Menu. Set the switch on the
probe to 10X and connect the probe to channel 1 of the oscilloscope. If using the probe
hook end, make sure that the hook end is firmly seated on the probe. Connect the
probe tip to the probe element: ~ 2V @ 1K Hz connector, and connect the reference
wire to the "probe element ground" connector, then press the "Auto Scale" button.

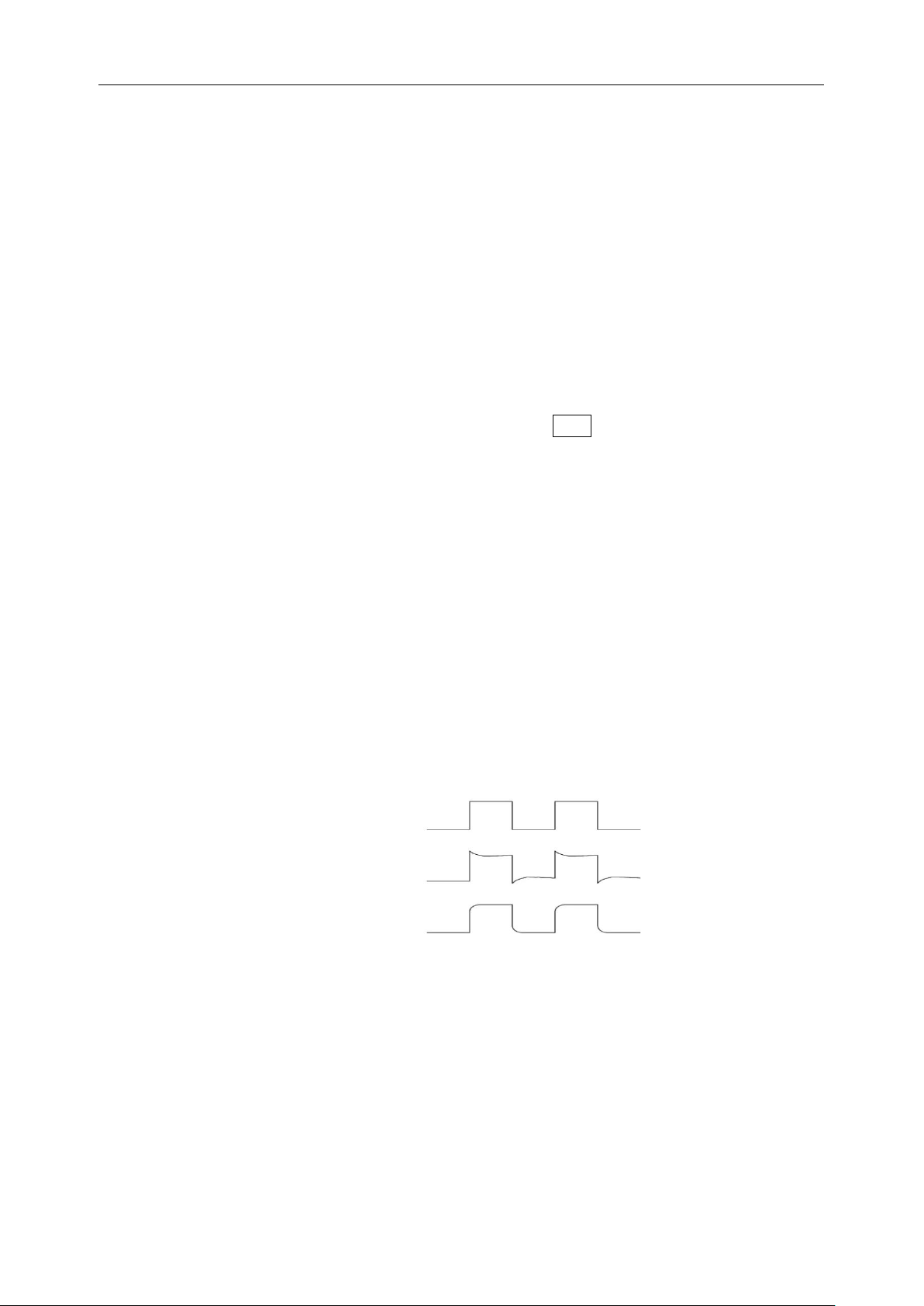

2. Check the shape of the displayed waveform
3. If necessary, use a non-metallic screwdriver to adjust the variable capacitance on the
probe until the waveform shown on the screen is "compensated correctly" as shown
above. Repeat this step if necessary. The adjustment method is shown in the figure be-
low.
Compensated correctly
Overcompensated
Undercompensated

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
12
Front panel overview
The following content briefly describes and introduces the front panel part of the 6000
series oscilloscope, so that users can become familiar with the 6000 series digital oscil-
loscope in the shortest time.
12 3 4 5 6 789
10
11
13 12 16 1415
SN
Description
SN
Description
1
LCD
9
Vertical control system
2
Menu show/hide keys
10
Signal source 2 output channel
3
Signal source button (signal source series)
11
CH1～CH4 signal input channel
4
Multifunction knob
12
Signal source 1 output channel
5
Menu function buttons
13
LA1 ～LA4 signal input channels
(MPO6000 series)
6
Level control system
14
Probe compensation signal out-
put/ground
7
Trigger control system
15
USB Host port
8
Shortcuts (Run/Stop, Single, Auto Scale)
16
Power On Key

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
13
Rear panel overview
12
34
5
67
1. Handle
Pull the handle vertically to carry the oscilloscope conveniently. When not needed, just
press down on the handle.
2. AC power jack
AC power input. Please use the power cord provided to connect the oscilloscope to AC
power, and press the power button on the front panel to turn it on.
3. AUX port trigger output and pass / fail [optional]
Trigger output:
When the oscilloscope generates a trigger, a pulse can be output through this interface.
This pulse is the signal of the oscilloscope's current capture rate. Connect this signal to
the waveform display device and measure the frequency of the signal. The measure-
ment result is the same as the current capture rate.
Pass / Fail:
In the pass / fail test, when the oscilloscope detects a failure, it will output a pulse
through this connector. When no failure is detected, it will continuously output a low
level through this connector.
4. Signal source 3 source output [MPO6000EDU Series]
Signal source 3 output is only for the 3-channel signal source built into the oscilloscope.
When the oscilloscope signal source 3 is turned on, the signal source port outputs sig-
nals according to the current settings.
5. USB Device
This interface allows you to connect the oscilloscope to a computer or a printer. When

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
14
connected to a computer, users can send SCPI commands or custom programming to
control the oscilloscope through the host computer software. When the printer is con-
nected, the user prints the waveform displayed on the screen through the printer.
6. LAN / UART
LAN
Connect the oscilloscope to the network through this interface to remotely control it.
This oscilloscope complies with the LXI CORE 2011 DEVICE class instrument standard
and can quickly build a test system.
UART [optional]
This interface connects the oscilloscope to a control system for remote control.
7. HDMI interface [optional]
You can connect the oscilloscope to a monitor with an HDMI display through this inter-
face to get a larger display.
Front panel functions
Introduction of the main keys
Level control system
Horizontal offset:
Modify the horizontal displacement. When the knob is turned, the
trigger point moves left and right relative to the center of the
screen. During the modification, the waveforms of all channels
move left and right, and the horizontal displacement information in
the upper right corner of the screen changes in real time.
Press this knob to quickly reset the horizontal displacement.
Horizontal time base:
Modify the horizontal time base. Turn clockwise to decrease the
time base and turn counterclockwise to increase the time base.
During the modification, the waveforms of all channels are ex-
panded or compressed, and the time base information at the top
of the screen changes in real time.
Press this knob to quickly switch between single and double win-
dow display modes.
Vertical control system

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
15
Signal source
WaveGen:
Press this key to enter the setting interface of the signal source. Set
the waveform and parameters of the output signal from the signal
source.
Note: This function is only applicable to digital oscilloscopes with signal source chan-
nels.
Trigger control
Analog input channel switch. Press any button to open the corre-
sponding channel menu, and press again to close the channel.
Math:
Press the "Math" button to open the Math setup menu, and press
again to close the Math function.
Vertical offset:
Modify the vertical shift of the current channel waveform. Turn
clockwise to increase displacement, turn counterclockwise to de-
crease displacement. During the modification, the waveform will
move up and down, and the displacement information displayed
at the top right of the screen will change in real time.
Press this knob to quickly zero the vertical displacement.
Vertical voltage:
Modify the vertical scale of the current channel. Turn clockwise to
decrease gears and turn counterclockwise to increase gears.
During the modification, the waveform display amplitude will in-
crease or decrease, and the gear information at the bottom left of
the screen will change in real time.
Press this knob to quickly switch the vertical scale adjustment
mode to "Coarse" or "Fine".

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
16

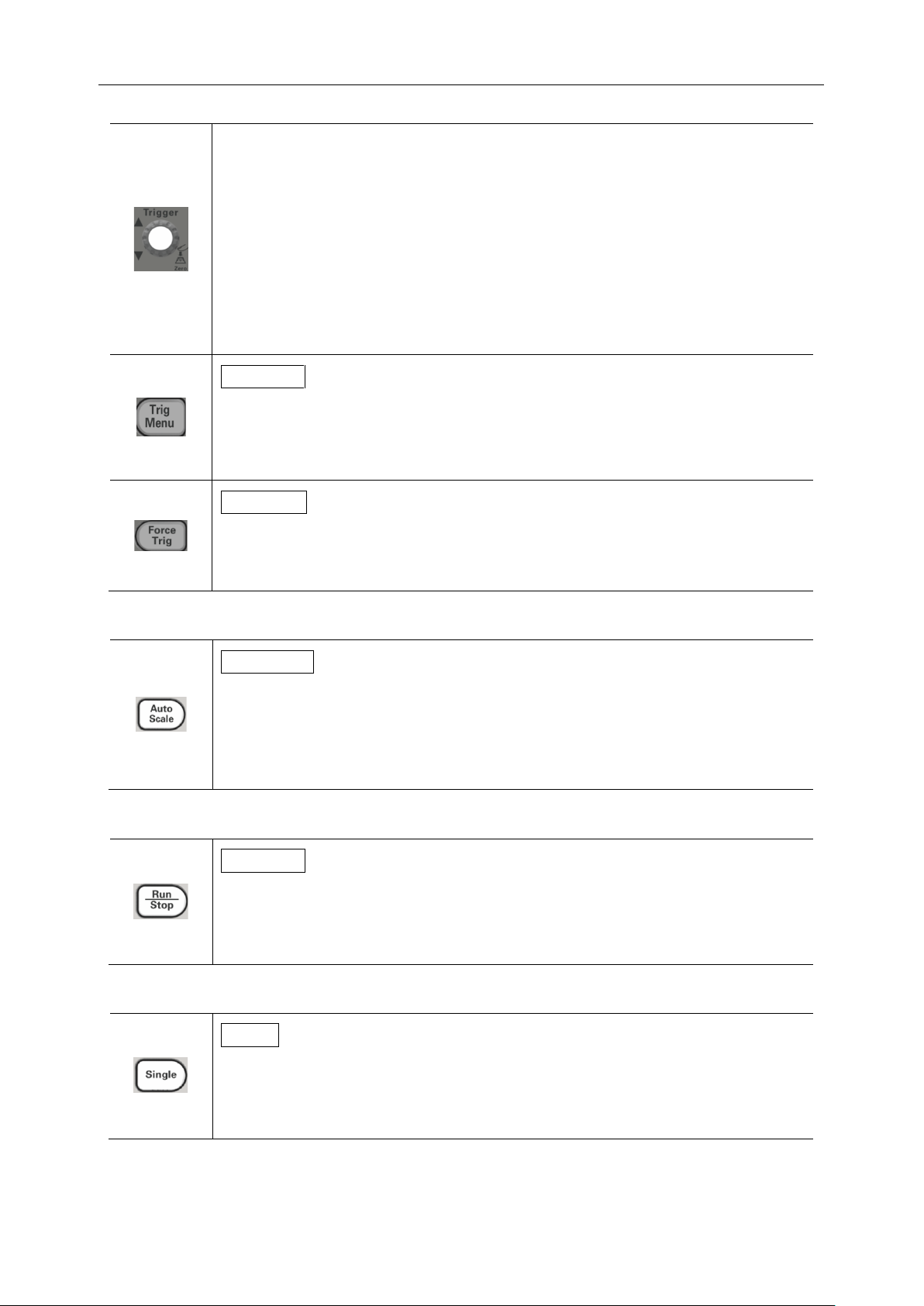

Trigger level:
Modify the trigger level. Turn clockwise to increase the level, and turn
counterclockwise to decrease the level. During the modification, the
trigger level line moves up and down, and at the same time, the value
in the trigger level message box at the top right of the screen changes
in real time.
Press this knob to quickly restore the trigger level to the zero point of
the trigger data source.
TrigMenu:
Press this key to open the trigger operation menu. This oscilloscope
provides a variety of trigger types, please refer to the detailed introduc-
tion in "Trigger System".
ForceTrig:
A short press of this key will force a trigger signal.
Press and hold this key to open the history waveform.
Automatic waveform display
AutoScale:
Press this key to enable the automatic waveform setting function. The
oscilloscope will automatically adjust the vertical scale, horizontal time
base, and trigger mode according to the input signal to achieve the
best waveform display.
Operational control
Run/Stop:
Press this key to "run" or "stop" waveform sampling. In the Run state,
the green backlight of the key is on; in the Stop state, the red backlight
of the key is on.
Single trigger
Single:
Press this key to set the trigger mode of the oscilloscope to “Single”. In
single trigger mode, press the “Force Trig” key to immediately gener-
ate a trigger signal.
Multifunction knob

DPO6000, MPO6000 Series Digital Fluorescent Oscilloscope Product Manual V1.3
17
V0：
The multi-function knob can perform various settings, such as adjust-
ing the waveform brightness, trigger time, selecting the trigger type,
selecting the trigger source, the signal source waveform, frequency,
offset, amplitude, etc .; the multi-function indicator does not light up
when the menu is not operated. The operation is that the multi-function
indicator is on. Turn the knob to adjust the settings listed above. Turn
clockwise to increase and counterclockwise to decrease. Press the
knob to select this option.
Function menu
Default:
Press the key briefly to execute the corresponding default setting.
Long press this key to enter the Default function preset, you can
choose factory settings, default settings, user settings.
Help:
Press this key to open and close the built-in help system.
Utility:
Press this key to enter the system function setting menu. Set sys-
tem related functions or parameters, such as interface, sound,
language, etc. In addition, some advanced features are support-
ed, such as pass / fail tests.
Cursor:
Press this key to enter the cursor measurement menu. The oscil-
loscope provides two cursor modes: manual and tracking.
Measure:
Press this key to enter the measurement setting menu. You can
set the measurement data source, turn the digital multimeter on
or off, all measurements, and statistics functions. Press “All
Measurements” to open the measurement of 42 waveform pa-
rameters, and the measurement results will appear at the bottom
of the screen.
Save/Recall:
Press this key shortly to enter the file storage and recall interface.
The types of files that can be stored include: setup, waveform,
reference, CSV. Supports internal and external storage and disk
management.
