Topeak PANOCOMP X User manual

User’s Guide
PANOCOMP X WIRELESS
Speed
Current Speed
Average Speed
Max Speed
Distance
Trip Distance
Odometer
Time
Ride Time
Total Time
12/24 hr Clock
Timer
Cadence
Current Cadence
Average Cadence
Max Cadence
Heart Rate
Current Heart Rate
Average Heart Rate
Max Heart Rate
Heart Rate Max Limit Alarm
Other
Customize Display
Temperature
Grade
Altitude (Barometer)
Calories
Training
Remote Display
Backlight
Incoming Call Alert

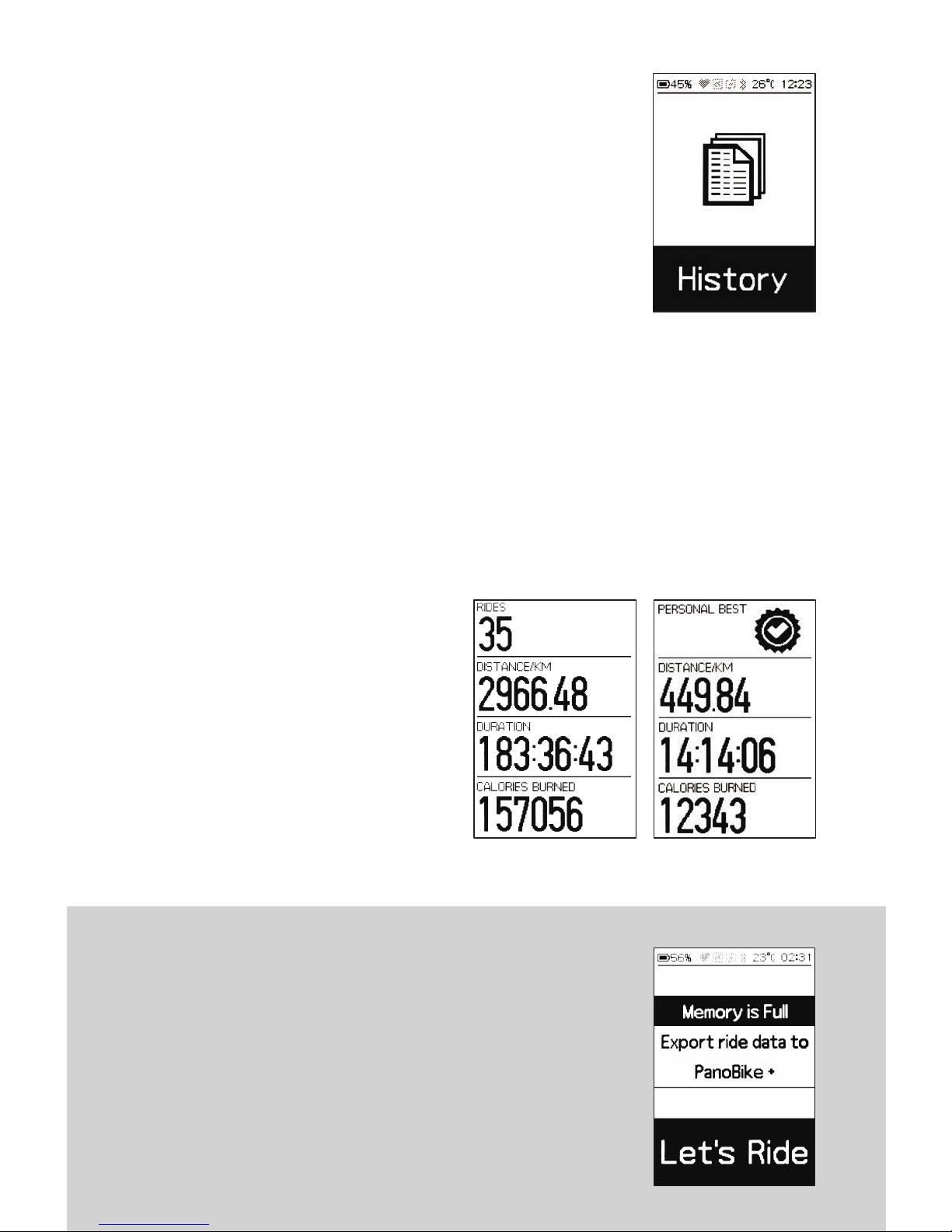

Export ride data to Strava
Auto Pause
Battery Indicator
EN

1
2
3
4

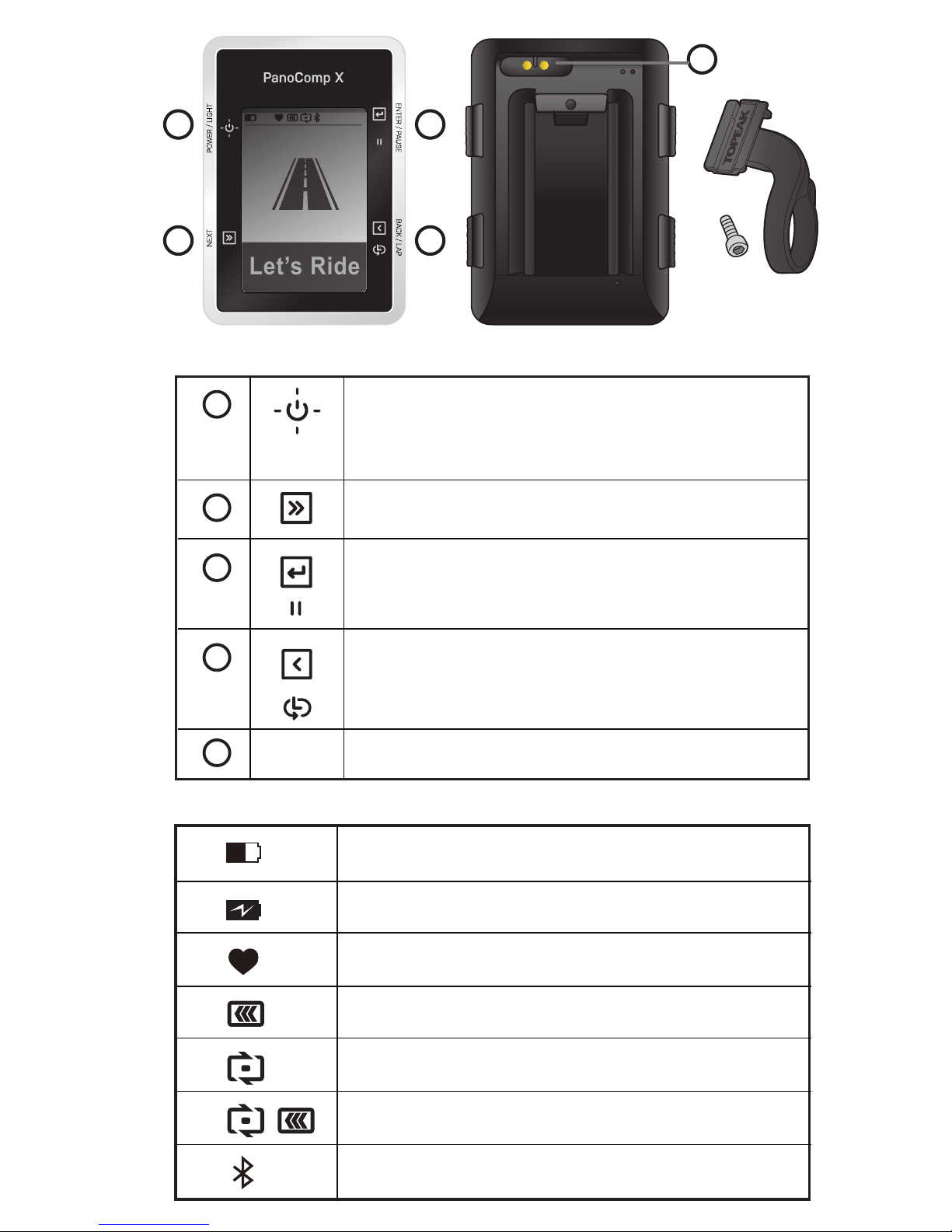

KEYS
1
2
3
4
5
Press to turn the computer on.
Press and hold for 2 sec to turn off.
Press to switch on/off the backlight.
Return to the previous page.
Select to mark a new lap.
MagUSB Charge Port.
Select to view the setup menu.
Select to enter and confirm.
Press to pause riding.
Let’s Ride
67% 33°c 21:30
Home Screen Overview Icons show battery level and connectivity.
Power indicator.
Charging
Heart Rate sensor connected.
Speed sensor connected.
Cadence sensor connected.
Speed/cadence sensor connected.
Smartphone connected.
67%
5
PanoComp X Mount
(Fits ø 31.8 mm
handlebars only).

1. Start PanoComp X
Setting in PanoBike+ app or in PanoComp X,
see section 3.3 on how to pair PanoBike+ app to PanoComp X.
1.1 Settings from PanoBike+ app :
• Debut screen > Select language >
transfer profile from PanoBike+ app. >
Select system : iOS or Android
• Turn on Bluetooth mode on your smartphone.
• Turn on PanoBike+ app, tap the "Sensors" ( ) icon,
tap the "+" symbol to start the pairing process.

• Smartphone:
(iOS device) Enter pairing code displayed on PanoComp X
into smartphone.
(Android device) Enable location function before pairing
PanoComp X with PanoBike+ app.
•After pairing is complete, PanoComp X will return to the
Let's Ride screen.
NOTE
If PanoBike+ app pairing
is skipped at PanoComp X
start screen, after profile
setup, proceed to:
Settings > Bluetooth >
Select system : iOS or
Android
1.2 Settings in PanoComp X :
For additional information, see section 3.6 "System Settings”
for more information.
• Debut screen > Select language > profile setup.
• Click Profile Setup:
Key sequence for operations below
NEXT to cycle selection. ENTER to confirm selection.
1. Set Year:
Repeat sequence to set and confirm remaining year information.
2. Set Month/Day:
Repeat sequence to set and confirm correct date.
3. Set Clock Mode:
Cycle between 12hr and 24hr mode, then confirm clock mode.
4. Set Time:
Repeat sequence to set and confirm correct time.
5. Set Gender
(iOS device)

2. Start Ride
• Press POWER to turn on PanoComp X.
• Select the riding mode.
6. Set Birth Year:
Repeat sequence to set and confirm remaining year information.
7. Set Measurement Units:
Cycle between Metric and Imperial, confirm selection.
8. Set Height:
Repeat sequence to complete height setting.
9. Weight :
Repeat sequence to complete weight information.

2.2 Pause
• If Auto Pause is set to off, press PAUSE when you want to
suspend recording your ride. This is helpful at stoplights, rest
stops or when you
need to maintain your bike during a ride.
• Ride recording is automatically paused if motion is not detected
when Auto Pause is set to on.
Press ENTER to resume recording your ride or press NEXT to cycle
between selections and press ENTER to confirm your selection.

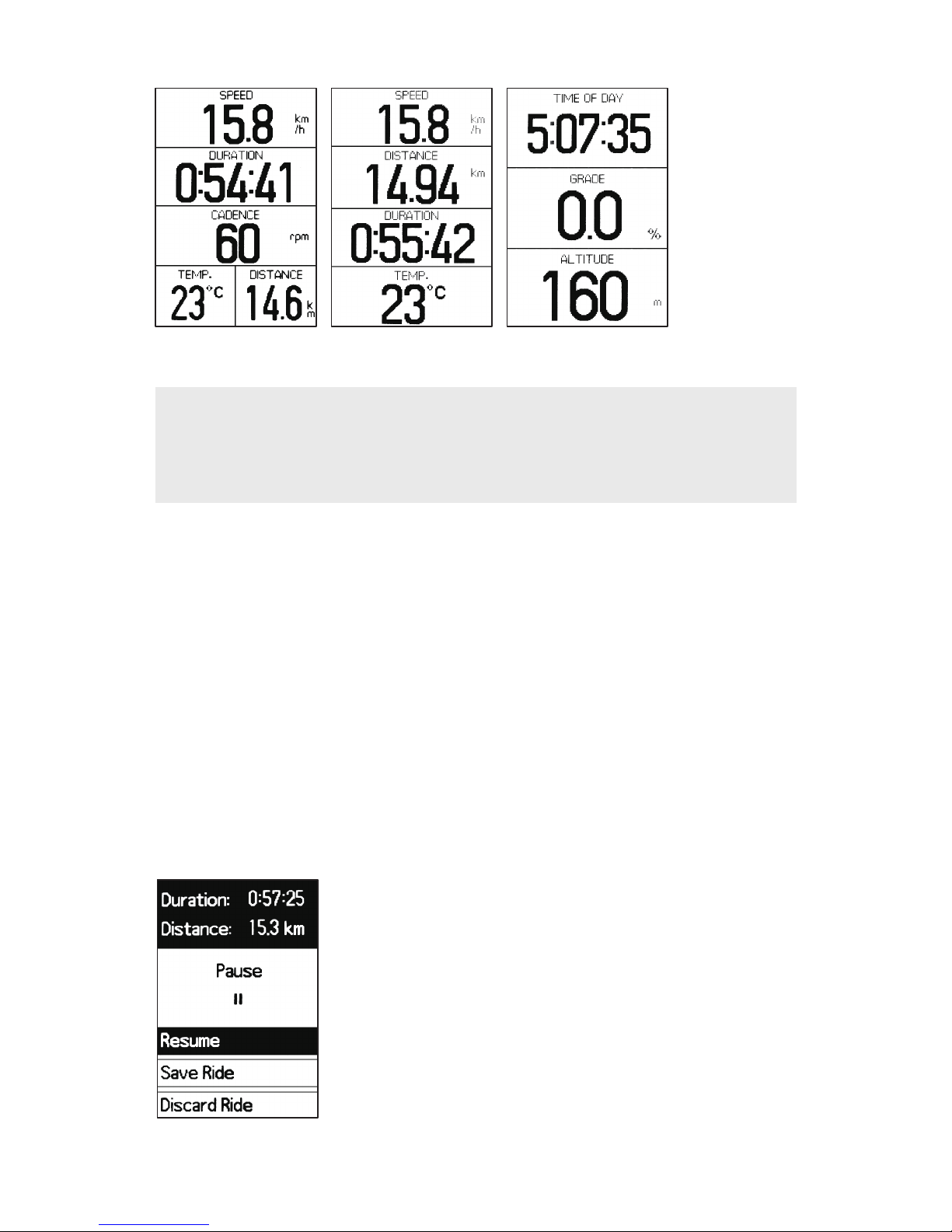

Screen 1 Screen 2 Screen 3
2.1 Three user customizable screens.
NOTE
To modify your customizable screens, see Section 3.1.1
"Customizing the Data Pages" for more information.

2.2-2 “Discard Ride”
If you select Discard Ride, your ride data will be deleted
and cannot be retrieved. Ensure you want to confirm this
action as it is immediate.
2.3 Lap
Click LAP to record lap times.
2.2-1 “Save Ride”
If you select Save Ride, a summary of your ride will be
displayed and the ride data will be saved. Press any button
to return to the Let's Ride screen.

3.1 Ride Settings
3.1.1 Customizing the Data Pages
• Settings > Ride Settings > Customize Display
• Press ENTER to select page to customize.
3. Setting Your PanoComp X
3.1 Ride Settings
1. Customize Display
2. Auto Pause
3. Back Light
4. Lap
3.2 Connect Sensor
1. Find Additional Sensors
3.3 Bluetooth
1. Connect PanoBike+ app
2. Notification
3. Forget Device
3.4 Tones
1. Key Tones
2. Warning Tones
3.5 Profile
1. Gender
2. Height
3. Weight
4. Birth Year
5. Max.Heart Rate

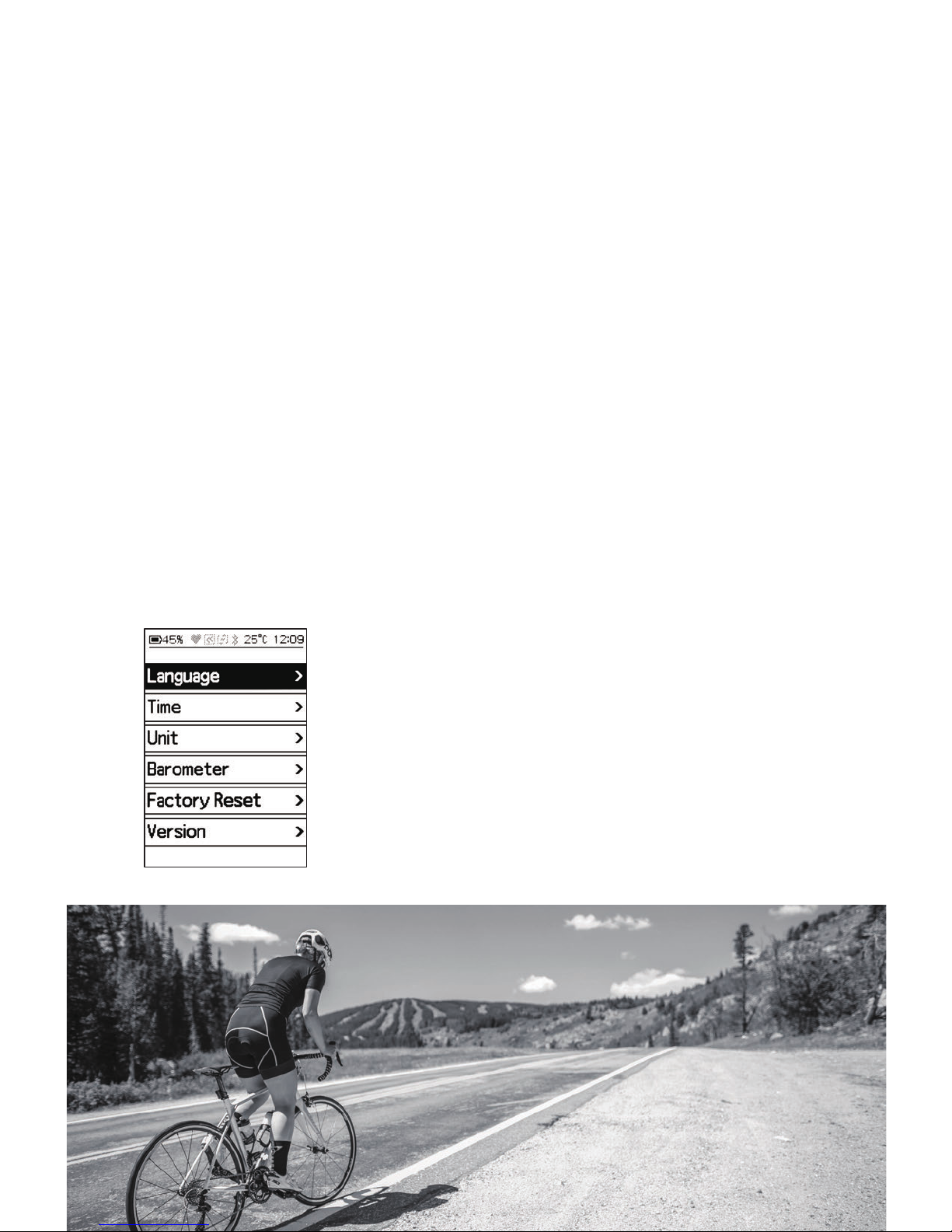

3.6 System
1. Language
2. Time
3. Unit
4. Barometer
5. Factory Reset
6. Version

3.1.1.2 Data field
• Press NEXT to choose number of fields to display
on customized page.
• 3 to 8 fields can be selected.
• Press ENTER to confirm number of fields to display.
8
7
6
5
4
3
3.1.1.3 Select and customize each data field
19 different data metrics.
• Press NEXT to cycle through fields to customize.
• Press ENTER to select field.
• Press NEXT to cycle through data metric to display.
• Press ENTER to confirm data metric to display.
• Repeat sequence above until chosen fields are customized.
• Press BACK to return to previous screen.
Speed
Avg Speed
Max Speed
Cadence
Avg Cadence
Max Cadence
Grade
Altitude
Total Descent
Total Ascent
Temperature
Battery
Calories
HeartRate
Avg HeartRate
Max HeartRate
Distance
Duration
Time of day

3.1.2 Auto Pause
When Auto Pause is engaged, PanoComp X
will automatically pause timer when bike stops.
Timer will restart once movement is detected.
• Settings > Ride Settings > Auto Pause > On / Off.
• Press NEXT to cycle between options.
• Press ENTER to select option.
• Press BACK to return to previous screen.
3.1.3 Back Light
• At any time, press to turn on the back light.
• Settings > Ride Settings > Back Light >
Constant / 30 sec / 15 sec / Off.
• Press NEXT to cycle through options.
• Press ENTER to select option.
• Press BACK to return to previous screen.

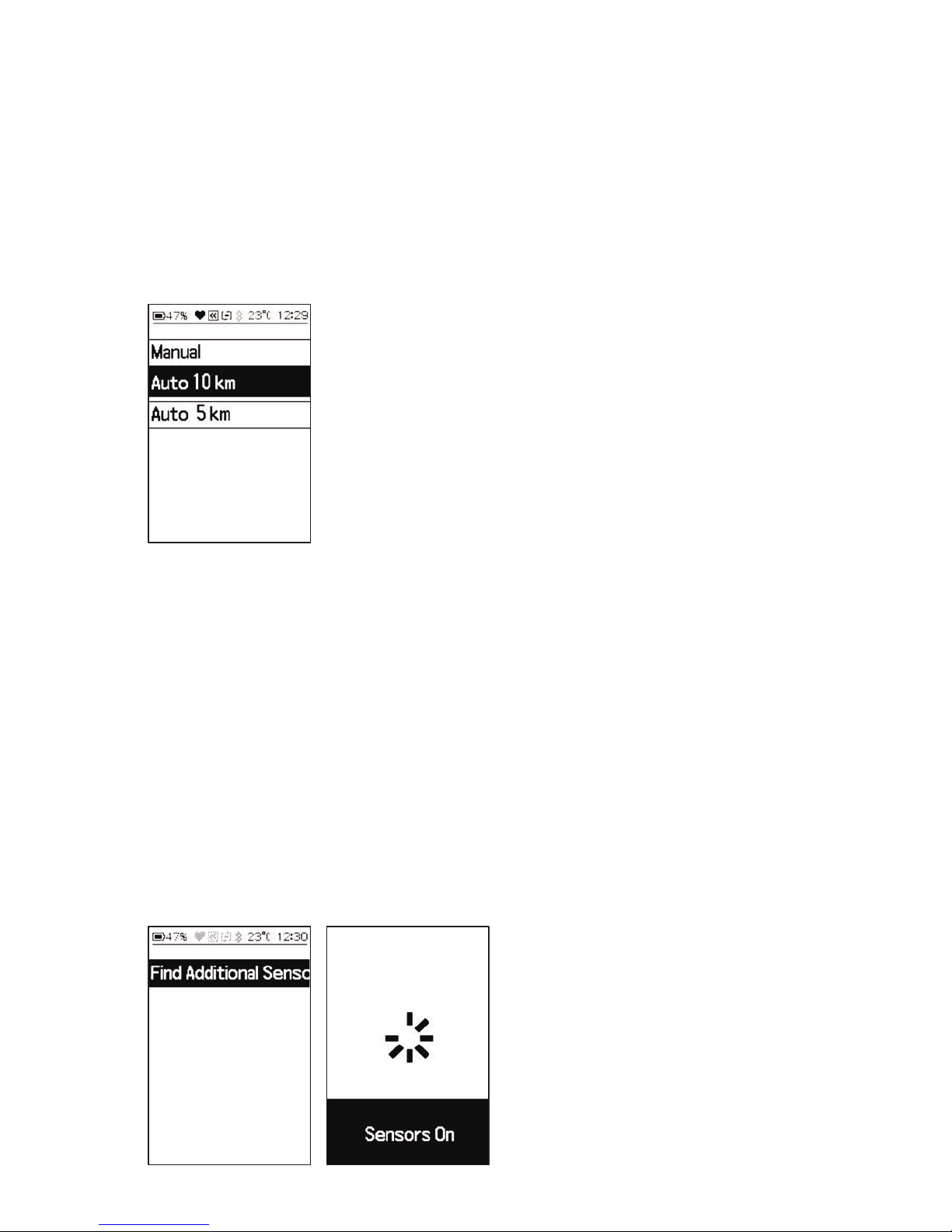

3.1.4 Lap
Switch on auto lap function, PanoComp X will put a lap mark
by setting distance automatically, which helps riders to
compare and analyze performance.
• Settings > Ride Settings > Lap > Manual / Auto 10 km / Auto 5 km.
• Press NEXT to cycle through options.
• Press ENTER to select option.
• Press BACK to return to previous screen.
3.2 How to Connect Sensors
3.2.1 Connect with speed & cadence sensor
Turn on sensors to prepare for pairing. If PanoComp X receives a
signal from the sensor, the sensor will be displayed on the scan list.
• Turn on Bluetooth device. Distance between sensor and
PanoComp X should be less than 1m(3ft) when pairing.
• Settings > Connect sensor > additional sensor > select the sensor.
• Press ENTER to scan for sensors. After sensors are detected,
press NEXT to cycle to sensor to add.
• Press ENTER to confirm.

3.2.1.2
Set wheel size
Access wheel size
settings screen:
Settings >
Connect Sensor >
(Sensor Name) >
Set Wheel Size.
• Press NEXT to
cycle digits.
• Press ENTER to
confirm selection.
Repeat sequence
until wheel size
is confirmed.

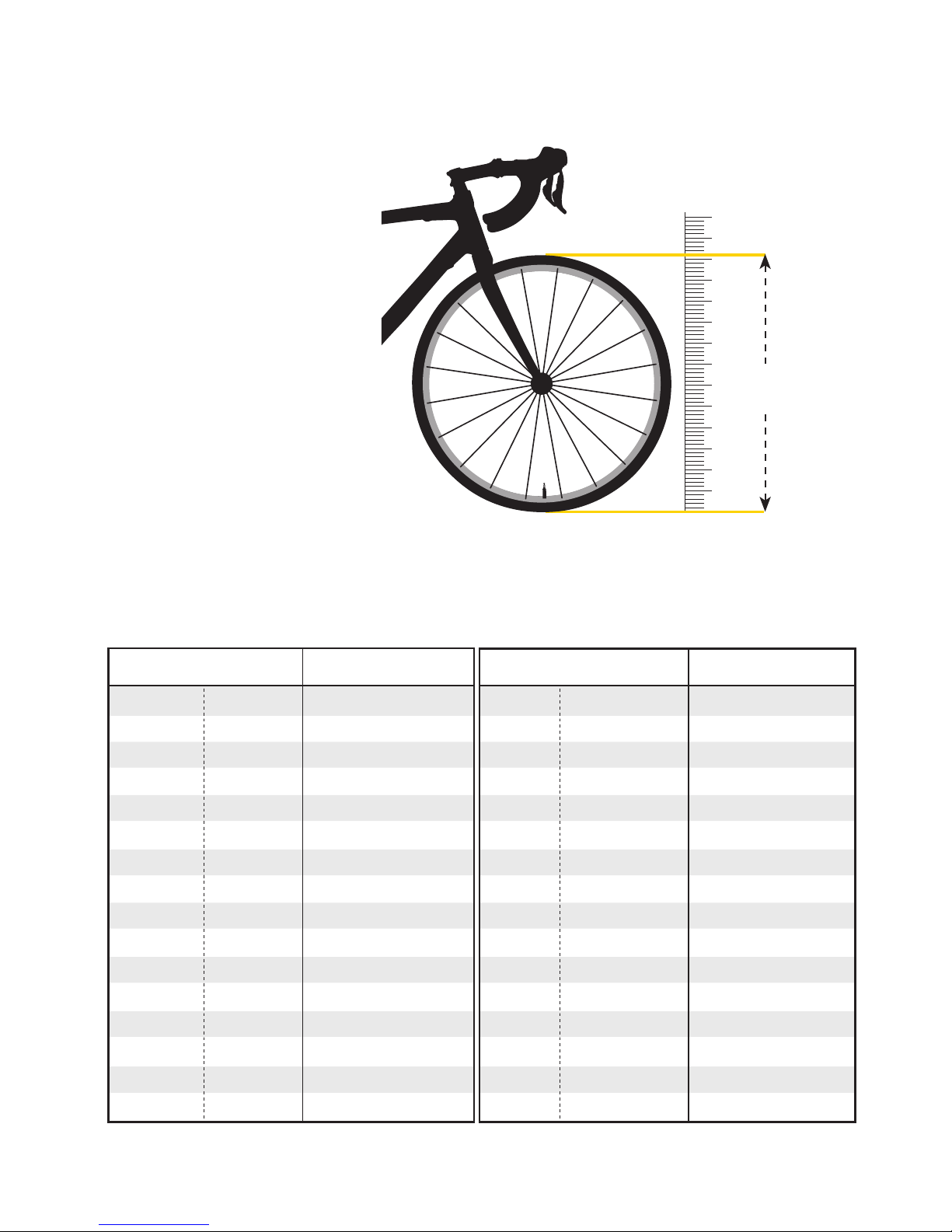

DETERMINE WHEEL CIRCUMFERENCE
METHOD A) measure wheel circumference.
mm x 3.14
Wheel
Circumference
= mm x 3.14
METHOD B) Choose from wheel circumference data below.
16x1.50
16x1.75
16x2.00
18x1.50
18x1.75
20x1.50
20x1.75
24x1.75
24x2.00
26x1.50
26x1.75
26x1.95
26x2.10
26x2.20
700x38C
29x2.00
40-305
47-305
34-305
40-355
47-355
40-406
47-406
47-507
50-507
40-559
47-559
50-559
54-559
56-559
38-622
56-622
1185
1195
1245
1340
1350
1490
1515
1890
1925
2010
2023
2050
2068
2083
2180
2272
Tire Size Designation Wheel Circumference
650C Tubular
650x20C
650x23C
650x25C
27.5x2.25
(650B)
27.5x2.35 (650B)
700C Tubular
700x20C
700x23C
700x25C
700x28C
700x30C
700x32C
700x35C
29x2.10
29x2.25
1920
1938
1944
1952
2217
2230
2130
2086
2096
2105
2136
2146
2155
2168
2288
2320
Tire Size Designation Wheel Circumference
20-571
23-571
25-571
57-584
60-584
20-622
23-622
25-622
28-622
30-622
32-622
35-622
54-622
57-622

3.2.2 Connect with heart rate sensor
• Moisten the belt contacts and wear to connect heart rate
sensor. Distance between sensor and PanoComp X should be
less than 1m(3ft) when pairing.
• Connect sensor > additional sensor > select the device.
NOTE
• Distance between
sensors and PanoComp X
should not exceed 1m(3ft)
when pairing.
• Keep at least 10m(33ft)
away from other
sensors while pairing.
3.2.3 Select the sensor
If you have more than one sensor, please select the one
you want to be default.
• Connect Sensor > Select the sensors.
• ”” icon shows the sensors in use.
• Supports maximum 5 sensors.
• If 5 sensors are already
paired and "Find
Additional Sensors" is
selected, a "Pairing
Sensor Full" warning
screen will display.

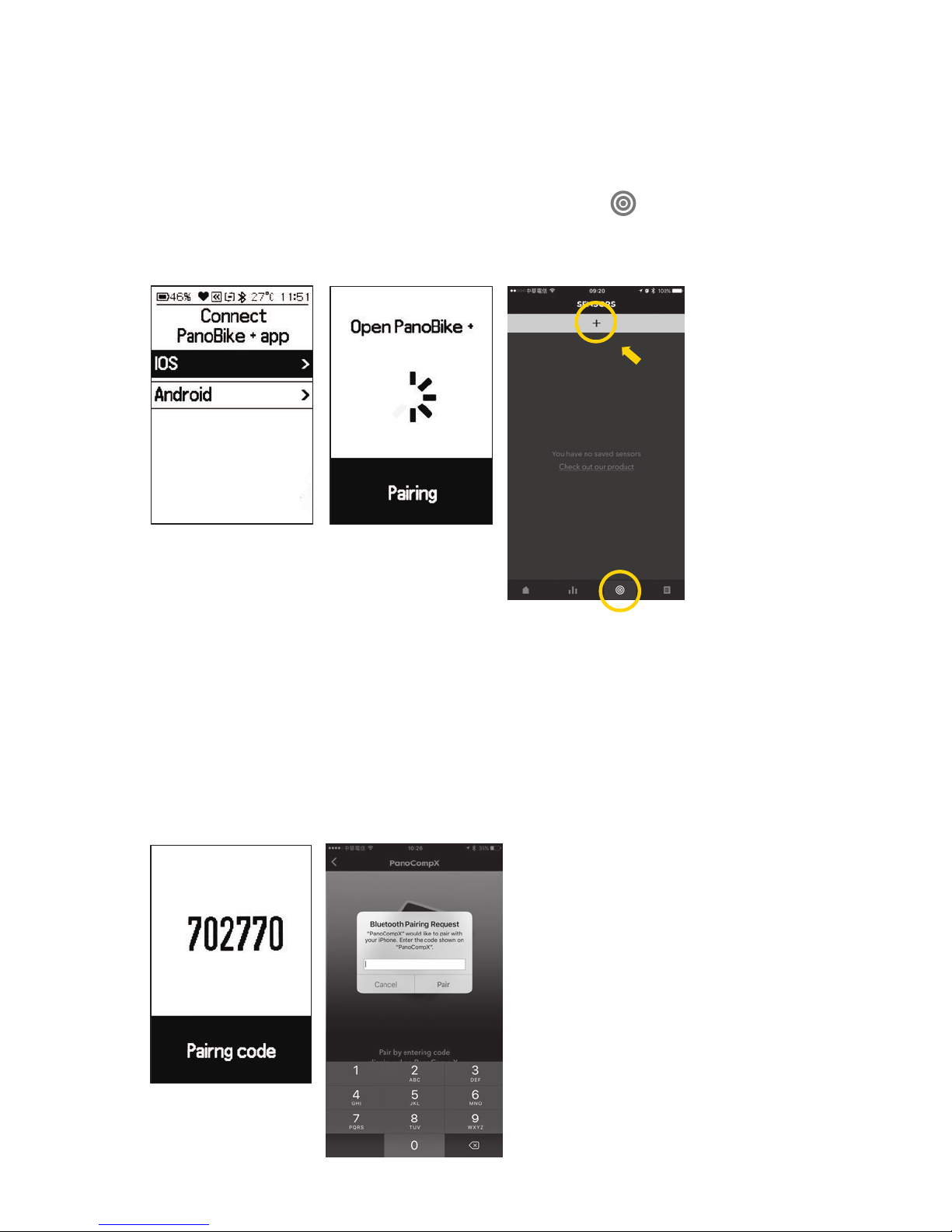

3.3 How to pair your PanoBike+ app
PanoComp X supports PanoBike+ app, provides personal
settings info, incoming call alerts, data uploads, firmware uploads.
3.3.1 Settings > Bluetooth > Select system : iOS or Android
• Turn on Bluetooth mode on your smartphone.
• Turn on PanoBike+ app, tap the "Sensors" ( ) icon, tap the "+"
symbol to start the pairing process.
(iOS device)
• Smartphone:
(iOS device) Enter pairing code displayed on PanoComp X
into smartphone.
(Android device) Enable location function before pairing
PanoComp X with PanoBike+ app.

3.3.2 Connection to PanoBike+ app ( PHONE NOTIFICATION )
• PanoComp X must be paired with PanoBike+ app
(See Section 3.3 for more information).
• If smartphone is within PanoComp X Bluetooth range
10m(33ft) while PanoComp X is recording a ride or paused,
a "Receiving Phone Call" alert will display and the computer
will beep.
Turn on/off incoming call on PanoComp X
• Settings > Bluetooth > Notification > On or Off.
3.3.3 Repair PanoBike+ app
• If PanoComp X is connected to Phone A, delete its connection with
PanoBike+ app, then repair with new connection to Phone B.
Delete the connection between PanoComp X & smartphone
• The connection between smartphone, PanoComp X,
and PanoBike+ app needs to be deleted.
• PanoComp X: Settings > Bluetooth > Forget Device > Yes or No.
• Smartphone:
(Android device)：
From system settings, delete PanoComp X connection
with Bluetooth.
(iOS device)：
Settings > Bluetooth > PanoComp X > Forget Device.
• PanoBike+: SENSORS > PanoComp X > DELETE SENSOR.

PanoBike+:
SENSORS > PanoComp X > DELETE SENSOR.
PanoComp X:
Settings > Bluetooth > Forget Device.
• Smartphone:
(Android device) From system settings, delete
PanoComp X connection with Bluetooth.
(iOS device) Settings > Bluetooth > PanoComp X > Forget Device.

3.4 Tones
• Settings > Tones > Key Tones / Warning Tones.
• Sub menu selections On / Off.
1. Key Tones : On / Off.
2. Warning Tones :
• Max. Heart Rate
• Max. Cadence
• Min. Cadence
• Timer
NOTE: When limits set for these metrics are reached,
an alert screen will display and a beep will be heard.
3.5 Profile
Setting up your user profile.
• Settings > Profile.
Set your gender, height, weight, age (by birth year), and
max heart rate settings. The device uses this information to
calculate accurate ride data.

3.6 System settings
Key sequence for operations below
NEXT to cycle selection.
ENTER to confirm selection.
• Settings > System.
1. Language : Select language.
2. Time : Set Year: Repeat sequence to set and confirm year.
Set Month/Day: Repeat sequence to set and confirm date.
Set Clock Mode: To cycle between 12hr and 24hr mode,
then confirm clock mode.
Set Time: Set correct time.
3. Unit :Select between Metric and Imperial.
4. Barometer : Calibrate: Key in altitude manually.
Auto Calibrate : The system will calibrate
automatically.
5. Factory Reset : Select to delete all records and reset settings
in PanoComp X to factory defaults.
6. Version : Check the current version.

In History mode, you can review the
following information recorded to date.
4.1 Total
• RIDES
• DISTANCE/(UNITS)
• DURATION
• CALORIES BURNED
Press NEXT to access
second screen
• PERSONAL BEST
• DISTANCE/(UNITS)
• DURATION
• CALORIES BURNED
4. History
Ride record management
Ride records include sensors
and settings information in
PanoComp X and should be
uploaded to PanoBike+ app
regularly.
4.1 Totals
4.2 Rides
4.3 Ride Archive
4.4 Delete Data
1. Trip
2. All Data
IMPORTANT NOTE
PanoComp X can store up to 100hrs of ride
data. When memory is nearly full, an alert
screen "Memory is Full" will display. When
data exceeds memory capacity, ALL ride
data will be automatically erased. To
prevent inadvertent loss of desired data,
upload rides to PanoBike+ app or delete
unwanted rides to free up space.

4.2 Rides
• Individual Rides
Press NEXT to scroll through individual rides.
Press ENTER to select ride.
• Summary - Check all data for single record
Press ENTER to display detail information.
Press NEXT to scroll through screens.
• LAP: Detailed Lap Information
• Heart Rate Zone : Check Heart Rate zone
(with DuoBand heart rate sensor).
Detailed Heart Rate Information.
Summy Lap Heart Rate Zone
