Topens CK1200 User manual

VER 20aC030458
SlidingGateOpener
User’sManual
Model:
TOPENS Website
http://www.topenstool.com/
CK1200
★
Please read and follow all warnings, precautions and instructions before
installation and use.
★Periodic checks of the opener are required to ensure safe operation.
★Save this manual.

Table of Contents
General Safety .................................................................................................................................................1
Preparation for Installation...............................................................................................................................2
Parts List...........................................................................................................................................................3
Accessories Parts (Included in some models, refers to the actual package)..................................................4
OptionalAccessories Parts List (Available at TOPENS Store)........................................................................4
Technical Specifications & Features................................................................................................................4
Installation Overview........................................................................................................................................5
Installation of the Opener.................................................................................................................................5
Manual Operation.............................................................................................................................................7
Installation of chain and chain brackets...........................................................................................................7
Installation of the Magnets...............................................................................................................................8
Connecting of Power Supply............................................................................................................................9
Connecting of the Control Board......................................................................................................................9
Setting of the Control Board............................................................................................................................11
How to Program or Erase the Remote...........................................................................................................12
How to Use the Remote to Operate Your Gate Opener ................................................................................13
Wireless Keypad Programming......................................................................................................................13
Troubleshooting..............................................................................................................................................14
Maintenance...................................................................................................................................................15

1
Thank you for purchasing our sliding gate opener. We are sure that the products will be greatly satisfying as
soon as you start to use it.
The product is supplied with a user’s manual which encloses installation and safety precautions. These
should be read carefully before installation and operation as they provide important information about safety,
installation, operation and maintenance. This product complies with the recognized technical standards and
safety regulations.
General Safety
WARNING! An incorrect installation or improper use of the product can cause damage to persons,
animals or properties.
• Scrap packing materials (plastic, cardboard, polystyrene etc.) according to the provisions set out by current
standards. Keep nylon or polystyrene bags out of children’s reach.
• This product was exclusively designed and manufactured for the use specified in the present
documentation. Any other use not specified in this documentation could damage the product and be
dangerous.
• The factory declines all responsibility for any consequences resulting from improper use of the product, or
use which is different from that expected and specified in the present documentation.
• Do not install the product in explosive atmosphere.
• The factory declines all responsibility for any consequences resulting from failure to observe Good
Technical Practice when constructing closing structures (door, gates etc.), as well as from any deformation
which might occur during use.
• Disconnect the electrical power supply before carrying out any work on the installation. Also disconnect
any buffer batteries, if fitted.
• Fit an omnipolar or magnetothermal switch on the mains power supply, having a contact opening distance
equal to or greater than 3,5 mm.
• Make sure a residual current circuit breaker with a 30mA threshold is fitted before the power supply mains.
• Check that earthing is carried out correctly: connect all metal parts for closure (doors, gates etc.) and all
system components provided with an earth terminal.
• Fit all the safety devices (photocells, electric edges etc.) which are needed to protect the area from any
danger caused by squashing, conveying and shearing.
• Position at least one visible indication device, and fix a Warning sign to the structure.
• The factory declines all responsibility with respect to the automation safety and correct operation when
other supplier’s components are used.
• Only use original parts for any maintenance or repair operation.
• Do not modify the automation components, unless explicitly authorized by the factory.
• Instruct the product user about the control systems provided and the manual opening operation in case of
emergency.

2
• Do not allow persons or children to remain in the automation operation area.
• Keep radio control or other control devices out of children’s reach, in order to avoid unintentional
automation activation.
• The user must avoid any attempt to carry out work or repair on the automation system, and always request
the assistance of qualified personnel.
• Anything which is not expressly provided for in the present instructions is not allowed.
• Before installing the gate opener, check that all moving part as well as the sliding gate is in good
mechanical condition, correctly balanced and opens and closes properly.
• Save these instructions for future use.
Preparation for Installation
Before proceeding to your opener installation, check if your gate structure is in accordance with the current
standards, especially as follows:
The gate sliding track is linear and horizontal, and the wheels are suitable，the gate should be mounted and
moving freely. Check that the structure is sufficiently strong and rigid, Make sure that the gate is plumb and
level. The fence posts must be mounted in concrete. The gate does not bind or drag on the ground.
• The opening and closing gate stops are positioned.
WARNING: Remember that control devices are intended to facilitate gate operation, but can not
solve problems due to any defects or deficiency resulting from failure to carry out correct installation or
maintenance. Take the product out of its packing and inspect it for damage. Should it be damaged, contact
your dealer. Remember to dispose of its components (cardboard, polystyrene, nylon, etc.) according to the
current prescriptions.
Refer to the following Figures for gate installation.
In sake of safety, a positive stop must be mounted on the two end of ground track.

3
Parts List

4
Accessories Parts (Included in some models, refers to the actual package)
Optional Accessories Parts List (Available at TOPENS Store)
Technical Specifications & Features
Specifications
CK1200
Power input: 110V~120V/60Hz or 220~240V/50Hz
Motor voltage:
120VAC or 230VAC
Rated power: 550W
Gate moving speed:
20 cm/s (8 in/s)
Max gate weight: 1500kg (3400lbs)
Max torque: 35Nm
Environmental conditions: -20℃~ +50℃(-4°F to 122°F)

5
Rev 20a
Rev 20a
Protection class:
IP44
Features:
·Easy to install, and minimum maintenance
requirement
·Midway mode，Quick selection for gate open/close
direction
·Get the desired chain tension by adjusting the chain
bolts.
·Reliable rolling code technology for remote control
·Emergency release key in case of power failure
·Stop in case of obstruction during gate opening.
Reverse in case of obstruction during gate closing
·Built in adjustable auto-close (0, 30, 60, 90 seconds)
·Built in max. Motor Running Time (MRT) for multiple
safety protection (90 seconds)
·Reliable electromagnetism limit for easy adjustment
·Can be equipped with wide range accessories
Installation Overview
Installation of the Opener
1). The chain brackets must be mounted to the same height as the chain on the idler wheels.

6
2). Make sure there is 1” distance at least between the wheel cover and the gate after you position the base
plate.
Caution:
*Be sure that the opener is installed in a level
and paralleled position. Improper installation
could result in property damage, severe
injury, and/or death.
* Before starting installation, ensure that
there is no point of friction during the entire
movement of the gate and there is no danger
of derailment.
* Ensure that the safety side rollers are
present.
Necessary Tools: The following tools may be
necessary to install the Gate opener. You will
need screwdrivers, an electric drill, wire cutters
and a wire stripper, a socket set, and possibly
access to a welder.
When install the opener, you should build a
concrete pad to support the base plate of opener
in order to maintain proper stability.
The installation proceeds are as follows:
1.Assemble the Base Plate and fix the Opener to
the Base Plate.
2.Dig a hole for a concrete pad which should be
approximately 60 x 32 x 35cm (24〞x 13〞x
14〞). It may protrude 10 cm (4”) above ground
and 25 cm (10”) in depth underground. Increase
the pad height if necessary to protect the system from flooding, heavy snow etc.
3. Prepare one or more conduits for the electrical cables before pour concrete. Remember that cable
conduits have to pass through the hole on the base.
4. Pour concrete and before it starts to harden, check that it is parallel to the gate leaf and perfectly level.
5. Mark the position of four expansion anchors according to the position of mounting hole on the base plate.
Double check your marking, move the base plate and drill the 4 holes using a 14mm (9/16”) masonry bit. Put
the 4 expansion anchors (provided) into the holes and firmly tighten.
6. Mount the base plate to the concrete Pad and firmly tighten, enabling the opener is firmly secured
on the concrete pad during the whole gate travel.

7
Manual Operation
The opener should be put in the manual (emergency release) position before fitting the chain, installing the
opener and limit switch. The process is as follows:
1) Insert and turn the key clockwise 45° to slide the lock cover. Now the key slot appears.
2) Insert the T-handle Key（provided）to the key slot and turn it in counter-clockwise 135° to disengage the
clutch between the gear shaft and power output. Now the opener is in the manual operation.
Installation of chain and chain brackets
1. Chain Brackets
1). Please refer to below chain brackets figure,
which shows “U” bolt, “L” bracket and chain bolt.
Use the “U” bolts (square or round) to attach the
chain brackets to gate frame.
2). If Both the square bolts and round bolts are
not fit for the gate frame, use the appropriate
bolts to attach the chain brackets to gate frame.
2. How to install the chain
1). Place the chain around the top of the idler
wheels and under the drive sprocket in chain box.
2). Connect a chain bolt to one end of chain from
chain box by using master link. Then insert the
chain bolt to the L bracket and fix them each other
by washers and nuts temporarily. (Nuts will be
further adjusted for a proper chain tension later)
3). Connect second chain bolt with another end of chain from
chain box, then attach bolt to the L bracket on opposite end of gate
using the washers and nuts.
4). Make sure that the chain is line up exactly with the position
where the chain on the chain idler wheel.
5). Remove the unwanted length of chain. Set appropriated chain
tension by adjusting two chain bolts of the both end.

8

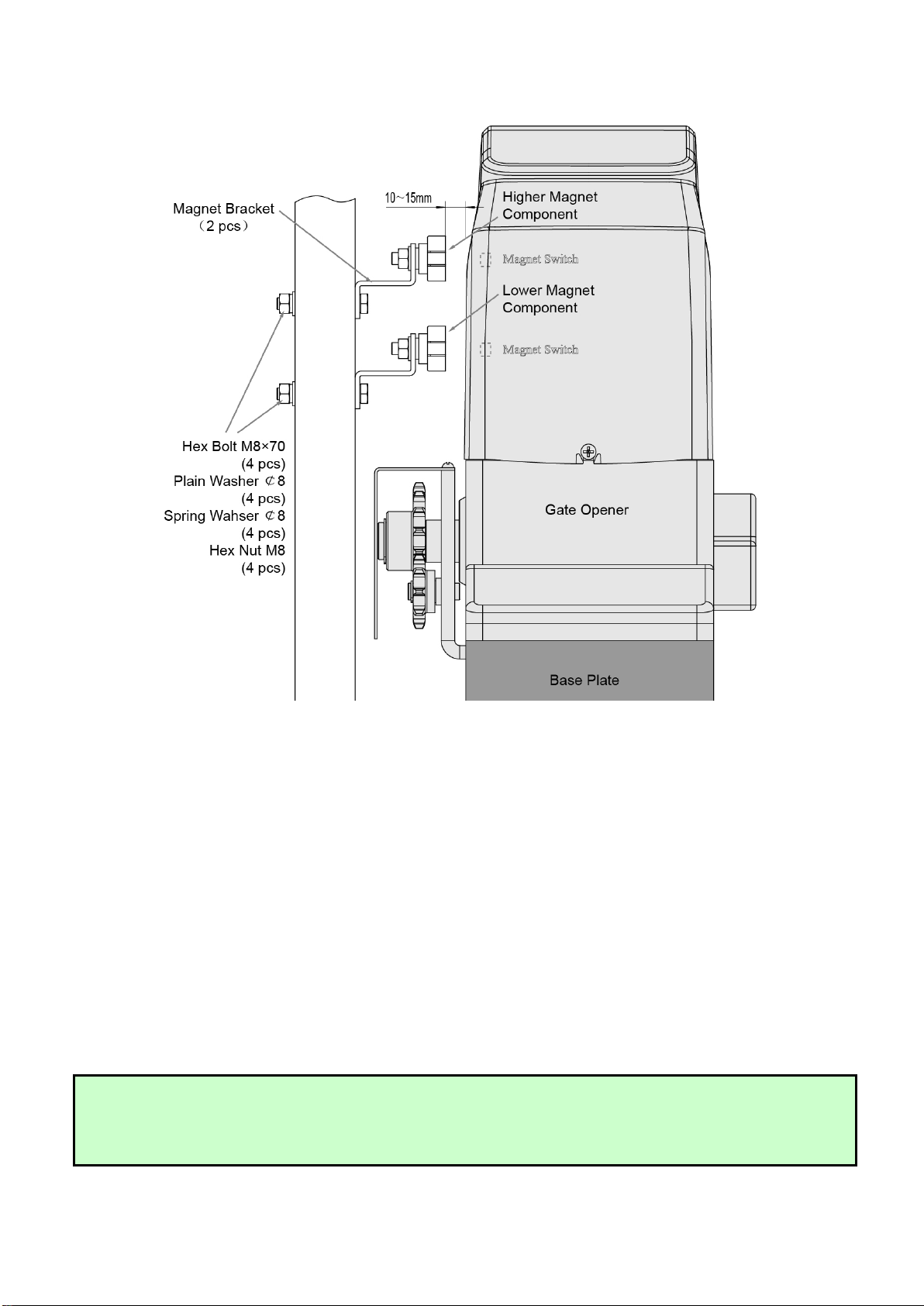

Installation of the Magnets
Before install limit switch, make sure the gate opener is put in manual operation. (the clutch connected with
gear shaft is disengaged) and the mains power supply is disconnected.
Position the two Magnet Components approximately on the gate and move the gate by hand to fix them in
place.
Fit magnets bracket
Push the gate fully closed by hand. Locate and install the magnet bracket so that the opener will stop at the
desired close position when the close limit switch approaches it.
Push the gate fully open by hand. Locate and install the magnet bracket so that the opener will stop at the
desired open position when the open limit switch approaches it.
The lower magnet bracket must be installed at left side and higher magnet bracket must be installed
at right side from the view inside of property.Finally adjust the magnet to the proper position by moving
the gate with the motor. The magnet should be 20-30mm away from the magnetic limit switch. If it is too
far away, the switch will fail to work. The distance between the magnet and the opener should be 10-15mm
with the opener cover on. Adjust the position of the magnet until the positions of the opening and closing
meet the requirement.
Warning: Improper magnets installation may cause the gate crash into end barrier,
which is very dangerous !

9
Connecting of Power Supply
WARNING: NEVER connect the gate opener to the power outlet before all
the installations have been done.
The power supply cord should be at least 3×0.75mm2(3C×18AWG). Connect the
live wire and neutral wire to the “L” (1#) and “N” (3#) terminal of the control board
respectively; and connect the earth wire to “ ” (2#) terminal of the control board.
NOTE: The power supply cord is not included in the package.
Connecting of the Control Board
WARNING：Before making any electrical wire connection or/and setting the control board, make
sure that the power switch is OFF.
1. Motor
The BLACK wire of the motor should be connected into the “6” terminal.
The RED wire of the motor should be connected into the “7” terminal.
The YELLOW wire of the motor should be connected into the “8” terminal.
2. Start Capacitor
One pin of the start capacitor should be wired to the “7” terminal, another to “8” terminal.
3. Limit Switches
The RED wire of the limit switches should be connected into the “9” terminal.
The BLACK wire of the limit switches should be connected into the “10” terminal.
The YELLOW wire of the limit switches should be connected into the “11” terminal.
4. Warning Light (Included in some models, refers to the actual package)
One wire of the warning light should be connected into the “4” terminal, another should be connected into
the “5” terminal.
5. Photocell Beam System (PBS) (NO) (Included in some models, refers to the actual package)
Use a 2-core cable to connect the “+ ~”terminal of the photocell’s emitter to the “12” terminal, the “- ~”
terminal to the “13” terminal. Also the “+ ~”and “- ~” terminals of the photocell’s receiver should be
connected to the “12” and “13” terminals in parallel.
Use another 2-core cable to connect the “NO”terminal of the receiver to the “14” terminal, the “COM”
terminal to the “15” terminal.
6. Push Button (Optional)
The push button should be wired to the “15” and “16” terminals. The gate opener works alternately by
pushing the button (open-stop-close-stop-open).
7. Exit Wand (Optional)
First insert the Adapter BOARD into the CONTROL BOARD, and then connect the wand to the control
board refers to following instruction.
The BLACK wire of the exit wand should be connected into the “#18” terminal.
The BLUE wire of the exit wand should be connected into the “#17” terminal.
The RED wire of the exit wand should be connected into the “#12” terminal.
The GREEN wire of the exit wand should be connected into the “#13” terminal.
The sensitivity adjustment board should be wired to the GREEN wire and the YELLOW wire of the wand. No
matter the polarity.
8. External Receiver (Optional)
The BROWN wire of the external receiver should be connected into the “16” terminal.

10
The BLACK wire of the external receiver should be connected into the “13” terminal.
The RED wire of the external receiver should be connected into the “12” terminal.
9. Wired Keypad (12VDC) (Optional)
The RED wire of the wired keypad should be connected into the “12” terminal.

11
The BLACK wire of the wired keypad should be connected into the “13” terminal.
The PURPLE wire of the wired keypad should be connected into the “16” terminal.
The BLUE wire of the wired keypad should be connected into the “15” terminal.
Setting of the Control Board
WARNING: Ensure the gate opener is Power Off when you make any adjustment of the gate
opener. Keep away from the gate during you set the gate opener system in case of the unexpected
gate moving. Carefully adjust the DIP switches to avoid the risk of machine damage and injury or
death. Always ask the help of professional technician /electrician if you have any question.
1. DIP Switches
The DIP switches are used to set the
running time of the motor in midway
mode, auto close time of the gate opener
and fast change the open/close direction
which is determined by the position of
the gate opener installed.
DIP Switch #1–#2: Running time of the
motor in Midway Mode
This mode enables user to drive the vehicle through the gate quickly when the gate opens to certain width.
DIP Switch #1: ON – 4 Seconds OFF – 0
DIP Switch #2: ON – 2 Seconds OFF – 0
NOTE: The midway mode function would be disabled if both DIP switches are turned off. Factory
default setting is disabled. The midway mode could be activated by pressing button B of the remote
control when the gate is in the full closed position.
DIP Switch #3–#4: Auto close time of the gate opener
DIP Switch #3: ON – 30 Seconds OFF – 0
DIP Switch #4: ON – 60 Seconds OFF – 0
NOTE: The auto close function would be disabled if both dip switches are turned to off (factory
default setting).
E.g. Running time of the operator in midway mode is 4+2=6 seconds.
E.g. Auto close time of the gate operator is 30+60=90 seconds.

12
DIP Switch #5: Left/Right open
ON – Left open (factory default setting).
OFF – Right open. Turn switch OFF to change the opening direction easy if necessary.
2. Potentiometers
The potentiometer A is to adjust the OPEN stall force of the gate opener. The Potentiometer B is used to
adjust the CLOSE stall force of the gate opener.
Turn the potentiometer clockwise to increase the stall force.
Turn the potentiometer counter-clockwise to decrease the stall force.
WARNING: Photocell is highly recommended to be installed with the gate opener as entrapment
protection for safety when you set stall force to maximum.
How to Program or Erase the Remote
The remote MUST be programed to the opener BEFORE OPERATING. Please follow the steps to
program the remote.
Activate the opener only when gate is in full view, free of obstruction and properly adjusted. No
one should enter or leave gate area while gate is in motion. DO NOT ALLOW CHILDREN to
operate push button or remote. DO NOT ALLOW CHILDREN TO PLAY NEAR THE GATE.
If you purchase additional remote controls, the gate opener must be programmed to accept the
new remote code.
If you lose one of any remote control, please erase and reprogram all other remote controls to
have a new code for safety.
Program the remote
Press and release the learn button, the REM LED light will be on, then press the key in the remote twice in 2
seconds, the REM LED light will flash for 4 seconds. Now the remote has been programmed successfully.

13
Erase all the remote codes
Press and hold the learn button until the REM
LED light is off. Now all remote codes have been
erased.
NOTE: Max. 8 remotes can be
programmed for the opener. An External
Receiver (optional) allows up to 250pcs
remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is available at
TOPENS Store.
TOPENS ERM12 Universal External Receiver is also compatible with other brand swing gate
opener, sliding gate opener and garage door opener.
How to Use the Remote to Operate Your Gate Opener
Each remote has four buttons, from top to bottom are separately A, B, C and D.
You may use this remote to operate as many as 4 sets TOPENS swing gate
openers or 1 set TOPENS sliding gate opener and 2 sets TOPENS swing gate
openers.
1. Use this remote to only operate TOPENS swing gate openerA, B, C and D four
buttons share same function once they are programmed with
TOPENS swing gate opener. You may choose any button to program it with our
swing gate opener. Every press of the button is able to active the gate opener to
work alternately (open-stop-close-stop-open).
2. Use one remote to operate TOPENS swing gate opener & sliding gate opener at the same time
All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function
(refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with
sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener.
Wireless Keypad Programming
You can follow the below steps to program wireless keypad to the opener. Press the LNSW button until the
REM LED is ON,and then releases the button. Then press "OK" button on keypad and REM LED will flash
for 3 seconds and then be OFF which indicates the keypad has been programmed successfully. You can
use the default password “888888” to operate the opener after programming. You can press “PIN” “8 8 8 8 8
8” and then press “OK” to confirm to operate the opener.
Also you can change the password of the keypad follow the below steps. Press “PIN” and then input the six
digits old password and then press ”PIN” again, the REM LED will be ON. Input the six digits new password
and then press the “PIN” to confirm the new setting, REM LED will flash for 3 seconds and then be OFF
which indicates the password has been changed successfully. You can press “PIN” “6 digits new password”
and then press “OK” to confirm to operate the opener.

14
NOTE: Every step for pressing button during program must be finished within 1 second to ensure successful
programming.
Troubleshooting
Have a multimeter to check voltage and continuity. Use caution when checking high voltage terminals.
Symptom Possible Solution(s)
The opener does not
run.
Power LED is
OFF.
1. Check the input voltage of the control board. It should be local AC
electricity.
2. The power switch is OFF. Make sure the power switch is ON.
3. Check the fuse in the control board. Replace the fuse if it was burnt out.
4. Check the control board. Replace the control board as necessary.
The opener does not
run. Power LED is
ON.
1. Ensure the remote control has been programmed to the control board
before operating.
2. The thermal protector is working because the high temperature after long
working time. Please wait for 20 minutes to let the motor become cold.
3. Check the installing position of the magnets. The opener would not run if
both of the limit switches are activated by one magnet.
4. Check the limit switch. Remove
the wire connection of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
5. Check the control board. Replace the control board as necessary.
Remote control does
not work.
1. The indicator light of remote control is not on. Check the battery in your
remote control. Replace the battery as necessary.
2. The distance you use the remote is too far away from the opener. Try it
again closer.
3. Remote control is not suitable for receiver. After making sure the codes are
correct, erase remote controls and then re-program the codes in the device.
4. Check the control board. Replace the control board as necessary.
The gate starts but it
is immediately stop or
1. The opening force or closing force is adjusted too small. Turn the
Potentiometer A&B to increase the force.

15
Maintenance
Every six months check the following items for proper operation of the unit.
* Lubricate shafts and sprockets.
* Keep opener clean at all times.
* Check and tighten anchors bolts.
* Check for loose or corroded wire
* Ensure the opener is well earthed, and correctly terminated.
* Always check the Stop/Reverse in case of obstruction function when performing any maintenance. If this
function can’t be made operable, remove this opener from service until the cause of the malfunction is
identified and corrected.
reverse 2. Disconnect the gate from the gate opener and check that the gate slides
freely without any binding.
3. Check the control board. Replace the control board as necessary.
The gate opens, but
stops and will not
return.
1. Check the installing position of the magnets. The opener would not run if
both of the limit switches are activated by one magnet.
2. Check the limit switch. Remove
the wire connection of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
3. Check the control board. Replace the control board as necessary.
The gate can open,
but fails to close.
1. Photocell is obstructed. Remove obstruction.
2. Check the limit switch. Remove
the wire connection of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
3. Check the control board. Replace the control board if necessary.
The motor runs but
the gate doesn’t
move.
Ensure the clutch for emergency
release is adjusted properly and is not
slipping.

16
TOPENS Website
http://www.topenstool.com/
Any question, please do not hesitate to contact us:
E-mail: [e-mail]
Kindly include your Product Model, Purchasing Date & Site, Order #,
and your contact information. All your concerns will be replied within 24 hours.
Tel: [phone] (China)
Mon-Fri 9:00AM-5:30PM (UTC +08:00)
