Topens KD702 User manual

DualSwingGateOpener
User’sManual
Model:
TOPENS Website
http://www.topenstool.com/
VER 20a
KD702
★
Please read and follow all warnings, precautions and instructions before
installation and use.
★Never connect the solar panel to the control board directly to charge the battery.
★Periodic checks of the opener are required to ensure safe operation.
★Save this manual.
C030407

Table of Contents
Safety Installation Information....................................................................................................................... 1
KD702 Parts List ........................................................................................................................................... 2
Accessories Parts (Included in some models, refers to the actual package).......................................................3
Optional Accessories Parts List (Available at TOPENS Store).............................................................................3
Tools Needed: ............................................................................................................................................... 3
Technical Specifications & Features.............................................................................................................. 4
Installation Overview..................................................................................................................................... 5
Preparation for Installation ............................................................................................................................ 6
Install the Gate Opener on the Gate.............................................................................................................. 6
Mounting the Control Box............................................................................................................................ 10
Connection of Power Supply........................................................................................................................11
Connecting of the Control Board..................................................................................................................11
How to Program or Erase the Remote ........................................................................................................ 13
How to Use the Remote to Operate Your Gate Opener............................................................................... 14
Wireless Keypad Programming................................................................................................................... 14
Setting of the Control Board........................................................................................................................ 15
Indicate Illustration on the Digital Display When Gate Opener is Running.................................................. 18
Adjusting the Limit Switch ........................................................................................................................... 18
How to Operate........................................................................................................................................... 18
Maintenance................................................................................................................................................ 19
Trouble Shooting......................................................................................................................................... 19
Quick-Setting Guide.................................................................................................................................... 21

1
Safety Installation Information
1. READ and FOLLOW all instruction.
2. The gate opener is intended for use with Class I
vehicular swing gates.
Class I denotes a vehicular gate opener (or system)
dwellings, or a garage or parking area associated
therewith.
Install the gate opener only when the opener is
appropriate for the construction and the usage class of
the gate.
3. Gate opening system designers, installers and
users must take into account the possible hazards
associated with each individual application. Improperly
designed, installed or maintained systems can create
risks for the user as well as the bystander. Gate
system design and installation must reduce public
exposure to potential hazards. All exposed pinch
points must be eliminated or guarded.
4. A gate opener can create high levels of force
during normal operation. Therefore, safety features
must be incorporated into every installation. Specific
safety features include safety sensors.
5. The gate must be properly installed and work
freely in both directions prior to the installation of the
gate opener.
6. The gate must be installed in a location so that
enough clearance is provided between the gate and
adjacent structure when opening and closing to
reduce the risk of entrapment. Swinging gates shall
not open into public access areas.
7. The opener is intended for use only on gates used
for vehicles. Pedestrians must be supplied with a
separate access opening. The pedestrian access
opening shall be designed to promote pedestrian
usage. The pedestrian access shall be located such
that persons will not come in contact with the moving
vehicular gate.
8. Pedestrians should never cross the pathway of a
moving gate. The gate opener is not acceptable for
use on any pedestrian gate. Pedestrians must be
supplied with a separate pedestrian access.
9. For an installation utilizing non-contact sensors
(safety sensors), see product manual on the
placement of non-contact sensors (safety sensors) for
each type of application.
a. Care shall be exercised to reduce the risk of
nuisance tripping, such as when a vehicle trips the
safety sensor while the gate is still moving.
b. One or more non-contact sensors (safety sensors)
shall be located where the risk of entrapment of
obstruction exists, such as the perimeter reachable by
a moving gate or barrier.
10. Never mount any device that operates the gate
opener where the user can reach over, under, around
or through the gate to operate the controls. Controls
are to be placed at least 6’ (1.8m) from any part of the
moving gate.
11. Controls intended to be used to reset an operator
after 2 sequential activations of the entrapment
protection device or devices must be located in the
line of sight of the gate, or easily accessible controls
shall have a security feature to prevent unauthorized
use. Never allow anyone to hang on or ride the gate
during the entire travel of the gate.
12. Each gate opener is provided with two safety
warning placards. The placards are to be installed on
the front and back of the gate where they are plainly
visible. The placards may be mounted using cable ties
through the four holes provided on each placard.
All warning signs and placards must be installed
where visible in the area of the gate.

2
13. To AVOID damaging gas, power, or other
underground utility lines, contact underground utility
locating companies BEFORE digging.
SAVE INSTRUCTION.
14.Do not permit children to play on or around the
gate and keep all controls out of their reach.

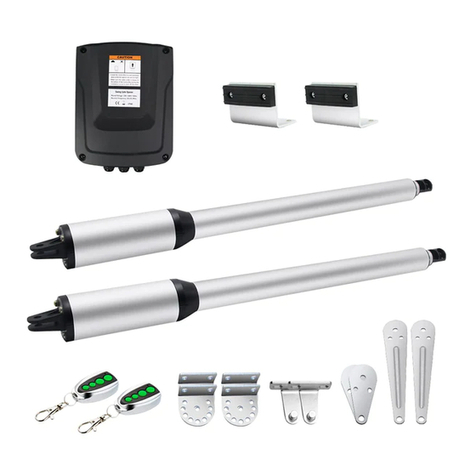

KD702 Parts List

3
Accessories Parts (Included in some models, refers to the actual package)
Optional Accessories Parts List (Available at TOPENS Store)
Tools Needed:
·
Power Drill
·
Tape Measure
·
Open End Wrenches —14# &17# or Adjustable Wrenches
·
Wire Strippers
·
C-Clamps —small, medium, and large
·
Level
·
Hacksaw or Heavy Duty Bolt Cutters
·
Phillips Screwdriver
·
An extra person will be helpful
Rev 20a

4
Technical Specifications & Features
Specifications
Model:
KD702
Input:
110V~120V/60Hz or 220~240V/50Hz
Motor voltage: 24VDC
Power: 2×30W
Current: 1.5A
Actuator speed: 16mm/s（0.6 in/s）
Max. actuator travel: 385mm（15.2 in）
Ambient Temperature: -20℃~ +50℃ (-4°F to 122°F)
Protection class:
IP44
Features:
·
Soft start and soft stop
·
Emergency release key in case of power failure
·
Dual/Single gate running mode
·
Adjustable opening/closing interval between
master and slave gate
·
Stop in case of obstruction during gate opening.
·
Reverse in case of obstruction during gate
closing.
·
Built in adjustable auto-close (0-99 seconds)
·Built in max. Motor running time (MRT)
adjustable for multiple safety protection (1-50
seconds)
·
Digital display indicates the running situation
and setting menu
·
Reliable electromagnetism limit for easy
adjustment
·
Can be equipped with a wide range of
accessories
·
Easy to install, and minimum maintenance
requirement
Rev 20a

5
Installation Overview
Important:
The second gate opener cable should be put into the PVC conduit
(not provided) which is buried underground .This protects the
cable from lawn mowers and string trimmers.
Rev 20a

6
Preparation for Installation
There are two installation types for the gate opener, Pull-to-Open and Push-to-Open.
In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket (PSO part) is
required to be used for each gate.
The gate opener is mounted to the gate and to the gate post. Both round and square posts can be used
because the Post Brackets are curved. When mounting the Post Brackets, use bolts long enough to pass
through the entire post. M10 x 200 bolts are included. Concrete anchors are not provided.
When mounting the Post Brackets to wooden posts, a larger-size washer or metal plate should be used
between the bolts and the wooden post to ensure the stability of the fastening hardware. If the post is smaller
than 6" diameter or square, it should be made of metal and set in cement to ensure its stability.
Install the Gate Opener on the Gate
The position of Post Bracket is very important. The following illustrations and tables are required to determine
the proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for
a given A and B. For example, if A is 15cm and B is 20cm, the maximum opening angle of the gate is 110°.
Pull-to-Open Installation — Gate in Closed position (Moving-Rod is extended)
NOTE: Ensure the gate does not open into public areas.

7
Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted)
1. Insert the M10 x 30 bolt through the center hole of the post bracket
and post pivot bracket as shown. Place a ￠10 washer , ￠10 lock
washer and M10 nut on the bottom of the bolt and hand tighten.
2. Attach the gate bracket and post bracket assembly to the opener by
inserting a clevis pin. Secure the clevis pins using the hairpin clips.
3. Open the release hole plug on the top of the gate opener, insert the
release key, and turn the key 90° clockwise. This releases the motor and
allows the push-pull rod to be manually extended and retracted. To restore
normal operation, turn the key 90° counterclockwise.
4. With the opener fully retracted and with the gate in the fully open
position (for Pull-to-Open installation) or fully closed position (for
Push-to-Open installation), place the gate opener with the Post Bracket
Assembly and Gate Bracket on the gate post and the gate. Position the
Post Bracket Assembly and Gate Bracket so that the gate opener is level.
While holding the gate opener in the level position, temporarily secure it with two C-clamps.

8
5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener
and the Post Pivot Bracket are not binding in both the gate-open and gate-closed positions. If there is not at
least 2.5cm of clearance or if the opener and the Post Pivot Bracket are binding, rotate the Post Pivot Bracket
and/or move the Post Bracket Assembly to obtain the minimum clearance and eliminate the binding. When the
minimum clearance has been obtained and any binding has been eliminated, place the M8 x 30 bolt through the
aligned holes in the Post Bracket and the Post Pivot Bracket.

9
6. Sign the bolt-hole point on the gate bracket and gate. Do this by placing a
punch or a sign in the middle of each bolt slot on the post bracket assemblies
and the gate bracket. It allows slight adjustments to the post bracket. Then
remove the post bracket and gate bracket by taking off the C-clamps.
7. Drill 10.5 mm diameter holes through the post and the gate at the marked
locations.
8. Attach the post bracket assemblies to the gate posts by inserting M10 x
200 bolts through each post bracket assembly and the drilled holes in the
gate post. Fasten each bolt with one ￠10 washer, one ￠10 lock washer,
and one ￠10 nut.
9. Attach the gate brackets to each gate by inserting two M10 x 75 bolts
through the gate brackets and the drilled holes in the gates. Fasten each bolt
with one ￠10 lock washer, and one
￠10 nut.
10. Cut off any part of the bolts that
extend beyond the tightened nuts.
11. With the gate opener fully
retracted and with the gate in the fully
open position (for Pull-to-Open
installation) or fully closed position (for
Push-to-Open installation), attach the
gate opener to the Post Bracket
Assembly and the Gate Bracket by inserting a clevis pin through the gate opener and the Post Pivot Bracket
and another clevis pin through the gate opener and the Gate Bracket. Secure each clevis pin with a hairpin clip.

10
12. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90°
counterclockwise. This restores normal operation.
Mounting the Control Box
CAUTION: Install the Control Box in a well ventilated place protected against rain and
Step 1
To install the control box use the deck screws (not provided).
Even though the control box is waterproof designed, for safety
reason and a longer service life, it is recommended to install the
control box inside a secure surface and at least 100 cm (40 inches)
above the ground to avoid being flooded or buried under snow.
Step 2
Insert the power cable and cable of the first gate opener through the front
strain relief and into the control box by loosening the strain relief screw
located in the leftmost of outside bottom of the control box and feeding the
cables into the control box. Check the length of cables is long enough to
their respective terminal block in control box.

11
sunlight.
Step 3
Insert the cable of the second gate opener and Warning Light cables into the control box through middle strain
relief. Then repeat step 2.
Step 4
Insert the cables of the optional parts into the control box through the right strain relief. Then repeat step 2.
Connection of Power Supply
WARNING: NEVER connect the gate opener to the power supply before all the installations have
been done.
Connect the power supply to the Control Box refers to
the following illustration.
NOTE:
1. Use copper conductors to connect to the power
supply terminals.
2. The wire (not provided) size should be at least
0.75mm2 (18AWG) which is intended to connect the
power supply.
3. Run the wires in conduit to the control box to
prevent damage to the wires from lawn mowers, weed
eaters and grazing animals.
4. The fuse in the control board is interchangeable. A
10a, 250vac, Φ5*20mm fuse is suitable to the control
board.
Connecting of the Control Board
Motor connection for PULL-TO-OPEN
Motor 1
Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should
be inserted into the “MOTOR1+” terminal, the black wire into “MOTOR1-“, the blue wire into ULT1, the green
wire into COM, and the thin yellow wire into DLT1 terminal.
Motor 2
Similar as the connection of Actuator 1, insert the stripped cable wires into the appropriate terminals on the
opener terminals block. The red wire should be inserted into the “MOTOR2+” terminal, the black wire into
“MOTOR2-“, the blue wire into ULT2, the green wire into COM, and the yellow wire into DLT2terminal.
NOTE: It is recommended that Gate Opener 1 is installed in the Master Gate, and Gate Opener 2 is installed in
the Slave Gate.

12

13
Motor connection for PUSH-TO-OPEN
The motors’ power wires and limit wires connection by “Push to
Open” is different from the connection by “Pull to Open”. So
motor 1 and motor 2 wires should be connected to the control box
as the instruction on the right.
Black wire should be inserted into the Motor+ terminal. Red wire
should be inserted into the Motor- terminal, the Yellow wire into
ULT1 terminal and the Blue wire into DLT1 terminal. Green wire is
still into COM terminal.
Warning Light (Included in some models, refers to the actual package)
The red wire of the warning light should be inserted into either +LAMP (#11) terminal, the white wire into the
LAMP-(#12) terminal.
Back-up Battery & Solar Panel & Solar Controller (optional)
If there is no solar panel to be used for charging the battery, then the “24V+” of the battery should be wired to
the BAT+ (#19) terminal. “24V-” should be wired to “BAT-” (#18) terminal.
The battery could also be charged by the solar panel & solar controller. Please refer to the manual instruction of
solar panel and controller separated for wire connection.
Photocell Beam System (PBS) (Included in some models, refers to the actual package)
Use a 2-core cable to connect the “- ~” terminal of the photocell’s emitter to the “14” terminal, the “+ ~”terminal
to the “13” terminal. Also the “- ~” and “+ ~”terminals of the photocell’s receiver should be connected to the
“14” and “13” terminals in parallel.
Use another 2-core cable to connect the “COM”terminal of the receiver to the “15” terminal, the “NC”terminal
to the “16” terminal.
Push Button (optional)
The push button should be wired to the GND (#16) and O/S/C (#17) terminals. The gate operator works
alternately by pushing the button (open-stop-close-stop-open).
External Receiver (optional)
The BROWN wire of the external receiver should be connected into the “17” terminal.
The BLACK wire of the external receiver should be connected into the “16” terminal.
The RED wire of the external receiver should be connected into the “13” terminal.
Wired Keypad (24VDC) (optional)
The RED wire of the wired keypad should be connected into the “13” terminal.
The BLACK wire of the wired keypad should be connected into the “14” terminal.
The PURPLE wire of the wired keypad should be connected into the “16” terminal.
The BLUE wire of the wired keypad should be connected into the “17” terminal.
How to Program or Erase the Remote
The remote MUST be programed to the opener BEFORE OPERATING. Please follow the steps to
program the remote.
Activate the opener only when gate is in full view, free of obstruction and properly adjusted. No one
should enter or leave gate area while gate is in motion. DO NOT ALLOW CHILDREN to operate push
button or remote. DO NOT ALLOW CHILDREN TO PLAY NEAR THE GATE.
If you purchase additional remote controls, the gate opener must be programmed to accept the new
remote code.
If you lose one of any remote control, please erase and reprogram all other remote controls to have a
new code for safety.

14
Program the remote
Press and release the learn button, the LED will display “Ln”, then press
the key in the remote twice in 2 seconds, the LED will flash “Ln” for 4
seconds then back to “- -”. Now the remote has been programed
successfully.
Erase all the remote codes
Press and hold the learn button until the LED display “dL”, release the
button and the LED will be back to “- -”. Now all remote codes have been erased.
NOTE: Max. 8 remotes can be programmed for the opener. An External Receiver (optional) allows up to
250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is
available at TOPENS Store.
TOPENS ERM12 Universal External Receiver is also compatible with other brand swing gate opener,
sliding gate opener and garage door opener.
How to Use the Remote to Operate Your Gate Opener
Each remote has four buttons, from top to bottom are separately A, B, C and D.
You may use this remote to operate as many as 4 sets TOPENS swing gate
openers or 1 set TOPENS sliding gate opener and 2 sets TOPENS swing gate openers.
1. Use this remote to only operate TOPENS swing gate opener
A, B, C and D four buttons share same function once they are programmed with
TOPENS swing gate opener. You may choose any button to program it with our swing
gate opener. Every press of the button is able to active the gate opener to work
alternately (open-stop-close-stop-open).
2. Use one remote to operate TOPENS swing gate opener & sliding gate opener at the same time
All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function (refer
to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate
opener, while you may program either C button or D button with TOPENS swing gate opener.
Wireless Keypad Programming
You can follow the below steps to program wireless keypad to the opener. Press the LEARN button until the
LED display “Ln”,and then release the button. Then press "OK" button on keypad and LED will flash “Ln” for 3
seconds and then back to “- -” which indicates the keypad has been programmed successfully. You can use the
default password “888888” to operate the opener after programming. You can press “PIN” “8 8 8 8 8 8” and then
press “OK” to confirm to operate the opener.
Also you can change the password of the keypad follow the below steps. Press “PIN” and then input the six
digits old password and then press “PIN” again, the LED will display “CH”. Input the six digits new password and
then press the “PIN” to confirm the new setting, LED will flash “CH” for 3 seconds and then back to “- -” which
indicates the password has been changed successfully. You can press “PIN” “6 digits new password” and then
press “OK” to confirm to operate the opener.

15
NOTE: Every step for pressing button during program must be finished within 1 second to ensure successful
programming.
Setting of the Control Board
WARNING: Ensure the gate opener is Power Off when you make any adjustment of the gate opener.
Keep away from the path of the gate during you set the gate opener system in case of the unexpected
gate moving. Carefully adjust settings to avoid the risk of machine damage and injury or death. Always
ask the help of professional technician /electrician if you have any question.
1. Check again for completed and correct assembly of your swing gate opener and gate. Plug the Power Cord
into the nearest AC outlet. The Digital Display on the Control Board will flash with “- -”. The unit is in standby.
2. Single/Dual Gate Set
Press and hold the “FUNC” button for more than 4 seconds. The Digital Display will indicate “P1”. Gate opener
is on the SINGLE/DUAL Gate setting. Press the “INC” and “DEC” buttons respectively to following modes:
“01” shown in Digital Display, it is Single Actuator 1 (Gate 1) mode. “10” shown in Digital Display, it is Single
Actuator 2 (Gate 2) mode. “11” shown in Digital Display, it is Dual actuator mode.
Press the “FUNC” button to store the data when the single or dual gate is chosen. The Digital Display will
indicate “P2”. Now single/dual gate set is finished.
(Factory set is “11”)
3. Master/Slave Gate Set
When Digital Display indicates “P2”, the gate opener is on the Master/Slave Gate Setting. Press the “INC” and
“DEC” Buttons respectively to follow modes:
“01” shown in Digital Display, which means Gate Opener 1 (right-hand side) as Master one
“10” shown in Digital Display, which means Gate Opener 2 (left-hand side) as Master one
Press the “FUNC” button to store the data when the master/slave gate is chosen. The Digital Display will
indicate “P3”. Now Master/Slave Gate Set is finished.
(Factory set is “01”)
4. Set the Open Interval between Master and Slave Gate
When the Digital Display indicates “P3”, the gate opener is on the Open Interval between Master/Slave Gate
Setting.
The open interval can be adjusted by pressing the “INC” and “DEC” Buttons respectively. The Digital Display
will show “0”-“9”, which indicates the interval time “0” means the Master and Slave gates open simultaneously.
“1” means the Master Gate starts to open 1 second before Slave gate starts to open. Max. open interval is 9
seconds. Each time you press and release the “INC” button, the figure increases by 1, and the Master gate
starts to open 1 more second earlier. Each time you press and release the “DEC” button, the figure decreases
by 1, and the interval decreases by 1 second.
(Factory set is 3 seconds)

16
Without a properly installed safety reversal system, person (particularly small children) could be SERIOUSLY INJURED
or KILLED by a closing gate.
*Too much force on gate will interfere with proper operation of safety reversal system.
*NEVER increase force beyond minimum amount required to close gate.
*NEVER use force adjustments to compensate for a binding or sticking gate.
* If one control (force or travel limits) is adjusted, the other control may also need adjustment.
* After ANY adjustments are made, the safety reversal system MUST be tested. Gate MUST BE TESTED. Gate MUST
reverse on contact with a rigid object.
The opener is equipped with an obstruction sensing feature. If the gate encounters an obstruction the opener will
automatically reverse direction and stop. Based on the length and weight of the gate it may be necessary to make force
adjustments. The force adjustment should be high enough that small objects such as branches or wind will not cause
nuisance interruptions but low enough to prevent serious injury to a person or a vehicle.
NOTE:
You may need to increase the stall force in cold weather due to increased resistance from
gate hinges. The gate opener’s opening/closing force is adjusted automatically according to stall force
adjustment.
Press the “FUNC” button to store the data when the open interval is set. The Digital Display will indicate “P4”.
Now Open Interval Set is finished.
5. Set the Close Interval between Master and Slave Gate
When the Digital Display indicates “P4”, the gate opener is on the Close Interval between Master/Slave Gate
Setting.
The close interval can be adjusted by pressing the “INC” and “DEC” buttons respectively. The Digital Display
will show “0”-“9”, which indicates the interval time ”0” means the Master and Slave gates close
simultaneously. ”1” means the Slave Gate starts to close 1 second before Master gate starts to close. Maximum
close interval is 9 seconds. Each time you press and release the “INC” button, the figure increases by 1, and the
Slave gate starts to close 1 more second earlier. Each time you press and release the “DEC” button, the figure
decreases by 1, and the interval decreases by 1 second.
(Factory set is 3 seconds)
Press the “FUNC” button to store the data when the close interval is set. The Digital Display will indicate “P5”.
Now Close Interval Set is finished.
6. Adjust the Obstruction Sensitivity/Stall Force
When the Digital Display indicates “P5”, the gate opener is on the Stall Force Adjustment.
6-a Adjust Stall Force of Gate Opener 1
Now we adjust the stall force of gate 1
The stall force of gate opener1 is adjusted by pressing “INC” and “DEC” buttons respectively. The Digital
Display will show “1”-“9” which indicates the stall force levels. “1” means the minimum force, and “9” is the
maximum force. Each time you press and release the “INC” button, the figure increase by 1, and the force
increases to a higher level. Each time you press and release the “DEC” button, the figure decreases by 1, and
the force decreases to a lower level. Press “FUNC” to store the data. The Digital Display will indicate “P6”.
Now stall force of gate opener 1 is finished.
(Factory set is Level 3)
6-b Adjust Stall Force of Gate Opener 2
When the Digital Display indicates “P6”.you can adjust force of gate opener 2.
Please perform the same procedure as gate opener 1 (6-a).
Press the “FUNC” button to store the data when stall force of gate opener 2 is set. Then “P7” will be shown on
the Digital Display.
7. Adjust the Max Motor Running Time (MRT) of the MOTOR for gate opener
The maximum running time of the MOTOR can be set to make the motor stop running after a specified period

17
Note:
If the “11” is be set, the gate opener won’t work until the PBS system is equipped. The PBS
system works only when gate opener is closing. The gate opener will return to its open position when
the obstruction blocks the beam from photo eye.
even if the limit switch is invalid or the clutch is detached.
7-a. Adjust the MRT of MOTOR1
When the Digital Display indicates “P7”, you can adjust the MRT of MOTOR1.
The MRT of MOTOR1 is adjusted by pressing “INC” and “DEC” buttons respectively. The Digital Display will
show “01”-“50” which indicates the MRT of MOTOR1 from 1 to 50 seconds.
You can hold pressing the “INC” or “DEC” button for more than 1 second to speed up the setting. Press the
“FUNC” button to store the data when you finish setting. The Digital Display will indicate “P8”.
(Factory default setting is “40” seconds)
7-b. Adjust the MRT of MOTOR2
When the Digital Display indicates “P8”, you can adjust the MRT of MOTOR2.
Please perform the same procedure as adjusting MOTOR1 (7-a).
Press the “FUNC” button to store the data when you finish setting. The Digital Display will indicate “P9”. Now
MOTOR2 adjustment is finished.
8. Set the Safety Photocell Beam System (PBS) (Optional)
When the Digital Display indicates “P9”, the gate opener enters PBS set mode.
You can press and release the “INC” or “DEC” button to set or shut off the PBS function. The Digital Display
indicates “11”, the PBS is available. The Digital Display indicates “00”, the PBS is null.
Press the “FUNC” button to store the data when the PBS is set. The Digital Display will indicate “PA”.
(Factory set is “00”)
9. Set the Automatic Closing Time
When the Digital Display indicates “PA”, the gate opener enters into the setting of automatic closing time mode.
Press and release the “INC” or “DEC” button, the Digital Display will show a “01”-“99” which indicates the
current automatic closing time. The minimum time is 1 second, 99 seconds maximum. Each time you press and
release the “INC” button, the figure increases by 1, and the timing increases by 1 second. Each time you press
and release the “DEC” button, the figure decreases by 1, and the timing decreases by 1 second. When the
timing is “00”, the automatic closing function is shut off and the gate will stay open.
(Factory set is 60 seconds)
Press the “FUNC” button to store the data when the desired automatic closing time is set. The Digital Display
will indicate “Pb”
10. Set the Period of Soft Start
When the Digital Display indicates “Pb”, the gate opener is ready for setting period of soft start.
You can press the “INC” or “DEC” button to set the period of soft start. There is 1-9 seconds available in setting.
Press the “FUNC” button to store the data when the period is set. The Digital Display will indicate “PC”.
(Factory set is 3 seconds)
11. Set the Fast Running Period (FRP) to Achieve Soft Stop Function (SPP)
When the Digital Display indicates “PC”, the Fast Running Period for opening or closing gate is adjustable by
pressing “INC” and “DEC” buttons respectively, and the Soft Stop Function is achieved simultaneously.
The Soft Stop means the gate opener runs at slow speed during the last period before the gate completely
closes. The Soft Stop Period is unavailable by direct adjust but available through adjusting the Fast Running
Period.
There are two running speeds designed in program, i.e. Fast Running Speed and Soft Running Speed. The
Fast Running Period is adjustable from 1 to 28 sec. Factory default setting is 15 sec.
Since the GATE OPENING OR CLOSING RUNING PERIOD (GRP) = SOFT START PERIOD (STP) + FAST
RUNNING PERIOD (FRP) + SOFT STOP PERIOD (SPP), the SPP could be extended by shortening the FRP
when the GRP and STP are fixed. In other words, SPP = GRP–STP–FRP.

18
Similarly, the Soft Stop Period (SPP) can be shortened through extending the Fast Running Period (FPP).
E.g. When the Soft Start Period (STP) is set at 3 sec, and the GRP is 23 sec, how can we get 4 sec of Soft Stop
Period (SPP) to meet the requirement? The answer is clear, i.e. we may set the Fast Running Period (FRP) at
16 sec (23 – 3 – 4 =16 sec).
12. Return to Factory Set
When the Digital Display indicates “Pd”, press and release the “INC” or “DEC” button. All data will return to
factory set, the Digital Display indicates “dF”.
13. If all of data is set and no other change needed, press “FUNC” Button. “- -” appears on the Digital Display,
and the opener enters standby mode.
Indicate Illustration on the Digital Display When Gate Opener is Running
The left image on Digital Display symbolizes motor of gate opener 2 when the gate opener is running. The right
image on Digital Display symbolizes motor of gate opener 1.
When the motor is run to gate -open direction or gate -close direction, the image on Digital Display indicates “n”
or “u” respectively.
When the motor is not running, the Digital Display indicates “- -”.
Adjusting the Limit Switch
Adjusting the Limit Switch of Actuator 1
The position of Limit Switch A was
fixed in factory, do not adjust it again.
Plug on the power to running gate
opener, use a screwdriver to loose the
screw of Limit Switch B, slide Limit
Switch B to the desired closed position
and fix it.
Limit setting for Gate 1 is finished now.
NOTE: Always place the magnetic ring between the Limit Switch A and B.
Adjusting the Limit Switch of Actuator 2
The position of Limit Switch C was fixed
in factory, do not adjust it again.
Use a screwdriver to loose the screw of
Limit Switch D, slide Limit Switch D to
the desired closed position and fix it.
Limit setting for Gate 2 is finished.
NOTE: Always place the magnetic ring
between the Limit Switch C and D.
NOTE: The magnetic ring in the moving rod can be manually placed between both Limit Switches in each
actuator by releasing the clutch.
How to Operate
The user may operate the opener once all adjustment setting is finished.
With the gate in its closed position, press and release the remote control, the gate will move to the programmed
opening position and stop.
