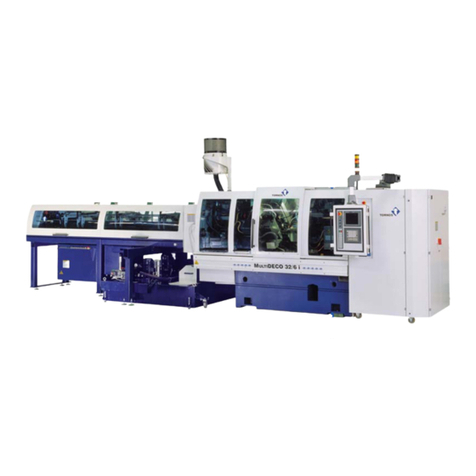

tornos MultiDeco Series Installation instructions

300428 en
TORNOS SA
CH−2740 MOUTIER
http://www.tornos.ch
MULTIDECO
LOGBOOK
AND PERIODICAL
MAINTENANCE
Printed in Switzerland Copyright E1999−2007
ΔATTENTION ! Before handling /
operating the machine, every user must first read the
SAFETY REGULATIONS !

LOGBOOK − MULTIDECO
Chap. 1.2 / 3
300428 en − 03/07
1. GENERALITIES
1.1 GENERAL INFORMATION
This document is written based on the information available at the moment of its publication.
TORNOS S.A. may not be held responsible, however, in case of errors or omissions.
The original language of this document is French.
The information contained in this document is the property of TORNOS SA, which is intended exclusively for
internal customer usage, and may not be disclosed to or reproduced for third parties.
1.1.1 Conformity to standards and directives
The “CE”-marking indicates that this product conforms to the European standards
of safety, health, environment and protection.
1.2 ADDRESSES
TORNOS S.A.
Rue Industrielle 1 1 1
CH−2740 MOUTIER / SUISSE
Tél. 032 / 494 44 44
Fax 032 / 494 49 03
TORNOS TECHNOLOGIES
IBERICA
Pol. Ind. El Congost
Avda. St Julia, 206 Nave 8
E−08400 GRANOLLERS
Tel. [phone]
Fax [phone]
TORNOS−TECHNOLOGIES
DEUTSCHLAND
Karlsruher Str. 38
D−75179 PFORZHEIM
Tel. [phone]
Fax [phone]
TORNOS TECHNOLOGIES
ITALIA SRL
Via Einstein, 24
I−20090 ASSAGO / MI
Tel. [phone]
Fax [phone]
TORNOS TECHNOLOGIES
FRANCE
Boîte postale 330
ST−PIERRE EN FAUCIGNY
F74807 LA ROCHE
S / FORON CEDEX
Tél. [phone]
Fax [phone]
TORNOS TECHNOLOGIES
US CORPORATION
70 Pocono Road PO. Box 325
BROOKFIELD CT 06804 / USA
Tel. (203) 775−4319
Fax (203) 775−4281
TORNOS TECHNOLOGIES
UK Ltd
Tornos House
Whitwick Business Park Coalville
Leicestershire
LE67 4JQ
Tel. [phone]
Fax [phone]
TORNOS SHANGHAI
REPRESENTATIVE OFFICE
Tower B, Office 512−513
Far East International Plaza
No. 319 Xianxia Road
CN−SHANGHAI 200335
Tel. +86 21−62351235
Fax +86 21−62351938

LOGBOOK − MULTIDECO
Chap. 1.4 / 4 300428 en − 03/07
1.3 DIFFERENTIATION OF DEGREES OF RISK
These instructions indicate a number of safety measure symbols which appear also on the machine and are
intended to protect the user, his/her effects and the environment from injuries and damage as applicable.
Below, you will find the safety symbols, their headings and definitions. Please, read these first before you con-
tinue.
ΔDanger !
indicates a direct danger of death or serious injury.
ΔWarning !
indicates an object or action which may cause death or serious injury.
ΔCaution !
indicates an object or action which may cause injury or serious damage.
.Attention !
indicates incorrect actions or such that may cause damage.
⊗Prohibition !
indicates an action or operation prohibited because of evident or alleged hazards.
⇒Info :
Gives information or comment related to safety.
Note :
Gives information unrelated to safety
1.4 IMPORTANT SAFETY INDICATIONS
ΔWarning !
Read the instruction before operating the machine.
Should the user disregard the instructions of this manual, TORNOS SA declines any liability what-
soever.
ΔAttention !
Certain maintenance works are absolutely necessary to ensure good operation of the machine. They
are given in the MAINTENANCE SCHEDULE on the machine
(or see Instructions: OPERATION-MAINTENANCE).
.Attention !
TORNOS SA disclaims all responsibility for any modifications carried out by the customer to the
machine, and to its related equipment and software, without agreement ratified by TORNOS SA.

LOGBOOK − MULTIDECO
Chap. 4. / 5
300428 en − 03/07
2. INSTRUCTIONS OF USE OF THE LOGBOOK
This logbook serves as link between the manufacturer and the user.
All incidents, major accidents, repairs and modifications and all the events regarding machine tests and (or) the
execution of particular customer applications must be strictly recorded (dated/signed) in the Logging of Interven-
tions (chap. 11) of this logbook.
⇒Information :
Any intervention of technical maintenance on the machine must be recorded in the Check Logging
(chap. 10).
Special pages are provided for this purpose here−after
⇒The present file must be constantly updated.
3. SERVICE AND SPARE PARTS
In case of major difficulty, call Service and Spare Parts office of TORNOS:
tel.: ++41 [phone]
Fax : ++41 [phone]
4. LIST OF MODIFICATIONS
OBJECT Date By

LOGBOOK − MULTIDECO
Chap. 5. / 6 300428 en − 03/07
5. START−UP, SOFTWARE VERSION, SETTING−UP
No. machine No. TORNOS order
No. of NC Net
Date of first
start−up Connection of hour counter on
Start−up by Other
Software version Start−up on: By
Equipment delivered with the machine (Part No., Program, Date, etc.)
General remark:

LOGBOOK − MULTIDECO
Chap. 6. / 7
300428 en − 03/07
6. DIRECTIVES FOR THE CHOICE OF LUBRICANTS
.Attention ! Comply with the list of recommended lubricants.
⊗Prohibition !
lubricants:
TORNOS SA prohibits the use of all lubricants (grease, oil) with chlorinated and/or active sulphurous
and heavy metal additives. Moreover, the degree of copper corrosion, in accordance with European
standard EN ISO 2160 must not be greater than 1.
TORNOS SA declines all responsibility in the event of damage caused due to inobservance of
these rules.
RECOMMENDED LUBRICANTS
AND
REQUIRED QUANTITIES
Form of lubricant / Object of lubrication
OIL
Cyclic lubrication
−−> 7.1.1
Lubrication of gearbox +
Indexing −−> 7.2.2
GREASE
Clamping rings and
cams −−> 7.2.1
Recirculating ball
screw −−> 7.3.1
TYPE OF LUBRICANT
Type
according to
norms
ISO−L−HG68
DIN CGLP68
HLP 68 NLGI−2 EP
MOTOREX MOTOREX 190EP
Castrol Magnaglide D68 LMX Grease
TEXACO TEXACO Way
Lubricant 68 Marfak Multi− purpose MP2
Mobil Vactra Oil No 2 MOBILUX EP2
Mobiltemp 1
Tonna TX 68
or
Tonna S68
RETINAX HD2
or
Alvania WR2
REQUIRED QUANTITY
for one machine
Quantity −−> 7.1.1 / 6 liters.
−−> 7.2.2 / 12 liters. < 400 g
for main-
tenance −−> 7.1.1 / 24 h −−> 7.2.2 / 250 h −−> 7.2.1 / 250 h −−> 7.3.1 / 1000 h
Remarks Check the level
and top up 1 cartridge of 400 g delivered with the machine

LOGBOOK − MULTIDECO
Chap. 7. / 8 300428 en − 03/07
7. DIRECTIVES FOR THE CHOICE OF CUTTING LIQUIDS
⊗Prohibited : Emulsions !
TORNOS forbids the use any water-miscible cutting liquids (emulsions) on MULTIDECO machine.
⊗Prohibited : Cutting liquids with additives !
TORNOS SA prohibits the use of any cutting liquids containing chlorinated, active sulfur or heavy metal
additives. In addition, the degree of copper corrosion according to the European standard EN ISO 2160
must not exceed 1.
TORNOS SA declines all responsibility in the event of damage caused due to inobservance of
these rules.

LOGBOOK − MULTIDECO
Chap. 8. / 9
300428 en − 03/07
8. FLOOR PLAN
15
23 4 6
MULTIDECO 26/6 and MULTIDECO 32/6i

LOGBOOK − MULTIDECO
Chap. 8. / 10 300428 en − 03/07
MULTIDECO 32/6c

LOGBOOK − MULTIDECO
Chap. 8. / 11
300428 en − 03/07
23 4
15
6
501
MULTIDECO 20/6 and MULTIDECO 20/8

LOGBOOK − MULTIDECO
Chap. 8. / 12 300428 en − 03/07
199265f3
23 4
1 5
6
MULTIDECO 20/8b

LOGBOOK − MULTIDECO
Chap. 8. / 13
300428 en − 03/07
199265f3
23 4
1 5
6
MULTIDECO 20/6b

LOGBOOK − MULTIDECO
Chap. 9.2.3 / 14 300428 en − 03/07
9. PERIODICAL MAINTENANCE & GREASING
.Attention !
− The maintenance plan must be complied with.
− For machines equipped with a barguide, the interior red tubes must absolutely be lubricated
before the introduction of the bars.
TORNOS SA declines any liability for damages caused by the disregard of these rules.
9.1 DAILY MAINTENANCE
What to do ? Remarks
Check the sieve and the suction filter ... of the main coolant tank
Clean the sieve and the suction filter ... of the main coolant tank
9.1.1 Cyclic lubrication Drawing: position 4
− Check the level and top up, every 24 hours Both circuits − cyclic and recirculation − are pro-
vided with an alarm with display on the screen
9.2 EVERY 250 HOURS
ΔAttention ! The number of hours means hours of machine operation.
⇒Refer to positions of floor plan above.
What to do ? Remarks
9.2.1 Greasing of clamping rings and cams Drawing: position 1
− Grease carefully all the cams, the clamping rings
and the toggles... ...according to greasing plan of the machine by means of a brush and the appropriate grease.
9.2.2 Lubrication of gearbox Drawing: position 2
− Check the oil level by the level indicator located in
the group on the back of the machine.
9.2.3 Tool coolant Drawing: position 3
− Check the coolant level... ...by the level indicator located on the tank.
− Top up the coolant
− Clean the flowrate sensor See instruction: OPERATION / MAINTENANCE

LOGBOOK − MULTIDECO
Chap. 9.2.5 / 15
300428 en − 03/07
EVERY 250 HOURS continied
What to do ? Remarks
9.2.4 Cleaning
− Clean:
− clamping collets,
− feeding collets,
− the interior of the spindles
and the suction filter of pumps including addition-
nal tank and filters. To mount and dismount,
See instruction: OPERATION / MAINTENANCE
− Remove the guiding guards of the carriage guid-
ing no. 2 and 3
− Unscrew the 4 screw 1of the guard A
then remove the swarf.
If necessary you may remove the guard B.− ... on MULTIDECO 20/6, 20/8, 20/6b, 20/8b
and 32/6i
A
B
1
− Clean the fans
9.2.5 Check
− Check the operation of the fans. −Drawing: position 6

LOGBOOK − MULTIDECO
Chap. 9.5.1 / 16 300428 en − 03/07
9.3 EVERY 1000 HOURS
⇒Information : Please refer to the machine positions described in the corresponding floorplan.
What to do ? Remarks
9.3.1 Greasing Drawing: position 5
− Grease the nuts of the ballscrews of the 13
machine slides axis. ...by giving 3 shots of the greasing pump.
− Grease the nuts of ballscrews of the frontwork
units (The nut must be in forward position) ...by giving 3 shots of the greasing pump.
− Grease the UNIBAL rodheads of the independent
feeds MOBILEX 47 (ISO 3458Xm2) MOLYKOTE BR2. See instruction: OPERATION / MAINTENANCE
9.3.2 Check
− Check the state and the tension of the main motor
belt. See instruction: OPERATION / MAINTENANCE
9.3.3 Cleaning
− Clean filtering cartridge of pneumatic circuit. See instruction: OPERATION / MAINTENANCE
9.4 EVERY 3000 HOURS
What to do ? Remarks
9.4.1 Replacement
− Change the filter cartridge Only if the Spraymist option is installed.
See document “OPTIONS AND TOOLS”
9.5 EVERY 6000 HOURS
What to do ? Remarks
9.5.1 Cleaning
−a) Clean and if necessary change suction filters of
recirculation lubrication circuit. See instruction: OPERATION / MAINTENANCE
−b) Clean the tanks of the two circuits: cyclic and
recirculation.

LOGBOOK − MULTIDECO
Chap. 10. / 17
300428 en − 03/07
10. PERIODICAL CHECK LOGGING
Hours
Counter Check # Report # OK Changed Clea- ned Remarks Date Sign ed

LOGBOOK − MULTIDECO
Chap. 10. / 18 300428 en − 03/07
Periodical check logging
Hours
Counter Check #
Report # OK Changed Clea- ned Remarks Date Sign ed

LOGBOOK − MULTIDECO
Chap. 10. / 19
300428 en − 03/07
Periodical check logging
Hours
Counter Check #
Report # OK Changed Clea- ned Remarks Date Sign ed

LOGBOOK − MULTIDECO
Chap. 10. / 20 300428 en − 03/07
Periodical check logging
Hours
Counter Check #
Report # OK Changed Clea- ned Remarks Date Sign ed
