Toro Pro Sneak 365 User manual

FormNo.3429-934RevB
ProSneak365VibratoryPlow
ModelNo.25403—SerialNo.404600000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3429-934*

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.
Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.
WARNING
CALIFORNIA
Proposition65Warning
Dieselengineexhaustandsomeofits
constituentsareknowntotheStateof
Californiatocausecancer,birthdefects,
andotherreproductiveharm.
Batteryposts,terminals,andrelated
accessoriescontainleadandlead
compounds,chemicalsknownto
theStateofCaliforniatocause
cancerandreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thismachineisintendedforuseinvariousearth
andmaterialsmovingactivitiesforlandscaping
andconstructionwork.Itisdesignedtooperate
attachments,eachofwhichperformaspecialized
function.Usingthisproductforpurposesother
thanitsintendedusecouldprovedangerousto
youandbystanders.Donotmodifythemachineor
attachments.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Keepthemanualwiththemachine.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g312575
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety.......................................................................4
GeneralSafety...................................................4
SafetyandInstructionalDecals..........................5
ProductOverview....................................................11
Controls............................................................11
Specications..................................................13
Attachments/Accessories.................................13
BeforeOperation.................................................14
BeforeOperationSafety...................................14
AddingFuel......................................................14
CheckingtheInterlockSystem..........................15
PerformingDailyMaintenance..........................15
DuringOperation.................................................16
DuringOperationSafety...................................16
RotatingtheWheels.........................................17
StartingandShuttingOfftheEngine.................17
OperatingtheVibratoryPlow............................18
AfterOperation....................................................19
AfterOperationSafety......................................19
TransportingtheMachine.................................20
Maintenance...........................................................21
MaintenanceSafety..........................................21
RecommendedMaintenanceSchedule(s)...........21
Pre-MaintenanceProcedures..............................22
OpeningtheHood............................................22
Lubrication..........................................................23
GreasingtheMachine.......................................23
EngineMaintenance...........................................24
EngineSafety...................................................24
ServicingtheAirCleaner..................................24
ServicingtheEngineOil....................................25
ServicingtheDieselParticulateFilter
(DPF)............................................................27
FuelSystemMaintenance...................................27
CheckingtheFuelLinesand
Connections..................................................27
DrainingtheFuelFilter/WaterSeparator...........27
ReplacingtheFuelFilterCanister.....................28
DrainingtheFuelT ank......................................28
ElectricalSystemMaintenance...........................28
ElectricalSystemSafety...................................28
ServicingtheBattery.........................................28
DriveSystemMaintenance..................................29
ServicingtheTires............................................29
ServicingtheTransmissionandAxles...............30
CoolingSystemMaintenance..............................31
CoolingSystemSafety.....................................31
ServicingtheCoolingSystem...........................31
BeltMaintenance................................................33
CheckingtheAlternatorDriveBelt
Tension.........................................................33
ReplacingtheDriveBelt...................................33
ControlsSystemMaintenance.............................34
CheckingtheParkingBrake.............................34
AdjustingtheTractionDriveforNeutral.............34
CleaningtheDirectionalControlsLinkage
Assembly......................................................34
HydraulicSystemMaintenance...........................35
HydraulicSystemSafety...................................35
ServicingtheHydraulicSystem........................35
ROPSMaintenance.............................................38
CheckingandServicingtheROPS...................38
Cleaning..............................................................39
RemovingDebrisfromtheMachine..................39
CleaningtheChassis........................................39
Storage...................................................................40
StorageSafety..................................................40
Storage.............................................................40
Troubleshooting......................................................41
3

Safety
DANGER
Theremaybeburiedutilitylinesinthework
area.Diggingintothemmaycauseashock
oranexplosion.
Havethepropertyorworkareamarkedfor
buriedlinesanddonotdiginmarkedareas.
Contactyourlocalmarkingserviceorutility
companytohavethepropertymarked(for
example,intheUS,call811orinAustralia,
call1100forthenationwidemarkingservice).
GeneralSafety
Alwaysfollowallsafetyinstructionstoavoidserious
injuryordeath.
•Slopesareamajorfactorrelatedtoloss-of-control
andtip-overaccidents,whichcanresultinsevere
injuryordeath.Operatingthemachineonany
slopeoruneventerrainrequiresextracaution.
•Operatethemachineupanddownslopeswiththe
heavyendofthemachineuphillandtheloadclose
totheground.Weightdistributionchangeswith
attachments.Anemptyload-bearingattachment
makestherearofthemachinetheheavyend,
andafullload-bearingattachmentmakesthe
frontofthemachinetheheavyend.Mostother
attachmentsmakethefrontofthemachinethe
heavyend.
•Havethepropertyorworkareamarkedforburied
linesandotherobjects,anddonotdiginmarked
areas.
•ReadandunderstandthecontentofthisOperator’s
Manualbeforestartingtheengine.
•Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.
•Neverallowchildrenoruntrainedpeopleto
operatethemachine.
•Keepyourhandsandfeetawayfromthemoving
componentsandattachments.
•Donotoperatethemachinewithouttheguards
andothersafetyprotectivedevicesinplaceand
workingonthemachine.
•Keepbystandersandchildrenoutoftheoperating
area.
•Stopthemachine,shutofftheengine,andremove
thekeybeforeservicing,fueling,orunclogging
themachine.
Improperlyusing,modifying,ormaintainingthis
machinecanresultininjury.T oreducethepotential
forinjury,complywiththesesafetyinstructionsand
alwayspayattentiontothesafety-alertsymbol,
whichmeansCaution,Warning,orDanger—personal
safetyinstruction.Failuretocomplywiththese
instructionsmayresultinpersonalinjuryordeath.
4

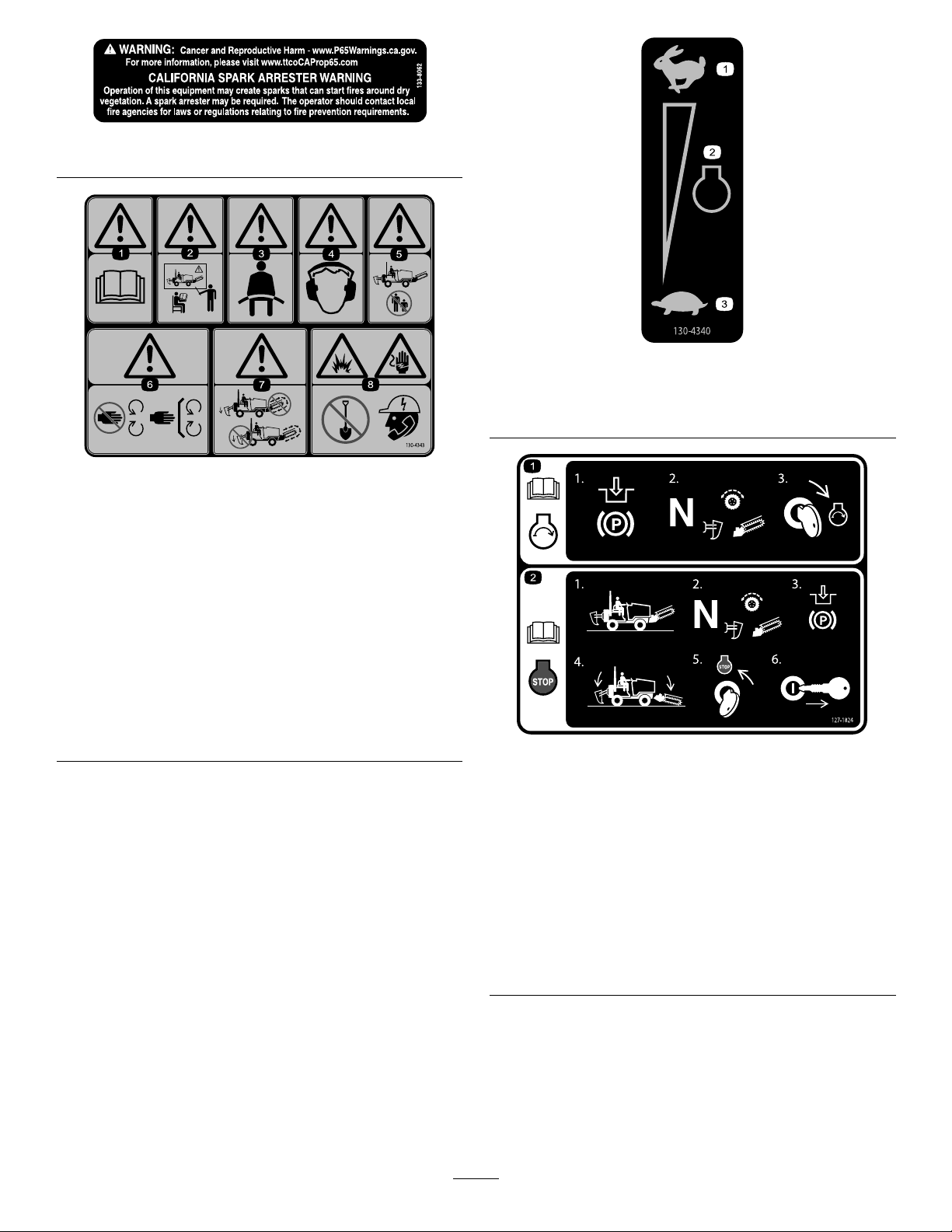

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
g037431
Figure3
1.125-66883.106-5976
2.120-0627(bothsidesof
themachine)
4.125-6694(bothsidesof
themachine)
decal125-6688
125–6688
1.Explosionhazard—ReadtheOperator’sManual;Donot
usestartinguid.
decal120-0627
120-0627
1.Cutting/dismembermenthazard,fan—stayawayfrom
movingparts,keepallguardsandshieldsinplace.
decal106-5976
106-5976
1.Enginecoolantunder
pressure
3.Warning—donottouchthe
hotsurface.
2.Explosionhazard—read
theOperator'sManual.
4.Warning—readthe
Operator'sManual.
decal125-6694
125–6694
1.Tie-downlocation
5
