Toshiba OIS PLUS Series User manual

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 2of 24
OIS PLUS
OIS PLUS = PLC + OIS + Clip-on I/O
The OIS PLUS Series touchscreens are updated versions of the operator interface stations OIS55 and OIS60.
The PLUS versions contain PLC functionality and accommodate optional clip-on I/O modules (digital, analog &
communication).
♦Common Tags for Display & PLC ♦Recipes & Data Logging
♦Multi-Language with True Type Fonts ♦Connection to Modbus Field Networks
♦Built-in PID ♦Connection to other Industrial Equipment
♦Hi-Speed Inputs, PWM Outputs ♦View Ladder & Screen Simultaneously
♦Save Tags in OIS PLUS ♦Multi-state Bitmaps & Objects
♦Wide Variety of I/O & Com Modules ♦USB port; Programming & Data Collection
♦Large Symbol Library ♦Floating Point Numbers
♦Create up to 10 Template Screens
OIS60 PLUS
6” Color Touchscreen
5 Clip-on I/O Modules
Clip-on I/O Module
OIS55 PLUS
3 ½” Color Touchscreen
3 Clip-on I/O Modules
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 3of 24
Touchscreen--OIS PLUS
OIS MODELS
OIS55 PLUS
3 ½” Color Touchscreen
OIS60 PLUSs
6” Color Touchscreen
OIS45E PLUS
4.3” Color Touchscreen w/Ethernet
OIS70E PLUS
7” Color Touchscreen w/Ethernet
Under Develo
p
ment
Under Develo
p
ment
24 Vdc Power Connection
O
p
tional Batter
y
2 RS232/RS485
Com Ports
2 USB Ports
I/O Module
Connection
♦OIS45 PLUS & OIS55 PLUS have same
dimensional cutouts.
♦OIS60 PLUS & OIS70 PLUS have same
dimensional cutouts.
♦Only OIS55 PLUS and OIS60 PLUS have
function keys with indicator LEDs.
♦I/O Modules are common to all OIS PLUS
touchscreens. For a list of I/O modules see
page 17.
Clip-on I/O Module
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 4of 24

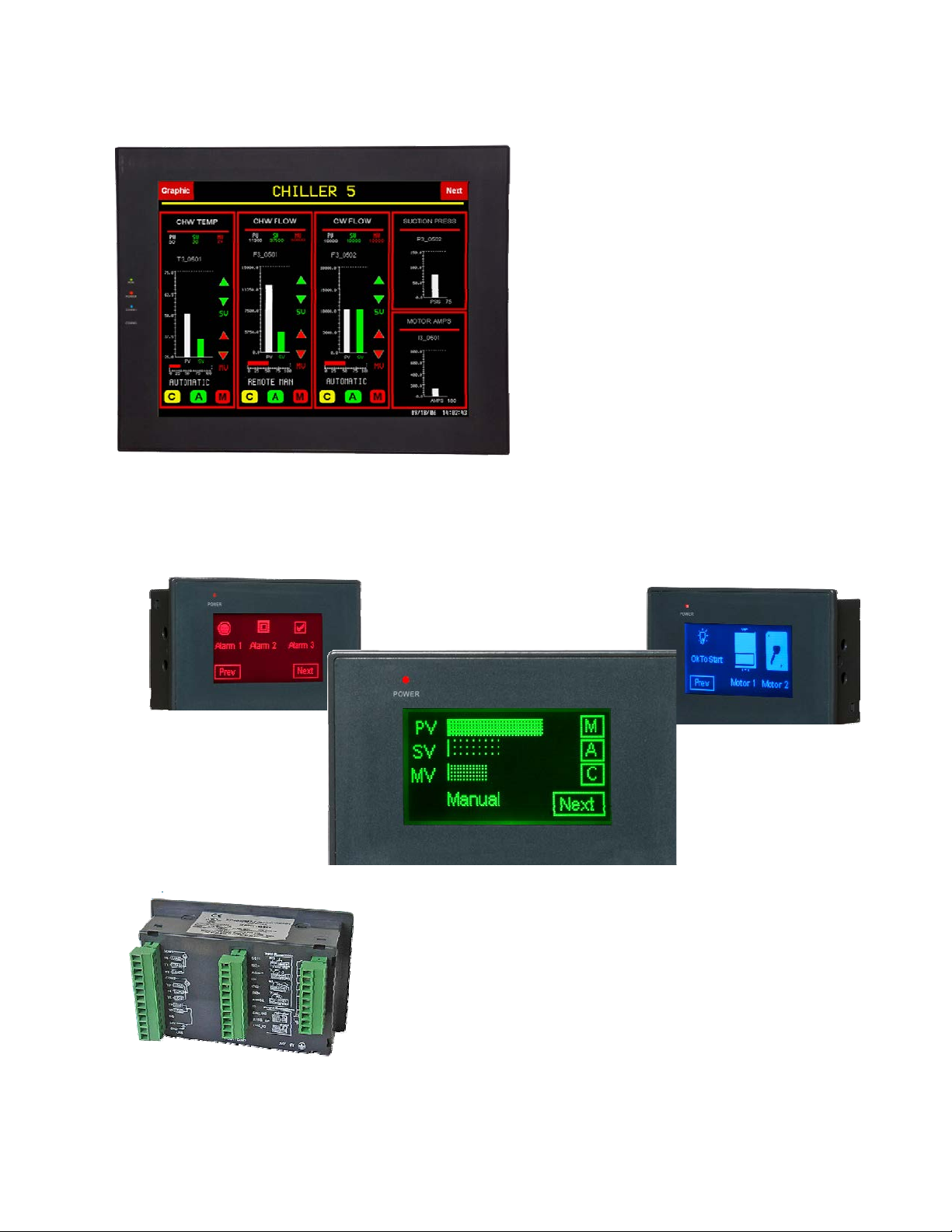

Large Touchscreen—OIS120A
LCD Touchscreens
OIS120A
12” Color Touchscreen w/Ethernet A Large Display for Monitoring &
Changing Data in Toshiba Control
Devices
Alarms & Trending
Large Number of Special Objects
Unlimited Screens (based on memory)
3 Communications Ports (1 Ethernet).
Multiple Language (Unicode) Support
Compact Flash Memory
No Clip-on I/O Modules.
3” Multicolor backlit Touchscreen.
Screens can be Red, Green, Blue or
any combination of the 2 or 3 colors.
Full PLC Ladder
Logic Functionally
Screen color can
be determined by
the status of the
connected
devices.
OIS40/42 PLUS
OIS42 PLUS --With Built-in I/O
8 24 Vdc Inputs, 4 HS Inputs, 25 Khz.
6 Relay Outputs
2 Transistor Outputs/2 HS Outputs, 25Khz
2 Analog Inputs
mA, Vdc, TC, and RTD.
1 Analog Output
mA, Vdc
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 5of 24
KeyPad OIS
All the best features of past Toshiba PLCs are built into the OIS20 PLUS. Remember the EX20 (80s), M20
(90s) & T1-28 (00s), now there is the OIS20 PLUS (10s)
In addition, the OIS20 PLUS has:
3.1” Graphical, Multicolor,Backlit LCD Display
18 Function/Numerical Entry Keys
1 Serial Communications Port
Modbus, Toshiba ASD, or Serial Printer
OIS10 PLUS--With Built-in I/O
8--24 Vdc
Inputs
24 Vdc Input
Power Supply
OIS12--No I/O
OIS12 is same as OIS10 PLUS but no built-
in I/O. For connection to Toshiba PLCs,
Integrated Controllers, ASDs, or any device
with Modbus serial protocol.
OIS20 PLUS--With Built-in I/O
12--24 Vdc Inputs
6--Relay Outputs
2--Transistor Outputs
6--Relay Outputs
2--Transistor Outputs
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 6of 24
OIS PLUS I/O Modules
These modules clip onto the back of the OIS PLUS. All terminal strips are removable.
The following modules are available.
Digital I/O
TRPDIX1600 16 Inputs, 24 Vdc (sink/source).
TRPDOX0016N 16 Outputs 24, Vdc, transistor NPN.
TRPDOX0016P 16 Outputs 24, Vdc, transistor PNP.
TRPROX0012 12 Outputs, Relay, 240/120 Vac, 2a per common.
TRPDIO0808N 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, NPN.
TRPDIR0808P 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, PNP.
TRPHIO0808N 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),
Transistor, 24 Vdc, NPN.
TRPHIO0808P 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),
Transistor, 24 Vdc, PNP.
Analog I/O
TRPADT0400 4 Inputs, 4-20 mA/0-10 Vdc, 12 bit.
TRPAIO0202L 2 Inputs, 0-20 mA/0-10 Vdc, & 2 Outputs, 0-20 mA/0-10 Vdc, 12 bits each.
TRPRTX0402 4 - Inputs, 0-10 V, 4-20 mA, RTD, TC, 2-Outputs, 0-10 V, 4-20 mA, 16 bits each.
OIS55 PLUS OIS45E PLUS
OIS60 PLUS OIS70E PLUS
24Vdc Power
Connection Removable
Terminal Stri
p
s
Clips for
Attaching
to OIS
PLUS
For
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 7of 24

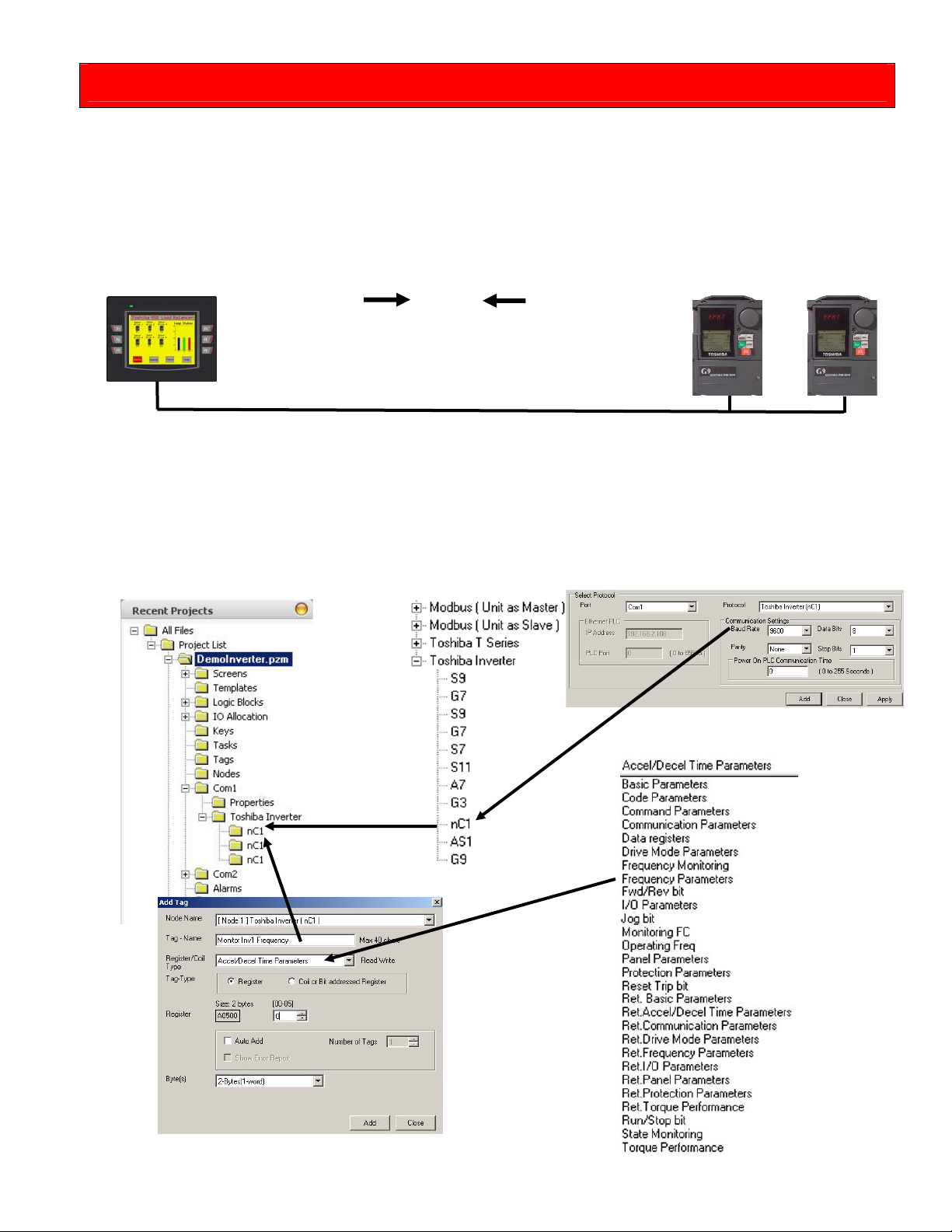

Connection to ASDs:
The OIS PLUS can receive multiple types of inputs (digital, analog, thermocouple, RTD, etc) and use these
to control ASDs (adjustable speed drives). The OIS PLUS has the ASD parameters immediately available in
the setup software, no special programming is necessary.
A.
Setup ASDs:
Simple setup software allows each type of equipment to be defined, mapped, and tagged.
KEY FEATURES
Ethernet connection is also available (requires Ethernet switch for more than 1 ASD)
RS485, Toshiba ASCII Protocol or Modbus
OIS55 PLUS Send to ASD
Run/Stop, Jog
Accel/Decel Time,
Forward/Reverse,
Operating Freq.,etc.
Send to OIS Plus
Fault Status, Power Output,
Voltage Output, Current Output
Frequency Output, etc.
ASD 1 ASD 2
Navigate with Project Navigator
Select Device
for each Com
Port & Node Select Communication Parameters for Device
Assign Tags
to each
Device
Define
Device
Tags
1
2
3
4
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 8of 24
Graphic Symbols:
The OIS PLUS (operator display) has a large selection of graphics for almost any industrial or
process application. For the really special applications, user created bit maps can be imported into
the OIS PLUS.
Normal Warning Alarm
Multi-State Indicators Tanks, Pipes, & Valves
Switch Pairs
Create a graphical representation for a
designated process. Add process
indicators as desired.
Colors and text can change based on
the ON/OFF bit status or the value in a
register.
One or the other of the pair will be
displayed depending on bit status
(Inputs, Outputs, etc..
Multiple Languages
Tags can be created in any language supported by
Microsoft. Selecting the language button will cause
all tags to be displayed in the selected language.
Trending
Displaying trends graphically provides easier
interpretation of process/system change. Both
simple trending and historical trending are
available.
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 9of 24

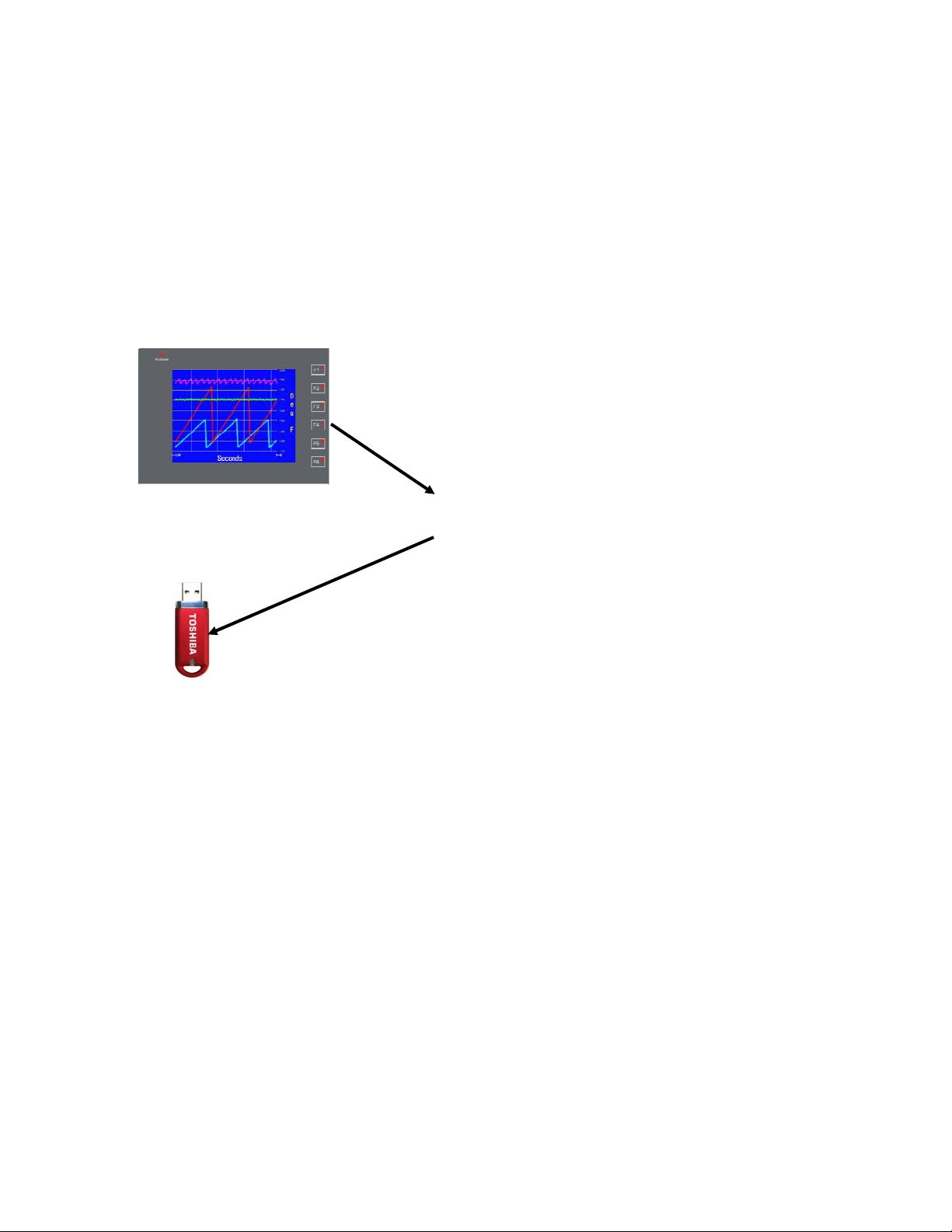

Data Logging:
In many testing procedures, production runs, or process steps, it is as import to log system parameters as it
is to control the sequences. The larger OIS PLUS have the capability to log user defined data. This data can
be exported to a *.csv file and saved on a USB memory drive. From the memory drive, the data can be
imported into MS Excel, MS Access, Lotus 1-2-3, etc. for further analysis. Logging can be specified by group
and by when to start: Logging can start and stop on command.
Power-up Time/Date Key Task Event Occurrence
Logged data can be very useful for many different purposes:
♦QC verification that all parameters are within acceptable range.
♦Confirmation that critical parameters meet regulatory agency compliance specifications.
♦Substantiation of system status for use in incident analysis.
DateTimeTag1Tag2Tag3Tag4Tag5
10/08/1610:152501005000
10/08/1710:153451006000
10/08/1813:305401007000
10/08/1913:305401007000
10/08/2015:005451007000
10/08/2115:002501006000
10/08/2215:003501005000
USB Memory Drive
*.csv File
OIS Plus
Data logging can be initiated from either the touchscreen or the
ladder program. File transfer to the USB memory drive can be
done without stopping the OIS Plus. Data transfer from the OIS
PLUS can either overwrite an existing file on the USB memory
drive or create a new file.
Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Page 10 of 24
The OIL-DS (Operator Interface & Logic Development Software) runs on any Toshiba notebook computer or
PC compatible computer running MS Windows 2000/XP/Win7 (32/64 bit). It is used for developing both the
display screens and the control program (using ladder logic and function blocks).
Programming Environment:
PROGRAMMING SOFTWARE
Navigation Screen
Object Properties Screen
Ladder Logic Development Area Ladder Properties Screen
Display Screen Work Area
