TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–2–
Contents
1 Precautions for Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Before Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Connection of Power cable and Signal wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Trial Operation Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
• Thank you very much for purchasing this TOSHIBA TCB-IFGSM1E.
• Please read this manual carefully beforehand for proper installation of the TCB-IFGSM1E.
1-EN
+00DE89409101_01EN_Telecon_IM.book Page 2 Thursday, May 21, 2009 3:04 PM

–3–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
1Precautions for Safety
Manual readers
This manual is intended for those who have the required knowledge/Qualifications for electric or control and are in
charge of any of the following:
• Installation of the product
• Design of the control system
• Management of the site
Agreements for use of this product
(1) Scope of warranty
If a failure occurs in this product as a result of our fault or negligence we will provide replacement or repair of the
product.
We will not be responsible if the fault occurs as a result of any of the following.
• The product was handled or used under conditions/environment that are not specified in this manual.
• The failure was caused by aspects outside of this product.
• The product was altered or repaired by persons other than Toshiba Carrier.
• The product was not used in accordance with its original purpose.
• The cause of the failure was not foreseeable with our scientific and technical levels at the time of shipping.
• The failure is due to a natural calamity, disaster, or the like.
The warranty mentioned here shall cover only this product, and any damage and losses resulting from the failure
of this product shall be excluded from the scope of warranty.
(2) Restrictions of liability
In no event shall we be liable for any special, indirect, or consequential damage arising out of or in connection with
the use of this product.
(3) Conditions for use of this product
• When this product is to be used in combination with other products, the dealer or qualified professional shall
check the applicable standards, specifications, laws, and regulations beforehand. The dealer or qualified
professional shall also verify that this product conforms to the customer’s system, machines, and/or equipment
in which this product is to be used. If the dealer or qualified professional fails to do so, we shall not be responsible
for the conformity of this product.
• When you wish to use this product for any of the following purposes, be sure to consult our sales staff and use
this product with a margin of rating and performance, as well as take appropriate safety measures for safety
circuit, mechanism, etc. that will minimize danger in case of a failure.
* Use this product outdoors or for purposes that may cause latent chemical contamination or electrical
interference or use under conditions/environment that are not specified in this manual.
* Use this product in nuclear power control facilities, incineration facilities, railway/airline/vehicle facilities,
medical equipment, amusement machines, safety devices, and equipment/facilities that are restricted by
administrative organizations and/or respective industries.
* Use this product in systems, machines, or equipment that may pose a danger to human life or properties.
* Use this product in systems or facilities that require high reliability, such as gas/water/electricity supply
systems and non-stop operation systems.
* Use this product for other purposes that require a high level of safety.
• Thoroughly understand and strictly observe all prohibitions and precautions for use stated in this manual to
prevent contingent damage or losses to you or other persons due to improper use of this product.
(4) Changes to specifications
The specifications described in this manual is subject to change for improvement or other reasons without notice.
Contact our sales staff to confirm the latest specifications of this product.
2-EN
+00DE89409101_01EN_Telecon_IM.book Page 3 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–4–
• Read these “Precautions for Safety” carefully before installation.
• The precautions described below include important items regarding safety. Observe them without fail.
• After the installation work, perform a trial operation to check for any problem. Explain how to use and maintain
the unit to the customer. Ask the customer to keep this Installation Manual.
WARNING
•Ask an authorized dealer or qualified installation professional to install or reinstall the TCB-IFGSM1E.
Improper installation may result in electric shock or fire.
•Turn off the main power supply switch or breaker before attempting any electrical work.
Make sure all power switches are off. Failure to do so may cause electric shock.
•Perform installation work properly according to this Installation Manual.
Improper installation may result in electric shock or fire.
•Do not modify the unit.
Any modification may cause a malfunction, resulting in overheating or fire.
CAUTION
•Perform wiring correctly in accordance with the specified the current capacity.
Failure to do so may result in short-circuit, overheating, or fire.
•Connect the specified cables for the terminals securely to prevent external forces from affecting them.
Failure to do so may result in disconnection, overheating, or fire.
3-EN
+00DE89409101_01EN_Telecon_IM.book Page 4 Thursday, May 21, 2009 3:04 PM

–5–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
2Introduction
Applicable Air Conditioner Models
The following models equipped with home automation (HA) connector CN08/CN09/CN22,
The following models equipped with connector CN61:
Applicable Areas
Global System for Mobile Communications (2G digital mobile phone communication system) service areas.
DAISEIKAI
RAS-B**GKVP-E
RAS-B**GKCVP-E
RAS-B10SKVP-E
RAS-B13SKVP-E
RAS-B16SKVP-E
RAS-10SKVP-ND
RAS-13SKVP-ND
RAS-16SKVP-ND
RAS-10SKVR-E
RAS-13SKVR-E
RAS-16SKVR-E
RAS-18SKVR-E
RAS-22SKVR-E
RAS-10SKV-E
RAS-13SKV-E
RAS-16SKV-E
RAS-18SKV-E
RAS-22SKV-E
RAS-**PKVP-E
RAS-**PKVP-ND
RAS-M**PKVP-E
RAS-M**PKVP-ND
Inverter High wall RAS-**GKV-E2
Inverter Multi
High wall RAS-M**GKV-E2
RAS-M**GKCV-E2
Duct RAS-M**GDV-E
RAS-M**GDCV-E
S-MMS, S-HRM, Mini-SMMS, DI, SDI
4-EN
+00DE89409101_01EN_Telecon_IM.book Page 5 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–6–
Applications, Functions and Features
External View
Applications: The GSM Phone Control Interface TCB-IFGSM1E allows ON/OFF control of air conditioners,
operation status monitoring, and alarm monitoring from a GSM mobile phone. This interface is
suitable for remote air conditioning control of empty homes and unmanned facilities.
Functions: Equipped with an RS-232C connector for connection to a GSM modem and a connector for
connection to an indoor unit of air conditioner, the TCB-IFGSM1E receives air conditioner ON/
OFF setting SMS message sent from a GSM mobile phone via the GSM modem, analyses SMS
message characters, and then performs air conditioner settings through the indoor unit connector
according to the analysis result. When the TCB-IFGSM1E receives a status acquisition request
SMS message, it sends a response air conditioner ON/OFF status SMS message. Furthermore,
for custom and S-MMS indoor units equipped with connector CN61, the TCB-IFGSM1E
automatically notifies the destination of the registered telephone number in case of an alarm.
Features: The TCB-IFGSM1E provides the simplest operation for commands to air conditioners with a text
message using the short message service (SMS).
Parts name Specification
➀Case Plastic (nonflammable ABS resin)
➁RS-232C connector D-sub 9-pin male connector
➂DC plug jack 6.3 Ø
➃Grommet 9 Ø
GSM Modem
Telephone number
RS-232C
GSM Phone Control
Interface
TCB-IFGSM1E
GSM mobile phone
Small type, custom,
S-MMS indoor unit
ON SMS text massage
Local Site
HA connector CN08/CN09/CN22,
CN61 (medium types)
STATUS
1
2
80
125 32
3
4
5-EN
+00DE89409101_01EN_Telecon_IM.book Page 6 Thursday, May 21, 2009 3:04 PM

–7–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
3Before Installation
Specifications
(*1) Thickness of insulator must be at least 1 mm. When the insulator is thinner than 1 mm, put the wire into a vinyl
tube with insulator thicker than 1 mm.
(*2) Varies with use environment and conditions.
An AC adaptor unit required when connecting to the HA connector CN08/CN09/CN22 must be procured locally.
The AC adaptor must meet the following requirements.
Media used Global System for Mobile Communications (2G digital mobile phone
communication system)
Operation Air conditioner control items Air conditioner ON/OFF control is designated by mobile phone SMS message.
Air conditioner status
acquisition items Air conditioner ON, OFF, and alarm status is notified by mobile phone SMS message. (Auto-notification is provided only when CN61 is used.)
Operation/notification target
telephone number Up to 5 numbers can be registered initially.
Accessible telephone
number Up to 5 numbers can be registered initially.
TCB-IFGSM1E
hardware Power supply Specified by AC adapter
No external power supply is required when CN61 is used.
Power consumption 1.1 W
RS-232C connector Supports communication specifications (9600bps, non-parity, 8 bits, 1 stop bit,
flow control provided/none)
D-sub 9-pin male connector
Protocol: Supports ETSI GSM 07.05, GSM 07.07, GSM 03.40, GSM 03.38
standard compliant SMS-related AT commands.
Connector for the air
conditioner Photocoupler HA connector specification, 12 VDC power input, alarm input
CN3: HA connector (For CN08/CN09/CN22)
CN4: For CN61
Operating temperature/
humidity 0 to 40°C, 20 to 85% RH
Storage temperature -10 to 60°C
Chassis material Plastic (nonflammable ABS resin UL-94V0)
Dimensions 32 (H) × 80 (W) × 125 (D) mm
Mass 150 g
No. Line Description
1RS-232C cable Type Straight-type cable with D-sub 9-pin male-female connectors
Wire size Conforming to RS-232C
Length Max. 15 m
2Indoor unit cable Type Multi-core wire
Wire size Stranded wire (*1) 0.08097 to 3.309 mm² (AWG28 to AWG12)
Length Max. 2 m (*2)
3Power Specified by AC Adapter
Not required when CN61 is used
6-EN
+00DE89409101_01EN_Telecon_IM.book Page 7 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–8–
REQUIREMENT
• Output voltage: 7-19 V ± 5 %
• Output current: Min. 0.1 A
• Shall conform to IEC safety standards (including EN60950-1 or IEC 60950-1, etc), and shall have been certified
as required for EMI standards (EN550022 and EN61000-3) and EMS standards (including EN50024,
(EN61204-3), and EN61000-4).
• Shall meet environmental conditions and required lifetime.
• DC Plug 2.1mmØ (inner diameter)
5.5mmØ (outer diameter)
10mm (length)
Recommended product is
Model name: UI312-1508 produced by UNIFIVE TECHNOLOGY CO., LTD
Homepage addresses of UNIFIVE TECHNOLOGY CO., LTD are
http://www.unifive-us.com/, http://www.unifive.com.tw/, http://www.unifive.co.kr/, http://www.unifive.com/ or http:/
www.unifive-c.com/.
Parts Supplied with the Product and Required Materials
Parts Required for Tests
Write down the GSM modem telephone number, PIN, and PUK number.
Part name Description / Specification Quantity Procurement
GSM Phone Control
Interface TCB-IFGSM1E This product 1 Supplied
GSM modem Provided with an RS-232C connector and the SMS-related AT
command function.
Conforming to ETSI GSM 07.05, GSM 07.07, GSM 03.40, and
GSM 03.38 standards.
1 Procured locally
(including power
supply)
Power supply Not required when CN61 is used. 1 Procured locally
RS-232C cable Used for connection to between GSM modem and TCB-IFGSM1E.
A straight cable with male-female connectors (max.15 m)
1 Procured locally
Indoor unit cable Use a commercially available 6-pin cable for connection to CN61.
(Model name: TCB-KBCN61HAE) 1 Procured locally
Ask your dealer.
Use a 1.9 m 4-pin cable for connection to HA terminal. 1 Supplied
Insulating tube for cable
protection Use this tube (Thickness: at least 1 mm) to protect the indoor unit cable if the user may touch the cable. 1 Procured locally
Screw For 4 feet to be attached to the wall (M3 x 16 tapping screw) 4 Supplied
Foot 4 feet (including screws MT-34K) to be attached to the TCB-
IFGSM1E. 4 Supplied
Cable clamp For clamping indoor unit cable. 1 Supplied
Installation Manual Used by installation staff 1 Supplied
Owner’s Manual Used by the user 1 Supplied
GSM modem simulator
software (CD-ROM) Used for checking air conditioner communication and RS-232C communication. 1 Supplied
PC for tests Equipped with RS-232C communication function. Used for the
GSM modem simulator software. 1 Procured locally
RS-232C cable for tests A cross cable with female-female connectors used for connection
to a PC 1 Procured locally
GSM modem telephone number:
PIN:
PUK number:
7-EN
+00DE89409101_01EN_Telecon_IM.book Page 8 Thursday, May 21, 2009 3:04 PM

–9–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
4Installation
TCB-IFGSM1E Installation Method and Orientation
There are five orientations of Surface/Wall Mount that the TCB-IFGSM1E can be installed, these are shown below.
NOTE
Please use screws supplied for installation of device.
Remove the screws at the four corners, fix the supplied plastic external mounting feet, and then tighten the supplied
MT-34K screws to secure the case, feet, and case lid together. Then secure the TCB-IFGSM1E to a wall with
screws using the holes B.
REQUIREMENT
Do not install the unit in any of the following places.
• Humid or wet place
• Dusty place
• Place exposed to direct sunlight
• Place where there is a TV set or radio within one meter
• Place exposed to rain (outdoors, under eaves, etc.)
Installation Space and Maintenance Space
A side space for connecting through cable inlets and an upper space for
maintenance must be reserved before installation.
The other sides can be adjacent to surrounding objects.
AB
Secure the case lid and the external
mounting feet with the same supplied
MT-34K screws.
Screw holes for securing
the TCB-IFGSM1E
Back Side View of the TCB-IFGSM1E Case
No good
100mm
100mm
100mm
8-EN
+00DE89409101_01EN_Telecon_IM.book Page 9 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–10–
5Connection of Power cable and Signal wires
CAUTION
Power lines have polarity.
REQUIREMENT
Disconnect the AC adaptor for this appliance from the main power supply.
• The AC adaptor for this appliance must be connected to the main power supply by a circuit breaker or switch
with a contact separation of at least 3 mm.
Power cable and Signal wires
Use a commercially available cable between the TCB-IFGSM1E and an air conditioner that has a connector CN61.
For models that have connector CN08/CN09/CN22, use the supplied HA cable. Connect cables referring to the
installation manual of each indoor unit for cable connection and location of connectors.
CAUTION
Use a commercially available RS-232C straight cable with female-male connectors between GSM modem and TCB-
IFGSM1E. Since the maximum length of this cable is 15 m, install the GSM modem and the power supply unit within
this range where GSM radio wave can be well received.
REQUIREMENT
• If the TCB-IFGSM1E is installed at a place where the TCB-IFGSM1E and the indoor unit cable may be touched
by the user, pass the cable through a insulating tube with more than 1750V voltage resistant (IEC approved
item, outer diameter must be less than 10Ø) to completely insulate the cable. Insert the tube up to the connector
and push it firmly as far as it will go.
The cable connected to the CN61 and CN4 should be the optional connector cable TCB-KBCN61HAE.
Connector CN08/CN09/
CN22 or CN61
Connect this cable following the
installation manual of each indoor unit
GSM modem
TCB-IFGSM1E
RS-232C cable
Indoor unit cable
Max. 2 m
Use the insulating tube if the
user may touch this cable
Connect to the D-
sub connector
Connect to the DC plug
AC adaptor
Not required when
CN61 is used
DC7-19V
9-EN
+00DE89409101_01EN_Telecon_IM.book Page 10 Thursday, May 21, 2009 3:04 PM

–11–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
Connecting CN3 and CN4 of TCB-IFGSM1E to Indoor Unit
CAUTION
Turn off the power of the air conditioner and check that no voltage is applied to the indoor unit cable. Do not connect
the power cable to the TCB-IFGSM1E.
Open the case of the TCB-IFGSM1E, draw the indoor unit cable through the grommet hole, and then connect the
cable’s connector to CN3 or CN4.
The cable connector differs depending on the connector used in the indoor unit. For the CN08/CN09/CN22, HA
connector, use the 4-pin CN3 connector; for the CN61 connector, the 6-pin CN4 connector.
Connect the indoor unit cable according to the table below, and then clamp it with a cable clamp.
Side view
Fix the end of tube to the wire with a cable tie at 22mm from the connector side wire end. Provide extra length to
the wire.
Connection to GSM Modem
Insert a valid SIM card into the slot of the GSM modem following the Owner’s Manual.
Screw the D-sub connector connected to the RS-232C cable to secure it.
TCB-IFGSM1E
CN3 pin No. Indoor unit TCB-IFGSM1E CN4 pin No. Indoor unit
CN08/CN09/CN22 (HA connector) pin No.
DAISEIKAI, Inverter/Inverter Multi CN61 pin No. S-MMS, S-HRM, Mini-SMMS, DI, SDI
1 1 (C1) 1 1 (Operation input)
2 2 (C2) 2 2 (Ground)
3 3 (M1) 3 3 (Insulate this pin as it is not used for this
function.)
4 4 (M2) 4 4 (Operation status output)
5 5 (12V output)
6 6 (Alarm output)
MCU
CN3
Pin4
CN4
Pin6
P.C. Board Top View (with the TCB-IFGSM1E Case Lid Open)
RS-232C
D-sub 9-pin
connector
Cable To indoor unit
Grommet
Tube
(Outer diameter must be less
than 10Ø)
CN3, CN4
P.C. board
20mm
Grommet
Tube
Case
Cable tie
10-EN
+00DE89409101_01EN_Telecon_IM.book Page 11 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–12–
6Setting
Set JP1, JP2, JP3, JP4, and SW1 to the positions shown in the table below:
CAUTION
The TCB-IFGSM1E does not function correctly unless JP1, JP2, JP3, JP4, JP5, and SW1 are set to the positions shown
below. Be sure to set them correctly.
Part No. Function Setting
JP1 Selection of HA or BT HA
JP2 Selection of 5V or 12V 12V
JP3 Selection of 5V or 12V 12V
JP4 Selection of GND or OPEN OPEN (in case of CN3), GND (in case of CN4)
JP5 Selection of HA or BT HA
SW1 Selection of CPU mode SW1-1, SW1-2, SW1-3 = OFF, SW1-4 = ON
SW2 PIN code setting Refer to the description on the next page.
SW3 Setting Refer to the description on the next page.
SW4 Resetting -
1
ON
5V
SW3
SW1
SW2
CN4
5V
12V
JP2
12V
BT
HA
JP1
OFF
2
MCU
Set
PIN Code
LED1
LED2
BT
HA OPEN
GND
JP5
JP4
LED3
CN3
JP3
SW4
Reset
34
P.C. Board Top View (with the TCB-IFGSM1E Case Lid Open)
CN2
D-sub 9-pin
11-EN
+00DE89409101_01EN_Telecon_IM.book Page 12 Thursday, May 21, 2009 3:04 PM

–13–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
7Trial Operation Check
CAUTION
Insert the plug of the AC adapter firmly into a power outlet as far as it will go. Improper connection may cause electric
shock or fire due to accumulated dust.
When the TCB-IFGSM1E is connected to an air conditioner that uses CN61, turn on the air conditioner. When the
TCB-IFGSM1E is connected to an air conditioner that uses an HA connector, connect an external power supply
unit to the DC jack and supply power to the TCB-IFGSM1E. When PIN code and PUK code for the modem are
given from the telephone service company and they must be set, set them using the following procedure.
PIN Code / PUK Code Setting Procedures
Setting PIN code
Press and release the reset switch SW4 while pressing the set switch SW3, wait for at least 10 seconds, and then
release SW3. Then the TCB-IFGSM1E enters the PIN code read mode. Specify the lowest digit of PIN with the PIN
code set switch SW2, and then press SW3 for less than 10 seconds. Then set the second lowest digit of PIN and
press SW2 for less than 10 seconds. Repeat this operation to enter the specified PIN code. After all the digits have
been set, press SW3 for at least 10 seconds to complete the PIN setting procedure.
Example) If the PIN is 45678, specify 8, 7, 6, 5, and 4 in this order.
Setting PUK code
To set a PUK code following the PIN code setting, press SW3 for less than 10 seconds within 10 seconds upon
completion of the PIN setting. The TCB-IFGSM1E enters the PUK code setting mode. Specify the lowest digit of
PUK code with SW2, and then press SW3 for less than 10 seconds to enter the lowest digit. Repeat this operation
until the 8-digit PUK code is completely read.
Example) If the PUK is 34724569, specify 9, 6, 5, 4, 2, 7, 4, and 3 in this order.
PIN code is a 4-digit to 8-digit number, and PUK code is an 8-digit number. Therefore, the TCB-IFGSM1E
automatically returns from the PUK code setting mode after eight numbers have been given in the PUK code
setting, but remains in the waiting state until 8 digits of the PUK code have been completely read.
Modem Emulator Setting and Operation Check
Setting the modem emulator
Install the modem emulator software for this system to the PC (with RS-232C communication function) beforehand.
For computers which do not have serial port, PC Card or USB to RS-232C converter can be used to arrange an
RS-232C port. Connect the RS-232C D-sub connector of the PC to the D-sub connector of the TCB-IFGSM1E with
an RS-232C cross cable.
Set the communication configuration of the PC to 9600bps, non parity, 8 bits, 1 stop bit with an appropriate
communication port number.
Start the modem emulator software. The following screen appears.
• Set the serial port number to the number set on the PC.
• From the READY, SIM PIN, and PUK radio buttons, choose READY when no PIN is set.
• From the READY, SIM PIN, and PUK radio buttons, choose SIM PIN when a PIN is set.
• Enter the mobile phone number to be used for the test in the TEL textbox.
The number set here is the number the modem will recognise and the GSM phone number used for this test. The
number must be set as <GSM phone number> or <“+” + “Country code” + “GSM phone number”>. For the details,
ask your mobile network operator.
12-EN
+00DE89409101_01EN_Telecon_IM.book Page 13 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–14–
Click the OPEN button. When communication between the TCB-IFGSM1E and the PC starts successfully, the
communication log appears in the textbox as shown below. If it does not appear, improper connection to the TCB-
IFGSM1E, incorrect communication configuration, incorrect TCB-IFGSM1E settings, or power-off is considered as
the cause. Examine the cause and solve the problem.

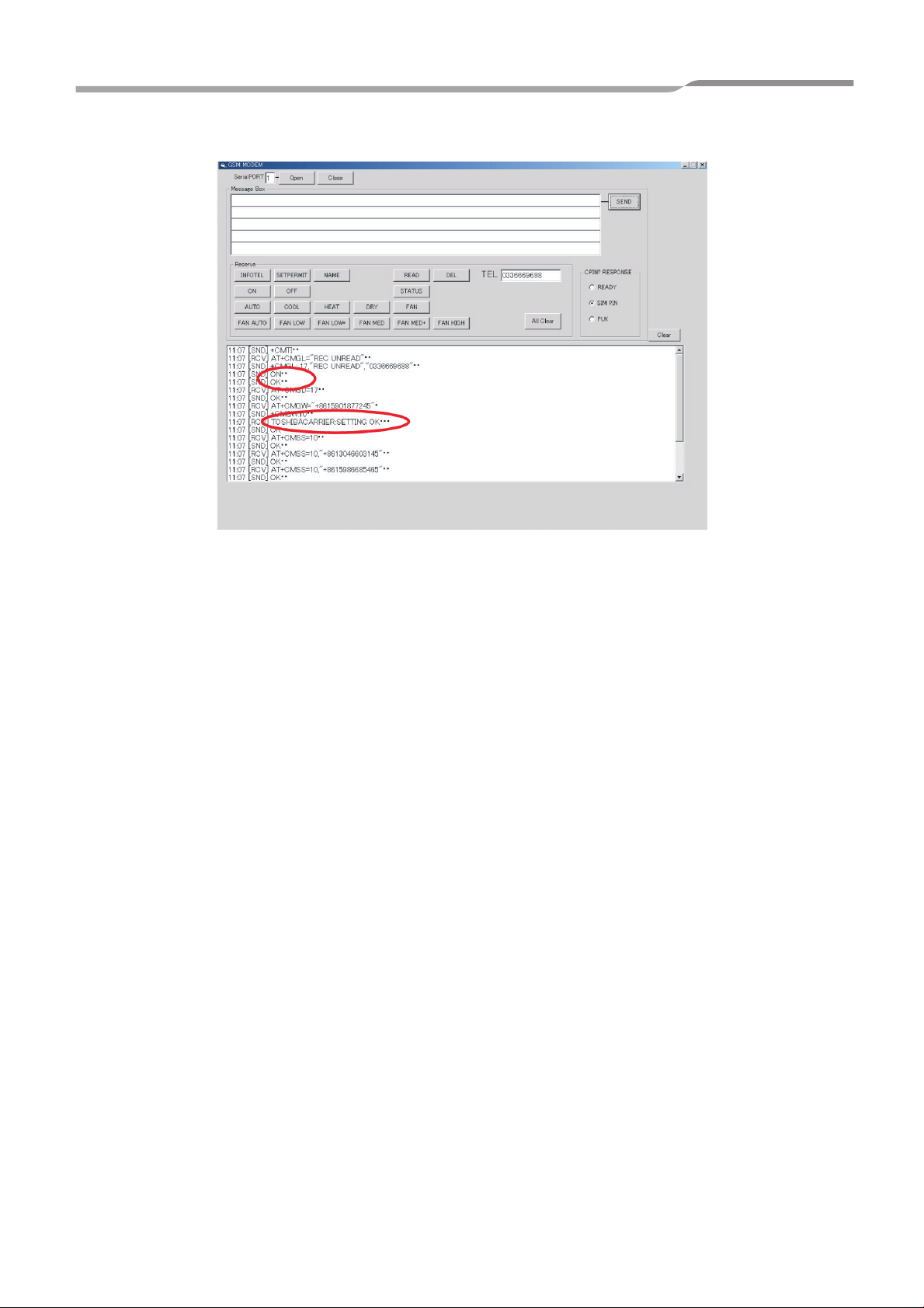

The figure shows a normal communication log between the PC and the TCB-IFGSM1E when a PIN is set.
AT+CPIN=45678 means that the PIN is set to 45678.
Setting destination telephone number, setting permitted telephone number, and specified air
conditioner name
Settings of destination telephone number, setting permitted telephone number, and the name of specified air
conditioner for test are available on this screen.
To set the destination telephone number for notification, click the INFOTEL button, enter the telephone number for
test in the Message Box following INFOTEL, and then click the SEND button.
This telephone number must be the same as the number in TEL textbox <GSM phone number> or <“+” + “Country
code” + “GSM phone number”>.
When the number appears in the following message in the textbox, the setting has been successfully completed.
When a PIN is set, enter the PIN and the telephone number for test with a space separator after INFOTEL, and
then click the SEND button. **** indicates the PIN.
[SND] INFOTEL ++++ (or INFOTEL***** ++++)
[SND]OK
(+++: Telephone number for test)
To set the setting permitted telephone number, click the SETPERMIT button, enter a telephone number for test in
the Message Box following SETPERMIT, and then click the SEND button. This telephone number must be the
same as the number in TEL textbox.
When the number appears in the following message in the textbox, the setting has been successfully completed.
When a PIN is set, enter the PIN and the telephone number for test with a space separator after SETPERMIT, and
then click the SEND button. **** indicates the PIN.
[SND] SETPERMIT ++++ (or SETPERMIT***** ++++)
[SND]OK
(+++: Telephone number for test)
13-EN
+00DE89409101_01EN_Telecon_IM.book Page 14 Thursday, May 21, 2009 3:04 PM

–15–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN

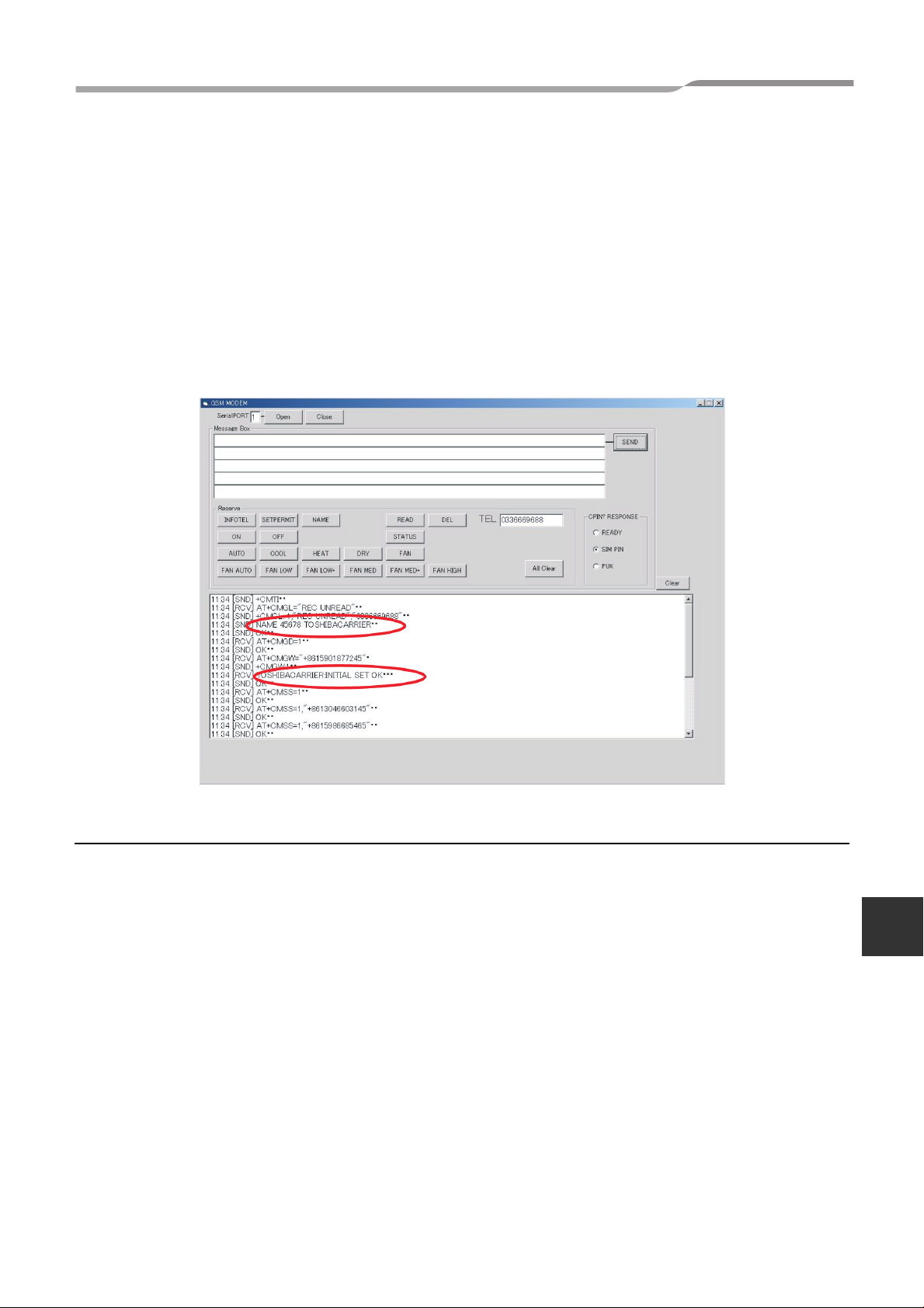

To set the name of specified air conditioner, click the NAME button, enter alphanumeric characters for test in the
Message Box following NAME, and then click the SEND button. NAME can be up to 19 characters of English
alphabets and Arabic numerals (spaces cannot be included).
When the entered alphanumeric characters appear in the following message in the textbox, the setting has been
successfully completed. When a PIN is set, enter the PIN and the alphanumeric characters for test with a space
separator after NAME, and then click the SEND button. **** indicates the PIN.
[SND] NAME +++ (or NAME***** ++++)
[SND]OK
(+++: Entered alphanumeric characters) **** indicates the PIN.
If an error is returned, an invalid PIN or characters may have been set.
The following figure shows the screen when the initial setting succeeded.
Checking Communication with Air Conditioner
Check the communication with the air conditioner.
Setting air conditioner ON/OFF
While the air conditioner is OFF, click the ON button in the screen above. When ON appears in the Message Box,
click the SEND button. At this time, when the following message appears in the textbox at the centre of the screen
and the air conditioner is turned on as specified, the communication with the air conditioner is successful.
[RCV] ++++++++ SETTING OK
(++++++++: indicates the characters of the registered NAME)
While the air conditioner is ON, click the OFF button in the screen above. When OFF appears in the Message Box,
click the SEND button. At this time, when the following message appears in the textbox at the centre of the screen
and the air conditioner is turned off as specified, the communication with the air conditioner is successful.
[RCV] ++++++++ SETTING OK
(++++++++: indicates the characters of the registered NAME)
14-EN
+00DE89409101_01EN_Telecon_IM.book Page 15 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–16–
The following figure shows the screen when the ON/OFF setting succeeded.
Monitoring air conditioner ON/OFF status
Click the STATUS button. When STATUS appears in the Message Box, click the SEND button. At this time, when
the air conditioner ON/OFF status is displayed as shown in the following message in the textbox at the centre of
the screen and the displayed content matches the actual ON/OFF status of the air conditioner, the air conditioner
is operating correctly.
[RCV] ++++++++ STATUS OFF
or
[RCV] ++++++++ STATUS ON
(++++++++: indicates the characters of the registered NAME)
The test run in connection with the air conditioner performed by the modem emulator software on the PC is
completed.
15-EN
+00DE89409101_01EN_Telecon_IM.book Page 16 Thursday, May 21, 2009 3:04 PM

–17–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
Checking Communication Using Actual Telephone Network
Connect a GSM modem to the TCB-IFGSM1E and perform a test run using the actual telephone network.
Connecting to GSM modem and temporarily fixing GSM modem location and orientation
Connect the TCB-IFGSM1E to the GSM modem with an RS-232C straight cable, and secure the D-sub connectors
on both ends of the cable to each unit with screws. Also fix the installation position and orientation of the GSM
modem temporarily.
Turn on the power of the GSM modem. Then open the SMS message creation screen on the specified mobile
phone. When the target air conditioner is OFF, create an SMS message by selecting ON and send the SMS
message to the GSM modem telephone number.
After a while, an SMS message with text “SETTING OK” is returned. Check that the indoor unit is turned on.
Then create an SMS message by selecting STATUS and send the SMS message to the GSM modem telephone
number.
When the air conditioner status can be acquired with “NAME:STATUS ON” or “NAME:STATUS OFF,” the test run
is successful.
If the setting for the air conditioner is not reflected or the air conditioner status cannot be acquired, SMS message
transmission or reception may have failed due to incorrect destination telephone number, bad wave condition or a
problem of the telephone network. Examine the cause and solve the problem.
If the current GSM modem location or orientation worsens the communication status, find the best location or
orientation and fix the GSM modem temporarily at the point.
Deleting the Telephone Numbers for Test
Before delivering the product to the customer, delete the destination telephone number and the setting permitted
telephone number that were registered for the test run.
Restarting the modem emulator software
Connect the TCB-IFGSM1E to the PC again and restart the modem emulator software.
Deleting the destination telephone number
Enter “DEL INFOTEL ++” (++: mobile phone number for test) in the Message Box, and click the SEND button.
Check that the following message appears in the textbox at the centre of the screen.
[SND] DEL INFOTEL ++++
[SND]OK
Enter “READ INFOTEL [ENTER]” in the Message Box, and click the SEND button.
Check that the following message appears again in the textbox at the centre of the screen.
[RCV] ++++++++ READ INFOTEL NONE
(++++++++: indicates the characters of the registered NAME)
16-EN
+00DE89409101_01EN_Telecon_IM.book Page 17 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–18–
Deleting the setting permitted telephone number
Enter “DEL SETPERMIT ++**” (++: mobile phone number for test) in the Message Box, and click the SEND button.
Check that the following message appears in the textbox at the centre of the screen.
[SND] DEL SETPERMIT ++++
[SND]OK
Enter “READ SETPERMIT [ENTER]” in the Message Box, and click the SEND button.
Check that the following message appears again in the textbox at the centre of the screen.
[RCV] ++++++++ READ SETPERMIT NONE
(++++++++: indicates the characters of the registered NAME)
If you have set a PIN for testing and it is not used actually, follow the procedure below to delete it.
Deleting a PIN number
Enter “DEL PIN **” (**: registered PIN number) in the Message Box, and click the SEND button.
Check that the following message appears in the Text box.
[SND] DEL PIN ***
[SND]OK
Fixing the GSM Modem Location and Final Connection
Secure the GSM modem at the temporary location that was determined for the test run.
Connect the GSM modem to the TCB-IFGSM1E with the RS-232C cable, and secure the D-sub connectors of the
cable with screws.
Turn on the power unit supplied with the GSM modem.
Now the test run is completed.
17-EN
+00DE89409101_01EN_Telecon_IM.book Page 18 Thursday, May 21, 2009 3:04 PM

–19–
TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
EN
8Trouble Shooting
If the operation on the mobile phone is disabled or an error response is received, find the cause using the following
procedure.
After an operation SMS message is sent, a response
“AIRCON NO RESPONSE” is returned.
• The indoor unit is not powered on.
• The cable between indoor unit and TCB-
IFGSM1E is not connected properly.
When an initial registration SMS message is sent, a
response “INITIAL SET NG” is returned.
INFOTEL, SETPERMIT, or NAME is missing in the initial
registration SMS message. Or, a PIN has been set, but it
has not been entered.
After an operation SMS message is sent, a response
“INITIAL UNCOMPLETED” is returned.
The initial setting has not been made by the initial
registration SMS message.
After an operation SMS message is sent, a response
“CHARACTER SETTING ERROR” is returned.
Unregistered characters are used.
No response SMS message is received after an
operation SMS message is sent.
• The operation SMS message was not sent to the
telephone number of the GSM modem.
• The destination telephone number is not set
correctly. Pay attention on whether there is “+” or “+”
+ “Country code” at the beginning of the phone
number.
• The setting permitted telephone number is not set
correctly. Pay attention on whether there is
“International access code” or “+” + “Country code”
at the beginning of the phone number.
• The GSM modem is not powered on.
• The radio wave condition of the GSM modem is bad.
• There is a problem with the GSM telephone network.
• The TCB-IFGSM1E is not powered on.
If the problem still remains after taking proper actions
for these possible causes, check the communication
between GSM modem and TCB-IFGSM1E using the
following procedure.
Set the communication parameters of the PC, connect
the PC to the TCB-IFGSM1E with the RS-232C cross
cable, and then start the GSM modem simulator
software.
• Is a response returned when operated from the PC?
• If no response is returned, check the JP1, JP2, JP3,
JP4, and SW1 settings of the TCB-IFGSM1E.
• Press SW4 to reset the MCU.
If the problem still remains after taking these actions,
replace the TCB-IFGSM1E.
Communication between the GSM modem simulator
and the TCB-IFGSM1E is successful.
No response SMS message is yet received.
Check the GSM modem operation following the
Owner’s Manual of the GSM modem.
When an operation SMS message is sent, a response
“SETTING NG” is returned.
Control other than ON/OFF control (COOL, HEAT, etc.) is
requested even when HA control is specified.
18-EN
+00DE89409101_01EN_Telecon_IM.book Page 19 Thursday, May 21, 2009 3:04 PM

TCS-NET GSM Phone Control Interface Installation Manual
Toshiba
–20–
LED LED status TCB-IFGSM1E status
LED1 OFF Note) LED1 lights as follows during BT operation:
During normal operation: ON
During initial processing: Blink (long interval)
During an error: Blink (short interval)
During stop: OFF
* Long interval: Repeat of ON for approx. 2 seconds and OFF for approx.
0.5 second
* Short interval: Repeat of ON for approx. 0.5 second and OFF for approx.
0.5 second
LED2 ON LED2 lights after power-on and reset.
It goes out when the PIN processing is completed on the modem side.
Blink
ON: Approx. 2 seconds
OFF: Approx. 0.5 seconds
LED2 blinks at this interval when a PIN or PUK number is requested by the
modem after power-on or reset.
It goes out when the TCB-IFGSM1E state has changed.
Blink
ON: Approx. 0.5 seconds
OFF: Approx. 0.5 seconds
LED2 blinks at this interval when modem is not connected or an modem
communication error has occurred
It goes out when the TCB-IFGSM1E state has changed.
Blink
ON: Approx. 6 seconds
OFF: Approx. 0.5 seconds
LED2 blinks at this interval while the TCB-IFGSM1E is reading a PIN or
PUK number.
It goes out when the PIN or PUK number has been read.
LED3 ON Power-on
19-EN
+00DE89409101_01EN_Telecon_IM.book Page 20 Thursday, May 21, 2009 3:04 PM
