IMPORTANT: Read entire instructions before programming the
thermostat.
GENERAL
The 7-day, commercial, programmable thermostats are wall-mounted,
low-voltage thermostats which maintain room temperature by controlling the
operation of an HVAC (heating, cooling and ventilation) system. Separate
heating and cooling set points and auto-changeover capability allow occu-
pied and unoccupied programming schedules for energy savings.
All thermostats allow up to 3 occupied and one unoccupied time/
temperature setting to be programmed per 24-hour period. Each thermostat
stores programs for 7 independent days. Batteries are not required. During
power interruption the internal NEVERLOST™ memory stores programs for
an unlimited time.
IMPORTANT: The thermostat has a configurable security level. If certain
functions are not available (changing set points, changing programming
schedules), the thermostat security level may be configured to exclude those
functions. Call the installer to reconfigure the security level.
A light sensor is provided on the thermostat for light activation. When the
sensor detects light (the space is occupied), the thermostat will enter into
Occupied 1 mode. If the room is dark, the thermostat will follow its pro-
grammed schedule.
2

CONFIGURATION
Thermostat Display — The thermostat display is located in the center of
the thermostat. See Fig. 1. The following information can be displayed on the
screen:
• mode (OFF, HEAT, COOL, AUTO, or PROGRAM ON)
• fan setting (FAN ON or blank)
• override indication
• room temperature
• desired temperature
• service filter indicator
• time of day
• day of the week
• schedule period (Occupied 1, 2, or 3; or Unoccupied)
• setup indicator (programming mode)
• lock indicator
• start/stop indicator (schedule period program mode)

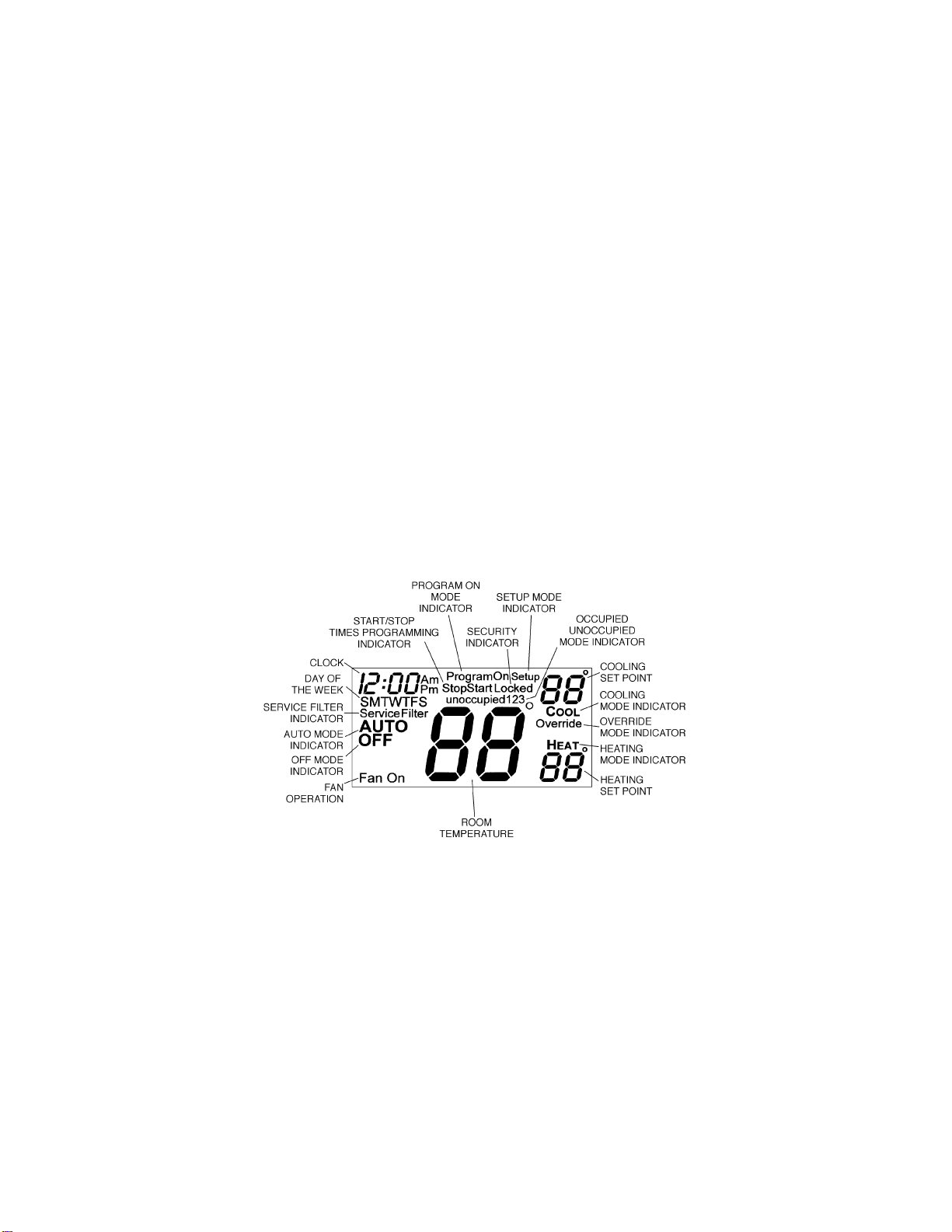

Fig. 1 — Thermostat Display
3

Heat or Cool Indicator — A Heat or Cool indicator is located on the bot-
tom left cover of the thermostat. See Fig. 2. The light will be red if the ther-
mostat is in Heating mode. The light will be green if the thermostat is in
Cooling mode.
Thermostat Front Panel Buttons — The thermostat has buttons on the
front cover which are used to raise or lower the desired set point and override
the current program. See Fig. 2.
SET POINT BUTTONS — The UP ARROW and DOWN ARROW buttons
will raise or lower the current desired temperature set point. If the thermostat
is in AUTO mode, pressing the UP ARROW or DOWN ARROW buttons
will adjust both the heating heating and cooling set points. Pressing the UP
ARROW or DOWN ARROW buttons in Cooling mode will adjust only the
cooling set points. Pressing the UP ARROW or DOWN ARROW buttons in
Heating mode will adjust only the heating set points. The UP ARROW and
DOWN ARROW buttons are also used in programming mode.
OVERRIDE BUTTON — The Override button is used to force the thermo-
stat from Unoccupied mode into the Occupied 1 mode comfort settings. The
Override period will be set at 30 minutes. The thermostat will then return to
Unoccupied mode. To increase the amount of time in Override mode, press
the Override button again. Thirty minutes of override time will be added for
each time the Override button is pressed up to a maximum of 4 hours. After
the 4-hour limit has been reached, press the Override button again to cancel
override mode.
While in Override mode, the Override icon and the Occupied 1 icon will
be displayed on the thermostat. The time of day and the minutes remaining
in Override mode will alternate on the thermostat display.
The set points are adjustable with the UP ARROW and DOWN ARROW
keys during Override mode.
NOTE: If the thermostat is in Occupied mode and the Override button is
pressed, the thermostat will go into Unoccupied mode immediately. The ther-
mostat will remain in Unoccupied mode until the next Occupied start time.
Thermostat Programming Buttons — The thermostat has program-
ming buttons which are used to change the set points of the thermostat, set
the modes, and program schedules. The programming buttons are accessible
from underneath the thermostat cover. To access the programming buttons,
pull on the hinged thermostat cover. See Fig. 3. The programming buttons
are: Mode, Fan, Holiday, Program, and Set Clock.
4

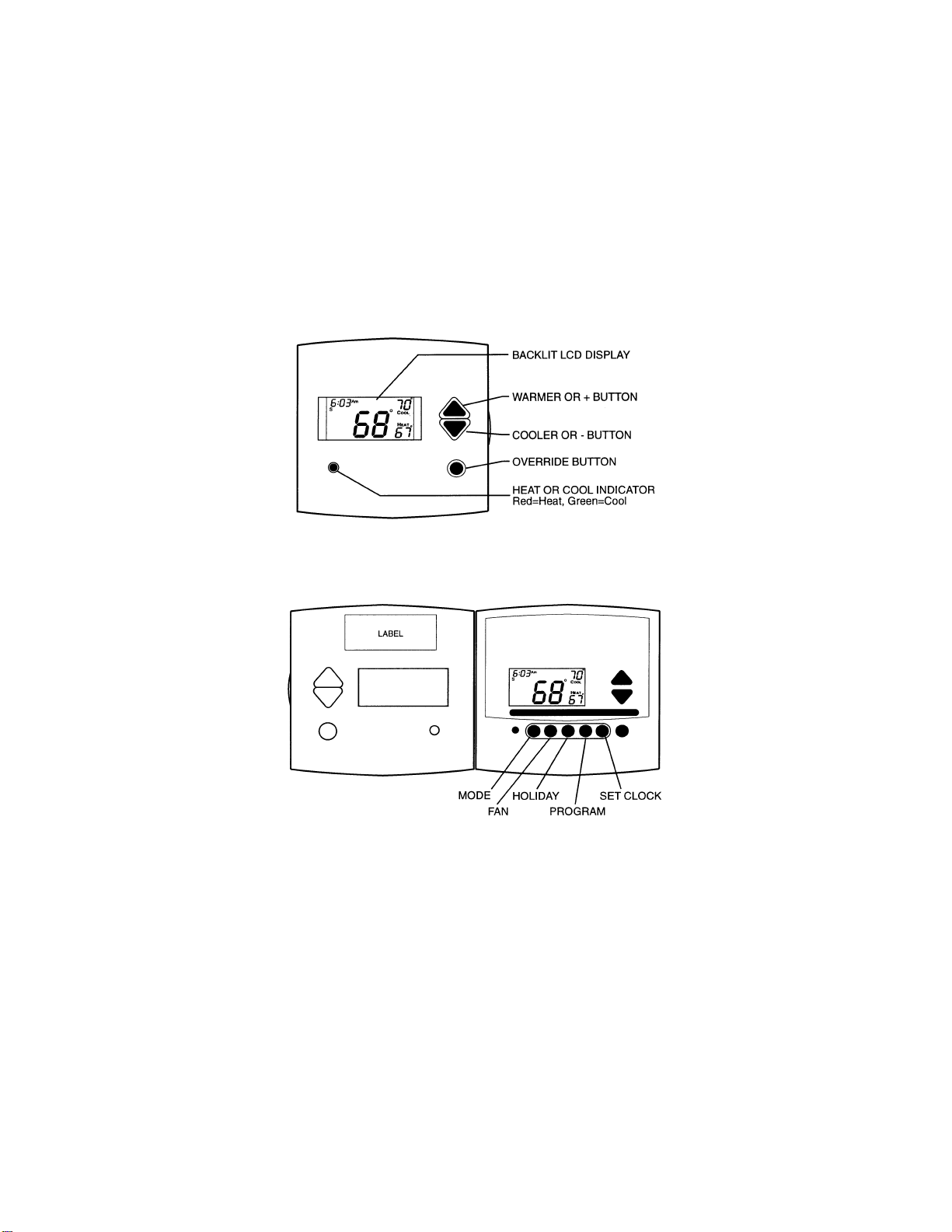

Fig. 2 — Thermostat Front Panel Buttons
Fig. 3 — Thermostat Programming Buttons
5

The UPARROW and DOWN ARROW buttons are used to scroll through
programming set points. The buttons are also used to answer yes or no.
KEYPAD LOCK — The thermostat has a keypad lockout feature which will
not acknowledge front panel buttons until the lockout sequence is entered. To
disable or lock the keypad, press and hold the Mode button. While holding
down the Mode button, press the UP and DOWN ARROW buttons simul-
taneously. The ‘‘Locked’’’ icon will appear on the display.
The thermostat is unlocked by performing the same procedure. Press and
hold the Mode button. While holding down the Mode button, press the Up
and Down Arrow buttons simultaneously. The ‘‘Locked’’ icon will be
removed from the display.
FAN BUTTON OPERATION — The Fan button selects fan operation. When
the fan is set to FAN ON, the fan will run continuously for improved air
circulation.
NOTE: When the thermostat is in Unoccupied mode, the fan will run only
during heating or cooling operation, even if the fan is set to FAN ON, this
is the energy-saving smart fan feature.
When the fan is not set to FAN ON (no icon displayed on thermostat screen),
the fan will run during heating and cooling operation only.
MODE BUTTON OPERATION — The Mode button selects the operating
mode of the thermostat. If OFF is selected, the thermostat will not enter Heat-
ing or Cooling mode. If HEAT is selected, the thermostat will only enter
Heating mode (if the room temperature is below the heating set point). If
COOL is selected, the thermostat will only enter Cooling mode (if the room
temperature is above the cooling set point). If AUTO is selected, the ther-
mostat will enter Heating or Cooling mode based on the room temperature
and the heating and cooling set points. If PROGRAM ON is selected, the
stored schedule is enabled and the thermostat will follow the Occupied and
Unoccupied schedules stored in its memory.
6

Auto-Changeover — When the thermostat mode is set to AUTO, the ther-
mostat will provide automatic changeover from heating to cooling mode and
cooling to heating mode when required. The thermostat will automatically
switch to maintain the desired temperature setting. The thermostat does not
need to be manually changed from heating to cooling or cooling to heating
operation.
HOLIDAYMODE — The Holiday button places the thermostat into Holiday
mode. During Holiday mode, the unoccupied set points are enforced. The
number of days the thermostat will be in Holiday mode can be set.
Set Clock — The Set Clock button allows the user to change the time and
day displayed on the thermostat. Press the Set Clock button to enter Set Time
mode. See Fig. 4. The current time will blink on and off. Press the UP
ARROW and DOWNARROW buttons until the correct time is shown. Hold
down the buttons to quickly move through the time display. Hold down the
Fan button while pressing UP or DOWNARROW to scroll through by hours.
TheAM and PM annunciators will automatically change.To ensure the sched-
ules are properly followed, make sure that AM or PM is correct for the time
chosen. When the correct time is shown, press the Mode button to modify the
day of the week. The current day will blink on and off. Press the UPARROW
and DOWN ARROW buttons until the correct day is shown. Press the Set
Clock button again to exit the Set Time mode.
Fig. 4 — Setting the Clock
7

Programming Thermostat Schedules — Before programming the
thermostat, plan the thermostat daily schedule. The schedule is divided
into 7 days (Monday through Sunday). Each day can have 2 (Occupied 1,
Unoccupied), 3 (Occupied 1, Occupied 2, Unoccupied), or 4 (Occupied 1,
Occupied 2, Occupied 3, Unoccupied) time periods. Each occupied time
period has a start time, stop time , heating set point, and cooling set point.
The unoccupied time period has a heating set point and a cooling set point.
The unoccupied time period is active whenever an occupied time period
is not active. Fill in Table 1 on page 13 as an aid to programming the daily
schedules.
NOTE: When the sensor detects light (the space is occupied), the thermo-
stat will enter into Occupied 1 mode. If the room is dark, the thermo-
stat will follow its programmed schedule. The Occupied 1 schedule should
be turned OFF to keep the thermostat from entering Occupied 1 while the
room is unoccupied. If the Occupied 1 schedule is turned ON, the thermostat
will enter into Occupied 1 per the schedule regardless of light activation. The
Occupied 1 set points are used as the heating and cooling set points during
light activation. The Unoccupied set points should be used as non-work hour
set points (before 8:00 AM and 5:00 PM) when using light activation. For
times when the building is unoccupied during work hours (Monday through
Friday, 8:00 AM to 5:00 PM), the Occupied 2 schedule should be turned ON,
and can be used for moderate energy savings with set points of 80 F for
cooling and 65 F for heating.
PROGRAMMING MODE — To program the daily schedules, perform the
following procedure:
1. Enter programming mode by pressing the Program button. The Occu-

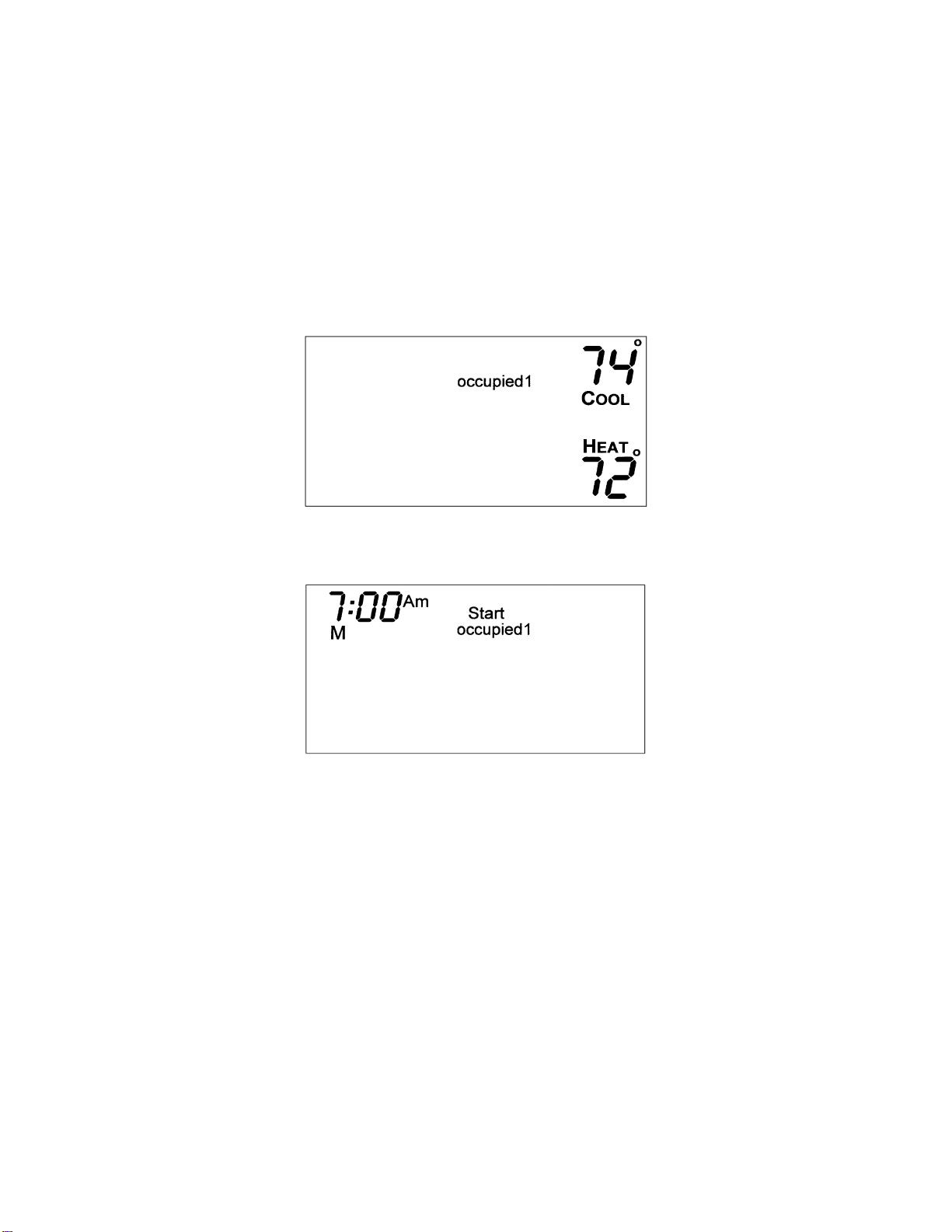

pied 1 annunciator will appear on the thermostat display. See Fig. 5. Use
the UPARROW and DOWNARROW buttons to set the maximum num-
ber of Occupied periods available. The thermostat can be set to 1, 2, or
3. After the number of Occupied periods has been selected, press the
Mode button.
2. The cooling set point for Occupied 1 will be displayed. Use the UP
ARROW and DOWN ARROW buttons to raise or lower the cooling set
point until the desired temperature is shown. The range of acceptable
values is 35 to 99 F (1 to 37 C). Press the Mode button to continue. See
Fig. 5.
8

3. The heating set point for Occupied 1 will be displayed. Use the UP
ARROW and DOWN ARROW buttons to raise or lower the heating set
point until the desired temperature is shown. The range of acceptable
values is 35 to 99 F (1 to 37 C). Press the Mode button to continue. See
Fig. 5.
4. The cooling set point for Unoccupied will be displayed. Use the UP
ARROW and DOWN ARROW buttons to raise or lower the cooling set
point until the desired temperature is shown. The range of acceptable
values is 35 to 99 F (1 to 37 C) or ‘‘OF’’(no unoccupied cooling). Press
the Mode button to continue.
5. The heating set point for Unoccupied will be displayed. Use the UP
ARROW and DOWN ARROW buttons to raise or lower the heating set
point until the desired temperature is shown. The range of acceptable
values is 35 to 99 F (1 to 37 C) or ‘‘OF’’ (no unoccupied heating). Press
the Mode button to continue.
6. The day of the week will be shown. Use the UP ARROW and DOWN
ARROW buttons to change the day of the week until the desired starting
day is shown. Possible choices are M (Monday) through S (Sunday).
Press the Mode button when the desired day is shown.
7. The Start Time for Occupied 1 will be displayed. Use the UP ARROW
and DOWN ARROW buttons to raise or lower the time until the desired
Start Time is shown. Press the Mode button to continue. See
Fig. 6.
8. The Stop Time for Occupied 1 will be displayed. Use the UP ARROW
and DOWN ARROW buttons to raise or lower the time until the desired
Stop Time is shown. Press the Mode button.
9. The On/Off icon will be displayed. Use the UP ARROW to turn the
Occupied 1 period ON for this day. Use the DOWN ARROW to turn the
Occupied 1 period OFF for this day.
9

Fig. 5 — Setting Occupied 1 Set Points
Fig. 6 — Start Time Display
10

10. Repeat Steps 2 through 9 to program the remaining schedule for occu-
pied periods 2 and 3 (if selected in Step 1).
11. The Copy command can be used to copy the previous day’s schedule if
the schedules are the same. The copy command becomes available after
all the occupied periods are programmed in a day. Use the UP ARROW
to change the copy command toYES. Use the DOWNARROW to change
the copy command to NO. Press the Mode/Next button when the choice
has been made. See Fig. 7.
If NO was selected, the schedule will automatically change to the next
day and the user must enter the occupied and unoccupied schedules for
that day.
NOTE: Occupied 1 schedule heating and cooling set points are the same
for each day. Occupied 2 and 3 set points may be set to different values
for each day of the week.
If YES was selected, the schedule will be copied to the next day. The
schedule copy may be repeated until Sunday is reached. The Sunday sched-
ule cannot be copied to Monday.
12. After all the times and set points for each day have been entered, press
the Program button to finish entering the schedule.

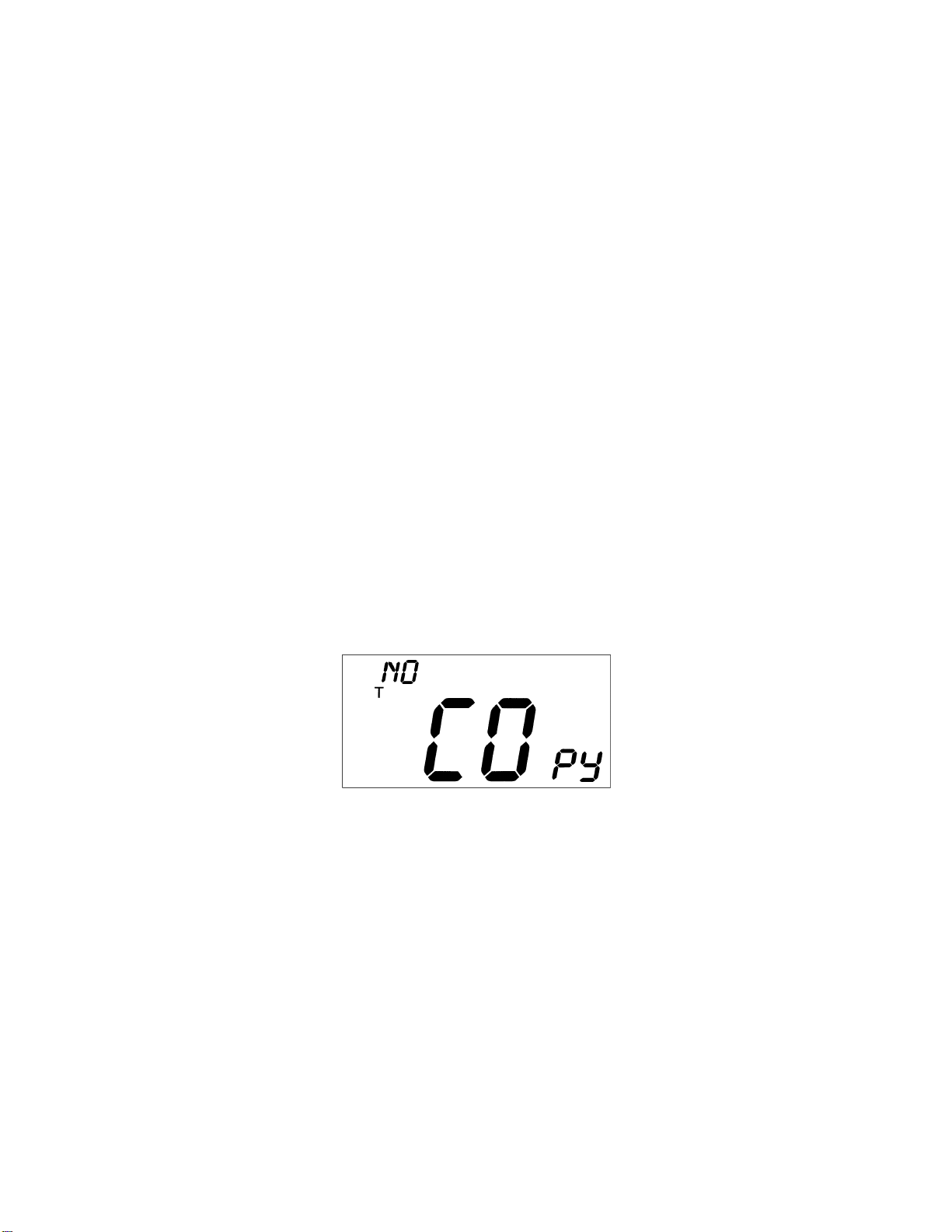

Fig. 7 — Copy Command Display
11

NOTE: The thermostat will continue to follow the schedule until a new one
is entered.
• If only one occupied schedule is selected, the Occupied 2 and 3 schedules
are skipped.
• If the start time is set later in the day than the stop time, the program will
run from midnight of that day to the stop time and then from the start time
to midnight.
• If the same start and stop times are programmed for an occupancy sched-
ule, the thermostat will be in Occupied mode for 24 hours.
• If one occupied period starts or stops within another occupied period, the
lower numbered schedule has priority. For example, if schedule
Occupied 3 is running for 24 hours and occupied schedule 2 comes on
from 1 to 3 PM, the set points from Occupied 2 are in effect from 1
to 3 PM.
OVERRIDING THE SCHEDULE — The schedule can be overridden during
operation by pressing the UP or DOWN ARROW buttons to change the
desired temperature. The thermostat will use the new set point until the next
scheduled time period starts.
12

Table 1 — Daily Schedule Planner
DAY
OF THE
WEEK
SCHEDULE
Occupied 1 Occupied 2 Occupied 3 Unoccupied
Start / Stop / Heat / Cool Start / Stop / Heat / Cool Start / Stop / Heat / Cool Heat / Cool
Monday /// /// /// /
Tuesday /// /// /// /
Wednesday /// /// /// /
Thursday /// /// /// /
Friday /// /// /// /
Saturday /// /// /// /
Sunday /// /// /// /
NOTE: The cooling temperature set point must be higher than the heating temperature set point.
13

OPERATION
The Mode button selects the operating mode of the thermostat. If OFF
is selected, the thermostat will not enter Heating or Cooling mode. If HEAT
is selected, the thermostat will only enter Heating mode (if the room tem-
perature is below the heating set point). If COOL is selected, the thermo-
stat will only enter Cooling mode (if the room temperature is above the cool-
ing set point). IfAUTO is selected, the thermostat will enter Heating or Cool-
ing mode based on the room temperature and the heating and cooling set
points. If PROGRAM ON is selected, the stored schedule is enabled and the
thermostat will follow the Occupied and Unoccupied schedules stored in its
memory.
Auto-Changeover — When the thermostat mode is set to AUTO, the ther-
mostat will provide automatic changeover from Heating to Cooling mode
and Cooling to Heating mode when required. The thermostat will auto-
matically switch to maintain the desired temperature setting. The thermostat
does not need to be manually changed from heating to cooling or cooling to
heating operation.
Light Activated Operation — A light sensor is provided on the thermo-
stat for light activation. The thermostat must be in Program On mode for
light activation to be initiated. When the sensor detects light (the space is
occupied), the thermostat will enter into Occupied 1 mode and heat or cool
according to the Occupied 1 set points. If the room is dark, the thermostat
will follow its programmed schedule.
NOTE: Light activation does not work in Holiday mode.
Two-Stage Operation — The second stage of heat or cool is turned on
when the first stage has been on for a minimum of 2 minutes and the tem-
perature differential from the set point is equal to or greater than the set point
plus the deadband plus 2 degrees.
Clock Backup — In the event of a power loss, the thermostat will keep
time for a minimum of 48 hours without external power or batteries.
Fan Operation — If Fan On is selected, the fan will run continuously
during occupied schedule (except when Mode is switched to OFF). The fan
will be off during unoccupied schedule except during heating or cooling
operation.
If Fan On is not selected, the fan will only operate during heating or cool-
ing operation.
14

Emergency Heat — Emergency heat is available for heat pump appli-
cations. To turn on emergency heat, press and hold the Fan button. While
holding the Fan button, press the UP button for 2 seconds. An ‘‘EH’’ will be
displayed. During emergency heat, the fan will operate and the second stage
of heat will be energized (locking out the first stage compressor). To exit
emergency heat, press and hold the Fan button. While holding the Fan but-
ton, press the UPbutton for 2 seconds. During emergency heat, only OFF and
HEAT modes are available.
Electric Heat — When the Electric Heat option in the advanced set up
is set to ON (configured by installer), the thermostat will turn on the fan
immediately any time there is a heat demand. This feature should only be
used on electric heating applications. Do not use with gas heat.
Holiday Mode — When the thermostat is in Holiday mode, the thermostat
will operate under Unoccupied set points. To configure and activate the Holi-
day mode, press the Holiday button. The ‘‘HOL’’icon will be displayed along
with the remaining days of Holiday mode operation. Press the UP or DOWN
ARROWS to select the number of days that the holiday schedule will be
in effect. A value of 0 disables Holiday mode. The duration can be set from
1 to 99 days. The thermostat will enter Holiday mode on midnight of the next
day after the mode has been activated. Holiday mode will remain in effect
until midnight of the last configured day.
If the Holiday mode is in effect, the number of days remaining will blink
on and off and the ‘‘Unoccupied’’ icon will be displayed. The Override but-
ton will be active during Holiday mode. The Dry Contact Switch is ignored.
To turn off the Holiday mode before the remaining configured days have
passed, press the Holiday button to enter into the configuration mode. Press
the DOWN ARROW to set the number of days to zero. Holiday mode will
be disabled.
15

Dry Contact Switch/External Device — A dry contact switch is pro-
vided to allow an external device to force the thermostat into Occupied 1.
When the thermostat is forced into Occupied 1 via the dry contact closure,
the Occupied 1 icon will blink each second.
SOFT START — When multiple thermostats are controlled by the same
external device, a Soft Start option can be used to stagger the turn on times
of the HVAC equipment. This feature may cause a delay in operation after
entering Occupied 1.
Remote Temperature Sensor — A remote temperature sensor is avail-
able to read the temperature from a space. If a remote temperature sensor is
connected, the thermostat will ignore the reading of its internal sensor. When
the thermostat is using a reading from a remote sensor, the degree symbol
above the temperature reading will blink.
16

17

18

Your Assurance of Quality
ALL Totaline products are backed with a one-year
warranty by Carrier Corporation, the world’s
largest manufacturer of air conditioning, heating, and
refrigeration products.
Manufacturer reserves the right to
discontinue, or change at any time,
specifications or designs without notice
and without incurring obligations.
REPLACEMENTCOMPONENTSDIVISION
RCARRIER CORPORATION 1/98
LITERATURE NUMBER P374-4SO
PRINTED IN CHINA
