Totally Wicked Corsa 200 User manual

USER MANUAL / BEDIENUNGSANLEITUNG
ELECTRONIC CIGARETTE BATTERY
TW_Corsa_200_Manual.indd 1 19/12/2016 13:20

2
Congratulations on purchasing your
Totally Wicked Corsa 200 Electronic Cigarette
The Totally Wicked Corsa 200 is the most recent addition to the Corsa range,
utilising three 18650 batteries to provide an outstanding 200 watts of power. The
Corsa incorporates an intelligent temperature control system with pre-heating
functionality, allowing you to finely tune your device to suit your vaping style.
Upgradeable firmware means you will always be up to date. The user is provided
with five modes of operation; variable power (W); variable temperature with nickel
coils (Ni); variable temperature with titanium coils (Ti); variable temperature with
stainless steel coils (SS316); and temperature coefficient of resistance (TCR). The
Corsa 200 combines all of its functionality and triple 18650 batteries in a stylish and
ergonomic package, sure to be popular with electronic cigarette users who require
a considerable power output.
TW_Corsa_200_Manual.indd 2 19/12/2016 13:20

3

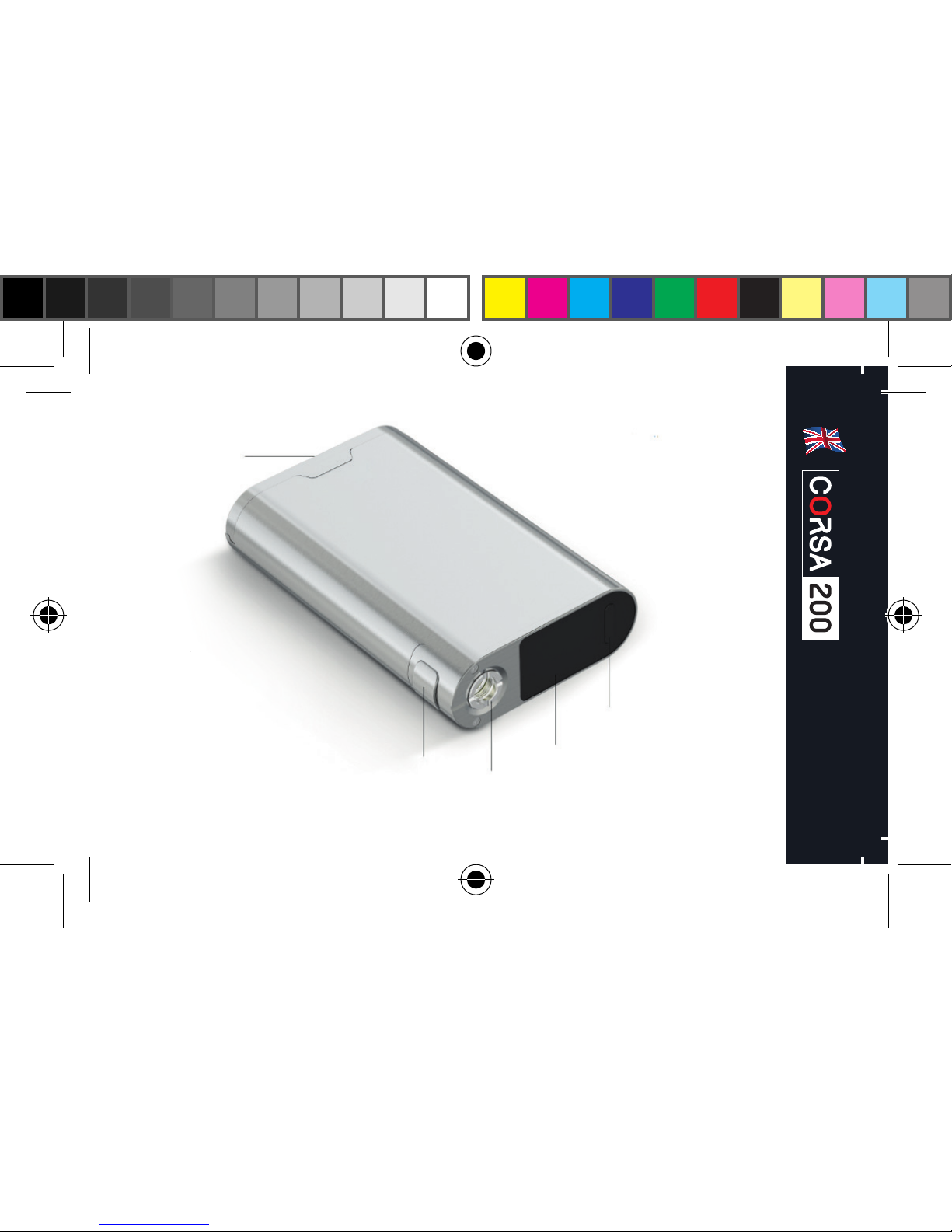

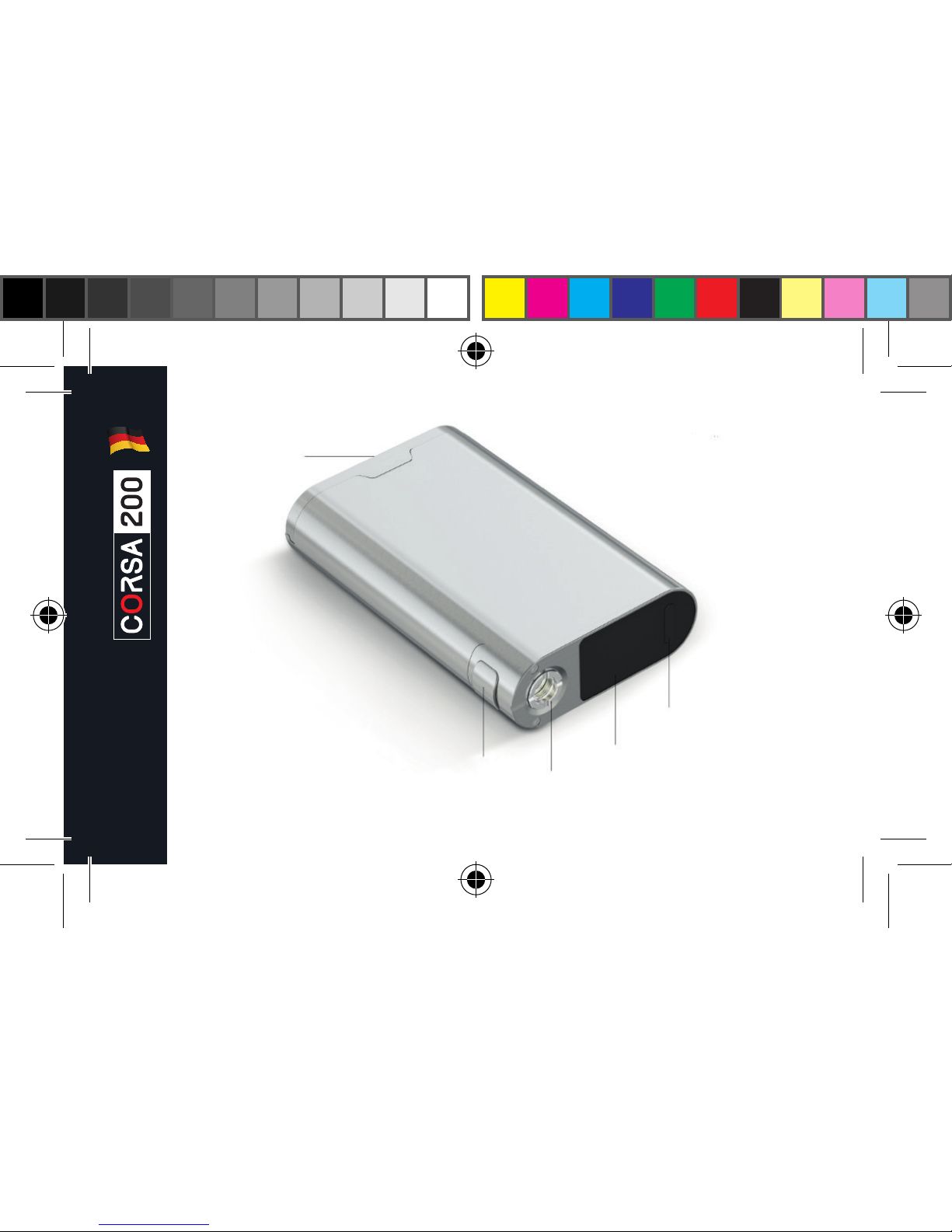

Battery Cover
Power Button 510 Thread
and Sprung Connector
OLED Screen
Adjustment Button
TW_Corsa_200_Manual.indd 3 19/12/2016 13:20

4
Using your Corsa 200
Fitting Batteries:
The Corsa 200 is powered by 3 x
18650 Li-batteries. To fit the batteries
simply slide the battery cover from
the bottom of the device and insert
3 x 18650 batteries, ensuring the
correct polarity. To replace the battery
cover push it firmly into position,
ensuring that it is closed securely.
Note: Please do not mix together
non-matching cell brands or types,
or batteries that are not of a matched
set.
Power On and Off:
The Corsa 200 uses a 5-click on/
off function. To switch the device
on quickly press the power button
5 times. The OLED screen will
illuminate, signifying that the device
is powered on. Once the Corsa 200
is powered on the user can press
the button 5 times to switch the
device off.
Vaping:
Simply press the power button as
you inhale.
TW_Corsa_200_Manual.indd 4 19/12/2016 13:20

5
New Atomizer Installation:
When a new atomizer is connected
or the existing atomizer is
disconnected and reconnected, a
message prompt will be displayed
– ‘New Coil Right, Same Coil Left’.
Press the right adjustment button to
confirm that a new atomizer has been
connected, or the left adjustment
button to confirm that the existing
atomizer has been reconnected.
Selection of a new coil should only
be made when the atomizer and coil
are at room temperature.
Charging the Batteries:
Simply charge the Corsa 200 via
the USB cable when connected to
a powered USB port or suitable wall
adapter. The indicator on the display
will indicate the battery status.
Alternatively, charge the batteries
using a suitable external battery
charging unit.
Using your Corsa 200
TW_Corsa_200_Manual.indd 5 19/12/2016 13:20

6
Battery Charge:
The individual battery charge for
each of the 3 18650 batteries is
displayed on the sixth row of the
OLED display.
Upgrading Firmware:
To upgrade the firmware installed on
the device simply load the relevant
product page on the Totally Wicked
website, click on the link under
‘Firmware Upgrade’ and follow the
instructions provided.
Shift between VW/TC/TCR Modes:
When powered on, press the power
button 3 times consecutively, the
first row will flash indicating that the
right adjustment button may be used
to cycle through the VW/TC/TCR
modes.
Using your Corsa 200
TW_Corsa_200_Manual.indd 6 19/12/2016 13:20

7
VW Mode:
When in VW mode, use the left or
right adjustment buttons to decrease
or increase the level of wattage
respectively. The available wattage
range is 1W – 200W in increments
of 0.1W.
Shift between TC (Ni/Ti/SS316)
Modes:
To shift between TC modes when in
TC mode, press the power button
3 times consecutively to activate
the menu, press the left adjustment
button once and then use the right
adjustment button to cycle through
the Ni/Ti/SS316 modes.
TC Mode (Ni/Ti/SS316):
When in TC mode, use the left
or right adjustment buttons to
decrease or increase the temperature
respectively. The available
temperature range is 100-315°C or
200-600°F and can be adjusted in
increments of 5°C and 10°F. To adjust
the wattage level whilst in TC mode,
press the power button 3 times
Using your Corsa 200
TW_Corsa_200_Manual.indd 7 19/12/2016 13:20

8
consecutively to activate the menu,
press the left adjustment button twice
and the wattage value will flash, use
the right adjustment button to adjust
the wattage level. To lock/unlock
the atomizer resistance, press the
fire button 3 times consecutively
to activate the menu, press the left
adjustment button three times and
the atomizer value will flash, use the
right adjustment button the lock/
unlock the atomizer resistance. Only
lock the atomizer when the coil is at
room temperature.
Note: If a coil with a resistance
exceeding 1.5ohms is applied in VT
mode, the device will automatically
switch to VW mode. Also, if a
standard kanthal or nichrome coil is
used under VT mode, the device will
automatically switch to VW mode.
TCR Mode:
When in TCR mode and the title is
flashing indicating that the menu
is active, press the left adjustment
button once and the sub-menu
(M1, M2, M3) will flash. Whilst the
sub-menu is flashing press the right
Using your Corsa 200
TW_Corsa_200_Manual.indd 8 19/12/2016 13:20

9
Using your Corsa 200
button to shift between M1, M2 and
M3, then press the fire button to
confirm. (Also see: Configuring TCR
Mode)
Configuring TCR Mode:
To set the temperature coefficient
of resistance to match a particular
coil, when the device is powered off
simultaneously hold the fire button
and the right adjustment button to
enter the TCR configuration menu.
Use the right or left adjustment
buttons to select which to configure
from M1, M2 and M3 – this feature
allows the TCR values for 3 materials
to be stored to the device. Press the
fire button to select the TCR value
and then use the adjustment buttons
to increase or decrease the value
to your preference, long press the
fire button or leave the device for 10
seconds to confirm the selection.
TW_Corsa_200_Manual.indd 9 19/12/2016 13:20

10
TCR Value Range:
Using your Corsa 200
Material TCR Value Range
Nickel 600-700
NiFe 300-400
Titanium 300-400
SS (303, 304, 316, 317) 80-200
Note: The TCR value displayed is the 105multiple of the actual TCR value and
is for Corsa 200 usage only.
TW_Corsa_200_Manual.indd 10 19/12/2016 13:20

11
Using your Corsa 200
Pre-Heat Function:
To configure the pre-heat settings,
simultaneously hold the power and
right adjustment button to enter
logo mode. Use the right adjustment
button to select the preheat
settings (wattage and time). Use
the power button to cycle between
the wattage and time settings, then
use the left and right adjustment
buttons to decrease or increase the
setting respectively. Wattage can
be adjusted in increments of 0.1W
between 1W – 200W, and time can
be adjusted between 0 (OFF) – 2.0
seconds in increments of 0.1s. Long
press the power button to confirm
the settings.
Puff Count and Puff Duration
Display:
The puff count/puff duration is
displayed on the screen on the third
row. To shift between each mode,
press the power button 3 times
consecutively to activate the menu,
press the left adjustment button until
the puff count/puff duration flashes,
TW_Corsa_200_Manual.indd 11 19/12/2016 13:20

12
use the right adjustment button to
cycle through the modes. To reset
either mode, long press the power
button while it is displayed. Use
the left button to return to Power
or TC mode, and press the power
button once more to return to normal
operation.
Custom Logo Mode:
To add a custom logo to the device,
open the ‘Firmware Update’ software
as described in ‘Updating Firmware’.
Click on the ‘LOGO’ icon and select
the 64 x 40 BMP image file you
would like to upload. To activate/
deactivate logo mode, hold the
power button and right adjustment
button simultaneously to activate
the regulation menu. Use the right
adjustment button to select logo
mode and use the left adjustment
button to select between ON/OFF
states, press the power button to
confirm the selection. Please ensure
that the firmware is updated to the
latest version to use custom logo
mode.
Using your Corsa 200
TW_Corsa_200_Manual.indd 12 19/12/2016 13:20

13
Using your Corsa 200
Current Display:
The real-time current (AMP) is
displayed on the screen on the right-
hand side of the third row whilst the
power button is pressed.
Imbalanced Batteries:
If the voltage difference between
any 2 cells reaches 0.3V or higher,
‘Imbalanced Batteries’ will be
displayed when the charging lead is
connected.
Charge Error:
If no charging current is detected
when the device is connected to the
charging lead, ‘Charge Error’ will be
displayed.
Short Circuit Protection:
If a short circuit occurs when the fire
button is pressed, ‘atomizer short’
will be displayed on the screen.
Low Voltage Protection:
When the battery voltage is below
3.1V, ‘Battery Low’ will be displayed
TW_Corsa_200_Manual.indd 13 19/12/2016 13:20

14
Using your Corsa 200
on the screen. If following this
message the button is continually
pressed, the message ‘Battery Low
Lock’ will be displayed and the
device will not fire. To unlock and
activate the device the batteries must
be recharged.
Weak Battery Alert:
Under TC/VW mode, when battery
voltage is below 2.9V, the device will
display ‘Weak Battery’. The output
power will automatically be reduced
accordingly.
Low Power Alert:
When the battery voltage is below
3.3V, ‘Battery Low’ will be displayed
on the screen. If the user continues
to press the power button ‘Battery
Low Lock’ will be displayed and
output will be locked. Charge the
batteries to reactivate the device.
TW_Corsa_200_Manual.indd 14 19/12/2016 13:20

15
Using your Corsa 200
10 Second Protection:
If the power button is pressed for
longer than 10 seconds the output
will automatically cease and the
message ‘Over 10s Protection’ will be
displayed.
Display Modes:
When powered off, hold both
adjustment buttons to turn the
display through 180°.
Stealth Mode:
When powered on, simultaneously
hold the power button and the
left adjustment button to activate
stealth mode. Repeat the process to
deactivate stealth mode.
Key Lock Mode:
When powered on, simultaneously
hold the two adjustment buttons for
3 seconds to activate key lock mode.
Repeat the process to deactivate the
key lock mode.
TW_Corsa_200_Manual.indd 15 19/12/2016 13:20

16
Specications
Corsa 200 Dimensions: 99mm x
63mm x 22mm
Wattage Range in VW Mode and TC
Mode: 1W – 200W
Temperature Range in VT Mode: 100-
315°C / 200-600°F
Temperature Coefficient of Resist-
ance Range in TCR Mode: 1-1000
Resistance Range: 0.05-1.5ohm in VT
Mode, 0.1-3.5ohm in VW Mode
Tank Connector: 510 Connector
Battery: 3 x 18650
Firmware Type: Upgradable
Kit Contents
1 x Corsa 200
1 x Silicone Cover
1 x USB Cable
1 x User Manual
TW_Corsa_200_Manual.indd 16 19/12/2016 13:20

17
• Store the Corsa 200 and its accessories away from children when not in use.
• Ensure the Corsa 200 is powered off when not in use.
• Avoid accidentally pressing the Corsa 200 power button when not in use.
• Please only use the charging cable provided.
• Please dispose of dead batteries in accordance with your country’s
appropriate legislation.
• Use only a maximum of 1.5ohm when in VT mode. The mode will
automatically be switched to VW mode when the coil is larger than 1.5ohm or
a normal coil is used.
• Do not charge the batteries in a damp environment.
• Do not use the device when temperatures are outside the range -10 - 60°C.
• Do not charge the battery when temperatures are outside the range 0 - 45°C.
• Do not attempt to repair a faulty Corsa 200 as these are sealed units with no
serviceable parts. Attempted repairs will void the warranty.
Product storage and battery precautions
TW_Corsa_200_Manual.indd 17 19/12/2016 13:20

18
Warranty
The Corsa 200 components have a 28-day parts warranty. The USB cable
supplied has a 12-month warranty. If any parts are found to be faulty within this
time please contact our customer service team, whose details are on the back
page of this booklet and we will arrange for a replacement. We may require the
goods to be returned for further investigation.
TW_Corsa_200_Manual.indd 18 19/12/2016 13:20

19
Glückwunsch zum Kauf Ihrer
Totally Wicked Corsa 200 E-Zigarette.
Die Totally Wicked Corsa 200 ist das neueste Modell aus der Corsa-Serie. Mit 3
Akkus vom Typ 18650 liefert sie eine überragende Leistung von bis zu 200 Watt.
Das Gerät bietet ein eingebautes Temperatur-Kontrollsystem mit Vorheizfunktion,
das individuell allen Dampfbedürfnissen angepasst werden kann. Die Firmware
kann aktualisiert werden, daher ist man mit der Corsa 200 auch in Zukunft stets
auf dem neuesten Stand. Der Nutzer kann aus fünf Betriebsmodi wählen; variable
Leistung (W); variable Temperatur mit Nickel-Heizwendeln (Ni); variable Temperatur
mit Titan-Heizwendeln (Ti); variable Temperatur mit Edelstahl-Heizwendeln (SS316)
und Temperaturkoeffizient (TCR). Die Corsa 200 vereint all ihre Funktionalität -
inkl. 3 Akkus vom Typ 18650 - in einem ergonomischen und dennoch einfach
zu bedienenden Paket, das auch Benutzer ansprechen wird, die Wert auf hohe
Leistung legen.
TW_Corsa_200_Manual.indd 19 19/12/2016 13:20

20
Akkudeckel
Powertaster
510er Anschluss
mit gefedertem Pluspol
OLED-Display
Einstelltaster
TW_Corsa_200_Manual.indd 20 19/12/2016 13:20
