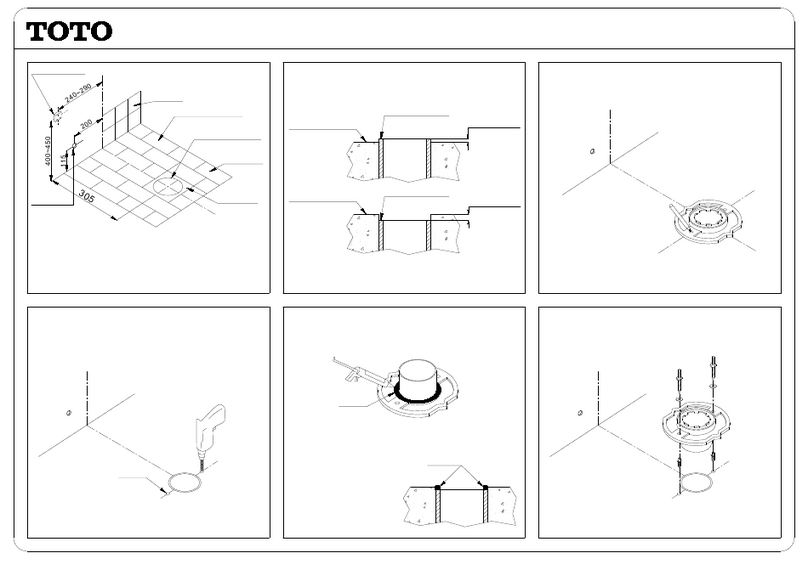

2. Kiểm tra bề mặt ống thải/ Checking top surface of the outlet pipe.
Ống thải chỉ được cao hơn 1mm hoặc thấp hơn 2mm so với mặt
sàn/ The outlet pipe is only allowed taller 1mm or lower 2mm than the
floor.
Tối đa 1mm
Maximum 1mm
Tối đa 2mm
Maximum 2mm
Ống thải Ø110
Outlet pipe Ø110
Chú ý: Nếu không làm đúng theo yêu cầu, có thể gây mùi khi sử
dụng.
Note: Be sure that making right, otherwise it may cause of the
smell nasty.
Ống thải Ø110
Outlet pipe Ø110
Mặt sàn hoàn thiện
Finished floor
Mặt sàn hoàn thiện
Finished floor
0IM075403R/02
5. Bôi si-li-côn vào phần rãnh ở mặt dưới bích nối sàn.
Nếu không có thể gây mùi hôi khi sử dụng.
Paste silicone to the groove on the underside of the floor flange.
Otherwise may cause of the smell nasty.
6. Lắp cố định bích nối sàn.
Install the floor flange.
3. Lấy dấu lỗ cố định bích nối sàn.
Marking the fixed holes of the floor flange.
Lấy dấu
Mark
Với trường hợp ống thải thấp hơn mặt sàn, phải bôi si-li-côn vào
ống thải.
If the outlet pipe is lower than the floor surface, you must apply
silicone to the outlet pipe.
Si-li-côn
Silicone
Si-li-côn
Silicone
4. Khoan lỗ.
Drill the fixed holes.
Ø8x60
Chú ý: Làm sạch sàn sau khi khoan.
Note: Clean the floor after drill.
C971***/MS971***
HƯỚNG DẪN LẮP ĐẶT BÀN CẦU
TOILET INSTALLATION MANUAL
1. Kiểm tra kích thước lắp đặt.
Checking the installation dimensions.
Ống thải Ø110
Outlet pipe Ø110
Vữa
Mortar
Chú ý: Trường hợp khi cắt gạch không làm kín khít xung quanh
ống thải thì phải làm phẳng với vữa và cao bằng mặt sàn hoàn
thiện. Vữa phải khô mới được tiến hành các bước tiếp theo.
Note: If the flooring tile does not fit tightly around the outlet
pipe, it must be leveled that area by the mortar so that same as
the finished floor. Let wait the mortar dry, then doing next steps.
Mặt sàn hoàn thiện
Finished floor
Tường
Wall
Gạch lát nền
Flooring tile
305
290
150
220~260
430~480
Ổ cắm điện
Power socket
Lỗ cấp nước
Water supplied
hole
01
HƯỚNG DẪN LẮP ĐẶT BÀN CẦU
TOILET INSTALLATION MANUAL
0IM075403R/02
9. Lấy dấu lỗ cố định và chân.
Mark fixed holes and toilet leg.
Gioăng cao su non
P-seal
Lấy dấu/ Mark
11. Lắp tấm cố định.
Install the fixed plate.
305
Ø6x45
160
Chú ý:
- Phải lắp gioăng cao su non nếu không có thể gây ra rò nước
- Đối với phụ kiện số (1, 2, 3, 4) nếu khách hàng không mua kèm. Xin
vui lòng chuẩn bị trước khi lắp đặt.
Note:
-You must use P-seal to seal, otherwise water leak happens.
-With (1, 2, 3, 4) parts, if you do not buy together with toilet bowl. Please
prepare before the installtion.
7. Lắp ống nối sàn.
Install the socket.
1
2
3
4
Chú ý: Làm sạch sàn sau khi khoan.
Note: Clean the floor after drill.
258.5
8. Đặt bàn cầu vào vị trí lắp đặt.
Place the toilet into installation position.
50
Ø6x45
45
10. Khoan lỗ lắp tấm cố định.
Drill to install fixed plate.
Chú ý: Làm sạch sàn sau khi khoan.
Note: Clean the floor after drill.
C971***/MS971***
02
12. Lắp van dừng.
Install the stop valve.
0IM075403R/02
16. Lắp dây cấp nước vào van dừng
Connect the flexible hose with the stop valve.
13. Lắp nắp rửa tự động (chi tiết xem hướng dẫn lắp đặt đi kèm nắp
rửa tự động).
Install the washlet (see the manual that is attached with washlet box
for details).
14. Lắp đặt bàn cầu xuống sàn.
Install the toilet onto the floor.
HƯỚNG DẪN LẮP ĐẶT BÀN CẦU
TOILET INSTALLATION MANUAL
15. Cố định thân cầu bằng vít và lắp nút trang trí.
Fix the toilet bowl body with screws then install the cover.
17. Làm kín bề mặt áp sàn bằng si-li-côn và cắm nguồn điện.
Seal the gap between leg and floor by silicone then connect the
power.
Si-li-côn
Silicone
C971***/MS971***
03
MS971P***
HƯỚNG DẪN LẮP ĐẶT BÀN CẦU
TOILET INSTALLATION MANUAL
1. Lắp đặt ống nối tường.
Install the rough in.
290
150
180
128
220~260
430~480
2. Đặt bàn cầu vào vị trí lắp đặt.
Place the toilet into installation position.
3. Lấy dấu lỗ cố định và chân.
Mark fixed holes and toilet leg.
Lấy dấu/ Mark
50
45
Ø6x45
5. Lắp tấm cố định.
Install the fixed plate.
6. Lắp van dừng.
Install the stop valve.
0IM075403R/02
4. Khoan lỗ lắp tấm cố định.
Drill to install fixed plate.
Chú ý: Làm sạch sàn sau khi khoan.
Note: Clean the floor after drill.
04
0IM075403R/02
10. Lắp dây cấp nước vào van dừng
Connect the flexible hose with the stop valve.
7. Lắp nắp rửa tự động (chi tiết xem hướng dẫn lắp đặt đi kèm nắp
rửa tự động).
Install the washlet (see the manual that is attached with washlet box
for details).
8. Lắp đặt bàn cầu xuống sàn.
Install the toilet onto the floor.
HƯỚNG DẪN LẮP ĐẶT BÀN CẦU
TOILET INSTALLATION MANUAL
9. Cố định thân cầu bằng vít và lắp nút trang trí.
Fix the toilet bowl body with screws then install the cover.
Si-li-côn
Silicone
MS971P***
11. Làm kín bề mặt áp sàn bằng si-li-côn.
Seal the gap between leg and floor by silicone.
12. Cắm nguồn điện.
Connect the power.
05
