Toyota handsfree communication User manual

USER MANUAL
HANDSFREE COMMUNICATION
www.blulogicupdate.com

2
Quick-Start Guide......................................................................4-5
Pairing Guide................................................................................6
Pairing TroubleShooting.........................................................8
Using The System.....................................................................9-12
Connection..............................................................................9
Disconnection.......................................................................10
Voice Dial.............................................................................10
Call Answer...........................................................................11
Call End................................................................................11
Call Reject.............................................................................11
Last Number Re-dial.............................................................11
Mute & Un-Mute..................................................................11
Volume Adjustment...............................................................11
Call Interchange...................................................................12
Call Waiting..........................................................................12
Sound Quality........................................................................12
If You Need Assistance.........................................................13
Product Specication............................................................14-15
FCC Warning:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Table of Contents

3
CAUTION
!
Caution:
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement Cto OET65. This
equipment has very low levels of RF energy that it deemed to comply without maximum permission
exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least
20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet
and legs).
Co-location:
This transmitter must be not co-located or operated in conjunction with any other antenna or
transmitter.
Be Safe. When using a Hands-free cellular device in a vehicle, the vehicle operator is solely
responsible for operating the vehicle in a safe manner. Vehicle operators must maintain full
surveillance of all pertinent driving conditions at all times. An accident or collision resulting in
damage of property, personal injury, or death could occur if the operator of the vehicle fails to
pay attention to travel conditions and vehicle operation while the vehicle is in motion. Cellular
device use limits vary by state, province or locality. Obey all laws while driving.
DO NOT program, attempt to program, adjust, or set up your BLU Logic unit while the
vehicle is moving. Your vehicle should be in park with ignition turned to the on or “acc”
(accessory) position.
DO NOT program, attempt to program, adjust, or set up you BLU Logic unit while the vehicle
is inside and the engine is on.
Failure to follow the precautions could result in property damage, serious injury, and death
of yourself, pets or other people near the vehicle from carbon monoxide (for example, if the
vehicle’s engine is running in a garage with the garage door closed), or from physical impact
(if the vehicle should slip out of park and into gear with the engine running).

4
Getting Started
First, your Hands-free equipped cellular
phone must be paired or electronically
matched to the BLU Logic unit. Then
simply place your phone anywhere in the
passenger compartment of your vehicle.
Your Hands-free equipped cellular phone
will automatically connect or transmit
to the BLU Logic unit every time it is
on and within range (30ft/10 meters).
The system will not operate while the
vehicle’s ignition is off, bluetooth service
on cellular phone is off or when cellular
phone is out of range. To Pair your phone,
please see Pairing Guide on page 6.
For a list of compatible phones please
go to http://www.blulogicupdate.com

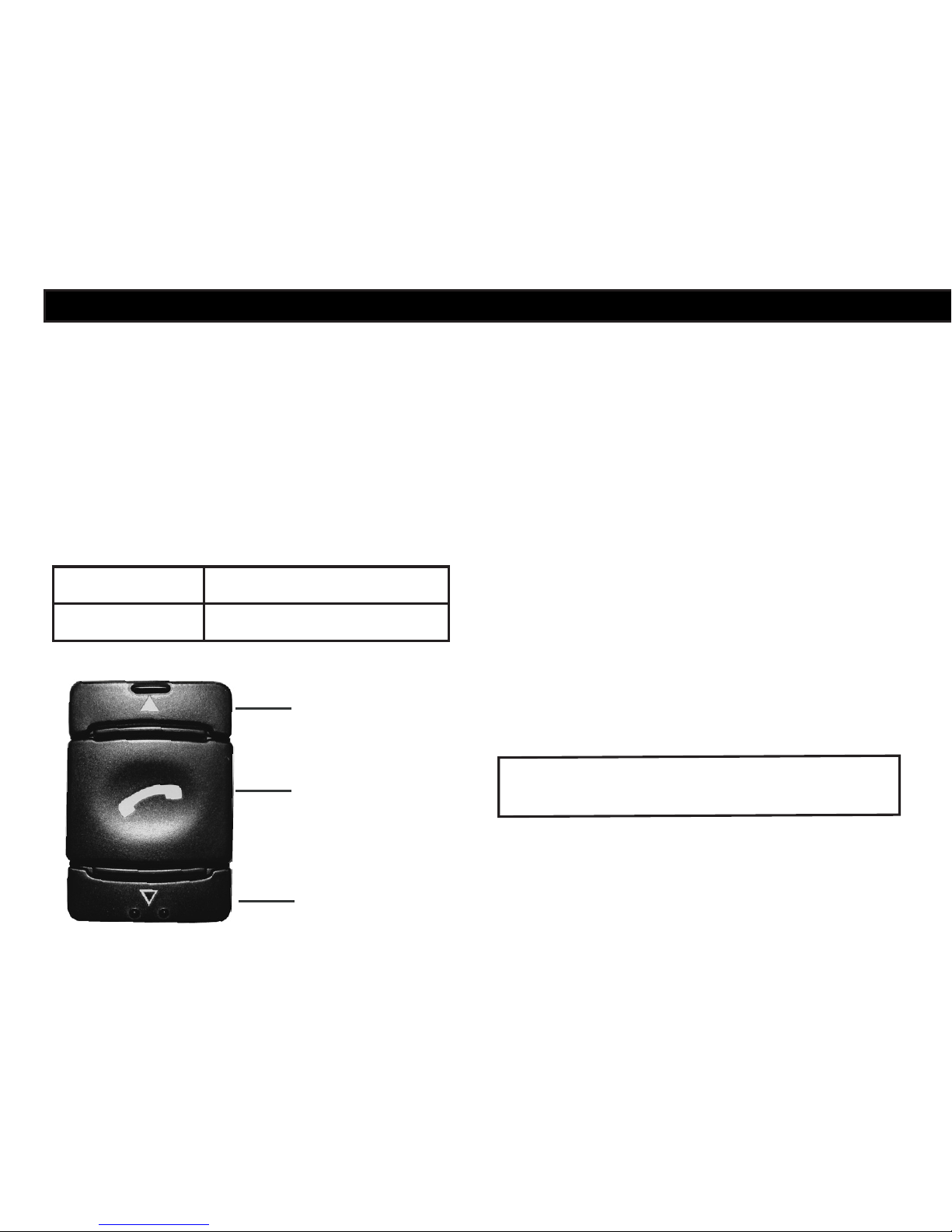

Answer Key
Down Key
Device ID BLU Logic XXXX
Pass Key 1234
Up Key
BLU Logic is a hands-free phone system
for your vehicle. BLU Logic connects
to any hand held celluar phone device
equipped with Bluetooth®Wireless tech-
nology hands free profile and eliminates
the need to hold a handheld cellullar
phone, wear a headset, earpiece, or an in
vehicle mounted hand-set adapter while
making or receiving calls.
Quick-Start Guide

5
Making and Answering Calls
To Key Do
Answer a
Call Short Press
Ending a
Call Short Press
Reject a
Call 
Press for 2
seconds and
release when you
hear 1 beep
Redial
the Last
Number

Press for 2
seconds and
release when you
hear 1 beep
Voice
Dialing Short Press
In a Call
To Key Do
Adjust the
Volume
Up

Short Press
Manual Pairing
To Key Do
Pairing 
Press for 8 seconds
and release when
you hear 3 beeps.
The system will
enter pairing mode
for the next 5
minutes.
Memory
Erase 
Press for 15
seconds and
release when you
hear 4 beeps
Adjust the
Volume
Down
Short Press
Transfer
a Call to
Handset

Press for 4
seconds and
release when you
hear 2 beeps
Call
Waiting

or

When a call waiting
tone is heard press
either volume but-
ton for 8 seconds
(approx.) to switch
to the other call.
Quick-Start Guide

6
Pairing your phone is simple, just
follow these steps:
The system can pair up to 8 hand-sets.
For a list of compatible phones please
go to http://www.blulogicupdate.com
1. Place your hand-set near the dash
board no more than 3 feet/1 meter apart.
2. Press and hold key down for 8
seconds (approximately) until you hear
3 short beeps (this puts the system into
pairing mode for 5 minutes).
3. Activate your mobile hand-set’s
Hands-free accessing function by refer-
ring to your mobile hand-set user’s guide
for details. The hand-set will search for
accessible Hands-free devices.
Note:
For most phones, the pairing operation
will be as follows:
Search for a new deviceNew
Handfree search. This will vary
depending on the features of your par-
ticular phone.
Pairing Guide
4. Select “BLU Logic XXXX” from the
list. Enter the pre-programmed passkey
“1234” and press “OK” to pair the kit and
the hand-set. When pairing is completed,
you may hear a long beep (for most mobile
hand-sets a headset icon will be shown on
the screen) followed by a four note increas-
ing scale connection confirmation tone. For
some phones you may have to perform an
additional step to connect. Refer to your
mobile hand set’s user guide for details.
Note:
Phones using newer Bluetooth standards
(V2.1+ or newer) may autopair without a
passkey.
5. Press “Return” to go back to your hand-
set’s main menu. You should, now be able
to make and receive calls through the sys-
tem within a distance of approximately 30
ft./10 meters (obstructions may cause this
distance to be shorter).

7

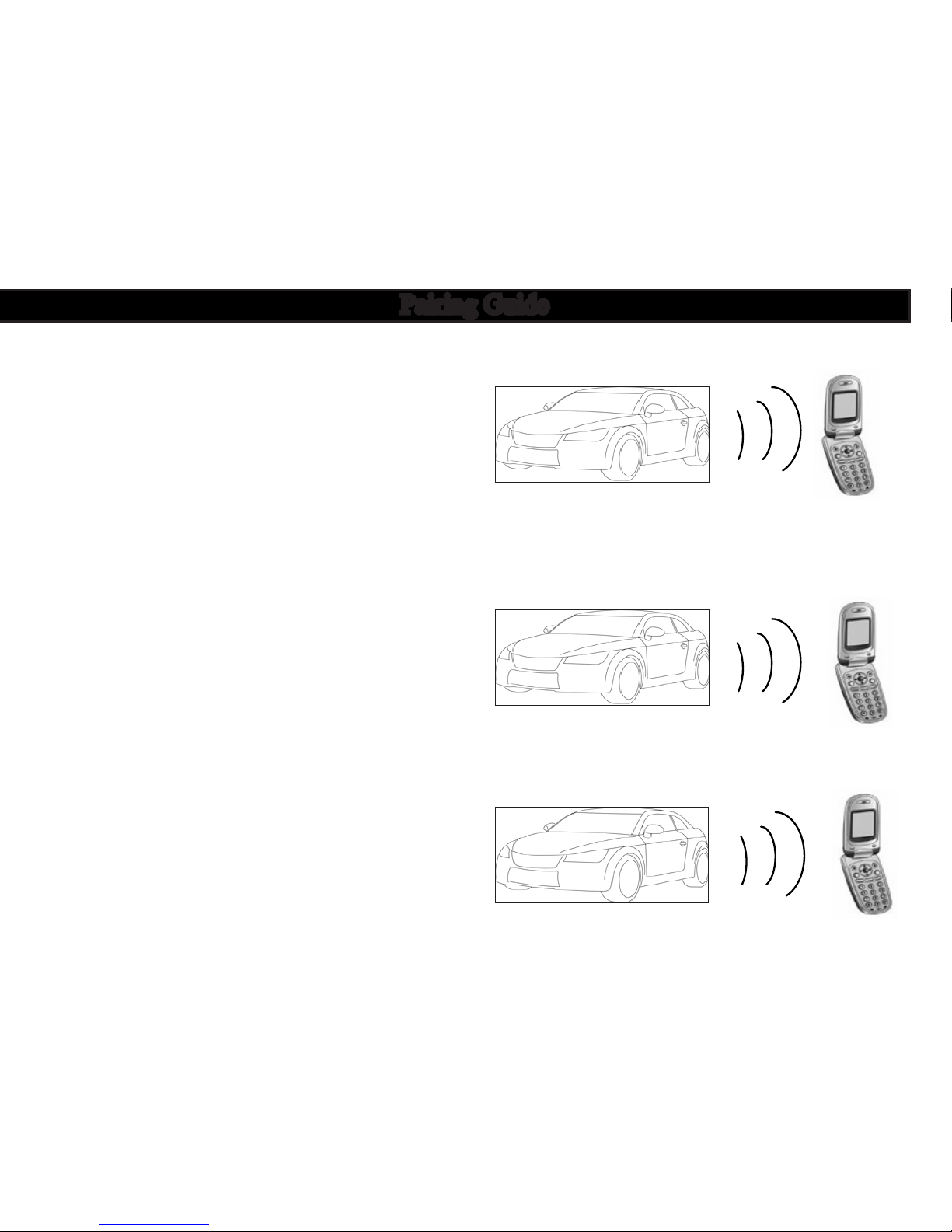

Pairing Order:6. To pair another phone, repeat steps
1 through 5. If more than one phone will
be used with the BLU Logic system, the
pairing order of the phones will determine
the order in which the phones will auto-
connect to the vehicle. Please see pairing
order illustration on right side and section
“Using the System, Auto Connection
Order” on Page 9.
Connection Note:
Some manufacturer’s hand-sets do not
allow automatic connection to Hands-free
devices. If your hand-set does not connect
automatically, please check to see if the
auto-connect feature has been enabled or
set to Without Confirmation. Other pos-
sible settings may be:
Required Authorization  NO,
Device Authorized  YES,
Connection Authorized  YES,
or Trusted Device  YES.
Please refer to your hand-set’s user manual
for further details.
Pairing Guide


1
2
3

8
6. Delete all paired devices from your
hand-set and try again. There is a possibil-
ity that your hand-set is paired to too many
devices and exceeds the maximum number
of connections.
The system can pair up to 8 hand-sets.
7. If all the above steps do not resolve
your problem, power off the vehicle for
10 seconds and try again. BLU Logic is
compliant with and adopts the Hands-free
Specification V2.1. However, interoper-
ability between the device and other
Hands-free enabled products is not guaran-
teed because of various hand-sets features.
Please check with the manufacturer for
more information about compatibility &
use of your Hands-free devices.
For a list of compatible phones please
go to http://www.blulogicupdate.com
My hand-set is paired with the kit.
However, when I start the car, it doesn’t
connect automatically:
Please refer to the Connection Note men-
tioned on previous page.
Cannot find the Hands-free menu:
Please refer to your hand-set user manual
for assistance on various phones.
Hand-set will not pair:
1. Make sure both the phone and vehicle
ignition are ON. Also make sure the phone
battery is charged.
2. Ensure your mobile hand-set’s Hands-
free feature is activated and enabled. Please
refer to your mobile hand-set’s user guide
for specific instructions.
3. Ensure the BLU Logic system is within a
maximum of 3 feet/1 meter of your mobile
hand-set and there are no obstructions in be-
tween such as other electronic devices (this
may cause reduced range or interference in
transmission.)
4. Delete all paired devices by momentarily
pressing the key for 15 seconds (4 Beeps).
Reference back to pairing once this is done.
5. Your phone’s software may need to be
reset. Please remove and reinstall battery
and try again.
Pairing Troubleshooting

9
(1) Connection:
As soon as you enter the car and turn the
ignition on, the system will link with your
hand-set automatically. You will hear one
beep when the connection is established.
Note:
If the Hands-free connection/link is re-
moved (for example: Mobile hand-set is
powered off and then on, or you wander out
and in of the 30ft/10 meter sensing range),
and the system does not automatically re-
connect to your handset, please manually
activate the connection/link from your hand
set. See your hand-set user’s manual for
more details.
Using The System
1 2 3

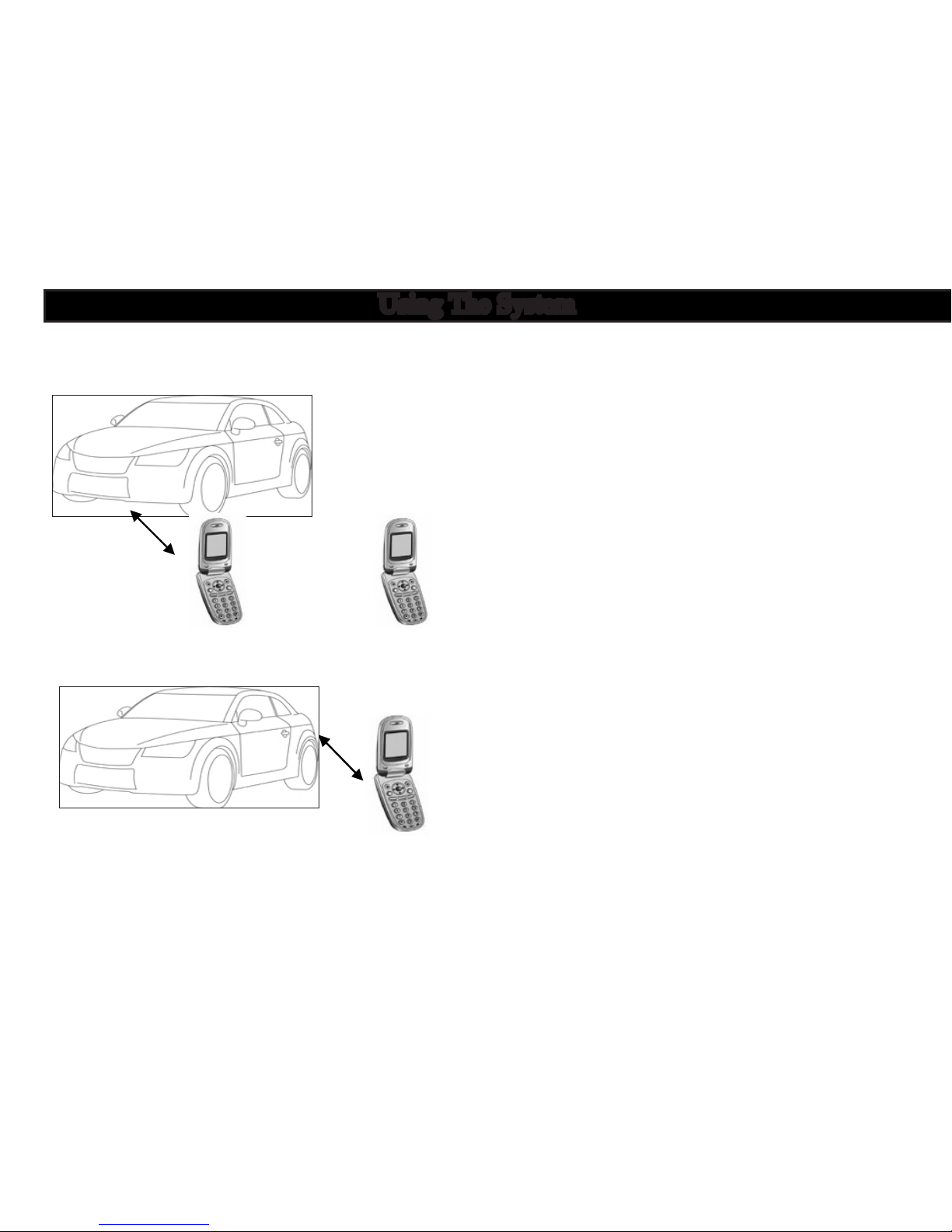

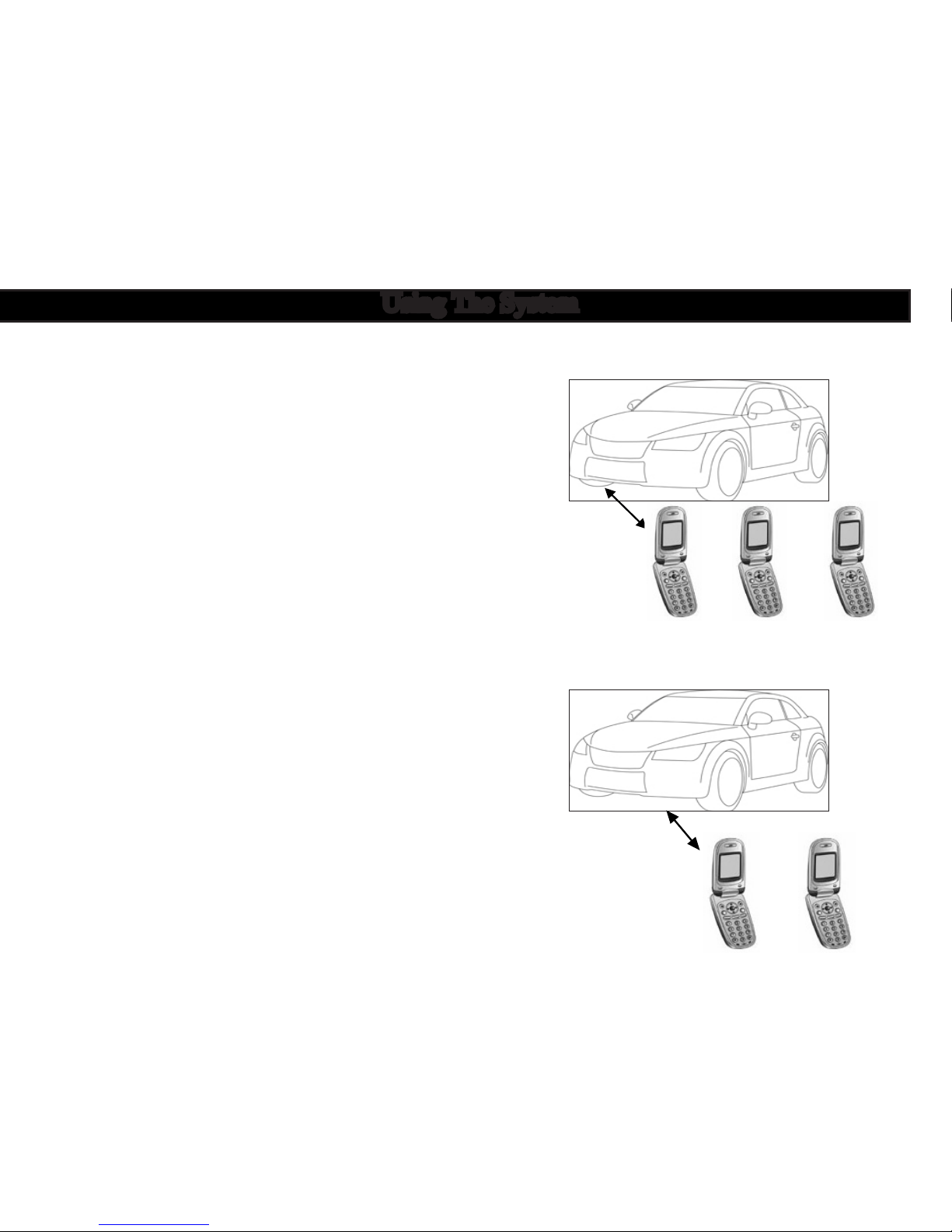

(2) Auto ConneCtion order:
The paired phone(s) will automatically
connect in the order they were paired (see
pairing order). The following are some
examples of connection priorities:
All three phones in car, Phone 1
connects
2 3
No Phone 1 in car, Phone 2
connects

10
(B.) If the phone does not automatically
disconnect Select “disconnect” from your
hand-set menu. See your hand-set user
manual for more details.
Using The System
(1) Voice Dial:
If your mobile’s hand-set is voice dial
enabled, when in standby mode, press the
 key. When you hear a beep’ from your
hand-set, say the “voice tag”.
Note:
BLU Logic does not have voice dial feature
but is compatible with equipped phones.
Please make sure there are voice tags
recorded into the mobile hand-set before
using voice dialing function. This function
is only applicable to mobile hand-sets with
Hands-free Profile. Because of variations
among different hand-sets you may not hear
a beep. Please refer to your mobile hand-
set’s user guide for additional information.
(3) Disconnection:
Follow these steps to disconnect the kit
from the current paired hand-set.
(A) Power off the vehicle. Phone should
automatically disconnect.
Using The System
1 3
3
No Phone 2 in car, Phone 1
connects
Only Phone 3 in car, Phone 3
connects

11
(2) Call Answer:
Press the key to accept a call, or answer
via your mobile hand-set in the normal
way.
(3) Call End:
Press the key to end a call, or end via
your mobile hand-set in the normal way.
(4) Call Reject:
Press and hold the key for 2 seconds
(approximately) until you hear a short
beep, then release the key.
(5) Last Number Re-Dial:
In standby mode, press key for 2 sec-
onds (approx.) until you hear a short
beep, then release the key.
(6) Mute & Un-mute:
When a conversation is in progress, you
can mute or un-mute the microphone so
that the other party cannot hear you.
To Mute: Press and hold the keys
simultaneously for 2 seconds (approx.)
until you hear 1 beep from the speaker,
then release.
To Un-Mute: Press and hold the keys
simultaneously for 2 seconds (approx.)
until you hear 1 beep from the speaker,
then release.
(7) Volume Adjustment:
When a conversation is in progress, press
the volume upor downkeys repeat-
edly until you reach the desired volume
level.
Using The System

12
Using The System
(8) Call Interchange:
When a conversation is in progress, you
may transfer the call in between the system
and hand-set.
System to Hand-set: Press key for 4 sec-
onds and release when you hear 2 beep’s.
Hand-set to System: Press key for 4
seconds and release when you hear 2 beep’s
or restart the vehicle.
Note:
This could vary owing to various hand-sets
features.
(9)Call Waiting:
When a call waiting tone is heard from your
hand-set, press either the volume up ▲or
volume down button for
8 seconds (approx.) to switch to the other
call. Repeat the same procedure to switch
back to the first call.
(10) Sound Quality
For improved sound quality during BLU
Logic operation, please:
- Keep all windows up
- Avoid setting the HVAC blower speed on
high
- Avoid multiple passengers speaking at the
same time towards the front of the vehicle,
do not shout
- Project your voice clearly towards the
front of the vehicle, do not shout. Sound
Quality may be effected by the following:
- Background noise
- Road conditions
- Vehicle speed
- Wireless carrier performance
- Wireless hand-set performance
Note: Sound degradation may occur with
high background noise levels in the vehicle,
including high vehicle speeds and/or road
conditions.

13
(11) If You need Assistance
Both Toyota and your Toyota dealer are
dedicated to serving your automotive needs.
Should you have a problem or concern
please take the following steps.
Step 1
Discuss the situation with the dealership or
customer relations manager.
Step 2
If the dealership does not address your
concern to your satisfaction, call the
Toyota Customer Experience Center at
[phone]. If you are hearing- or
speech-impaired, call [phone]
(TDD). In Canada contact our Toyota
Canada Customer Interaction Centre at
1-888-TOYOTA-8 or 1-888-869-6828.
Care and Maintenance
(A) Do not attempt to disassemble the sys-
tem as it does not contain user serviceable
components.
(B.) Only go to designated service centers
for installation/removal of system.
Using The System

14
Hands-free Specifications Version 2.1 + EDR; Class 2, 10 Meters/ 30 ft.
Hands-free Profile Supported HSP1.1, HFP1.5
Operating Frequency Band 2.402 to 2.480GHz unlicensed ISM band
Multi-Pairing Up to 8 Hands-free devices
Hands-free DSP Full Duplex, Noise Reduction, Echo Cancellation
Power supply voltage range DC 9 ~ 25 volts
Working temperature -25 ஂC ~ 75 ஂC / -13ஂF~ 167ஂF
Storage temperature -35 ஂC ~ 85 ஂC / -31ஂF~ 185ஂF
Current consumption In Operation:
ACC ON (during conversation)
100mA ~2A(Max)/DC 12V
In Standby Mode:
ACC ON (standby mode) 10mA(Max)/DC 12
ACC OFF < 1mA
Product Specifications

15
Microphone
(including amplifying circuit)
Category: Omni Directional
Sensitivity: -56dB ± 2dB tolerance
SN ratio: >55dB (Min)
Frequency response: Tuned to optimize voice
response from 200Hz - 3kHz
Amplifier output
(loudspeaker)
Output power: 10W Peak
Impedance: 4 Ohm
Max output current: 3A
Max undistorted amplitude: 10Vpp
Mute mode Active Low Mute
Sink current: 40mA @ 0.5V
Dimensions (L/W/H) 134.5 x 81 x 30 mm / 5.26” x 3.19” x 1.18”
Reference # 99-9550-000 Rev. 6
Product Specifications
