1. NAVIGATION OPERATION
1. OVERVIEW BUTTON AND MAIN MENU SCREEN
No. Name/Icon Function Page
“Radio” Touch to display the radio control screen. 182
“Media” Touch to display the media control screen. 196
“Apps” Touch to display the “Apps” screen. 255
Touch to display the audio control screen. 176
“Phone” Touch to display the hands-free operation
screen. 122
“Info” Touch to display the “Information” screen. 26, 236,
239, 242,
244, 247
Touch to display the “Setup” screen.
24, 35, 46,
52, 92, 107,
114, 144,
164, 220,
250
*

11
1. NAVIGATION OPERATION
1
QUICK GUIDE
“EV”
Touch to view and set “Energy Monitor”,
“Charge Summary”, “Charging & Pre-Climate
Setup” and “Range Map” settings. For details,
refer to the “Owner’s Manual”.
⎯
“HOME” button Press to display the “Main Menu” screen. Press
and hold to turn off the screen and audio system.
14, 16, 18,
19, 35, 56,
122, 176,
236, 255
“Dest” Touch to display the “Destination” screen. 14, 16, 18,
19, 22, 56
“Map” Touch to display the current position and start
guidance. 37
Touch to turn the audio system on and off. 177
Press and hold the “HOME” button for 10 seconds or more to turn off the screen and restart the
navigation system. Do this when the vehicle-mounted device response is extremely slow.
*: The date on the navigation system and the time on the HVAC display are displayed by utilizing
GPS. (See “CLOCK SETTINGS” on page 47 and “GPS (GLOBAL POSITIONING SYSTEM)” on
page 118.)
No. Name/Icon Function Page

12
1. NAVIGATION OPERATION
2. MAP SCREEN
No. Name/Icon Function Page
North-up or
heading-up sym-
bol
This symbol indicates whether the map orienta-
tion is set to north-up or heading-up. Touching
this symbol changes the map orientation. Both
north-up and heading-up symbols display the ve-
hicles direction as a letter (e.g. N for north).
45
Scale indicator This figure indicates the map scale. 44
Touch to display the audio control screen. 176
Touch to repeat a voice guidance, cancel scroll-
ing on the map screen, and to display the current
position. 37, 78
Zoom out button Touch to reduce the map scale. 44
“WW Off” Touch to obtain a broader view. Some of the but-
tons on the screen will not be displayed. They are
displayed again by touching “On XX”.111
“Mark” Touch to register the current position or the cur-
sor position as an address book entry. 39
“Route” Touch to change the route. 81, 83

13
1. NAVIGATION OPERATION
1
QUICK GUIDE
“Show on Map” Touch to browse information about guidance
route, to set the POI (Point of Interest) icons to be
displayed on the screen, to record the route, etc. 87, 248
Zoom in button Touch to magnify the map scale. 44
“Map Mode” Touch to display the “Map Mode” screen. 41
Distance and
time to destina-
tion
Displays the distance, estimated travel and arriv-
al time to the destination. 80
XM indicator This mark is displayed when XM information is re-
ceived. 246, 248
“GPS” mark (Glo-
bal Positioning
System)
Whenever the vehicle is receiving signals from
the GPS, this mark is displayed. 118
No. Name/Icon Function Page

14
1. NAVIGATION OPERATION

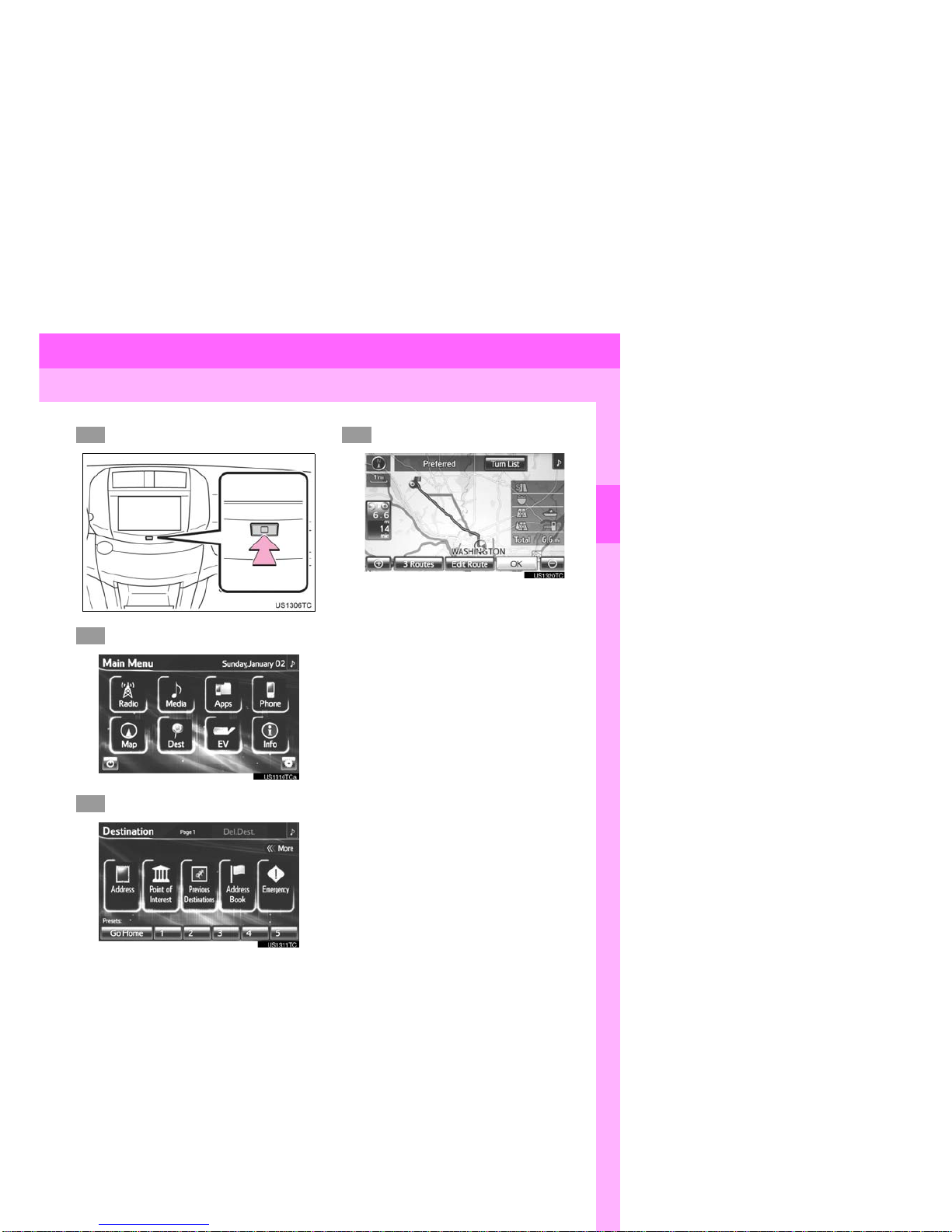

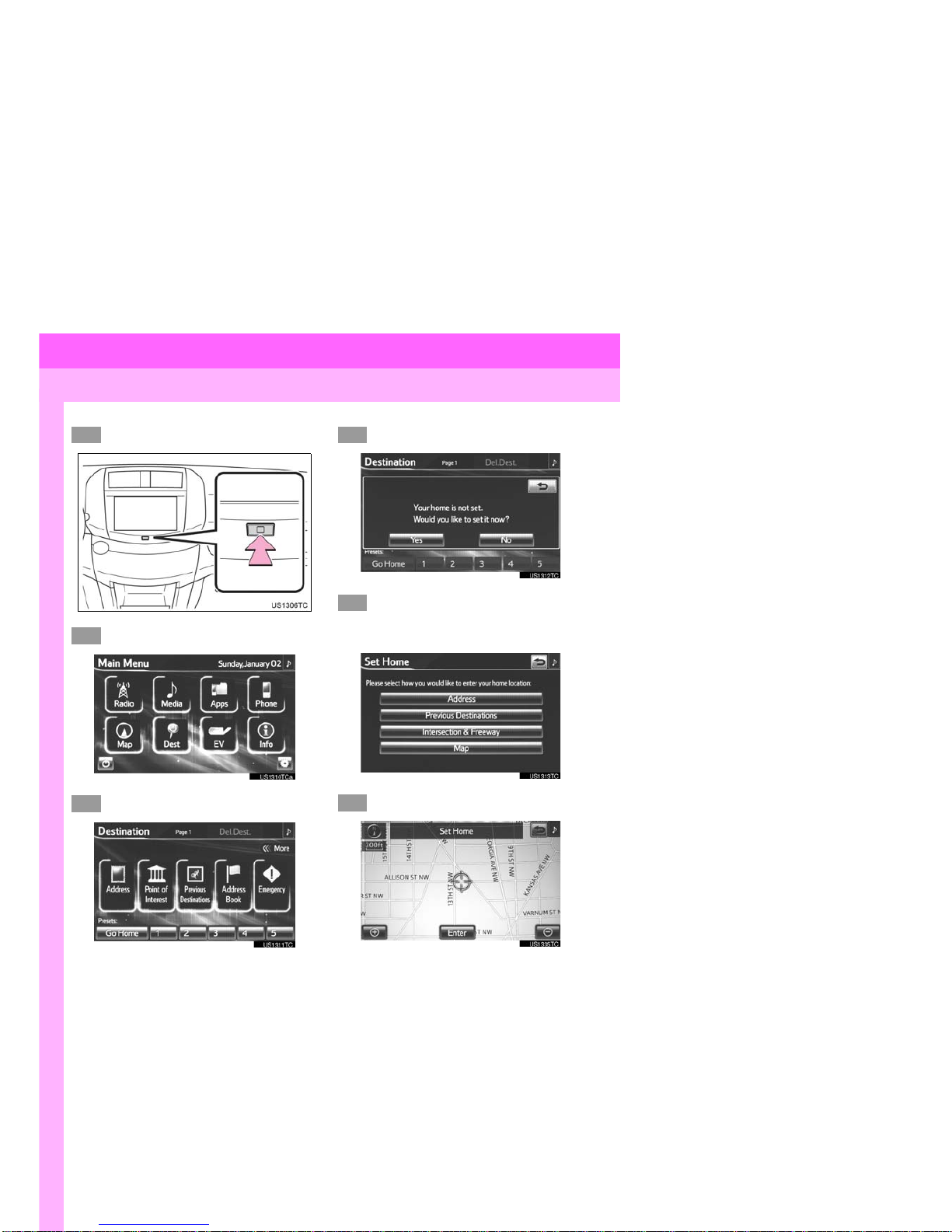

3. REGISTERING HOME
Press the “HOME” button.
Touch “Dest”.
Touch “Go Home”.
If a home address has not been regis-
tered, it can be registered by touching
“Go Home”.
Touch “Yes”.
There are 4 different methods to
search your home. (See “DESTI-
NATION SEARCH” on page 56.)
Touch “Enter”.
The “Edit Home” screen is displayed.
1
2
3
4
5
6

15
1. NAVIGATION OPERATION
1
QUICK GUIDE
Touch “OK”.
Registration of home is complete.
Home can also be registered by touch-
ing “Navigation” on the “Setup” screen.
(See “REGISTERING HOME” on page
93.)
The name, location, phone number and
icon can be changed. (See “EDITING
HOME” on page 94.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY HOME” on page
57.)
7

16
1. NAVIGATION OPERATION
4. REGISTERING PRESET DESTINATIONS
Press the “HOME” button.
Touch “Dest”.
Touch one of the preset destina-
tion buttons.
A preset destination can be set to any
preset destination button that has not
yet been set.
Touch “Yes”.
There are 4 different methods to
search preset destinations. (See
“DESTINATION SEARCH” on
page 56.)
Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
1
2
3
4
5
6

17
1. NAVIGATION OPERATION
1
QUICK GUIDE
Touch “OK”.
Registration of preset destinations is
complete.
Preset destinations can also be regis-
tered by touching “Navigation” on the
“Setup” screen. (See “REGISTERING
PRESETDESTINATIONS”onpage 95.)
The name, location, phone number and
icon can be changed. (See “EDITING
PRESETDESTINATIONS”onpage 96.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY PRESET DESTI-
NATIONS” on page 57.)
7

18
1. NAVIGATION OPERATION
5. OPERATION FLOW: GUIDING THE ROUTE
Press the “HOME” button.
Touch “Dest”.
There are 10 different methods to
search destinations. (See “DES-
TINATION SEARCH” on page 56.)
XPage 1
XPage 2
The driving range available on the cur-
rent amount of charge remaining in the
traction battery can be confirmed on the
“Range Map” screen. (For details, refer
to the “Owner’s Manual”)
Touch “Go to ”.
The navigation system performs a
search for the route.
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 71.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4
5

19
1. NAVIGATION OPERATION
1
QUICK GUIDE
6. SETTING HOME AS THE DESTINATION
Press the “HOME” button.
Touch “Dest”.
Touch “Go Home”.
“Go Home” can be used if your home
address has been registered. (To regis-
ter home, see “REGISTERING HOME”
on page 93.)
Your home address is set as the desti-
nation. The navigation system performs
a search for the route.
The driving range available on the cur-
rent amount of charge remaining in the
traction battery can be confirmed on the
“Range Map” screen. (For details, refer
to the “Owner’s Manual”)
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 71.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4

20
2. FUNCTION INDEX
1. NAVIGATION SYSTEM FUNCTION INDEX
XMap
XRoute guidance
Displaying maps Page
Viewing the map screen 12
Displaying the current position 37
Viewing the current position vicinity map 37
Changing the scale 44
Changing the map orientation 45
Displaying Points of Interest 87
Displaying the estimated travel/arrival time to the destination 80
Selecting the map mode 41
Deleting map screen buttons 111
Displaying traffic information 247
Searching destinations Page
Searching the destination 56
Changing the selected search area 56
Operating the map location of the selected destination 71
Before starting route guidance Page
Setting the destination 71
Viewing alternative routes 72
Starting route guidance 71
Before starting or during route guidance Page
Viewing the route 71
Adding destinations 81
Changing the route 83
Displaying the estimated travel/arrival time to the destination 80

21
2. FUNCTION INDEX
1
QUICK GUIDE
XUseful functions
During route guidance Page
Pausing route guidance 86
Adjusting route guidance volume 53
Deleting the destination 82
Displaying the entire route map 84
Address book Page
Registering address book entries 98
Marking icons on the map 99
Information Page
Displaying vehicle maintenance 114
Hands-free system (for cellular phone) Page
Initiating Bluetooth®124
Making a call on a Bluetooth®phone 132
Receiving a call on the Bluetooth®phone 138
Voice command system Page
Operating the system with your voice 224

22
3. QUICK REFERENCE
1. “Destination” SCREEN
The “Destination” screen enables a destination search. Press the “HOME” button
and touch “Dest” to display the “Destination” screen.
No. Name Function Page
“Address” Touch to input a house number and the street ad-
dress using the input keys. 58
“Point of Interest” Touch to select one of the POIs that have already
been stored in the system’s database. 60
“Previous Desti-
nations”
Touch to select a destination from any of the last
100 previously set destinations and from the pre-
vious starting point. 66
“Address Book”
Touch to select the desired location from a regis-
tered entry in “Address book”. (To register ad-
dress book entries, see “REGISTERING
ADDRESS BOOK ENTRIES” on page 98.)
66
“Emergency” Touch to select one of the 4 categories of emer-
gency service points that have already been
stored in the system’s database. 67
“Intersection &
Freeway”
Touch to enter the names of two intersecting
streets or a freeway (interstate) entrance or exit.
This is helpful if only the general vicinity, not the
specific address, is known.
67
“Map” Touch to enable setting a destination by touching
a location on the map screen. 69

23
3. QUICK REFERENCE
1
QUICK GUIDE
“Coordinates” Touch toenterlatitude andlongitude coordinates. 70
“Del.Dest.” Touch to delete set destinations. 70
Preset destina-
tion buttons
Touch to select one of the 5 preset destination
points as a destination. If a preset destination
point has not been registered, a message will be
displayed asking if it is desirable to set a destina-
tion to the preset screen button. (To register a
preset destination, see “REGISTERING PRE-
SET DESTINATIONS” on page 95.)
57
“Go Home”
Touch to select your personal home address
without having to enter the address each time. If
a home address has not been registered, a mes-
sage confirming if it is desirable to set a home will
be displayed, and the setting screen will appear.
(To register home, see “REGISTERING HOME”
on page 93.)
57
No. Name Function Page

24
3. QUICK REFERENCE
2. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “HOME” button and
touch to display the “Setup” screen.
No. Name Function Page
“General” Touch to change the selected language, opera-
tion sound settings, automatic screen change,
etc. 46
“Voice” Touch to set the voice guidance settings. 52
“Navigation” Touch to set home, preset destinations, address
book, areas to avoid, etc. or to delete previous
destinations. 92
“Display” Touch to adjust the contrast and brightness of the
screens, turn the display off, etc. 35
“Vehicle” Touch to set the maintenance information. 114

25
3. QUICK REFERENCE
1
QUICK GUIDE
“Other” Touch to set XM Sports and XM Stocks. 250
“Audio” Touch to set iPod and HD Radio™channel. 220
“Bluetooth*” Touch to set Bluetooth®phones and Bluetooth®
audio devices. 164
“Phone” Touch to set the phone sound, phone book, mes-
sage settings, etc. 144
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
No. Name Function Page

26
3. QUICK REFERENCE
3. “Information” SCREEN
This screen can be used to display the XM satellite system, traffic incidents and
map data. Press the “HOME” button and touch “Info” to display the “Information”
screen.
No. Name Function Page
“Traffic Incidents” Touch to display traffic incidents. 247
“XM Sports” Touch to display personally selected sports
teams information. 239
“XM Stocks” Touch to display personally selected stocks infor-
mation. 242
“Map Data” Touch to display map data information. 236
“XM NavWeath-
er” Touch to display weather information. 244

27
3. QUICK REFERENCE
1
QUICK GUIDE
4. NAVIGATION SYSTEM SCREEN OPERATIONS
*: The above operations may not be performed on all screens.
Operations are performed by touching the navigation system screen directly with
your finger.
Operation method Outline Main use Page
Touch
Quickly touch and re-
lease once.
Changing and selecting
various settings. ⎯
Double tap*
Quickly touch and re-
lease twice. Changingthemapscale. 44
Drag*
Touch the screen with
your finger, and move
the screen to the desired
position.
Moving around the map,
adjusting audio volume,
etc. 38
Flick*
Quickly move the screen
by flicking with your fin-
ger.
Moving around the map,
skipping to the next page
of a list, etc. 33, 38

28
3. QUICK REFERENCE
