Toyotomi STG-909R32 User manual

Οδηγίες Χρήσης
User’s Manual
Manuale d’installazione ed uso
Manual del usuario
ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΟΙΧΟΥ ΤΥΠΟΥ INVERTER
WALL MOUNTED AIR CONDITIONER INVERTER TYPE
CONDIZIONATORE SPLIT
AIRE ACONDICIONADO DE PARED TIPO INVERTER
ΜΟΝΤΕΛΑ / MODELS / MODELLI / MODELOS
STN/STG-909R32
STN/STG-912R32
STN/STG-918R32
STN/STG-924R32
Ευχαριστούμε για την επιλογής σας στο κλιματιστικό TOYOTOMI.
Για τη σωστή του χρήση παρακαλούμε διαβάστε το εγχειρίδιο χρήσης προσεκτικά, πριν
θέσετε τη μονάδα σε λειτουργία και κρατήστε το σε καλή κατάσταση για μελλοντική αναφορά.
Thank you for purchasing our product.
• Before using this product, be sure to read this Instruction Manual to ensure proper usage.
Please keep this manual for later reference.
• Improper use of this product may result in a malfunction, failure, unexpected accident, or
create a potential hazard.
Grazie per aver scelto un prodotto TOYOTOMI.
Per un corretto funzionamento, leggere attentamente questo manuale prima di usare il con-
dizionatore e conservarlo per una futura consultazione.
Gracias por adquirir nuestro producto.
• Antes de usar este producto, lea este manual de instrucciones para asegurar el uso apropiado
del mismo. Por favor, guarde el manual para futura referencia.
• El uso inapropiado de este producto puede resultar en averías, fallos, accidentes inesperados
o crear peligro potencial.

51 GB

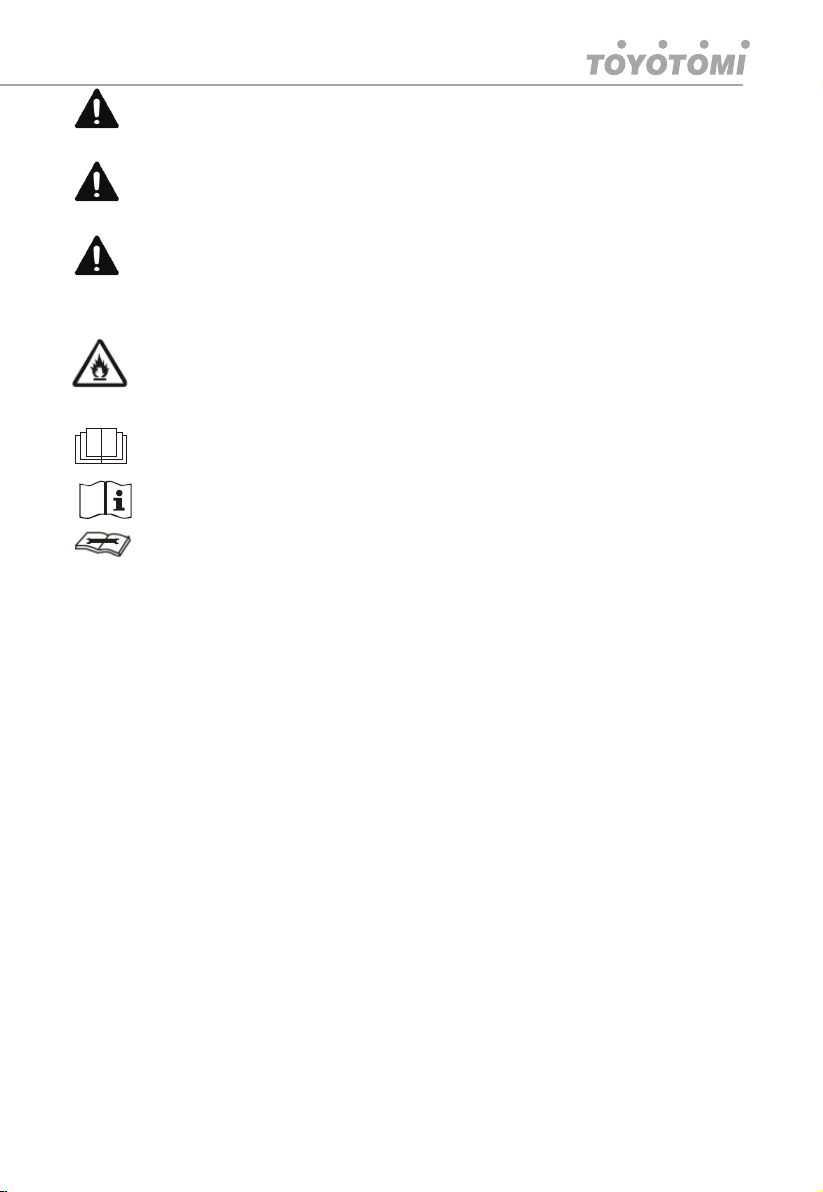

DANGER: This symbol indicates a dangerous situation that if not avoided
could lead to death or serious injury.
WARNING: This symbol indicates a dangerous situation that if not
avoided could lead to death or serious injury.
ATTENTION: This symbol indicates a dangerous situation that if not
avoided could lead to minor or moderate damage.
NOTICE: Indicates important information indicate the risk of material damage.
Appliance filled with flammable gas R32. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk of fire.
Before use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
Refrigerant R32: GWP 675
THE REFRIGERANT
§To realize the function of the air conditioner unit, a special refrigerant
circulates in the system. The used refrigerant is the fluoride R32, which is
specially cleaned. The refrigerant is flammable and inodorous. Furthermore,
it can leads to explosion under certain conditions. But the flammability of the
refrigerant is very low. It can be ignited only by fire.
§Compared to common refrigerants, R32 is a nonpolluting refrigerant with no
harm to the ozonosphere. The influence upon the greenhouse effect is also
lower. R32 has got very good thermodynamic features which lead to high
energy efficiency. The units therefore need a less filling.

52 GB
WARNING
§Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacture.
§If repair or maintenance is necessary, contact your nearest
authorized Service Centre.Any repairs carried out by unqualified
personnel may be dangerous.
§The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an
operating gas appliance or an operating electric heater.) Do not
pierce or burn the air conditioner.
§Appliance shall be installed, operated and stored in a room with
a floor area larger than 5m2.
§Air conditioner refrigerant can not charge more than 1.7kg.
§The storage of the air conditioner should be able to prevent
mechanical damage caused by accident.
§Air conditioner must be installed with stop valve cover.
§Appliance filled with flammable gas R32. For repairs, strictly
follow manufacturer’s instructions only. Be aware that
refrigerants do not contain odor and may be tasteless.
§Read carefully the instruction manual before first use.
PRECAUTIONS
WARNING
Operation and Maintenance
qThis appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
qChildren shall not play with the appliance.
qCleaning and user maintenance shall not be made by children

53 GB
without supervision.
qDo not connect air conditioner to multi-purpose socket.
Otherwise, it may cause fire hazard.
qAlways disconnect power supply when cleaning air conditioner.
Otherwise, it may cause electric shock.
qIf the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons to
avoid a hazard.
qDo not use the air conditioner in lightning storm weather.
Lightning might cause damage.
qDo not wash the air conditioner with water to avoid electric
shock.
qDo not use liquid or corrosive cleaning agent wipe the air
conditioner. Doing this may cause electric shock or damage to
the unit.
qDo not spray water on indoor unit. It may cause electric shock
or malfunction.
qAfter removing the filter, do not touch fins to avoid injury.
qDo not use fire or hair dryer to dry the filter to avoid deformation
or fire hazard.
qCleaning or maintenance MUST NOT be made by children.
Supervision must always be provided by an adult responsible
for their safety.
qMaintenance must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage. In such
case warranty will be invalid.
qDo not repair air conditioner by yourself. It may cause electric
shock or damage. Please contact dealer when you need to
repair air conditioner.
qDo not extend fingers or objects into air inlet or air outlet. It may
cause personal injury or damage.
qDo not block air outlet or air inlet. It may cause malfunction.

54 GB
qDo not spill water on the remote controller, otherwise the remote
controller may be broken.
qWhen below phenomenon occurs, please turn off air conditioner
and disconnect power immediately and then contact the dealer
or qualified professionals for service.
- Power cord is overheating or damaged.
- There’s abnormal sound during operation.
- Circuit break trips off frequently.
- Air conditioner gives off burning smell.
- Indoor unit is leaking.
qIf the air conditioner operates under abnormal conditions, it
may cause malfunction, electric shock or fire hazard.
qWhen turning on or turning off the unit by emergency operation
switch, please press this switch with an insulating object other
than metal.
qDo not step on top panel of outdoor unit or put heavy objects. It
may cause damage or personal injury.
qInstallation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
qMust follow the electric safety regulations when installing the
unit.
qAccording to the local safety regulations, use qualified power
supply circuit and circuit break.
qInstall the circuit break. If not, it may cause malfunction.
qAn all-pole disconnection switch having a contact separation of
at least 3mm in all poles should be connected in fixed wiring.
qIncluding a circuit break with suitable capacity, please note the
following table. Air switch should be included magnet buckle
and heating buckle function, it can protect the circuit-short and
overload.
qAir Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
qDon’t use unqualified power cord.

55 GB
qMake sure the power supply matches with the requirement of
air conditioner. Unstable power supply or incorrect wiring or
malfunction. Please install proper power supply cables before
using the air conditioner.
qProperly connect the live wire, neutral wire and grounding wire
of power socket.
qBe sure to cut off the power supply before proceeding any work
related to electricity and safety.
qDo not put through the power before finishing installation.
qIf the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons to
avoid a hazard.
qThe temperature of refrigerant circuit will be high, please keep
the interconnection cable away from the copper tube.
qThe appliance shall be installed in accordance with national
wiring regulations.
qInstallation must be performed in accordance with applicable
local regulations by authorized licensed personnel only.
qThe air conditioner is the first-class electric appliance. It must
be properly grounding with specialized grounding device by a
professional. Please make sure it is always grounded effectively,
otherwise it may cause electric shock.
qThe yellow-green wire in air conditioner is grounding wire,
which can’t be used for other purposes.
qThe grounding resistance should comply with national electric
safety regulations.
qThe appliance must be positioned so that the plug is accessible.
qAll wires of indoor unit and outdoor unit should be connected by
a professional.
qIf the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the wire by
yourself.
qFor the air conditioner with plug, the plug should be reachable

56 GB
after finishing installation.
qFor the air conditioner without plug, a circuit break must be
installed in the line.
qIf you need to relocate the air conditioner to another place, only
the qualified person can perform the work. Otherwise, it may
cause personal injury or damage.
qSelect a location which is out of reach for children and far away
from animals or plants. If it is unavoidable, please add the fence
for safety purpose.
qThe indoor unit should be installed close to the wall.
qInstructions for installation and use of this product are provided
by the manufacturer.
qThe air conditioner is not allowed to use in a room that has
running fire (such as fire source, working coal gas ware,
operating heater).
qIt is not allowed to drill hole or burn the connection pipe. These
tasks shall only be done by a licensed technician to ensure
your safety.
qLeak test is a must after installation.
qDon’t install the air conditioner in a place where there is
flammable gas or liquid. It may cause fire even explosion.
This product contains fluorinated greenhouse gases
Refrigerant leakage contributes to climate change. Refrigerant
with lower global warming potential (GWP) would contribute less
to global warming than a refrigerant with higher GWP if leaked to
the atmosphere. This appliance contains a refrigerant fluid with a
GWP equal to [675]. This means that if 1 kg of this refrigerant fluid
would be leaked to the atmosphere the impact on global warming
would be [675] times higher than 1 kg of CO2 over a period of 100
years. Never try to interfere with the refrigerant circuit yourself or
disassemble the product yourself. These tasks should be carried

57 GB
only by licensed authorized technician.
Ensure no following objects are under the indoor unit:
§Microwaves, ovens and other hot objects.
§Computers and other high electrostatic appliances.
§Sockets that plug frequently.
The joints between indoor and outdoor unit shall not be reused,
unless after re-flaring the pipe.
The specifications of the fuse are printed on the circuit board, such
as: 3.15A/250V AC, etc.
If your air conditioner is not fitted with a supply cord and a plug, an
anti-explosion all-pole switch must be installed in the fixed wiring
and the distance between contacts should be no less than 2.5 mm.
If your air conditioner is permanently connected to the fixed wiring,
an anti-explosion residual current device (RCD) having rated
residual operating current not exceeding 30 mA should be installed
in the fixed wiring.
Power supply circuit should have leakage protector and air
switch of which the capacity should be more than 1.5 times of the
maximum current.

58 GB
USEFUL TIPS
Conditions where the Air Conditioner might not run normally
§Within the temperature range provided in following table, the air conditioner
may stop running and other anomalies may arise.
Cooling Outdoor >43oC (Για T1)
>52oC (Για T3)
Indoor <18oC
Heating Outdoor >24oC
<-7oC
Indoor >27oC
§When temperature is too high, the air conditioner may activate the
automatic protection device, so that the air conditioner could be shut down.
§When temperature is too low, heat exchanger of the air conditioner may
freeze, leading to water dripping or another malfunction.
§In long-term cooling or dehumidification with a relative humidity of above
80% (doors and windows open), there might be water condenses or
dripping near the air outlet.
§T1 and T3 refer to ISO 5151.
NOTES FOR HEATING
§The fan of indoor unit will not start running immediately after the heating is
started to avoid blowing out cold air.
§When it is cold and wet outside, the outdoor unit will develop frost over
the heat exchanger which will decrease the heating capacity. Then the air
conditioner will start defrost function.
§During defrost, the air conditioner will stop heating for about 5-12 minutes.
§Vapor may come out from the outdoor unit during defrost. This is not a
malfunction, but a result of fast defrost.
§Heating will resume after defrost is complete.

59 GB
NOTES FOR TURNING OFF THE AIR CONDITIONER
§When the air conditioner is turned off, the main controller will automatically
decide whether to stop immediately or after running for several seconds
with lower frequency and lower air speed.

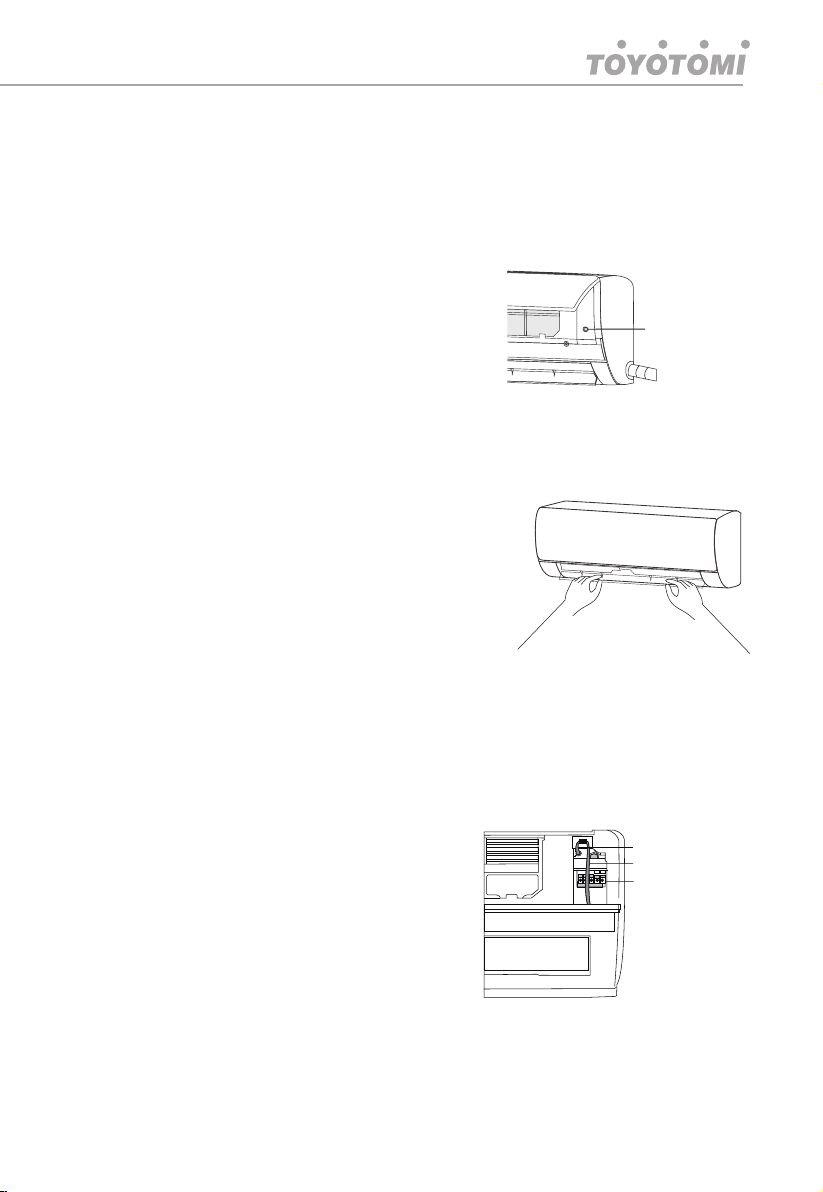

EMERGENCY OPERATION
§If the remote controller is broken or lost, use
emergency switch button to operate the air
conditioner.
§If this button is pushed when unit is OFF, the
air conditioner will operate in AUTO mode.
§If this button is pushed when unit is ON, the air conditioner will stop running.
ADJUSTMENT OF AIR FLOW DIRECTION
§Use U/D SWING up-down swing and L/R
SWING left-right swing buttons on the remote
controller to adjust the air flow direction.
§For the models without L/R SWING left-right
swing function, the fins has to be moved
manually.
Note: Move the fins while the air conditioner is not in operation, or your fingers
might be insured, and unit can also be damaged.
Never place your hands into the air inlet or outlet when the air conditioner is
in operation.
PAY ATTENTION
§Open front panel of indoor unit.
§The connector must not touch the
terminal board, and is positioned as
shown in Fig.
emergency
switch
connector
cable1
cable2
terminal board

60 GB
CLEAN AND MAINTENANCE
CLEANING THE INDOOR UNIT
1. Turn off the unit and cut off the power supply. Wait after that at least 5
minutes before you start cleaning of the unit otherwise there might be the
risk of electric shock.
2. Clean the indoor unit (only the outside plastic parts) with dry or damp soft
cloth in cold water. Do not spray or spill the unit in order to clean it.
3. Clean air filters regularly, in order to avoid accumulation of dust that might
affect the good performance of the air conditioner. After removing the air
filters, do not touch the metallic parts. It might cause injury.
4. Do not use water which temperature that exceeds 40oC to clean the front
panel. Otherwise it may cause deformation or discoloration.
5. Do not use liquids, hard detergents, thinner, gasoline or any other chemical
product for cleaning. Otherwise plastic parts of the air conditioner might be
damaged or even cause electric shock.

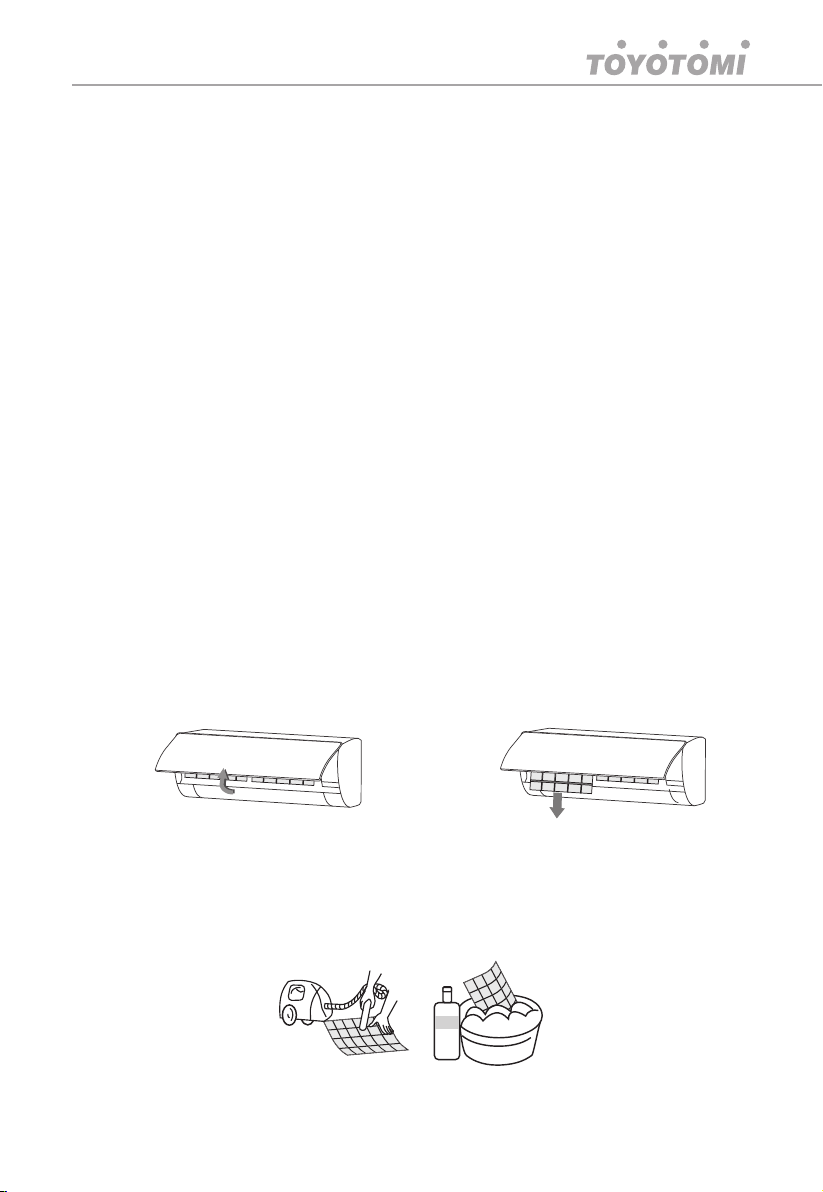

CLEANING THE AIR FILTERS
§Remove pre-filters and healthy filters
– Use both hands to open the front panel for an angle from both ends of
the panel in accordance with the direction of the arrow, until it clamps in a
certain position. Lift gently the pre-filters until they unclench, release them
from the slot and remove them.
– Clean pre-filters with a vacuum cleaner or wash them in cold water and let
them dry well in shady area before you reinstall them. Clean healthy filters
with a vacuum cleaner or shake them outdoors. CAUTION! Do not clean
healthy filters with water or other kind of liquid otherwise their performance
will be damaged.
– Reinstall the dried filter in reverse order of removal, then close the front
panel back to its original position.

61 GB

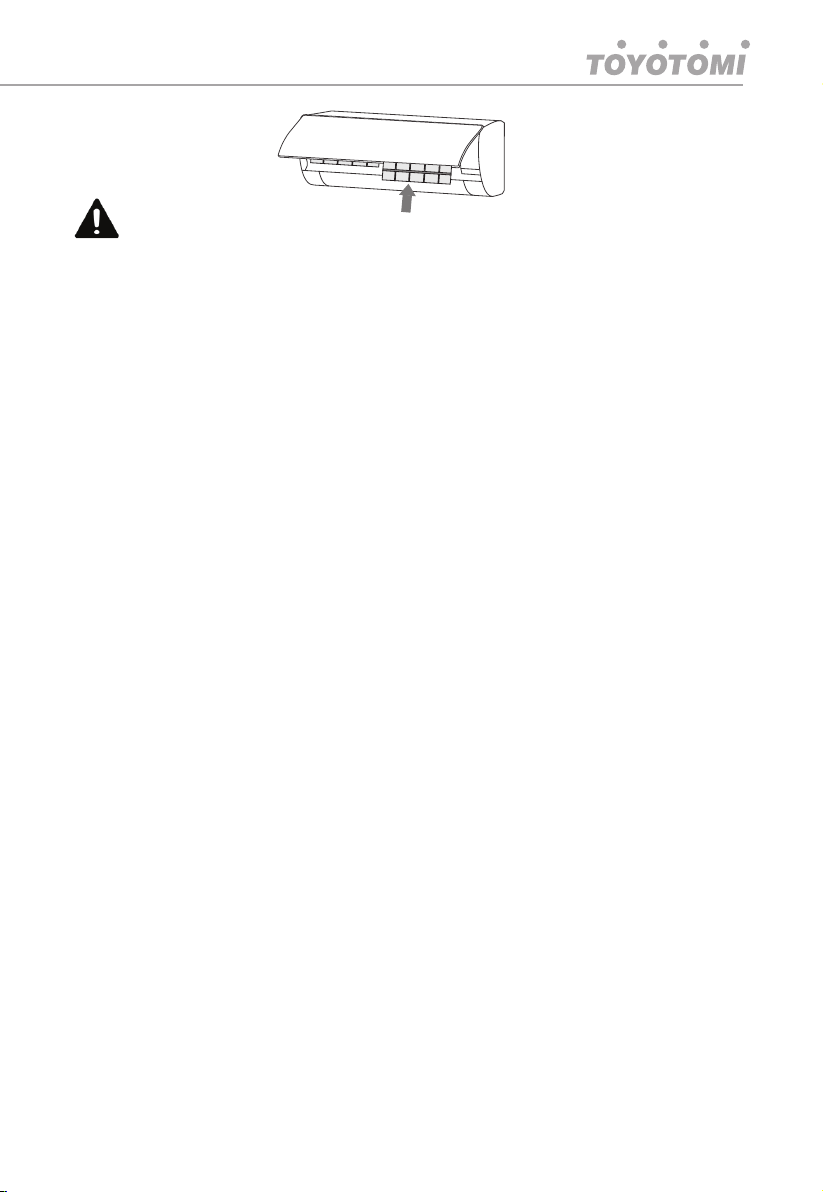

ATTENTION
§Pre-filters shall be cleaned at least one time every three months. If the
environment has a lot of dirt, it is recommended to clean the filters more
frequently.
§Do not touch the fins of indoor unit when you take off the filters. It may
cause injury.
§Do not use fire or hair dryer to dry the filters. It might cause deformation,
fire, injury.
§Do not clean the healthy filters with water or other kind of detergent.
Healthy filters must be cleaned only with a vacuum cleaner or by shaking
them outdoors.
CHECK BEFORE USE
1. Make sure all air inlets and outlets of the units are unblocked.
2. Make sure that nothing blocks in the water outlet of the drain pipe, and
immediately clean it up if any.
3. Make sure the ground wire is reliably grounded.
4. Make sure the remote controller batteries are installed, and power is
sufficient.
5. Make sure that there is not damage in the mounting bracket of the outdoor
unit. If any, please contact the local service center.
MAINTENANCE
1. Cut off the power source of the air conditioner, turn off the main power
switch and remove batteries from the remote controller.
2. Clan filters and unit body.
3. Remove dust and debris from outdoor unit.
4. Check whether there is damage in the mounting bracket of the outdoor unit
and if any please contact the local service center.
IMPORTANT NOTICE FOR PROPER RECYCLING
§Many of the packaging materials are recyclable. Please dispose of the
packaging materials in an environmentally safe manner.
§In case you want to dispose your old air conditioner, contact the local
authorities in order to be delivered to a special collection and recycling
center for electronic and electrical equipment.

62 GB
TROUBLESHOOTING
Do not repair the air conditioner by yourself as wrong service and maintenance
may cause electric shock, fire or explosion. Please contact the authorized
service and let the licensed professional conduct the service and maintenance
of your air conditioner. Please check below cases before contact the service
as problem might be solved without the interference of service.
PHENOMENON PROBLEM - SOLUTION
The air conditioner
does not work
§ Power failure
ü Wait until power recovers
§ Power plug may be loosed out from the socket
ü Place properly the plug in the socket
§ Power switch fuse may be blow
ü Replace the fuse
§ TIMER is on. The time for timing boot is yet to come
ü Wait or cancel TIMER setting
The air conditioner
can’t run after the im-
mediate start-up after it
is shut down
§ If the air conditioner is turned on immediately after
it is turned off, the protective delay switch will
delay the operation for 3 to 5 minutes. This is self-
compressor protection procedure.
Air conditioner stops
running after it starts
up for a while
§ Setting temperature has been reached
ü It is a normal function phenomenon
§ May be at defrost state
ü It will automatically restore and run again after
defrosting
§ TIMER is on
ü Wait or cancel TIMER setting

63 GB
Cooling or Heating
performance is not
satisfying
§ Excessive accumulation of dust on filter is blocking
air inlet and outlet
ü Clean the air filters and remove the obstacles from
air inlet and outlet
§ Voltage is too low
ü Wait until voltage resumes to normal levels
§ Air conditioner is working in AUTO mode
ü During AUTO mode, temperature cannot be
changed. If you wish to change the temperature
change the mode of air conditioner
§ The angle of the louver blades is too small
ü Regulate the angle of the louver blades so the air
flow can run freely
§ Poor Cooling or Heating may be caused by open
doors and windows.
ü Close the doors and windows
§ Mode setting is incorrect. Temperature and fan
speed settings are not appropriate
ü Re-select the mode and set the appropriate
temperature and fan speed
Indoor unit blows out
odor
§ Odor from the environment has been accumulated
inside indoor unit
ü Clean the air filters and activate the self-clean
function
There is sound of
running water during
operation
§ During turning on or turning off the air conditioner, or
when compressor stops and starts again, the sound
of running water may be heard from the indoor unit
ü This is the sound of refrigerant flow and it is normal
During turning on
or turning off the air
conditioner there is a
cracking sound
§ During turning on or turning off the air conditioner
you may hear a cracking sound from the indoor unit
ü Due to the temperature change, contraction /
expansion is caused on the plastic parts of the air
conditioner. This is normal

64 GB
Indoor unit makes
abnormal sound
§ During turning on or turning off the air conditioner
the sound of compressor or fan is heard
§ When defrost function starts a different sound is
heard
ü Flow of refrigerant changes and the different sound
is normal
§ A lot of dust is accumulated on filters
ü Clean the air filters
§ During TURBO operation the sound is a little bit
louder
ü This is normal
Water drops are over
the surface of the
indoor unit
§ When ambient humidity is high, water drops will be
accumulated around the air outlet or the panel
ü This is a normal physics phenomenon
§ Prolonged cooling run in open space produces water
drops
ü Close the doors and windows
§ The angle of the louver blades is too small
ü Regulate the angle of the louver blades so the air
flow can run freely
During Cooling opera-
tion, indoor unit outlet
sometimes will blow
out mist
§ When the indoor temperature and humidity are high,
it happens sometimes
ü This happens because the indoor air is cooled
rapidly. After it runs form some time, the indoor
temperature and humidity will be reduced, and the
mist will disappear.
Air conditioner stopped
suddenly to operate
§ There is interference, like thunder or wireless
devices etc
ü Disconnect from power. Reconnect to power and
operate again the air conditioner

65 GB
Indoor unit does not
accept remote control-
ler’s signal or remote
controller does not
work
§ There is significant interference (e.g. static electricity,
constant voltage)
ü Turn off the air conditioner, pull out the plug from
outlet. Wait 3 minutes then put the plug to the outlet
and restart the function of the air conditioner
§ Remote controller is out of range
ü The distance between signal center and receiving
window should be no more than 8m
§ There are obstacles between signal center and
window receiver
ü Remove obstacles
§ Signal center of remote controller cannot
communicate with window receiver of the indoor unit
ü Choose the right angle where signal center of
remote controller can communicate with window
receiver of indoor unit
§ The display on remote controller is fuzzy or there is
no display at all
ü Check the batteries. If their power is low, replace
them
§ No display on remote controller
ü Check if the remote controller is damaged. If yes,
please replace it
§ There is fluorescent lamp in the room
ü Take remote controller closer to the window receive
of indoor unit
ü Turn of the fluorescent lamp and try again
If any of the following cases occur, turn off the unit, pull out the plug from the
socket and contact the authorized service of
DELTA DOMESTIC APPLIANCES S.A ℡[phone],
TOYOTOMI ITALIA S.R.L. ℡[phone],
TOYOTOMI EUROPE SALES B.V. ℡[phone],
TOYOTOMI EUROPE SALES SPAIN S.A. ℡[phone]

66 GB
CAUTION
§ In case any of the following cases occur, please turn off the unit, pull out
the plug from the socket and contact the authorized service for repair.
– Power cord has been overheated or damaged.
– Unusual sound is heard during operation.
– Circuit breaker often shuts down.
– Burning smell comes out of the air conditioner.
– There is a leakage from the indoor unit.
§ DO NOT repair or re-install the air conditioner by yourself.
§ In case the air conditioner continues to work under unusual conditions, it
might cause malfunction, electric shock, fire or injury.

67 GB
Symbols or its location may be different from the photo, depending on the
model you have chosen.

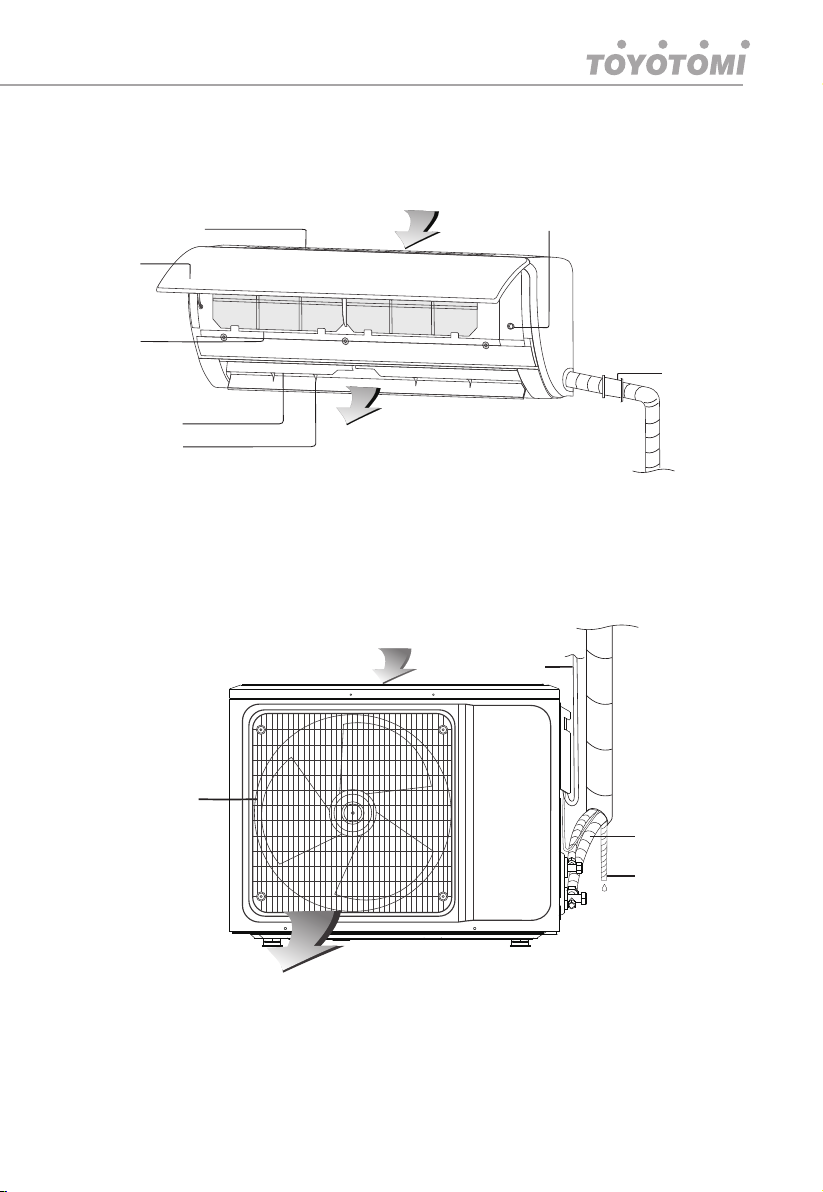

PART DESCRIPTION
INDOOR UNIT
OUTDOOR UNIT
Air inlet
Power cable
connecting pipe
Drain hose
Air outlet
Air outlet
Air vent
Air louver
Air filter
Panel
Air inlet grille
Air outlet grille
Force switch
Pipe protection
ring

68 GB

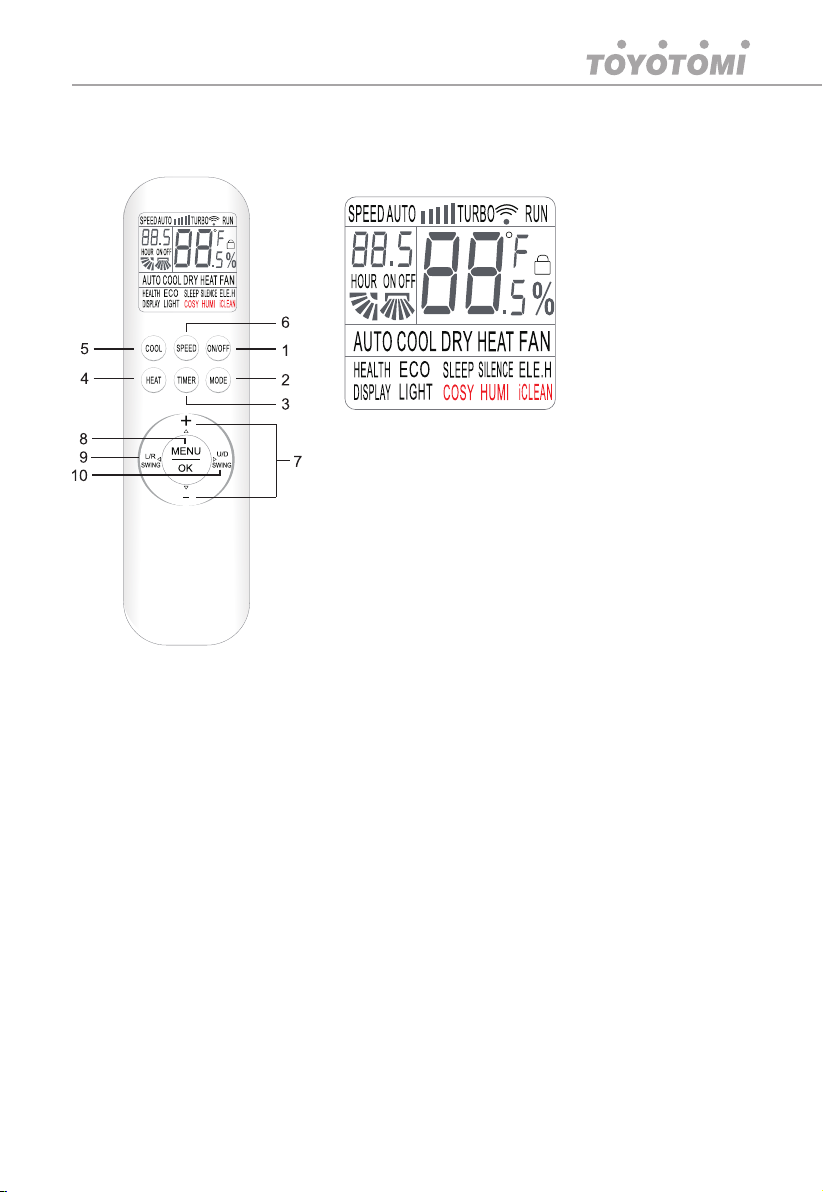

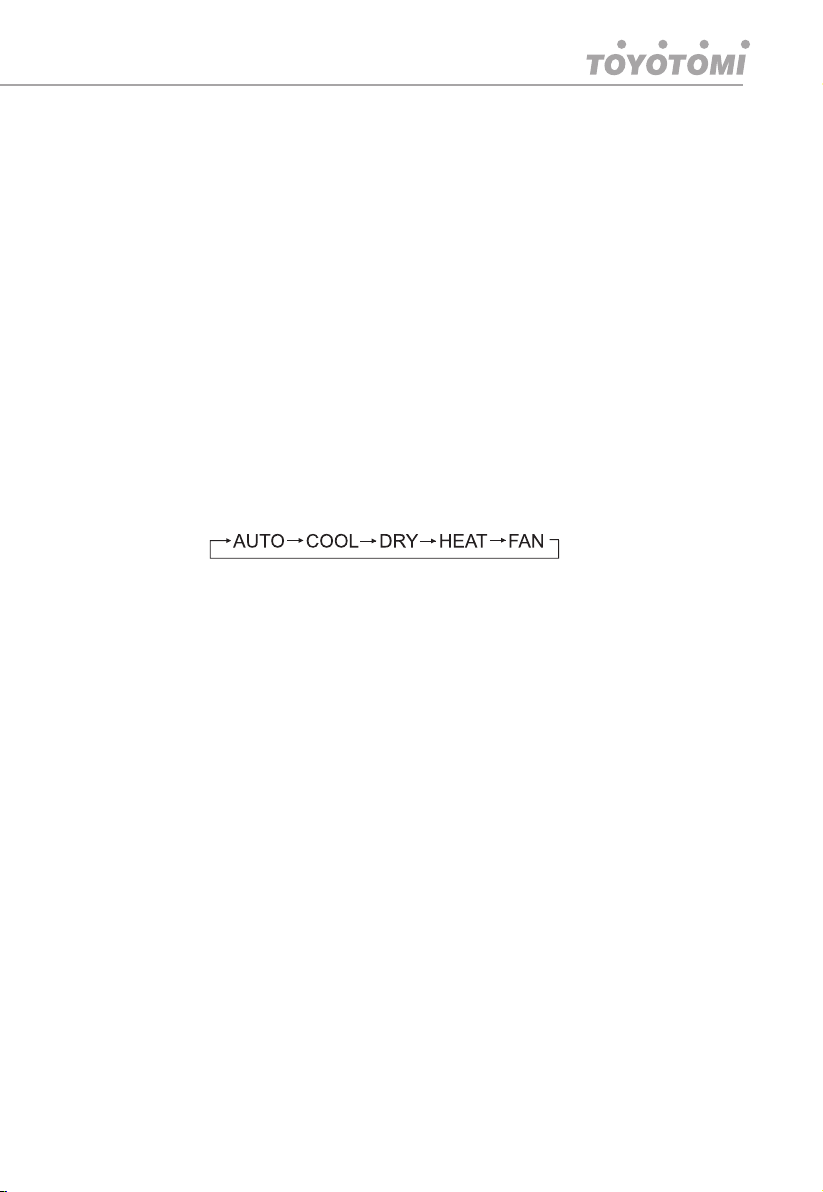

BUTTONS DESCRIPTION
INSTRUCTIONS FOR PROPER USE OF THE REMOTE CONTROLLER
1. The transmitter of remote controller, which is located on the front part of
remote controller, must point to indoor unit signal receiver.
2. Maximum distance between transmitter of remote controller and indoor
unit signal receiver should be 8 meters.
3. Make sure that there are no obstacles between transmitter of remote
controller and indoor unit signal receiver.
4. Do not drop down or through away remote controller.
5. Do now allow any kind of liquid to enter inside remote controller.
6. Before using remote controller for the first time, install properly batteries
and make sure «+» & «-» poles are properly positioned.
7. Use two AAA batteries. Do not use rechargeable batteries.
