SERVICE MANUAL
MODEL: TAD-T32G
(Type A & B)
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ b

1
1. THE SUMMARY
The idea behind the unit is to provide a localized supply of cool air.
The unit will greatly enhance your personal comfort whether at a work station or even in your favorite chair.
Four (4) casters enable you to move the unit easily from room to room. It cools and dries the air at the same
time so that you can stay comfortable even when it's humid or rainy outside. Also your furnishings and fabrics
are kept in good condition when it's used as dehumidifier.
Conventional air conditioners use large quantities of energy to cool an entire room, including walls and furni-
ture. This unit creates a zone of cool and dry air only where it is needed. It does not waste energy cooling the
surroundings.
It's easy to operate. The built-in timer allows from 1 to 12 hours of operation, which will automatically turn the
unit on and off. This is especially convenient at bedtime.
Venting is not required. However, if the unit is to be used exclusively in one space, the cooling efficiency will be
enhanced by using the venting kit accessory, which is included with the unit.
2. OPERATIONAL FEATURES
1. COOLING OPERATION:
Normally, cool air is directed out the front louvers by the circulation fan which has three (3) stages of fan
speed.
2. AUTOMATIC OPERATION:
The unit will select its mode and fan speed automatically base on the environment temperature.
3. THERMO CONTROL
The compressor will automatically shift to ON or OFF to maintain the desired temperature.
4. TIMER OPERATION:
The unit will turn on and off after the designated period of time (1, 2, 3, ...12 hours).
5. AUTOMATIC SHUT-OFF MECHANISM WHEN THE DRAIN TANK IS FULL:
When the drain tank is full, the unit will be automatically shut off. It is always required to press the power
button twice to resume operation after the condensed water is removed from the tank.
6. TRIPLE AIR FILTERS:
The pre-filter protects the unit from dust, the HAF air filter (Type B is an option) cleans circulation air and the
charcoal filter eliminates unpleasant odor.
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 1

3. DESCRIPTION OF PARTS AND COMPONENTS
[FRONT]
[REAR]
2
Remote control
(Removable)
Horizontal louver
Vertical louver
Emergency
ON/OFF switch
Front panel
Air outlet grille
Air intake grille
HAF filter (inside)
Charcoal filter (inside)
Filter clamp (inside)
Air intake opening
Drain water outlet
LCDI Power plug
Power supply cord
Caster
Exhaust outlet
Cable hook
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 2

3
Fan speed button
Power button
Mode button
Down button UP button
C/F toggle button
Timer button
Clock button
LCD display
Launch signal indicator Clock indicator
Timer setting indicator
Timer ON/OFF indicator
C/F indicatorSet temp indicator
Mode indicator
Fan speed indicator
Symbols:
Cooling mode
High speed
Dehumidify mode
Fan only mode
Auto mode
Medium speed
Low speed
Negative ion indicator
(Type A only)
4. NAME AND FUNCTIONS OF REMOTE CONTROL
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 3

4
5. SAFETY TIPS
IMPORTANT
¡Read instructions carefully before operation.
¡The unit should be operated when the room temperature is between 64˚F (18˚C) to 95˚F (35˚C). If the room
temperature is below 64˚F (18˚C), ice may form on the coils. If the room temperature is above 95˚F (35˚C), the
compressor will automatically shut off to protect itself.
¡ALWAYS, wait 3 min. to restart after turning unit off.
WARNING
¡NEVER expose infants, handicapped persons, or senior persons
directly to the airflow. Adjust the airflow direction.
¡Keep children away from unit. Children are particularly liable to this
danger. The inside fan is running at high speed. Covering it may dete-
riorate air conditioner performance or cause it to become inoperative.
¡NEVER insert objects of any kind into the air intake or air outlet.
¡DO NOT unplug if your hands are wet. An electrical shock may occur.
¡DO NOT operate in a wet location.
¡ALWAYS plug into 115 V, 60 Hz, single phase electrical outlet.
¡Be sure the power plug fits the receptacle securely.
¡DO NOT run power cord under carpets, rugs, or floor mats of any
kind.
¡DO NOT attempt to shorten or alter power cord in any way.
¡DO NOT apply any excessive force or pressure to the power supply
cord.
¡Make sure that the plug is free of dust.
¡DO NOT use an extension cord.
¡DO NOT turn on and off by inserting or removing the power plug
which may cause electric shock or fire.
¡If there is a fear of lightning, stop the unit and disconnect the power
supply cord.
¡DO NOT touch the evaporator, condenser and pipes.
¡DO NOT operate without filter.
¡ALWAYS lift the unit with the help of another person.
CAUTION
¡Keep unit more than 20 in. (50 cm) away from any objects or wall.
¡If the unit is operated in COOL mode in an area of very high moisture,
the top plate and the rear plate may get covered with a mist. Wipe off
any mist before it has a chance to get on the floor or rug.
¡Remove drain water before moving unit.
¡To minimize corrosion, DO NOT use in damp, salty air area.
¡DO NOT operate in direct sunlight.
¡DO NOT use for such particular purpose as preservation of foodstuff,
animals, plants, precision appliances, arts and medicine.
¡DO NOT place an animal, plants or combustion equipment in a place
which is subjected to the direct air flow of the unit.
¡DO NOT ride or place the objects on the unit.
¡DO NOT turn the unit on its side or upside down.
more than
20 in.(50cm)
more than
20 in.(50cm)
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 4

5
6. SPECIFICATIONS
(I) SPECIFICATIONS
(II) CONSTRUCTION
ITEM
OUTER DIMENSIONS
REFERENTIAL USING AREA
RATED VOLTAGE
RUNNING VOLTAGE
COOLING CAPACITY
DEHUMIDIFYING CAPACITY
RUNNING CURRENT
POWER CONSUMPTION
INDOOR AIR VOLUME
COMPRESSOR
INDOOR
MOTOR
OUTDOOR
MOTOR
TURBINE
FAN MOTOR
CAPILLARY
EVAPORATOR
CONDENSER
REFRIGERANT
APPLICABLE AMBIENT TEMPERATURE
WEIGHT
MODEL
INPUT POWER
OPERATING CYCLE
PROTECTOR
LOCKED ROTOR AMPS
MODEL
OUTPUT POWER
OPERATING CYCLE
MODEL
OUTPUT POWER
OPERATING CYCLE
MODEL
OUTPUT POWER
UNIT
in.
FT2
V/Hz
V
B.T.U.
GAL/H
A
W
CFM
W
uF/V
A
W
uF/V
W
uF/V
W
mm
R22/lbs.
˚F
lbs.
TAD-T32G
20"(W) ´ 16-1/2"(D) ´ 36"(H) [508(W) ´ 418(D) ´ 915(H) mm]
194~258 (18~24m2)
115/60
104-127
12,000
0.53 (2.0 L/H)
10.5
1185
247 (420 m3/hr)
2P15S126C1A
955
40/250
MRA98695
8.4
LS-23T3-6P
70
8.0/250
LS-5371-4P
90
9.0/250
WT-15T1-02
12
2.6(O.D.)*1.6(I.D.)*1000(L)
3R14S17FPI
3R16S19FPI
1.37 (620g)
64~95 (18~35˚C)
82 (37kg)
EVAPORATOR
CAPILLARY
CONDENSOR
AIR FILTER
WATER PADDLE
STRIKE WATER MOTOR
INDOOR RADIATOR DRUM
INDOOR MOTOR
INDOOR RADIATOR FAN
OUTDOOR RADIATOR DRUM
OUTDOOR RADIATOR FAN
OUTDOOR MOTOR
LIQUID ACCUMULATOR
COMPRESSOR
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 5

6

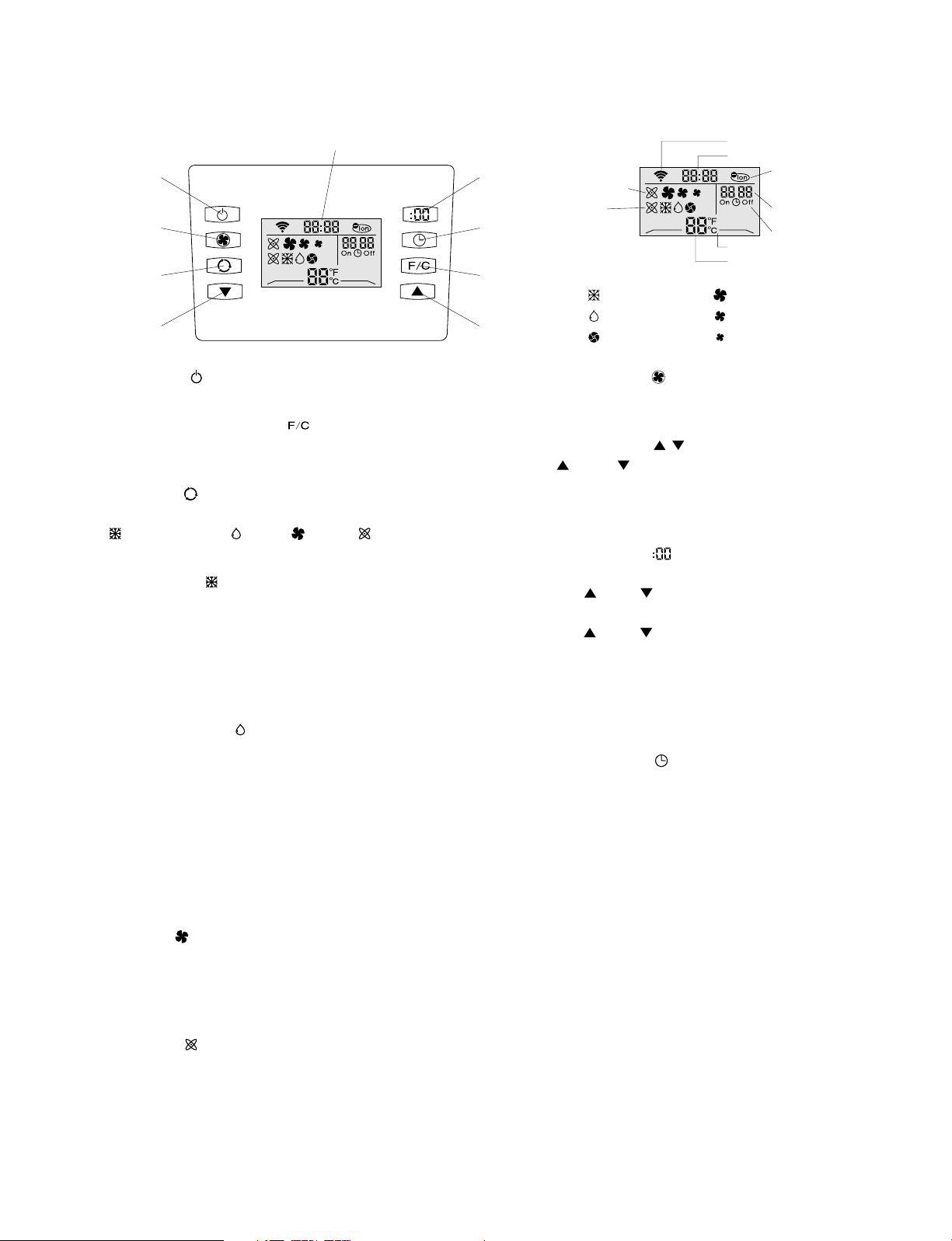

7. OPERATION
CONTROL PANEL
After turning the air conditioner off, you must wait 3 minutes before switching it back on again.
Power Control
The power button turns the unit on and off.
Fahrenheit/Celsius Selector
Press F/C toggle button to ˚F or ˚C setting.
Note: Initial setting is ˚F.
Mode Control
The Mode control has 4 settings:
Cool Dehumidify Fan Auto
The settings are adjusted by Mode button.
• Cooling Mode
During the cooling mode the air is cooled and hot
air is exhausted to the outside air through the
exhaust tube. Adjust fan speed and temperature
to suit your desired comfort level.
Note: Both of the exhaust duct hoses must vent
outside the room when using Cool Mode.
• Dehumidify Mode
Air is dehumidified as it passes through air condi-
tioner, without being in full cooling mode.
The fan will operate in med speed. Fan speed is
not adjustable in dehumidify mode.
Note: The exhaust duct hose must vent inside the
room when using Dehumidify Mode, not outside
as it does when cooling.
If the unit is vented outside some cooling will
occur.
• Fan Mode
Air is circulated throughout the room without
cooling.
Note: Unit does not need to be vented in Fan
Mode.
• Auto Mode
To turn on the unit chooses "Auto" mode. The unit
will switch its mode and fan speed automatically
base on the environment temperature.
Fan Speed Control
The Fan Speed Control has 4 settings: Auto, High,
Medium, and Low.
Temp Set Controls
Press " " or " " to set temperature. The setting
range is from 64˚F (18˚C) to 90˚F (32˚C).
Note: When choose AUTO, DEHUMIDIFY or FAN
MODE, temperature setting button invalid.
Clock Set Controls
• Press CLOCK button, LCD clock display flashes.
Press " " or " ". In every holding second, LCD
clock display changes setting by 1 min. interval.
• Press " " or " " and holding mode than 1 sec-
ond, the LCD clock display changes setting with-
out interval.
• When complete setting, press CLOCK button
again to confirm the setting. LCD CLOCK display
stops flashing.
Timer Set Controls
• When unit is running and press TIMER button,
TIMER will be "off" .
• When unit is stand-by and press TIMER button,
TIMER will be "on".
• To cancel TIMER "off" or TIMER "on", simply
press POWER ON/OFF button.
• "00" = No timer setting.
• Timer setting range is 1 ~ 12 hours.
Note:
If there is no response, when press remote control,
please check battery installation properly or out of
erectricity. If it's ok, Please:
Press and hold the emergency ON/OFF switch on the
unit. Continue to hold the emergency ON/OFF switch and
press the power button on the remote control after 5 sec-
onds there will be a beep. You will hear another beep.
Release both the emergency ON/OFF switch and the
power button. Your remote control is now ready for use.
Symbols:
Cooling mode High speed
Dehumidify mode
Fan only mode
Medium speed
Low speed
FAN
SPEED
POWER
ON/OFF
MODE
DOWN UP
FAHRENHEIT/
CELSIUS
SELECTOR
TIMER
CLOCK
LCD DISPLAY Launch signal indicator
Negative ion
indicator
(Type A only)
TIMER ON/OFF
FAN SPEED
indicator
MODE
indicator
TIMER setting
indicator
CLOCK indicator
˚F/˚C indicator
SETTING TEMPERATURE
indicator
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 6

7
LED SCREEN
Emergency ON/OFF Switch
• This switch is used when unit needs temporary
on/off.
• When press emergency button, unit starts opera-
tion. The operation mode and fan speed mode
are set automatically.
•
Press emergency button again, unit stops operation.
LED Screen
Please refer to below chart for detail.
Note: Yellow LED presents Red/Green lights up
simultaneously.
• Operation Mode
Note: Under AUTO mode, unit will change its
operation mode.
• OFF Timer Operation
Blue LED lights up.
Note: Under AUTO mode, unit will Yellow change
its operation mode.
• ON Timer Operation
• Water Tank Full
Note: If the water tank is full, Red LED indicator
flashes. When water tank is full, unit stops
operation. After removing the water from
the tank, press the power on/off button to
operate the unit and the unit will be in the
mode before water tank was full.
• Filter Cleaning Indicator
Note:
1. Display only when in operation mode.
2.
When the unit is operation, clean indicator light is up.
Please clean filter. After cleaned, press on/off button
on the unit for 4 seconds to delete the clean indica-
tor lights. The setting is completed after one beep.
• Default indicator
• Trouble shooting when environmental tempera-
ture indicator failures:
Please check the environmental temperature indi-
cator on PCB if it's assembled properly and no
wires loosen.
• Trouble shooting when coil tube temperature
indicator failures:
Please check the environmental temperature indi-
cator on PCB if it's assembled properly and no
wires loosen.
• EEPROM failure:
After unit turns on, it will check EEPROM every 4
minutes. If continuous failure for 5 times, it will
be indicated "failure". When perform EEPROM
checking next time and get normal feedback, the
operation will go back to normal. If not, need to
replace PCB.
• Water full switch alarm indicator:
Drain the water into a prepared container by the
drainage pipe on the rear panel of the unit. If still
doesn't work, please consult a qualified technician.
Blue/Yellow/Green
indicator
Blue/Yellow/Green
indicator
Blue LED
Emergency ON/OFF switch
Blue/Yellow/Green
indicator
Blue/Yellow/Green
indicator
Cooling mode (Blue)
Dehumidify mode (Yellow) Fan mode (Green)
Cooling mode (Blue)
Dehumidify mode (Yellow) Fan mode (Green)
Cooling mode (Blue)
Dehumidify mode (Yellow) Fan mode (Green)
Upper part : Blue
Lower part : Blue
Upper and Lower part : Blue
Red LED lights up.
Blue LED flashes.
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 7

8
8. DISASSEMBLING
WARNING
•Make sure to disconnect the power source before disassembling the unit.
•Carefully disassemble the unit. Do not touch evaporator and condenser directly or you may cut or injure your
hands.
CAUTION
•Do not touch the compressor, the discharge pipes, or any parts that may be subjected to high temperature,
before the temperature becomes low .
1. Remove two (2) screws \from the front cover N
and remove two screws ]from the top of the rear
panel Ito remove the front cover. Lift up the front
cover and disconnect the connecters of the circuit
board and the ionizer (Type A only).
2. Remove six (6) screws \from the back of the front
panel Gto remove the front panel.
In this condition, you can check all of the parts.
3. Remove three (3) screws ]from the bottom of the
rear panel Iand two (2) screws ]from the central
part of the rear panel (inside). Remove two (2)
screws \from the top of the rear panel and three
(3) screws \from the central part of the rear panel
to remove the rear panel.
1-2
3
\
]
\
\
G
N
I
\
\
]
]
G
N
I
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 8

9
9. TROUBLESHOOTING
(I)Make sure that electric power is coming to the unit.
AIR CONDITIONER
WON'T START NO POWER POWER TRIPPED CHECK THE POWER SWITCH
PLUG AND SOCKET
ARE LOOSE
RE-PLUGING THE
POWER SUPPLY CORD
TIMER FAILURE TESTING BY
ELECTROSCOPE
CHANGE THE
SWITCH
RUNNING TEST
COMPRESSOR
WON'T START
PROTECTOR
FAILURE
CHANGE THE
PROTECTOR
RUNNING THE VACUUM EVACUATION
FOR MORE THAN 15 MINUTES
REFRIGERANT
LEAKAGE TROUBLE SHOOTING
THE SYSTEM
CHANGE THE AIR CONDITIONER WITH 15KG/CM2
NITROGEN GAS FROM LOW-PRESSURE SIDE
AND DETECT THE LEAKING POINT BY SOAP
USE OXYACETYLENE AND PLUS 5% SILVER
SOLDER TO WELD THE CRACKED POINTS
CHANGE COOLANT AND
PROCEED RUNNING TEST
CAPACITOR
FAILURE
CHANGE THE
CAPACITOR
WIRING IS LOOSE RE-CONNECTING
PROBLEM POSSIBLE CAUSE REMEDIES
The air conditioner doesn't work
The air conditioner works for short
period only
The air conditioner switches are off
constantly
The air conditioner works but it does
not cool the room
The appliance is very noise and
vibrates violently
-There is a power failure
-The plug is not connected
-The timer is unable to work
-The main switch has not been pressed
-The set temperature is too close to the
room's temperature
-There is something blocking the
suction vent on the back of condenser
-The fan on the condenser is blocked
-Malfunction
-There is a window opened
-There is a source of heat operating in
the room
(burner, lamp, etc.), or the room is
crowded
-The air filter is clogged
-The capacity of the air conditioner is
not suitable for the conditions or size
of the room
-The evaporator is frozen
-The compressor blocking device has
been loosen or the copper pipe is
getting in touch with the body of the
set
-Wait for the power return
-Connect the plug
-Provide repairment
-Press the main switch
-Decrease the setting temperature
-Remove any obstacles
-Provide repairment
-Turn off the appliance remove the plug
and contact the service center
-Close the window
-Remove/switch off the source of heat
-Decrease the set temperature
-Clean the filter
-Clean the air filter
-Change the purifier filter, if necessary
-
Do not make the appliance operating at
too low temperature (below 72˚F (22˚C)
-Provide repairment
AIR CONDITIONER
WON'T COOL PROPELY
TAD-T32G (Service Manual) 07.1.17 3:03 PM ページ 9
