TP-Link T3700G-28TQ User manual

Business Networking Solution
Installation Guide
JetStream Stackable L3 Managed Switch
T3700G-28TQ/T3700G-52TQ

About this Installation Guide
This Installation Guide describes the hardware characteristics, installation methods and the
points that should be attended to during the installation. This Installation Guide is structured as
follows:
Chapter 1 Introduction
This chapter describes the external components of the switch.
Chapter 2 Preparing for Installation
This chapter illustrates the safety precautions before installing the switch.
Chapter 3 Installation
This chapter illustrates how to install the switch.
Chapter 4 Connection
This chapter illustrates how to do the physical connection of the switch.
Appendix A Troubleshooting
Appendix B Hardware Specifications
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
• Some models featured in this guide may be unavailable in your country or region. For local sales
information, visit http://www.tp-link.com.
• The figures in Chapter 2 to Chapter 4 are for demonstration purposes only. Your switch may differ
in appearance from that depicted.
• This Guide uses the specific formats to highlight special messages. The following table lists the
notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in device damage.
Remind to take notice. The note contains the helpful information for a better use of the
product.
Related Document
The User Guide and CLI Reference Guide of the product are provided on the resource CD. To
obtain the latest product information, please visit the official website:
http://www.tp-link.com

Contents
Chapter 1 Introduction ————————————————— 01
1.1 Product Overview ........................................................................................... 01
1.2 Appearance....................................................................................................... 01
Chapter 2 Preparing for Installation ——————————— 05
2.1 Package Contents .......................................................................................... 05
2.2 Safety Precautions ......................................................................................... 05
2.3 Installation Tools.............................................................................................. 07
2.4 Installation and Connection Flow.............................................................. 07
Chapter 3 Installation ————————————————— 09
3.1 Desktop Installation ....................................................................................... 09
3.2 Rack Installation .............................................................................................. 09
3.3 Installing and Removing the Power Supply Module ........................... 10
3.4 (Optional) Installing and Removing the Interface Card ................... 11
3.5 Stacking Using Interface Card on Rear Panel ..................................... 12
Chapter 4 Connection ————————————————— 14
4.1 Ethernet Port .................................................................................................... 14
4.2 SFP Port.............................................................................................................. 14
4.3 Console Port..................................................................................................... 14
4.4 Verify Installation............................................................................................. 15
4.5 Power On............................................................................................................ 16
4.6 Initialization........................................................................................................ 16
4.7 Accessing the Switch.................................................................................... 16
Appendix A Troubleshooting —————————————— 17
Appendix B Hardware Specications ——————————— 18

JetStream L3 Stackable Managed Switch
01Introduction
Chapter 1 Introduction
1.1 Product Overview
T3700G-28TQ/T3700G-52TQ is an L3 managed switch that features advanced L3 routing, 10Gbps
wire-speed, physical stacking and removable power supply module and fan module, designed to
meet the needs of convergence layer. T3700G-28TQ/T3700G-52TQ is ideal for large businesses,
campuses or SMB networks requiring an outstanding, reliable and affordable 10 Gigabit solution.
T3700G-28TQ/T3700G-52TQ supports stacking of up to 8 units, thus providing flexible scalability
and protective redundancy for your networks. Moreover, aiming to better protect your network,
T3700G-28TQ/T3700G-52TQ supports 2 power supply modules. T3700G-28TQ/T3700G-52TQ can
fully implement resilient scalable networks due to its advanced features such as OSPF, VRRP, IGMP
and PIM DM/SM.
1.2 Appearance
■Front Panel

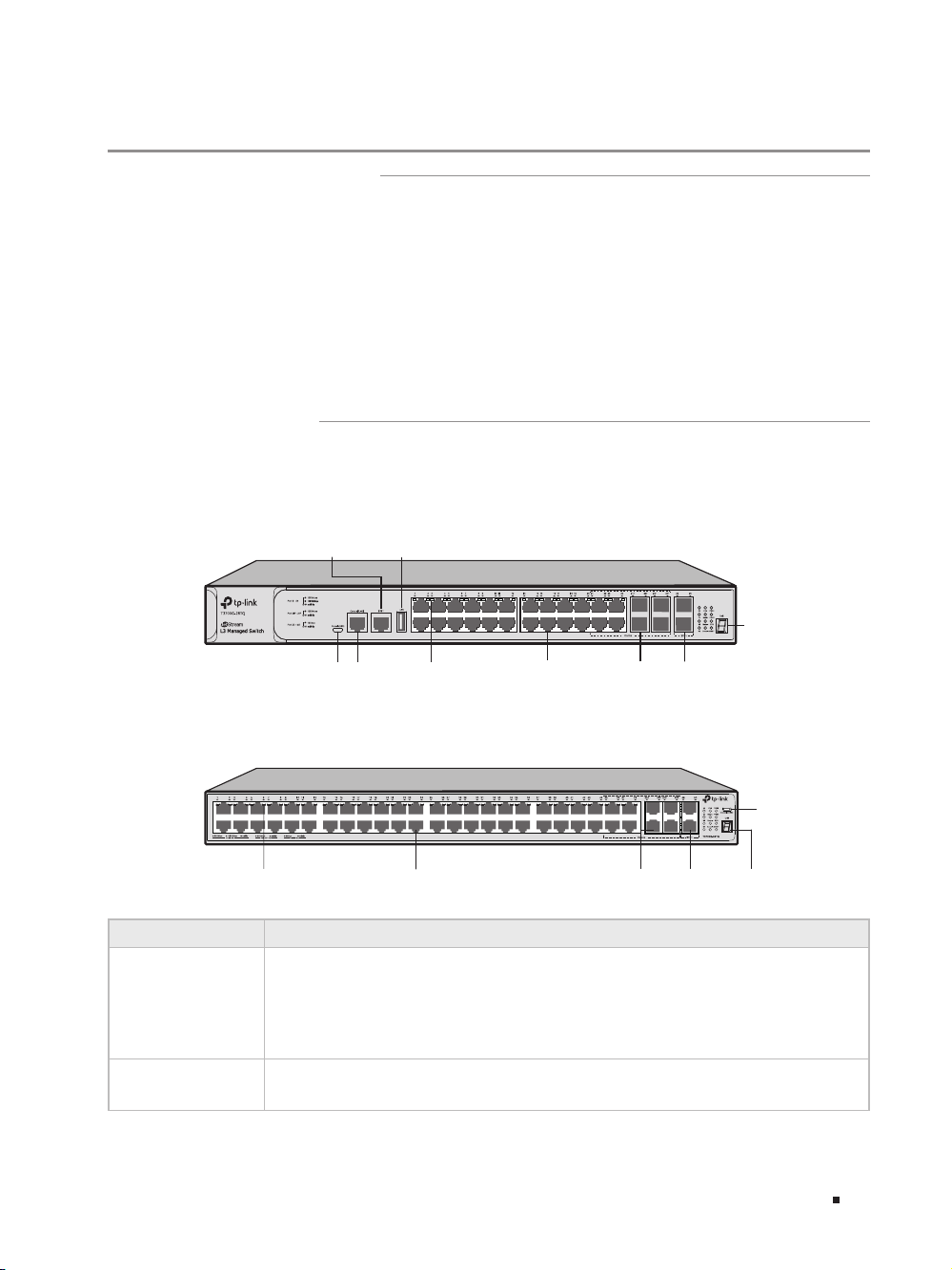

The front panel of T3700G-28TQ is shown as the following figure.
Figure 1-1 Front Panel of T3700G-28TQ
Console Port
(RJ45/USB)
LEDs 10/100/1000Mbps
RJ45 Port
Unit ID LED
SFP Port SFP+ Port
USB 2.0 InterfaceManagement Port
The front panel of T3700G-52TQ is shown as the following figure.
Figure 1-2 Front Panel of T3700G-52TQ
LEDs 10/100/1000Mbps RJ45 Port SFP+ Port SFP Port
USB Console Port
Unit ID LED
LEDs
LED Indication
PWR1
PWR2
Green On: The power supply module connected to the corresponding power slot
works properly.
Yellow On: The power supply module connected to the corresponding power slot
works improperly.
Off: The corresponding power slot is not connected to any power supply module.
SYS Flashing: The switch works properly.
On or Off: The switch works improperly.

JetStream L3 Stackable Managed Switch
02 Introduction
LED Indication
FAN
Green On: The fan module works properly.
Yellow On: The fan module works improperly.
Off: No fan module is connected to the switch.
Master
On: The switch works as master in the stack system, or does not join any stack
system.
Off: The switch works as member in the stack system.
Module
Green On: An Interface Card is connected to the switch and works properly.
Yellow On: An Interface Card is connected to the switch, but works improperly.
Off: No Interface Card is connected to the switch.
Console On: Data is being transmitted or received.
Off: No data being transmitted or received for more than 6 minutes.
For T3700G-28TQ:
Link/Act (Port 1-24,
MGMT)
For T3700G-52TQ:
Link/Act (Port 1-48,
MGMT)
Green On: Running at 1000Mbps, but no activity.
Green Flashing: Running at 1000Mbps and is transmitting or receiving data.
Yellow On: Running at 10/100Mbps, but no activity.
Yellow Flashing: Running at 10/100Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
For T3700G-28TQ:
25, 26
For T3700G-52TQ:
49, 50
On
: An SFP+ transceiver/cable is connected to the corresponding port, and it is
connected to a 10Gbps device, but no activity.
Flashing
: A 10Gbps device is connected to the corresponding port and
transmitting data.
Off
: An SFP+ transceiver/cable is connected to the corresponding port, but it is not
connected to a device, or no SFP+ transceiver/cable is connected.
M1, M2
On: An SFP+ transceiver/cable is connected to the corresponding port of the
Interface Card, and it is connected to a 10Gbps device, but no activity.
Flashing: A 10Gbps device is connected to the corresponding port of the Interface
Card and transmitting data.
Off: No Interface Card is connected, or no SFP+ transceiver/cable is connected
to the installed Interface Card, or an SFP+ transceiver/cable is connected to the
corresponding port of the Interface Card, but it is not connected to a device.
■Rear Panel

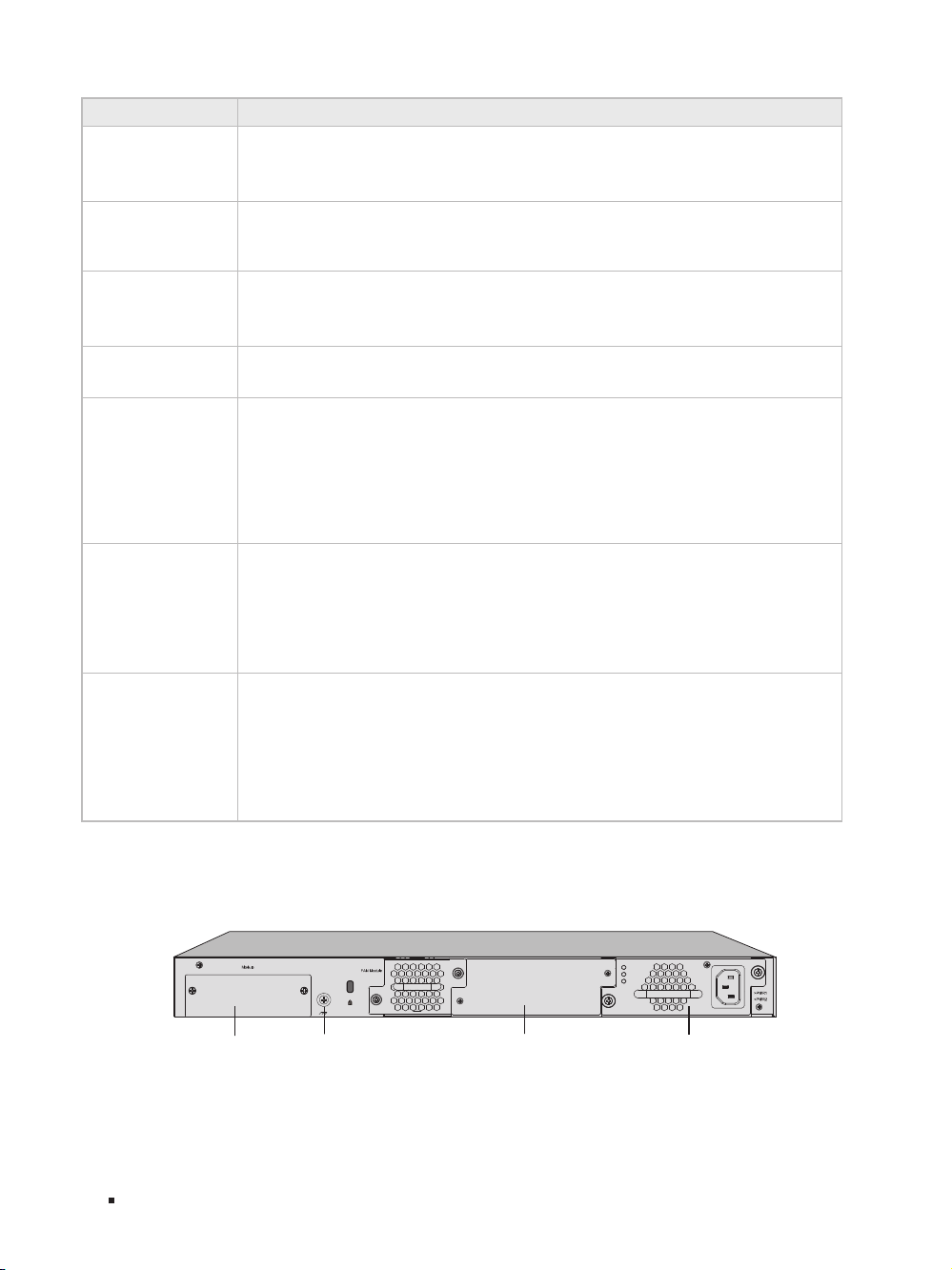

The rear panel of T3700G-28TQ is shown as the following figure.
Figure 1-3 Rear Panel of T3700G-28TQ (1)
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Grounding Terminal Power Supply Module 1 Interface Card Slot Power Supply Module2

JetStream L3 Stackable Managed Switch
03Introduction
The rear panel of T3700G-52TQ is shown as the following figure.
Figure 1-4 Rear Panel T3700G-52TQ (1)
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Grounding
Terminal
USB 2.0 Interface Management Port
RJ45 Console Port Power Supply Module2
Interface Card Slot Power Supply Module1
Note:
The Interface Card Slot and Power Supply Module2 are shipped with protective covers.
10/100/1000Mbps Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a
corresponding Link/Act LED.
SFP Port
Designed to install the SFP transceiver. These four SFP transceiver slots are shared with the associated
RJ45 ports. The associated two ports are referred as a “Combo” port, which means they cannot be used
simultaneously, otherwise only RJ45 port works. The SFP ports support 1000M SFP module connection
only.
SFP+ Port
Designed to install the 10Gbps SFP+ transceiver or SFP+ cables. T3700G-28TQ/T3700G-52TQ also
provides an interface card slot on the rear panel to install the expansion card (TX432 of TP-Link for
example). If TX432 is installed, you get another two 10Gbps SFP+ ports.
Console Port (USB/RJ45)
Designed to connect with the USB port of a computer for monitoring and conguring the switch. The
switch has an RJ45 console port and a micro-USB console port available. Console input is active on
only one console port at a time. By default, the micro-USB connector takes precedence over the RJ45
connector.
USB 2.0 Interface
USB 2.0 interface is used to connect peripheral equipment.
Management Port
Designed to connect the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. It has a
corresponding MGMT LED on the front panel. You need assign an IP address for the port to manage the
switch.
Unit ID LED
Designed to display the stack Unit ID of the switch. For the switch that does not join any stack system, it
displays its default Unit ID. To modify the default unit number, please logon to the GUI of the switch and
go to Stack→Stack Management→Switch Renumber page.

JetStream L3 Stackable Managed Switch
04 Introduction
Interface Card Slot
Designed to extend the interfaces. You can select a TP-Link Interface Card (TX432 for example) for your
switch if needed. For how to install an Interface Card, please refer to 3.4 Installing and Removing the
Interface Card.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the
switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed
information, please refer to the Lightning Protection Guide from the training center of our website
http://www.tp-link.com/en/conguration-guides.html.
Power Supply Module
The AC Power Supply Module PSM150-AC is installled in the switch. The malfunctioned PSM150-AC
can be replaced with a TP-Link power supply module of the same model. Its input voltage is 100-240V~
50/60Hz.
The AC Power Supply Module is fully hot swappable, helping to ensure no system interruption during
installation or replacement. For how to install or remove the Power Supply Module, please refer to 3.3
Installing and Removing the Power Supply Module.
Caution:
Please use the provided power cord.
Port Feature
Model 10/100/1000Mbps
RJ45 Port
RJ45
Console Port
USB
Console Port
Management
Port
1000Mbps
SFP Port
10Gbps SFP+
Port
T3700G-28TQ 24 1 1 1 4 (Combo) 4 (2 fixed + 2
optional)
T3700G-52TQ 48 1 1 1 4 (Combo) 4 (2 fixed + 2
optional)

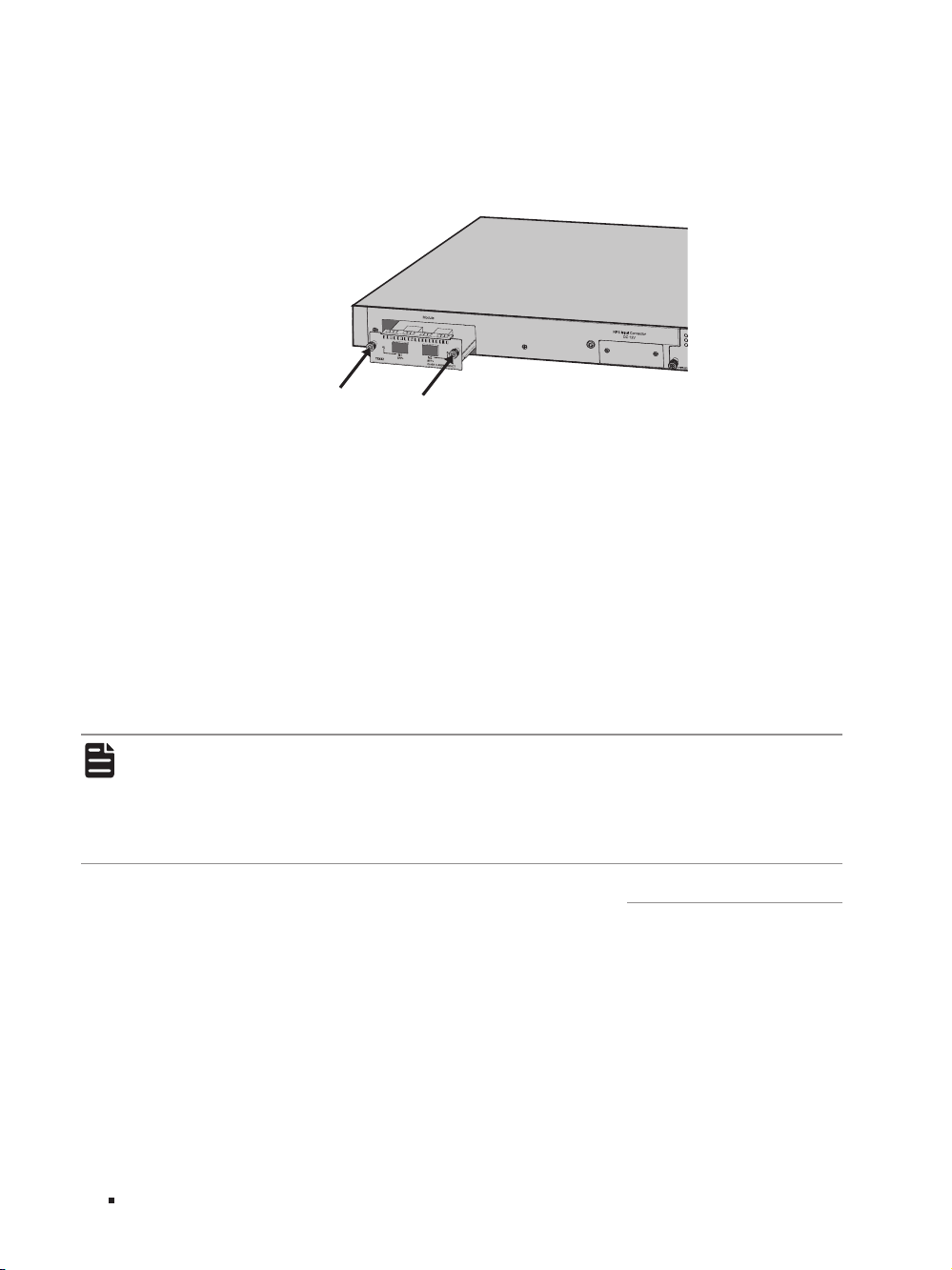

With all the protective covers removed and the Interface Card (TX432 for example) inserted, the rear
panel of T3700G-28TQ/T3700G-52TQ is shown as the following figure.

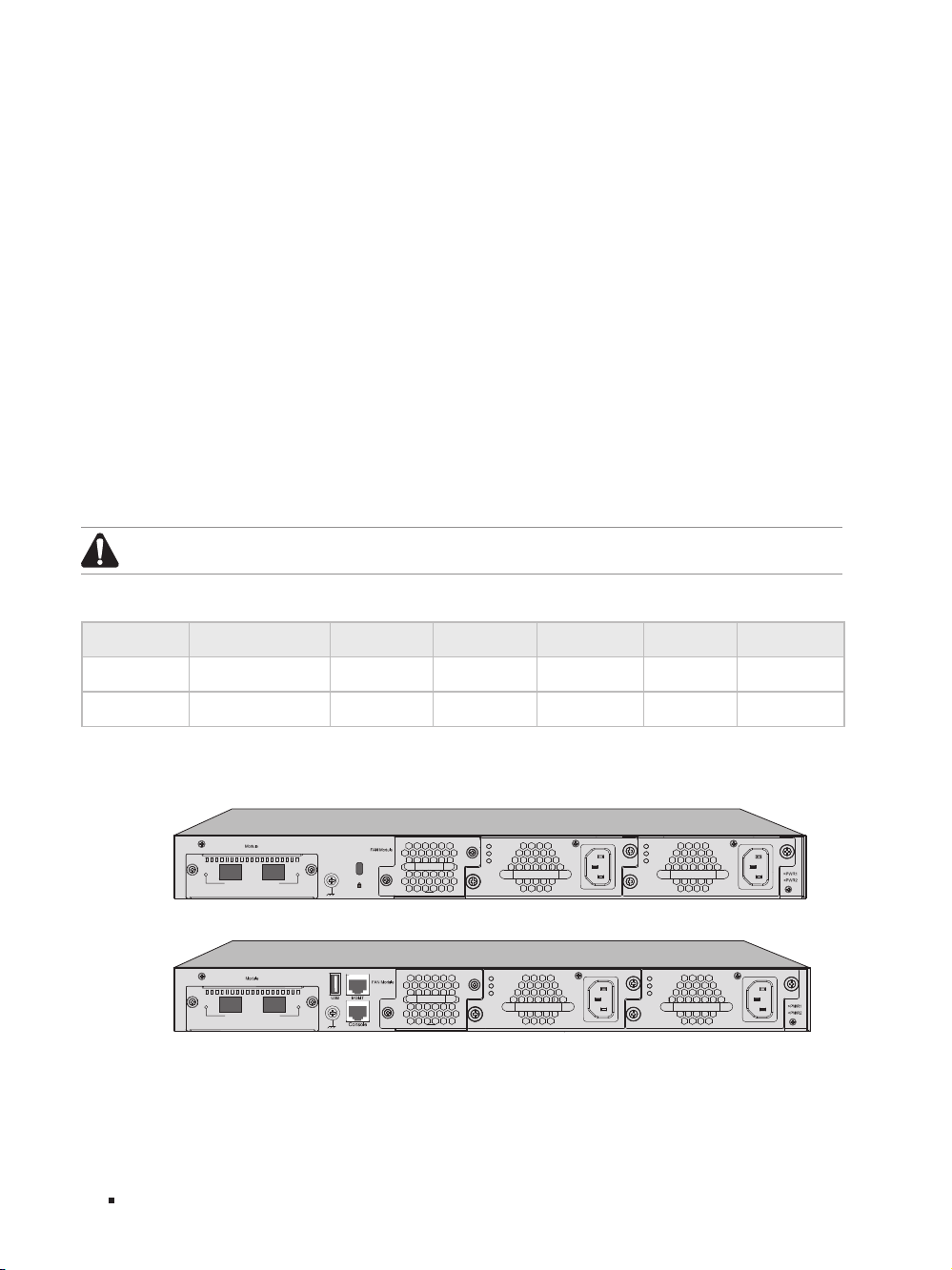

Figure 1-5 Rear Panel of T3700G-28TQ (2)
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Figure 1-6 Rear Panel of T3700G-52TQ (2)
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432

JetStream L3 Stackable Managed Switch
05Preparing for Installation
Chapter 2 Preparing for Installation
2.1 Package Contents

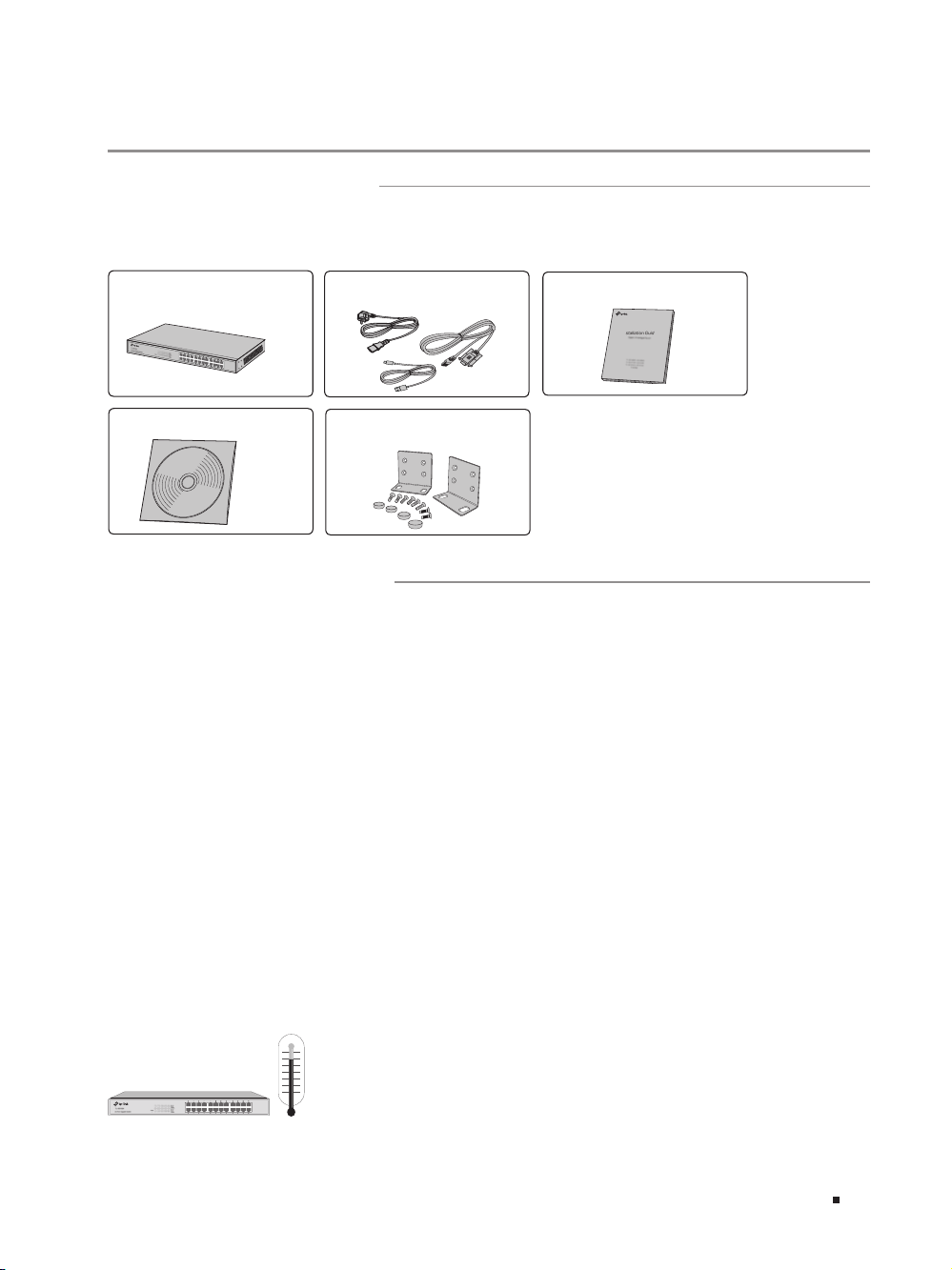

Make sure that the package contains the following items. If any of the listed items is damaged or
missing, please contact your distributor.
One Power Cord, One Console
Cable and One USB Cable
One Switch Installation Guide
Installation Guide
BusinessNetworking Solution
Two Mounting Brackets, Eight
Screws and Four Rubber Feet
One Resouce CD
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, please observe the following
rules.
■Safety Precautions
■Keep the power off during the installation.
■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is
well grounded.
■Use only the power cord provided with the switch.
■Make sure that the supply voltage matches the specifications indicated on the rear panel of the
switch.
■Ensure the vent hole is well ventilated and unblocked.
■Do not open or remove the cover of the switch.
■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never
use any other liquid cleaning method.
■Place the device with its bottom surface downward.
■Site Requirements
Temperature/Humidity
40℃
0℃

JetStream L3 Stackable Managed Switch
06 Preparing for Installation
Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may
lead to bad insulation, electricity leakage, mechanical property changes and corrosions. Too high
temperature may accelerate aging of the insulation materials and can thus significantly shorten
the service life of the device. For normal temperature and humidity of the device, please check the
following table.
Environment Temperature Humidity
Operating 0℃to 40℃10% to 90%RH Non-condensing
Storage -40℃to 70℃5% to 90%RH Non-condensing
Clearness
The dust accumulated on the switch can be absorbed by static electricity and result in poor contact
of metal contact points. Some measures have been taken for the device to prevent static electricity,
but too strong static electricity can cause deadly damage to the electronic elements on the internal
circuit board. To avoid the effect of static electricity on the operation of the Switch, please attach
much importance to the following items:
■Dust the device regularly, and keep the indoor air clean.
■Keep the device well grounded and ensure static electricity has been transferred.
Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be affected by
external interferences, such as conducted emission by capacitance coupling, inductance coupling,
and impedance coupling. To decrease the interferences, please make sure to take the following
measures:
■Use the power supply that can effectively filter interference from the power grid.
■Keep the device far from high-frequency, strong-current devices, such as radio transmitting station.
■Use electromagnetic shielding when necessary.
Lightening Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the air in
the electric discharge path can be instantly heated up to 20,000℃. As this instant current is strong

JetStream L3 Stackable Managed Switch
07Preparing for Installation
enough to damage electronic devices, more effective lightning protection measures should be
taken.
■Ensure the rack and device are well earthed.
■Make sure the power socket has a good contact with the ground.
■Keep a reasonable cabling system and avoid induced lightning.
■Use the signal SPD (Surge Protective Device) when wiring outdoor.
Note: For detailed lightning protection measures, please refer to the Lightning Protection Guide
from the training center of our website http://www.tp-link.com/en/conguration-guides.html.
Installation Site
When installing the device on a rack or a flat workbench, please note the following items:
■The rack or workbench is flat and stable, and sturdy enough to support the weight of 5.5kg at least.
■The rack or workbench has a good ventilation system. The equipment room is well ventilated.
■The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.
2.3 Installation Tools
■Phillips screwdriver
■ESD-preventive wrist wrap
■Cables
Note: These tools are not provided with our product. If needed, please self purchase them.
2.4 Installation and Connection Flow
The switch provides two interfaces to install the swappable Power Supply Module, and one interface
to install the Interface Card. The switch has already been installed with a Power Supply Module
PSM150-AC, and you can also self-purchase the Interface Card/Power Supply Module if needed.

JetStream L3 Stackable Managed Switch
08 Preparing for Installation
The Installation and Connection flow is shown as the following figure.
Figure 2-1 Installation and Connection Flow
Start
Install the switch to the
specied position
Connect to the ground
Install Interface Card/Power
Supply Module?
No
Ye s
Install the Interface Card/
Power Supply Module
Verify installation
Connect to SFP/SFP+
transceivers and cables
Power on via Power
Supply Module
End
Note: The switch can be powered by the two Power Supply Modules simultaneously or
individually. If simultaneously, the two Power Supply Modules together will enable your
network to enjoy the benet of uninterrupted operation.

JetStream L3 Stackable Managed Switch
09Installation
Chapter 3 Installation
3.1 Desktop Installation
To install the device on the desktop, please follow the steps:
1. Set the device on a flat surface strong enough to support the entire weight of the device with all
fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at
each corner of the device.

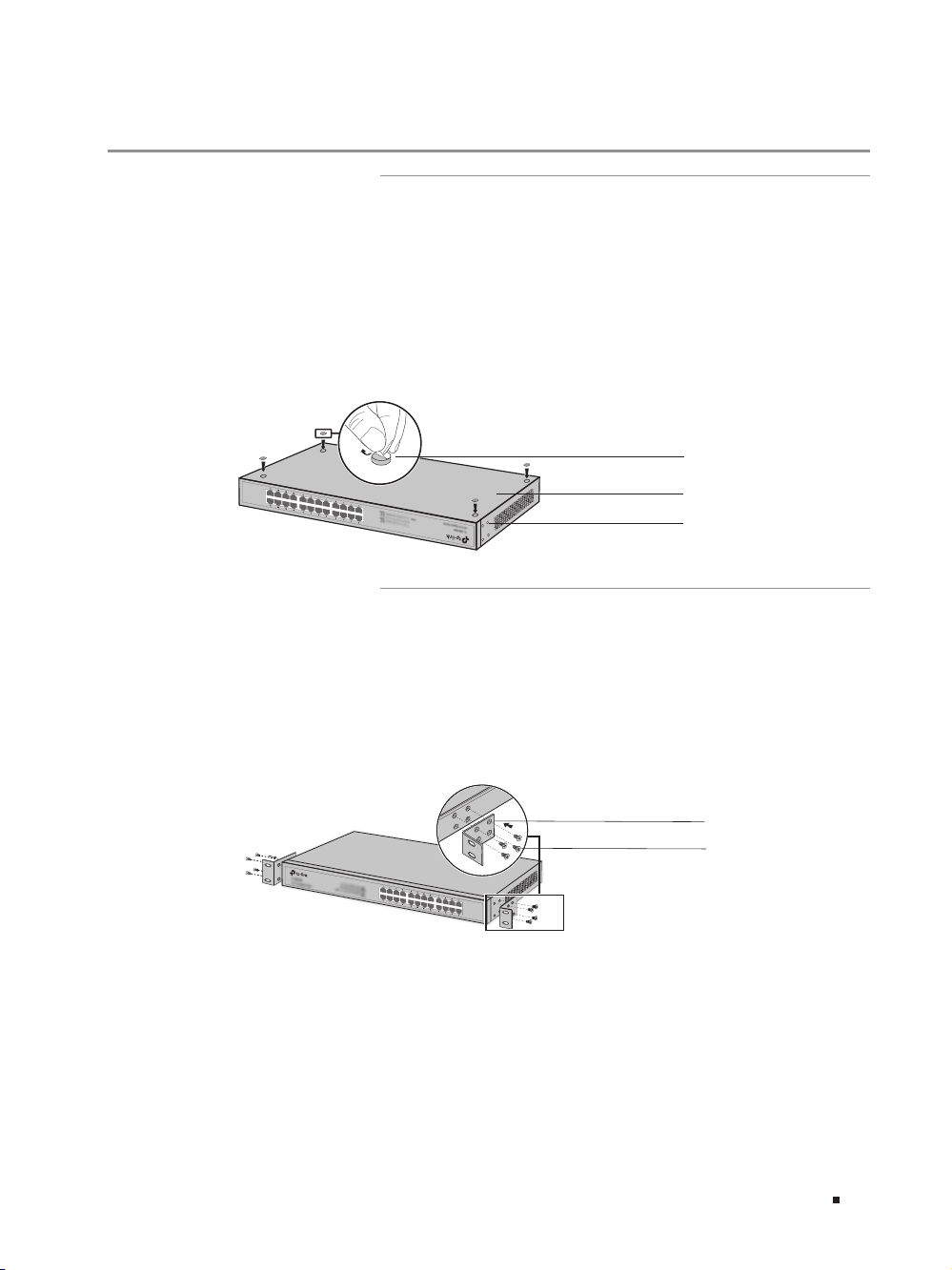

Figure 3-1 Desktop Installation
Feet
Bottom of the Device
Notch
3.2 Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as
illustrated in the following figure.
Figure 3-2 Bracket Installation
Rack-mounting Bracket
Screw
3. After the brackets are attached to the device, use suitable screws (not provided) to secure the
brackets to the rack, as illustrated in the following figure.

JetStream L3 Stackable Managed Switch
10 Installation
Figure 3-3 Rack Installation
Rack
Caution:
■Please set 5 to 10cm gaps around the device for air circulation.
■Please avoid any heavy thing placed on the device.
■Please mount devices in sequence from the bottom to top of the rack and ensure a certain
clearance between devices for the purpose of heat dissipation.
3.3 Installing and Removing the Power Supply Module
One Power Supply Module has already been installed in the switch. Operate as the following steps if
you need to replace the Power Supply Module.
■Removing the Power Supply Module
1. Wear an ESD-preventive wrist strap, and make sure that it has good skin contact and is well
grounded.
2. Remove the power cord from the power module and the external power supply system.
3. Use a Phillips screwdriver to loosen the captive screws at both sides of the power supply module
until all spring pressure is released.
4. Pull the handle by one hand towards you along the guide rails, and hold the bottom of the module
by the other hand, until it completely comes out of the switch chassis.
5. In order to better protect the removed power supply module, it is recommended to package it by
an antistatic bag.
6. After removing the PSM150-AC, please install the protective cover as soon as possible to prevent
dust from entering and ensure the normal ventilation in the switch.
■Installing the Power Supply Module
1. Wear an ESD-preventive wrist strap, and make sure that it has good skin contact and is well
grounded.
2. If the protective cover has been installed on the power supply module slot of the switch, use
a Phillips screwdriver to loosen the mounting screws of the protective cover and remove the
protective cover, as shown in the following figure.

JetStream L3 Stackable Managed Switch
11Installation

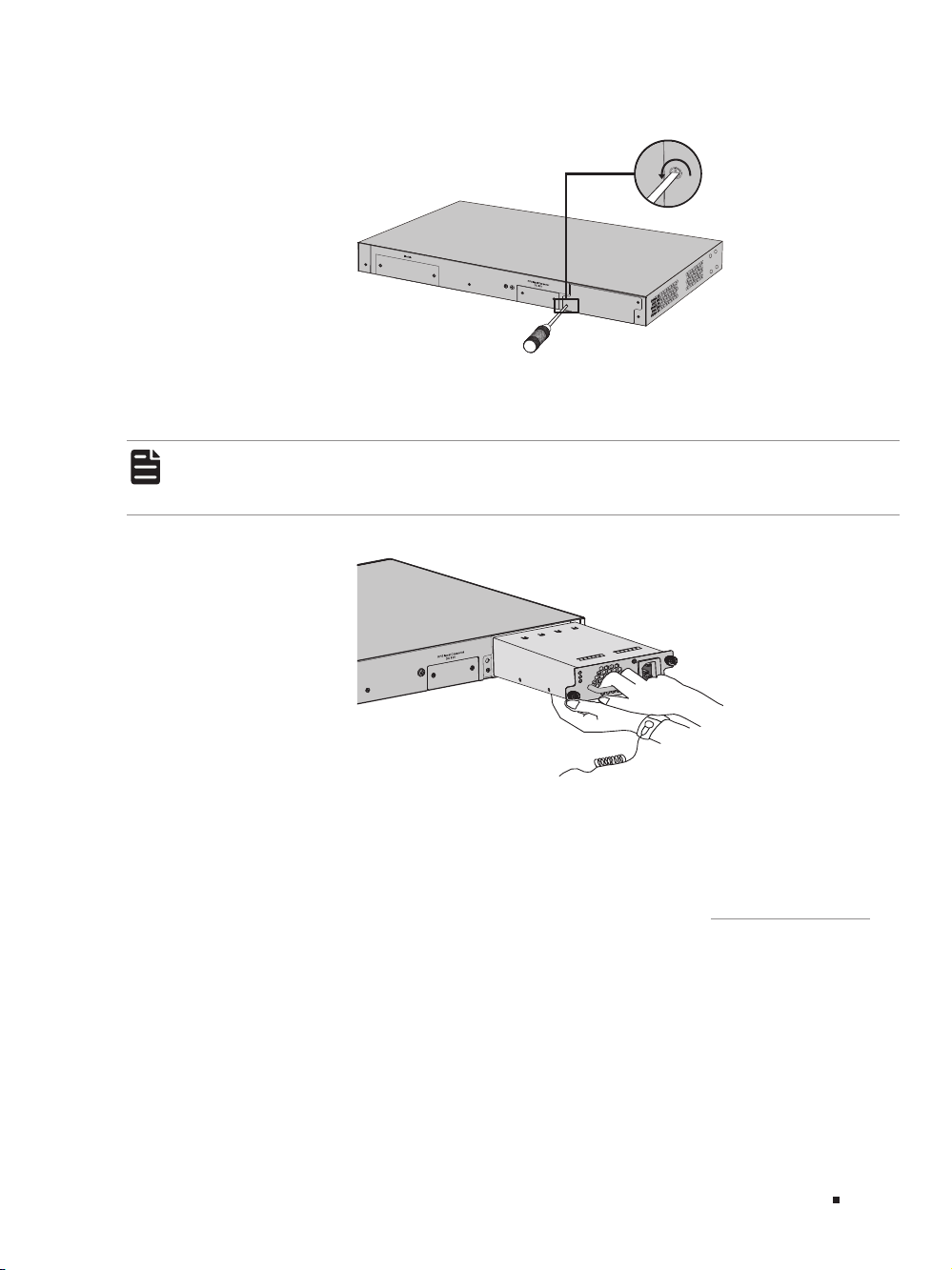

Figure 3-4 Removing the Protective Cover
3. Grip the handle of the module by one hand, and hold the bottom of the module by the other hand,
as shown in the following figure. Then gently push the module in along the slot guide rail until the
module is flush with the switch.
Note: Do not use too much force in the operation. If resistance is encountered or positions of
the power supply module appear larger deflection in the operation of installation, you must first
remove the module and then reinstall the module.
Figure 3-5 Installing the Power Supply Module
Switch
PSM150-AC
Power
PSOK
Fault
4. Tighten the captive screws with a Phillips screwdriver to fix the power supply module in place. If
the screws cannot be tighten, probably because the power supply module is not installed properly
due. Please check carefully.
3.4 (Optional) Installing and Removing the Interface Card
■Installing the Interface Card
1. Wear an ESD-preventive wrist strap, and make sure that it has good skin contact and is well
grounded.
2. Use a Phillips screwdriver to loosen the mounting screws of the protective cover on the interface
card slot of the switch and remove the protective cover, similar to the procedure shown in Figure
3-4.

JetStream L3 Stackable Managed Switch
12 Installation
3. Hold the captive screws on the front panel of the interface card, and gently push the interface
card in along the slot guide rail until the interface card is flush with the switch, as shown in the
following figure.
Figure 3-6 Installing the Interface Card
Switch
4. Tighten the captive screws with a Phillips screwdriver to fix the interface card in place.
■Removing the Interface Card
1. Wear an ESD-preventive wrist strap, and make sure that it has good skin contact and is well
grounded.
2. Use a Phillips screwdriver to loosen the captive screws at both sides of the interface card until all
spring pressure is released.
3. Pull the interface card towards you along the guide rails, until it completely comes out of the switch
chassis.
4. After removing an interface card, if no new interface card is to be installed, please install the
protective cover as soon as possible to prevent dust from entering and ensure the normal
ventilation in the switch.
Note:
■TX432 supports hot plug, so if necessary you can install or remove the interface card when
the switch is operating. However, it is recommended that the power be turned off during
installation.
■Do not touch the surface-mounted components directly with your hand while the switch is in
operation.
3.5 Stacking Using Interface Card on Rear Panel
You can connect up to 8 switches to form a stack with a single management IP address. Follow
the steps below to connect the switches and configure the stack ports, then the switches will
automatically elect a master unit and establish a stack. Once the stack is established, you can use
any port of any switch in the stack to manage the stack system.
You can use either the SFP+ ports on the front panel or the Interface Card on the rear panel to create
a stack. These two pairs of stack ports cannot be mixedly used in the stack connection.
Here we take stacking using Interface Card for example.

JetStream L3 Stackable Managed Switch
13Installation
1. Install an Interface Card (TX432 for example) into the Interface Card Slot of each switch, see 3.4
Installing and Removing the Interface Card.
2. Log in to the GUI of each switch, go to Stack→Stack Management→Stack Cong page to enable
the stack mode of port M1 and M2 (port 1/1/1 and 1/1/2 on the GUI). Remember to click Save
Cong after the configuration.
3. Power off the switches, and then connect a 10G SFP+ cable (TXC432-CU1M/TXC432-CU3M of
TP-Link for example) between each pair of Interface Cards among the switches, thus forming a
ring topology as the following figure shows. A ring topology system provides redundancy and
resiliency to the stack.

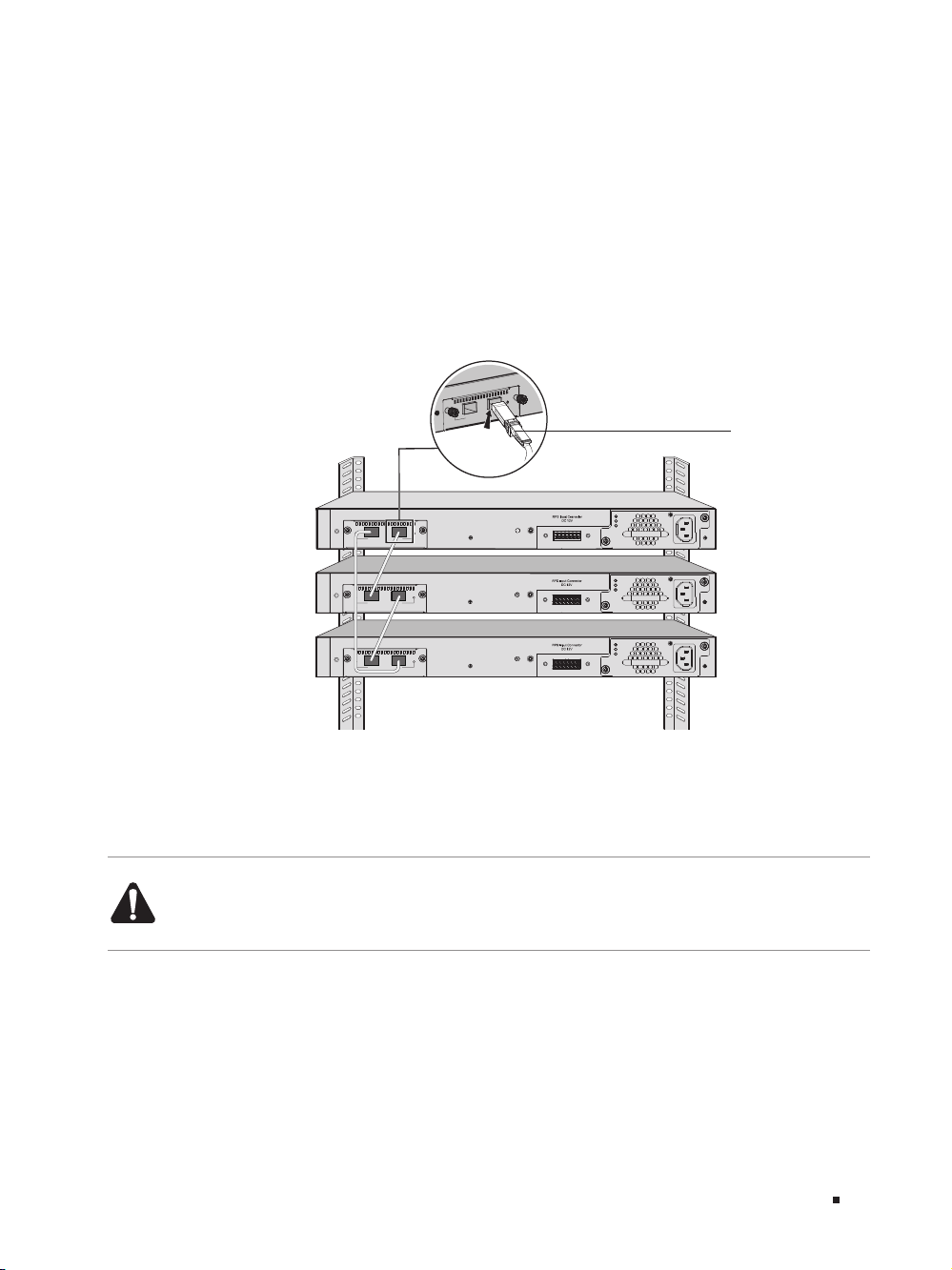

Figure 3-7 Stacking Using Interface Card
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Module
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Module
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Module
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
M1
SFP+
M2
SFP+
CLASS 1 LASER PRODUCT
TX432
Module
SFP+ cable
4. Power on the switches, then the switches will automatically select a master unit. The Master LED
of the selected switch will be on.
5. You can access to any member of the stack via Web/SSH/Telnet/Console connection, thus to
manage all the switches in the stack.
Caution:
■The SFP+ ports are stackable only when working in 10Gbps.
■In the process of using TP-Link SFP+ Cables, please never bend them into a radius of 45mm
(1.77 inch) or less, because it may permanently damage the SFP+ Cables.

JetStream L3 Stackable Managed Switch
14 Connection
Chapter 4 Connection
4.1 Ethernet Port
Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows.
Figure 4-1 Connecting the RJ45 Port
RJ45 Port
RJ45 Cable
4.2 SFP Port
The following figure demonstrates the connection of SFP port to an SFP module.
Figure 4-2 Inserting the SFP Module
SFP Slot
SFP Module
4.3 Console Port
CLI (Command Line Interface) enables you to manage the switch, thus you can load the CLI after
connecting the PCs or Terminals to the console port on the switch via the provided cable.
Connect the Console (RJ45) port of the device with your computer by the console cable as the
following figure shows.

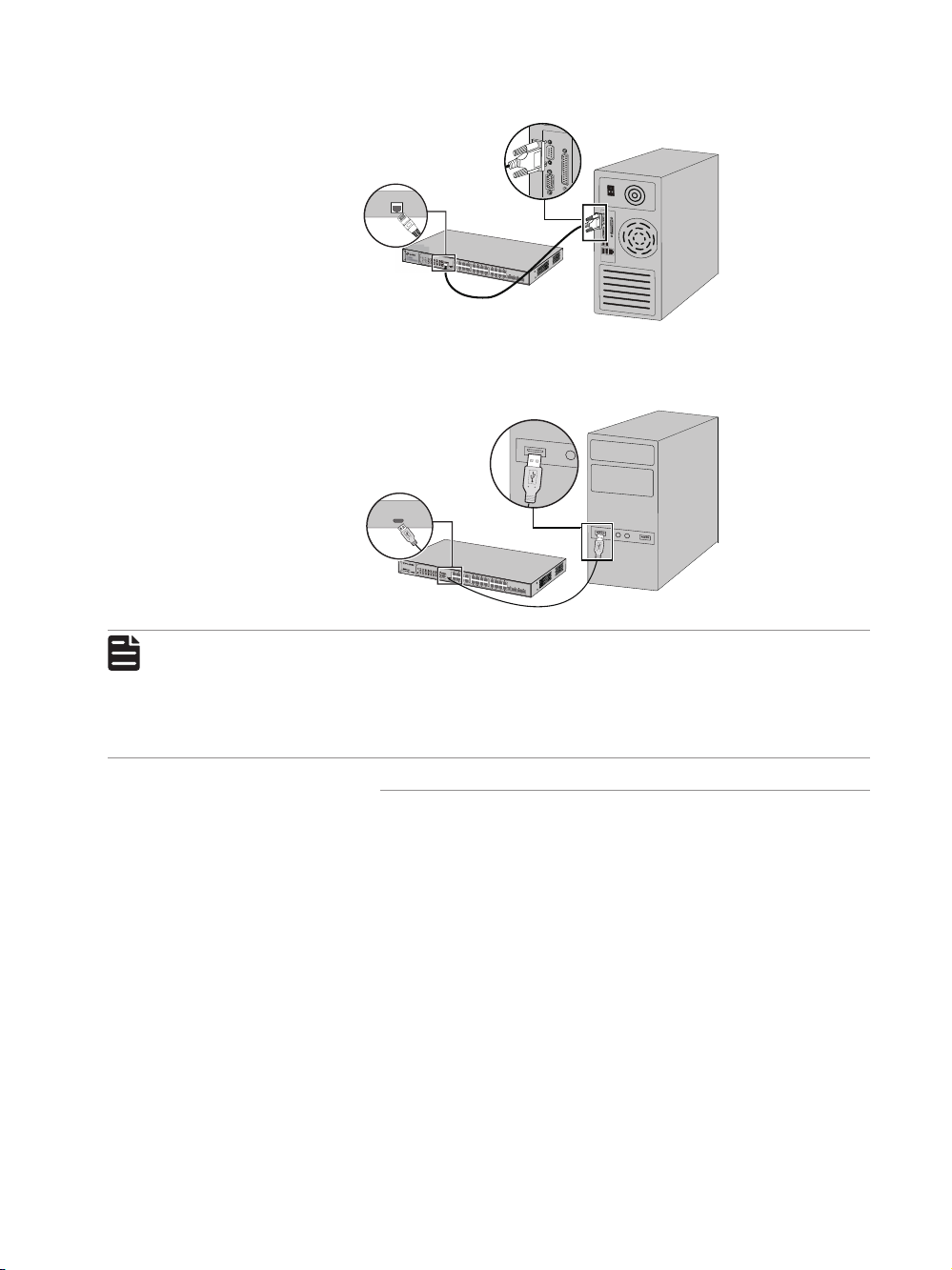

Figure 4-3 Connecting the Console (RJ45) Port
Console(RJ45)
Connect the Console (USB) port of the device with your computer by the USB cable as the following
figure shows.
Figure 4-4 Connecting the Console (USB) Port
T2600G-28TS
Console(USB)
Note:
■Console (RJ45) port and Console (USB) port cannot be used cocurrently. Console (USB) port
takes priority over the Console (RJ45) port.
■The Console (USB) port is hot-pluggable while the Console (RJ45) port is not. Please keep the
device power off when plugging the console cable into the Console (RJ45) port.
■Do not connect the console port with other ports by RJ45 cable.
4.4 Verify Installation
After completing the installation, please verify the following items:
■There are 5 to 10cm of clearance around the sides of the device for ventilation and the air flow is
adequate.
■The voltage of the power supply meets the requirement of the input voltage of the device.
■The power socket, device and rack are well grounded.
■The device is correctly connected to other network devices.

4.5 Power On
Plug in the negative connector of the provided power cord into the power socket of the device, and
the positive connector into a power outlet as the following figure shows.

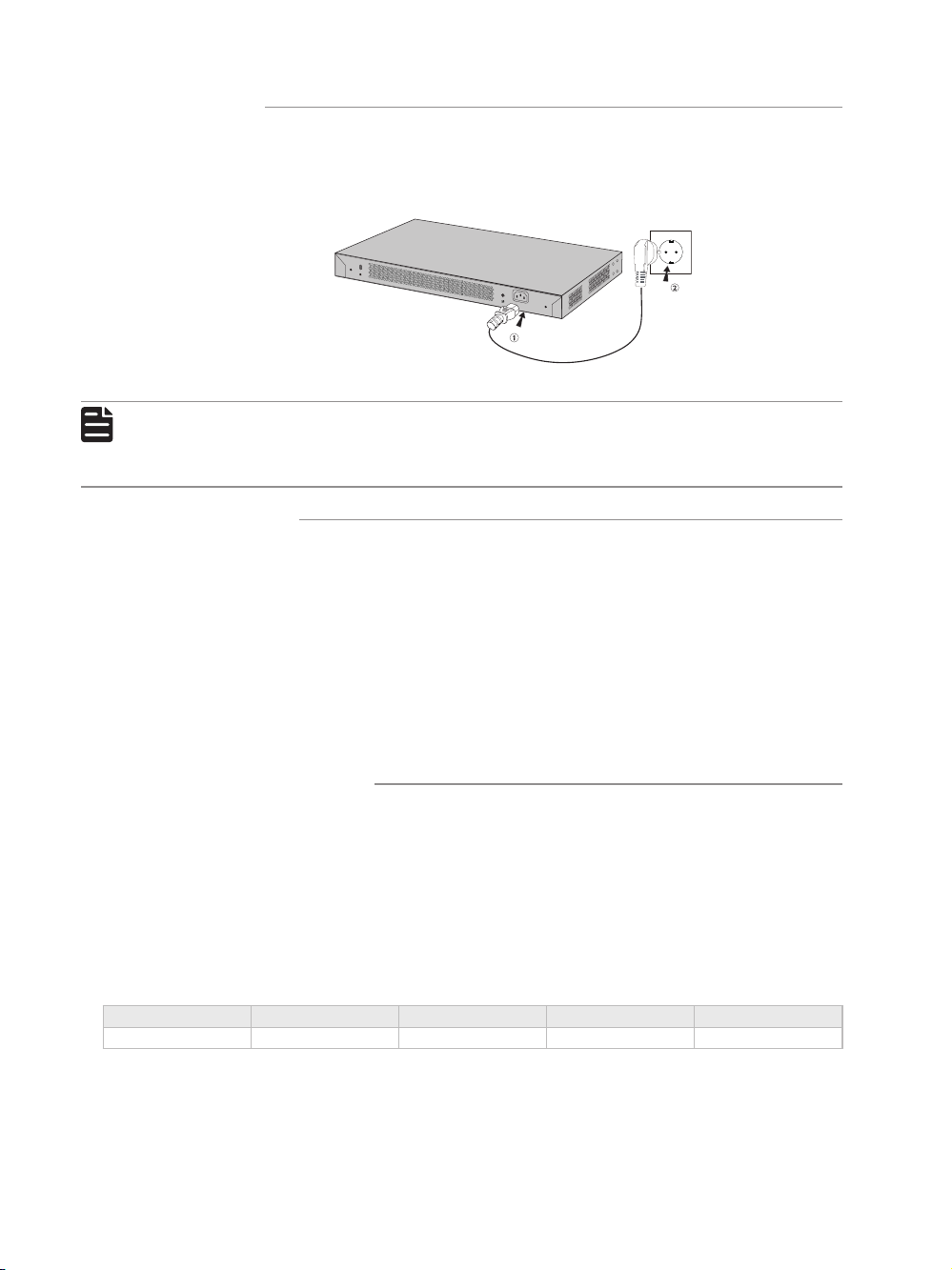

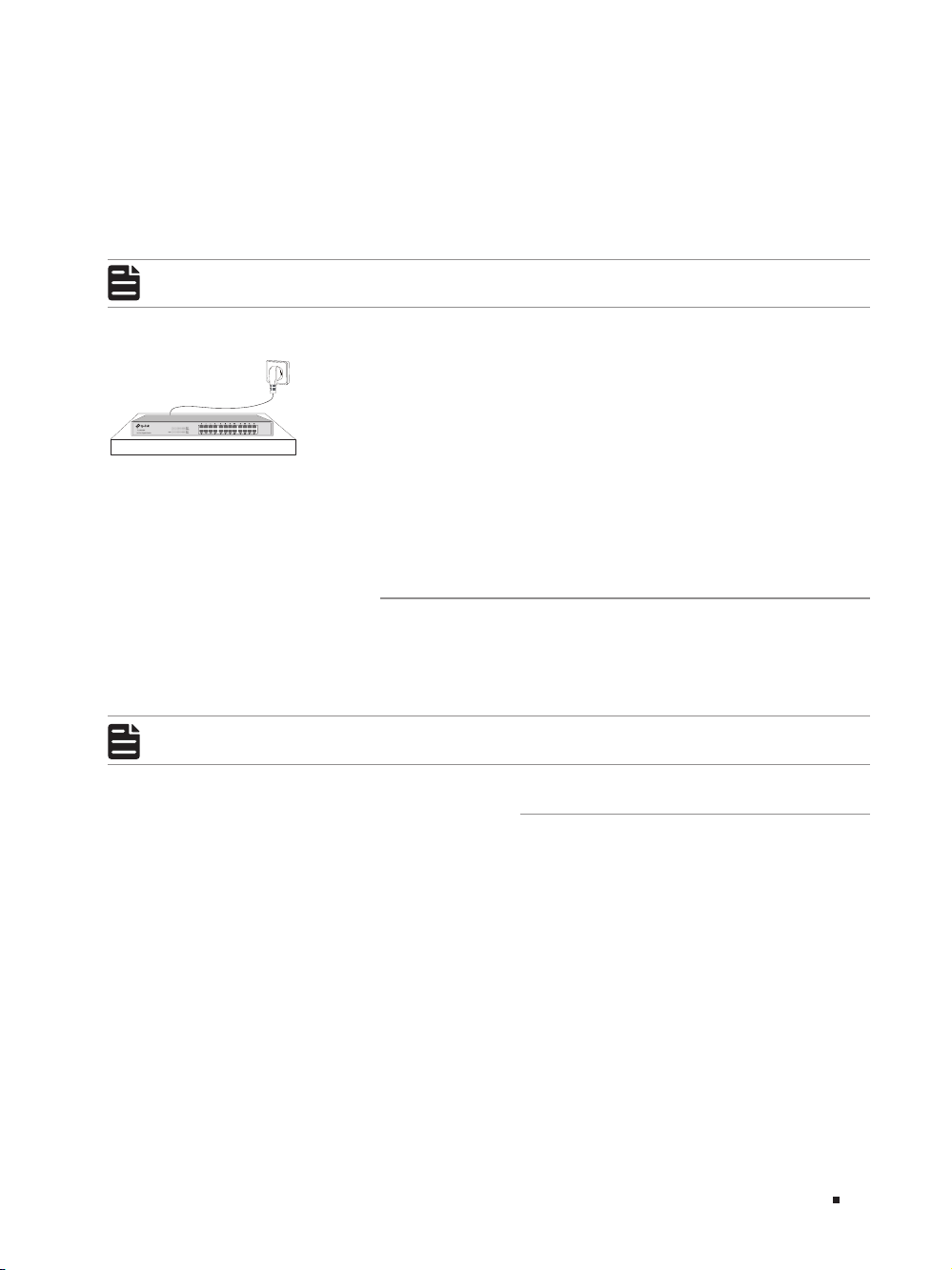

Figure 4-5 Connecting to Power Supply
100-240V~50/60Hz 0.5A
Note:
The figure is to illustrate the application and principle. The power plug you get from the
package and the socket in your situation will comply with the regulation in your country, so they
may dier from the gure above.
4.6 Initialization
After the device is powered on, it begins the Power-On Self-Test. A series of tests run automatically
to ensure the device functions properly. During this time, its LED indicators will respond as follows:
1. The PWR1 and PWR2 LEDs will enter normal work state immediately.
2. After keeping off for about one minute, the seven-segment digital tubes (Unit ID LED) will flash
twice in a clockwise direction, then flash momentarily together and turn off. It will display the Unit
ID after the initialization.
3. After keeping off for about one minute, the other LED indicators will flash momentarily and then
turn off. They will enter normal work state after the initialization.
4.7 Accessing the Switch
After the initializaiton finished, you can access and manage the switch using the GUI (Graphical User
Interface) or using the CLI (Command Line Interface).
■To access the switch using the GUI, open a web browser and type the default management address
http://192.168.0.1 in the address field, then press the Enter key. The default Username and Password
are both admin in lower case letters.
■To access the switch using the CLI, you can use the Console port, Telnet and SSH connection. When
using the Console port, start the terminal emulation program (such as the Hyper Terminal) on the PC
and configure the terminal emulation program as follows:
Baud Rate Data Bits Parity Stop Bits Flow Control
38400bps 8None 1None
For the detailed configurations, please refer to the Configuration Guide and CLI Reference Guide.
The two guides can both be found on the resource CD or on the download center of our official
website: http://www.tp-link.com/en/download-center.html.
