TP-LINK Smart Wi-Fi Light Switch is a standard,
single-pole, wall light switch that can be controlled via
your iOS or Android devices. Along with the TP-LINK
Kasa mobile app, you can follow an intuitive wiring
instructions provided to replace your standard in-
wall switch, connect the Smart Switch to your home
network, then control your lights and create custom
lighting automations from anywhere, at anytime with an
Internet connection.
The Smart Switch is compatible with incandescent,
LED, Halogen, and compact uorescent light
bulbs. The switch also includes a white backlight
LED indicator to easily locate the switch at night.

6www.tp-link.com
User’s manual Smart Wi-Fi Light Switch

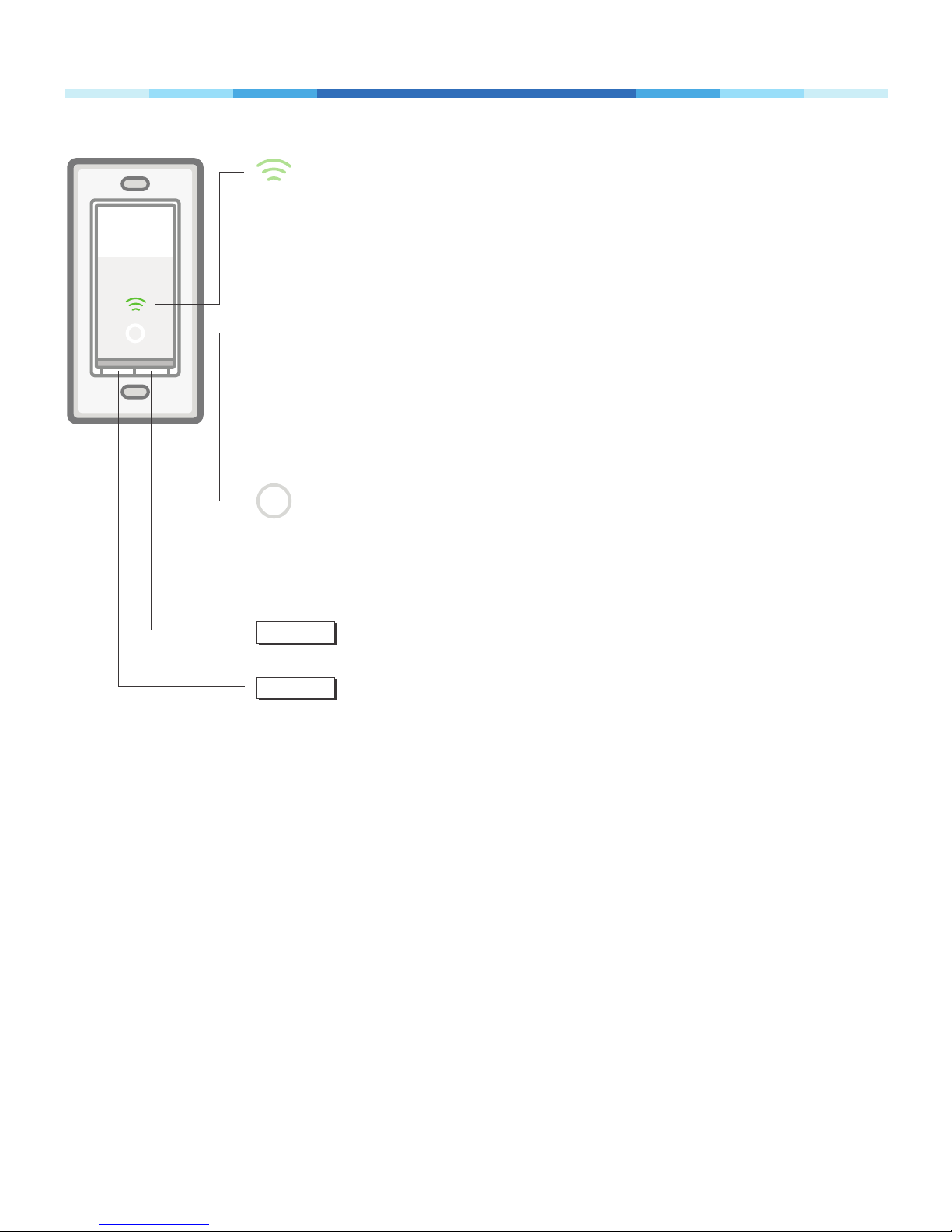

Blinking Amber and Green: App-
Cong mode initiated.
Green: Successfully connected to
the Wi-Fi network.
Blinking Amber: Resetting or during
rmware update.
Red: No Wi-Fi connection.
White: Lit up when the light is
switched OFF to show the Smart
Switch location in the dark.
Press to reboot the Smart Switch.
Press and hold (about 5 seconds)
until the Wi-Fi status LED blinks
amber and green alternately to
initiate App-Cong mode.
Press and hold (about 10 seconds)
until the Wi-Fi status LED blinks
green rapidly to factory reset the
Smart Switch.
RESET
RESTART

7www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Product Requirements
• In-wall installation with hardwired connections.
• A smartphone or tablet running iOS 8 and up or
Android 4.0 and up.
• A Wi-Fi connection (supports 802.11b/g/n
standard).
Smart Wi-Fi Light Switch Installation
Important Safety Information
Before installing, servicing, or removing the Smart
Switch, read and follow all safety precautions, including
the following:
• WARNING: RISK OF ELECTRIC SHOCK OR FIRE.
Turn OFF power supply at the circuit breaker or
fuse. Use a noncontact voltage tester to ensure the
power is off.
• The Smart Switch must be installed and used in
accordance with the National Electric Code (NEC)
or your local electrical code. If you are unfamiliar
with these codes and requirements, or are
uncomfortable performing the installation, consult

8www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
a qualied electrician.
• The Smart Switch is an indoor single-pole switch
that requires a neutral connection.
• Do not install the Smart Switch with wet hands or
when standing on wet or damp surfaces.
1 Download TP-LINK Kasa from App Store or Google
Play.
OR
Scan QR
code
2 Connect mobile device to your 2.4GHz Wi-Fi
network.
Note: The Smart Switch only supports 2.4GHz
networks.

9www.tp-link.com
User’s manual Smart Wi-Fi Light Switch

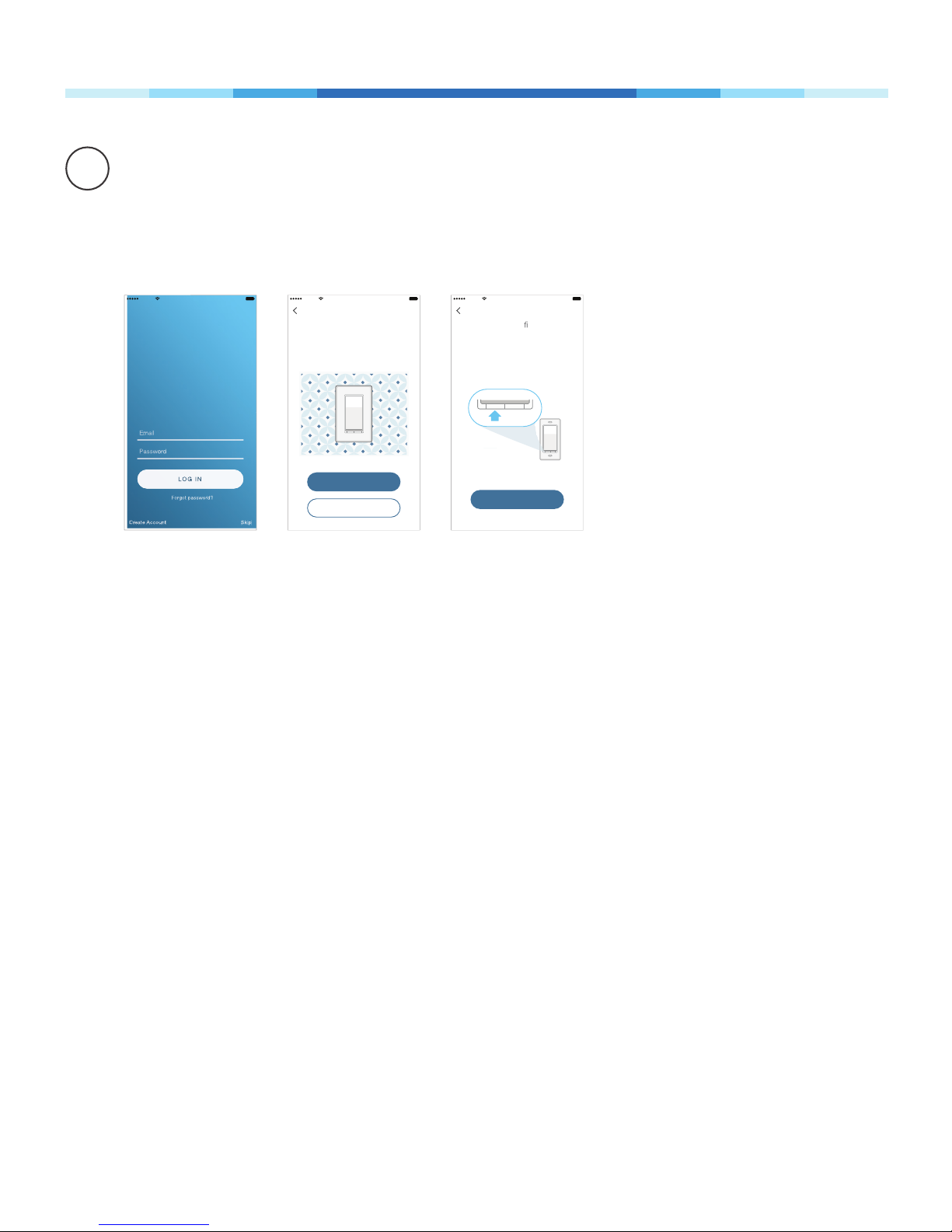

3 Lauch Kasa and follow the wiring steps provided,
then connect the Smart Switch to your home
network.
Sketch 9:41 AM 100%
Before we start
Have you already wired up your
Smart Switch?
NOT YE T
Yes, I have
Log in to access your devices.
Welcome
home
Sketch 9:41 AM 100% Sketch 9:41 AM 100%
Start the con guration
Locate the reset button below the
switch on the left.
NEXT
Press and hold for 5 seconds until the
Wi-Fi light blinks amber and green.
RESE T

10www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Using Kasa with Smart Switch
Kasa Account
While you don’t have to have a Kasa account to use TP-
LINK Smart Home devices, signing up for an account
provides added functionality such as:
• Synchronization of settings and congurations to
all your mobile devices.
• Ability to control and congure the devices from
outside your home.
• Use of third-party services and products such as
Amazon Echo.
Devices can only be associated with one Kasa account.
To remove the association, turn off Remote Control in
the Kasa’s settings, or factory reset the device.
After creating your Kasa account, you will need to verify
the email associated with your account by clicking a
link in an email that Kasa sends you. Until you verify the
email, much of the above functionality will not work.

11www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Kasa Settings
Kasa Settings allows you to set your global preferences
such as:
• Remote Control to control your Smart Home
devices outside of your home. You need to sign in to
your Kasa account rst to turn on this function.
• Location and Time to set the location and time
of where the Smart Home devices are located so
that the Away Mode and Schedules can run on
time. You can set your home’s location using your
smart device’s GPS function, or manually enter the
latitude and longitude coordinates.
• Firmware Update to update your Smart Home
devices when there is an update available. Refer to
Firmware Update for instructions.
Customizing Smart Switches
You can personalize your Smart Switches with name,
icon, and other information from the switch’s details
screen.

12www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Time Zone
Device Time
DEVICE TIME
Device Settings
9:41 PM 100%
Device Name Front Porch Switch
San Francisco
Location
Sept 15, 2015 12:00 PM
Model
Firmware Version
DEVICE INFO
MAC Address
Hardware Version
1.0.0
1.0.0
00:01:02:03:04:05
HS220
Device Icon
Delete Device
Remote Control
DEVICE CONTROLS
Disabled

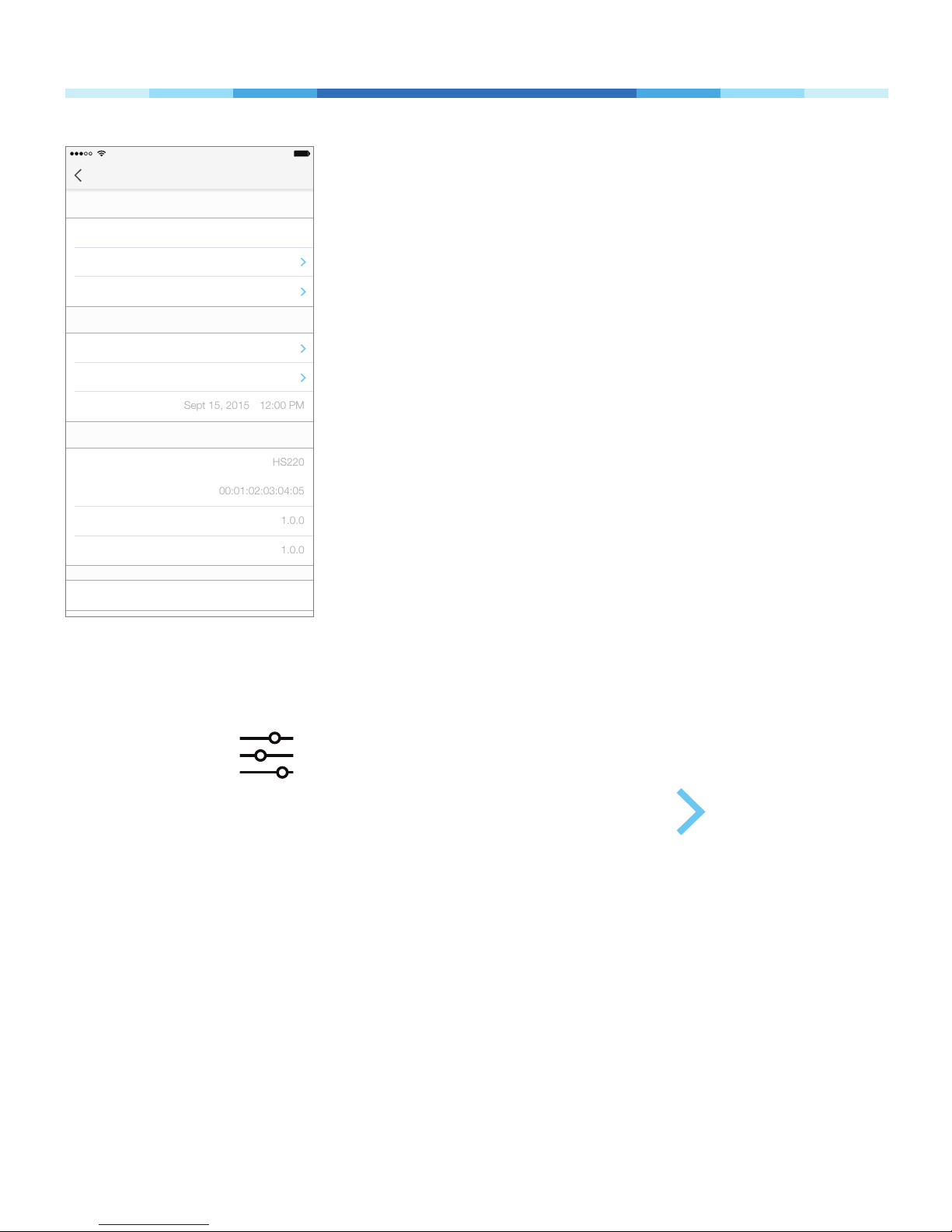

1. On the Devices screen, tap on the row of the Smart
Switch to go to its controls.
2. Tap the (Settings) icon at the top-right corner.
3. On the Device Settings screen, tap the icon for
each setting you want to personalize.
• Device Name – Create a unique name for your
Smart Switch.
• Device Icon – Choose one of the available icons
or use your own custom icon.

13www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Scheduling
You can set up your lights to illuminate around your
home at specic times on specic days of the week.
Schedules
9:41 PM 100%
No events yet!
Add Events by tapping the button on the
top right. Your saved event will be listed here.
SAVECANCEL
Create Event
9:41 PM 100%
At
Turn my Smart Plug
Repeating every
7 0 1
8 0 2
am
5 5 9
4 5 8
6 0 0 pm
:
SM T W T F S
ON

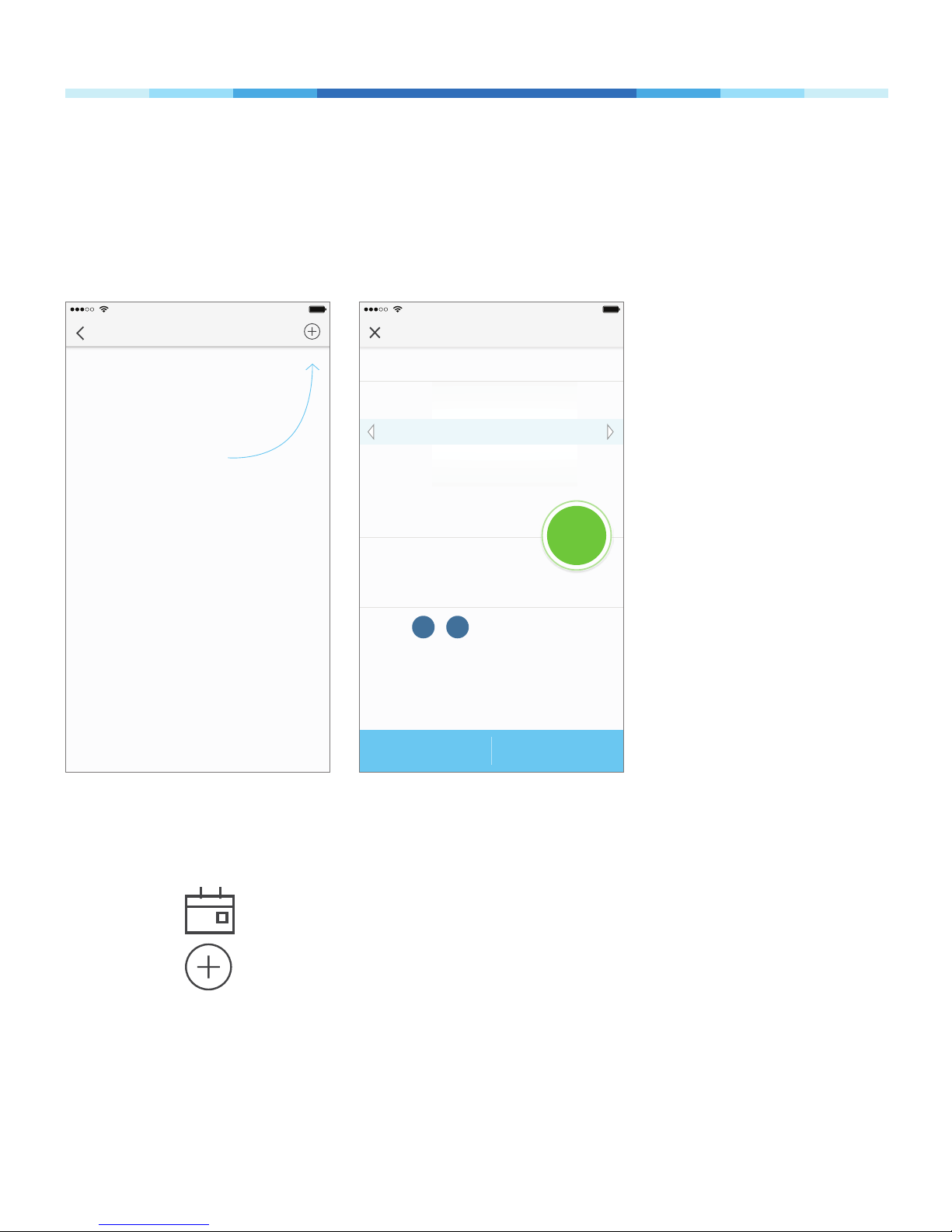

1. On the Devices screen, tap on the row of the Smart
Switch that you want to create a schedule for.
2. Tap (Schedule) to open the Schedule screen.
3. Tap to create an event.
4. Within the Create Event screen, set your preferred
state for the light bulb (ON or OFF), time, and day(s).
5. Tap Save.

14www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
You can create as many events as you like and edit
them at any time from the Schedule screen.
Creating Scenes
Take full advantage of your TP-LINK Smart Home
devices in your home with “Scenes”. A scene is a preset
group of Smart Devices (such as Smart Plugs and
Smart Switches) that can be customized and controlled
simultaneously at the touch of a button from your
smartphone or tablet to easily set your mood or t any
special occasion. For example, set a customized “Movie
Time” to turn on the home theater system plugged
into a Smart Plug and dim down the lights in your
Entertainment Room to 10% at the same time.
Please keep in mind that SCENES can only be set and
controlled once you’re signed in to your Kasa account.

15www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Devices
Scenes
Scenes let you set the mood of your
home in one tap.
Good Morning
Get ready for the day by
turning on your devices
Movie Night
Dim the lights for
showtime
Good Night
Turn everything off
before bedtime
Custom
Create your own scene
9:41 PM 100%
Scenes

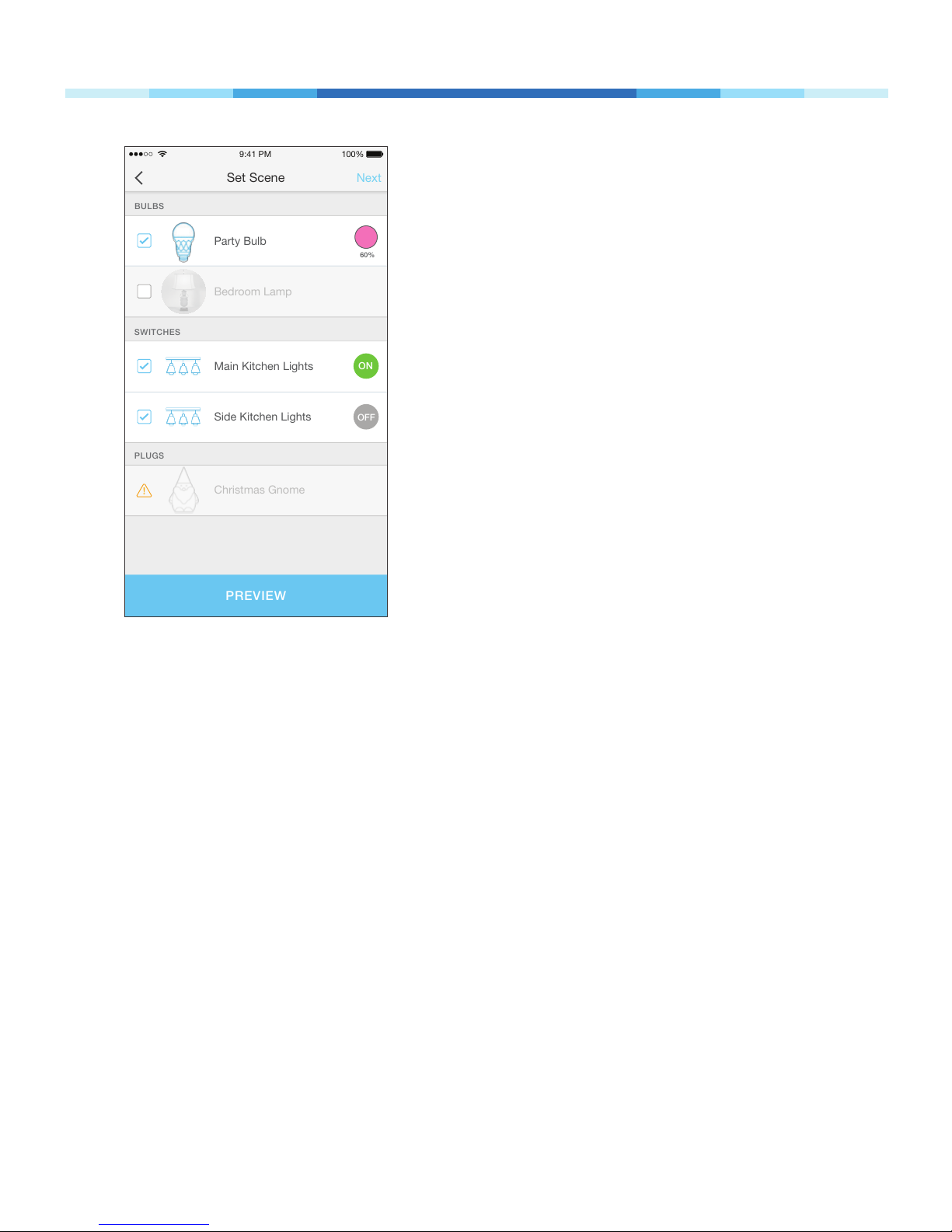

1. On the main Home screen, tap the (Scenes) tab
to switch to the Scenes view.
2. Choose one of the preset scenes to start, or
choose Custom to set up your own scene that is
personalized to suit your liking. To set a scene,
you will need to select one or more devices to be
controlled, and then dene their actions and/or
states.

16www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Bedroom Lamp
BULBS
PREVIEW
Main Kitchen Lights
Side Kitchen Lights
Christmas Gnome
SWITCHES
PLUGS
60%
Party Bulb
ON
OFF
Next
9:41 PM 100%
Set Scene
!
Note that you must have at least one Smart Device
in order to create a scene.
Away Mode
Away Mode allows you to automate your Smart
Switches in combination with other Smart Home
products to respond to your specic schedules. For
example, turn on and off Smart Devices at certain
intervals to simulate occupancy when you’re away from
home.

17www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Away Mode
9:41 PM 100%
Schedules
Devices
2
3
When you’re Away, your devices will turn
on and off to simulate that someone is
home.
Select Devices
9:41 PM 100%
How about picking one light from each
room?
Christmas Gnome
Garage Light
Party Bulb
Living Room
Bedroom Lamp
!
PLUGS
BULBS
SAVE

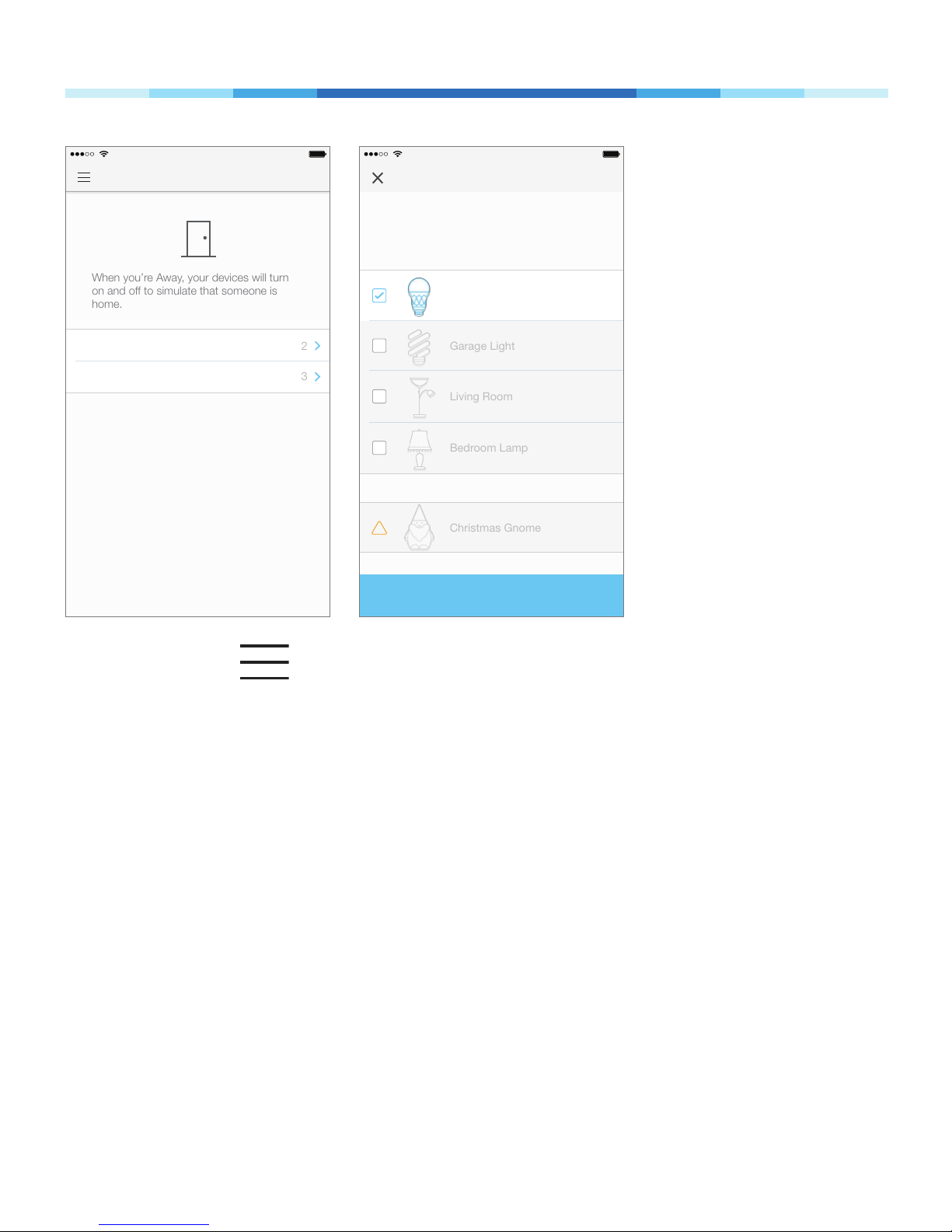

1. Tap the (navigation drawer) and then Away
Mode.
2. Tap Select Devices to select your Smart Home
devices, and then tap Save.
3. If you want to set a schedule to automate Away
Mode so you don’t have to manually activate it, tap
Set Schedule.
Note: Multiple schedules can be set to repeat
weekly on the day(s) of your choice.
4. Within the Create Event screen, set your preferred
mode (Away or Home), time, and day(s).

18www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
5. Tap Save.
You can always toggle Away Mode on and off in the
sidebar by tapping on the translucent button under the
Kasa logo.
Energy Monitoring
With energy usage monitoring capability, you get a real-
time energy consumption report (average daily, weekly,
and monthly) on your Smart Switches.
Current Power
2.80
w
Total Consumption
3.10
kWh
Daily Average
5.00 kWh
Total Consumption
35.0 kWh
Energy Usage
9:41 PM 100%
Daily Average
4.00 kWh
Total Consumption
120 kWh
TODAY
PAST 7 DAYS
PAST 30 DAYS

19www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
1. On the Devices screen, tap on the row of the Smart
Switch to go to its controls.
2. Tap the (Usage).

20www.tp-link.com
User’s manual Smart Wi-Fi Light Switch
Maintaining the Smart Switches
Firmware Update
To keep the Smart Switches happy and up-to-date with
all the latest improvement and xes, we recommend
that you update the rmware when updates are
available.
Firmware Update
9:41 PM 100%
New Updates Available
Smart Plugs
Latest Version: 1.2.0 UPDATE
We found available rmware updates for your
reachable devices.
4 Available Updates
Smart Bulb HS100
Latest Version: 1.2.0 UPDATE
2 Available Updates
Smart Bulb HS120
Latest Version: 1.2.0
0 Available Updates
9:41 PM 100%
Updating rmware
Please do not unplug your devices during
the update.
25%
This process may take a few minutes.
1. Launch Kasa.
2. Tap the (navigation drawer) and then Settings.
3. Tap Firmware Update.
4. Within the Firmware Update screen, tap Update.
