TP-Link TL-WA7210N User manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access
Point
REV2.0.0
1910010786

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1）This device may not cause harmful interference.
2）This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.

Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性或功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射頻電
機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA

TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan
Rd, Nanshan, Shenzhen, China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 2.4GHz 150Mbps Outdoor Wireless Access Point
Model No.: TL-WA7210N
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.1.1:2009
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60950-1:2006+A11：2009+A1:2010+A12:2011
EN 62311:2008
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2013

CONTENTS
Package Contents ........................................................................................................................... 1
Chapter 1. Introduction ............................................................................................................... 2
1.1 Overview of the Product...................................................................................................... 2
1.2 Features ............................................................................................................................. 2
1.3 Conventions........................................................................................................................ 4
1.4 Panel Layout....................................................................................................................... 4

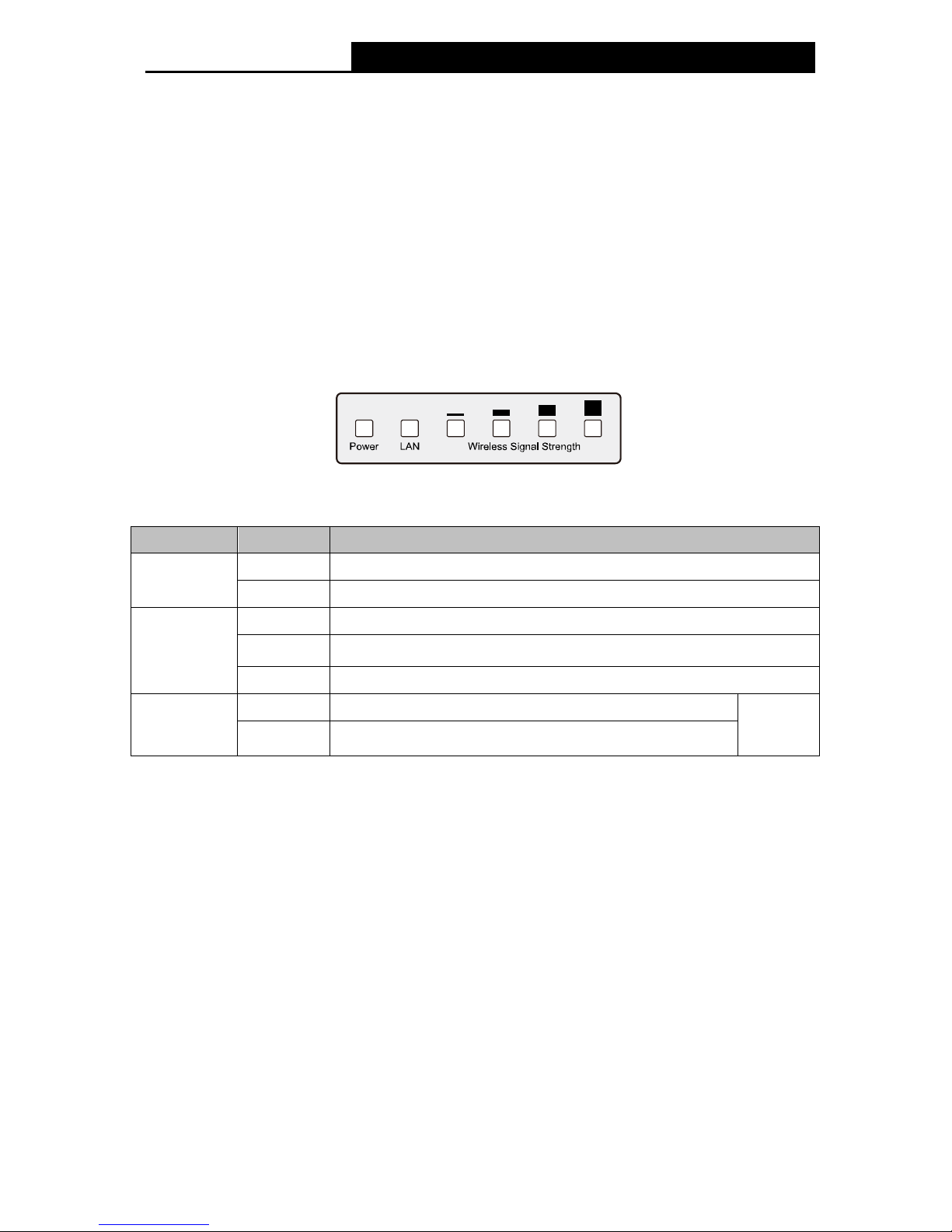

1.4.1 The Front Panel........................................................................................................... 4
1.4.2 The Rear Panel ........................................................................................................... 5
Chapter 2. Connecting the Device .............................................................................................. 6
2.1 System Requirements......................................................................................................... 6
2.2 Installation Environment Requirements ............................................................................... 6
2.3 Connecting the Device ........................................................................................................ 6
2.3.1 AP Client Router Mode ................................................................................................ 7
2.3.2 AP Router Mode .......................................................................................................... 7
2.3.3 Access Point................................................................................................................ 8
2.3.4 Multi-SSID................................................................................................................... 8
2.3.5 Repeater and Universal Repeater ................................................................................ 9
2.3.6 Bridge with AP............................................................................................................. 9
2.3.7 Client......................................................................................................................... 10
Chapter 3.Quick Installation Guide.......................................................................................... 11
3.1 Configure the Device......................................................................................................... 11
3.2 Quick Setup ...................................................................................................................... 12
3.2.1 AP Client Router........................................................................................................ 15
3.2.2 AP Router.................................................................................................................. 19
3.2.3 Access Point.............................................................................................................. 23
3.2.4 Multi-SSID................................................................................................................. 26
3.2.5 Repeater (Range Extender) ....................................................................................... 28
3.2.6 Bridge with AP........................................................................................................... 32
3.2.7 Client......................................................................................................................... 35
Chapter 4. AP & Multi-SSID & Repeater (Range Extender) & Bridge with AP & Client
Operation Mode ............................................................................................................................. 40
4.1 Login ................................................................................................................................ 40
4.2 Status............................................................................................................................... 40
4.3 Quick Setup ...................................................................................................................... 41
4.4 Operation Mode ................................................................................................................ 41
4.5 WPS ................................................................................................................................. 42

II
4.6 Network ............................................................................................................................ 43
4.6.1 LAN........................................................................................................................... 43
4.7 Wireless............................................................................................................................ 44
4.7.1 Wireless Settings....................................................................................................... 45
4.7.2 Wireless Security....................................................................................................... 46
4.7.3 Wireless MAC Filtering .............................................................................................. 48
4.7.4 Wireless Advanced .................................................................................................... 51
4.7.5 Antenna Alignment .................................................................................................... 52
4.7.6 Distance Setting ........................................................................................................ 52
4.7.7 Throughput Monitor ................................................................................................... 53
4.7.8 Wireless Statistics...................................................................................................... 53
4.8 DHCP ............................................................................................................................... 54
4.8.1 DHCP Settings .......................................................................................................... 54
4.8.2 DHCP Clients List...................................................................................................... 55
4.8.3 Address Reservation ................................................................................................. 56
4.9 System Tools .................................................................................................................... 57
4.9.1 SNMP........................................................................................................................ 57
4.9.2 Time Settings ............................................................................................................ 58
4.9.3 Diagnostic ................................................................................................................. 60
4.9.4 Ping Watch Dog......................................................................................................... 61
4.9.5 Speed Test ................................................................................................................ 61
4.9.6 Firmware Upgrade ..................................................................................................... 62
4.9.7 Factory Defaults ........................................................................................................ 63
4.9.8 Backup & Restore...................................................................................................... 63
4.9.9 Reboot ...................................................................................................................... 64
4.9.10 Password .................................................................................................................. 64
4.9.11 System log................................................................................................................. 65
4.9.12 Statistics.................................................................................................................... 66
Chapter 5. AP Client Router & AP Router Operation Mode ..................................................... 68
5.1 Login ................................................................................................................................ 68
5.2 Status............................................................................................................................... 68
5.3 Quick Setup ...................................................................................................................... 70
5.4 Operation Mode ................................................................................................................ 70
5.5 WPS ................................................................................................................................. 71
5.6 Network ............................................................................................................................ 72
5.6.1 WAN.......................................................................................................................... 72
5.6.2 MAC Clone................................................................................................................ 80
5.6.3 LAN........................................................................................................................... 81

III
5.7 Wireless............................................................................................................................ 81
5.7.1 Wireless Settings....................................................................................................... 82
5.7.2 Wireless Security....................................................................................................... 87
5.7.3 MAC Filtering............................................................................................................. 89
5.7.4 Wireless Advanced .................................................................................................... 91
5.7.5 Antenna Alignment .................................................................................................... 92
5.7.6 Distance Setting ........................................................................................................ 92
5.7.7 Throughput Monitor ................................................................................................... 93
5.7.8 Wireless Statistics...................................................................................................... 93
5.8 DHCP ............................................................................................................................... 94
5.8.1 DHCP Settings .......................................................................................................... 94
5.8.2 DHCP Clients List...................................................................................................... 95
5.8.3 Address Reservation ................................................................................................. 96
5.9 Forwarding........................................................................................................................ 97
5.9.1 Virtual Servers ........................................................................................................... 97
5.9.2 Port Triggering........................................................................................................... 99
5.9.3 DMZ ........................................................................................................................ 100
5.9.4 UPnP....................................................................................................................... 101
5.10 Security .......................................................................................................................... 101
5.10.1 Basic Security.......................................................................................................... 102
5.10.2 Advanced Security................................................................................................... 103
5.10.3 Local Management .................................................................................................. 104
5.10.4 Remote Management .............................................................................................. 105
5.11 Parental Control .............................................................................................................. 105
5.12 Access Control................................................................................................................ 107
5.12.1 Rule......................................................................................................................... 107
5.12.2 Host......................................................................................................................... 109
5.12.3 Target...................................................................................................................... 110
5.12.4 Schedule ................................................................................................................. 111
5.13 Advanced Routing........................................................................................................... 112
5.13.1 Static Routing List.................................................................................................... 112
5.13.2 System Routing Table.............................................................................................. 113
5.14 Bandwidth Control........................................................................................................... 114
5.14.1 Control Settings....................................................................................................... 114
5.14.2 Rules List ................................................................................................................ 114
5.15 IP & MAC Binding ........................................................................................................... 115
5.15.1 Binding Setting ........................................................................................................ 115
5.15.2 ARP List .................................................................................................................. 116

IV
5.16 Dynamic DNS ................................................................................................................. 117
5.17 System Tools .................................................................................................................. 120
5.17.1 Time Settings .......................................................................................................... 121
5.17.2 Diagnostic ............................................................................................................... 122
5.17.3 Firmware Upgrade ................................................................................................... 123
5.17.4 Factory Defaults ...................................................................................................... 124
5.17.5 Backup & Restore.................................................................................................... 124
5.17.6 Reboot .................................................................................................................... 125
5.17.7 Password ................................................................................................................ 125
5.17.8 System log............................................................................................................... 126
5.17.9 Statistics.................................................................................................................. 128
Appendix A: FAQ......................................................................................................................... 130
Appendix B: Configuring the PC................................................................................................. 134
Appendix C: Specifications......................................................................................................... 138
Appendix D: Glossary ................................................................................................................. 139

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
1
Package Contents
The following items should be found in your package:
One TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point
One power Adapter for TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point
One Power Injector
Mounting Kits
Quick Installation Guide
One Resource CD for TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point,
including:
This User Guide
Other helpful information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
2
Chapter 1. Introduction
1.1 Overview of the Product
The TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point is dedicated to Outdoor
wireless network solutions. The TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point
will allow you to connect your network with other wireless devices wirelessly, sharing Internet
Access, files and fun, easily and securely. The high power design will also help you build a more
stable link or cover more area outdoors.
The TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point provides 7 operation modes
for multi-user to access the Internet: AP Client Router, AP Router, Access Point, Multi-SSID,
Repeater (Range Extender), Bridge with AP and Client. In AP Client Router mode, it works as a
WISP CPE and can access the Internet wirelessly via your W ISP. In AP Router mode, it can
access the Internet via an ADSL/Cable Modem, while sharing data wirelessly.
With the most attentive wireless security, the TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless
Access Point provides multiple protection measures. It can be set to turn off wireless network
name (SSID) broadcast so that only stations that have the SSID can be connected. The AP
provides wireless LAN 64/128/152-bit WEP encryption security, and WPA/WPA2 and
WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security. It also supports
VPN pass-through for sensitive data secure transmission.
The TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point complies with the IEEE
802.11n, IEEE 802.11g and IEEE 802.11b standards so that the data transmission rate is up to
150Mbps. The wireless transmission range can extend up to tens of kilometers.
1.2 Features
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
standards.
Wireless Data transfer rates up to 150Mbps.
Supports AP Client Router, AP Router, Access Poiint, Multi-SSID, Repeater (Range
Extender), Bridge with AP, Client mode
High output transmit power and receive sensitivity optimized.
Supports Client Router Mode for W ISP CPE.
Supports passive power over Ethernet.
Supports Wireless Distribution System (WDS).
ACK timeout adjustment for long range transmission, up to 50km.
Supports Antenna Alignment.
Provides throughput monitor indicating the current wireless throughput.
Supports Layer 2 User Isolation.
Supports Ping Watch Dog.
Supports link speed test.
Output transmit power adjustable.
Supports PPPoE, Dynamic IP, Static IP Internet Access.
Built-in NAT and DHCP server supporting static IP address distributing.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
3
Provides WLAN ACL (Access Control List).
Supports configuration backup/restore and firmware upgrade.
Supports Web management.
Supports Remote Management.
Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through.
Supports Virtual Server, Special Application and DMZ host.
Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address
filtering.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
4
1.3 Conventions
The AP or TL-WA7210N, or device mentioned in this User guide stands for TL-WA7210N 2.4GHz
150Mbps Outdoor Wireless Access Point without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation.
You can set the parameters according to your demand.
1.4 Panel Layout
1.4.1 The Front Panel
TL-WA7210N consists of several LED indicators, which is designed to indicate connections and
wireless signal.
Figure 1-1 Front Panel sketch
View from left to right.
Name Status Indication
Power Off No Power
On Power on
LAN
Off There is no device linked to the corresponding port
On There is a device linked to the corresponding port but no activity
Flashing There is an active device linked to the corresponding port
Wireless
Signal
Strength
Off There is no remote wireless signal Client or
Repeater
mode
On Indicates the wireless signal strength of a remote AP
Table 2-1
Note:
For Wireless Signal Strength LEDs:
In AP or Bridge mode, all the four LEDs will light up.
In Client or Repeater mode, the corresponding LED(s) will light up when the RSSI value
(wireless signal strength value) reaches the RSSI Threshold. The value of RSSI Threshold
can be set on Antenna Alignment page as shown in Figure 4-12.
For example, if the RSSI value is 30, the RSSI Threshold of the four LED are 15, 25, 35, 45
respectively, and then the LEDs whose RSSI Threshold are 15 and 25 will light up.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
5
1.4.2 The Rear Panel
Figure 1-2 Rear Panel sketch
View from left to right, the parts are explained below.
: This is where you can connect an outside antenna. For this AP, the antenna is built inside,
and usually there is not necessary to connect an outside one.
LAN: This port is used to connect to the POE port of the provided Power Injector.
RESET:
There are two ways to reset the AP's factory defaults:
•Use the Factory Defaults function on System Tools -> Factory Defaults page in the
AP's Web-based Utility.
•Use the Factory Default Reset button: Press and hold the RESET button for at least 5
seconds, and then the AP reboots after the LED at the rightmost in Figure 1-1 flashes.
Note:
Ensure the AP is powered on before it restarts completely.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
6
Chapter 2. Connecting the Device
2.1 System Requirements
Each PC in the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45
connectors.
TCP/IP protocol must be installed on each PC.
Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or
later.
If the device is configured to AP Client Router mode, you also need:
Wireless Internet Service Provider (WISP).
If the device is configured to AP Router mode, you also need:
Broadband Internet Access Service (DSL/Cable/Ethernet).
One DSL/Cable Modem that has an RJ45 connector (you do not need it if you connect the
router to the Ethernet.).
2.2 Installation Environment Requirements
Operating temperature: -30℃~70℃
Operating Humidity: 10%~90% RH, Non-condensing
2.3 Connecting the Device
To connect the AP, please follow the steps below:
1. Power off your PC, Cable/DSL Modem, and the AP.
2. Locate an optimum location for the AP. The best place is usually at the center of your
wireless network. The place must accord with the Installation Environment Requirements.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
After finishing the steps above, please choose the operation mode you need and carry out the
corresponding steps. There are seven operation mode supported by this AP: AP Client Router,
AP Router, Access Point, Multi-SSID, Repeater (Range Extender), Bridge with AP and
Client.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
7
2.3.1 AP Client Router Mode
Figure 2-1 Hardware Installation of the TL-WA7210N in AP Client Router mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Connect the PC to the LAN port of the Power Injector with an Ethernet cable.
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
4. Power on the PC(s) and notebook(s).
2.3.2 AP Router Mode
Figure 2-2 Hardware Installation of the TL-WA7210N in AP Router mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Connect the DSL/Cable Modem to the LAN port of the Power Injector with an Ethernet cable.
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
4. Power on the PC(s) and other connected devices (such as the ADSL modem).
Note:
In this mode, the LAN port of the Power Injector (connected to the LAN port of the Device) works
as the WAN port.

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
8
2.3.3 Access Point
This operation mode allows wireless stations to access.
Figure 2-3 Hardware Installation of the TL-WA7210N in Access Point mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Connect the LAN port of the Power Injector to the wired network port with an Ethernet cable.
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in the electrical wall socket.
4. Power on the notebook(s) and other connected devices (such as the Wired Router).
2.3.4 Multi-SSID
In this mode, AP can support up to 4 SSID.
Figure 2-4 Hardware Installation of the TL-WA7210N in Multi-SSID mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Connect the LAN port of the Power Injector to the wired network port with an Ethernet cable.
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in the electrical wall socket.
4. Power on the notebooks and other connected devices (such as the Switch).

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
9
2.3.5 Repeater and Universal Repeater
Figure 2-5 Hardware Installation of the TL-WA7210N in (Universal) Repeater mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
3. Power on the PC(s) and other connected devices (such as the Router).
Note:
Both Repeater and Universal Repeater modes allow the AP with its own BSS to relay data to a
root AP. The wireless repeater relays signal between its stations and the root AP for greater
wireless range. However, in Repeater mode, the WDS associated is enabled, while in Universal
Repeater mode, the WDS associated is disabled.
2.3.6 Bridge with AP
Two Devices are needed in this mode.
Figure 2-6 Hardware Installation of the TL-WA7210N in Standard AP -- Bridge mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
3. Power on the PC(s).

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
10
Note:
It is recommended that you connect a PC/notebook to the LAN port of the Device with an Ethernet
cable, and then login the Device from the PC/notebook to set the Device in Bridge with AP mode.
2.3.7 Client
Figure 2-7 Hardware Installation of the TL-WA7210N in Client mode
1. Connect the LAN port of TL-WA7210N to the POE port of the Power Injector with an Ethernet
cable.
2. Connect the PC to the LAN port of the Power Injector with an Ethernet cable.
3. Plug one end of the Power Adapter into the DC jack on the Power Injector, and the other end
in electrical wall socket.
4. Power on the PC(s) and other connected devices (such as the Router).
