Tracmaster Camon LS14 User manual

LS14 Lawn Scarifier
Operating Instructions
Before commissioning the machine, read operating instructions and
observe warning and safety instructions.

Manufacturer Details
Tracmaster Ltd
Sovereign Centre
Victoria Road
Burgess Hill
West Sussex
RH15 9LR
UNITED KINGDOM
Tel: [phone]
www.tracmaster.co.uk
[e-mail]
Machine Details
Model: CAMON LS14 Scarifier
Serial Number: ..................................................
Engine Serial No: ..................................................
Date of Purchase: ..................................................
Supplier: ..................................................

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 1
Table of Contents
1.0 What the Machine is Designed For .......................................................................................... 2
1.1 Applications ................................................................................................................. 2
2.0 Specifications........................................................................................................................... 3
3.0 Unpacking and Assembly......................................................................................................... 4
3.1 Major Components Diagram........................................................................................ 4
3.2 Unpacking Instructions ................................................................................................ 4
4.0 Safety Instructions – Pre-Operation ......................................................................................... 5
4.1 Basic Safety Instructions ............................................................................................. 5
4.2 Main Components and Operating Elements................................................................ 5
4.3 Engine and Drive......................................................................................................... 5
4.4 Operating Lever........................................................................................................... 5
4.5 Height Adjustment ....................................................................................................... 5
4.6 Collection Bag ............................................................................................................. 6
4.7 Rotor Shaft .................................................................................................................. 6
4.8 Commissioning............................................................................................................ 6
4.9 General Safety Instructions ......................................................................................... 6
4.10 Engine Specific Safety Instructions ............................................................................. 6
4.11 Hazard Pictorial Explanations ..................................................................................... 8
5.0 Safety Instructions Starting and Operating............................................................................. 10
5.1 To Start the Engine.................................................................................................... 10
5.2 To Stop the Engine .....................................................................................................11
5.3 Safety Equipment .......................................................................................................11
5.4 Operation....................................................................................................................11
5.5 Procedure for Unexpected Shut Down ...................................................................... 12
5.6 How to Clear Unwanted Debris from the Underside of the Machine ......................... 12
5.7 Residual Risks of the LS14 Scarifier ......................................................................... 12
6.0 Maintenance ......................................................................................................................... 13
6.1 Schedule ................................................................................................................... 13
6.2 Basic Maintenance .................................................................................................... 13
6.3 Advanced Maintenance............................................................................................. 13
6.3.1 Belt ............................................................................................................... 13
6.3.3 Blades........................................................................................................... 14
6.4 Engine ...................................................................................................................... 15
6.4.2 Change Engine Oil........................................................................................ 16
6.4.3 Air Filter ........................................................................................................ 16
6.4.4 Spark Plug .................................................................................................... 16
6.5 Cleaning .................................................................................................................... 17
6.6 Troubleshooting......................................................................................................... 17
6.6.1 Machine ........................................................................................................ 17
6.6.2 Engine .......................................................................................................... 17
6.6.3 Lubricants ..................................................................................................... 17
7.0 Transportation, Storage and Handling ................................................................................... 18
7.1 Transportation ........................................................................................................... 18
7.2 Storage...................................................................................................................... 18
7.3 Handling .................................................................................................................... 18
8.0 Service Record ...................................................................................................................... 19
EC Declaration of Conformity ......................................................................................................... 20

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
2Original Instructions
–
–
1.0 What the Machine is Designed For
1.1 Applications
The CAMON LS14 Lawn Scarifier has been designed by Tracmaster for removing the
dead thatch and moss from lawns and other grassed areas.
The benefit of scarifying a lawn is that it allows air, water and nutrients to reach the
roots of the grass whilst removing unwanted dead and foreign material.
! IMPORTANT – READ CAREFULLY
The blades of the CAMON LS14 Scarifier are designed to pass through the
grass ONLY - they are NOT designed to make contact with solid ground at
any point during operation.
The machine will be damaged should blades continuously come into
contact with solid ground.
DO NOT use the CAMON LS14 Scarifier for cutting grass or slitting the
ground.
Both operations will result in damage to the machine.
Operating the machine on non-grass surfaces such as concrete or tarmac
will cause damage to the LS14 Scarifier.
DO NOT scarify your lawn if there is a likelihood of high temperatures or
drought.
Irrigate the lawn if necessary to ensure that the grass can recover from its
treatment.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 3
2.0 Specifications
ENGINE
Engine Manufacturer
Honda
Engine Model
GP160
Engine Type
4-stroke OHV, single cylinder
Net Engine Power
3.6kW (4.8hp) @ 3600rpm
Engine Shaft Size
¾” straight
Spark Plug
BPR6ES (NGK) / W20EPR-U (DENSO)
Spark Plug Gap
0.70 - 0.80mm
Engine Ignition Type
Recoil
Cold Start System
Choke
Fuel Tank Capacity
3.1 litres
Fuel Type
Unleaded
Fuel Consumption
1.4 litres per hour @ 3600rpm
Air Filter
Paper
Rated Engine Speed
3600rpm
Engine Oil
10w/30 API SJ or later
Engine Oil Capacity
0.6 litres
Dry Weight
15.1kg
The power rating of the engine indicated in this table is the net power output tested on a production engine for the engine
model and measured in accordance with SAE J1349 at a specified rpm.
MACHINE
Model
LS14
Working Width
42cm
No of Blades
30 free-swinging or 15 fixed
Direction of Rotor
The rotor rotates in the same direction as travel
Clutch Type
Centrifugal
Height Adjustment
From 0mm above the ground to 20mm
Discharge
Onto the ground or into collection bag if fitted
Wheel Types
Solid rubber
Handlebar
Foldable
Sound Power Level
Sound Pressure
Vibration Acceleration Value
6.2ms2
Max Gradient for Operation on Slope
20 degrees
Weight
40kg
Dimensions (l x w x h)
95 x 60 x 102cm

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
4Original Instructions
3.0 Unpacking and Assembly
3.1 Major Components Diagram
1
Operating Lever
2
Engine
3
Belt Guard
4
Handlebar Locking Knob
5
Rotor Cover
6
Wheels
7
Front Axle
8
Height Adjustment Knob
3.2 Unpacking Instructions
Open the top of cardboard box.
Cut the box open by using a sharp knife to cut down through the four corners of the box.
Swivel the folded top part of the handle bar upwards until it locates into position extending
from the lower handle bar arms.
Tighten the top handlebar into position using the locking knobs provided.
Push the machine forward safely and gently out of the box.
Dispose of the cardboard box and other padding material.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 5
4.0 Safety Instructions – Pre-Operation
4.1 Basic Safety Instructions
Before starting the machine, read and understand these operating instructions.
4.2 Main Components and Operating Elements
Below is a description of the main components of the LS14 and how they operate.
4.3 Engine and Drive
The Honda GP160 is a four-stroke engine that runs on standard unleaded fuel.
The Honda GP160 is fitted with a red on/off lever that is the main operating control for this
engine. Rotating the switch to the ‘I’ position allows the engine to be started. Rotating the
switch to the ‘O’ position will turn off the engine.
The engine is air cooled and therefore it is important that the grille covering the recoil rope is
kept clear from debris.
The engine drive shaft is fitted with a centrifugal clutch that engages at a set engine speed
and drives a fixed drive belt that is also connected to a pulley on the rotor shaft.
The engine air filter cleans the air drawn in by the engine. A clogged air filter will reduce
performance.
The engine is fitted with a fuel on/off lever and a choke lever. Read the engine operating
instructions to understand the operation of these levers.
4.4 Operating Lever
The LS14 Scarifier is operated by squeezing the black lever located at the top of the
handlebar.
NB: IT IS A TWO STAGE PROCESS TO PULL THE BLACK LEVER. THE GREY LEVER
LOCKING CATCH MUST BE DEPRESSED BEFORE THE BLACK OPERATING LEVER
CAN BE SQUEEZED BY THE OPERATOR.
This lever increases the engine speed to a level that will engage the centrifugal clutch fitted
to the engine drive shaft. Once the clutch has been engaged it will transfer the engine
power to the rotor shaft that will rotate at high speeds within the chassis of the Scarifier.
4.5 Height Adjustment
The height of the blades of LS14 Scarifier is altered using the two large knobs at the front of
the machine.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
6Original Instructions
The top knob is connected to the centre of the front axle via a threaded rod. Rotating the
knob in each direction will raise or lower the front axle in relation to the main chassis of the
machine and in turn alter the height of the blades with the chassis.
The second knob located below the top knob on the threaded rod is used to fix the position
of the threaded rod and consequently the height of the blades relative to the front axle.
4.6 Optional Collection Bag
Use the central lifting handle when connecting or disconnecting the bag from the machine.
Always stop the engine and wait for the blades to stop rotating before removing or replacing
the collection bag.
To attach the collection bag onto the machine, first lift the safety back flap on the rear of the
machine chassis with one hand. Then whilst holding the bag with your other hand guide the
two small metal rods protruding from either side of the collection bag frame into the two
channels that have been formed to hold the bag.

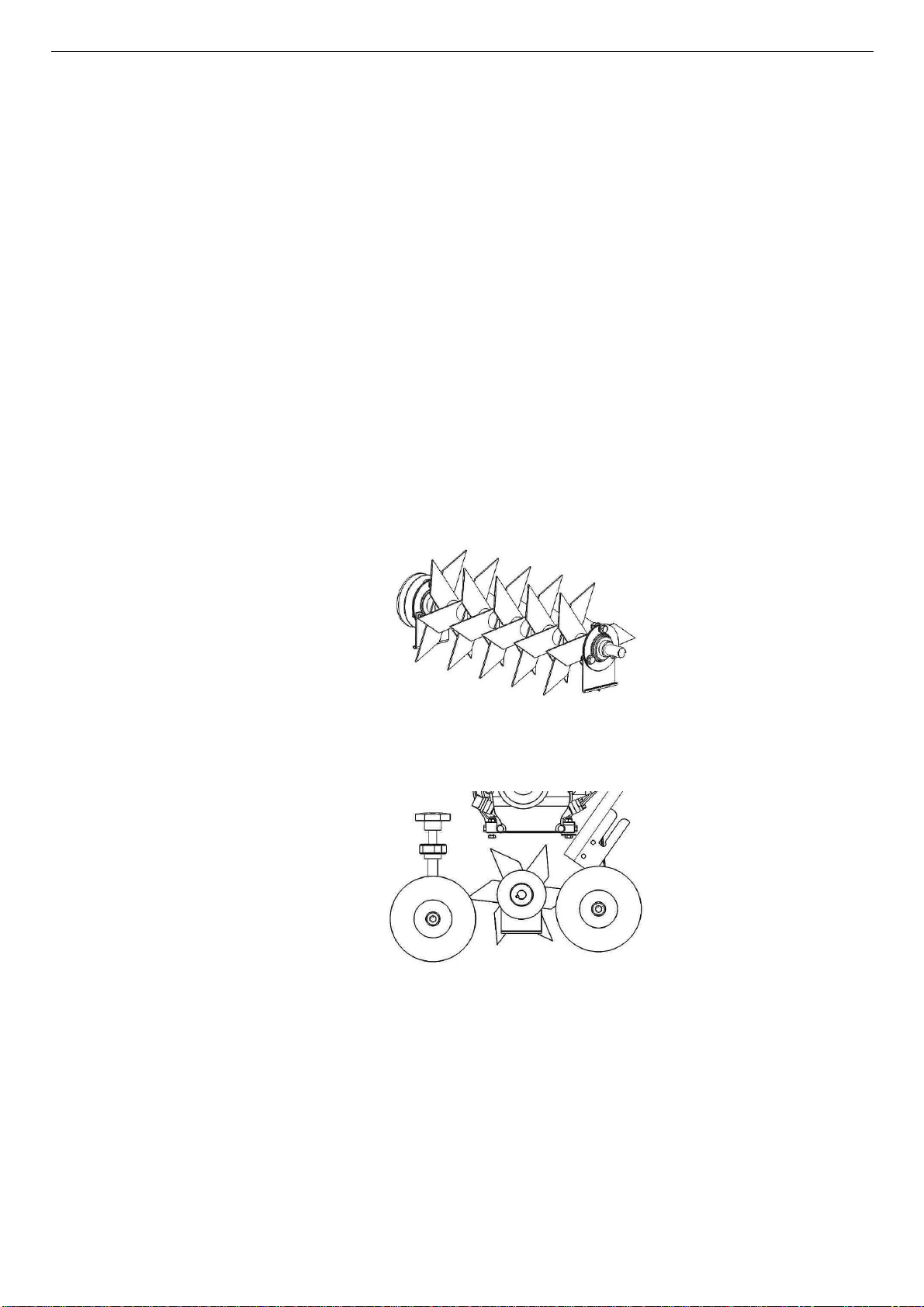

4.7 Rotor Shaft
The main rotor shaft holds 15 steel blades and 14 separating spacers.
4.8 Commissioning

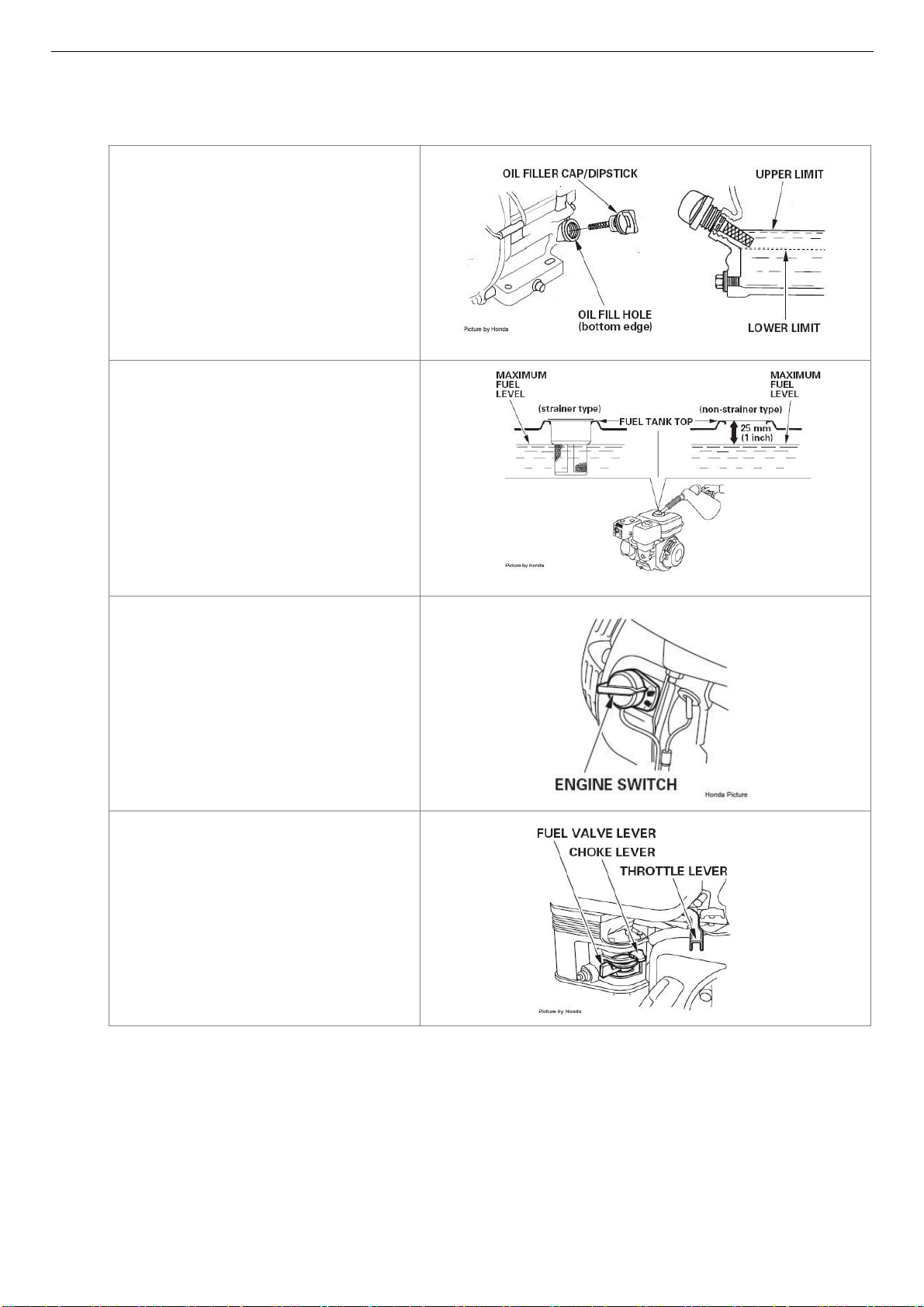

Prior to operation it is necessary to check the engine oil level and add engine oil level to the
levels indicated in the table in section 5.1.
The engine fuel tank will not contain fuel so will need filling to the recommended level before
use.
4.9 General Safety Instructions
Be aware of all the safety requirements for the machine.
Never allow people unfamiliar with these instructions or children to use the machine. Local
regulations can restrict the ag of the operator.
Never operate the machine while people, especially children, or pets are nearby.
Operators should take care to prevent accidents to themselves or other people and damage
to property.
Wear ear protection and safety glasses at all times while operating the machine.
While operating the machine always wear substantial footwear and long trousers. Do not
operate the machine when barefoot or wearing open sandals.
Visually check the machine for operational safety, complete componentry and fixed guarding
prior to each use.
Read and be aware of the warning and instruction signs located on the machinery.
Cordon off the work area to prevent access from the general public.
Before starting work clear the area of any objects that may cause damage to the machine
such as stones, sticks, wires, bones and other foreign objects.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 7
WARNING – Petrol is highly flammable.
Store fuel in containers specifically designed for the purpose.
Refuel outdoors only and do not smoke while refueling.
Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol
while the engine is running or when the engine is hot.
If petrol is spilled, do not attempt to start the engine but move the machine away from the
area of spillage and avoid creating any source of ignition until petrol vapors have dissipated.
Replace all fuel tanks and container caps securely.
Replace faulty silencers.
Do not operate the machine if you are under the influence of alcohol or drugs. This
equipment must only be operated by persons who are medically fit both physically and
mentally.
Only work in good light and visibility.
Before using the machine, always visually inspect to see that the tines, bolts are not worn or
damaged. Replace worn or damaged tines and bolts in sets to preserve the balance.
Operator clothing should not be loose and footwear should offer good grip.
Know how to stop the machine in an emergency.
4.10 Engine Specific Safety Instructions
Always ensure the engine is turned off and fuel tap is turned off when transporting the
machinery, cleaning the machinery and making adjustments.
Always start the engine in open air. Starting an engine within a confined space can lead to
the inhalation of toxic substances.
Do not smoke or use a naked flame when refueling.
Only use unleaded petrol from fuel containers designed for this purpose. Refuel outdoors
only and replace the fuel tank cap securely.
Do not mix oil with the fuel.
Leave one inch of space in the fuel tank during refilling.
Clear up any petrol spillages immediately.
Avoid contact with the engine, especially the exhaust during operation as it will become hot.
Leave the engine to cool prior to contact.
Never interfere with the control settings of the engine.
NEVER TILT THE MACHINE BACKWARDS WHEN CLEANING.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
8Original Instructions
4.11 Hazard Pictorial Explanations
DANGER – ROTATING BLADES. KEEP HANDS
AND FEET AWAY.
WARNING! ROTATING BLADE HAZARD.
DO NOT OPERATE WITH GUARD
REMOVED.
ALWAYS REMOVE THE SPARK PLUG
BEFORE SERVICING.
MAXIMUM SOUND POWER LEVEL (LWA).
EAR PROTECTION MUST BE WORN WHEN OPERATING THE
MACHINE.
ENSURE SAFETY GUARDS ARE IN PLACE. MACHINE
MUST NOT BE OPERATED WITHOUT GUARDS.
READ OPERATING INSTRUCTIONS BEFORE
USE.
REMOVE SPARK PLUG BEFORE SERVICING
OR PERFORMING MAINTENANCE.
WARNING: KEEP BYSTANDERS AWAY.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 9
WEAR SUITABLE PPE:
•EAR DEFENDERS
•EYE DEFENDERS
•FOOT PROTECTION
•SAFETY GLOVES

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
10 Original Instructions
5.0 Safety Instructions Starting and Operating
5.1 To Start the Engine
Using the dipstick provided,
check the engine oil level. Top
up with 10w/30 oil if the dipstick
is clear of oil.
Check the fuel level. Refill as
necessary and as determined by
the fuel tank type – see
diagram.
Switch the engine ignition switch
to the ON position.
Turn the fuel tap located on the
engine carburetor to the ON
position. If the engine is cold or
has not been operated recently
set the choke lever on the
carburetor to the ON position.
Pull the engine recoil handle slowly until it engages then pull hard and fast to start the
engine.
After the start, guide the cord back into its position. Do not let it snap back.
Once the engine has started, if the choke lever has been used, return this to its OFF position
after the engine has run for a few seconds.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 11
5.2 To Stop the Engine
Release the operating lever.
Switch the engine ON/OFF switch to the ‘O’ off position.
Turn the fuel tap lever to the OFF position.
Ensure the blades have stopped rotating prior to moving the machine.
WARNING: THE EXHAUST COVER MAY BE HOT – DO NOT TOUCH.
5.3 Safety Equipment
The LS14 operator must be wearing:
•Ear Defenders
•Gloves
•Protective Footwear
•Safety Glasses
5.4 Operation
Before scarifying can be carried out the grass must be cut short and be cleared of any
objects such as stones or sticks that would damage the Scarifier or be picked up and thrown
by the rotating blades.
WARNING: SCARIFYING LONG GRASS WILL QUICKLY CAUSE DAMAGE TO
COMPONENTS OF THE MACHINE. WE RECOMMEND GRASS IS CUT PRIOR TO
SCARIFIYING.
Do not operate the Scarifier on wet lawns or in rainy weather.
Set the operating height by screwing the top adjuster knob either up or down and locking the
desired height with the locking handle.
WARNING: THE BLADES MUST NOT BE ALLOWED TO TOUCH THE GROUND AT ANY
POINT DURING OPERATION.
If using the collection bag, ensure that it is mounted correctly and is secure.
Lift the operating lever to engage the rotor shaft and walk at a slow steady pace pushing the
machine ahead of you.
To turn the LS14 Scarifier 180 degrees, release the operating lever, put light downwards
pressure on the handlebars and rotate the machine on its rear wheels.
Do not work the Scarifier on slopes of more than 20 degrees and always work across the
slope, not up and down it.
Once the collection bag has become full, release the operating lever, turn off the engine and
ensure the rotor shaft has stopped turning. Remove the collection bag and empty. Re-
attach the bag securely and re-start the engine to continue scarifying.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
12 Original Instructions
5.5 Procedure for Unexpected Shut Down
Release the operating lever
Turn the engine operating switch located on the engine to the OFF position.
Ensure the rotor shaft and blades have stopped rotating prior to moving the machine.
5.6 How to Clear Unwanted Debris from the Underside of the Machine
Ensure that the engine has been turned off and the rotor shaft has stopped turning.
Turn the engine fuel tap to the off position.
Remove the spark plug to ensure the engine cannot be started accidentally.
Attach a lifting hoist to the top handlebar and lift the machine so that it tilts forward onto its
front wheels. As the underneath of the chassis becomes exposed it is possible to see and
remove any unwanted debris.
WARNING: ALWAYS TILT THE LS14 SCARIFIER FORWARDS TO AVOID OIL IN THE
ENGINE FLOODING INTO AREAS WHERE IT WILL CAUSE DAMAGE.
5.7 Residual Risks of the LS14 Scarifier
The rotor shaft will continue to rotate for a couple of seconds once the operating lever has
been released. Ensure that the blades have stopped rotating prior to moving or tilting the
machine.
The LS14 Scarifier is designed to be pushed by the operator both during transportation and
operation. It has no brake system and therefore the operator must hold firmly onto the
machine on sloped areas.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 13
6.0 Maintenance
6.1 Schedule
Operation
Daily
Every
Week
Every
Month
Engine
Check engine oil level 10W/30
See separate engine manual
X
X
Machine
Check condition of blades
X
Check condition of blade rods
X
Check belt condition
X
Check operating lever and cable
X
Check grass bag condition
X
Check rotor shaft bearings
X
Lubricate wheel bearings
X
Tighten all nuts and bolts
X
6.2 Basic Maintenance
Check that all guards are fitted securely.
Ensure the cable connecting the operating lever to the engine is securely fastened at both
ends and shows no sign of wear.
Ensure that the solid tyres do not show any indentations or significant wear and tear.
Ensure the wheels are held securely and the bolts that hold the wheels onto the axles are in
place.
Check the wheels rotate smoothly and without hindrance.
6.3 Advanced Maintenance
We strongly recommend that an Authorised Representative is consulted prior to any major
machine maintenance projects.
6.3.1 Belt
Inspection Check:
Check every 25 hours that the drive belt is not frayed or cracked. If it appears frayed
or cracked then it is time to replace the belt.
Changing the Belt:
Remove the three capscrews used to attach the belt guard to the chassis and remove
the belt guard.
Loosen the four M8 nuts that secure the engine to the chassis.
Gently push the engine to reduce the belt tension.
The drive belt has now become slack.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
14 Original Instructions
Grab the right hand side of the belt close to the bottom pulley and pull as if you are
trying to pull the belt off the bottom pulley.
With your other hand slowly and carefully rotate the pulley in an anticlockwise
direction and ease the belt off the pulley.
The belt is now free from the machine.
To fit the new belt, start by locating the new belt in the groove of the centrifugal clutch.
Stretch the new belt tight by pulling it downwards to the bottom pulley.
Locate one side of the belt in position on the bottom pulley.
Slowly rotate the bottom pulley so that the belt is slowly eased into its place sitting in
the groove of the bottom pulley.
Gently pull the engine to tension the drive belt.
Re-attach the belt guard using the original cap screw bolts.
6.3.2 Removing Rotor Assembly
To access the underneath of the chassis you must use a lifting hoist to lift the
handlebars of the machine so that it tilts forward over its front axle.
Remove both the belt guard and rotor shaft guard by undoing the fastening nuts and
bolts.
Remove the belt as instructed above in section 6.3.1.
Remove the two grub screws from the bottom pulley. Using one the removed grub
screws insert this into the “spare hole” on the pulley. It may require some force using
an allen key to continue turning the grub screw into the spare hole until the two parts
of the pulley separate.
NEVER USE A PULLEY TO REMOVE THE PULLEY FROM THE ROTOR SHAFT AS
IT MAY RESULT IN DAMAGE TO THE MACHINE AND/OR PERSONAL INJURY.
WARNING: Do not lose the woodruff key at this stage.
Loosen the grub screws in the bearings.
Remove the fasteners of the bearing carriers. The two chassis protection plates will
become detached from the chassis at this stage.
Pull the loose bearings away from the chassis approximately 30mm. A tool for pulling
bearings may be required at this stage should the bearings be difficult to move.
Once the bearings have been pulled away from the chassis the blade rotor will be
able to be removed from the chassis.
6.3.3 Blades
Inspection Check:
Blades that have been worn so that they have become rounded must be changed for
the LS14 Scarifier to function properly.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 15
Changing the Blades:
Safety glasses and gloves must be worn.
Remove the rotor as described in section 6.3.2.
Undo the grub screw located in one of the clamps that holds the blades and spacers
onto the hexagonal section of the rotor shaft.
Slide all the blades and spacers off the hexagonal shaft and carefully dispose of the
worn blades.
Slide on the first blade until it is touching the shaft clamp and then slide on a spacer.
The hexagonal shaft allows the blades to be fitted in three orientations. Rotate the
next blade to be fitted by 120 degrees so that it sits on a separate face of the
hexagonal shaft. Once the second blade is fitted add a second spacer.
The third blade to be fitted is again rotated by 120 degrees and the above process is
repeated until all blades and spacers are fitted onto the shaft.
NB: When fitting the blades check that the points of the blades are all facing in the
same direction. See diagram below.
Reattach rotor to the chassis as described in section 6.3.2.
NB: When reattaching, the rotor the blades must be reinserted so that the straight
edge is the leading edge. See diagram below.
6.4 Engine
6.4.1 Check Engine Oil Level
This must be checked prior to each use and every 8 hours during operation.
Check only when the engine is off and in a horizontal position.
Clean the oil filler plug and its surrounding parts.
Remove the oil filler plug. Clean the dipstick with a clean cloth and put the oil filler
plug all the way back into the engine. Remove the oil filler plug and check the oil
level.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
16 Original Instructions
Re-fill the oil if indicator shows more is required. For the Honda GP160 the
recommended oil is SAE 10w/30.
6.4.2 Change Engine Oil
Refer to the engine manufacturer's manual for location of components and more
detailed assistance.
Do not change the oil if the engine is hot.
The first oil change is after 50 hours of work.
Subsequent oil changes should be made after each 100 hours of work.
At extreme temperatures or conditions change the oil after every 50 hours.
Open the drain plug on the engine and the filling plug and drain the oil into a suitable
container or use a suction pump to remove oil through filler neck.
Ensure the waste oil is disposed of properly.
Re-fit the drain plug and tighten.
Fill fresh engine oil through the oil filling opening. Use a funnel or similar device for
ease of filling.
Replace the oil filler plug and tighten.
6.4.3 Air Filter
Inspection Check:
Remove the air cleaner cover and inspect the filter elements.
Cleaning:
See diagram below containing information provided by Honda.
6.4.4 Spark Plug
Clean and replace.

Tracmaster Ltd CAMON LS14 Lawn Scarifier
_______________________________________________________________________________________________
Original Instructions 17
6.5 Cleaning
After cleaning, particularly if a pressure washer has been used, ensure any lubrication points
are re-lubricated. Additionally Tracmaster recommends that a water dispersant product such
as WD40 or GT85 is used on the rotor assembly and the underside of the chassis after
cleaning.
Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may
leak into the fuel and ignition systems.
6.6 Troubleshooting
6.6.1 Machine
Have all serious malfunctions on the machine and engine repaired by an authorised
Tracmaster or Honda agent.
Problem
Possible Cause
Remedy
No drive to
blades
Broken belt
Replace belt
Damaged centrifugal clutch
Replace clutch
Poor collection
and
performance
Blades have become rounded on bottom edge
Replace blades
Blades are worn out
Replace blades
6.6.2 Engine
Problem
Possible Cause
Remedy
Engine
does not
start
Spark plug connector not connected
Connect spark plug connector
Choke lever is not actuated
Actuate choke lever
Fuel tank empty
Fill fuel tank
Fuel line clogged
Clean fuel line
Defective spark plug
Clean or replace spark plug
Engine has too much fuel
Dry and adjust spark plug and
start engine
Engine
overheats
Low engine oil
Refill immediately
Impaired cooling
Clean cooling fan grille
Air filter clogged
Clean air filter
6.6.3 Lubricants
Use the specified 10w/30 oil specified by Honda for the engine oil.
To lubricate the roller bearings in the wheels we recommend bio-lubricating grease.

CAMON LS14 Lawn Scarifier Tracmaster Ltd
_______________________________________________________________________________________________
18 Original Instructions
7.0 Transportation, Storage and Handling
7.1 Transportation
Use ramps where possible to manoeuver the Scarifier into a transportation vehicle.
The LS14 must be fixed securely using straps and by placing chocks behind the wheels.
Always transport the LS14 horizontally and not at an angle.
Ensure that the fuel control lever on the engine is moved into the OFF position so fuel does
not leak into the carburetor during transportation.
7.2 Storage
Always clean the machine and dry thoroughly prior to storage and ensure all lubrication
points have been re-greased. Additionally Tracmaster recommends that the blades and
under side of the chassis are treated with a water dispersant product such as WD40 or
GT85.
For periods of long storage, change the engine oil.
Either drain the fuel completely or fill the fuel tank and add fuel stabilizer.
Do not store the Scarifier in wet rooms, where fertiliser is stored, or in stables as heavy
corrosion may occur.
Always store the machine in a horizontal position.
7.3 Handling
Do not attempt to lift the machine alone. At least two people is the minimum required.
Gloves must be worn when lifting the LS14 Scarifier.
Do not tilt the machine so that fuel can leak into the air filter of the engine.
When performing maintenance on the Scarifier when it is situated on a work bench, ensure
that the machine is firmly held in position at all times.
Do not lift the machine solely by the engine at any point.
