Travis Industries 4415 HO GSR2 User manual

4415 HO GSR2
Fireplace (Aust)
• Direct Vent Fireplace
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Listed by
AS 4553-2008 GMK 10166
IAPMO-R&T OCEANA
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.

DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.

DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

DO NOT MODIFY THIS APPLIANCE.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Installation Manual
Installer: After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2014, T.I. $10.00 100-01368 4140521
Dragon Wholesaling Pty. Ltd.
Unit 4, 16 Lexington Drive
Bella Vista NSW
Australia 2153

2 Introduction
© Travis Industries 4140521 100-01368
Overview
This manual details the installation
requirements for the 4415 HO GSR2 fireplace.
For operating and maintenance instructions,
refer to the 4415 HO GSR2 Owner's Manual
(part # 100-01369).
IAPMO-R&T
OCEANA
Gas Mark
TM
GMKXXXX_XX
4415 GSR2
Vented Gas Fireplace Heater
Tested to the combustion performance and construction requirements of AS 4553-2008 Gas Space Heating Appliances. This appliance must be installed in accordance with all local codes. This 4415 GSR2 appliance is equipped from the factory only for use with Natural Gas and is only for use with the type of gas indicated on the rating plate. For conversion to LP (Propane) use a certified kit supplied by the manufacturer. See owner’s manual for information on making these changes. This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. This vented gas fireplace heater is not for use with air filters. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent systems to vent this appliance to the exterior. See owner’s manual for approved brands of venting. WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
This appliance is a Vented Gas Fireplace Heater. Not for use with Solid Fuel. Young children should be carefully supervised at all times when they are in the same room as the appliance.
Fireplace to adjacent wall Wood floor beneath fireplace Back to enclosure
77 mm
0 mm 4 mm
Base of fireplace to enclosure top Sides to enclosure Base of fireplace to a mantel
1524 mm
17 mm
See Owner’s Manual
Minimum Clearances to Combustibles
FAN TYPE VENTED CIRCULATOR
Blower Electrical Rating: 240V., 0.6 Amps, 50 Hz, 76 Watts
Minimum Inlet Pressure (kPa) Maximum Inlet Pressure (kPa) Manifold Pressure on “HI” (kPa)
L.P.
2.74 3.24 2.74
N.G.
1.37 1.74 .95
Input Rate on “HI” (MJ/h) Input Rate on “LO” (MJ/h) Orifice Size (DMS)
L.P.
44.31
22.6
#49
N.G.
44.31 22.87
#31
This appliance is equipped for installation 0-610 m. For altitudes above 600m, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2014 2015 2013
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Manufactured by: Certificate Holder:
www.lopi.com.au
Dragon Wholesaling Pty. Ltd.
Unit 4, 16 Lexington Drive
Bella Vista NSW 2153
Australia
1075

Table of Contents 3
© Travis Industries 4140521 100-01368
Overview ................................................................... 2
Installation Options.................................................. 6
Heating Specifications............................................. 6
Dimensions............................................................... 6
Packing List .............................................................. 7
Additional Items Required....................................... 7
Recommended Installation Procedure................... 7
Fireplace Placement Requirements ....................... 8
Clearances ......................................................................8
Raised Fireplaces............................................................8
Televisions Placed Above the Fireplace................ 9
Using a Mantel Between the Fireplace and Television....9
Using a Recessed Fireplace Below a Television.............10
Using a Recessed Fireplace with a Recessed
Television ........................................................................11
Minimum Framing Dimensions............................... 12
Nailing Brackets – Extended (Tile Over) Install ....13
Nailing Brackets – Flush Install.............................. 14
Corner Installations.................................................. 15
Removing the Front Panel....................................... 16
Gas Line Requirements........................................... 17
Fuel .................................................................................17
Gas Line Connection.......................................................17
Gas Inlet Pressure...........................................................17
Directions for Connecting a Gas Pressure Test Gauge...17
Gas Line Location............................................................18
Relocating the Gas Line to the Baseplate ......................18
Electrical Connection............................................... 19
Relocating the Electrical Line to the Baseplate ..............19
Vent Requirements................................................... 20
Vent Clearances..............................................................20
Vent Firestop...................................................................20
Altitude Considerations....................................................20
Approved Vent.................................................................20
Vent Installation...............................................................20
Vertical Pipe Shield .........................................................21
Minimum Vent Pipe Shield – Used for Minimum Vent
Applications Only.............................................................22
Approved Vent Configurations............................... 23
Restrictor Position ...........................................................23
Exhaust Restrictor...........................................................23
Intake Restrictor ..............................................................24
Diffuser............................................................................25
Minimum Vent Configuration.................................. 26
Vent Configuration: Vertical Termination.............. 27
Vent Configuration: Horizontal Termination
with Vertical Rise...................................................... 28
Vent Configuration: Horizontal Termination
with Vertical Rise – 8” Vent..................................... 29
Termination Requirements...................................... 30
Hearth Requirements............................................... 31
Drywall Supports......................................................31
Facing Requirements – Flush Install......................32
Facing Requirements – Extended (Tile Over)
Install .........................................................................33
Do Not Drill or Screw Zone..............................................34
Mantel Requirements...............................................35
Mantel Column Clearances...........................................35
Steps for Finalizing the Installation........................36
Air Shutter Adjustment ....................................................37
Glass Frame Removal and Installation ..................38
Fireback Installation.................................................40
Crushed Glass Installation......................................42
LP Conversion Instructions ....................................43
Wiring Diagram.........................................................47
Power Heat Duct Installation...................................48

4 Safety Precautions
© Travis Industries 4140521 100-01368
Safety Warnings
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4140521 100-01368
Safety Warnings (continued)
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except approved Travis Industries components).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition. Do not touch the hot surfaces of the heater. Educate all
children of the danger of a high-temperature heater.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).
SAFETY WARNINGS:
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
DO NOT MODIFY THIS APPLIANCE.
THIS INSTALLATION MUST CONFORM WITH THE FOLLOWING:
Manufacturer’s Installation instructions
Local Gas Fitting Regulations
Municipal Building Codes,
Refer to AS/NZS 5601.1 for Gas Installations.
S.A.A. Wiring Code
Local Electrical Regulations
Any other statutory regulations
NOT SUITABLE FOR MARINE USE.
NOT INTENDED FOR FIREPLACE INSERT.
APPLIANCES INCORPORATING A LIVE FUEL EFFECT, AND DESIGNED TO
OPERATE WITH LUMINOUS FLAMES, MAY EXHIBIT SLIGHT CARBON
DEPOSITION.

6 Features and Specifications
© Travis Industries 4140521 100-01368
Installation Options
Residential or Mobile Home
Straight or Corner Placement
Raised or Floor Placement
Internal or External Chase
Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square meters)* Up to 195 Up to 195
Maximum BTU Input Per Hour (MJ/H) 44.31 44.31
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
Left
a' gauche
Front
avant
Right
droit
Rear
arrie're
48-3/4" *
1239mm *
16-1/2" *
420mm *
60"
1524mm
37-3/8"
924mm
1"
25mm
1/2"
12mm
* Includes the requisite clearance to framing (1/8"
4mm to rear, 5/8" 16mm to the sides)
10-3/8"
264mm
15-3/4"
401mm
11-1/4"
286mm
7-5/8"
194mm
34-3/4"
883mm
1150mm
45-1/4"
255 lbs.
115 Kg.

Installation (for qualified installers only) 7
© Travis Industries 4140521 100-01368
Packing List
Propane Conversion Kit
Remote Control
4 AA Batteries, 3 AAA Batteries
Glass Latch Tool
(2) Firestops (8” Diameter)
Top Drywall Support
Heat Shield
Additional Items Required
If using LP (propane) a conversion kit is required (sku 94400999 – GSR Stepper Motor Kit).
Gas Line Equipment (shutoff valve, pipe, etc.)
Electrical Equipment (min. 14 gauge, grounded line)
This Fireplace Requires Firebacks and 7 lbs. of 1/4” Crushed Glass
Firebacks 96100971 Stainless Steel
96100972 Black Enamel
96100973 Black Painted
96100974 Ledgestone
Crushed Glass 94500580 Platinum (10 lbs.)
94500581 Bronze (10 lbs.)
94500582 Cobalt (10 lbs.)
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) drywall (see "Nailing Brackets" on page 12 for
details). Secure the fireplace to the framing.
Install the vent, gas line and electrical hook-up.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 35).

8 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368
Fireplace Placement Requirements
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
Fireplace should be located out of traffic and away from furniture and draperies.
Fireplace must be placed so the gaps below and above the glass frame do not become blocked.
Fireplace may be placed in a bedroom. Please be aware of the large amount of heat this appliance produces
when determining a location.
Clearances
(a) Clearance to Side of Fireplace 5/8” (16mm). Do not place insulation in this space.
NOTE: Drywall or other combustible may contact the side of the fireplace in front of the framing. The
material must not protrude in front of the fireplace and may be a maximum ½” (13mm) thick.
(b) Clearance to Back of Fireplace 1/8” (4mm). Do not place insulation in this space.
(c) When installed, walls in front of the fireplace must be a minimum 3” (77mm) to the side of the fireplace.
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace and vent.
The base of the fireplace must be a minimum 60” below the room ceiling.
The firebox opening is approximately 10.375” (264mm) above the base of the fireplace. For a
typical raised fireplace of 36” (915mm), place the fireplace on a platform 25.625” (651mm) tall.




a
c
b

Installation (for qualified installers only) 9
© Travis Industries 4140521 100-01368

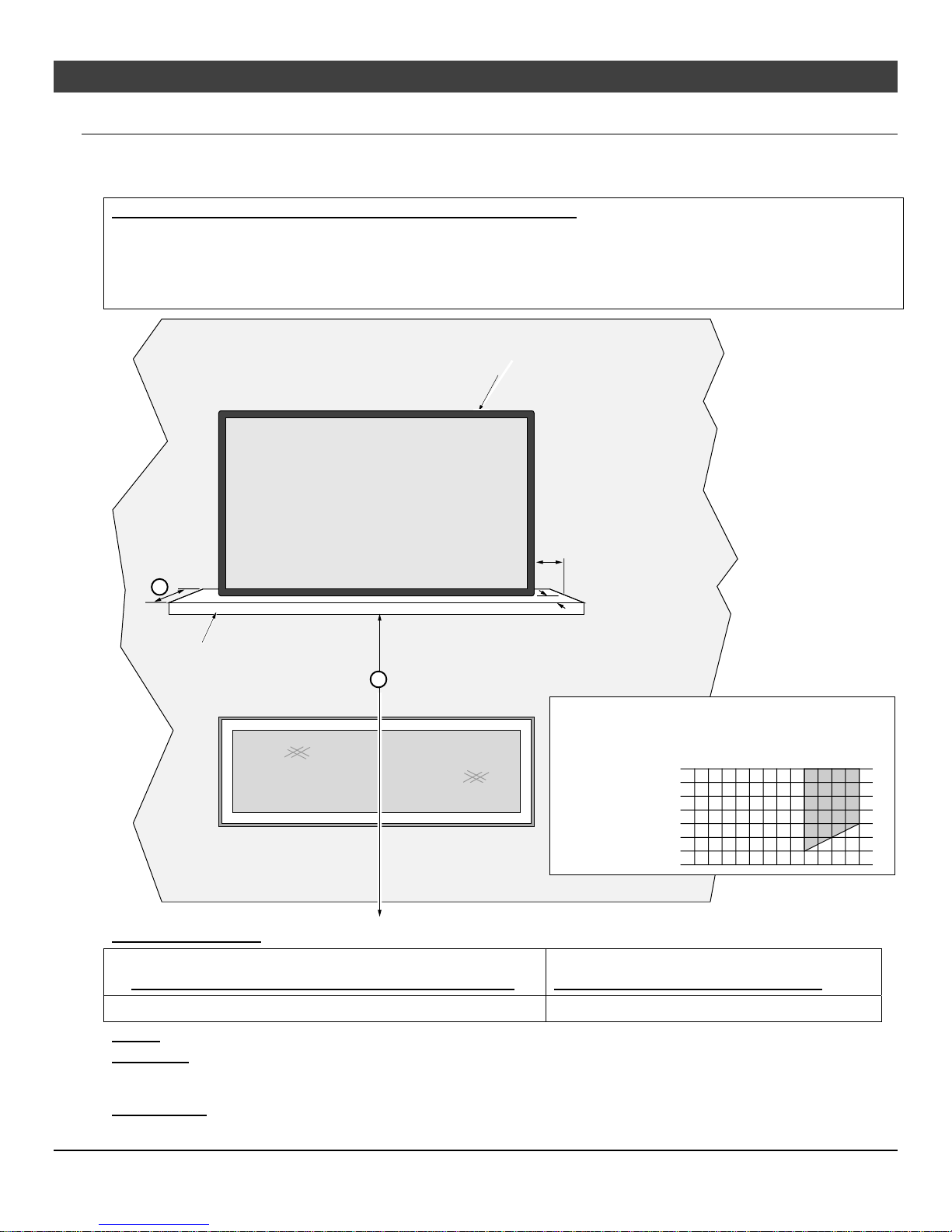

Televisions Placed Above the Fireplace
The following section details three methods to allow for television installation above the fireplace.
Using a Mantel Between the Fireplace and Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the fireplace,
please be aware of the large amount of heat generated by the fireplace and consider placing the television above a mantel to
reduce the amount of heat that reaches the television. The homeowner must understand that Travis Industries does not take
responsibility for any negative impact to televisions placed near this fireplace.
Minimum Dimensions:
(a) Mantel Height above Base of Fireplace
Mantel must fall within shaded portion of the chart above. 42” (1067mm) with 8” (203mm) mantel depth See chart above if using a larger mantel.
(b) Mantel Depth* Minimum 8” (203mm)
* NOTE: The minimum mantel depth is 8”. This allows heat to travel forward and dissipate.
EXAMPLES: If you have a TV that is greater than 6” deep (including the 1” gap behind), you will need to alter the mantel
depth and height. If your TV is 9” deep (including the 1” gap behind), the mantel should be 11” (this provides the necessary 2”
recess for the TV). The 11” mantel would require a 43.5” (292mm) mantel height (see chart above).
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring to
protect from contact with hot surfaces.
a
Fireplace
Min. 2" (51mm)
From Front of TV
Mantel Must be
Min. 1" (26mm) Thick
Min. 1" (26mm) Air Gap Behind TV
(typically provided by wall mount)
b
Min. 1" (26mm)
Television (TV)
(b) Depth
(a)
Height
Above
Base of
Fireplace
46" (1169mm)
0" (0mm)
1" (25mm)
2" (51mm)
8" (203mm)
7" (178mm)
6" (152mm)
5" (127mm)
4" (102mm)
3" (76mm)
9" (229mm)
10" (254mm)
11" (279mm)
12" (305mm)
45" (1143mm)
44" (1118mm)
43" (1093mm)
42" (1067mm)
41" (1042mm)
47" (1194mm)

10 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368
Using a Recessed Fireplace Below a Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the fireplace,
please be aware of the large amount of heat generated by the fireplace and consider placing the television above a mantel to
reduce the amount of heat that reaches the television. The homeowner must understand that Travis Industries does not take
responsibility for any negative impact to televisions placed near this fireplace.
Minimum Dimensions:
(a) Fireplace Recess Height above Base of Fireplace
Recess must fall within shaded portion of the chart above. 42” (1067mm) with 8” (203mm) recess depth See chart above if using a larger recess.
(b) Fireplace Recess Depth plus Mantel Depth* Minimum 8” (203mm)
(c) Fireplace Recess Width 53.5” (1359mm)
* NOTE: The minimum recess plus mantel depth is 8”. This allows heat to travel forward and dissipate.
EXAMPLES: If you have a TV that is 3” deep (including the 1” gap behind), you will need to put in a 5” mantel (the 2” is
measured from the front of the TV). The fireplace can then be recessed 3” into the wall to allow for the 8” of recess plus
mantel depth.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring to
protect from contact with hot surfaces.
b
Fireplace
Min. 1" (26mm) Air Gap Behind TV
(typically provided by wall mount)
Television (TV)
Min. 6"
(152mm)
a
Min. 2" (51mm)
From Front of TV Min. 1" (26mm)
c
Min. 6"
(152mm)
(b) Depth
(a)
Height
Above
Base of
Fireplace
46" (1169mm)
0" (0mm)
1" (25mm)
2" (51mm)
8" (203mm)
7" (178mm)
6" (152mm)
5" (127mm)
4" (102mm)
3" (76mm)
9" (229mm)
10" (254mm)
11" (279mm)
12" (305mm)
45" (1143mm)
44" (1118mm)
43" (1093mm)
42" (1067mm)
41" (1042mm)
47" (1194mm)

Installation (for qualified installers only) 11
© Travis Industries 4140521 100-01368
Using a Recessed Fireplace with a Recessed Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the fireplace,
please be aware of the large amount of heat generated by the fireplace and consider placing the television above a mantel to
reduce the amount of heat that reaches the television. The homeowner must understand that Travis Industries does not take
responsibility for any negative impact to televisions placed near this fireplace.
Minimum Dimensions:
(a) Fireplace Recess Height above Base of Fireplace
Recess must fall within shaded portion of the chart above. 42” (1067mm) with 8” (203mm) recess depth See chart above if using a larger recess.
(b) Fireplace/TV Recess Depth* Minimum 8” (203mm)
(c) Fireplace Recess Width 53.5” (1359mm)
* NOTE: The minimum recess depth is 8”. This allows heat to travel forward and dissipate.
EXAMPLES: If you have a TV that is greater than 6” deep (including the 1” gap behind), you will need to alter the fireplace
recess depth and height. If your TV is 9” deep (including the 1” gap behind), the recess should be 11” (this provides the
necessary 2” recess for the TV). The 11” recess would require a 43.5” (292mm) fireplace recess height (see chart above).
If you have a TV that is 3” deep (including the 1” gap behind), you will need to put in a 5” mantel (the 2” is measured from the
front of the TV). The fireplace can then be recessed 3” into the wall to allow for the 8” of recess plus mantel depth.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring to
protect from contact with hot surfaces.
b
a
Fireplace
NOTE: These
two walls are
at the same
depth.
Min. 1" (26mm) Air Gap Behind TV
(typically provided by wall mount)
Television (TV)
Min. 3"
(77mm)
Min. 6"
(152mm) Min. 2" (51mm)
From Front of TV
c
b
(b) Depth
(a)
Height
Above
Base of
Fireplace
46" (1169mm)
0" (0mm)
1" (25mm)
2" (51mm)
8" (203mm)
7" (178mm)
6" (152mm)
5" (127mm)
4" (102mm)
3" (76mm)
9" (229mm)
10" (254mm)
11" (279mm)
12" (305mm)
45" (1143mm)
44" (1118mm)
43" (1093mm)
42" (1067mm)
41" (1042mm)
47" (1194mm)

12 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368

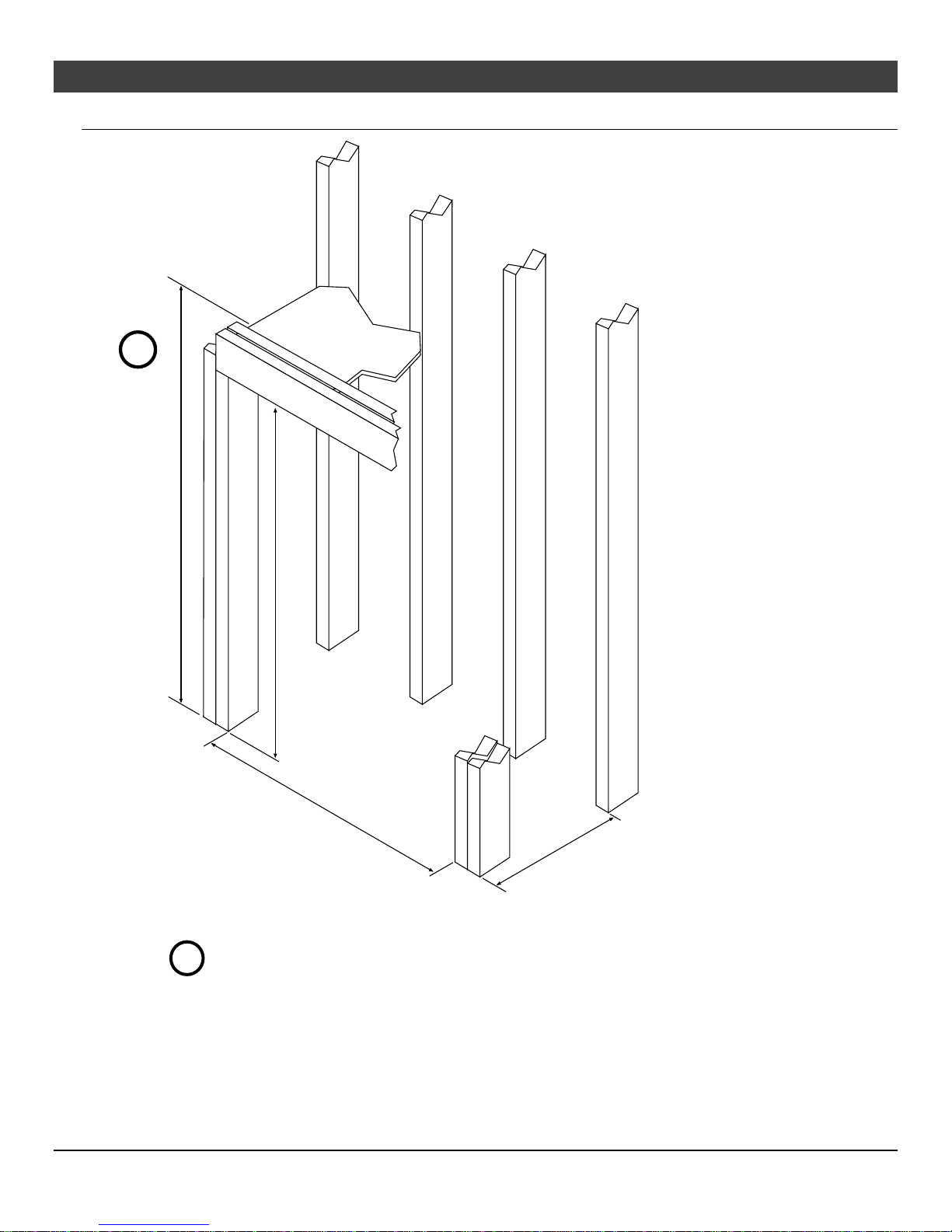

Minimum Framing Dimensions
The fireplace enclosure must be a minimum 60” tall (do not build into the fireplace enclosure)
48-3/4"
1239mm
60"
1524mm
a
60"
1524mm
17" 432mm Flush Install
16-1/2" 420mm Extended (Tile Over) Install
a

Installation (for qualified installers only) 13
© Travis Industries 4140521 100-01368

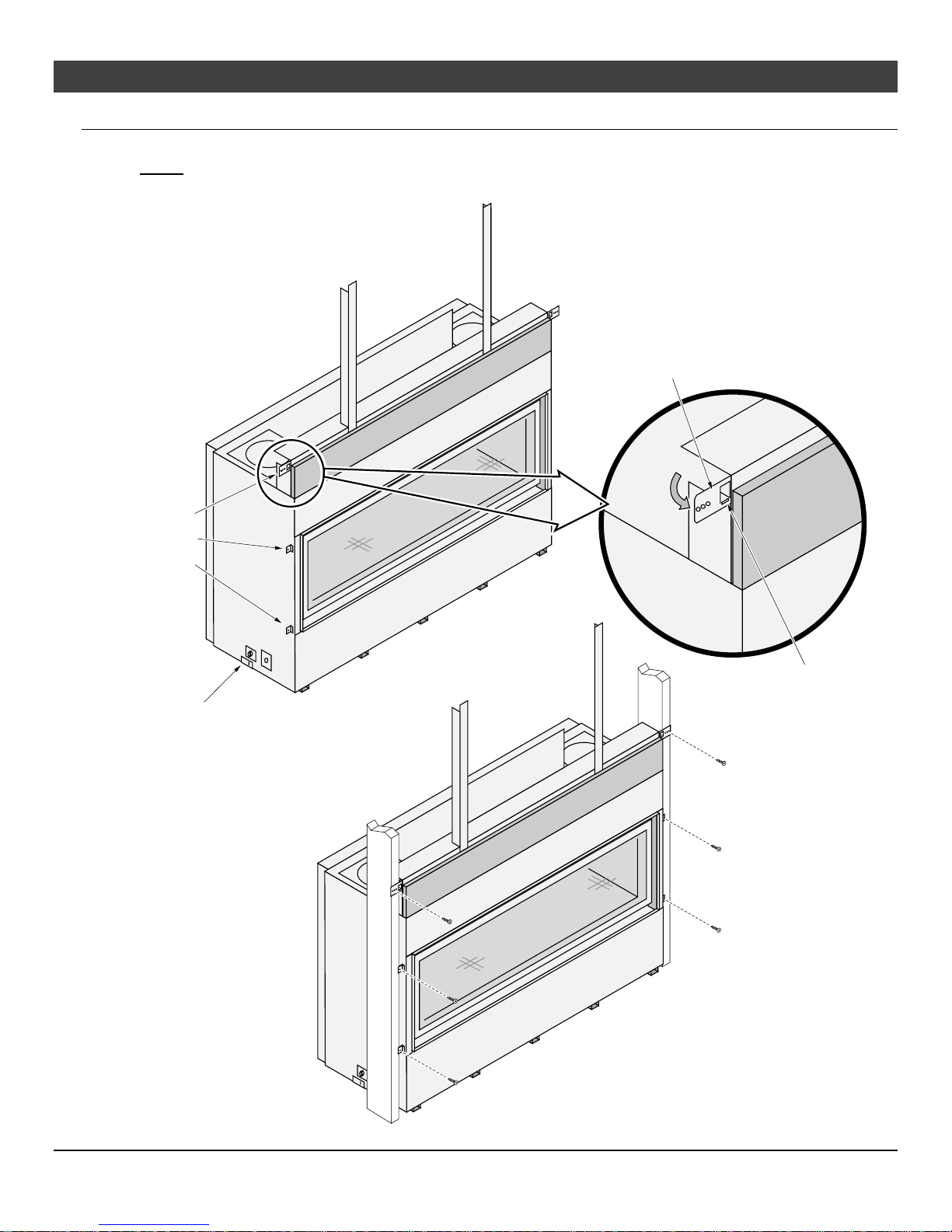

Nailing Brackets – Extended (Tile Over) Install
The fireplace has nailing brackets on both sides. Secure the fireplace to the framing.
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-to-corner
the fireplace should be square. Use shims to insure the fireplace is square.
Bend the three
nailing brackets
out (each side)
NOTE: if you can not use the
front nailing brackets, an
additional bracket is supplied on
the side that allows the fireplace
to be secured to the floor (bend
tab down and secure).
Secure the fireplace to
the framing using the
nailing brackets
Nailing Bracket
This 5/8" (16mm)
tab acts as a
standoff and helps
center the fireplace
in the framing)

14 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368
Nailing Brackets – Flush Install
The fireplace has nailing brackets on both sides. Secure the fireplace to the framing.
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-to-corner
the fireplace should be square. Use shims to insure the fireplace is square.
Bend the side nailing brackets as shown below.
NOTE: if you can not use the
front nailing brackets, an
additional bracket is supplied on
the side that allows the fireplace
to be secured to the floor (bend
tab down and secure).
Secure the fireplace to
the framing using the
nailing brackets and
vertical drywall support.
Bend the vertical drywall support forward.
The mounting hole is now vertical and may
be secured to the framing from below.
Bend the top nailing bracket
as shown until it is flush with
the front of the fireplace.
ca b
Rotate the bracket on the
rivet 180 degrees.

Installation (for qualified installers only) 15
© Travis Industries 4140521 100-01368
Corner Installations
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still
apply).















































58-1/4" Min.
1480mm
Minimum 5/8" (16mm) Clearance





Typically
22-1/2"
572mm

16 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368

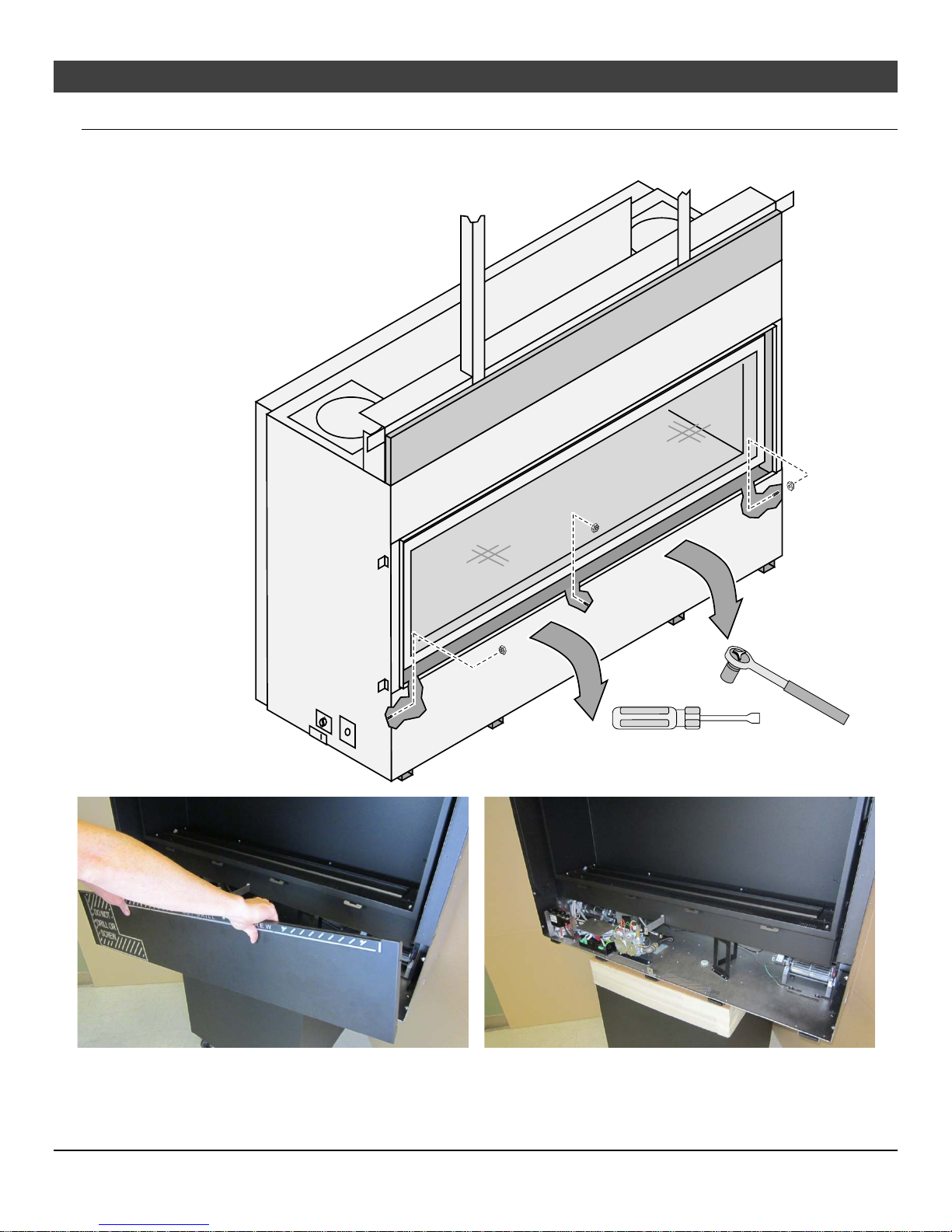

Removing the Front Panel
The front cover may be removed to access the components. This is required when relocating the electrical or gas
inlet location. To remove the front cover
(a) Remove the
center nut.
(b) Loosen the
two outer
nuts.
(c) Rotate the
front panel
down.
(d) Remove the
front cover.
11/32" Nutdriver/Wrench

Installation (for qualified installers only) 17
© Travis Industries 4140521 100-01368
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and NFPA
54(88), in Canada follow CSA B149.1 and the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under 1/2 psig (3.5
kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
This unit has been listed using the included internal gas shutoff valve.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a licensed
plumber/gasfitter).
Gas Inlet Pressure Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately adjusted,
and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas
at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.
Directions for Connecting a Gas Pressure Test Gauge
The gas control valve (shown to the left) has two accessible ports for testing
line pressure and output pressure. Loosen the brass screw on either test port
and place a 5/16” i.d. rubber or plastic tubing over the tapered test port.
Connect the tubing to the test gauge.
WARNING: The brass screw must be tightened after testing to prevent gas
leakage.
Input pressure
Output pressure

18 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368

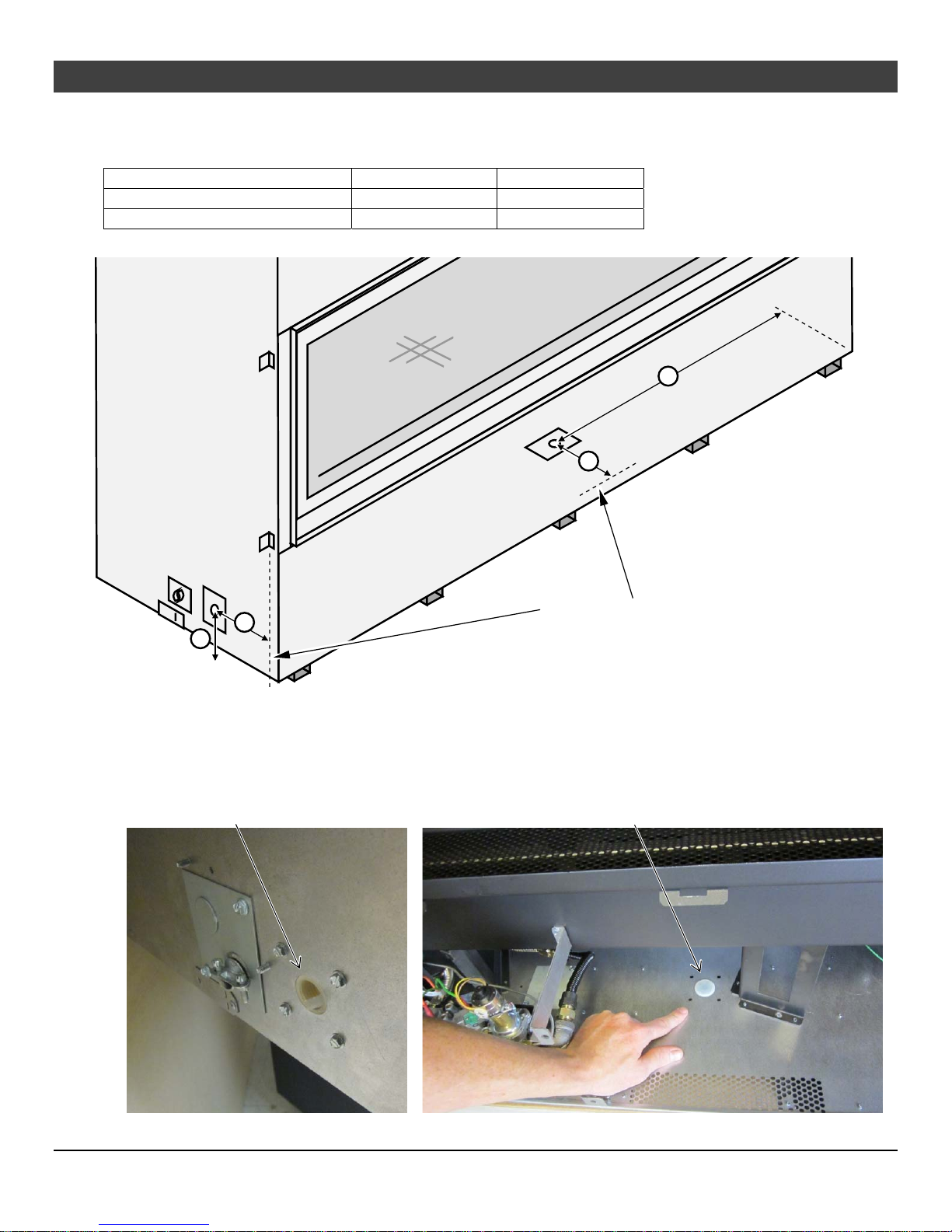

Gas Line Location
Gas line may be plumbed from the left side (stock) or below. See illustration and table below to determine gas line location.
a b
Left Side Gas Line Location (Stock) 4” (102mm) 3.25” (83mm)
Baseplate Gas Line Location 6.25” (159mm) 18.75” (477mm)
Relocating the Gas Line to the Baseplate
Remove the front panel (see page 16). Disconnect the gas inlet (shutoff valve) from the left side (keep the 4 screws). Re-
route the gas line to the baseplate and connect the gas inlet to the opening on the base using the 4 screws. Leak-test the gas
line to verify all connections are tight. Remove the plastic plug from the base and insert it into the hole on the left side.
Left Side Gas Line Location Baseplate Gas Line Location
Framing Opening
a
b
a
b

Installation (for qualified installers only) 19
© Travis Industries 4140521 100-01368

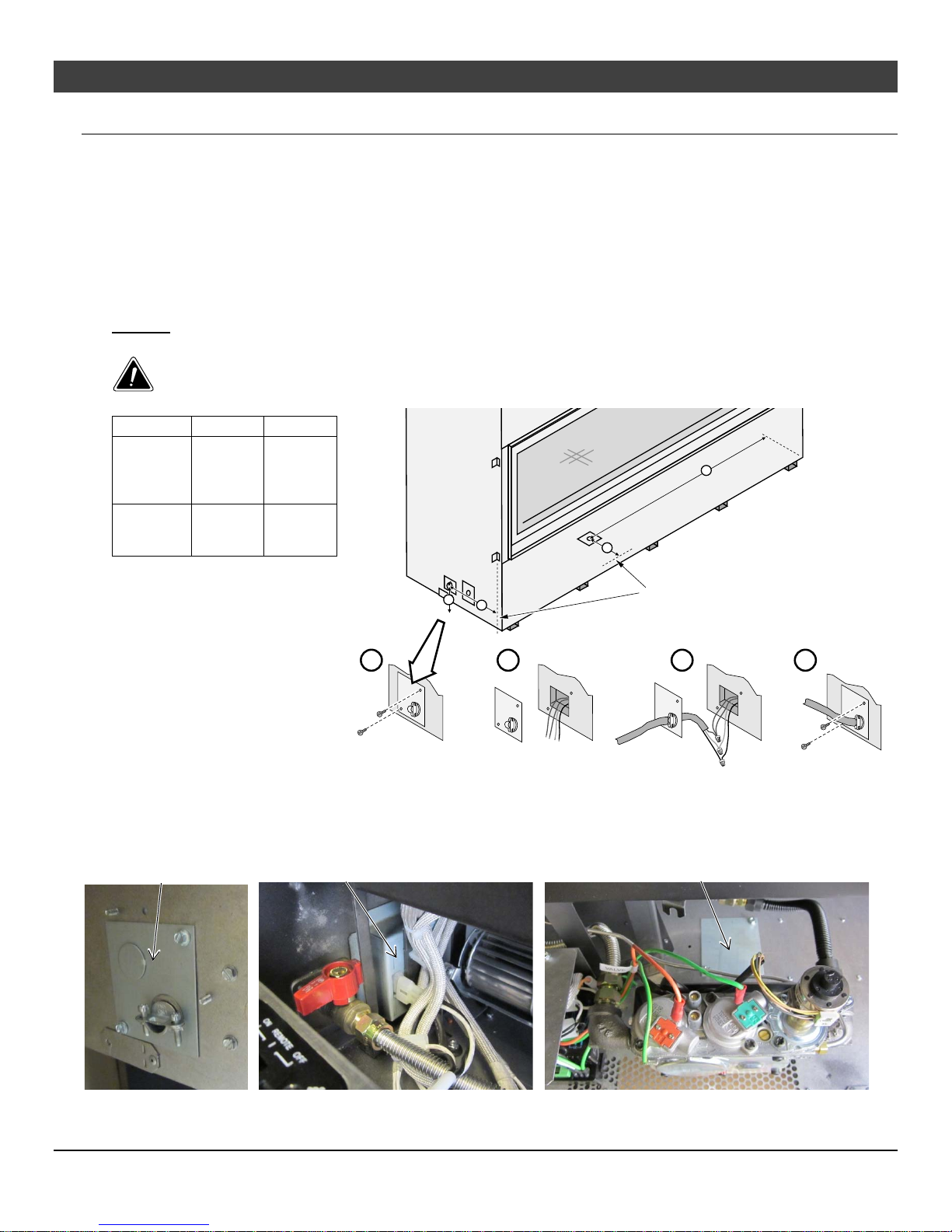

Electrical Connection
The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and
must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
The electrical line must be a min. 14 gauge, and supply 240 Volts, 50 Hz, and 3 Amps.
Route the electrical connection through the junction box cover plate and attach to the hookup wires pictured
below.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Do not connect 240 VAC to the gas control valve or wiring system of this fireplace.
a b
Left Side
Electrical
Location
(Stock)
7”
(178mm) 3.5” (89mm)
Baseplate
Electrical
Location
7”
(178mm) 27” (686mm)
Relocating the Electrical Line to the Baseplate
Remove the front panel (see page 16). Remove the junction box from the left side (keep the screws). Remove the cover plate
from the baseplate (keep the screws). Attach the junction box to the baseplate (make sure all wiring is kept from contacting
hot or moving components). Attach the cover plate to the left side.
Junction Box Junction Box (from inside fireplace) Baseplate Cover Plate
abcd
Framing Opening
a
b
a
b

20 Installation (for qualified installers only)
© Travis Industries 4140521 100-01368
Vent Requirements
The gas appliance and vent system must be vented directly to the outside of the building, and never be
attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance
must use its own separate vent system.
In addition to the requirements listed here, follow the requirements provided with the vent.
Vent Clearances
The vent must maintain the required clearance to combustible materials to prevent a fire. Do not fill air
spaces with insulation.
Minimum Vent Configurations (see page 26)
Minimum Clearance Above Vent 4" (104mm)
Minimum Clearance to Sides & Below Vent 1" (25mm)
NOTE: Make sure to use the included firestops with this configuration.
All Other Vent Configurations
Minimum Clearance to Vent 1" (25mm)
Vent Firestop
A firestop is required whenever the vent penetrates a wall, floor, or ceiling (passes through framing
members).
Altitude Considerations
This heater has been tested at altitudes ranging from sea level to 6,000 feet (1800 M). In this testing we have
found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Approved Vent
Always use the high-wind cap. The high-wind sconce cap is not allowed.
Installation instructions for Simpson Dura-Vent may be found at www.duravent.com.
Minimum Vent Configurations (see page 26)
Use 8" diameter Simpson Dura-Vent Model Direct-Vent Pro (or GS)*.
All Other Vent Configurations
Use 8" or 6-5/8” diameter Simpson Dura-Vent Model Direct-Vent Pro (or GS)* (see vent configuration for
details).
* Other vent may be approved with this fireplace. Check with the vent manufacturer for details).
Vent Installation
Slide the vent sections together and turn 1/4 turn until the sections lock in place.
Screws are not required to secure the vent. However, three screws may be used to secure vent sections
together if desired.
High temperature sealant is recommended at the appliance starter section connection (use high-temperature
silicone or Mill-Pac®).
If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does not,
apply high temperature sealant to the joints of the affected sections.
Horizontal sections require a 1/4" (6mm) rise every 12" (305mm) of travel.
Horizontal sections require non-combustible support every three feet (e.g.: plumbing strap).
