TRENDnet TEW-650AP User manual

• Compact high performance wireless n access point
• 1 x 10/100Mbps Auto-MDIX LAN port
• 1 x detachable antenna
• WPS button
• On/off power switch
• High-speed data rates of up to 150Mbps with IEEE 802.11n*
• Functions in Access Point or Access Point (AP) Client (wireless adapter) mode
• In Access Point mode: expand a wireless network using Repeater mode (listed as AP Mode Support) or Wireless Distribution System (WDS)
• Wireless Distribution System (WDS) mode for wireless bridging applications
• Based on IEEE 802.11n (draft 2.0) technology and compliant with IEEE 802.11b/g standards
• Wi-Fi Protected Setup (WPS) connects wireless clients at the push of a button
• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
• MAC filter feature for added security (AP mode)
• Broadcast up to 4 SSIDs with different wireless encryption
• Supports 64/128-bit WEP, WPA/WPA2-RADIUS (AP mode only) and WPA/WPA2-PSK
• Quick and easy setup wizard supports Windows 7/Vista/XP Operating Systems
• Indoor coverage up to 100 meters (328ft.)*
• Outdoor coverage up to 300 meters (984ft.)*
• 3-year llimited warranty
FEATURES
wireless
TEW-650AP
rev:09.08.2010

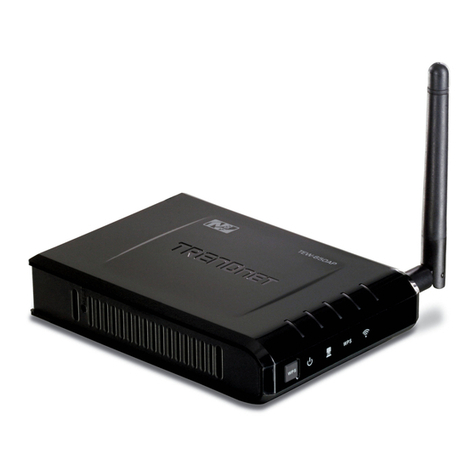

The 150Mbps Wireless N Access Point, model TEW-650AP, is designed to create a
scalable high speed wireless n network or connect a wired device to an existing
wireless network.
Use multiple 150Mbps Wireless N Access Points together to expand your network
using Access Point, Wireless Distribution System (WDS), Repeater, and AP Client
modes.
Expand a wireless network without new cabling by connecting multiple access points
wirelessly with Wireless Distribution Service (WDS) technology. Use AP Client mode
to connect devices such as game consoles, computers, and digital video recorders
(DVR) to your wireless network. Advanced encryption protects valuable data and
WMM® Quality of Service (QoS) technology prioritizes video and audio packets.
Create up to four separate wireless networks (SSIDs) with their own respective
security and access thresholds. A convenient on/off power switch protects the access
point when powering down.
TEW-650AP (V1.0R)
150Mbps Wireless N Access Point
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary
depending on interference, network traffic, building materials and other conditions.

Buttons
Power Supply
Humidity
Antenna
Frequency
• 1 x 10/100Mbps Auto-MDIX LAN port
• 802.11n: 11dBm (typical) @ 150Mbps
• 12 V DC 0.5A external power adapter
• 802.11b: up to 11Mbps
• 64/128-bit WEP (HEX & ASCII), WPA/WPA2 RADIUS (AP mode only), WPA/WPA2-PSK
• 119 x 25 x 85 mm (4.6 x 1.0 x 3.3 in.)
• 1 x 2dBi detachable antenna
• Enable/disable Repeater Mode Support
• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-Carrier
• 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) modulations
• IEEE 802.11
• 802.11n: up to 150Mbps
Repeater Mode
Wireless
Standards
Hardware
SPECIFICATIONS
• IEEE 802.11n draft 2.0, IEEE 802.11b, IEEE 802.11g, and 802.11e
LED Indicator
• Reset button – restores factory default settings • WPS button- enables WPS function
• 2.412 - 2.462 GHz (North America) • 2.412 - 2.472 GHz (Europe)
• 802.11g: up to 54Mbps
Data Rate (auto fallback)
Media Access Protocol
Modulation
• Power, LAN, WPS, and Wireless
Interface
WDS
Dimensions (LxWxH)
• 1~ 11 (FCC), 1~13 (ETSI)
Weight
Temperature
• 113.4 g (4 oz)
• Max. 90% non-condensing
• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 60° C (-4° ~ 140° F)
Output Power
Receiving Sensitivity
Encryption
Channels
• 802.11g: 15dBm (typical) @ 54Mbps
• 802.11b: 18dBm (typical) @ 11Mbps
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions.
TEW-650AP
rev:09.08.2010
TEW-650AP (V1.0R)
150Mbps Wireless N Access Point
• Enable/disable AP Mode Support
• Enable/disable Wireless Distribution System support
• 802.11a: -70dBm (typical)
• 802.11g: -70dBm (typical)
• 802.11b: -87dBm (typical)
• 802.11n: -64dBm (typical)

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
RELATED PRODUCTS
PACKAGE CONTENTS
• TEW-650AP
• Multi-Language Quick Installation Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
NETWORKING SOLUTIONS
TEW-648UB
TEW-649UB
TEW-651BR 150Mbps Wireless N Home Router
150Mbps Mini Wireless N USB Adapter
Mini Wireless N Speed USB Adapter
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
• CD-ROM (Utility and User’s Guide)
• 1 x Cat. 5 Ethernet cable (0.6 m / 2 ft.)
• Power adapter (12V DC, 0.5A)
