TRENDnet TEW-WLC100 User manual

TEW-WLC100
Quick Installation Guide

Table of Content
1 English
1. Before You Start
2. Hardware Installation and Configuration
3. Connect your wireless access points

1
1. Before You Start
Optional Equipment
ŸEIA standard 19” rack
You can download the access point firmware from http://www.trendnet.com/support which
include instructions on how to upgrade the firmware.
Access Point Compatibility
Access Point Model Description Firmware Version
TEW-755AP N300 PoE Access Point 1.02 or above
TEW-821DAP AC1200 Dual Band PoE Access Point 1.04 or above
Before you proceed, please ensure you are using one of the access point models in the list and
the firmware version of your access points has been upgraded accordingly to the versions
indicated in the list below. Please reset all access points to the factory default configuration.
Also, make sure your network is using a DHCP server to distribute IP addresses to the access
points. By default, TRENDnet access point models listed below will obtain an IP address
automatically through DHCP or otherwise default back to 192.168.10.100 / 255.255.255.0 if a
DHCP server is not available on your network. Each access point must be assigned a unique IP
address on the same network.
Package Contents
ŸTEW-WLC100
ŸQuick Installation Guide
ŸCD-ROM (User's Guide)
ŸPower adapter (12V DC, 1A)
ŸRack mount kit
Minimum Requirements
ŸComputer with an Ethernet port and web browser
ŸNetwork cable
ŸWireless Access point(s) (TEW-755AP, TEW-821DAP)

ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
2

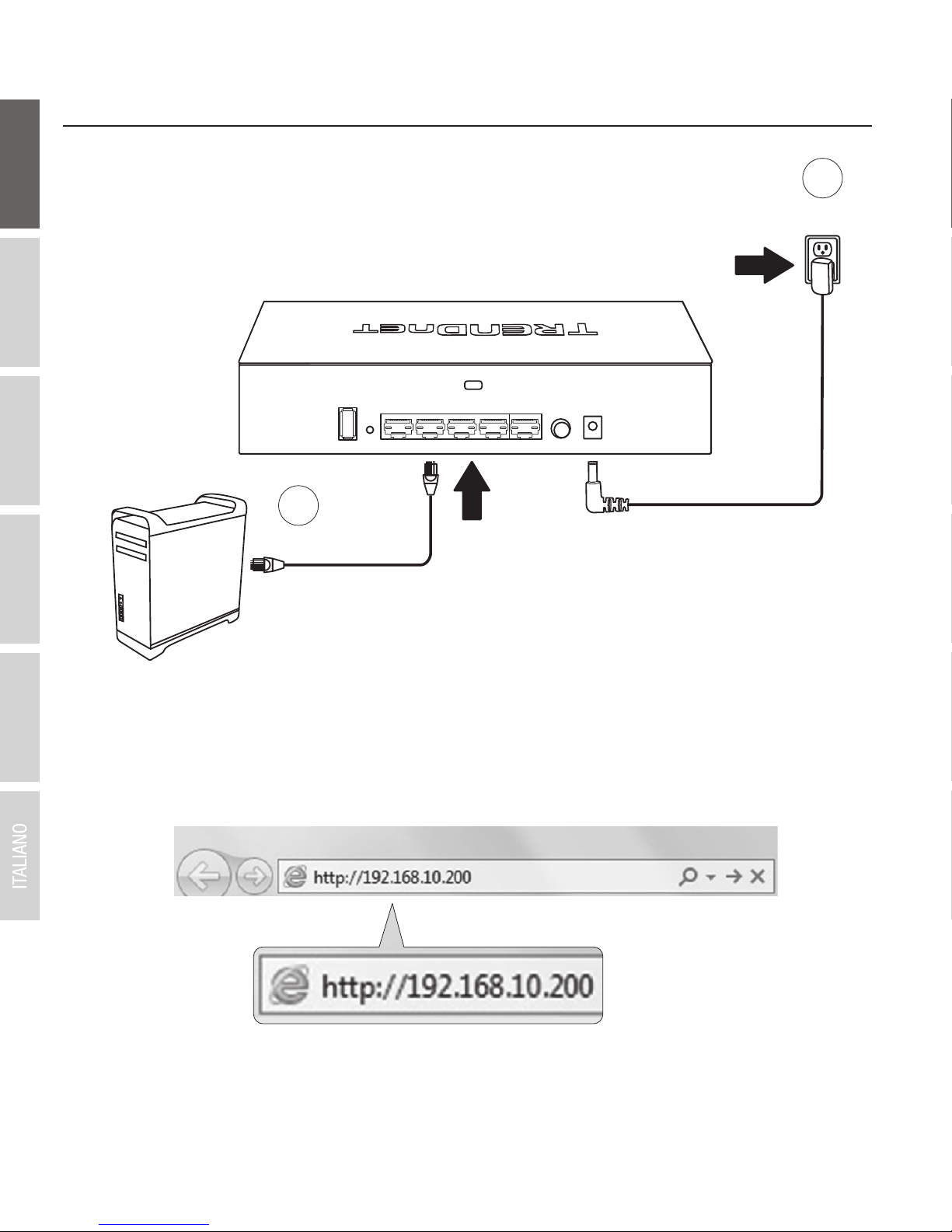

2. Hardware Installation and Configuration
3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x
(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.
4. Open your web browser, type the IP address of the switch in the address bar, and then press
Enter. The default IP address is 192.168.10.200.
1
Power
2

3
6. Click Advanced, click Setup, then click on LAN Settings.
7. Configure the wireless controller IP address settings to match the requirements of your
network and click Apply.

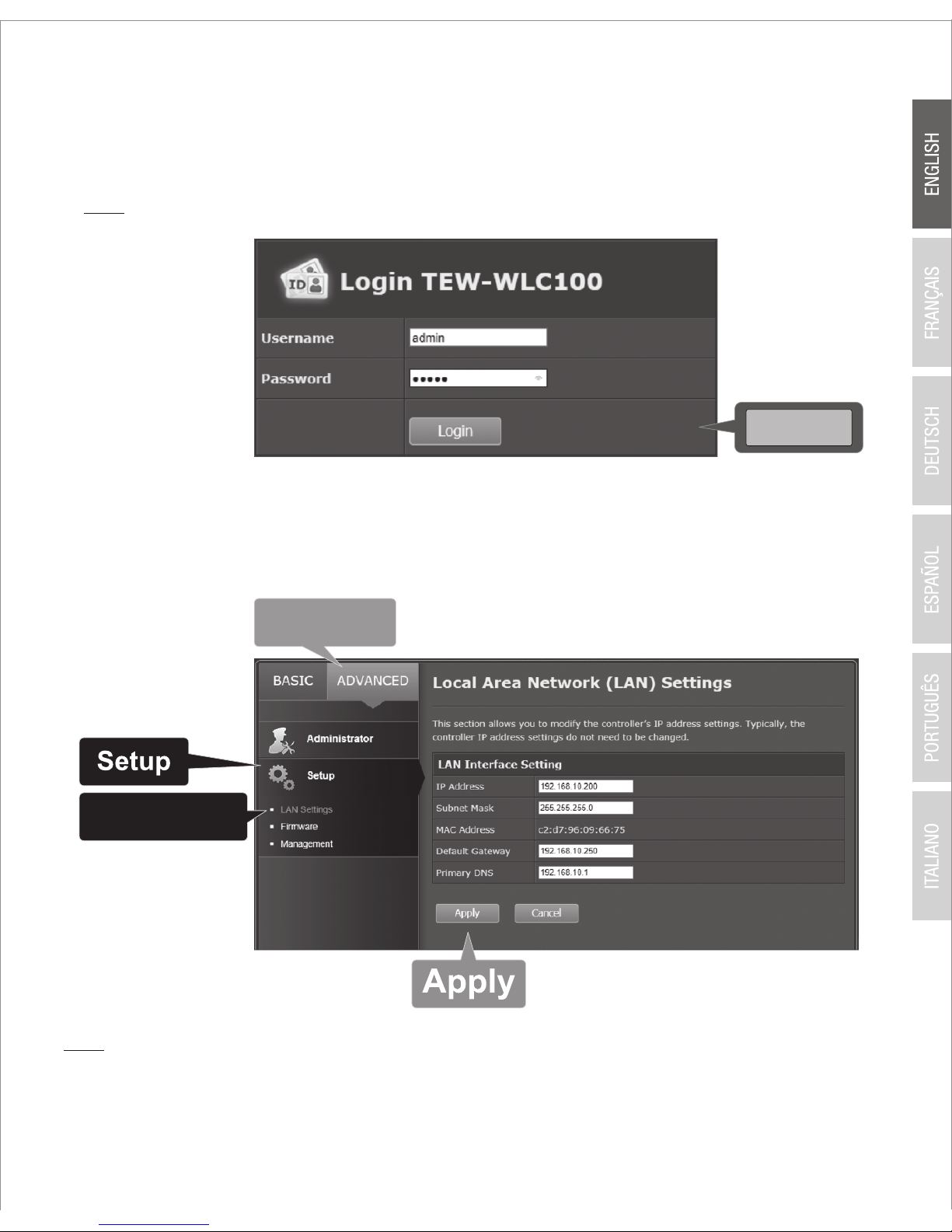

5. Enter the User name and Password, and then click Login. By default:
User Name: admin
Password: admin
Note: User Name and Password are case sensitive.
Login
Note: The Default Gateway and DNS IP settings must be assigned to ensure the wireless
controller is able to check for available online firmware upgrades.
Advanced
LAN Settings

ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
4

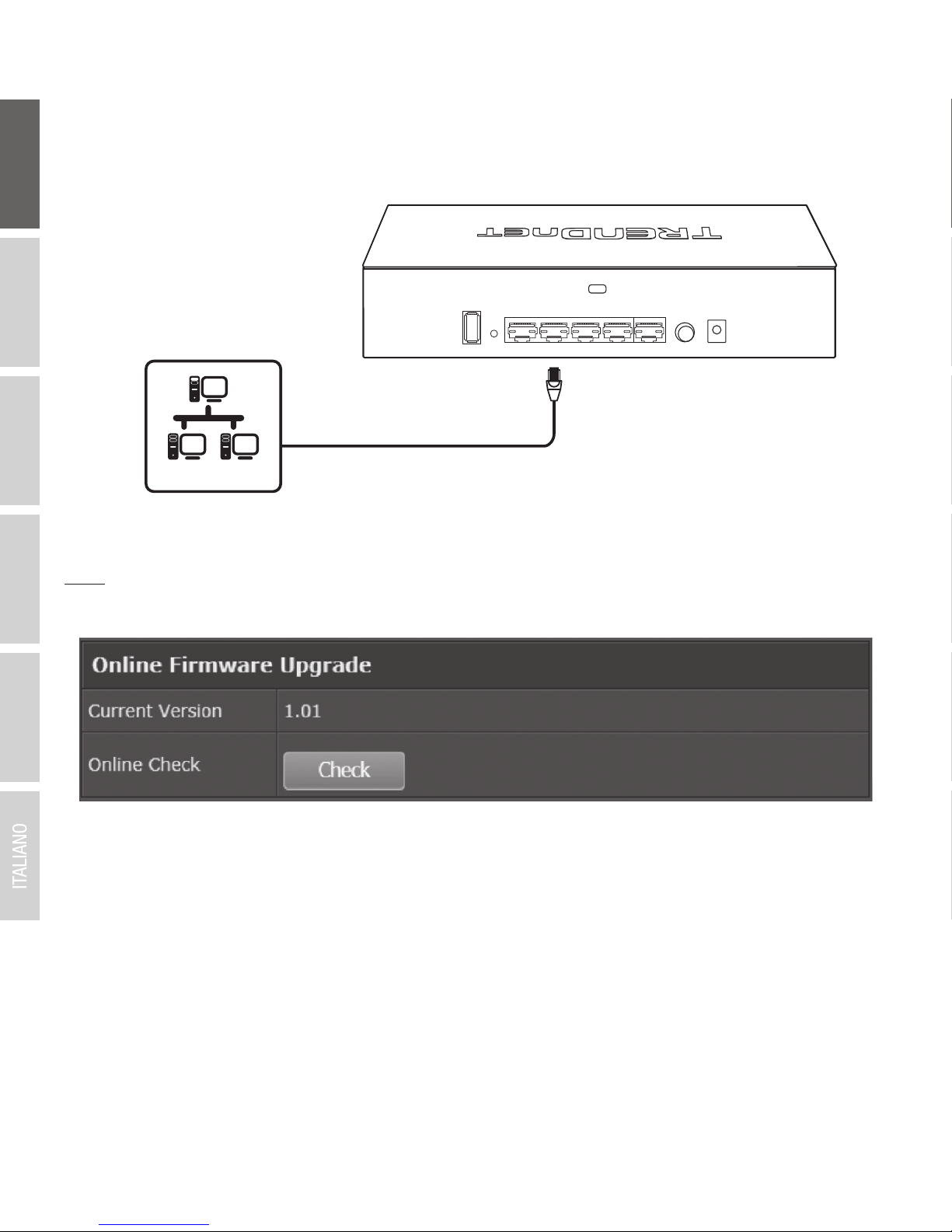

8. Using an Ethernet cable, connect one of the five Gigabit Ethernet ports located on the back of
the wireless controller to your network (e.g. router, switch, etc.)
9. Access the wireless controller management page using the newly assigned IP address.
Note: You may need to revert to your computer's original IP address settings before you can
access the wireless controller with the new IP address settings.
TEW-WLC100
Network

3. Connect your wireless access points
5
Important Note: Please make sure your access points have met the requirements in Section 1
Access Point Compatibility.

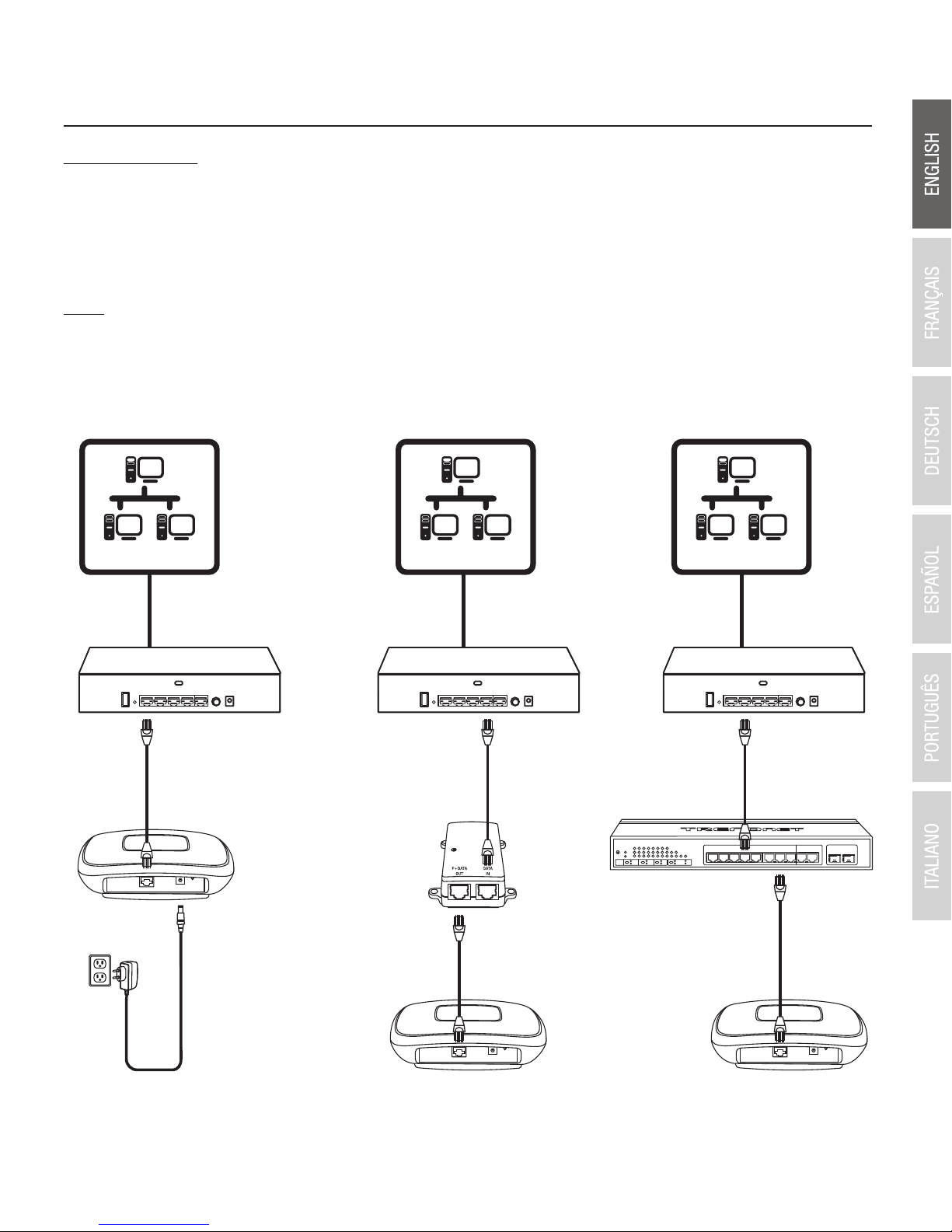

1. Using an Ethernet cable, connect each wireless access point to the wireless controller or
your network.
Note: If powering the access points using their power adapters, you can connect the access
points directly to your network or the wireless controller. If powering the access point using
power over Ethernet (PoE), you can connect your access points to your network or to the
wireless controller using a separate PoE injector or PoE switch (not included).
Network Network Network
PoE Injector
OR OR
Acess Point PoE Switch
Acess Point Acess Point
Power

ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
6
3. After your access points have been found, they will automatically appear in the Device List.

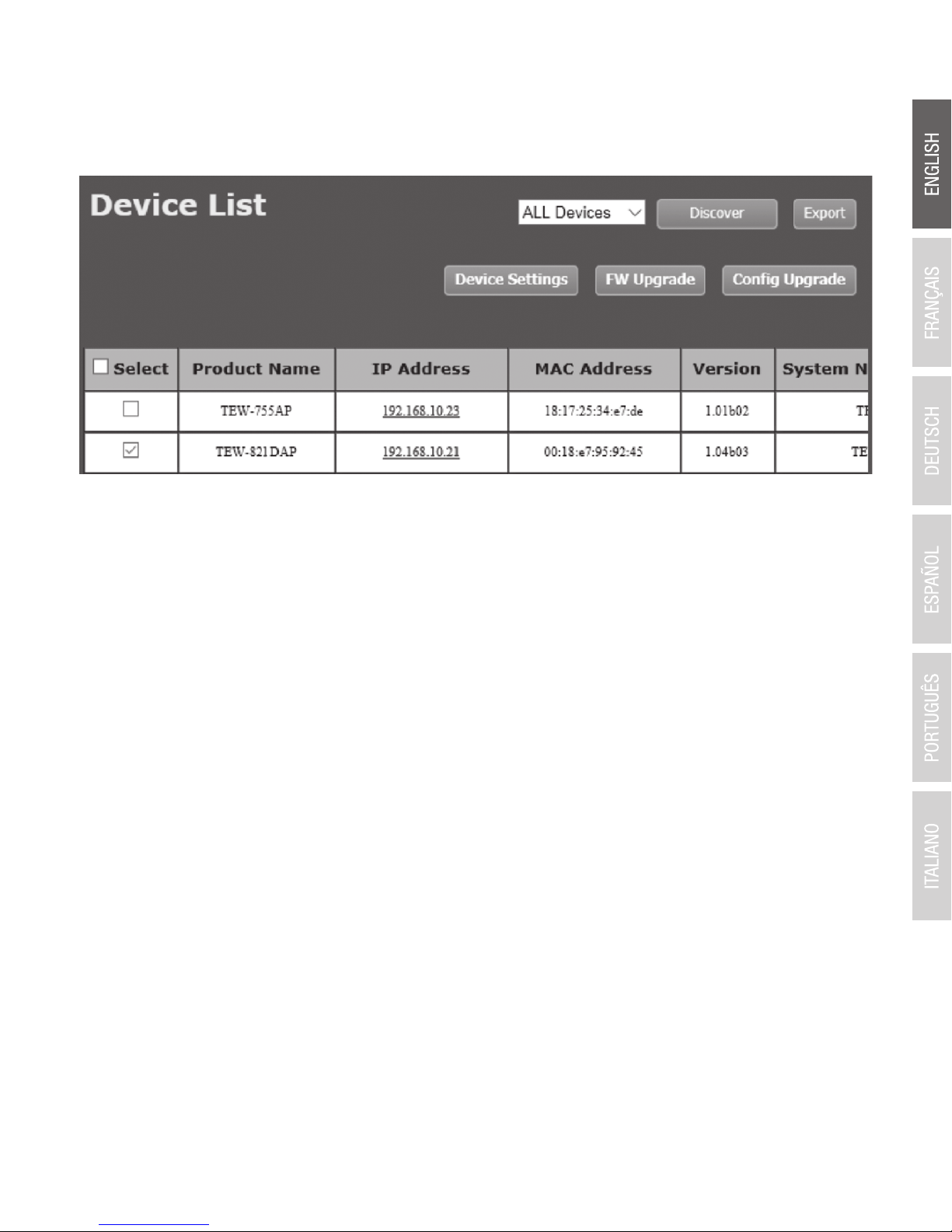

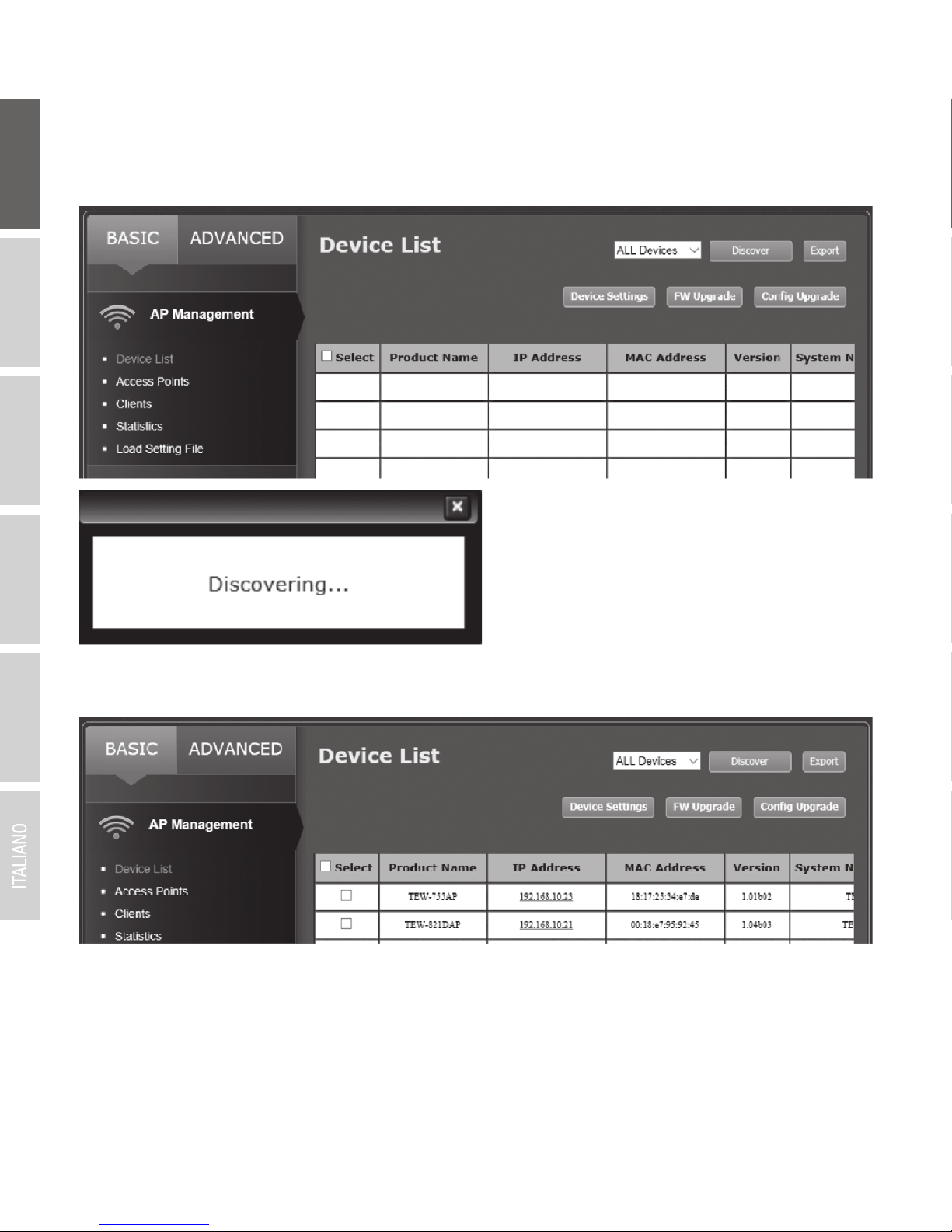

2. After the access points are connected to your network and powered on, click on Basic, click
AP Management, and Device List in the wireless controller management page. Then click on
Discover to search for available wireless access points.

7

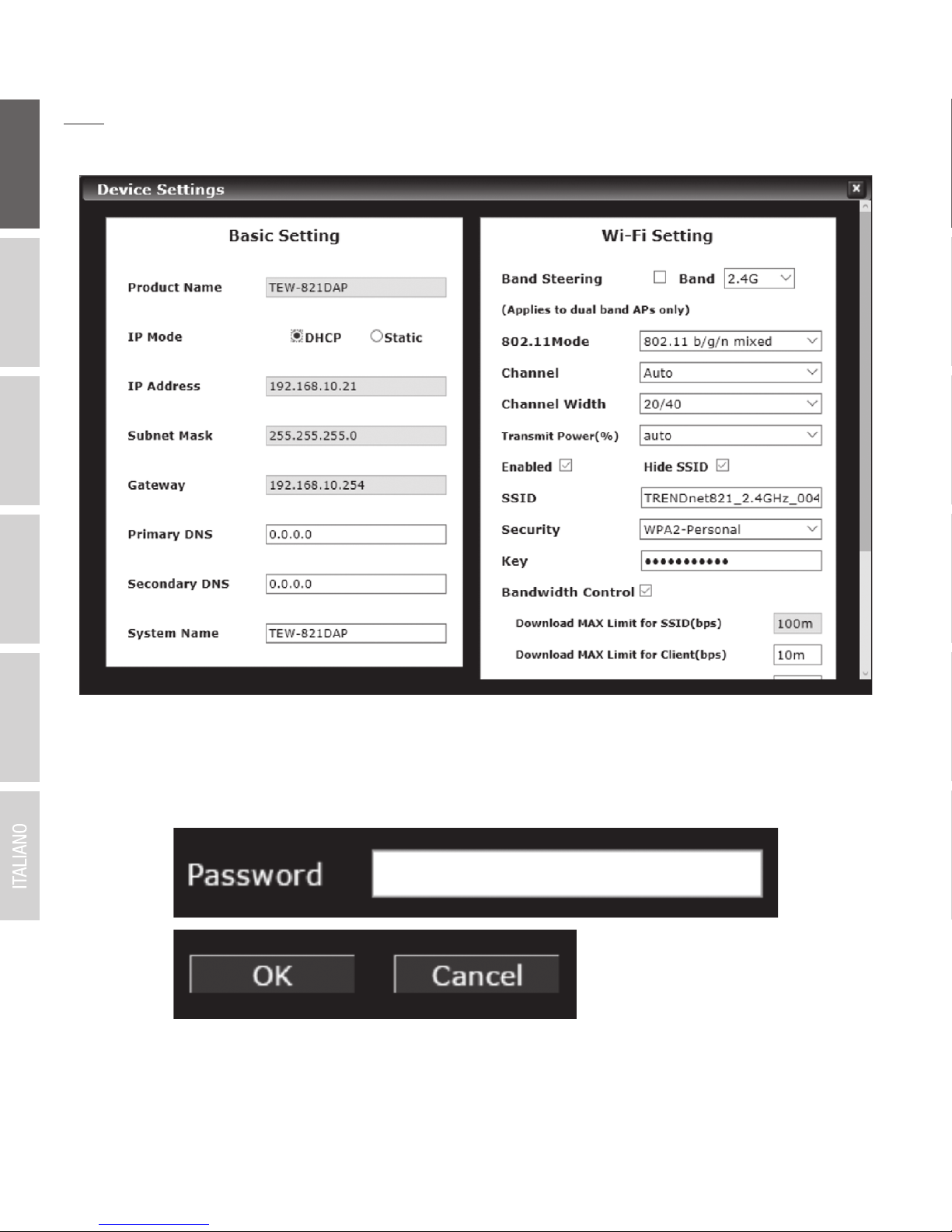

5. You can modify the access point basic settings such as SSID and encryption key on each band.
4. To configure access point settings, under the Select column, check one or multiple access
points you would like to configure and click on Device Settings to configure access points.

ENGLISHFRANÇAISDEUTSCH
ESPAÑOLРORTUGUÊS
8
6. After modifying the settings, scroll down to the Password field, enter the access points
management password (default access point password: admin) and click OK to apply the
settings to the access points.
Note: If you are using a combination of single band (2.4G) and dual band access points (2.4G &
5G), the 5G settings will only be applied to dual band access points.

Directives:
TRENDnet hereby declare that the product is in compliance with the essential requirements and
other relevant provisions under our sole responsibility.
This product is herewith confirmed to comply with the Directives.
Product Information:
Product Name:
Model Number: TEW-WLC100
Trade Name: TRENDnet
Wireless LAN Controller
Safety EN 60950-1: 2006 + A11: 2010 + A12: 2011 + A2: 2013
EMC
Person responsible for this declaration.
Date: October 13, 2016
Title: Director of Technology
Place of Issue: Torrance, California, USA
Name: Sonny Su
Signature:
TRENDnet, Inc.
20675 Manhattan Place
Torrance, CA 90501 USA
Manufacturer’s Name and Address
Low Voltage Directive 2014/35/EC
EMC Directive 2014/30/EC
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
REACH Regulation (EC) No. 1907/2006
R&TTE Directive 1999/5/EC
Ecodesign Directive 2009/125/EC
EN 55022: 2010 + AC: 2011
EN 55024: 2010 + A1: 2015
EN 55032: 2015
Energy Efficiency
Regulation (EC) No. 1275/2008, No. 801/2013

Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service.
Specific warranty periods are listed on each of the respective product pages on the TRENDnet website.
Garantie Limitée
TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des conditions normales
d'utilisation et de service. Les périodes de garanties précises sont mentionnées sur chacun des pages produits
du site web de TRENDnet.
Eingeschränkte Garantie
TRENDnet gewährt eine Garantie für seine Produkte im Falle von Material- und Bearbeitungsdefekten, bei
normaler Verwendung und Wartung. Spezielle Garantiezeiträume werden auf jeder Produktseite auf der Website
von TRENDnet genannt.
Garantía limitada
TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en condiciones de uso
y funcionamiento normales. Los periodos específicos de garantía figuran en cada una de las páginas de producto
del sitio web de TRENDnet.
Ограниченная гарантия
Компания TRENDnet предоставляет гарантию на свои изделия от дефектов материалов и сборки при
нормальном использовании и обслуживании. Конкретные гарантийные сроки указаны на странице
каждого продукта на сайте компании TRENDnet.
Garantia Limitada
A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e
serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos
no site da TRENDnet.
Piiratud garantii
TRENDneti garantii hõlmab materjali- ja koostamisdefekte, mis ilmnevad toote tavapärasel kasutamisel.
Garantiiaja täpne pikkus konkretse toote puhul on leitav TRENDneti kodulehelt vastava toote infolehelt.
Garanzia limitata
TRENDnet garantisce i propri prodotti da difetti di materiali e manodopera, in condizioni di normale uso ed
esercizio. I periodi di garanzia specifici sono elencati sulle rispettive pagine di prodotto sul sito TRENDnet.

Safety notes
Before using your TRENDnet device for the first time, it is essential to read and understand all safety and operating instructions.
Keep instructions in a safe place for future reference. Some TRENDnet products are rated for outdoor applications and can sustain
certain weather conditions.
Please refer to the product's Ingress Protection (IP) rating and the operating humidity and temperature range.
DANGER due to electricity
Warning: Never open TRENDnet devices. Doing so poses the risk of electric shock!
The device is voltage free only when unplugging from the mains power supply.
No physical maintenance of TRENDnet devices is required.
If damage occurs, disconnect the TRENDnet device from the power outlet and contact a qualified technician ONLY.
Damage is defined as:
Ÿ If the power cable/plug is damaged
Ÿ If the device has been submerged in liquid (e.g. rain or water; except products that are rated for outdoor applications)
Ÿ If the device is inoperable
Ÿ If there is damage to the housing of the device
Only operate TRENDnet devices using a mains power supply.
To disconnect devices from the mains supply, remove the device itself or its mains plug from the power outlet. The power outlet and
all connected network devices should be easily accessible so that you can pull the mains plug quickly if needed.
TRENDnet devices are designed for indoor use only and in a dry location (except those that are rated for outdoor applications).
To clean a TRENDnet device, disconnect it from the mains supply first and only use a dry towel.
DANGER due to overheating
Never expose TRENDnet devices to extreme heat (e.g. direct sunlight, fire, or other heat sources). For outdoor rated products, please
install the product in an environment that is within the product's operating temperature and humidity range.
Do not interlock multiple TRENDnet devices.
Only install TRENDnet devices in locations with adequate ventilation (slots and openings on the housing are used for ventilation).
Ÿ Do not cover TRENDnet devices when operating.
Ÿ Do not place any objects on TRENDnet devices.
Ÿ Do not insert any foreign objects into the openings of TRENDnet devices.
Ÿ Do not place TRENDnet devices next to an open flame (e.g. fire or candles).
Ÿ Do not expose TRENDnet devices to direct heat (e.g. radiator or direct sunlight).

Certifications
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
TRENDnet
20675 Manhattan Place
Torrance, CA 90501
USA
Applies to PoE Products Only: This product is to be connected
only to PoE networks without routing to the outside plant.
Note
The Manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority
to operate the equipment.
Advertencia
En todos nuestros equipos se mencionan claramente las
caracteristicas del adaptador de alimentacón necesario para
su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo
conectado. El adaptador de alimentación debe operar con
voltaje y frecuencia de la energia electrica domiciliaria exitente
en el pais o zona de instalación.
Product Warranty Registration
Please take a moment to register your
product online. Go to TRENDnet’s website at:
www.trendnet.com/register
Technical Support
If you have any questions regarding the product
installation, please contact our Technical Support.
Toll free US/Canada: 1-866-845-3673
Regional phone numbers available
at www.trendnet.com/support
Waste electrical an electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or Retailer for recycling advice.
Copyright © 2016. All Rights Reserved. TRENDnet. TEW-WLC100(V1) /10.20.2016
