OWNER’S MANUAL
TRINITY ECOSTORAGETM NSF
34” STAINLESS STEEL TOP KITCHEN CART
Model # TBFZ-1419
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
DOWNLOAD THE FREEAPP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA

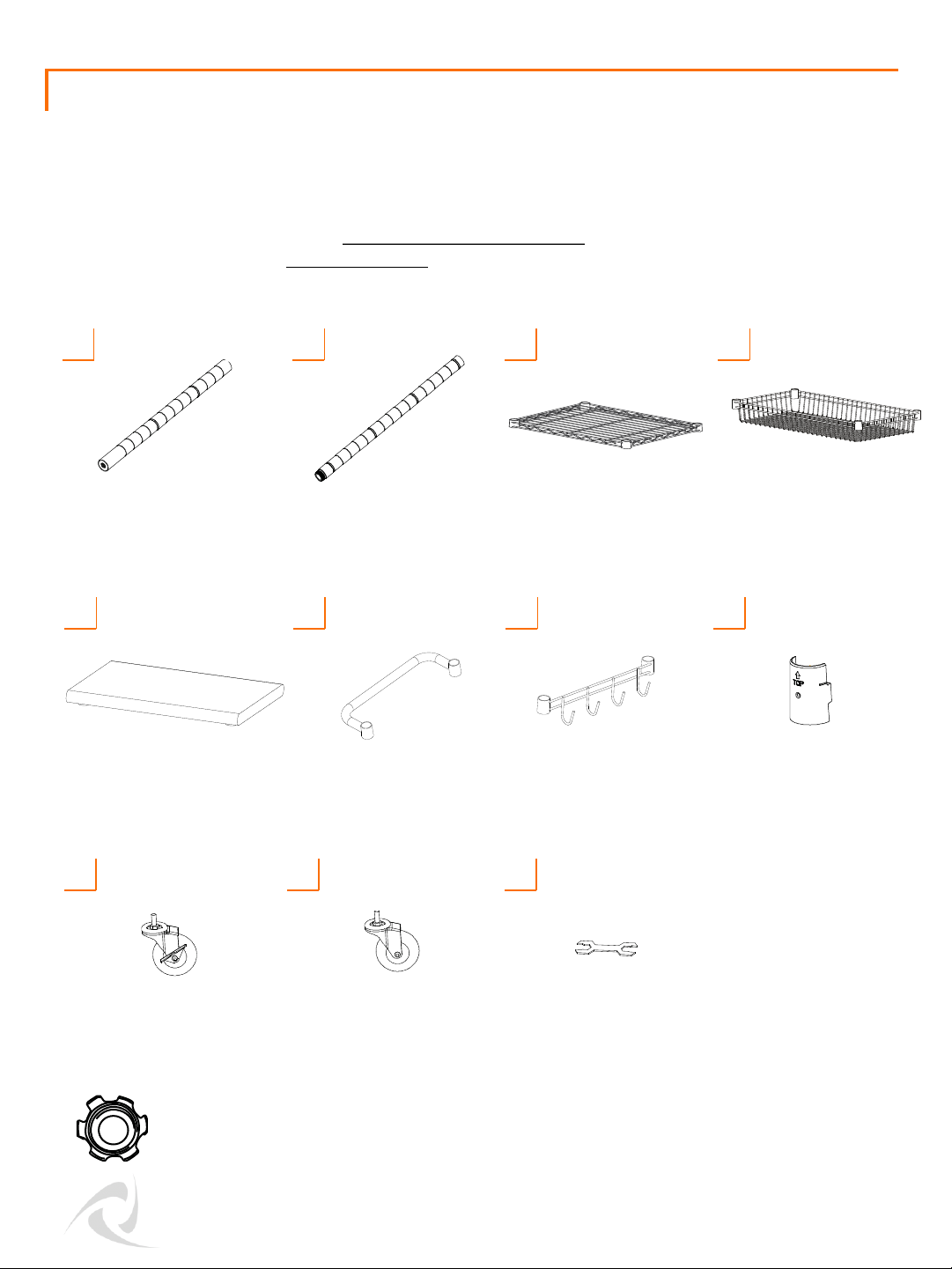

PARTS LIST
Your TRINITY Stainless Steel Top Kitchen Cart should include the following parts. Please inspect box
contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [e-mail]. Parts can also be requested online
via our “Contact Us” section www.trinityii.com.
A
BOTTOM POLE (4)
Threaded Insert (4)
is pre-installed
B
TOP POLE (4)
End Cap (4) and
Pole Connector (4)
are pre-installed
C
SHELF (1)
D
BASKET (1)
E
STAINLESS STEEL
TOP (1)
F
HANDLE (1)
G
SIDEBAR
w/4 HOOKS (1)
H
SLIP SLEEVE
(32) + (2) extra
I
LOCKING
CASTER (2)
J
NON-LOCKING
CASTER (2)
K
WRENCH (1)
Note: The black circular plastic spacers in between Shelves are used only for packaging
purposes. They are NOT needed. Please discard.
1© 2021 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS

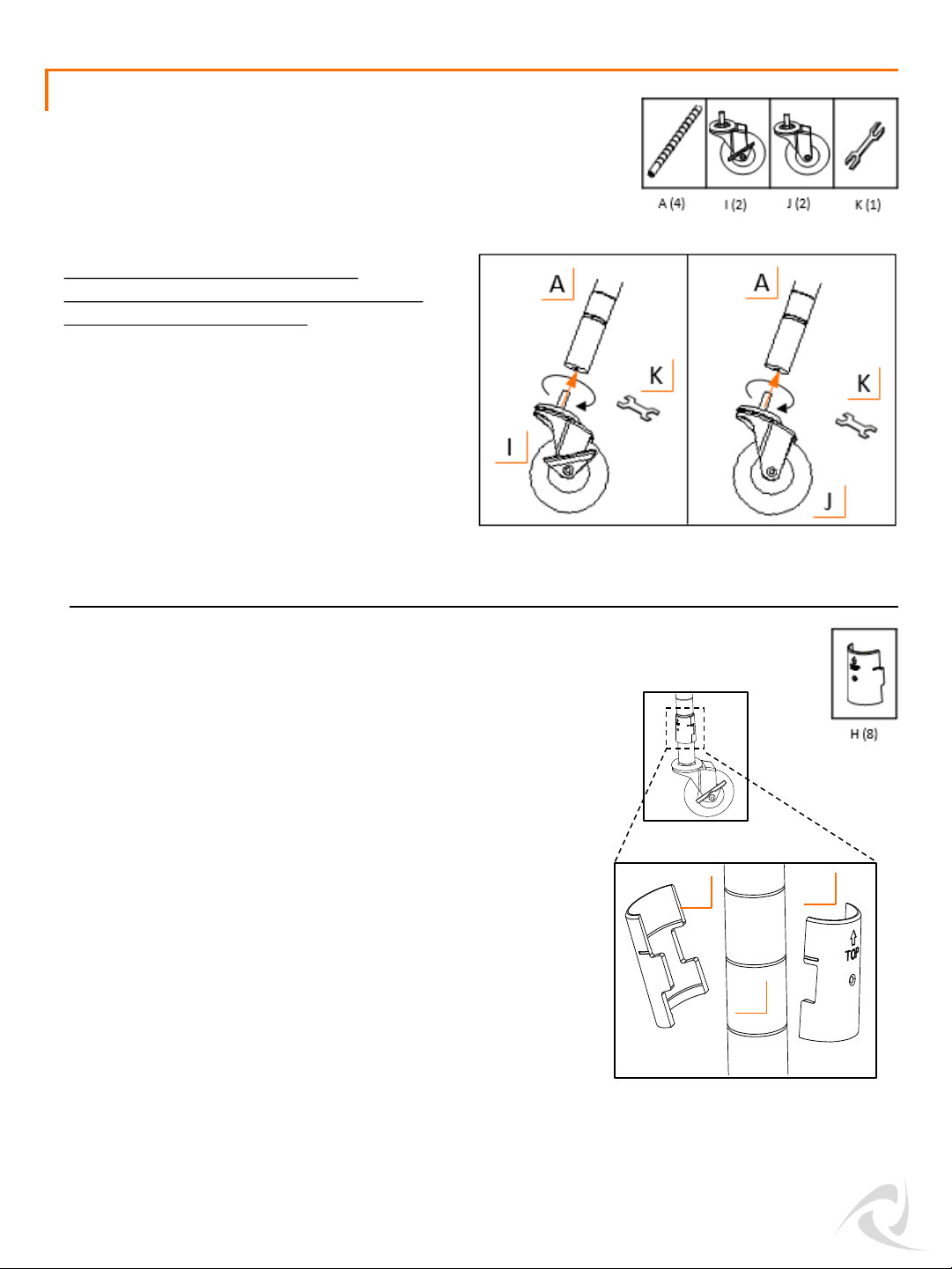

STEP 1
Screw CASTERS (I & J) into each BOTTOM POLE
(A). Turn clockwise to screw in place.
Use provided WRENCH (K) to tighten
completely. Failure to do as instructed could
result in caster stem breaking.
STEP 2
On BOTTOM POLE (A), place 1 pair of SLIP SLEEVES (H) at
desired height no higher than 3rd indentation from
bottom. Make sure arrow faces up and word “TOP” is
right-side up. Do this for each BOTTOM POLE (A). Make
sure SLIP SLEEVES (H) height is identical for each
BOTTOM POLE (A).
Note that each POLE (A & B) has slight horizontal line
indentations at 1” intervals. Each SLIP SLEEVE (H) has
raised horizontal lines inside designed to lock in place on
POLE (A & B).
Slide pair of SLIP SLEEVES (H) until you hear a click to
confirm pair is locked onto BOTTOM POLE (A). Do NOT
place more than one pair on each POLE (A & B) at a time.
Note: There will be a very small gap in-between two
locked SLIP SLEEVES (H)—this is normal.
HH
A
© 2021 TRINITY - 800.985.5506 2

ASSEMBLY INSTRUCTIONS

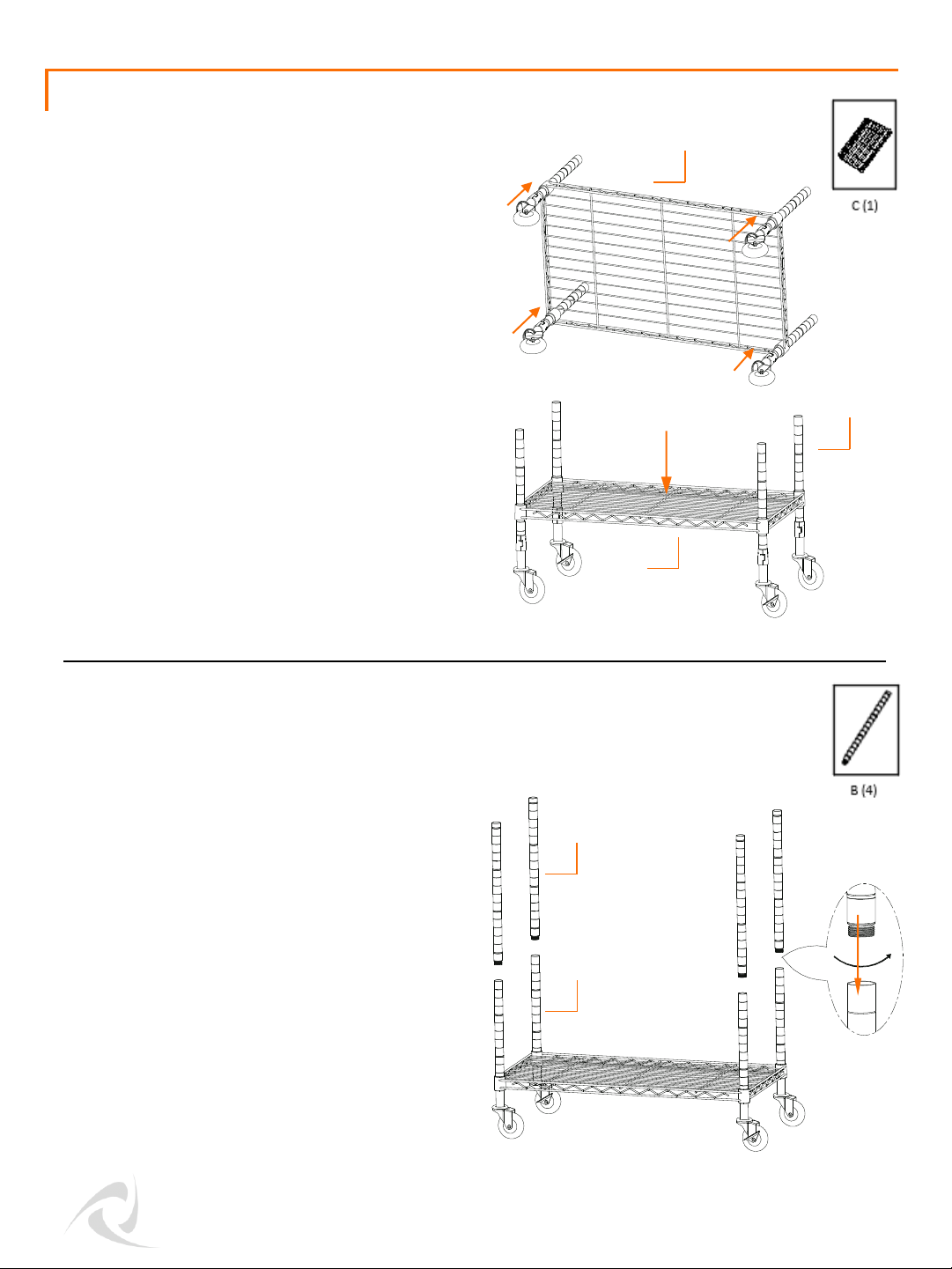

STEP 3
Place SHELF (C) on its side and slide each BOTTOM
POLE (A) through each corner cylinder of SHELF (C).
Make sure corner cylinders are positioned over
SLIP SLEEVES (H).
Slowly stand unit upright.
Note:
Level side of SHELF (C) is TOP side (TRINITY logo on
the corner cylinders should be right-side up).
Use a rubber mallet, if needed, to secure SHELF (C).
C
A
C
STEP 4
Screw TOP POLES (B) into BOTTOM
POLES (A) in clockwise direction.
Note:
Top of each TOP POLE (B) is
indicated by a BLACK END CAP.
Pole Connectors are pre-installed in
bottom of TOP POLES (B).
B
A
3© 2021 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS

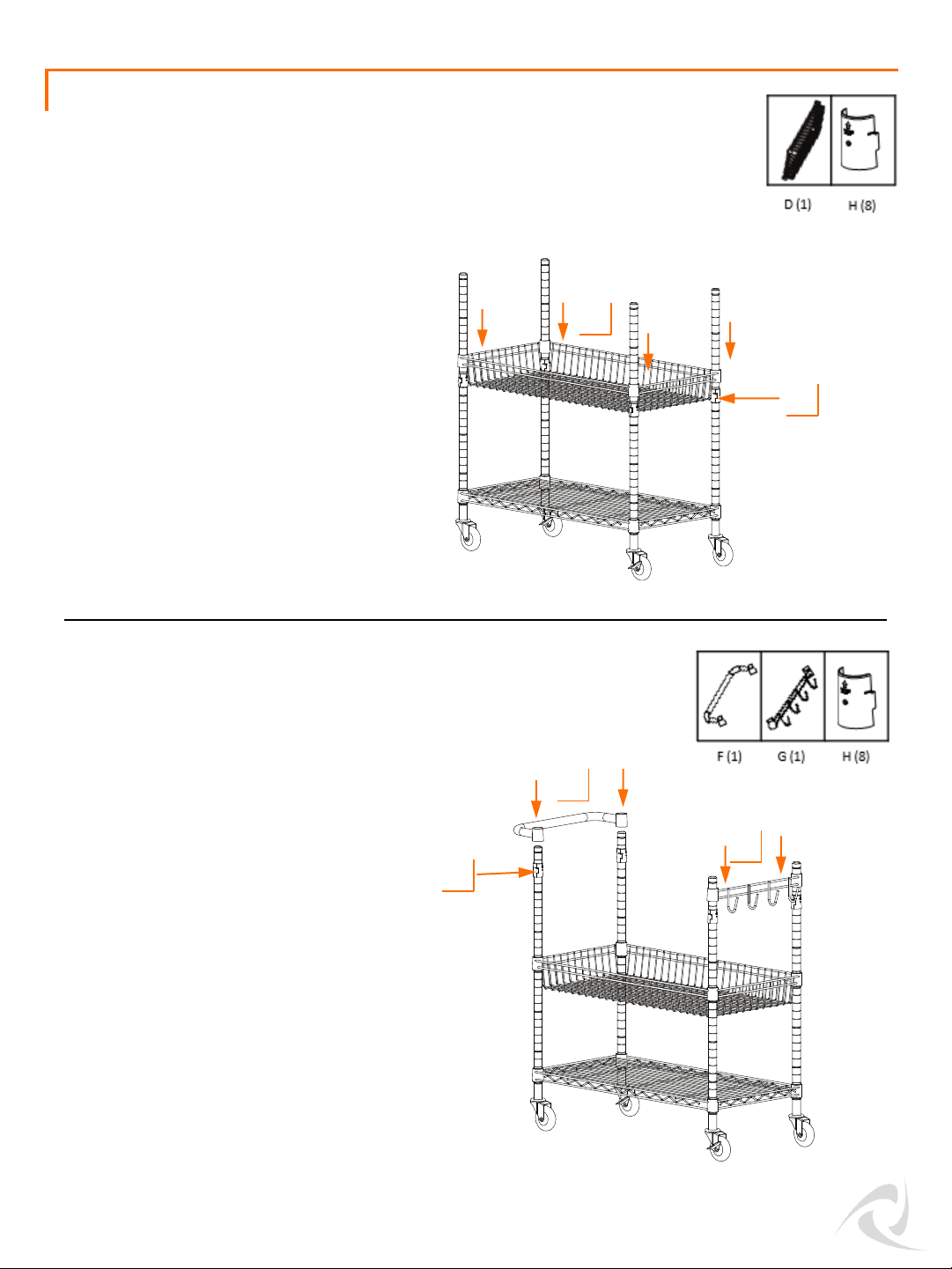

STEP 5
Repeat STEP 2 & 3 to assemble BASKET (D).
Make sure SLIP SLEEVES (H) height is
identical.
Note:
Use a rubber mallet, if needed, to secure
BASKET (D). D
H
STEP 6
Attach one pair of SLIP SLEEVES (H) to
poles on shorter side of Kitchen Cart as
shown.
Slide HANDLE (F) onto poles, making sure
corner cylinders are positioned over SLIP
SLEEVES (H).
Repeat STEP to attach SIDEBAR (G) onto
opposite side of Kitchen Cart.
Note:
Use a rubber mallet, if needed, to secure
HANDLE (F) and SIDEBAR (G).
F
G
H
© 2021 TRINITY - 800.985.5506 4

ASSEMBLY INSTRUCTIONS
STEP 7
Repeat Step 2 for STAINLESS STEEL TOP (E) and
place SLIP SLEEVES (H) at highest position on
TOP POLES (B). Slide STAINLESS STEEL TOP (E)
onto SLIP SLEEVES (H).
E
H
5© 2021 TRINITY - 800.985.5506

SERVICE PARTS LIST –TBFZ-1419
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) XBS-06-016-3420 Stainless Steel Top 8) ZSV-99-008-3010 Locking Caster
2) ZSV-04-029-1675 Top Pole 9) XXX-97-002-0001 Wrench
3) ZSV-05-006-1600 Handle 10) ZSV-03-007-3216 Shelf
4) ZSV-01-030-2523 Pole Connector 11) ZSV-21-005-3216 Basket
5) XBK-01-012-2543 Slip Sleeve 12) ZSV-02-007-0009 Sidebar w/ 4 hooks
6) ZSV-04-031-1525 Bottom Pole 13) XBK-23-004-2517 End Cap
7) ZSV-99-007-3010 Non-locking Caster
11
9
8
2
3
1
12
4
13
6
7
5
10
© 2021 TRINITY - 800.985.5506 6

WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed
could result in the caster stem breaking thereby causing the cart to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all possible
conditions or situations that may occur. The user must always be aware of their environment
and ensure that they use the product in a safe and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the function
and/or safety of the product, and may affect the life of the product. Any modifications will void
product warranty.
5. Check for damaged parts. Before using this product, carefully check that all parts are in good
condition, and that the product will operate properly and perform its intended function. Check
for damaged parts and any other conditions that may affect the operation of this product.
Replace damaged or worn parts, and never use this product with a damaged part. Regularly
secure all parts.
6. Do NOT roll product on an uneven surface. Only move the product on a smooth surface.
Rolling over rough or uneven surfaces may cause casters to break or items on the product to
fall, resulting in injury and / or damage. Wood and laminate flooring can be scratched or
dented. Ensure your flooring can bear the weight of loaded product before rolling loaded
product across your flooring.
7. Do NOT overload the product.
8. Do NOT allow children to climb or play around the product. Tipping may occur causing injury.
9. Do NOT stand on or use any part of this item as a step ladder. Only use the product on an
even and stable surface. Tipping may occur causing injury.
10. Make sure that the wheels are LOCKED when working on the stainless steel top.
11. Do NOT leave knives or sharp objects on kitchen cart unattended.
Weight capacity per Shelf (evenly distributed) 200 lb
Weight capacity per Basket (evenly distributed) 150 lb
Total weight capacity of Cart (evenly distributed) 500 lb
© 2021 TRINITY - 800.985.5506
7

CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals. Do not use scouring pad for
cleaning.
•Use a quality stainless steel cleaner and follow instructions that come with the cleaner.
Wipe ALONG the grain (NOT against).
•Keep casters locked when kitchen cart is stored.
•This product is designed for indoor use only.
© 2021 TRINITY - 800.985.5506 8

PRODUCT REGISTRATION
