OWNER’S MANUAL
TRINITY 5-TIER NSF WIRE SHELVING W/ BASKETS & DIVIDERS
MODEL # TBFZ-0959 / TBFPBK-0959
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
Intelligent Instructions
Directives intelligentes
Instrucciones Inteligentes
DOWNLOAD THE FREEAPP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA

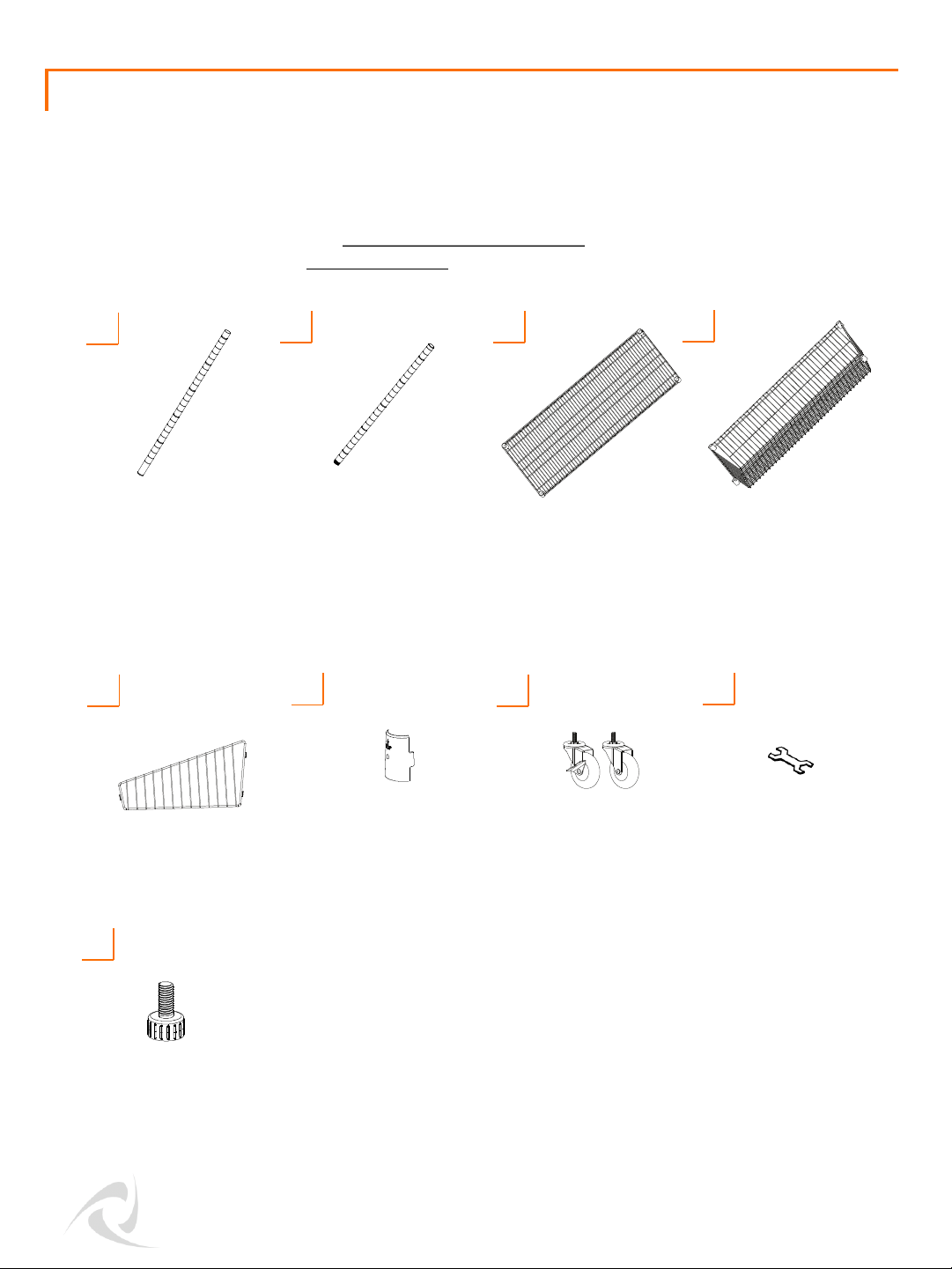

PARTS LIST
Your TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Dividers should include the following parts. Please
inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [e-mail]. Parts can also be requested online
via our “Contact Us” section at www.trinityii.com.
A
BOTTOM POLE (4)
B
TOP POLE (4)
End Cap (4) and
Pole Connector (4)
pre-installed
C
SHELF (2)
D
BASKET (3)
E
DIVIDER (6)
F
SLIP SLEEVE
(40) + (2) Extra
G
CASTER
(2) Locking + (2)
Non-Locking
For Mobile Option
H
WRENCH (1)
I
FEET LEVELER (4)
For Stationary Option
1© 2023 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS

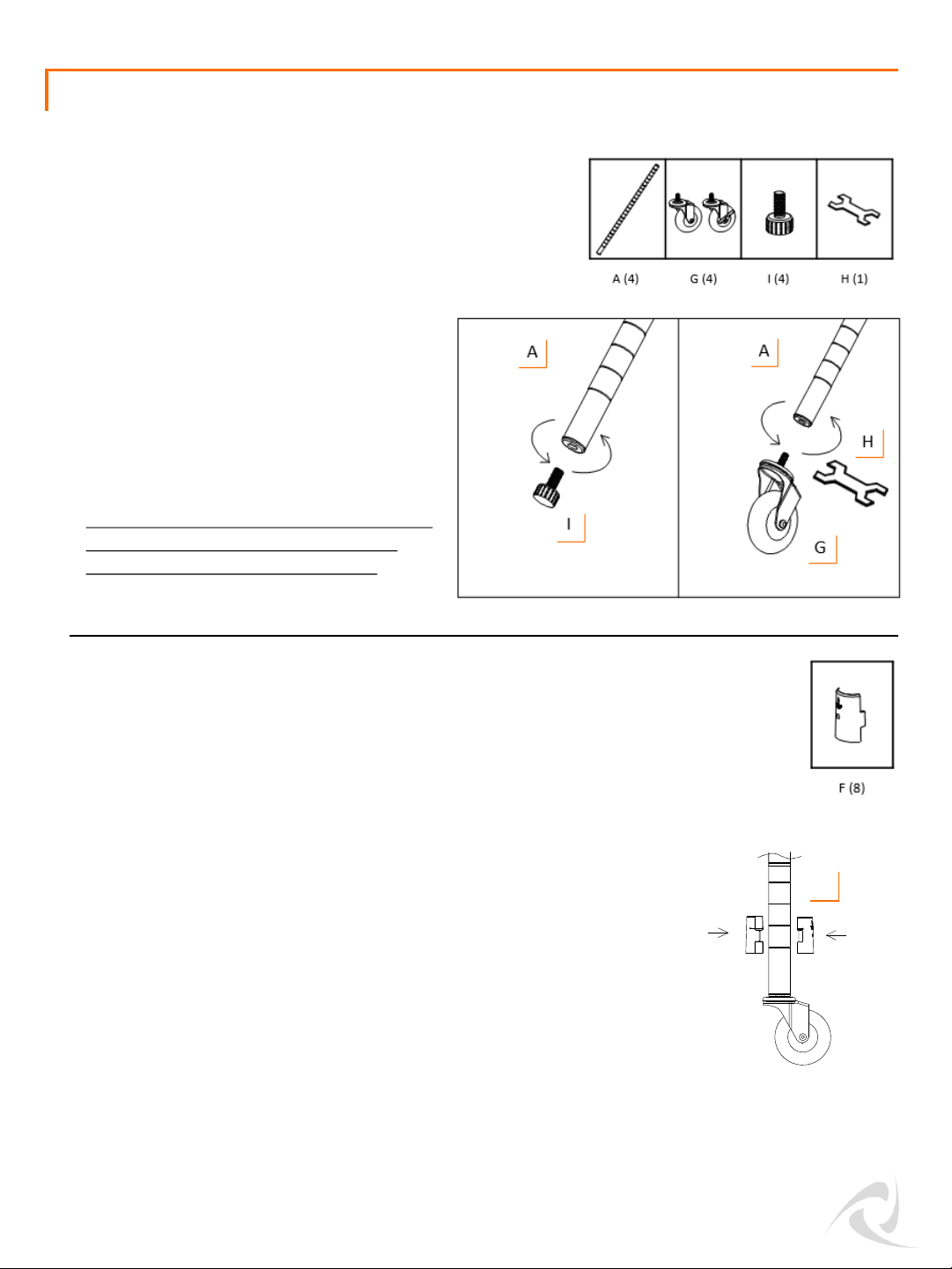

STEP 1
Stationary Option
Screw each FEET LEVELER (I) into bottom of
each BOTTOM POLE (A). Turn clockwise to
screw in place.
Mobile Option
Screw each CASTER (G) into bottom of each
BOTTOM POLE (A). Turn clockwise to screw
in place. Make sure Locking Casters are on
same side.
Use provided wrench to tighten CASTER (G)
completely. Failure to do as instructed
could result in caster stem breaking.
STEP 2
For easiest assembly, do not attach TOP POLES (B) until instructed. Once
connected, these will be posts for the rack.
Note that POLES (A+B) have slight horizontal line indentations at 1”
intervals. Each SLIP SLEEVE (F) has raised horizontal lines inside designed
to lock them in place on POLES (A+B).
On BOTTOM POLE (A), place one pair of SLIP SLEEVES (F) at desired height
no higher than 3rd indentation from bottom. Make sure arrow faces up
and word “TOP” is right side up.
Slide pair of SLIP SLEEVES (F) until you hear a click to confirm the pair is
locked onto BOTTOM POLE (A). Do this for each BOTTOM POLE (A) and
make sure height is identical for each BOTTOM POLE (A). Do NOT place
more than one pair on each pole at a time.
F
Note: There will be a very small gap in-between two locked SLIP SLEEVES (F)—this is normal.
© 2023 TRINITY - 800.985.5506 2

ASSEMBLY INSTRUCTIONS
STEP 3
Place SHELF (C) on its side and slide each BOTTOM
POLE (A) through each corner cylinder on SHELF (C).
Make sure SHELF (C) corner cylinders are positioned
over SLIP SLEEVES (F).
Stand the unit upright.
Note:
•Level side of SHELF (C) is TOP side (TRINITY logo on
corner cylinders should be right-side up.)
•Use a rubber mallet, if needed, to secure SHELF (C).
•For convenience, place BOTTOM POLES (A) with
Locking Casters on long side of shelf if rack will be
pushed against a wall, OR, if rack is frequently
rolled around like a cart, place BOTTOM POLES (A)
with Locking Casters on the side being pushed or
pulled.
C
STEP 4
On BACK pair of BOTTOM POLES (A), place 1 pair of SLIP SLEEVES (F)
each at desired height. Make sure arrow faces up and word “TOP” is
right side up. Do this for each BOTTOM POLE (A) and make sure
height is identical for each BACK BOTTOM POLE (A).
On FRONT pair of BOTTOM POLES (A), place 1 pair of SLIP SLEEVES (F)
each at 5” lower than SLIP SLEEVES (F) on BACK BOTTOM POLES (A).
Make sure height is identical for each FRONT BOTTOM POLE (A).
Lower BASKET (D) over each BOTTOM POLE (A) so corner cylinders of
BASKET (D) are positioned over SLIP SLEEVES (F).
Note:
•Shelves and Baskets are adjustable in 1” increments and can be
placed as needed to best fit storage needs.
•Use a rubber mallet, if needed, to secure BASKET (D).
D
F
3© 2023 TRINITY - 800.985.5506

ASSEMBLY INSTRUCTIONS
STEP 5
Screw pole connector of TOP POLE (B)
into BOTTOM POLE (A).
Repeat for each remaining TOP POLE (B).
Note:
•Top of each TOP POLE (B) is indicated
by a black END CAP.
B
A
STEP 6
Repeat Step 4 to install other
SHELF (C) and BASKETS (D) as
desired.
Note:
•Shelves and Baskets are
adjustable in 1” increments
and can be placed as needed
to best fit storage needs.
•Use a rubber mallet, if
needed, to secure SHELVES
(C) and BASKETS (D).
•For stationary option, after
assembly, adjust FEET
LEVELERS (I) as needed to
ensure shelving rack is level.
C
D
F
© 2023 TRINITY - 800.985.5506 4

ASSEMBLY INSTRUCTIONS
STEP 7
Clip one end of DIVIDER (E) onto
vertical wire of BASKET (D) as
shown, then clip other ends of
DIVIDER (E) onto same wire on
opposite side of BASKET (D).
Install other DIVIDERS (E) on
BASKETS (D) as desired.
5© 2023 TRINITY - 800.985.5506

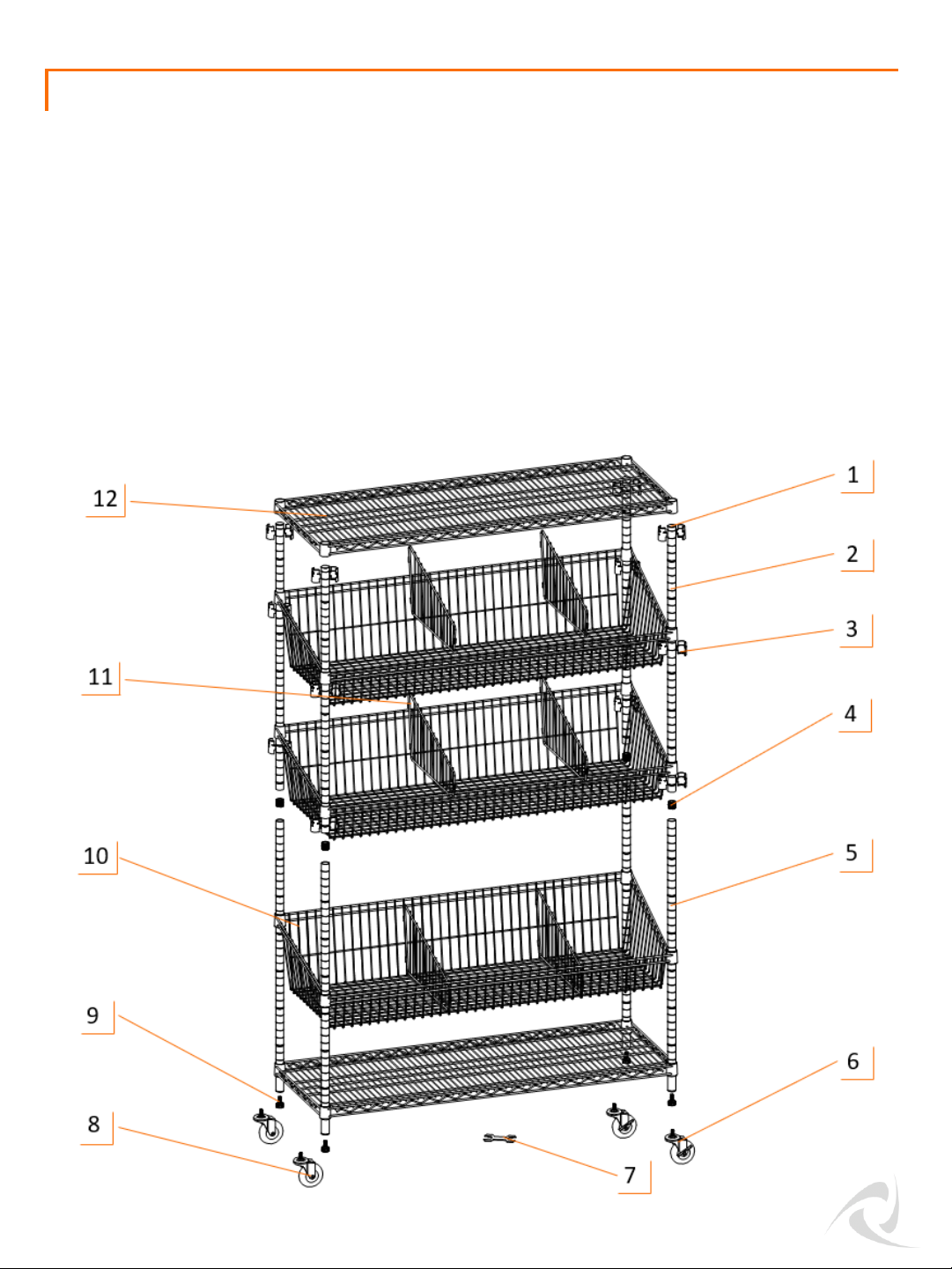

SERVICE PARTS LIST –TBFZ-0959 (Chrome)
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1)
XBK
-23-004-2517
End Cap
7)
XXX
-97-002-0001
Wrench
2)
ZSV
-04-006-3600
Top Pole
8)
ZSV
-99-007-4010
Non
-locking Caster
3)
XBK
-01-012-2543
Slip Sleeve
9)
XBK
-98-003-2538
Feet Leveler
4)
ZSV
-01-013-2523
Pole Connector
10)
ZSV
-21-024-4818
Basket
5)
ZSV
-04-042-3600
Bottom Pole
11)
ZSV
-02-012-0009
Divider
6)
ZSV
-99-008-4010
Locking
Caster 12)
ZSV
-03-007-4818
Shelf
© 2023 TRINITY - 800.985.5506 6

SERVICE PARTS LIST –TBFPBK-0959 (Black)
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1)
XBK
-23-004-2517
End Cap
7)
XXX
-97-002-0001
Wrench
2)
PBK
-04-006-3600
Top Pole
8)
ZSV
-99-007-4010
Non
-locking Caster
3)
XBK
-01-012-2543 Slip Sleeve 9)
XBK
-98-003-2538
Feet Leveler
4)
ZSV
-01-013-2523
Pole Connector
10)
PBK
-21-024-4818
Basket
5)
PBK
-04-042-3600
Bottom Pole
11)
PBK
-02-012-0009
Divider
6)
ZSV
-99-008-4010
Locking
Caster 12)
PBK
-03-007-4818
Shelf
7© 2023 TRINITY - 800.985.5506

WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and / or damage.
2. Tighten all casters completely by using the wrench. Failure to do as instructed could result in
the caster stem breaking, thereby causing the product to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all possible
conditions or situations that may occur. The user must always be aware of the environment
and ensure to use the product in a safe and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the function
and / or safety of the product, and may affect the life of the product. Any modifications will
void product warranty.
5. Check for damaged parts. Before using this product, carefully check that all parts are in good
condition, and that the product will operate properly and perform its intended function.
Check for damaged parts and any other conditions that may affect the operation of this
product. Replace damaged or worn parts, and never use this product with a damaged part.
6. Do NOT roll the product on an uneven surface. Only move the product on a smooth
surface. Rolling over rough or uneven surfaces may cause casters to break or items on the
product to fall, resulting in injury and / or damage. Wood and laminate flooring can be
scratched or dented. Ensure your flooring can bear the weight of loaded product before
rolling loaded product across your flooring.
7. Do NOT overload the product. Below capacity is based on evenly distributed weight.
Weight capacity per Shelf on Feet Levelers 500 lb
Weight capacity per Basket on Feet Levelers 200 lb
Weight capacity per Shelf on Casters 150 lb
Weight capacity per Basket on Casters 100 lb
Total weight capacity of Shelving Rack 1600 lb (on Feet Levelers) / 600 lb (on Casters)
8. Load the product evenly and place the heaviest items on the lower shelves.
9. Always lock the locking casters when not moving the product.
10. Do NOT allow children to climb or play around the product. Tipping may occur causing
injury.
CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•The product is designed for indoor use.
© 2023 TRINITY - 800.985.5506 8

PRODUCT REGISTRATION
Thank you for purchasing a TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Dividers. In order to
register your product and receive streamlined customer service, please fill out the following Product
Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form
online at www.trinityii.com or (3) scan and email the form to [e-mail]. Include a
copy of your original receipt with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
9© 2023 TRINITY - 800.985.5506

1 YEAR LIMITED WARRANTY
TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Dividers
Model # TBFZ-0959 / TBFPBK-0959
Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the
TRINITY 5-Tier NSF Wire Shelving w/ Baskets & Dividers (“Product”) that each Product shall be free from
defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s
obligation under this warranty shall be limited to repair or replacement of, or adequate compensation for the
Product which shall not be greater than the amount of the purchase price of the Product, at the option of
Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must
be returned to Trinity.
This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising
from any of the following: negligent use or misuse of the Product, use contrary to this User’s Manual, or
alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by
the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is
limited in duration to one year from the date of purchase and is subject to the same conditions and
limitations as is provided for our express warranty.
Except as set forth herein, and to the extent of applicable there are no warranties on this Product either
express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of
merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any
person, firm, or corporation with respect to this product shall be binding on Trinity.
If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-
free at [phone], between 5:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased,
the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must
accompany your service request.
LIMITATION OF REMEDIES AND LIABILITY
Trinity (and its employees, officers, members, managers, affiliates and assigns) shall not be liable for any
incidental, consequential, special, indirect, remote, special or punitive damages for breach of any warranty,
express or implied, including, but not limited to, lost profits, lost savings, loss of anticipated benefits and
attorneys’ fees, which arise out of the purchase, use or inability to use the Product, whether arising out of
contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As
noted above, to the extent damages are allowed by our express warranty or by applicable law, those
damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser
assumes all risk and liability for loss, damage or injury to Purchaser and Purchaser’s property and to others
and their property arising out of the use, misuse, or inability to use this Product. This limited warranty shall
not extend to anyone other than the original purchaser of this product, is nontransferable and states your
exclusive remedy.
Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive
damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific
legal rights, and you may have other rights which vary from state to state.
© 2023 TRINITY - 800.985.5506 10

CONTACT US
QUESTIONS? NEED PARTS?
WE ARE HERE TO HELP!
Please feel free to contact us. There are no questions too small, or
any problems too big. We’re committed to providing our customers
with the highest level of service.
TRINITY Customer Service
TEL: [phone]
FAX: [phone]
EMAIL: [e-mail]
Monday through Friday
5:00 AM –5:00 PM (PST)
www.trinityii.com
