Trixie Natura 55964 User manual

Item No.
55964
natura Chicken hutch
Pos. No. Description Measurement Quantity Item No.
Pos. 1
Upper front panel 673 × 472 × 25 mm 1 55964-10
Pos. 2
Upper back panel 673 × 517 × 25 mm 1 55964-20
Pos. 3
Bottom panel, front/back 673 × 523 × 25 mm 2 55964-11
Pos. 4
Left side panel 986 × 716 × 25 mm 1 55964-50
Pos. 5
Right side panel 986 × 716 × 25 mm 1 55964-51
Pos. 6
Drawer with metal inlay 670 × 40 × 498 mm 1 55964-70
Pos. 7
Middle floor, backside 670 × 13 × 191 mm 1 55964-71
Pos. 8
Bottom panel for nest box 287 × 26 × 543 mm 1 55964-43
Pos. 9
Left panel, nest box 30 × 306 × 300 mm 1 55964-40
Pos. 10
Right panel, nest box 30 × 306 × 300 mm 1 55964-41
Pos. 11
Back panel, nest box 30 × 280 × 546 mm 1 55961-42
Pos. 12
Roof plate of nesting box 326 × 18 × 636 mm 1 55961-44
Pos. 13
Middle partition wall, nest box 288 × 248 × 5 mm 1 55964-45
Pos. 14
Roof ridge 69 × 45 × 792 mm 1 55964-92
Pos. 15
Ramp 760 × 20 × 158 mm 1 55694-60
Pos. 16
Roof plate, left 407 × 18 × 766 mm 1 55964-90
Pos. 17
Roof plate, right 407 × 18 × 766 mm 1 55964-91
Pos. 18
Roosting Pole 40 × 40 x 687 mm 1 55964-30
49 × 42 × 31 inch
125 × 107 × 79 cm

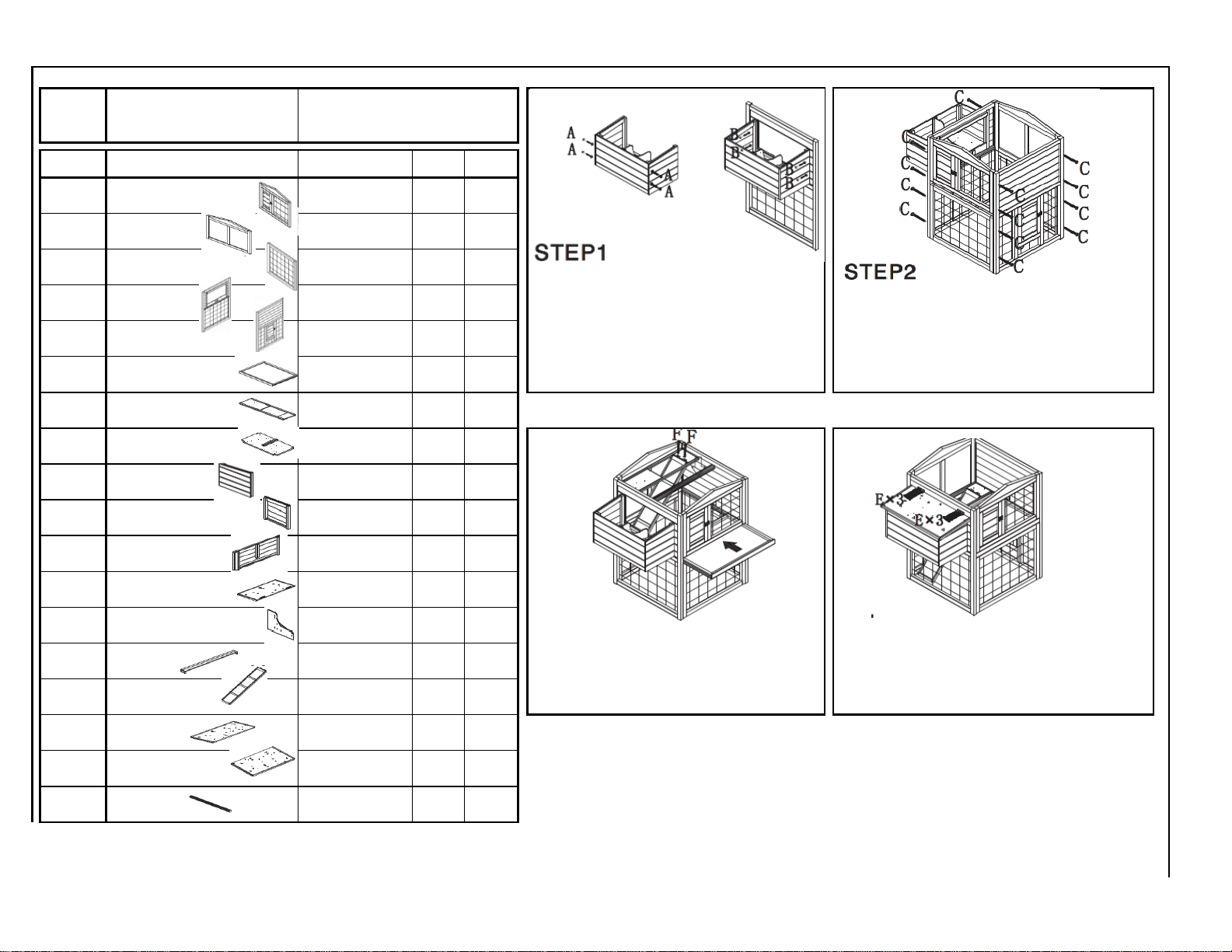

2. Fasten the upper and top front and back panel (1+3/2+3), as
well as the right side
panel (5) of the sleeping house.
3. Put in the ramp (15) and srew it. Insert the drawer (6) and
fasten the roosting pole. (18)
4. Screw the roof plate of the nesting box (12) to the left side
panel.
1. Assemble the nesting box: Connect both side panels
(Pos.9/10) with the back wall (11) and the bottom plate (8).
Insert the partition wall (13). Then connect the left side panel
of the coop (4) with the nesting box
180613 TRIXIE Heimtierbedarf GmbH & Co. KG 81860

A M6 × 60 5
B M6 × 45 5
C M4 × 50 17
D M4 × 25 4
E M3 × 16 49
F M3 × 12 3
Check strap, right
Check strap, left 1 2
6. Screw both roof plates (16/17).
Final Step. Screw roof ridge (14).
7. Screw left and right check strap for folding roof.
Carriage bolt with nut
Countersunk screw
Small parts
5. Screw the left check strap (I) with the roof of the nesting
box.
