Trojan 5 MINUTE SHAPER PLANK User manual
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS INTHIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Visit facebook.com/Trojanhealth
www.Trojanhealth.co.za
5 MINUTE SHAPER PLANK
USER MANUAL
TM
USER MANUAL
212505
index
312505
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa.
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam.This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each
session by cooling down and stretching.
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep
children away from all equipment.
• Parents or others supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for
outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely.
It is recommended that there should be at least 1 m of space around the equipment where access is
required to exercise.
412505
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by one person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.
INSPECTION
• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan
• equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason.They contain important
information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your Trojan
equipment.
• Before any use, examine all accessories approved for use with theTrojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the equipment
yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all Trojan
equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan 5 Minute Shaper Plank may not be used by persons weighing more than 100 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
512505
Thank you for choosing the Trojan 5 Minute Shaper Plank.We take great pride in producing this
product and hope it will provide many hours of quality exercise to make you feel better, look
better and enjoy life to its fullest.Yes, it’s a proven fact that a regular exercise program can improve
your physical and mental health.Too often, our busy lifestyles limit our time and opportunity to
exercise.The Trojan 5 Minute Shaper Plank provides a convenient and simple method to begin
your assault on getting your body in shape and achieving a healthier lifestyle. Before reading
further, please review the drawing below and familiarise yourself with the parts that are labelled.
Read this manual carefully before using the Trojan 5 Minute Shaper Plank.
Functions: Time / Count / Calories / Scan
Settings: 4 intensity levels
Set-up size (mm): 1800 (l) x 840 (w) x 1415 (h)
User weight: 100 kg (maximum)
Foam A
Console
Handle bar
Rear support tube
End cap
Foam B
Intensity adjustment
Front main frame
612505
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be required for assembly.
712505
812505
912505
INSTRUCTIONS FOR ASSEMBLY
• Unpack the carton and using the parts list check that all parts are accounted for.
• Do not dispose of the packaging material until assembly is completed.
• Tools are provided for use in assembly.
1

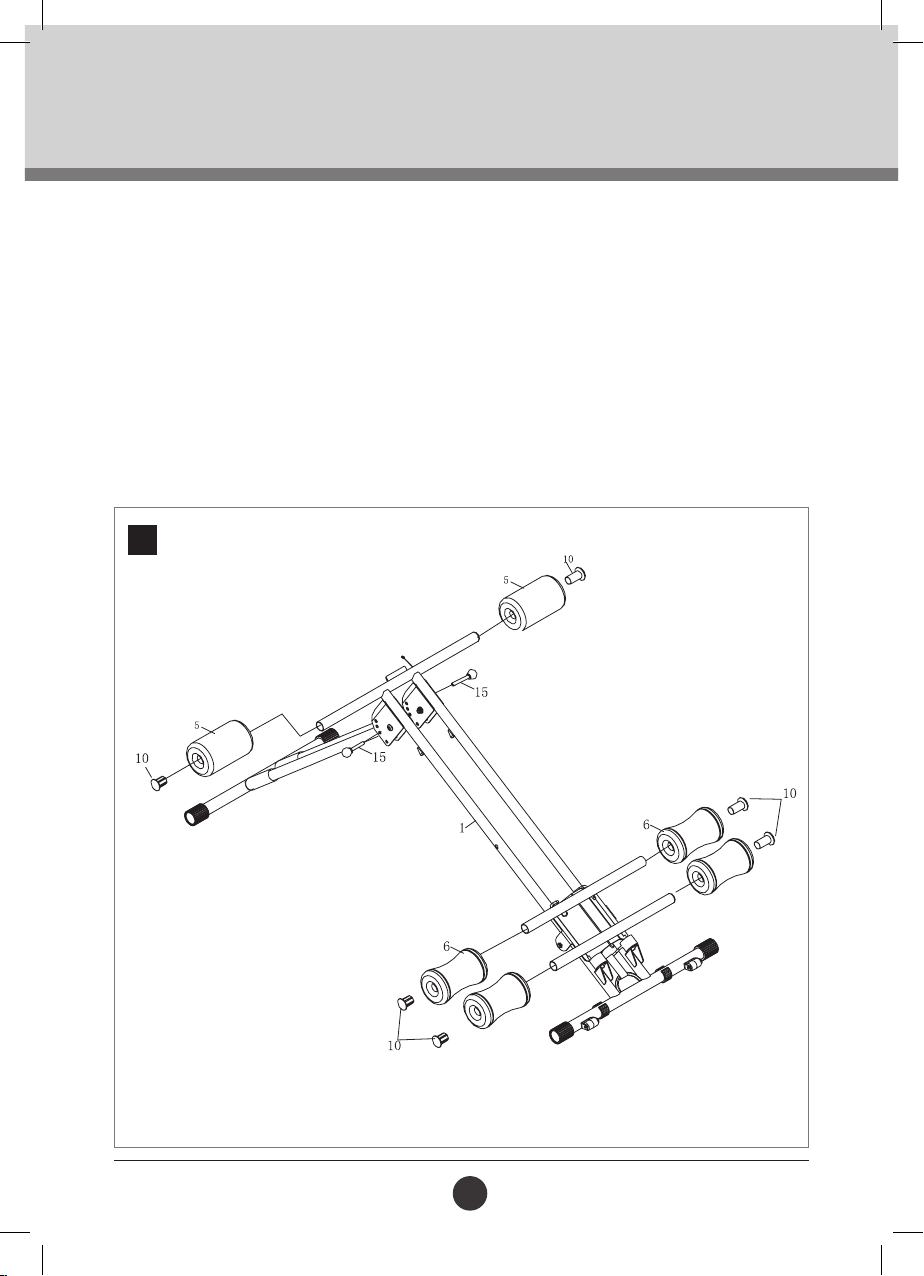

STEP 1:
•Openthe5MinuteShaperPlank,theninsertthePins(15)intotheholesoftheFrontMainFrame(1)
at your desired height setting.
•InsertFoamA(5)ontoeithersideoftheFrontMainFrame(01),theninsertthetwoRoundEnd
Caps (10).
•SlidethefourFoamB’s(6)ontheendsoftheFrontMainFrame(1).
Note: If it is difcult to slide on the foam, a little soapy water can be applied to the tube.
10 12505
STEP 2:
•AttachtheHandleBar(04)totheFrontMainFrame(01)withaCurvedWasher(29),
AllenBolt(22)andSpringWasher(42).
•TightenAllenBolt(22)withtheprovidedAllenKey.
2
11 12505
3
STEP 3:
•SlidetheConsole(12)intotheHandleBar(04).
•ConnecttheUpperConsoleWire(17)totheLowerConsoleWire(19).
12 12505
4
STEP 4:
•AttachtheHandleBarCover(31)tothehandlebar(04).
•AttachtheBigCover(30)totheFrontMainFrame(01)andtightenwiththetwoprovided
screws(35).
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
Recheck
All bolts and nuts are
tightened securely
before using the machine
31
30
31
13 12505
HOW TO FOLD THE 5 MINUTE SHAPER PLANK
A) Pull out the pin (15), fold the 5 Minute Shaper plank as indicated in gure A and gure B,
then insert the pin (15).
B)AttachSlideTube(03)ontobottomofFrontMainFrame(01)withtheVelcro(07)
as indicated gure C.
A
B
C
14 12505
SPECIFICATIONS:
KEY FUNCTION
MODE:
To select your desired function, push the Mode Button.
RESET:
Toresetallvalues,holdtheResetButtonfor4seconds.
OPERATION PROCEDURES
AUTO ON/OFF:
TheConsolewillturnoffautomaticallyafter4minutes.
To turn on the Console, press the Mode Button or begin exercising.
FUNCTION
TIME (TMR):
This setting will provide the duration of the workout.
COUNT (CNT):
This setting will count the number of repetitions being down during the workout.
CALORIES (CAL):
This setting will provided the amount of calories burnt during the workout.
SCAN:
This setting will automatically scan through each of the functions TIME > CNT > CAL.
BATTERY:
This computer takes two AA batteries. Should you not be getting a clear readout, replace the batteries.
NOTE:TheConsolewillenterintopowersavingmodeshouldthepedalsnotbeusedfor4minutes.
All the settings and exercise data will be stored until used again.
15
CLEANING
The Trojan 5 Minute Shaper Plank can be cleaned with a soft cloth and mild detergent. Do not use
abrasives or solvents on plastic parts. Please wipe your perspiration off the Trojan 5 Minute Shaper
Plank after each use. Be careful not to get excessive moisture on the computer display panel as this
might cause an electrical hazard or electronics to fail.
Please keep the Trojan 5 Minute Shaper Plank, especially the Console, out of direct sunlight to
prevent screen damage.
Please inspect all assembly bolts and pedals on the machine for proper tightness before use.
STORAGE
Store the Trojan 5 Minute Shaper Plank in a clean and dry environment away from children.
TROUBLESHOOTING
PROBLEM SOLUTION
16
Tr apezius
Posterior
Tricep
Latissimus Dorsi
Gluteals
Hamstrings
Gastrocnemius
Tr apezius
Anterior
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Sartorius
Quadriceps
Tibialis
Trojan and the Heart and Stroke Foundation have joined forces to KEEP SOUTH AFRICA MOVING.
The Heart and Stroke Foundation South Africa encourages all South Africans to make heart-healthy choices
that include daily physical activity, exercise and a balanced diet. Use Trojan, SA’s No. 1 selling Home Fitness
brand to give you the ability to boost your tness level and lower your risk of cardiovascular disease.
Visit www.trojanhealth.co.za for equipment choices and exercise programs, and
www.heartfoundation.co.za for information on how to adopt a healthy lifestyle.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic
exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic exercise
tness is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).Your heart
beats quickly and you breathe deeply. An aerobic exercise should form part of your entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process.Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.

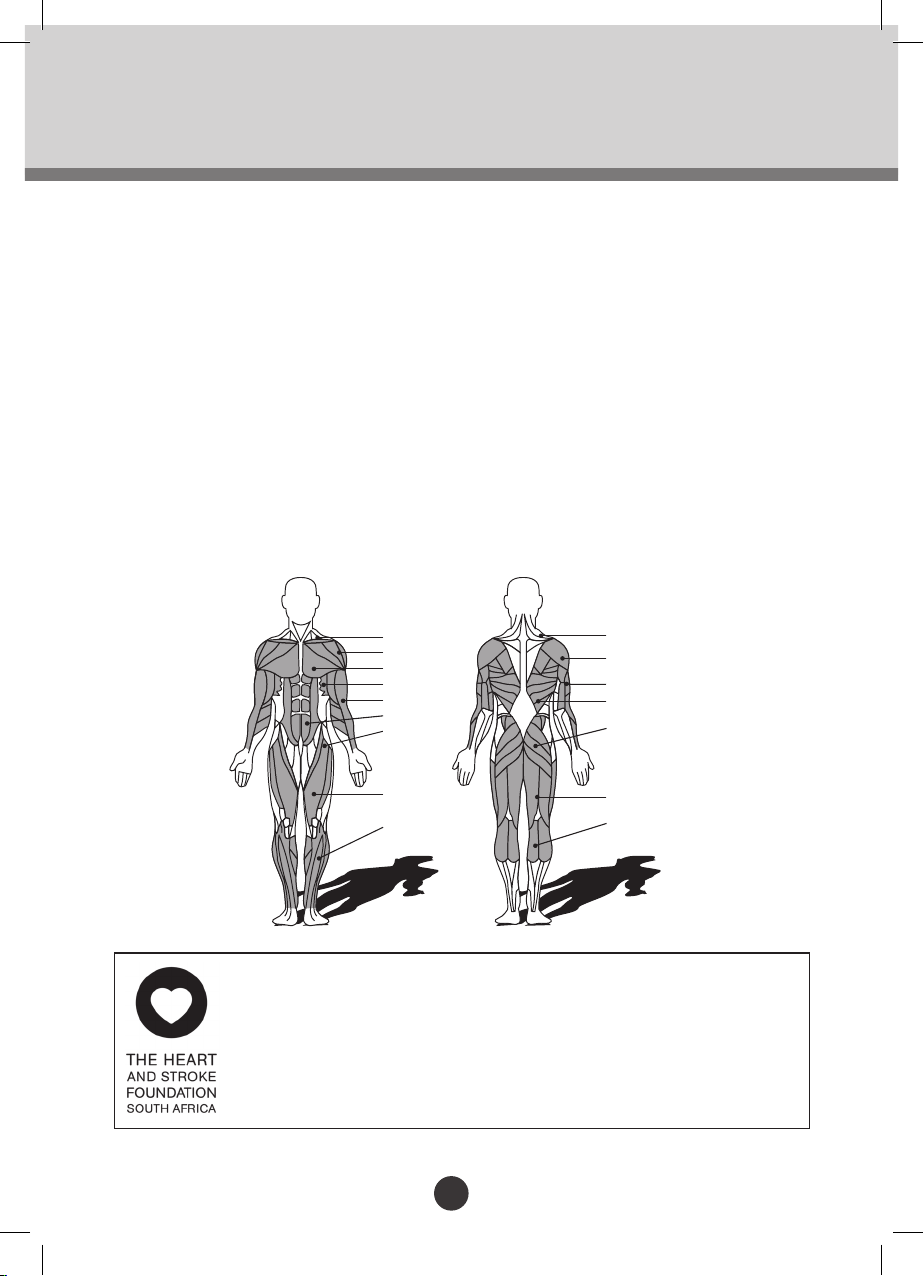

MUSCLE CHART
Trojan 5 Minute Shaper Plank
The exercise routine that is performed on the Trojan 5 Minute Shaper Plank will develop the full body
muscle group as well as condition the circulatory system and provide a good aerobic workout.These muscle
groups are highlighted on the muscle chart below.
17
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years, or are severely overweight, you must start slowly and increase your time on the equipment, a
few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic tness
will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work
atyourownpace.Ultimately,you’llbeabletoexercisecontinuouslyfor30minutes.Thebetteryouraerobic
tness, the harder you will have to work to stay in your target zone. Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you
should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Monitor your pulse frequently.
• Establish your target heart rate based on your age and condition.
EXERCISE INTENSITY
To maximise the benets of exercising, it is important to
exercise with the proper intensity. The proper intensity
level can be found by using your heart rate as a guide.
For effective aerobic exercise, your heart rate should
be maintained at a level between 65% and 85% of your
maximum heart rate as you exercise.This is known as your
target zone.You can nd your target zone in the table below.
During the rst few months of your exercise program, keep
your heart rate near the low end of your target zone as
you exercise. After a few months, your heart rate can be
increased gradually until it is near the middle of your target
zone as you exercise.
To measure your heart rate, stop exercising but continue
moving your legs or walking around and place two ngers
on your wrist. Take a six second heartbeat count and
multiply the results by 10 to nd your heart rate. For
example, if your six second heartbeat count is 14, your
heartrateis140beatsperminute.(Asixsecondcountis
used because your heart rate will drop rapidly when you
stop exercising).
Adjust the intensity of your exercise until your heart rate is
at the proper level.
For more information visit:
www.trojanhealth.co.za
18
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch, hold the position and never bounce.
1.Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, and
thenrelax.Repeat3times.
Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts, and
thenrelax.Repeat3timesforeachleg.
Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
at on the oor. Bend your front leg, lean forward and move your
hipstowardthewall.Holdfor15counts,andthenrelax.Repeat3
times for each leg. To cause further stretching of the Achilles ten-
dons, bend your back leg as well.
Stretches: Calves,Achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocksaspossible.Holdfor15counts,thenrelax.Repeat3times
for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts,andthenrelax.Repeat3times.
Stretches: Quadriceps and hip muscles.
1
2
3
4
5
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up: 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart
rate, and circulation in preparation for exercise.
Training zone exercise:20to30minutesofexercisingwithyourheartrateinyourtrainingzone.(Note:Duringtherst
fewweeksofyourexerciseprogram,donotkeepyourheartrateinyourtrainingzoneforlongerthan20minutes).
Cool-down: 5 to 10 minutes of stretching. This will increase the exibility of your muscles and will help to prevent post-
exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts. After
a few months of regular exercise, you may complete up to ve workouts each week, if desired. Remember, the key to success
is to make exercise a regular and enjoyable part of your everyday life.
19 12505
5 MINUTE WORKOUT
It combines an ab and toning workout to quickly burn fat and sculpt your body. Just 5 minutes a day, you can achieve chiselled
abs, sculpted underarms, sexy buns and slender legs.This simple movement works your entire body; your back, abs, buns, legs
and arms.There are four levels with different angles to choose from: Beginner, Intermediate, Advanced and Intense.
Just 5 minutes a day to get rid of unwanted fat and achieve the body shape you’ve always wanted!
STEP: 1
Hold on to the Handle bars and place your knees in between the two bottom rollers.
STEP: 2
Pull your knees up to your chest and then down again.This is counted as one repetition.
Do as many repetitions as you can in 5 minutes.
20 12505
The Manufacturer hereby provides a warranty to the original purchaser of this product (‘the Consumer’) that this product
will be free of manufacturing defects in materials and workmanship which under normal, personal, family or household use
(commercial use expressly excluded) manifest themselves within the 1 year from the date of purchase.
EXCLUSIONS
•Thewarrantydoesnotincludeandwillnotbeconstruedtocoverproductsdamagedasaresultofdisaster,misuse,
commercial use, use not in accordance within the written instructions included with the product, abuse and/or any
non-authorised modication of the product, incorrect installation of the product or normal wear and tear.
•Alldemomodelscarrya3monthwarranty.
WAIVER
The warranty and the obligations of the manufacturer provided herein are in lieu of, and the consumer, waives all other
warranties, guarantees, conditions or liabilities, express or implied, arising by law or otherwise, including without limitation, any
obligation of the manufacturer in respect of any injury, loss or damage (direct, indirect or consequential) arising out of the use
of, or inability to use this product and whether or not occasioned by the manufacturer’s negligence or any act or omission on
its part.
PROOF OF PURCHASE
Any claim in terms of the warranty must be supported by a proof of purchase or a warranty number. Warranty numbers can
beissuedthroughcontactingourTrojanCallCentreon0861TROJAN (0861876526)oronlineatwww.Trojanhealth.co.za.
If such proof is not available, then notwithstanding anything to the contrary herein, the service agent’s prevailing charges for
services/repairs including call-out and/or spares will be payable by the Consumer upon collection or delivery of the repaired
product.
The Consumer does not need to return the product to the store.The Consumer should call the Trojan Call Centre on
0861TROJAN (0861876526)andtheManufacturer’sauthorisedagentwillatitsdiscretioneitherrepairtheitematthe
Consumer’s residence or collect and repair the item at their premises.
During the warranty period the product may only be serviced and/or repaired by the Manufacturer’s duly authorised agent(s).
Table of contents
Other Trojan Fitness Equipment manuals
Trojan
Trojan CHALLENGER 140 User manual
Trojan
Trojan TR60FTS User manual
Trojan
Trojan Ladies Aerobic Pump Set User manual
Trojan
Trojan CAMBRIDGE 300 Installation guide
Trojan
Trojan LPHS-900X User manual
Trojan
Trojan TRFIDB350 User manual
Trojan
Trojan Colorado 370 User manual
Trojan
Trojan TONING TUBE Installation guide
Trojan
Trojan DELTA 300 Installation guide
Trojan
Trojan MEDICINE BALL User manual
Trojan
Trojan BODY CHAMP 355 Installation guide
Trojan
Trojan ELITE GYM 1.0 User manual
Trojan
Trojan TRHGLPCX9 User manual
Trojan
Trojan Vibration Step 100 Installation guide
Trojan
Trojan TRFPR90GTX User manual
Trojan
Trojan POWER VIBE 255 Installation guide
Trojan
Trojan 40 KG WEIGHT TRAINING SET User manual
Trojan
Trojan POWER RACK User manual
Trojan
Trojan 20 KG ADJUSTABLE DUMBBELL SET User manual
Trojan
Trojan VISION 360 User manual
Popular Fitness Equipment manuals by other brands
Sole Fitness
Sole Fitness SR260 SRVO owner's manual
NordicTrack
NordicTrack NTSA03990 user manual
BH FITNESS
BH FITNESS G505 Instructions for assembly and use
Crivit
Crivit Z31742A Assembly, operating and safety instructions
CYBEX
CYBEX Plate Loaded Incline Press Owner's and service manual
Balanced Body
Balanced Body Konnector Installing
Kettler
Kettler RO1028-100 Assembly instructions
Domyos
Domyos BI 460 operating instructions
MX-Select
MX-Select MX80 owner's manual
Sunny Health & Fitness
Sunny Health & Fitness SF-E804 manual
ParaBody
ParaBody 875101 Assembly instruction sheet
BH FITNESS
BH FITNESS Duke Magnetic Instructions for assembly and use
Pepita
Pepita SmileHome SH-0010 Instructions for use
Taurus
Taurus Elite TF-PTT0266 Assembly instructions
Keys Fitness
Keys Fitness STRENGTH TRAINER ST-45 owner's manual
Jula
Jula 951-144 User instructions
MAYHEM STRENGTH
MAYHEM STRENGTH ISO Lateral Row Assembly instructions
Insportline
Insportline IN 12075 user manual
