Trojan MARATHON 210 Installation guide

TREADMILL CARE INSTRUCTIONS
AND ASSEMBLY MANUAL
MARATHON 210
TREADMILL
TROJAN
MY SPACE MY TIME
®
#1
HOME
FITNESS
SOUTH AFRICA’S
SINCE
1981
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT
KEEP THIS MANUAL FOR
FUTURE REFERENCE
1 YEAR
warranty
CALL
0861 876526
0861TROJA N

INDEX PAGE
1. SAFETY INSTRUCTIONS 3
2. PRE ASSEMBLY CHECK LIST 4
3. HARDWARE LIST 5
4. ASSEMBLY STEPS 6
5. FOLDING INSTRUCTIONS 9
6. MAINTENANCE 10
7. GROUNDING INSTRUCTIONS 11
8. COMPUTER FUNCTIONS 12
9. FITNESS TIPS & TECHNIQUES 15
10. CONDITIONING GUIDELINES 16
11. WARM -UP AND COOL-DOWN 17
12. FREQUENTLY ASKED QUESTIONS 18
13. PARTS LIST 19
14. EXPLODED DRAWING 21
15. TROJAN 1YEAR LIMITED WARRANTY 22
16. TROJAN REPAIRS PROCEDURE 24

10106M-3
1. SAFETY INSTRUCTIONS
WARNING :
To reduce the risk of serious injury, read the following safety instructions before using the TROJAN MARATHON 210
TREADMILL
IMPORTANT:THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after
using and before cleaning.
1. Use the TROJAN MARATHON 210 TREADMILL only on a level surface
2. Keep children and pets away from this equipment at all times.
3.The TROJAN MARATHON 210 TREADMILL should not be used by persons weighing more than 100 kgs
4.The TROJAN MARATHON 210 TREADMILL should be used by only one person at a time.
5. Be careful to maintain your balance while using, mounting, dismounting, folding, unfolding or assembling the TROJAN
MARATHON 210 TREADMILL. Loss of balance may result in a fall and serious bodily injury.
6. Use the TROJAN MARATHON 210 TREADMILL only as described in the manual.
7. Before using this equipment to exercise, always do stretching exercises to properly warm up.
8. Always make sure all bolts and nuts are tightened prior to each use.
9. If dizziness, nausea, chest pains, or any other abnormal symptoms are experienced while using this equipment, STOP
the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
10. Never leave the TROJAN MARATHON 210 TREADMILL unattended when plugged in. Unplug from the power out-
let when not in use and before removing or replacing parts.
11. Never operate the TROJAN MARATHON 210 TREADMILL if it has a damaged cord or plug, if it is not working
properly, if it has been dropped and damaged, or exposed to water.
12. Do not pull the TROJAN MARATHON 210 TREADMILL by the power supply cord or use the cord as a handle.
Keep cord away from heated surfaces and open ames.
13. Handicapped individuals should have medical approval and close supervision when using theTROJAN MARATHON
210 TREADMILL
14.Always return the TROJAN MARATHON 210 TREADMILL to a slow speed to provide for safe dismount and low
speed restart.
WARNING
Before starting any exercise or conditioning program you should consult with your personal physician to see if you
require a complete physical exam.This is especially important if you are over the age of 35, have never exercised before,
are pregnant, or suffer from any illness.

Consol
Safety Key
Beverage Holder
Hand Pulse
Handgrip Tube
Upright
Running Belt
Incline Adjustor
Main Frame
Locking Pin
Wheel
10106M-4
2. PRE ASSEMBLY CHECK LIST
Thank you for choosing the TROJAN MARATHON 210 treadmill.We take great pride in producing this quality product
and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest.
Yes, it is a proven fact that a regular exercise program can improve your physical and mental health.Too often, our busy
lifestyles limit our time and opportunity to exercise.The TROJAN MARATHON 210 treadmill provides a convenient and
simple method to begin your assault on getting your body in shape and achieving a healthier lifestyle.
Before reading further, please familiarise yourself with the parts that are labelled.
Read this manual carefully before using the TROJAN MARATHON 210 treadmill.

10106M-5
STEP 01

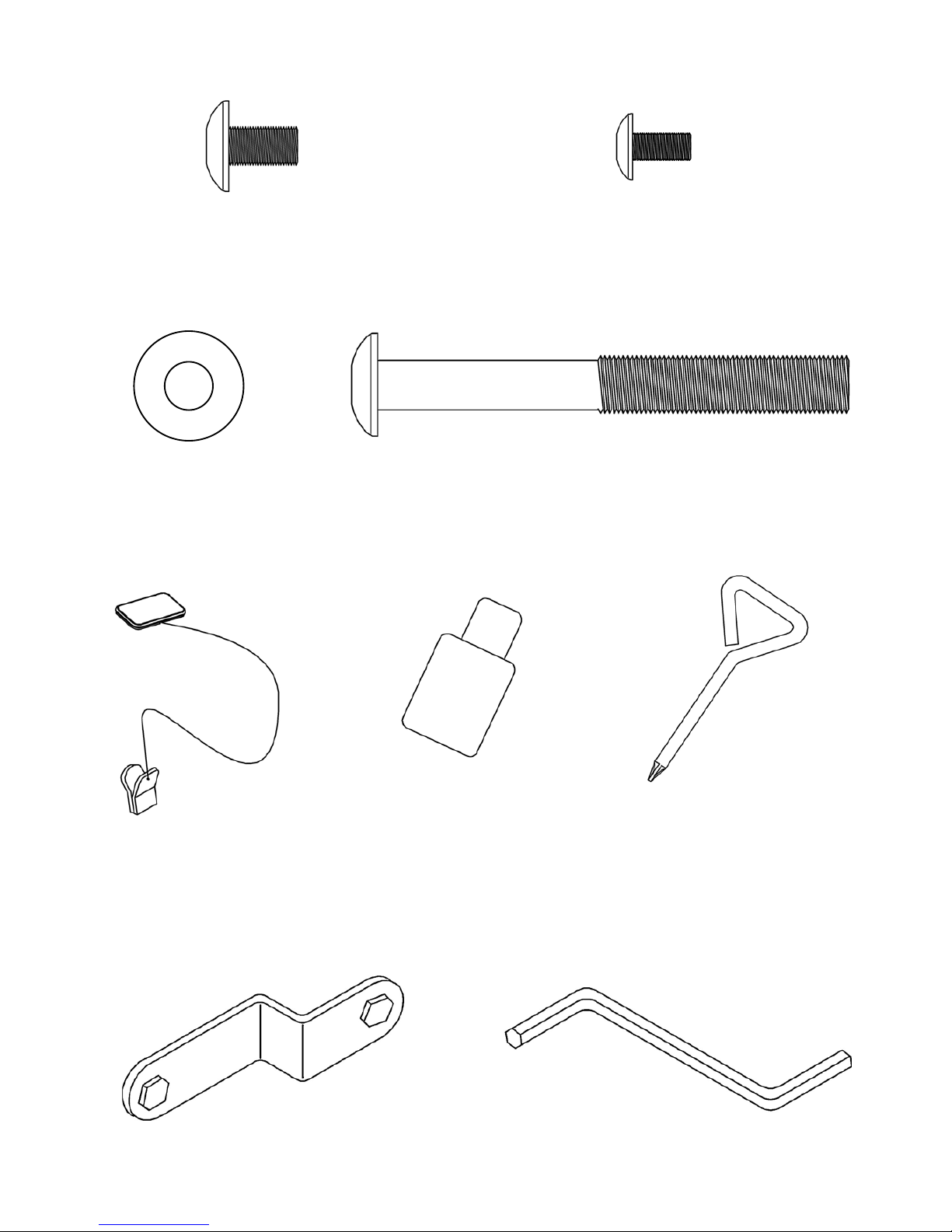

3. HARDWARE LIST
STEP 01
#94. 5/16”x1/2”
Button Head Socket
Screw (4 pcs)
#96. 3/8”x23x1.5T
Curved Washer (4 pcs)
#44. Safety Key (1pc)
#98. 13/14 m/m N
Wrench (1pc)
#72. M5 x10m/m
Phillips Head Screw
(4 pcs)
#95. 3/8”x3-1/4”
Button Head Socket Screw (4 pcs)
#94. 3/8”x 19 x1.5T
#100. Phillips Head
Screw Driver (1pc)
#97. M5/M6 Allen
Wrench (1pc)
#99. Lubricant (1pc)

10106M-6
4. ASSEMBLY STEPS
STEP 01

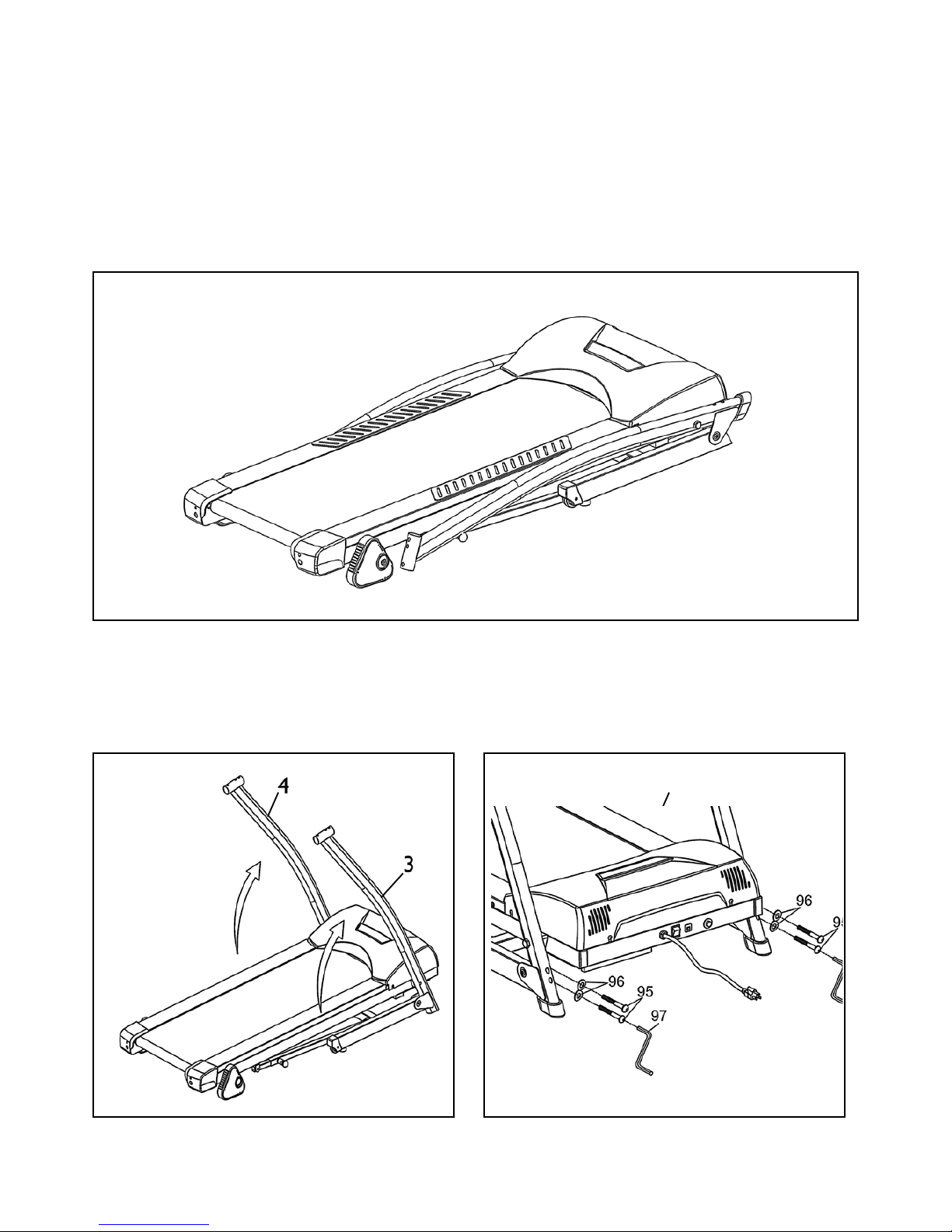

Take the Treadmill out of the carton and lay it on a level oor.
STEP 02
•RaisetheRightandLeftHandrails(3,4).
•SecuretheRightandLeftHandrails(3,4)totheFrameBase(2)withthefour3/8”×3-1/4”ButtonHeadSocket
Screws(95)andfour3/8”×23×1.5TCurvedWashers(96),usingM5/M6AllenWrench(97).

10106M-7
STEP 03
ConnecttheLowerComputerCable(46)andUpperCom-
puterCable(45).
STEP 04
•InserttheConsolSupport(5)intotheRightandLeftHandrails(3,4).
•SecuretheConsolSupport(5)withthefour5/16”×1/2”ButtonHeadSocketScrews(94)andtheM5/M6Allen
Wrench(97).
•Connectthe2HandgripCaps(32)ontothejunctionoftheConsolSupport(5)andtheRightandLeftHandrails
(3,4).
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws

Recheck
all bolts and nuts are
tightened securely
before using the machine
10106M-8
STEP 06
•AttachtheConsolAssembly(20)totheConsolSupport(5),securingthemusingfourM5×15m/mPhillipsHead
Screws(72)andtheShortPhillipsHeadScrewDriver(100).
STEP 05
•ConnecttheUpperComputerCable(45)andHandpulse
Cable(55)intothebottomoftheConsolAssembly(20).
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws

10106M-9
UNFOLDING
Hold the treadmill running board with your left hand.
Pull the locking knob with your right hand and slowly lower the
treadmill running board. Remove your right hand as you slowly lower
the running board to the oor.
(Figure1)
FOLDING
Ensure the incline angle of the treadmill is at its lowest position.
Pull the locking knob until the treadmill running board can be lifted.
Lift the treadmill running board up until locking knob clicks securely
into the hole.
(Figure2and3)
TRANSPORT
Place your right foot onto the right base foot tube.
With two hands holding the left and right handgrip tubes, pull the
treadmill toward you.
You can now easily move the treadmill to the desired position by
pushing it on its wheels.
(Figure4)
5. UNFOLDING / FOLDING / TRANSPORT

10106M-10

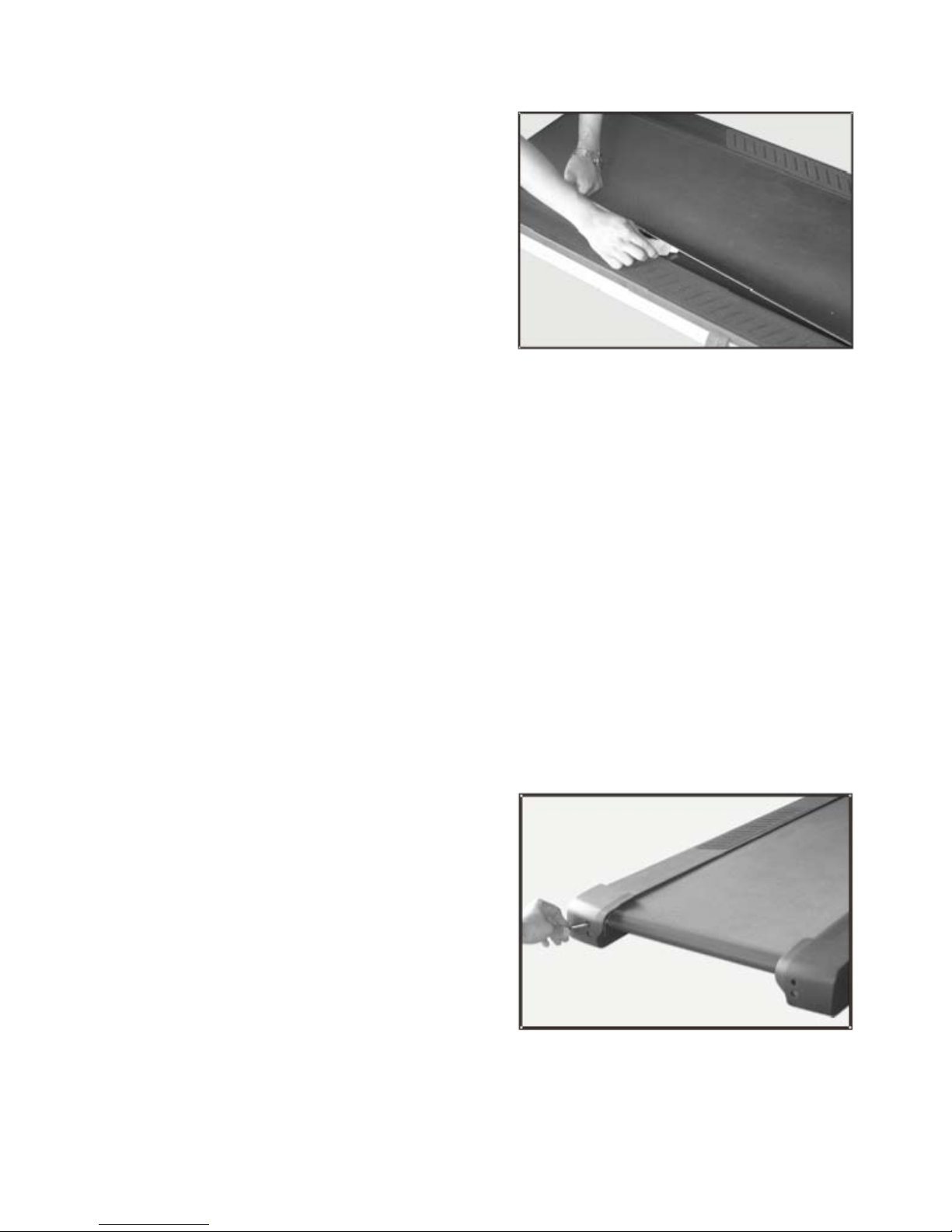

HOW TO APPLY LUBRICANT
Lift one side of treadbelt.
Pour one half of the lubricant bottle under the centre of the treadbelt on the top surface of the treadboard.
Walk on the treadmill at a slow speed for 3 to 5 minutes to evenly distribute lubricant.
NOTE: DO NOT over lubricate treadboard. Any excess lubricant that comes out should be wiped off.
NOTE: ONLY USE HALF THE BOTTLE OF LUBRICANT PER APPLICATION
LUBRICATION SCHEDULE.
1. Check the treadboard lubrication during installation. If it’s necessary, lubricate the treadboard, using the full bottle
of lubricant provided, before using the treadmill for the rst time.
2. If the treadmill is used on a regular basis, the running deck should be lubricated once a month.
3. If the treadmill is not used for two months or more, the treadmill must be lubricated before use.
6. MAINTENANCE
Your treadmill should require little maintenance other then
periodically applying lubricant. Lubricating under the treadbelt
will ensure superior performance and extend the treadmill’s
life expectancy.
HOW TO CHECK TREADBELT FOR PROPER
LUBRICATION
Lift one side of the treadbelt and feel the top surface of the
treadboard.
If the surface is slick to the touch, then no further lubrication
is required.
If the surface is dry to the touch, apply one packet of lubri-
cant or half of the bottle of lubricant.
BELT TRACKING ADJUSTMENT
If during use you notice that the running belt either shifts to
therightortheleftofcenter,rstremove“SafetyKey”and
unplug equipment from AC power source. Using M6 Allen
wrench provided, turn left rear roller adjustment clockwise
nomorethe1/4”ofaturn.RemoveM6Allenwrench,insert
“SafetyKey”andinsertACpowercordintoACoutlet.Turn
on your treadmill and observe after running for a few min-
utes to see if the problem has been corrected.This may take
several adjustments, so repeat the above procedure.

10106M-11
7. GROUNDING INSTRUCTIONS
This product must be grounded. If malfunction or breakdown occurs, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER - improper connection of the equiment-grounding conductor can result in a risk of electric shock. Check with
a qualied electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product - if it will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 220-240-volt circuit and has a grounding plug that looks like the plug illustrated in
the gure. Make sure that the product is connected to an outlet having the same conguration as the plug. No adaptor
should be used with this product.

10106M-12

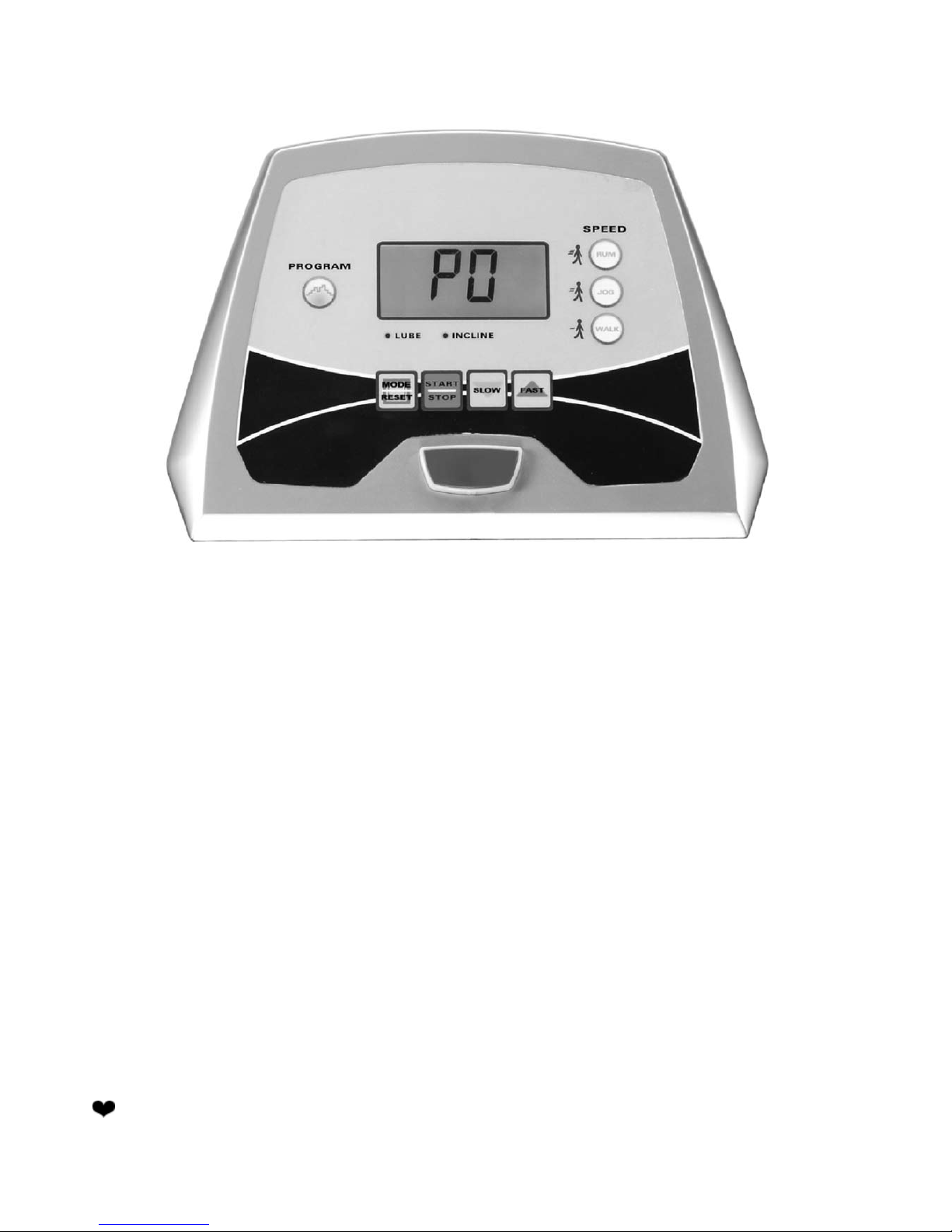

8. COMPUTER FUNCTIONS
INITIAL DISPLAY:
When the power is turned on, the main window will light up and show all consol parameters.Thereafter it will show the
currentsoftwareversion,howmanyminutesorhowmanyKilometers(ormilesifthetreadmillissettometricreadings)
the treadmill has been in use for.This data will be displayed for 2 seconds above each parameter. Now the treadmill will
entertheidlemodeanddisplayprogramP0(Manual),whichisthestartingpointforoperation.
Note:Ifthedisplayshows“LUBE”onthescreen(ashes5times),youneedtoaddlubricanttotherunningdeck.
WINDOW DISPLAY;
SCAN:Each parameter’s exercising data will be displayed for 6 seconds, one after the other.
SPEED: Displaysthecurrentrunningspeedfrom1.0Km/h-13.0Km/h.
TIME: Accumulates total workout time from 00:00 to 99:59.
DISTANCE: Accumulates total workout distance from 0.00 to 99.99Km.
CALORIES: Accumulates the user’s calorie consumption during exercise. Maximum value is 999.9 calories.
Note:This is only a rough guide used for comparison of different exercise sessions, but cannot be used for medical
purposes.
STOP: When the symbol is shown on the screen, the treadmill has stopped.
SYMBOL: Displaysyourcurrentheartrateinbeatsperminute(40to220)duringworkout.

10106M-13
8. COMPUTER FUNCTIONS
FUNCTIONS
PROGRAM Press“PROGRAM”buttontochoosetrainingmode,thatincludesManual(P0)andpreset
programs(P1~P5).
MODE/RESET Press“MODE”buttontosettheparameterofthecountdown.Pressandholdthis
button for 3 seconds to reset all data.
START/STOP Press“START/STOP”buttontostartorstoptraining.
FAST Press“FAST’buttontoincreaseyourspeed,eachincrementis0.1Km/h.
SLOW Press“SLOW”buttontodecreaseyourspeed,eachdecrementis0.1Km/h.
SAFETY KEY
Attach the safety key in its position in order to power on the computer.When the
safety key is pulled away from its position, the computer, and treadmill, will shut down
automatically.
QUICK-START OPERATION:
STEP 1: AttachtheSafetykeytoactivatethedisplay(ifnotalreadyon).Themainwindowwillshowinitial
  displaysettings.Beforetraining,youcanentersettingsforthecomputertocountdownto(SeeSTEP7).
STEP 2: PresstheSTART/STOPbuttontobeginbeltmovement.TheConsolwillstarta3secondsnalcount
  downandabeepwillsoundoutforshorttime.UsetheFast/Slowspeedkeys(onConsol)toadjust
to the desired speed at any time during training.
STEP 3: Press MODE button to see the value of the parameter which includes speed, time, distance, calories,
and scan mode. If you choose the scan mode, the consol will display the value of all parameters every
5 seconds, one at a time.
STEP 4: Whiletraining,youcanpresstheSTART/STOPbuttontostopyourworkoutorpullthesafetykeyaway
from its position to shut down the computer. If you want to resume your workout, you can press
  START/STOPbuttonagainandallpreviousdatawillresumecounting(ensurethesafetykeyisbackin
  place).
STEP 5: After training, you can press the MODE button to display the accumulated data for speed, time, distance
and calories that were recorded during training.
STEP 6: In pause or stop mode, if you press the MODE button for 3 seconds this will erase all accumulated data
and revert back to the idle mode.
STEP 7: Beforetraining,presstheMODEbuttontoentercountdownsettingforTime,(rangeisfrom10:00
  to99:00),Distance(rangeisfrom0.1to99.9)orCalories(rangeisfrom0.0to999.9).During
  setting,youcouldpressFAST/SLOWtoadjustthevalueorpressMODEbuttontoenternextstep
  whetheryouhavepresetvaluesornot.Whenyousetsingleormulti-parameters,pressSTART/STOP
  buttontoexecutethesetting.(Thecomputerwillonlyconrmthelastparametertoexecute).Ifyou
  wanttoresumeyourworkout,pressSTART/STOPbuttontostartthetreadmillthenallparameterswill
count up.

10106M-14
8. COMPUTER FUNCTIONS: PRESET PROGRAMMES
**¬The unit of the speed is pre-programmed with km.

10106M-15
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise
improves the tness of your lungs and heart - your body’s most important muscle. Aerobic exercise tness is promoted
byanyactivitythatusesyourlargemuscles(arms,legs,orbuttock,forexample).Yourheartbeatsquicklyandyoubreathe
deeply. An aerobic exercise should be part of your entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight train-
ing is an essential part of the exercise routine process.Weight training helps tone, build and strengthen muscle. If you
are working above your target zone, you may want to do a lesser amount of reps. And as always consult your physician
before beginning any exercise program.

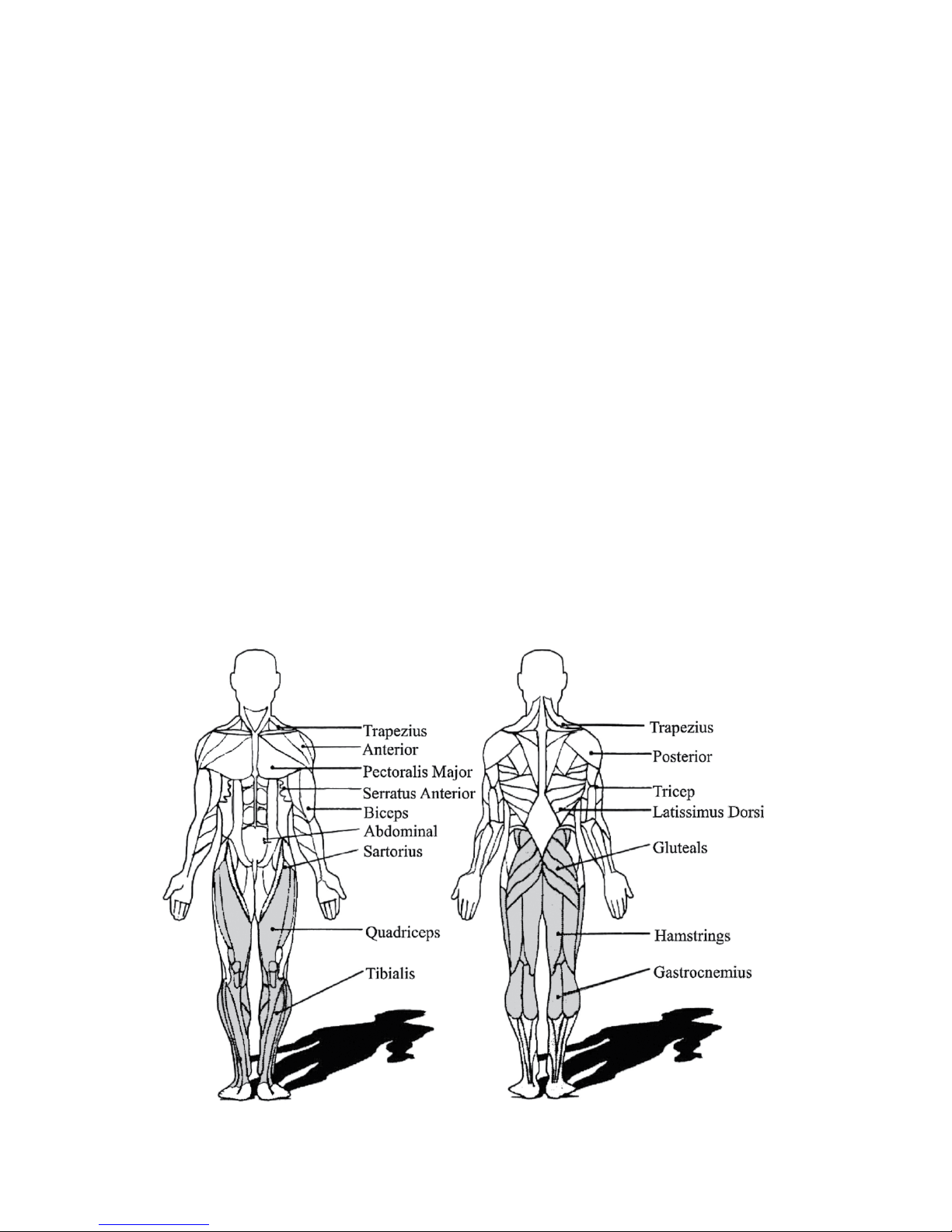

MUSCLE CHART
TREADMILL
The exercise routine that is performed on the treadmill will develop the lower body muscle group as well as condition
the circulatory system and provide a good aerobic workout .These muscle groups are highlighted on the muscle chart
below.
9. FITNESS TIPS AND TECHNIQUES

10. CONDITIONING GUIDELINES
How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or
are severely overweight, you must start slowly and increase your time on the equipment; a few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic tness will improve
over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Ulti-
mately, you’ll be able to exercise continuously for 30 minutes.The better your aerobic tness, the harder you will have to
work to stay in your target zone. Please remember these essentials :
•Haveyourdoctorreviewyourtraininganddietprogramstoadviseyouofaworkoutroutineyoushouldadopt.
•Beginyourtrainingprogramslowlywithrealisticgoalsthathavebeensetbyyouandyourdoctor.
•Monitoryourpulsefrequently.Establishyourtargetheartratebasedonyourageandcondition.
•Setupyourequipmentonaat,evensurfaceatleast3feetfromwallsandfurniture.
EXERCISE INTENSITY

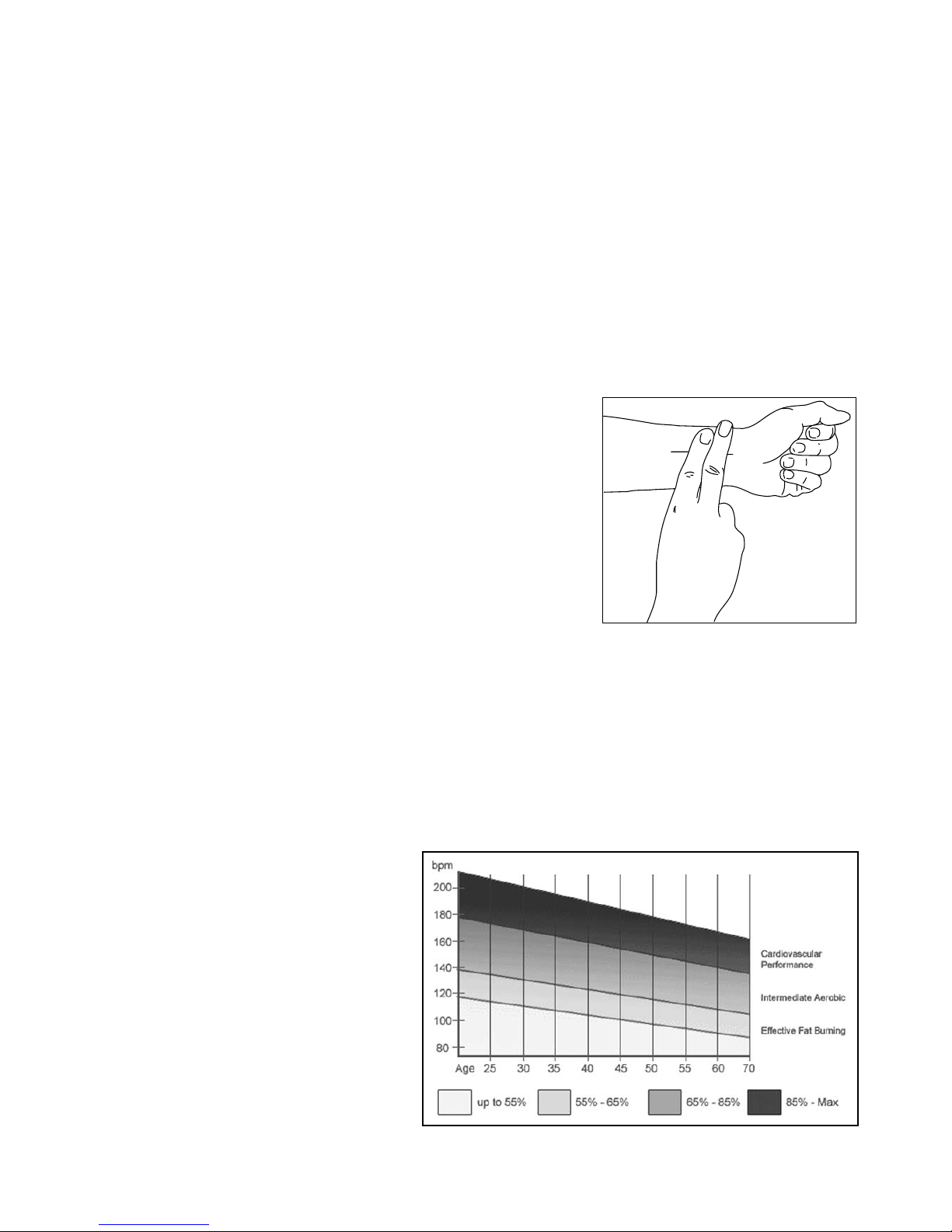

To maximize the benets of exercising, it is important to exercise with the
proper intensity.The proper intensity level can be found by using your heart
rate as a guide. For effective aerobic exercise, your heart rate should be
maintained at a level between 65% and 85% of your maximum heart rate
as you exercise.This is known as your target zone.You can nd your target
zone in the table below.
During the rst few months of your exercise program, keep your heart rate near the low end of your target zone as you
exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your target zone as
you exercise.
To measure your heart rate, stop exercising but continue moving your legs or walking around and place two ngers on
your wrist.Take a six-second heartbeat count and multiply the results by 10 to nd your heart rate. For example, if your
six-secondheartbeatcountis14,yourheartrateis140beatsperminute.(Asix-secondscountisusedbecauseyour
heartratewilldroprapidlywhenyoustopexercising.)
Adjust the intensity of your exercise until your
heart rate is at the proper level.
For more information on dieting and
training visit www.trojanhealth.co.za
10106M-16

1
2
3
4
5
10106M-17
11. WARM-UP AND COOL-DOWN
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body tem-
perature, heart rate, and circulation in preparation for exercise.
Trainingzoneexercise,consistingof20to30minutesofexercisingwithyourheartrateinyourtrainingzone.(Note:
During the rst few weeks of your exercise program, do not keep your heart rate in your training zone for longer than
20minutes.)
A cool-down, with 5 to 10 minutes of stretching.This will increase the exibility of your muscles and will help to prevent
post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts.
After a few months of regular exercise, you may complete up to ve workouts each week, if desired. Remember, the key
to success is make exercise a regular and enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you
stretch, never bounce.
1.Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow
your back and shoulders to relax as you reach down toward your toes as far as pos-
sible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of
knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it
against the inner thigh of your extended leg. Reach toward your toes as far as pos-
sible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Ham-
strings, lower back and groin.
3.Calf/AchillesStretch
With one leg in front of the other, reach forward and place your hands against a
wall. Keep your back leg straight and your back foot at on the oor. Bend your
front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then
relax. Repeat 3 times for each leg.To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your
other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet
toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3
times. Stretches: Quadriceps and hip muscles.
For more information on dieting and training visit www.trojanhealth.co.za

10106M-18
12. FREQUENTLY ASKED QUESTIONS
Q1. My consol is showing LS
1.Treadmill has not received a speed signal for 8 seconds.
2.Turn off computer, unplug, leave for 30 seconds, then restart the treadmill.
3.Iftheerrorpersistspleasecontactourcallcentreon0861876526(0861Trojan)
Q2. My consol is showing E1
1. Memory of the consol is malfunctioning or the CPU is having accessing problems
2.Turn off computer, unplug, leave for 30 seconds, then restart the treadmill.
3.Iftheerrorpersistspleasecontactourcallcentreon0861876526(0861Trojan)
Q3. My computer consol is not working
1. Check that your power cord is in your power outlet and is on.
2. Check that you have a power supply to your home.
3. Ensure that the consol computer cables have been connected properly in the neckpiece when assembling the unit.
Q4.The consol cannot read the hand pulse signal
1. The hand pulse sensors will not operate correctly if your skin is extremely dry. Moisten your hands and try again.
2. Avoid moving your hands while exercising and hold the hands pulse sensors rmly while exercising. If you do
move your hands while exercising, give the computer a few seconds to resample and display your correct heart pulse rate.
3. Clean the hand pulse sensors to ensure good contact between your body and the pulse sensor.
If the error persists, please contact 0861 876 526
Q5. My LCD is dim
1. Check if unit is in direct sunlight, move if neccessary.
If display does not improve, please contact 0861 876 526

10106M-19
13. PARTS LIST
NO. DESCRIPTION QTY
41 Grommet 1
42 Magnet 1
43 Handgrip Foam 2
44 Safety Key 1
45 900mm Computer Cable (Upper) 1
46 1500mm Computer Cable (Lower) 1
47 10cm x 764 x 764 Connecting Wire (Black) 1
48 15cm x 764 x 764 Connecting Wire (White) 1
49 15cm x 764 x 764 Connecting Wire (Black) 1
50 Controller 1
51 Breaker 1
52 AC Switch 1
53 Power Cord 1
54 Handpulse Assembly 2
55 800mm Handpulse Wire, Coiled 1
56 8.5 x 12.7 x25.5L Sleeve 2
57 Sensor W/Cable 1
58 Sensor Rack 1
59 1"×1" Square End Cap 1
60 21.4×21.4 Square End Cap 1
61 1/2" x 3-1/2" Hex Head Screw 2
62 3/8" x 3/4" Hex Head Screw 4
63 3/8"×1-3/4" Hex Head Screw 1
64 3/8"×1-1/2" Hex Head Screw 1
65 M8×60mm Hex Head Screw 1
66 3/8" x 2-1/2" Hex Head Screw 1
67 3/8" x 2" Thumb Head Socket Screw 2
68 5/16" x 1-1/4" Button Head Socket Screw 2
69 5/16" x 1-3/4" Button Head Socket Screw 2
70 1/4" x 75mm Socket Head Cap Screw 2
71 10#(5) x 1-1/4" Tapping Screw 8
72 M5×10mm Phillips Head Screw 4
73 3/8" x 2T Split Washer 4
74 M8×8T Nyloc Nut 1
75 1/2" x 8T Nyloc Nut 2
76 5/16" x 7T Nyloc Nut 2
77 3/8" x 7T Nyloc Nut 4
78 3/8" x 25 x 2T Flat Washer 5
79 5/16" x18 x 1.5T Flat Washer 2
80 1/2" x 26 x 2T Flat Washer 2
81 3/8" x 19 x 1.5T Flat Washer 4
82 5/16" x 35 x 1.5T Flat Washer 2
83 1/4" x 13 x 1.0T Flat Washer 2
84 5 x 16mm Tapping Screw 6
85 5 x 16mm Tapping Screw 21
NO. DESCRIPTION QTY
1 Main Frame 1
2 Frame Base 1
3 Right Handrail 1
4 Left Handrail 1
5 Console Support 1
6 Outer Slide (Lower) 1
7 Inner Slide 1
8 Inclination Adjustor Bar 1
9 Motor Bracket 1
10 Locking Knob Axle 1
11 Belt Guide 2
12 65×29.4×2T Front Iron Sheet 2
13 Motor 1
14 Drive Belt 1
15 Running Board 1
16 Running Belt 1
17 Front Roller W/Pulley 1
18 Rear Roller 1
19 Frame Cover 1
20 Console Assembly 1
20~1 Top Console Cover 1
20~2 Bottom Console Cover 1
20~4 Safety Switch Module W/ Cable 1
20~8 3×10mm Self Tapping Screw 2
20~9 3.5×12mm_Self Tapping Screw 9
21 Top Motor Cover 1
22 Top Motor Cover Plate 1
23 Beverage Holder 1
24 Inclination Adjustor Bushing 2
25 Rear Adjustment Base (L) 1
26 Rear Adjustment Base (R) 1
27 Motor Cover Anchor 4
28 Transportation Wheel 2
29 30x60 Transportation Wheel End Cap 2
30 Foot Pad 2
31 Foot Rail 2
32 Handgrip Cap 2
33 25x50 Square End Cap 2
34 Indentation End Cap 2
35 Isolator 2
36 Inclination Adjustor (L) 1
37 Inclination Adjustor (R) 1
38 Wire Protective Rubber 1
39 Non-Slip Rubber (L) 1
40 Non-Slip Rubber (R) 1

10106M-20
13. PARTS LIST
NO. DESCRIPTION QTY
86 6.7 x 25 x 1.0T_Concave Washer 8
87 4 x12mm Self Tapping Screw 16
88 5 mm Raised Washer 2
89 4x38mm Self Tapping Screw 2
90 M8x 12mm Hex Head Screw 2
91 M8 x 1.5T Split Washer 2
92 8.5 × 36 Nylon Cap 2
93 5x19mm Tapping Screw 2
94 5/16"×1/2" Button Head Socket Screw 4
95 3/8"×3-1/4" Button Head Socket Screw 4
96 3/8"×23×1.5T Curved Washer 4
97 M5/ M6 Allen Wrench 1
98 13/14mm N Wrench 1
99 Lubricant 1
100 Short Phillips Head Screw Driver 1
101 3.5×16mm Tapping Screw 5
102 Wire Tie Mount 5
