Trojan MARATHON 220 User manual

USER MANUAL
MARATHON 220
TREADMILL LEG WORKOUT CARDIO
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
www.instagram.com/trojanhealth
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2
INDEX
• Important Safety Instructions ________________________________ 3
• Pre Assembly Check List _____________________________________ 5
• Hardware & Tools List ________________________________________ 6
• Parts List ___________________________________________________ 7
• Exploded Drawing ___________________________________________ 9
• Assembly Steps _____________________________________________ 10
• Console Functions ___________________________________________ 14
• Exercise Instructions ________________________________________ 16
• Fitness Tips & Techniques ____________________________________ 18
• Conditioning Guidelines ______________________________________ 19
• Warm Up & Cool Down _______________________________________ 20
• Maintenance ________________________________________________ 21
• 2 Year Limited Warranty ______________________________________ 23
• Repairs Procedure ___________________________________________ 24

3
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by 1 person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner.
Keep children away from all equipment.
• Parents or other supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Marathon 220 Treadmill may not be used by persons weighing more than 120 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5
PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan Marathon 220 Treadmill. We take great pride in producing this product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.
Too often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Marathon 220 Treadmill
provides a convenient and simple method to begin your assault on getting your body in shape and achieving
a healthier lifestyle. Before reading further, please review the drawing below and familiarise yourself with the
parts that are labelled.
Read this manual carefully before using the Trojan Marathon 220 Treadmill.
Console
Safety Key
Hand Pulse
Locking Pin
Incline
Adjustor
Running Belt
Upright
Programs 12 Pre-set / 1 Manual
Function Speed / Distance / Time / Calories / Scan / Hand pulse
Set-up Size 1525 mm (l) x 715 mm (w) x 1250 mm (h)
Running Deck 1200 mm (l) x 400 mm (w)
User Weight 120 kg (maximum)
Speed 1 - 12 km/h

6
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
#94 Button Head Socket Bolt
(5/16” X 3/4”) (10 PCS)
#79 Flat Washer
(5/16” X 18 x 1.5T) (8 PCS)
#95 Curved Washer
(5/16” X 23 x 1.5T) (2 PCS)
#99 Lubricant
(1 PC)
#44 Safety Key
(1 PC)
#97 Allen Wrench
(M5 / M6) (1 PC)

7
PARTS LIST
No. Description Qty
1 Main Frame 1
2 Frame Base 1
3 Left Upright 1
4 Right Upright 1
5 Console Support 1
6 Outer Slide 1
7 Inner Slide 1
8 Inclination Adjustor Bar 1
9 Wheel Sleeve 2
10 Locking Knob 1
11 Belt Guide 2
12 Motor Bracket 1
13 Motor 1
14 Drive Belt 1
15 Running Deck 1
16 Running Belt 1
17 Front Roller W/Pulley 1
17-1 Magnet 1
18 Rear Roller 1
19 Frame Cover 1
20 Console Assembly 1
20-1 Top Console Cover 1
20-2 Inner Console Cover 1
20-3 Square Magnet Stop Plate 2
20-4 Safety Switch Module W/ Cable (300 mm) 1
20-8 Self Tapping Screw (3 × 10 mm) 2
20-9 Self Tapping Screw (3.5 x 12 mm) 6
21 Top Motor Cover 1
24 Inclination Adjustor Bushing 2
No. Description Qty
25 Rear Adjustment Base (L) 1
26 Rear Adjustment Base (R) 1
27 Motor Cover Anchor 4
28 Transportation Wheel 2
29 Wheel Cover 2
30 Rubber Foot Pad 2
31 Foot Rail 2
32 Rubber Foot 6
33 Square End Cap (Ø25 x 50) 2
34 Rubber Foot Pad 2
35 Isolator 2
36 Inclination Adjustor (L) 1
37 Inclination Adjustor (R) 1
38 Wire Protective Rubber 1
41 Grommet 1
42 Console Cable (Lower) (600 mm) 1
43 Handgrip Foam 2
44 Ellipse Safety Key (800 mm) 1
45 Console Cable (Upper) (800 mm) 1
46 Console Cable (Middle) (1100 mm) 1
47 Connecting Wire (Black) (100 mm x 764 x
764) 1
48 Connecting Wire (White) (150 mm x 764 x
764) 1
49 Connecting Wire (Black) (150 mm x 764 x 764) 1
50 Motor Controller 1
51 Breaker 1
52 On/Off Switch 1
53 Power Cord 1
54 Hand Pulse Assembly 2
55 Hand Pulse Wire (Lower) (400 mm) 2

8
PARTS LIST
No. Description Qty
56 Nylon Washer (Ø10 x Ø25 x 3T) 1
57 Sensor W/Cable (1000 mm) 1
58 Sensor Rack 1
59 Square End Cap (Ø1” × 1”) 1
60 Square End Cap (Ø21.4 × 21.4 mm) 1
61 Hex Head Bolt (1/2” x 98 mm) 2
62 Hex Head Screw (3/8” x 3/4”) 4
63 Hex Head Screw (3/8” × 1-3/4”) 1
64 Hex Head Screw (3/8” × 1-1/2”) 1
65 Hex Head Screw (M8 × 60 mm) 1
66 Hex Head Screw (3/8” x 2-1/2”) 1
68 Button Head Socket Screw (5/16” x 1-1/4”) 2
69 Button Head Socket Screw (5/16” x 1-3/4”) 2
70 Socket Head Cap Screw (1/4” x 60 mm) 2
71 Flat Head Socket Screw (M6 x 20 mm) 6
72 Phillips Head Screw (M5 × 10 mm) 2
73 Split Washer (3/8” x 2T) 4
74 Nyloc Nut (M8 × 8T) 1
75 T Nyloc Nut (1/2” x 8T) 2
76 Nyloc Nut (5/16” x 7T) 2
77 Nyloc Nut (3/8” x 7T) 2
78 Flat Washer (3/8” x 7T) 5
79 Flat Washer (5/16” x 18 x 1.5T) 10
80 Flat Washer (1/2” x 26 x 2T) 2
81 Flat Washer (3/8” x 19 x 1.5T) 2
82 Flat Washer (5/16” x 35 x 1.5T) 2
83 Trapping Screw (5 x 25 mm) 4
84 Tapping Screw (5 x 16 mm) 5
85 Tapping Screw (5 x 16 mm) 18
No. Description Qty
86 Split Washer (M5) 2
87 Sheet Metal Screw (4 x 12 mm) 4
88 Star Washer (5 mm) 2
89 Sheet Metal Screw (4 x 50 mm) 2
90 Hex Head Bolt (M8 x 12 mm) 2
91 Split Washer (M8 x 1.5T) 2
92 Nylon Cap (Ø8.5 × Ø36) 2
93 Tapping Screw (5 x 19 mm) 8
94 Button Head Socket Bolt (5/16” × 1/2”) 10
95 Curved Washer (5/16” x 23 x 1.5T) 2
97 Allen Wrench (M5/M6) 2
98 Combination (M5) Allen Key & Phillips Screw
Driver 1
99 Lubricant 1
100 Rear Roller Cover 2
101 Tapping Screw (3.5 x 16 mm) 6
102 Wire Tie Mount 6
103 Handgrip End Cap 2
105 Flat Head Socket Screw (M6 x 25 mm) 2
106 Handpulse Wire (Upper) (550 mm) 2
113 Non-Slip Rubber (L) 1
114 Non-Slip Rubber (R) 1
115 Filter 1
116 Choke 1
117 Connecting Cable Of Motor (400 mm) 1
118 Connecting Wire (White) (250 mm) 1
119 Bolt Cap (13 mm) 2
120 Bolt Cap (14 mm) 2
121 Tapping Screw (5 x 12 mm) 6

9
EXPLODED DRAWING

10
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

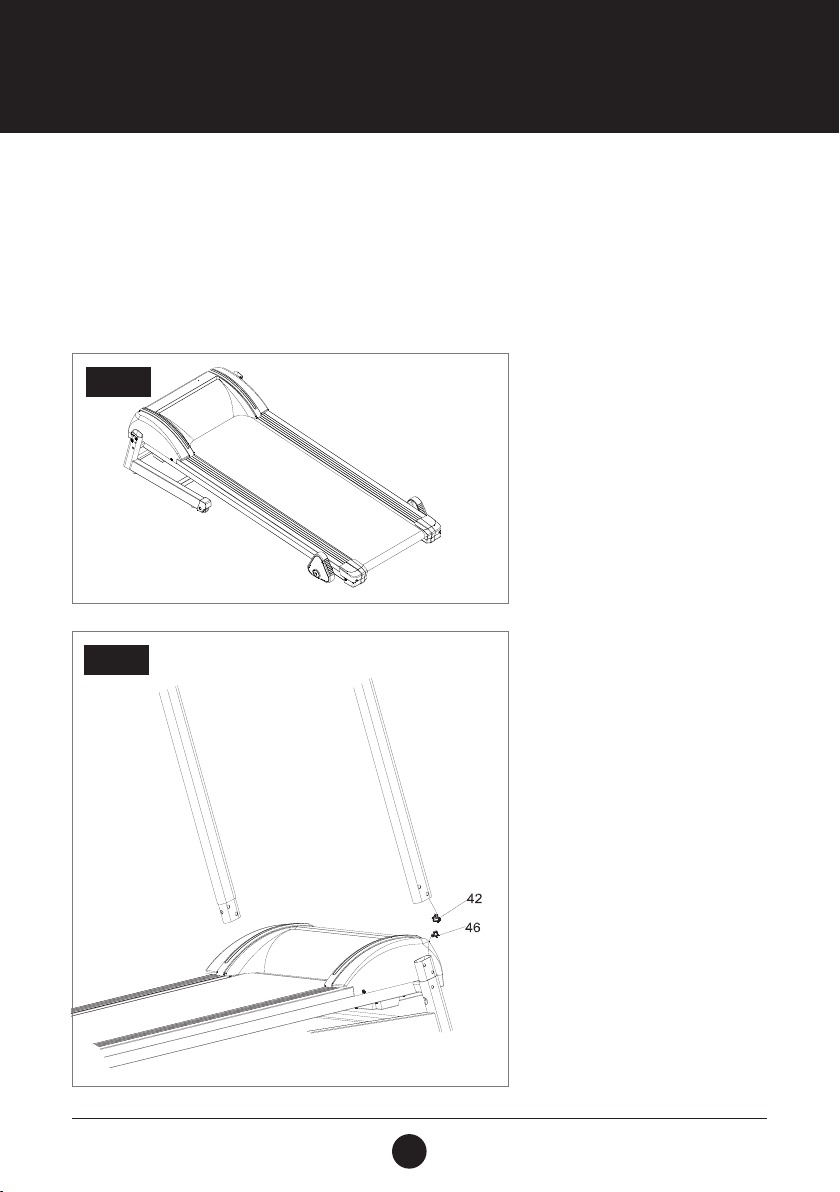

STEP 1: UNPACK UNIT
Remove the unit from the box and
place it on a level surface.
STEP 2: LOWER CONSOLE
CABLE ASSEMBLY
Connect the Console Cable (Middle)
(1100 mm) (42) to the Console Cable
(Middle) (1100 mm) (46).
STEP 1
STEP 2

11
ASSEMBLY STEPS
STEP 3: UPRIGHT ASSEMBLY
Insert the Left and Right Uprights (3, 4) into
the Frame Base (2).
Secure the Uprights (3, 4) with 6 Button
Head Socket Bolts (5/16 ” x 1/2” ) (94), 4 Flat
Washers (5/16” x 18 x 1.5T) (79) and 2 Curved
Washers (5/16” x 23 x 1.5T) (95) using the
Allen Wrench (97).
Note: Do not over tighten the Nuts and Bolts
during assembly. After the unit is assembled
you can tighten all Nuts and Bolts.
STEP 3
STEP 4: UPPER CONSOLE CABLE
ASSEMBLY
Connect the Console Cable (Lower) (600 mm) (42) to
the Console Cable (Upper) (800 mm) (45).
Connect the Hand Pulse Wire (Upper) (550 mm) (106)
with the Hand Pulse Wire (Lower) (400 mm) (55).
STEP 4

12
94 79
94 79
5
3
4
STEP 5: CONSOLE ASSEMBLY

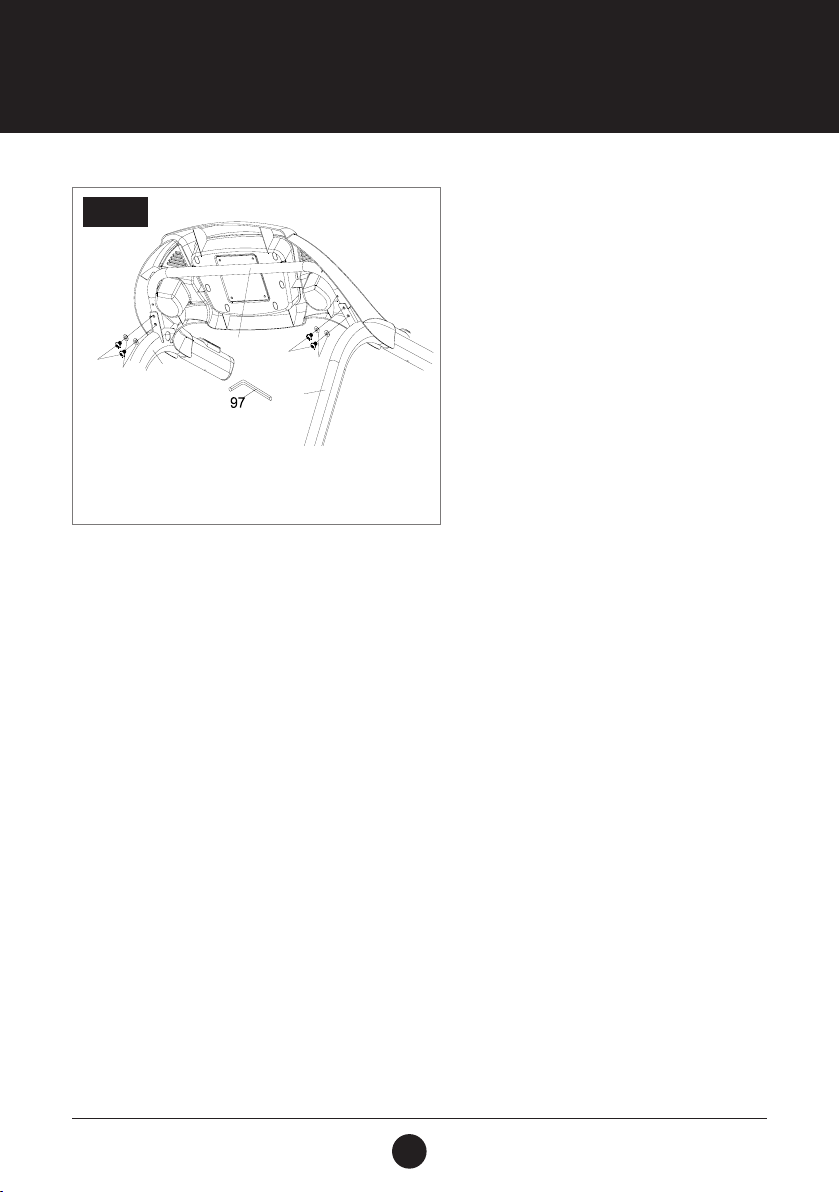

Attach the Console Support (5) onto the Left
and Right Uprights (3, 4) using 4 Button Head
Socket Bolts (5/16 ” x 1.2”) (94) and 4 Flat
Washers (5/16 ” x 18 x 1.5T) (79) using the
Allen Wrench (M5/M6) (97).
ASSEMBLY STEPS
STEP 5

13
ASSEMBLY STEPS

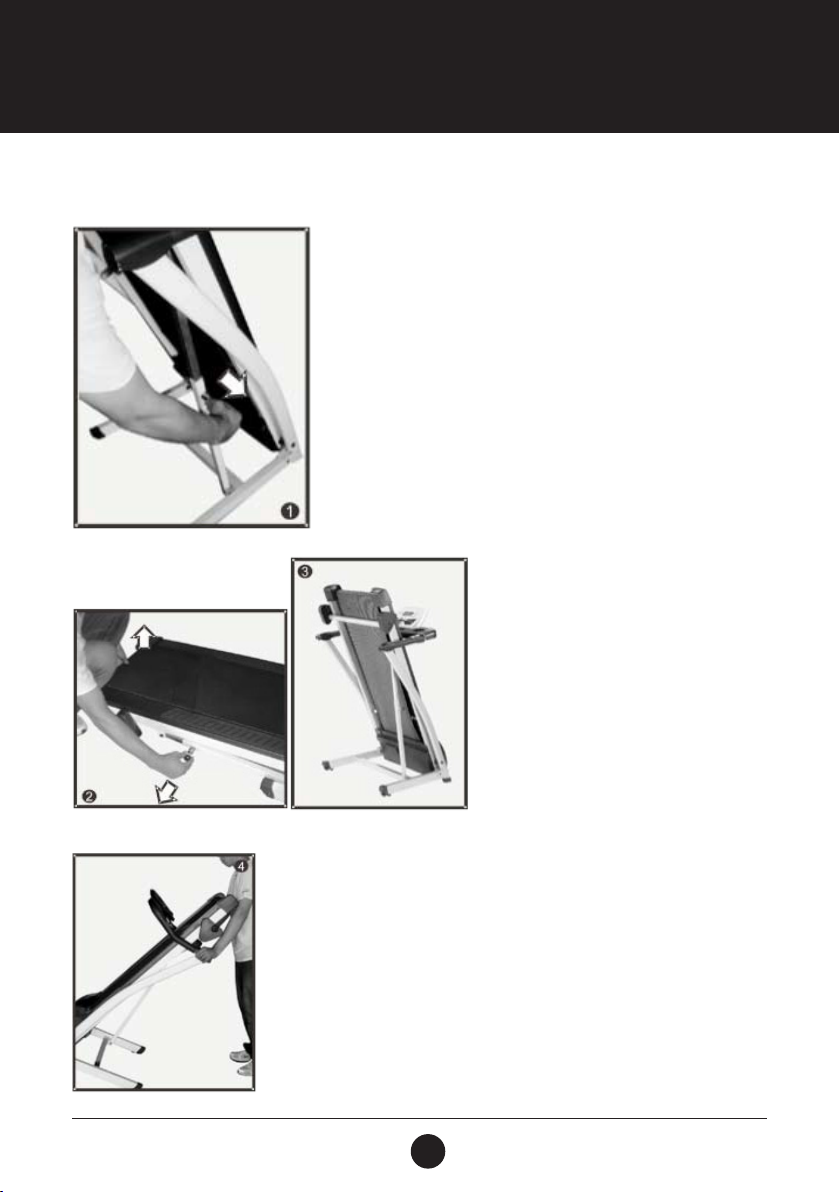

UNFOLDING / FOLDING / TRANSPORT
UNFOLDING:
Hold the Trojan Marathon 220 Treadmill
running board with your left hand.
Pull the locking knob with your right hand
and slowly lower the treadmill running board.
Remove your right hand as you slowly lower
the running board to the oor.
(Figure 1)
FOLDING:
Ensure the incline angle of the Trojan Marathon
220 Treadmill is at its lowest position.
Pull the locking knob until the Trojan Marathon
220 Treadmill running board can be lifted.
Lift the Trojan Marathon 220 Treadmill
running board up until locking knob clicks
securely into the hole.
(Figure 2 and 3)
TRANSPORT:
Place your right foot onto the right base
foot tube.
With 2 hands holding the left and right handgrip
tubes, pull the Trojan Marathon 220 Treadmill
toward you.
You can now easily move the Trojan Marathon
220 Treadmill to the desired position by
pushing it on its wheels. (Figure 4)

14
CONSOLE OPERATION After powering on the display will show E0 if the Safety Key is not in place
INSTRUCTION: on the Console. When the Safety Key is in place the Console will enter the
Ready mode.
FUNCTION BUTTONS:
SAFETY KEY: The Safety Key is to be used in case of emergency. Removing the Safety
Key will bring the Trojan Marathon 220 Treadmill to a stop. If the Safety
Key is not in place the Trojan Marathon 220 Treadmill will not work and the
Console will show E0. Replace the Safety Key to start training.
MODE: This is the program selection button. Press this button to select the desired
training mode from P0 (manual) to P1 – P12 which are the pre-programmed
programs. Each of the 12 pre-set programs is divided into 30 speed
segments which are pre-set.
START / STOP: Press this button to start. When all parameters are set and conrmed,
press this button to start the training mode. If you press this button and
no program is selected the Trojan Marathon 220 Treadmill defaults to the
manual training program. Pressing this button when training will stop the
program.
CLEAR / SET: Press this button to set parameters. Press to select the required value
and move to next parameter that is required to be set. To discontinue the
training mode, press this button to return to the ready mode and select a
new training program.
FAST: Press this button to speed up the running speed. Each time the button is
pressed the speed increases by 0.5 km/h.
SLOW: Press this button to slow down the running speed. Each time the button is
pressed the speed decreases by 0.5 km/h.
SPEED HOTKEY FUNCTION:
You can use the speed hot key to choose the suitable exercise mode for walking, jogging, and running.
The default speed setting is:
WALK: 4 km/h
JOG: 7 km/h
RUN: 10 km/h
CONSOLE FUNCTIONS

15
CONSOLE FUNCTIONS
OPERATING PROCEDURES:
MANUAL MODE: Use the Mode button to choose P0 (Manual) program and press Clear / Set
to set the countdown parameters. Set the parameters in the sequence
of TIME, DISTANCE, CALORIES. The display will show the parameter that
needs to be set. Use the Fast / Slow keys to select the desired values then
press Mode to conrm the setting and to move to the next parameter.
When nished setting all parameters or during setting the parameters press
Start to start the program. When any parameter is counted down to 0, the
Trojan Marathon 220 Treadmill automatically stops. Press Start if you want
to continue, and the Trojan Marathon 220 Treadmill will start counting up
to the set parameters. Use the Fast / Slow keys to select your Speed and
press the Mode button to switch the display parameters. Press Stop to end
the training program.
QUICK START MODE: Place the Safety Key into position and press Start to start the unit in the
manual mode with all default values.
BUILT-IN PROGRAM MODE: There are 12 built-in speed patterns in programs P1 - P12. Each program
has 30 speed segments, each segment lasts 1 minute i.e. 30 minutes total
training time for each program.
ERROR MESSAGE: E0: Safety Key is not in place and the Trojan Marathon 220 Treadmill is
locked. Insert the Safety Key.
E1: No speed signal is received. This means the front roller pulley (which has
a magnet on it), has a gap of less than 3 mm between the magnet and the
speed sensor. Plaese call the Trojan call centre on 0861 876 526
(0861 TROJAN).

16
CONSOLE FUNCTIONS

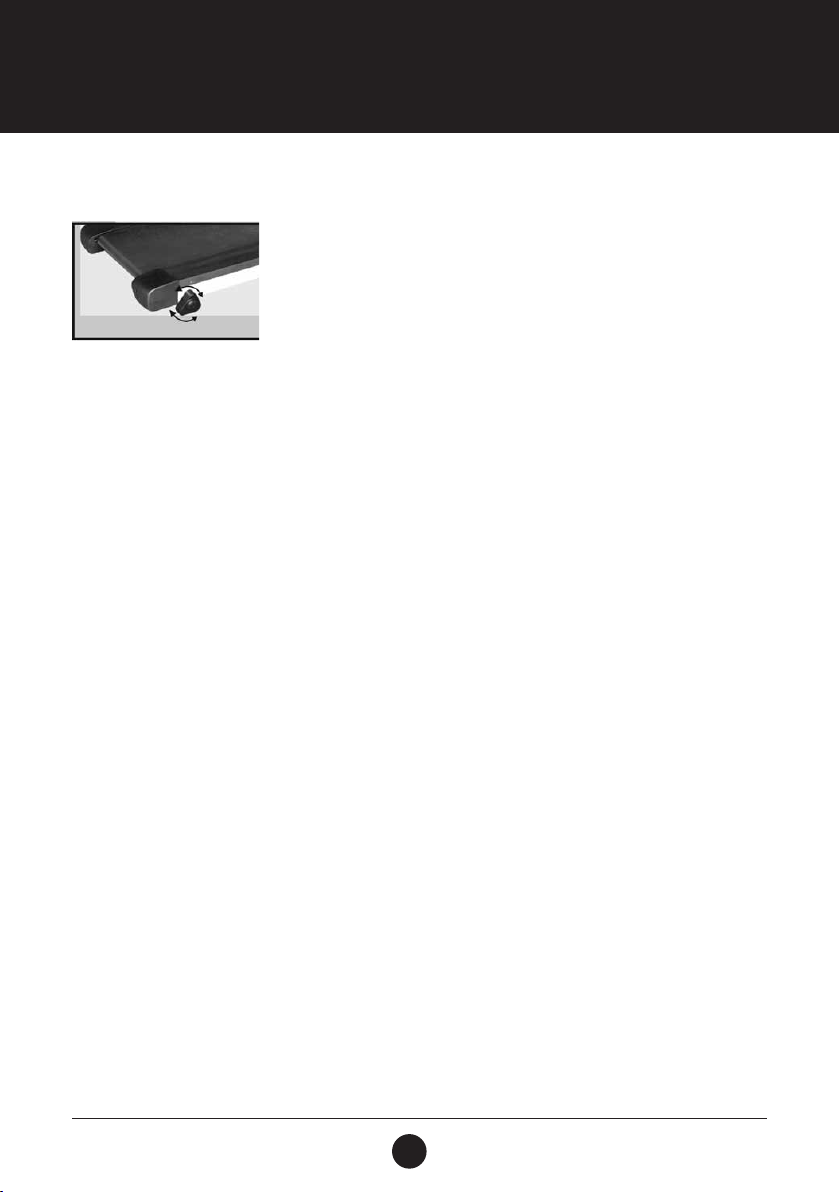

INCLINE ADJUSTMENT: • Turn the Left and Right Incline Adjustor (29, 30) to adjust the Trojan
Marathon 220 Treadmill incline position. This is a manual incline mechanism
and it is important to ensure both sides are set to the same height.
• The Incline Adjustors (29, 30) have 3 incline levels. 1 is the highest setting
and 3 the lowest setting.
• When folding up the Trojan Marathon 220 Treadmill running deck the
Incline Adjustors may hit the handlebars preventing the unit from being
folded up. If this is the case, turn both Incline Adjustors until they are not in
the way.

17
EXERCISE INSTRUCTIONS
Using your Trojan Marathon 220 Treadmill provides you with several benets, it will improve your physical
tness, tone muscle and in conjunction with a calorie controlled diet, help you lose weight.
THE WARM UP PHASE
This stage helps get the blood owing around the body and the muscles working properly. It will also reduce
the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each
stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch.
If it hurts, STOP.
This is the stage where you put the effort in. After regular use, the muscles in your legs will become stronger.
Work at your own pace, but it is very important to maintain a steady tempo throughout. The rate of work
should be sufcient to raise your heart beat into the target zone shown on the graph below.
This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up
exercise i.e. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now
be repeated, again remembering not to force or jerk your muscles into the stretch.
As you get tter you may need to train longer and harder. It is advisable to train at least 3 times a week,
and if possible space your workouts evenly throughout the week.
SIDE BENDS OUTER THIGH CALF STRETCHINNER THIGHFORWARD
BENDS

18
EXERCISE INSTRUCTIONS
MUSCLE TONING
To tone muscle while on your Trojan Marathon 220 Treadmill you will need to have the resistance set quite
high. This will put more strain on your leg muscles and may mean you cannot train for as long as you would
like. If you are also trying to improve your tness, you need to alter your training program. You should train
as normal during the warm up and cool down phases, but towards the end of the exercise phase you should
increase resistance, making your legs work harder than normal. You may have to reduce your speed to keep
your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn.

19
FITNESS TIPS & TECHNIQUES
VISIT:
www.trojanhealth.co.za for equipment choices and exercise programs.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs.
Aerobic exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic
exercise tness is promoted by any activity that uses your large muscles (arms, legs, or buttocks, for
example). Your heart beats quickly and you breathe deeply. An aerobic exercise should form part of your
entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process. Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.

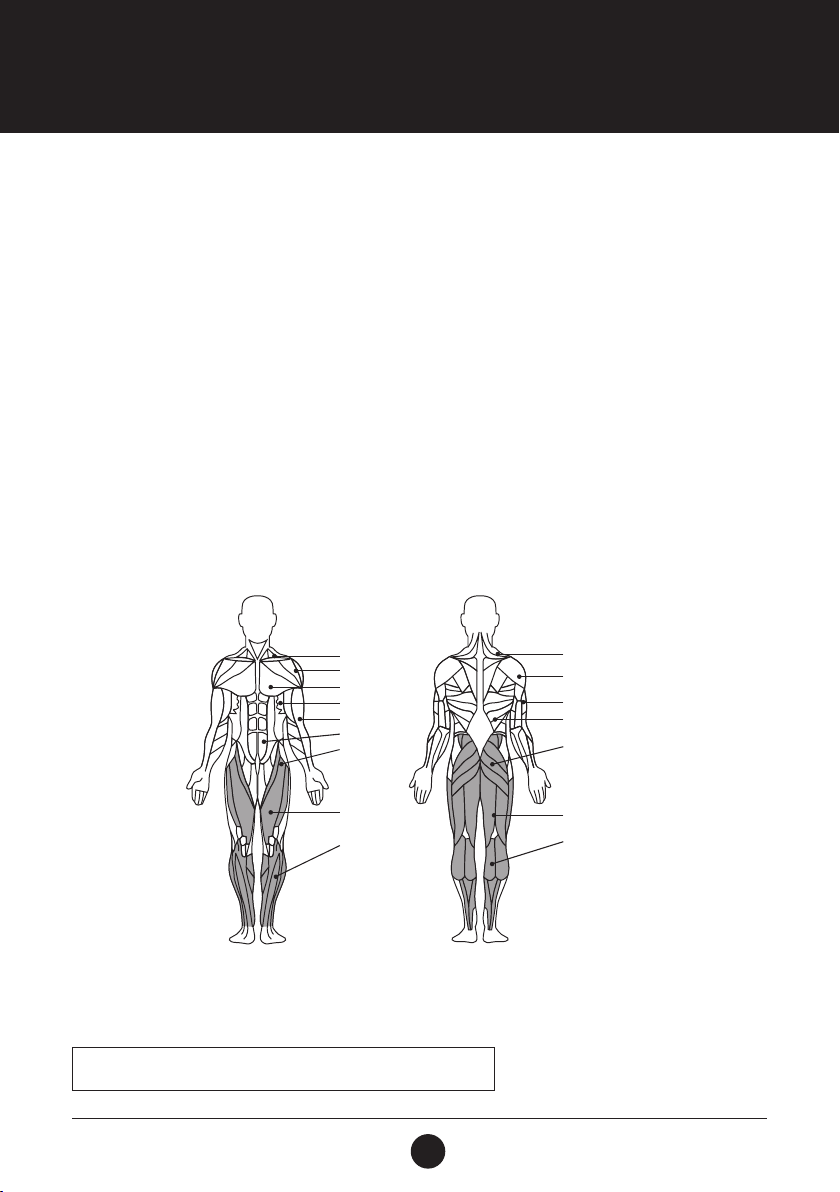

MUSCLE CHART
The exercise routine that is performed on the Trojan Marathon 220 Treadmill will develop the lower body
muscle group as well as condition the circulatory system and provide a good aerobic workout. These muscle
groups are highlighted on the muscle chart below.
Trapezius
Posterior
Latissimus Dorsi
Tricep
Gluteals
Hamstrings
Gastrocnemius
Anterior
Trapezius
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Quadriceps
Sartorius
Tibialis

20
CONDITIONING GUIDELINES
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years, or are severely overweight, you must start slowly and increase your time on the equipment, a
few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic
tness will improve over the next 6 to 8 weeks. Don’t be discouraged if it takes longer. It’s important
to work at your own pace. The better your aerobic tness, the harder you will have to work to stay in your
target zone. Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Monitor your pulse frequently.
• Establish your target heart rate based on your age and condition.

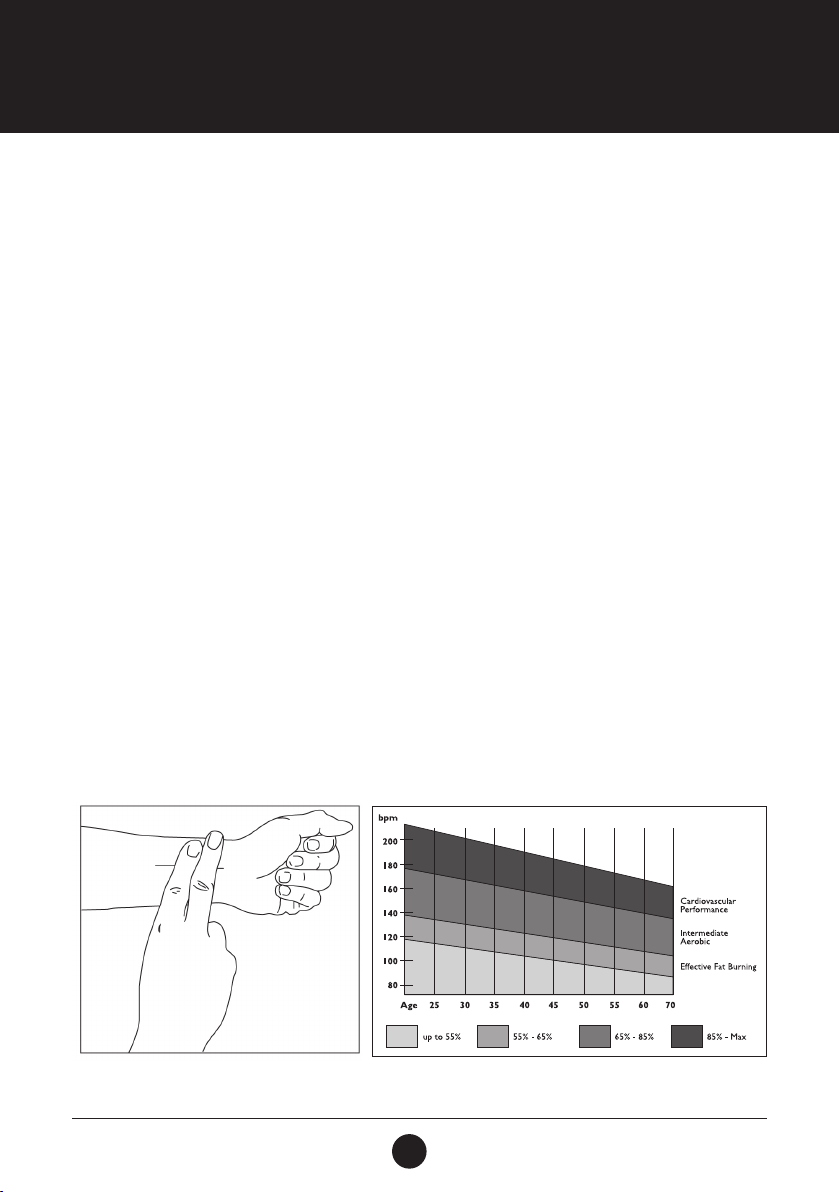

EXERCISE INTENSITY
To maximise the benets of exercising, it is important to exercise with the proper intensity. The proper
intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is
known as your target zone. You can nd your target zone in the table below.
During the rst few months of your exercise program, keep your heart rate near the low end of your target
zone as you exercise. After a few months, your heart rate can be increased gradually until it is near the middle
of your target zone as you exercise.
To measure your heart rate, stop exercising but continue moving your legs or walking around and place 2
ngers on your wrist. Take a 6 second heartbeat count and multiply the results by 10 to nd your heart rate.
For example, if your 6 second heartbeat count is 14, your heart rate is 140 beats per minute. (A 6 second
count is used because your heart rate will drop rapidly when you stop exercising).
Adjust the intensity of your exercise until your heart rate is at the proper level.
