Trojan MARATHON 210 User manual

USER MANUAL
MARATHON 210
TREADMILL LEG WORKOUT CARDIO
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
www.instagram.com/trojanhealth
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2
INDEX
• Important Safety Instructions ________________________________ 3
• Pre Assembly Check List _____________________________________ 5
• Hardware & Tools List ________________________________________ 6
• Parts List ___________________________________________________ 7
• Exploded Drawing ___________________________________________ 9
• Assembly Steps _____________________________________________ 10
• Console Functions ___________________________________________ 14
• Pre-set Programmes _________________________________________ 16
• Exercise Instructions ________________________________________ 17
• Fitness Tips & Techniques ____________________________________ 19
• Conditioning Guidelines ______________________________________ 20
• Warm Up & Cool Down _______________________________________ 21
• Maintenance ________________________________________________ 22
• 2 Year Limited Warranty ______________________________________ 24
• Repairs Procedure ___________________________________________ 25

3
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by 1 person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner.
Keep children away from all equipment.
• Parents or other supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Marathon 210 Treadmill may not be used by persons weighing more than 100 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5
PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan Marathon 210 Treadmill. We take great pride in producing this product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too
often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Marathon 210 Treadmill provides
a convenient and simple method to begin your assault on getting your body in shape and achieving a healthier
lifestyle. Before reading further, please review the drawing below and familiarise yourself with the parts that
are labelled.
Read this manual carefully before using the Trojan Marathon 210 Treadmill.
Console
Safety Key Hand Pulse
Main
Frame
Incline
Adjustor
Running Belt
Upright
Handgrip
Tube
Beverage
Holder

6
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
94. Button Head Socket Screw
(5/16”× 1/2”) (4 PCS)
72. Phillips Head Screw
(M5 × 10 mm) (4 PCS)
96. Curved Washer
(3/8” × 23 × 1.5T) (4 PCS)
95. Button Head Socket Screw
(3/8”×3-1/4”) (4 PCS)
94. Button Head Socket Screw
(3/8” x 19 x 1.5T)
44. Safety Key (1 PCS) 99. Lubricant (1 PC) 100. Short Phillips Head
Screw Driver (1 PC)
98. Wrench
(13/14 mm) (1 PC)
97. Allen Wrench
(M5/M6) (1 PC)

7
PARTS LIST
No. Description Qty
1 Main Frame 1
2 Frame Base 1
3 Right Handrail 1
4 Left Handrail 1
5 Console Support 1
6 Outer Slide (Lower) 1
7 Inner Slide 1
8 Inclination Adjustor Bar 1
9 Motor Bracket 1
10 Locking Knob Axle 1
11 Belt Guide 2
12 Front Iron Sheet (65 × 29.4 × 2T) 2
13 Motor 1
14 Drive Belt 1
15 Running Board 1
16 Running Belt 1
17 Front Roller W/Pulley 1
18 Rear Roller 1
19 Frame Cover 1
20 Console Assembly 1
20-1 Top Console Cover 1
20-2 Bottom Console Cover 1
20-4 Safety Switch Module W/ Cable 1
20-8 Self Tapping Screw (3 × 10 mm) 2
20-9 Self Tapping Screw (3.5 × 12 mm) 9
21 Top Motor Cover 1
22 Top Motor Cover Plate 1
23 Beverage Holder 1
No. Description Qty
24 Inclination Adjustor Bushing 2
25 Rear Adjustment Base (L) 1
26 Rear Adjustment Base (R) 1
27 Motor Cover Anchor 4
28 Transportation Wheel 2
29 Transportation Wheel End Cap (30 x 60) 2
30 Foot Pad 2
31 Foot Rail 2
32 Handgrip Cap 2
33 Square End Cap (25 x 50) 2
34 Indentation End Cap 2
35 Isolator 2
36 Inclination Adjustor (L) 1
37 Inclination Adjustor (R) 1
38 Wire Protective Rubber 1
39 Non-Slip Rubber (L) 1
40 Non-Slip Rubber (R) 1
41 Grommet 1
42 Magnet 1
43 Handgrip Foam 2
44 Safety Key 1
45 Console Cable (Upper) (900 mm) 1
46 Console Cable (Lower) (1500 mm) 1
47 Connecting Wire (Black) (10 cm x 764 x 764) 1
48 Connecting Wire (White) (15 cm x 764 x 764) 1
49 Connecting Wire (Black) (15 cm x 764 x 764) 1
50 Controller 1
51 Breaker 1

8
PARTS LIST
No. Description Qty
52 AC Switch 1
53 Power Cord 1
54 Handpulse Assembly 2
55 Handpulse Cable (800 mm) 1
56 Sleeve (8.5 x 12.7 x 25.5L) 2
57 Sensor W/Cable 1
58 Sensor Rack 1
59 Square End Cap (1” × 1”) 1
60 Square End Cap (21.4 × 21.4) 1
61 Hex Head Screw (1/2” x 3-1/2”) 2
62 Hex Head Screw (3/8” x 3/4”) 4
63 Hex Head Screw (3/8” × 1-3/4”) 1
64 Hex Head Screw (3/8” × 1-1/2”) 1
65 Hex Head Screw (M8 × 60 mm) 1
66 Hex Head Screw (3/8” x 2-1/2”) 1
67 Thumb Head Socket Screw (3/8” x 2”) 2
68 Button Head Socket Screw (5/16” x 1-1/4”) 2
69 Button Head Socket Screw (5/16” x 1-3/4”) 2
70 Socket Head Cap Screw (1/4” x 75 mm) 2
71 Tapping Screw (10 (5) x 1-1/4”) 8
72 Phillips Head Screw (M5 × 10 mm) 4
73 Split Washer (3/8” x 2T) 4
74 Nyloc Nut (M8 × 8T) 1
75 Nyloc Nut (1/2” x 8T) 2
76 Nyloc Nut (5/16” x 7T) 2
77 Nyloc Nut (3/8” x 7T) 4
78 Flat Washer (3/8” x 25 x 2T) 5
79 Flat Washer (5/16” x 18 x 1.5T) 2
No. Description Qty
80 Flat Washer (1/2” x 26 x 2T) 2
81 Flat Washer (3/8” x 19 x 1.5T) 4
82 Flat Washer (5/16” x 35 x 1.5T) 2
83 Flat Washer (1/4” x 13 x 1.0T) 2
84 Tapping Screw (5 x 16 mm) 6
85 Tapping Screw (5 x 16 mm) 21
86 Concave Washer (6.7 x 25 x 1.0T) 8
87 Self Tapping Screw (4 x 12 mm) 16
88 Raised Washer (5 mm) 2
89 Self Tapping Screw (4 x 38 mm) 2
90 Hex Head Screw (M8 x 12 mm) 2
91 Split Washer (M8 x 1.5T) 2
92 Nylon Cap (8.5 × 36) 2
93 Tapping Screw (5 x 19 mm) 2
94 Button Head Socket Screw (5/16” × 1/2”) 4
95 Button Head Socket Screw (3/8” × 3-1/4”) 4
96 Curved Washer (3/8” × 23 × 1.5T) 4
97 Allen Wrench (M5/M6) 1
98 Wrench (13/14 mm) 1
99 Lubricant 1
100 Short Phillips Head Screw Driver 1
101 Tapping Screw (3.5 × 16 mm) 5
102 Wire Tie Mount 5

9
EXPLODED DRAWING

10
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

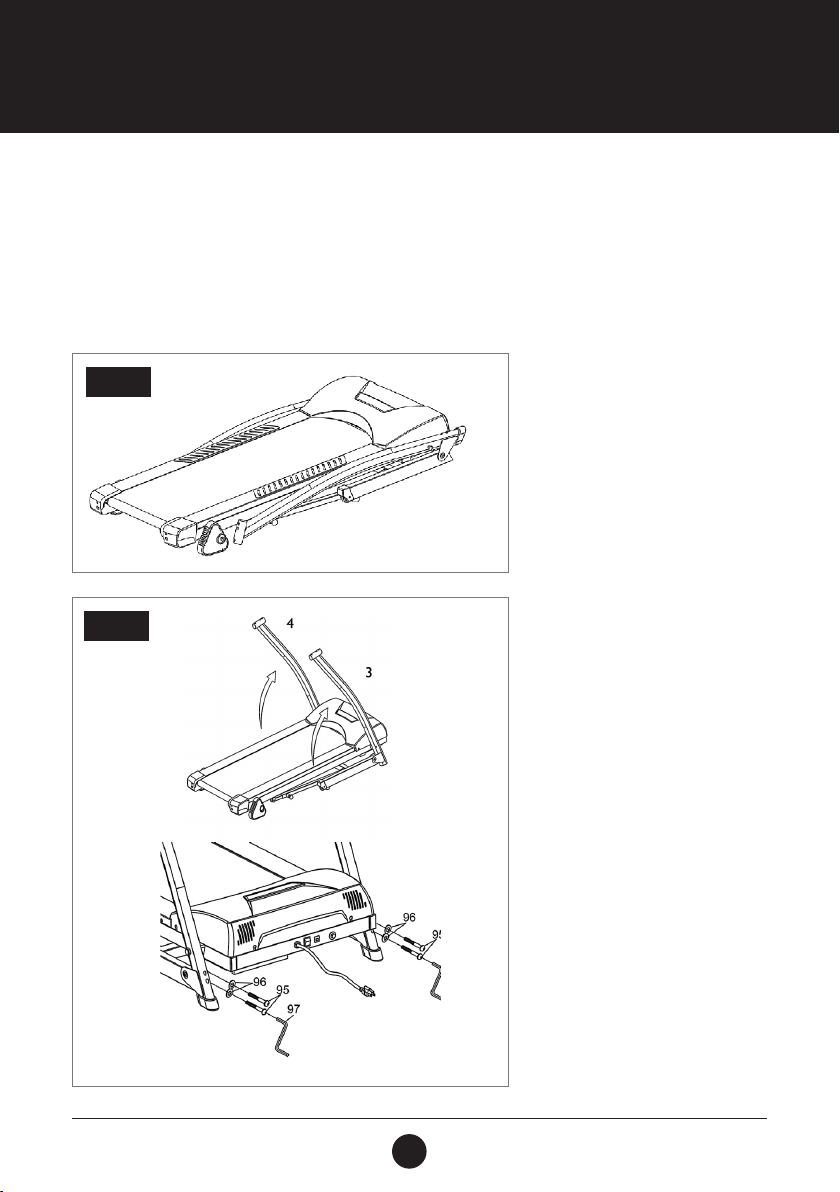

STEP 1:
Take the Trojan Marathon 210
Treadmill out of the carton and lay
it on a level oor.
STEP 2:
Raise the Right and Left Handrails (3, 4).
Secure the Right and Left Handrails (3, 4) to the
Frame Base (2) with the 4 Button Head Socket
Screws (3/8” × 3-1/4”) (95) and 4 Curved
Washers (3/8” x 23 x 1.5T) (96), using Allen
Wrench (M5/M6) (97).
STEP 1
STEP 2

11
ASSEMBLY STEPS
STEP 3:
Connect the Console Cable (Lower) (1500 mm) (46)
and Console Cable (Upper) (900 mm) (45).
STEP 3
STEP 4:
Insert the Console Support (5) into the Right and
Left Handrails (3, 4).
Secure the Console Support (5) with the 4 Button
Head Socket Screws (5/16” × 1/2”) (94) and the
Allen Wrench (M5/M6) (97).
Connect the 2 Handgrip Caps (32) onto the
junction of the Console Support (5) and the Right
and Left Handrails (3, 4).
STEP 4

12
STEP 5:
Connect the Console Cable (Upper) (900 m) (45)
and Handpulse Cable (800 mm) (55) into the
bottom of the Console Assembly (20).
ASSEMBLY STEPS
STEP 5
STEP 6:
Attach the Console Assembly (20) to the
Console Support (5), securing them using
4 Phillips Head Screws (M5 × 15 mm) (72) and
the Short Phillips Head Screw Driver (100).
STEP 6

13
ASSEMBLY STEPS
UNFOLDING / FOLDING / TRANSPORT
UNFOLDING:
Hold the Trojan Marathon 210 Treadmill running
board with your left hand.
Pull the locking knob with your right hand and
slowly lower the Trojan Marathon 210 Treadmill
running board. Remove your right hand as you
slowly lower the running board to the oor.
(Figure 1)
FOLDING:
Ensure the incline angle of the Trojan Marathon
210 Treadmill is at its lowest position.
Pull the locking knob until the Trojan Marathon
210 Treadmill running board can be lifted.
Lift the Trojan Marathon 210 Treadmill running
board up until locking knob clicks securely into
the hole. (Figure 2 and 3)
TRANSPORT:
Place your right foot onto the right base
foot tube. With 2 hands holding the left and
right handgrip tubes, pull the Trojan Marathon
210 Treadmill toward you.
You can now easily move the Trojan Marathon
210 Treadmill to the desired position by pushing
it on its wheels. (Figure 4)

14
INITIAL DISPLAY: When the power is turned on, the main window will light up and show all
Console parameters. Thereafter it will show the current software version,
how many minutes or how many kilometers (or miles if the Trojan Marathon
210 Treadmill is set to impend readings) the Trojan Marathon 210 Treadmill
has been in use for. This data will be displayed for 2 seconds above each
parameter. Now the Trojan Marathon 210 Treadmill will enter the idle mode
and display program P0 (Manual), which is the starting point for operation.
Note:
If the display shows “LUBE” on the screen (ashes 5 times), you need to add lubricant to the running deck.
FUNCTION BUTTONS:
PROGRAM: Press “PROGRAM” button to choose training mode, that includes Manual
(P0) and preset programs (P1 ~ P5).
MODE/RESET: Press “MODE” button to set the parameter of the countdown. Press and
hold this button for 3 seconds to reset all data.
START/STOP: Press “START/STOP” button to start or stop training.
FAST: Press “FAST’ button to increase your speed, each increment is 0.1 km/h.
SLOW: Press “SLOW” button to decrease your speed, each decrement is 0.1 km/h.
FAST: Attach the safety key in its position in order to power on the Console.
When the safety key is pulled away from its position, the Console, and
Trojan Marathon 210 Treadmill, will shut down automatically.
FUNCTIONS AND OPERATIONS:
SCAN: Each parameter’s exercising data will be displayed for 6 seconds, 1 after the
other.
TIME: Accumulates total workout time from 00:00 to 99:59.
SPEED: Displays the current running speed from 1.0 km/h - 13.0 km/h.
CONSOLE FUNCTIONS

15
CONSOLE FUNCTIONS
DISTANCE: Accumulates total workout distance from 0.00 to 99.99 km.
CALORIES: Accumulates the user’s calorie consumption during exercise. Maximum value
is 999.9 calories.
Note:
This is only a rough guide used for comparison of different exercise sessions, but cannot be used for
medical purposes.
STOP: When the symbol is shown on the screen, the Trojan Marathon 210
Treadmill has stopped.
♥SYMBOL: Displays your current heart rate in beats per minute (40 to 220) during
workout.
QUICK-START OPERATION:
STEP 1: Attach the Safety key to activate the display (if not already on). The main
window will show initial display settings. Before training, you can enter
settings for the Console to countdown to (See STEP 7).
STEP 2: Press the START/STOP button to begin belt movement. The Console will
start a 3 second nal countdown and a beep will sound out for short time.
Use the Fast / Slow speed keys (on Console) to adjust to the desired speed
at any time during training.
STEP 3: Press MODE button to see the value of the parameter which includes Speed,
Time, Distance, Calories, and Scan Mode. If you choose the Scan Mode, the
console will display the value of all parameters every 5 seconds, 1 at
a time.
STEP 4: While training, you can press the START/STOP button to stop your workout
or pull the safety key away from its position to shut down the Console. If
you want to resume your workout, you can press START/STOP button again
and all previous data will resume counting (ensure the safety key is back
in place).
STEP 5: After training, you can press the MODE button to display the accumulated
data for Speed, Time, Distance and Calories that were recorded during
training.
STEP 6: In pause or stop mode, if you press the MODE button for 3 seconds this will
erase all accumulated data and revert back to the idle mode.
STEP 7: Before training, press the MODE button to enter countdown setting for
Time, (range is from 10:00 to 99:00), Distance (range is from 0.1 to 99.9)
or Calories (range is from 0.0 to 999.9). During setting, you could press
FAST/SLOW to adjust the value or press MODE button to enter next step
whether you have preset values or not. When you set single or multi-
parameters, press START/STOP button to execute the setting. (The Console
will only conrm the last parameter to execute). If you want to resume
your workout, press START/STOP button to start the Trojan Marathon 210
Treadmill then all parameters will count up.

16
PRE-SET PROGRAMMES

17
EXERCISE INSTRUCTIONS
Using your Trojan Marathon 210 Treadmill provides you with several benets, it will improve your physical
tness, tone muscle and in conjunction with a calorie controlled diet, help you lose weight.
THE WARM UP PHASE
This stage helps get the blood owing around the body and the muscles working properly. It will also reduce
the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each
stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch.
If it hurts, STOP.
This is the stage where you put the effort in. After regular use, the muscles in your legs will become stronger.
Work at your own pace, but it is very important to maintain a steady tempo throughout. The rate of work
should be sufcient to raise your heart beat into the target zone shown on the graph below.
This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up
exercise i.e. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now
be repeated, again remembering not to force or jerk your muscles into the stretch.
As you get tter you may need to train longer and harder. It is advisable to train at least 3 times a week,
and if possible space your workouts evenly throughout the week.
SIDE BENDS OUTER THIGH CALF STRETCHINNER THIGHFORWARD
BENDS

18
EXERCISE INSTRUCTIONS
MUSCLE TONING
To tone muscle while on your Trojan Marathon 210 Treadmill you will need to have the resistance set quite
high. This will put more strain on your leg muscles and may mean you cannot train for as long as you would
like. If you are also trying to improve your tness, you need to alter your training program. You should train
as normal during the warm up and cool down phases, but towards the end of the exercise phase you should
increase resistance, making your legs work harder than normal. You may have to reduce your speed to keep
your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn.

19
FITNESS TIPS & TECHNIQUES
VISIT:
www.trojanhealth.co.za for equipment choices and exercise programs.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs.
Aerobic exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic
exercise tness is promoted by any activity that uses your large muscles (arms, legs, or buttocks, for
example). Your heart beats quickly and you breathe deeply. An aerobic exercise should form part of your
entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process. Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.
MUSCLE CHART
The exercise routine that is performed on the Trojan Marathon 210 Treadmill will develop the lower body
muscle group as well as condition the circulatory system and provide a good aerobic workout. These muscle
groups are highlighted on the muscle chart below.
Trapezius
Posterior
Latissimus Dorsi
Tricep
Gluteals
Hamstrings
Gastrocnemius
Anterior
Trapezius
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Quadriceps
Sartorius
Tibialis

20
CONDITIONING GUIDELINES
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years, or are severely overweight, you must start slowly and increase your time on the equipment, a
few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic
tness will improve over the next 6 to 8 weeks. Don’t be discouraged if it takes longer. It’s important
to work at your own pace. The better your aerobic tness, the harder you will have to work to stay in your
target zone. Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Monitor your pulse frequently.
• Establish your target heart rate based on your age and condition.
EXERCISE INTENSITY
To maximise the benets of exercising, it is important to exercise with the proper intensity. The proper
intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is
known as your target zone. You can nd your target zone in the table below.
During the rst few months of your exercise program, keep your heart rate near the low end of your target
zone as you exercise. After a few months, your heart rate can be increased gradually until it is near the middle
of your target zone as you exercise.
To measure your heart rate, stop exercising but continue moving your legs or walking around and place 2
ngers on your wrist. Take a 6 second heartbeat count and multiply the results by 10 to nd your heart rate.
For example, if your 6 second heartbeat count is 14, your heart rate is 140 beats per minute. (A 6 second
count is used because your heart rate will drop rapidly when you stop exercising).
Adjust the intensity of your exercise until your heart rate is at the proper level.
