Trojan MARATHON 230 User manual

USER MANUAL
MARATHON 230
TREADMILL LEG WORKOUT CARDIO
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
www.instagram.com/trojanhealth
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2
INDEX
• Important Safety Instructions ________________________________ 3
• Pre Assembly Check List _____________________________________ 5
• Hardware & Tools List ________________________________________ 6
• Parts List ___________________________________________________ 7
• Exploded Drawing ___________________________________________ 9
• Assembly Steps _____________________________________________ 11
• Console Functions ___________________________________________ 16
• Exercise Instructions ________________________________________ 18
• Fitness Tips & Techniques ____________________________________ 20
• Conditioning Guidelines ______________________________________ 21
• Warm Up & Cool Down _______________________________________ 22
• Maintenance ________________________________________________ 23
• Troubleshooting _____________________________________________ 25
• 2 Year Limited Warranty ______________________________________ 27
• Repairs Procedure ___________________________________________ 28

3
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by 1 person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner.
Keep children away from all equipment.
• Parents or other supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Marathon 230 Treadmill may not be used by persons weighing more than 100 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5
PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan Marathon 230 Treadmill. We take great pride in producing this product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.
Too often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Marathon 230 Treadmill
provides a convenient and simple method to begin your assault on getting your body in shape and achieving
a healthier lifestyle. Before reading further, please review the drawing below and familiarise yourself with the
parts that are labelled.
Read this manual carefully before using the Trojan Marathon 230 Treadmill.
Console
Safety Key
Hand Pulse
Locking Pin
Incline
Adjustor
Running Belt
Upright
Function Time / Speed / Distance / Incline / Program
Set-up Size 1530 mm (l) x 732 mm (w) x 1303 mm (h)
Running Deck 1200 mm (l) x 400 mm (w)
User Weight 100 kg (maximum)

6
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
79. Flat Washer
(Ø8 x 18 x 1.5 mm)
(4 PCS)
94. Button Head Socket Bolt
(5/16” x UNC 18 x 1/2”)
(6 PCS)
95. Curved Washer
(Ø8 x Ø23 x 1.5T)
(2 PCS)
96. Flat Head Socket Bolt
(5/16” x 1 - 1/2”)
(2 PCS)
98. Split Washer
(Ø8 x 1.5T)
(2 PCS)
103. Wrench
(13/15 mm)
(2 PCS)
105. Lubricant
(1 PC)
104. Combination (M5) Allen
Wrench & Phillps Screw Driver
(1 PC)

7
PARTS LIST
No. Description Qty
1 Main Frame 1
2 Frame Base 1
3 Left Upright 1
4 Right Upright 1
5 Console Support 1
6 Filter 1
7 Choke 1
8 Connecting Cable Of Motor (500 mm) 1
9 Handpulse W/Cable Assembly (1100 mm) 2
10 Connecting Wire (White) (300 mm) 1
11 Belt Guide 2
12 Motor Bracket 1
13 Drive Motor 1
14 Drive Belt 1
15 Running Deck 1
16 Running Belt 1
17 Front Roller W/Pulley 1
18 Rear Roller 1
19 Bolt Cap (Ø13 mm) 4
20 Console Assembly 1
20 - 1 Console Outer Cover 1
20 - 2 Console Top Cover 1
20 - 3 Square Magnet Stop Plate 2
20 - 4 Safety Switch Module W/ Cable 1
20 - 5 Console Display Board 1
20 - 7 Sheet Metal Screw (Ø3 x 10 mm) 2
20 - 8 Sheet Metal Screw (Ø2.3 x 6 mm) 12
20 - 9 Self Tapping Screw (Ø3.5 × 12 mm) 8
20 - 10 Keyboard 1
No. Description Qty
21 Top Motor Cover 1
22 Rear Adjustment Base (L) 1
23 Rear Adjustment Base (R) 1
24 Square End Cap (38 x 38 mm) 2
25 Rubber Foot Pad (Ø6 x Ø26.5 x 10T) 4
26 Rubber Foot 6
27 Square End Cap (20 x 40 mm) 2
28 Oval End Cap 2
29 Foot Rail 2
30 Power Socket 1
31 Breaker 1
32 On/Off Switch 1
33 Power Cord 1
34 End Cap 2
35 Handgrip Foam (Ø25 x 50 x 3T x 290 mm) 2
36 Motor Controller 1
37 Console Cable (Upper) (1000 mm) 1
38 Console Cable (Lower) (1500 mm) 1
39 Lubricant 1
40 Square Safety Key 1
41 Connecting Wire (Black) (100 mm) 1
42 Connecting Wire (White) (250 mm) 1
43 Connecting Wire (Black) (250 mm) 1
44 Wrench (13/15 mm) 2
45 Combination Allen Wrench & Phillips
Head Screw Driver (M5) 1
46 Transportation Wheel 2
47 Flat Head Socket Screw (M6 x 20 mm) 6
48 Flat Head Socket Screw (M6 x 25 mm) 2
49 Hex Head Bolt (M10 x I06 mm) 2

8
PARTS LIST
No. Description Qty
50 Frame Cover 1
51 Isolator (L) 1
52 Isolator (R) 1
53 Rubber Foot Pad (Ø5 x Ø30 x 40T) 1
54 Phillips Head Screw (M5 x 20 mm) 1
55 Hex Head Bolt (3/8” x 1 - 1/4”) 1
56 Nut (3/8” x 7T) 1
57 Wire Protective Rubber 1
58 Inclineation Adjustor (L) 1
59 Inclineation Adjustor (R) 1
60 Socket Head Cap Bolt (1/4” x 80 mm) 2
61 Hex Head Bolt (1/4” x 2 - 1/4”) 1
62 Hex Head Bolt (3/8” x 3/4”) 4
63 Cylinder (3/8” x 3/4”) 1
64 Split Washer (Ø10 x 2.0T) 4
65 Flat Washer (Ø10 x Ø19 x 1.5T) 4
66 Hex Head Bolt (M8 x 12 mm) 2
67 Split Washer (Ø8 x 1.5T) 2
68 Nyloc Nut (5/16” x 7T) 8
69 Tapping Screw (Ø5 x 19 mm) 2
70 Tapping Screw (3.5 x 16 mm) 2
71 Wire Tie Mount 2
72 Phillips Head Screw (M5 x 15 mm) 4
73 Phillips Head Screw (M5 x 10 mm) 2
74 Split Washer (Ø5 x 1.5T) 2
75 Star Washer (M5) 2
76 Tapping Screw (Ø5 x 16 mm) 25
77 Button Head Socket Bolt (5/16” x 2”) 2
78 Console Bracket Anchor 4
No. Description Qty
79 Flat Washer (Ø8 x Ø18 x 1.5T) 12
80 Sheet Metal Screw (Ø4 x 12 mm) 4
81 Sheet Metal Screw (Ø3 x 10 mm) 2
82 Tapping Screw (Ø5 x 16 mm) 2
83 Sheet Metal Screw (Ø3.5 x I2 mm) 8
84 Nyloc Nut (1/4” x 5T) 1
85 Nyloc Nut (M10 x 10T) 2
86 Hex Head Bolt (5/16” x 1 - 3/4”) 2
87 Button Head Socket Bolt (5/16” x 1”) 3
88 Bolt Cap 2
89 Flat Washer (Ø8 x Ø35 x 1.51) 2
90 Rubber Foot 2
91 Tapping Screw (Ø5 x 25 mm) 1
92 Sheet Metal Screw (Ø4 x 45 mm) 2
93 Split Washer (Ø8 x 1.5T) 2
94 Button Head Socket Bolt (5/16” x 1/2”) 6
95 Curved Washer (Ø8 x Ø23 x 1.5 ) 6
96 Flat Head Socket Bolt (5/16” x 1 - 1/2”) 2
97 Button Head Socket Bolt (5/16” x 1 - 3/4”) 3

9

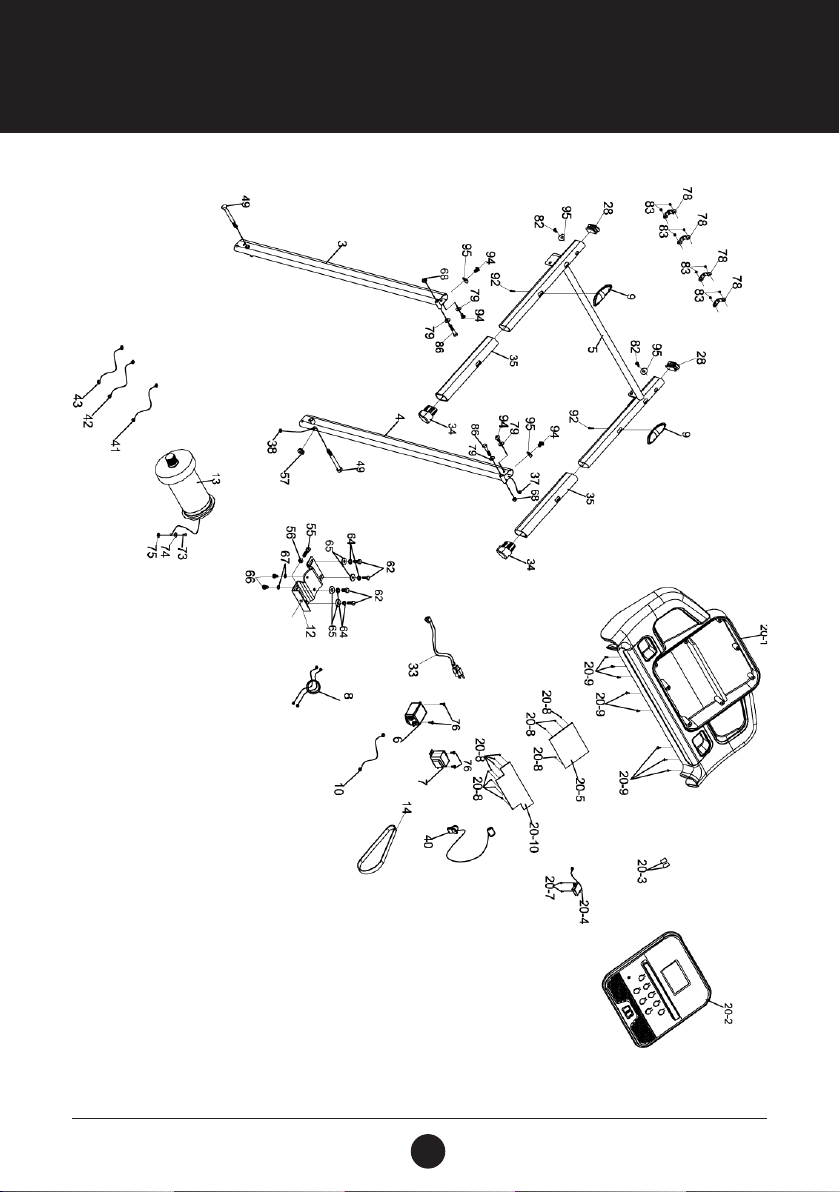

EXPLODED DRAWING

10
EXPLODED DRAWING

11
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1: UNPACK UNIT
Remove the unit from the box and
place it on a at and level oor.
STEP 2: UNFOLDING UPRIGHT
Unfold the Uprights (L and R) (3 and 4)
to the end position.
STEP 1
STEP 2

12
ASSEMBLY STEPS

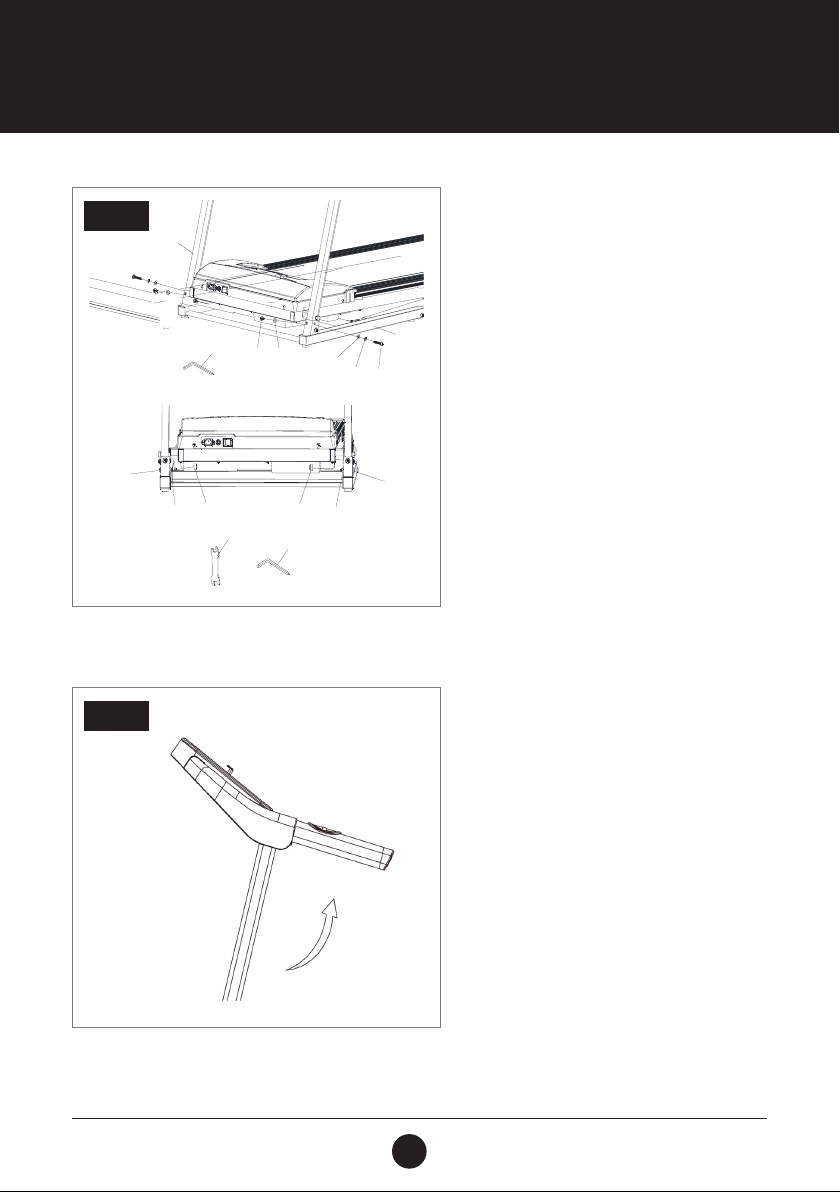

STEP 3: UPRIGHT ASSEMBLY
Insert the Uprights (L, R) (3, 4) into
the Frame Base (2) with 2 Flat Head
Socket Bolts (5/16” × 1-1/2”) (96), 2 Split
Washers (Ø8 × 1.5T) (93), 2 Flat Washers
(Ø8 × Ø18 × 1.5T) (79), 2 Button Head
Socket Bolts (5/16” × 1/2”) (94) and
2 Curved Washers (Ø8 × Ø23 × 1.5T) (95)
by using the Combination (M5) Allen
Wrench & Phillips Head Screw Driver (45).
(Please place the screw without
tightening.) Tighten 2 Button Head
Socket Bolts (5/16” × 1 - 3/4”) (97)
and 2 Nyloc Nuts (5/16” × 7T) (68),
by using the Wrench (13/15 mm) (44)
and Combination (M5) Allen Wrench &
Phillips Head Screw Driver (45) and Bolt
Cap (Ø13 mm) (19).
STEP 3
STEP 4: UNFOLDING CONSOLE SUPPORT
Unfold the Console Support (5) to the end position.
STEP 4
79 93 96
94 95
2
4
3
45
96
93 79
94 95
97
97
68 68
44 45
19 19

13
STEP 5: CONSOLE SUPPORT ASSEMBLY
Install the Console Support (5) into the Uprights
(L, R) (3, 4) with 4 Button Head Socket Bolts
(5/16” × 1/2”) (94), 2 Curved Washers (Ø8 × Ø23 × 1.5T)
(95) and 2 Flat Washers (Ø8 × Ø18 × 1.5T) (79) by using
the Combination (M5) Allen Wrench & Phillips Head
Screw Driver (45).
STEP 6: TIGHTENING BOLTS
Tighten the 2 Hex Head Bolts (5/16” × 1-3/4”) (86)
and 2 Nyloc Nuts (5/16” × 7T) (68), using the Wrench
(13/15 mm) (44).
ASSEMBLY STEPS
STEP 5
STEP 6
9495
94 95
45
4
3
79
79 94 594
86 68
86
68
44 44

14
STEP 7:
Expand the deck until it clicks into place. Use the Combination Allen Wrench and Phillips Head Screw
Driver (M5) (45) to tighten the Phillips Head Screw (M5 × 20 mm) (54) and the Rubber Foot Pad (Ø5 × Ø30 ×
40T) (53) on the Main Frame (1).
STEP 7
ASSEMBLY STEPS
2
45
54
53

15
ASSEMBLY STEPS

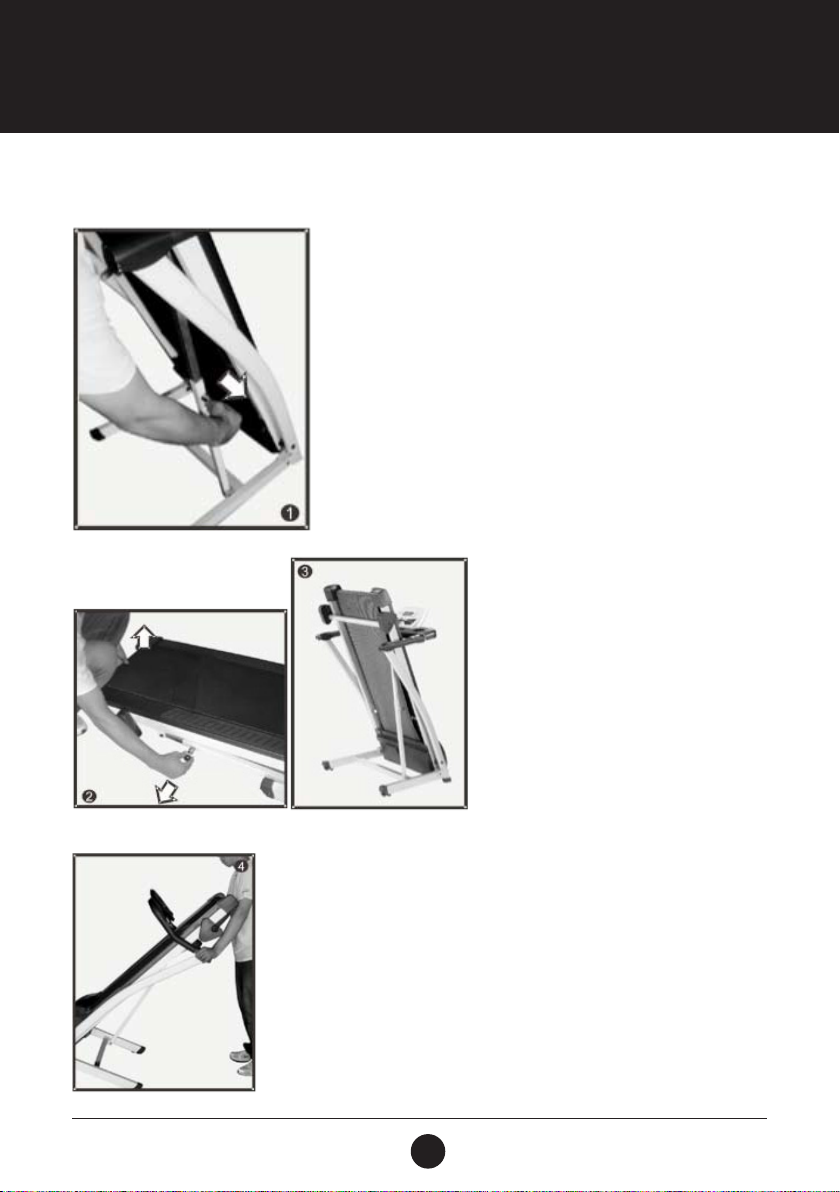

UNFOLDING / FOLDING / TRANSPORT
UNFOLDING:
Hold the Trojan Marathon 230 Treadmill
running board with your left hand.
Pull the locking knob with your right hand
and slowly lower the Trojan Marathon 230
Treadmill running board. Remove your right
hand as you slowly lower the running board to
the oor.
(Figure 1)
FOLDING:
Ensure the incline angle of the Trojan Marathon
230 Treadmill is at its lowest position.
Pull the locking knob until the Trojan Marathon
230 Treadmill running board can be lifted.
Lift the Trojan Marathon 230 Treadmill
running board up until locking knob clicks
securely into the hole.
(Figure 2 and 3)
TRANSPORT:
Place your right foot onto the right base
foot tube.
With 2 hands holding the left and right handgrip
tubes, pull the Trojan Marathon 230 Treadmill
toward you.
You can now easily move the Trojan Marathon
230 Treadmill to the desired position by
pushing it on its wheels. (Figure 4)

16
GETTING STARTED: Switch on the Trojan Marathon 230 Treadmill by plugging it into an
appropriate power outlet, switching on the power on the switch located
at the front of the Trojan Marathon 230 Treadmill, below the motor hood.
Ensure that the safety key is in place, as the Trojan Marathon 230 Treadmill
will not operate without it.
The Trojan Marathon 230 Treadmill will then enter idle mode, which will
enable operation.

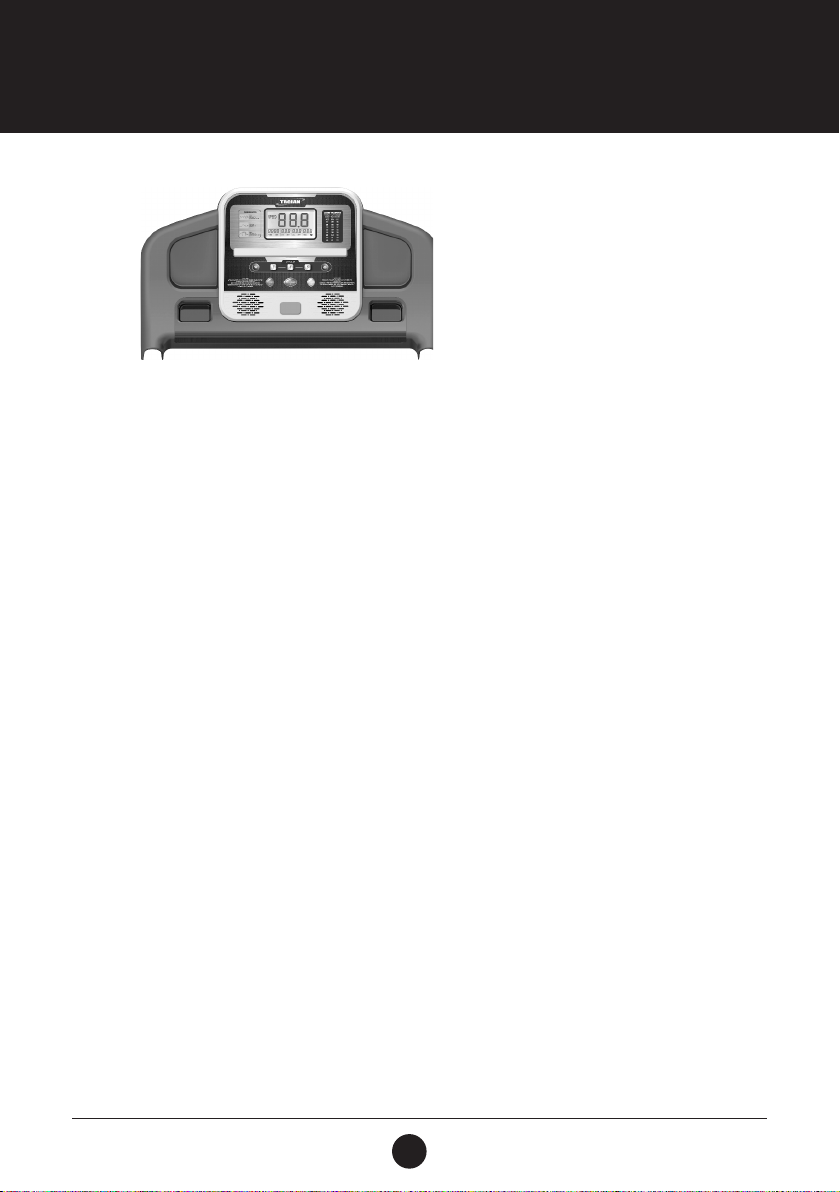

FUNCTION BUTTONS:
QUICK-START OPERATION: Insert the safety key to enable the display. If the safety key is not inserted
correct, the display will appear as 0.
• Press the Start button to begin belt movement. Adjust to the desired
speed, using the Speed ▲and ▼keys. You may also use the Quick Speed
keys 3-9 to adjust the speed.
• To stop the tread-belt, press the Stop button or remove the safety key.
PAUSE / STOP / RESET: When the Trojan Marathon 230 Treadmill is running, the pause feature may
be utilised by pressing the red Stop button once. This will slowly decelerate
the tread-belt to a stop. The time, distance and calories readings will
remain, while the unit is in the pause mode. After 5 minutes, the display will
reset and return to the startup screen.
• To resume exercise after pausing, press the Start button. The speed will
return to the previous setting.
• To stop the Trojan Marathon 230 Treadmill, press the Stop button twice.
Here, the Console will reset and return to the idle mode (start up) screen.
HANDGRIP PULSE To enable the pulse feature during exercise, hold the handgrip. Grasp rmly
FEATURE: to avoid uctuation.
CALORIE DISPLAY: This feature displays the cumulative calories burned at any given time
during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions, which cannot be
used for medical purposes.
CONSOLE FUNCTIONS

17
CONSOLE FUNCTIONS
TO TURN TREADMILL OFF: • The display will automatically turn off after 30 minutes if no buttons
are pressed.
• Remove safety key.
• Turn off the main switch on the front of the Trojan Marathon 230
Treadmill, below the motor cover.

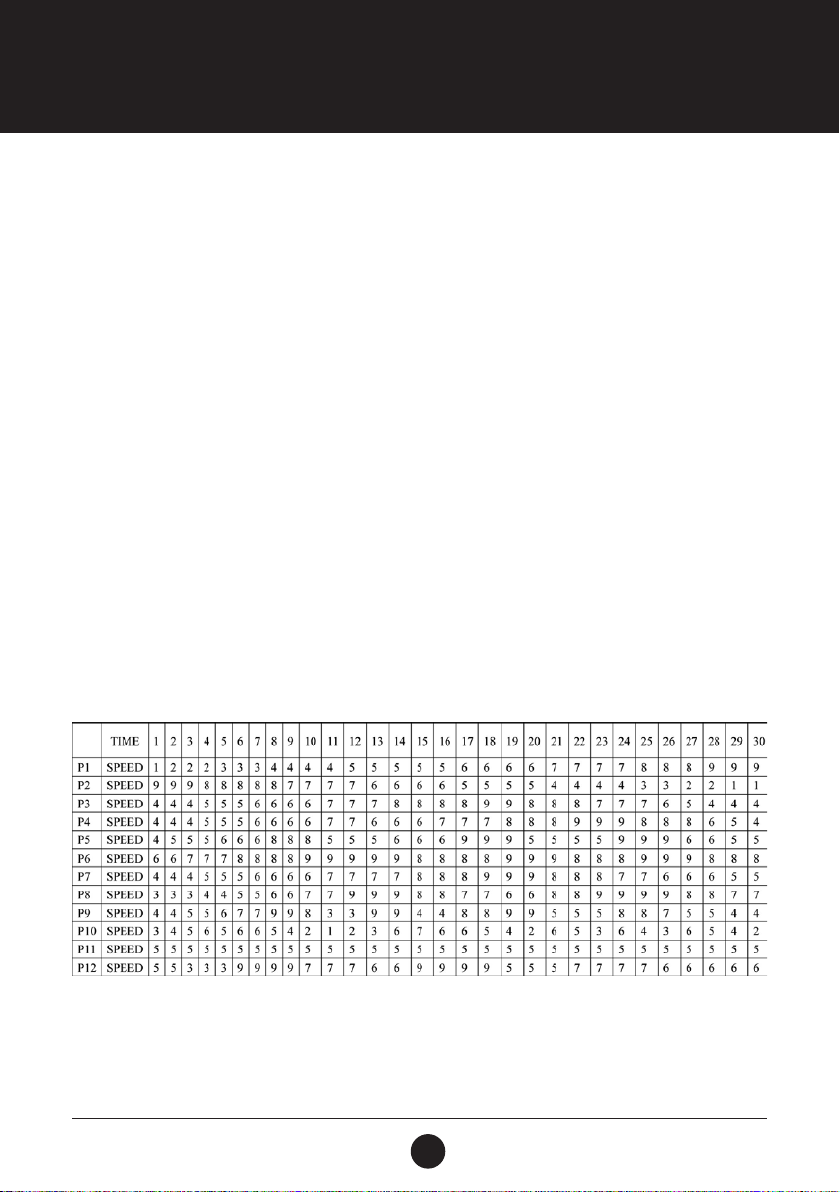

PROGRAMMABLE FEATURES
The Trojan Marathon 230 Treadmill provides 12 programs (P1 - 12). Each program has specic speed variations.
TO SELECT AND START • Ensure the machine is in “READY” mode. Press the program button to
A PRESET PROGRAM: choose the desired program (P1 – 12), followed by the Start button.
• Each program will continue for a duration of 30 minutes. This is a default
setting. The speed will automatically be adjusted in 3 minute intervals. The
speed setting can also be adjusted manually at any time. 3 Seconds before
the end of a program, a buzzer will sound 3 times, and the running belt will
come to a stop.
Optional: There is an audio input slot in the front of the console with built-in speakers. You may plug
any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio, CD
player, TV or Console audio signal. There is an audio patch cable included as well as a headphone port.

18
EXERCISE INSTRUCTIONS
Using your Trojan Marathon 230 Treadmill provides you with several benets, it will improve your physical
tness, tone muscle and in conjunction with a calorie controlled diet, help you lose weight.

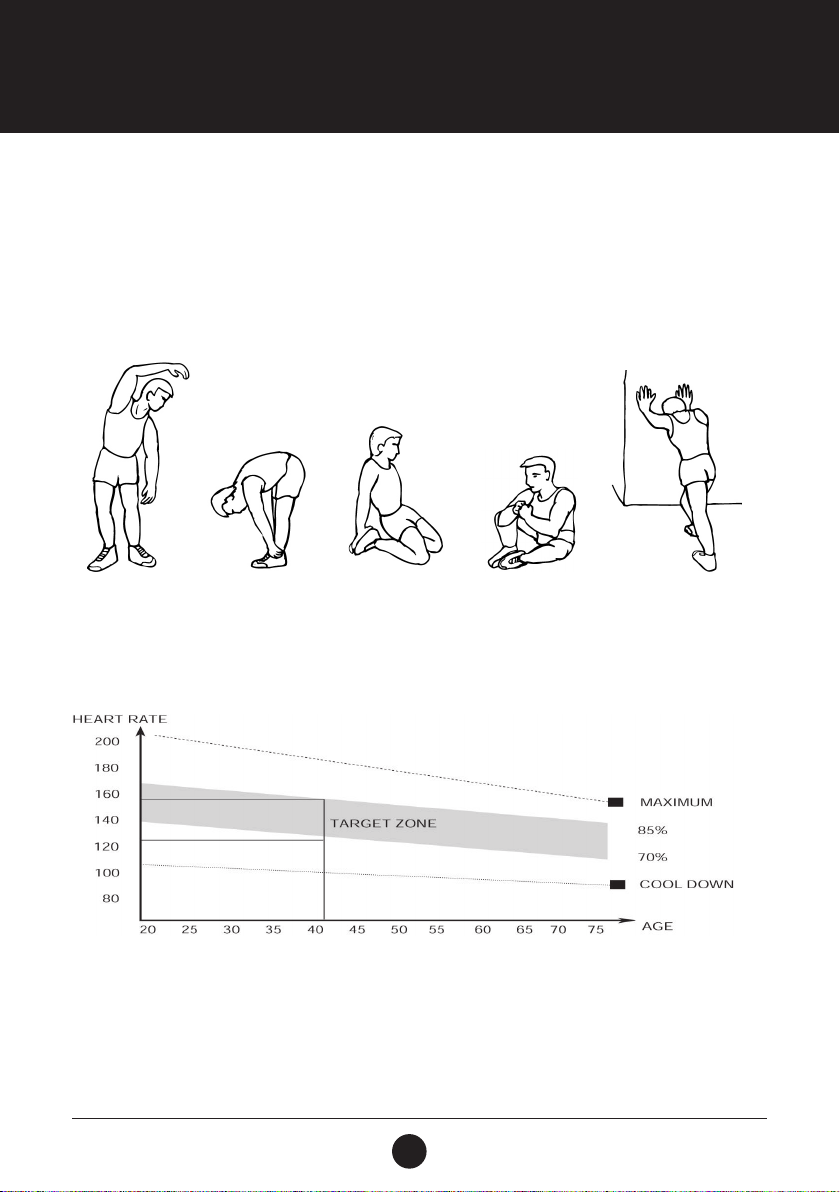

THE WARM UP PHASE
This stage helps get the blood owing around the body and the muscles working properly. It will also reduce
the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each
stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch.
If it hurts, STOP.
This is the stage where you put the effort in. After regular use, the muscles in your legs will become stronger.
Work at your own pace, but it is very important to maintain a steady tempo throughout. The rate of work
should be sufcient to raise your heart beat into the target zone shown on the graph below.
This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up
exercise i.e. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now
be repeated, again remembering not to force or jerk your muscles into the stretch.
As you get tter you may need to train longer and harder. It is advisable to train at least 3 times a week,
and if possible space your workouts evenly throughout the week.
SIDE BENDS OUTER THIGH CALF STRETCHINNER THIGHFORWARD
BENDS

19
EXERCISE INSTRUCTIONS
MUSCLE TONING
To tone muscle while on your Trojan Marathon 230 Treadmill you will need to have the resistance set quite
high. This will put more strain on your leg muscles and may mean you cannot train for as long as you would
like. If you are also trying to improve your tness, you need to alter your training program. You should train
as normal during the warm up and cool down phases, but towards the end of the exercise phase you should
increase resistance, making your legs work harder than normal. You may have to reduce your speed to keep
your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn.

20
FITNESS TIPS & TECHNIQUES
VISIT:
www.trojanhealth.co.za for equipment choices and exercise programs.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs.
Aerobic exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic
exercise tness is promoted by any activity that uses your large muscles (arms, legs, or buttocks, for
example). Your heart beats quickly and you breathe deeply. An aerobic exercise should form part of your
entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process. Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.

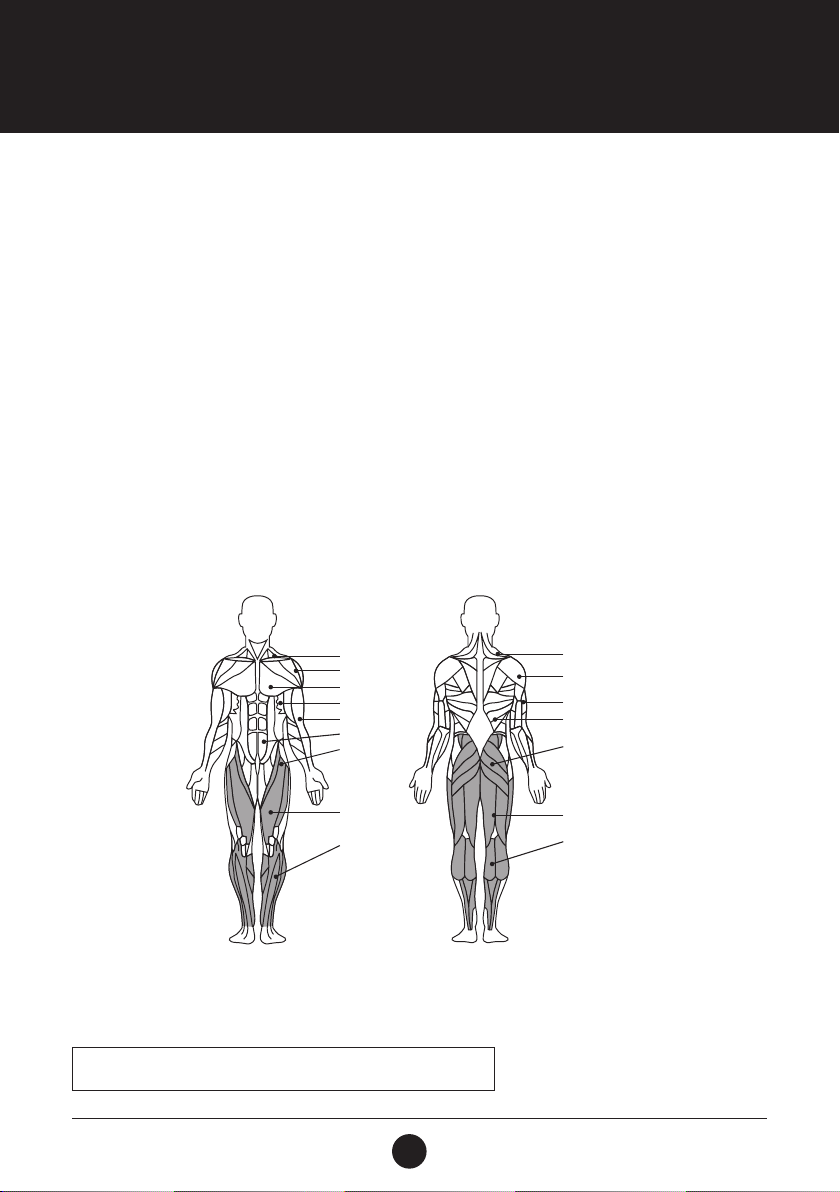

MUSCLE CHART
The exercise routine that is performed on the Trojan Marathon 230 Treadmill will develop the lower
body muscle group as well as condition the circulatory system and provide a good aerobic workout. These
muscle groups are highlighted on the muscle chart below.
Trapezius
Posterior
Latissimus Dorsi
Tricep
Gluteals
Hamstrings
Gastrocnemius
Anterior
Trapezius
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Quadriceps
Sartorius
Tibialis
