Trotec Ttk 30 e User manual

TRT-BA-TTK30E-TC-002-EN

TTK 30 E

OPERATING MANUAL

DEHUMIDIFIER

1 EN

Operating manual – dehumidifier TTK 30 E

Table of contents

Notes regarding the operating manual.................................1

Safety .....................................................................................1

Information about the device................................................3

Transport and storage...........................................................4

Assembly and installation.....................................................5

Operation ...............................................................................6

Errors and faults..................................................................10

Maintenance ........................................................................11

Technical annex...................................................................15

Disposal ...............................................................................15

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Note

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

operating manual must be observed.

You can download the current version of the operating manual

and the EU declaration of conformity via the following link:

TTK 30 E

https://hub.trotec.com/?id=40824

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

EN 2

Operating manual – dehumidifier TTK 30 E

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk.

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Ensure that the air inlet and outlet are not obstructed.

• Ensure that the side of the device where the air inlet is

found is kept free of dirt and loose objects.

• Only transport the device in an upright position with an

emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and

storage. Do not drink it. Health hazard!

Intended use

Only use the device for drying and dehumidifying room air, while

adhering to and following the technical data.

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry.

Intended use comprises:

• dehumidifying and drying:

– living rooms, bedrooms, bathrooms and basements

– laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– storage spaces, archives, laboratories, garages

– bathrooms, wash rooms, changing rooms etc.

Improper use

The device is not intended for industrial use.

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the operating manual, especially

the Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling and

air-conditioning or by Trotec.

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Note

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

3 EN

Operating manual – dehumidifier TTK 30 E

Behaviour in the event of an emergency

1. Switch the device off.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device uses the principle of condensation to automatically

dehumidify rooms.

The fan sucks damp room air through the air inlet, the air filter,

the evaporator and to the condenser located behind it. The air is

cooled at the cold evaporator until it is below the dew point.

Water vapour contained in the room air precipitates on the

evaporator fins as condensation or rime. The dehumidified,

cooled air is slightly warmed at the condenser and blown out

again. The drier air thus conditioned mixes with the air in the

room. The humidity in the room where the device is positioned

is reduced as air constantly circulates through the device.

Depending on the air temperature and the relative humidity, the

condensed water either drops continuously or only during the

defrost phase through the integrated drain nozzle into the

condensation tank below. It is fitted with a float to measure the

filling level.

The device has a control panel for operating and controlling the

functions.

Once the maximum filling level of the condensation tank is

reached or in case the condensation tank is not installed

correctly, the condensation tank indicator light (see chapter

Operating elements) on the control panel is illuminated. The

device switches off. The condensation tank indicator light only

goes out again once the emptied condensation tank is

reinserted.

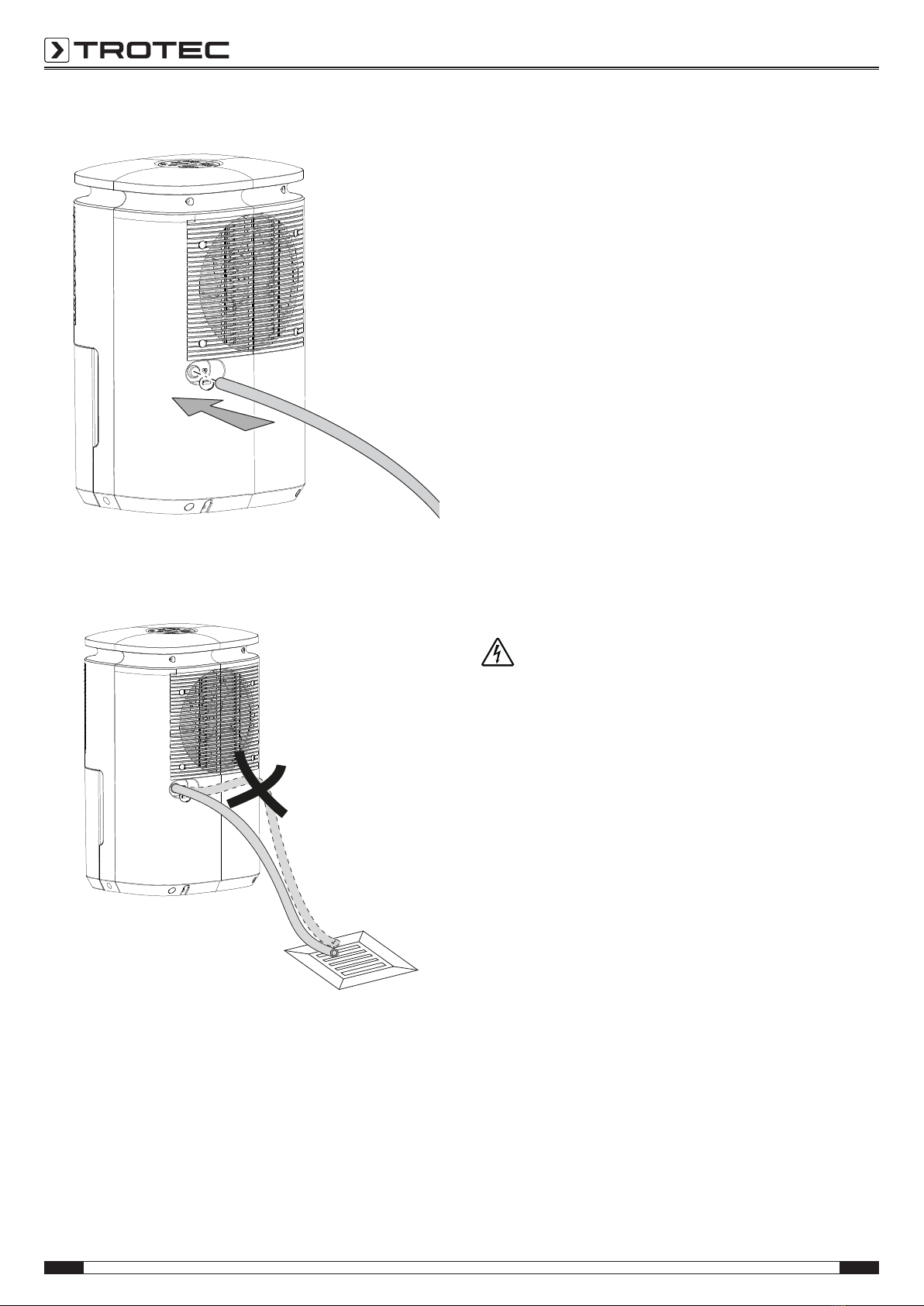

Optionally, the condensed water can be drained by attaching a

hose at the condensation connection.

The device can reduce the relative humidity of a room to approx.

30%.

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry in living or working spaces.

Because of the heat radiation generated during operation, the

room temperature may rise slightly.

EN 4

Operating manual – dehumidifier TTK 30 E

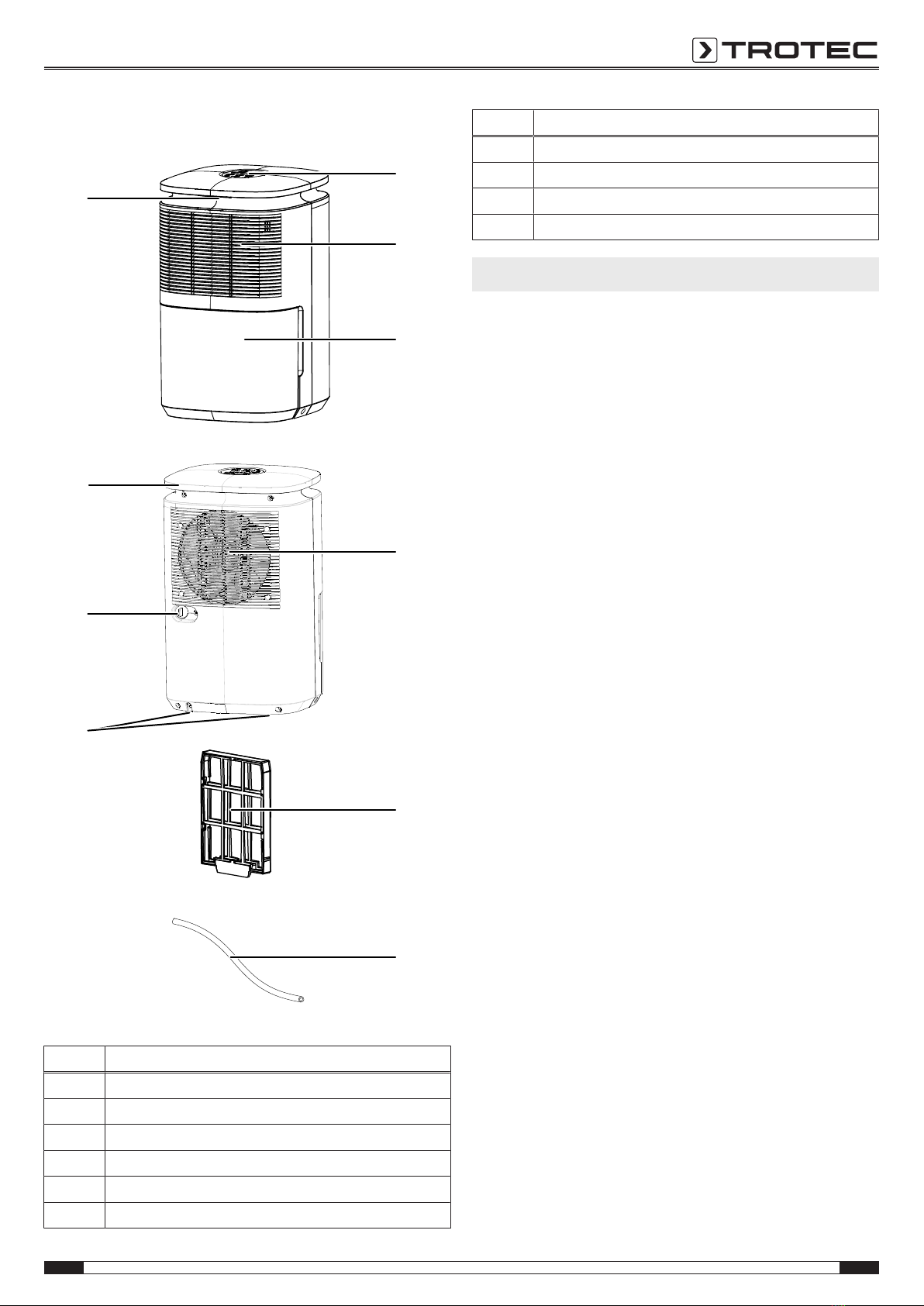

Device depiction

No. Designation

1 Control panel

2 Air inlet with air filter

3 Condensation tank

4 Air outlet

5 Air filter

6 Condensation drain hose

No. Designation

7 Feet

8 Condensation drain hose connection

9 Transport handle / Power cable winder

10 Colour LED for current room humidity

Transport and storage

Note

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

Before transporting the device, observe the following:

• Switch the device off.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Do not use the power cable to drag the device.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• Leave the device to rest for 12to24hours, so the

refrigerant can accumulate within the compressor. Wait

12to24hours before switching the device back on! Acting

contrary might lead to compressor damage and a

malfunctioning device. If so, any warranty claims will be

voided.

Storage

Before storing the device, observe the following:

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Empty and clean the condensation tank prior to storage.

• Drain any possibly remaining condensate.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

5 EN

Operating manual – dehumidifier TTK 30 E

Assembly and installation

Scope of delivery

• 1x Device

• 1x Condensation drain hose, length: 0.3 m,

diameter: 17 mm

• 1x Air filter

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are unrolled completely.

• When positioning the device, keep a sufficient distance to

heat sources.

• Make sure that no curtains or other objects interfere with

the air flow.

• When positioning the device, particularly in wet areas,

secure it locally with an RCD (residual current device)

which complies with the respective regulations.

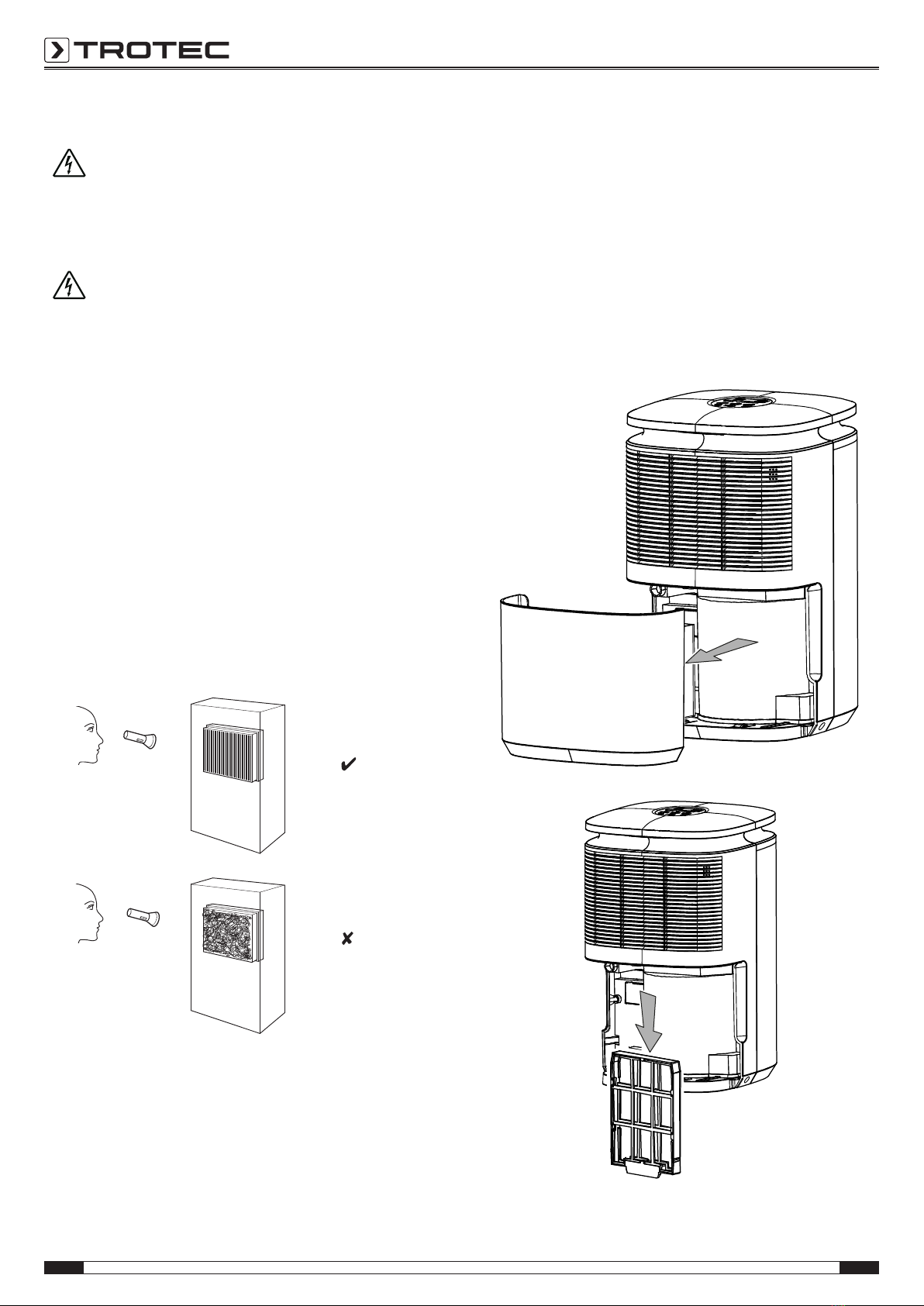

Inserting the air filter

Note

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that the air filter is installed before switching

the device on.

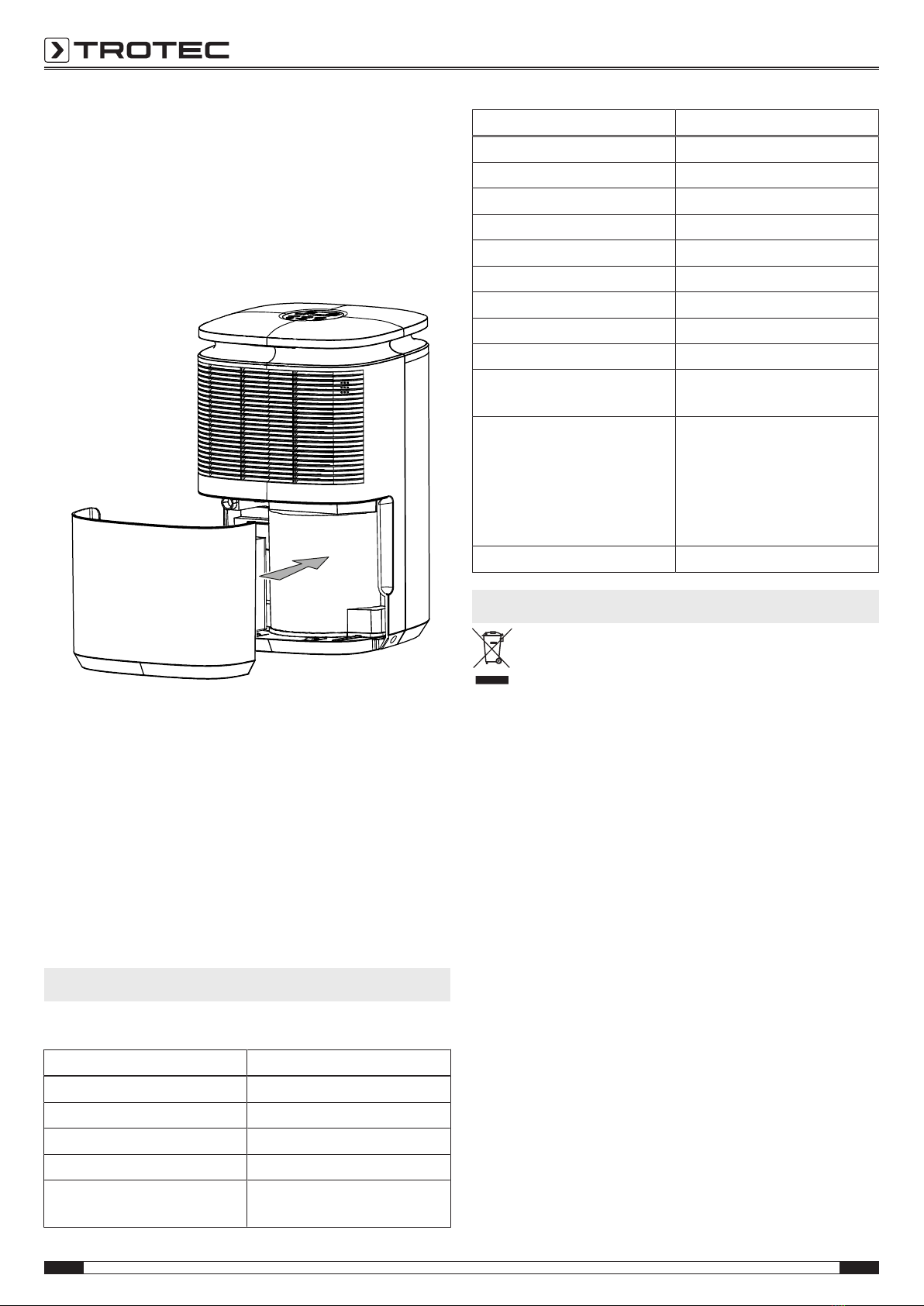

Inserting the condensation tank

• Ensure that the float inside the condensation tank is

inserted correctly.

• Ensure that the condensation tank is empty and inserted

correctly.

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

EN 6

Operating manual – dehumidifier TTK 30 E

Operation

Notes:

• Avoid open doors and windows.

• After being switched on, the device operates fully

automatically.

• The fan permanently runs in dehumidification mode even

after the set nominal value has been reached until the

device is switched off.

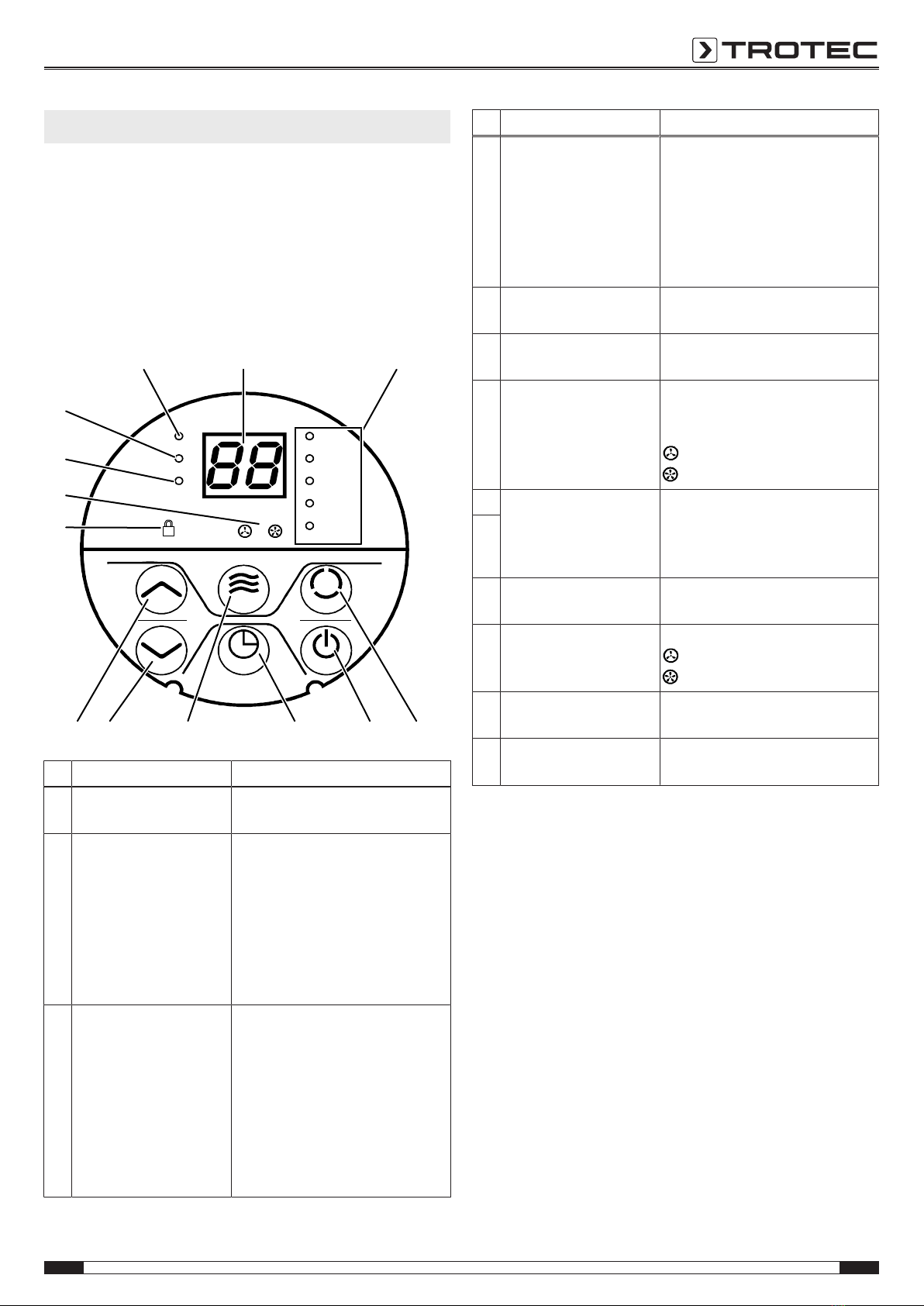

Operating elements

Timer

Tank Full

Defrost

Continuous

Automatic

Fast Dry Clothes

Dehumidify

Fan

FAN

TIMER

MODE

ON/OFF

11 12 13

14151617

19 18

No. Designation Meaning

11 Timer indication Illuminated when the timer is

programmed

12 Segment display Indicates the relative room

humidity level

Indicates the desired relative

room humidity during setting

Indicates continuous operation

CO in dehumidification mode

Indicates the number of hours

during timer programming

13 Operating modes

indication

Indication of active operating

mode:

Dehumidify = Dehumidification

Automatic = Automatic mode

Continuous = Continuous

operation

Fast Dry Clothes = Laundry

drying function

Fan =Ventilation

No. Designation Meaning

14 MODE button Selection button for operating

modes:

Dehumidification

Automatic operation

Continuous operation

Laundry drying function

Ventilation

15 ON/OFF button Power button:

Switches the device on or off

16 TIMER button Starts programming for the timer

function

17 FAN button Setting the fan speed in

dehumidification and ventilation

mode:

= low

= high

18 Arrow buttons Setting the operating mode

Setting the relative room humidity

Setting the number of hours for

the timer function

20 Child lock indication Illuminated when the child lock is

active

21 Fan speed indication Indication of the fan speed:

= low

= high

22 Defrost indication Illuminated when automatic

defrosting is in progress

23 Tank Full indication Illuminated when the

condensation tank is full

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

1. Press the ON/OFF button(15).

ðThe device starts in automatic mode.

Setting the operating mode

Setting the relative room humidity

You can only change the relative room humidity in

dehumidification mode.

1. Press the arrow buttons(18, 19) to adjust the relative room

humidity. Setting is possible in the range between 30 %

and 80 % in steps of 5%.

ðThe desired relative room humidity is indicated in the

segment display(12) for approx.5seconds. Then the

current relative room humidity is displayed again.

7 EN

Operating manual – dehumidifier TTK 30 E

Dehumidification

The device keeps running until reaching the preselected relative

room humidity. Then the compressor switches off and the fan

keeps running. Once the preselected relative room humidity is

exceeded, the compressor switches back on.

The relative room humidity can be set within a setting range

from 30 % to 80 % in steps of 5%. Additionally, the CO setting

for permanent dehumidification (continuous operation) can be

selected.

You can choose between low and high fan speed.

1. Press the MODE button(14).

ðThe indication of the currently selected operating mode

flashes.

2. Press the arrow buttons (18, 19) until the LED for

dehumidification mode(13) starts flashing.

3. Then press the MODE button(14) again.

ðDehumidification mode is selected.

4. Press the arrow buttons(18, 19) to adjust the relative room

humidity or to select continuous operation (CO).

5. Press the FAN button(17) to select either low or high fan

speed.

ðThe selected fan speed is indicated on the fan speed

indication(21).

Automatic operation

The relative room humidity is preset to 55 % and cannot be

changed.

If the relative room humidity lies between 55 % and 70 %, the

fan automatically switches over to low speed.

Below a relative room humidity of 55%, the compressor

switches off.

Above a relative room humidity of 70 %, the fan runs at the

highest level.

Info

In automatic mode, the fan speed indication(21) does

not change automatically.

1. Press the MODE button(14).

ðThe indication of the currently selected operating mode

flashes.

2. Press the arrow buttons (18, 19) until the LED for

automatic mode(13) starts flashing.

3. Then press the MODE button(14) again.

ðAutomatic mode is selected.

Continuous operation

The device dehumidifies the air constantly and regardless of the

relative room humidity.

The relative room humidity and the fan speed cannot be set in

this operating mode.

1. Press the MODE button(14).

ðThe indication of the currently selected operating mode

flashes.

2. Press the arrow buttons (18, 19) until the LED for

continuous operation(13) starts flashing.

3. Then press the MODE button(14) again.

ðContinuous operation is selected.

Laundry drying function

The device may be used to dry clothes in a more timely manner.

When positioning the device or a clothes horse, please observe

the minimum distances specified in the technical data.

The device dehumidifies the air constantly and regardless of the

relative room humidity. The fan runs at the highest speed.

The relative room humidity and the fan speed cannot be set in

this operating mode.

1. Press the MODE button(14).

ðThe indication of the currently selected operating mode

flashes.

2. Press the arrow buttons (18, 19) until the LED for the

laundry drying function(13) starts flashing.

3. Then press the MODE button(14) again.

ðThe laundry drying function is selected.

Ventilation

In ventilation mode you can choose between low and high fan

speed.

1. Press the MODE button(14).

ðThe indication of the currently selected operating mode

flashes.

2. Press the arrow buttons (18, 19) until the LED for

ventilation mode(13) starts flashing.

3. Then press the MODE button(14) again.

ðVentilation mode is selected.

4. Press the FAN button(17) to select either low or high fan

speed.

ðThe selected fan speed is indicated on the fan speed

indication(21).

EN 8

Operating manual – dehumidifier TTK 30 E

Colour LED for current room humidity

Regardless of the operating mode, the colour LED indicates the

current relative room humidity by means of 3 different colours.

LED colour Meaning

Blue Relative room humidity below

55%

Green Optimal relative room humidity

between 55% and 70%

Red Illuminated: relative room

humidity above 70%

Flashes: water tank full or not

inserted correctly

(accompanied by an acoustic

signal)

Setting the timer

Using the timer function, the device can be switched off

automatically after a preset number of hours.

The number of hours can range from 1 to 24 and can be

adjusted in increments of 1h.

Note

Do not leave the operating device unattended in a

freely accessible room with an activated timer.

üThe device is switched on.

1. Press the TIMER button(16).

ðThe number of hours flashes in the segment

display(12).

2. Press the arrow buttons(18, 19) to set the desired number

of hours.

3. Wait for approx. 5seconds in order to save the setting.

ðThe Timer indication (11) is illuminated.

ðThe relative room humidity is indicated in the segment

display(12) again.

ðThe device switches off after the set period of time.

Memory function

The device memorizes the last selected operating mode, and in

dehumidification mode(13) also the set room humidity,

provided the device is switched off manually by pressing the

ON/OFF button(15) and remains connected to the mains.

During short power failures, the device does not memorize the

settings. The device starts in automatic mode(13) in this case.

Child lock

1. Press the arrow buttons(18, 19) simultaneously for

approx. 3 seconds to enable the child lock.

ðAn acoustic signal is emitted.

ðThe child lock indication (20) is illuminated.

2. Press the arrow buttons(18, 19) simultaneously for

approx. 3 seconds to disable the child lock.

ðAn acoustic signal is emitted.

ðThe child lock indication (20) disappears.

Auto stop function

If the water tank is full, not inserted correctly or the relative

room humidity has been reached, the device will stop

automatically.

Operation with hose attached to the condensation

connection

For continuous operation or unattended dehumidification, please

connect the supplied condensation drain hose to the device.

üA suitable hose (diameter: 17mm) is ready for use.

üThe device is switched off.

1. Remove the sealing cap from the hose connection.

9 EN

Operating manual – dehumidifier TTK 30 E

2. Push one end of the hose onto the hose connection.

3. Guide the other hose end to a suitable drain or sufficiently

dimensioned collection container. Please note that the

hose must not be kinked.

Remove the hose if you want to collect the condensate in the

condensation tank again. Allow the hose to dry prior to storage.

The hose can be connected in any operating mode for

continuous operation.

Automatic defrost

At low ambient temperatures, ice may form at the evaporator

during dehumidification. The device will then carry out an

automatic defrost. Dehumidification is briefly interrupted during

defrosting.

The duration of the defrost process can vary. Do not switch off

the device during automatic defrost. Do not remove the mains

plug from the mains socket.

The Defrost indication(22) is illuminated during automatic

defrosting.

Drying laundry

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry in living or working spaces.

When positioning the device or a clothes horse, please observe

the minimum distances specified in the technical data.

For drying laundry the following values should be selected:

• cupboard dry = 46 % relative humidity

• iron dry = 58 % relative humidity

• slightly dried = 65 % relative humidity

If necessary, use a measuring device to determine the humidity

level.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• If necessary, remove the condensation drain hose and any

residual fluid from it.

• Empty the condensation tank, if need be.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

EN 10

Operating manual – dehumidifier TTK 30 E

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damages.

• Check the on-site fusing.

• Check the filling level of the condensation tank and empty

it if necessary. The Tank Full indication(23) must not light

up.

• Check the condensation tank for correct seating.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data. Possibly, the device does not start because the

ambient temperature is too low (< 5°C).

• Wait for 10minutes before restarting the device. If the

device is not starting, have the electrics checked by a

specialist company or by Trotec.

The device is running, but there is no formation of

condensate:

• Check the float in the condensation tank for dirt. If

necessary, clean the condensation tank. The float must be

able to move freely.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data. Possibly, the device does not start because the

ambient temperature is too low (< 5°C).

• Ensure that the relative room humidity complies with the

technical data.

• Check the preselected relative room humidity. The

humidity in the room must be above the selected range.

• Check the air filter for dirt. If necessary, clean or replace

the air filter.

• From the outside, check the condenser for dirt (see

chapter Maintenance). If the condenser is dirty, have it

cleaned by a specialist company or by Trotec.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

Condensate is leaking:

• Check the device for leaks.

The compressor does not start:

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data. Possibly, the device does not start because the

ambient temperature is too low (< 5°C).

• Ensure that the relative room humidity complies with the

technical data.

• Check the preselected relative room humidity. The

humidity in the room must be above the selected range.

• Check whether the overheating protection of the

compressor has tripped. Disconnect the device from the

mains and let it cool down for approx. 10minutes before

reconnecting it.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filters for dirt. Remove external

dirt.

• From the outside, check the device for dirt (see chapter

Maintenance). If the inside of the device is dirty, have it

cleaned by a specialist company for cooling and air-

conditioning or by Trotec.

Note

Wait for at least 3 minutes after maintenance and

repair work. Only then switch the device back on.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to a specialist company for cooling and air-conditioning

or to Trotec for repair.

11 EN

Operating manual – dehumidifier TTK 30 E

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2 weeks

at least every

4 weeks

at least every

6 months

at least

annually

Check air inlets and outlets for

dirt and foreign objects and clean

if necessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

X X

Replace the air filter X

Check for damage X

Check the attachment screws X X

Test run X

Empty the condensation tank and

drain hose

EN 12

Operating manual – dehumidifier TTK 30 E

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Check air inlets and outlets for dirt

and foreign objects and clean if

necessary

Clean the exterior

Visually check the inside of the

device for dirt

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

Replace the air filter

Check for damage

Check the attachment screws

Test run

Remarks:

Empty the condensation tank and

drain hose

1. Date: ................................
