Trotec TTK 1500 User manual

TTK 1500
OPERATING MANUAL
DEHUMIDIFIER
EN
TRT-BA-TTK1500-TC-001-EN

EN Operating Manual – Dehumidifier TTK 1500 1
Symbols
Hazardous electric current!
Warns about hazards from electric current which can
lead to injuries or even death.
Danger!
Warns of a hazard which can lead to personal injury.
Caution!
Warns of a hazard which can lead to damage to
property.
The current version of the operating manual can be found at:
www.trotec.de.
Legal notice
This release replaces all previous releases. No part of this
publication may be reproduced without written permission. The
same applies for electronically processing, duplicating or
spreading the publication. Subject to technical changes. All rights
reserved. Trademarks are used without guarantee that they may
be used freely and primarily following the spelling of the
manufacturer. The product names used are registered and should
be treated appropriately. The delivered product may vary from
product images. This document was produced with all due care.
We accept no liability whatsoever for mistakes or omissions.
©Trotec
Table of contents
Notes regarding the operating manual ............................ 01
Information about the device........................................... 02
Safety ............................................................................. 05
Transport ........................................................................ 06
Operation........................................................................ 07
Errors and faults ............................................................. 10
Maintenance................................................................... 11
Disposal.......................................................................... 17
Declaration of conformity ................................................ 17
Notes regarding the operating manual

2Operating Manual – Dehumidifier TTK 1500 EN
Description of the device
This device uses the principle of condensation to automatically
dehumidify rooms. To do so, the device can be used in continuous
operation.
The fan sucks damp room air through the air inlet (5), the air
filter (7), the evaporator and to the condenser located behind it.
The air is cooled at the cold evaporator until it is below the dew
point. Water vapour contained in the room air precipitates on the
evaporator fins as either condensation or frost. The dehumidified,
cooled air is warmed again and blown out from the air outlet (6).
The drier air which is prepared in this way mixes with the air in the
room. The humidity in the room where the device is positioned is
reduced as air constantly circulates through the device.
Depending on the air temperature and the relative humidity, the
condensed water either drops continuously or only during the
defrost phase into the condensation tray. The condensation is fed
through a pressure-resistant pipe connection and out of the device
at a preinstalled condensation drain hose (4).
The condensed water can be diverted by retrofitting a
condensation pump.
For easy operation, the device is fitted with a control panel (2) and
for easy transport, it is fitted with a bar handle (1) and wheels (3).
The device can reduce the relative humidity of a room by up to
approx. 35 %. Because of the heat radiation which is tied up in
operation, the room temperature can rise by approx. 1 – 3 °C.
Device depiction and operating elements
Scope of supply (standard)
• TTK 1500
•airfilter
• condensation drain hose
• operating manual
Optional accessories
• humidistat
• condensation pump
• energy cost gauge
Information about the device
No. Operating element
1 bar handle
2 control panel
3 wheels
4 condensation drain hose
5 air inlet
6 air outlet
7 air filter
1
7
53
4
2
6

EN Operating Manual – Dehumidifier TTK 1500 3
Technical data
Power consumption
The device's power consumption depends on the current room
temperature and relative humidity.
Multiply the operating hours (see operating hours counter (12)) by
a consumption value of one kilowatt per hour to determine the
approximate power consumption.
To determine the precise power consumption, a separate energy
cost gauge can be set between the construction dryer and the
power source. Contact Trotec customer service if you want this
alternative version.
Parameters Values
Model TTK 1500
Dehumidifying capacity, max. 400 l / 24 h
Dehumidifying capacity (20 °C / 60 % relative humidity) 100 l / 24 h
Suitable for room dimensions up to:
construction drying or clearing water damages
maintaining dryness 1700 m³ 3400 m³
Operating temperature 0-40 °C
Working range for relative humidity 35-100 %
Volume of airflow, max. 2200 m³/h
Electric connection 400 V / 50 Hz / 6.75 A
Power consumption, max. 2.7 kW
Power consumption, average 1.7 kW
Fuse (home) 10 A
Compressor Reciprocating
Refrigerant R407c
Amount of refrigerant 2.5 kg
Weight 141 kg
Dimensions (HxDxW) 660 x 660 x 1313 mm
Minimum distance from walls of other objects A: Above: 50 cm
B: Behind: 50 cm
C: Side: 50 cm
D: Front: 50 cm
Sound pressure level LpA (3 m; complies with DIN 45635-01-KL3) 58 dB(A)

4Operating Manual – Dehumidifier TTK 1500 EN
Cooling circuit diagram
Circuit diagram
EVAPORATOR
COMP
AIR
CONDENSER
RECEIVER
DRIER
LIQUID
INDICATOR
TEV
VALVE
SOLENOID
PHIAL
INE-3-GA
SUCTION
ACCUMULATOR
SCHRADER
SERVICE
LP
SCHRADER
SERVICE
HP
HP
LP
PORT
PROCESS
RECEIVER/DRIER ASSY
INSULATION
N
CONTINUO US
MAINS LAMP
CONTROL SWITCH
FAN MODE
SWITCH
CYCLE
FAULT LAMP
FAN MOTOR
FAN CAP'
DELAY TIMER
CONTACTOR
COMPRESSOR
CONDENSATE
PUMP
PUMP FUSE
HUMIDISTAT
FLOAT SWITCH
RELAY No 1
ISOLATOR
RELAY No 2
HIGH LEVEL
PUMP RUN FLOAT SWITCH
L1 L3L2
HOURS RUN METER
FAN FUSE
RELAY No 3
32
1 1 2
(COM)
2
(N/O)
(N/C)
MAKES 1-3 ON TEMP FALLING
DEFROST VALVE
DEFROST
THERMOSTAT
DEFROST LAMP
(COM) 7
(N/C) 1 A
B
C
S
R
1 3 5 6 (N/O)
4 (N/O) 2 (N/O)
A2A1
9
(COM)
(N/O) 6 A
B
BA
(COM) 7
4 (N/O)
13
4
1
C(COM)
(N/C)L
LP SWITCH
BREAKS ON
PRESSURE FALLING
H(N/C)
C(COM)
HP SWITCH
BREAKS ON
PRESSURE RISING
(F3)
(F2)
CONTROL FUSE
(F1)

EN Operating Manual – Dehumidifier TTK 1500 5
Read this manual carefully before starting or using the
device. Store the manual near the device or its site of use!
• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur,
chlorine, acid or salt.
• Do not operate the device in rooms which are pressurised with
acetone, undiluted acids or solvents.
• Set the device in an upright and stable position.
• Do not expose the device to directly squirting water during
operation.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found
is kept free of dirt and loose objects.
• Never insert objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. from animals).
• Only use extensions to the electric cable which are appropriate
to the device power consumption, the length of its cable and
its use. Avoid electrical overload.
• Only transport the device in an upright position with an
emptied condensation pump and tray.
• Dispose of the collected condensation. Do not drink it. There is
a risk of infection!
Intended use
Only use the device TTK 1500 as a mobile industrial dryer for
drying and dehumidifying room air, while adhering to and
following the technical data.
Intended use encapsulates:
• drying and dehumidifying:
– production plants, underground rooms
– store rooms, archives, laboratories
– rooms and areas after water damages from burst pipes or
flooding
• maintaining the dryness of:
– instruments, devices and files
– electric control devices, boiler plants, turbines and pipe
systems in power plants
– moisture-sensitive loads etc.
Improper use
Do not place the device on flooded ground. Do not use the device
outdoors. Do not lay any objects, e.g. wet clothing, on the device
for drying. Any changes, modifications or alterations to the device
which have not been authorised by Trotec are forbidden.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with electric
devices in damp areas.
• take measures to protect themselves from direct contact with
live parts.
• have read and understood the operating manual, especially the
"Safety" chapter.
Maintenance tasks at the electrical equipment or the air-
conditioning technology must only be carried out by
specialist companies for cooling and air-conditioning or by
Trotec.
Residual risks
Hazardous electric current!
Work on the electrical components must only be carried
out by an authorised specialist company!
Hazardous electric current!
Before any work on the device, remove the mains plug
from the mains socket!
Caution!
To avoid damages to the device, never operate the
device without an air filter inserted!
Safety

6Operating Manual – Dehumidifier TTK 1500 EN
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Danger!
A toppling device can cause you injuries! Only slightly tilt
the device and move it carefully. If necessary, ask
another person to help. For longer distances, transport
the device with a fork lift or elevating truck. Never stand
below the device when suspended in the air.
Behaviour in the event of an emergency
1. Disconnect the device from the mains power in an emergency.
2. Do not reconnect a defective device to the mains power.
To make the device easier to transport, it is fitted with wheels and
side bar handles. If necessary, transport the device with the help
of another person. To lift the device, use a fork lift or an elevating
truck.
Before transporting the device, proceed as follows:
1. Switch off the device at the mains switch (see chapter
"Operating elements").
2. Remove the mains plug from the mains socket. Do not use the
power cable to drag the device!
3. Empty the condensation drain hose or the condensation pump
(optional). Check for dripping condensation.
4. Hold the bar handles in both hands and carefully tilt the device.
5. Transport the device on its wheels.
After transporting the device, proceed as follows:
1. Set the device in an upright position after transport.
2. Ensure that the device sits flat on the floor. The wheels are
then raised and the device cannot roll away.
Storage
When out of use, store the device as follows:
•dry,
• with a roof overhead,
• in an upright position where it is protected from dust and direct
sunlight,
• with a plastic cover to protect it from invasive dust, if
necessary.
• The storage temperature is the same as the range given for the
operating temperature in the chapter "Technical data".
Transport

EN Operating Manual – Dehumidifier TTK 1500 7
• After being switched on, the device operates fully
automatically.
• Avoid open doors and windows.
Positioning
When positioning the device, observe the minimum distance from
walls of other objects as described in chapter "Technical data".
• Set the device in a level and stable position.
• When positioning the device, keep a sufficient distance away
from sources of heat.
• If possible, set the device in the middle of a room. If using
multiple devices, ensure that the spaces between devices is
equal.
• When positioning the device in wet areas, secure the device
locally with an RCD (Residual Current protective Device) which
complies with the appropriate regulations.
• Ensure that extension cords are completely unrolled.
• Ensure that power supply's voltage and current comply with
the specifications on the device's nameplate.
• When using a generator, ensure that the generator supplies at
least 4 kW of power (device starting current can exceed the
nominal current by four or five times. Also note this fact when
using several devices at one generator).
Notes regarding the dehumidifying capacity
The dehumidifying capacity depends on:
• the spatial composition of the room
• the room temperature
• the relative humidity
The higher the room temperature and relative humidity, the higher
the dehumidifying capacity.
For using in living rooms, a relative humidity of approx. 50-60 %
is sufficient. In store rooms and archives, the humidity should not
exceed approx. 50 %.

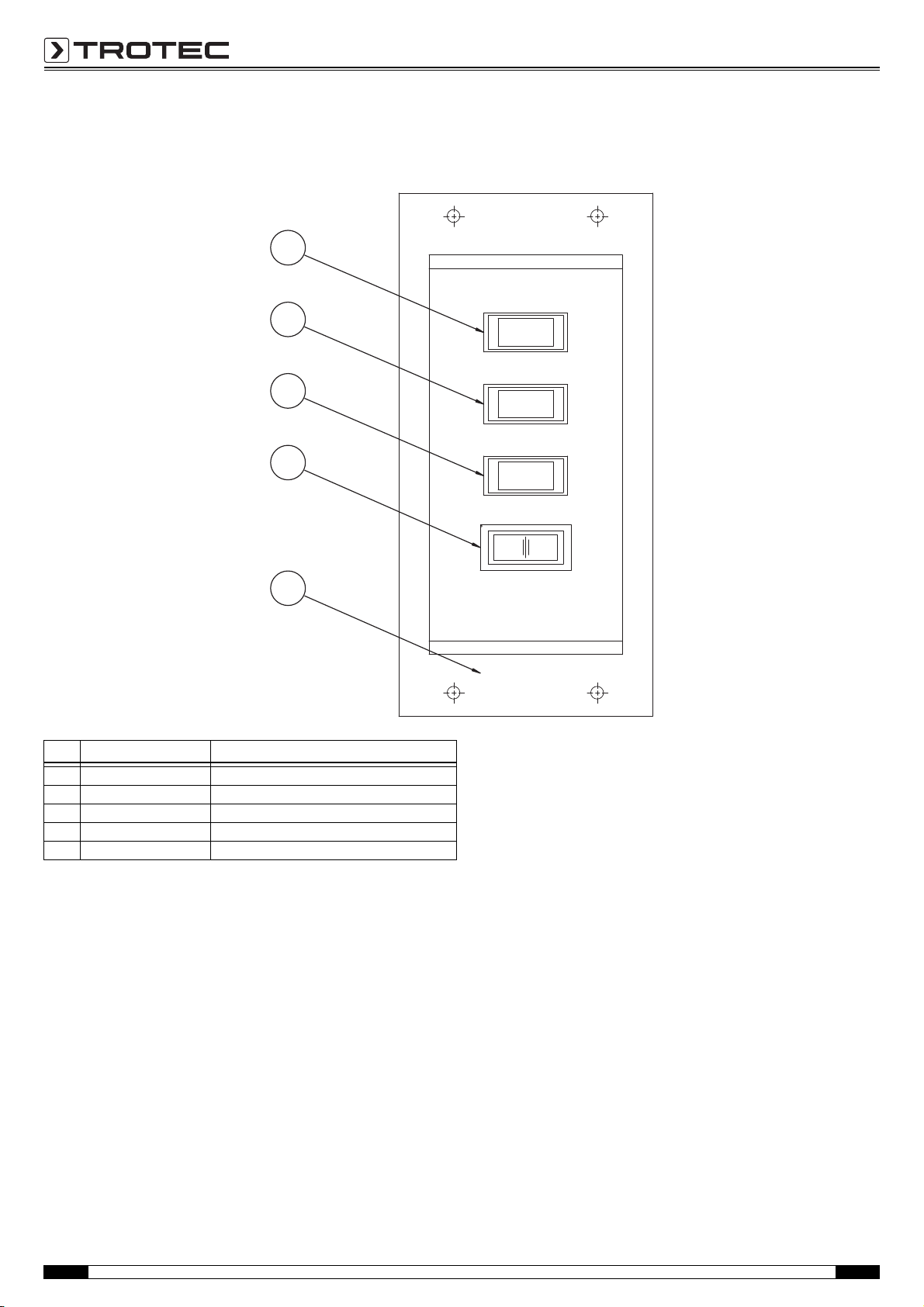

Operating elements
Operation
CC
A
B
D
No. Operating element
8 Operation indicator light:
Lights when the device is switched on at the mains switch.
9 "Fault" indicator light:
Lights when there is a fault.
10 "Automatic defrost" indicator light:
Lights when the automatic defrost is active.
11 Control on/off
12 Operating hours counter
13 Mains switch:
"ON": Device is switched on.
"OFF": Device is switched off.
FAULT
DEFROST
MAINS
M/C ON
12
13
11
10
9
8

8Operating Manual – Dehumidifier TTK 1500 EN
Start procedure

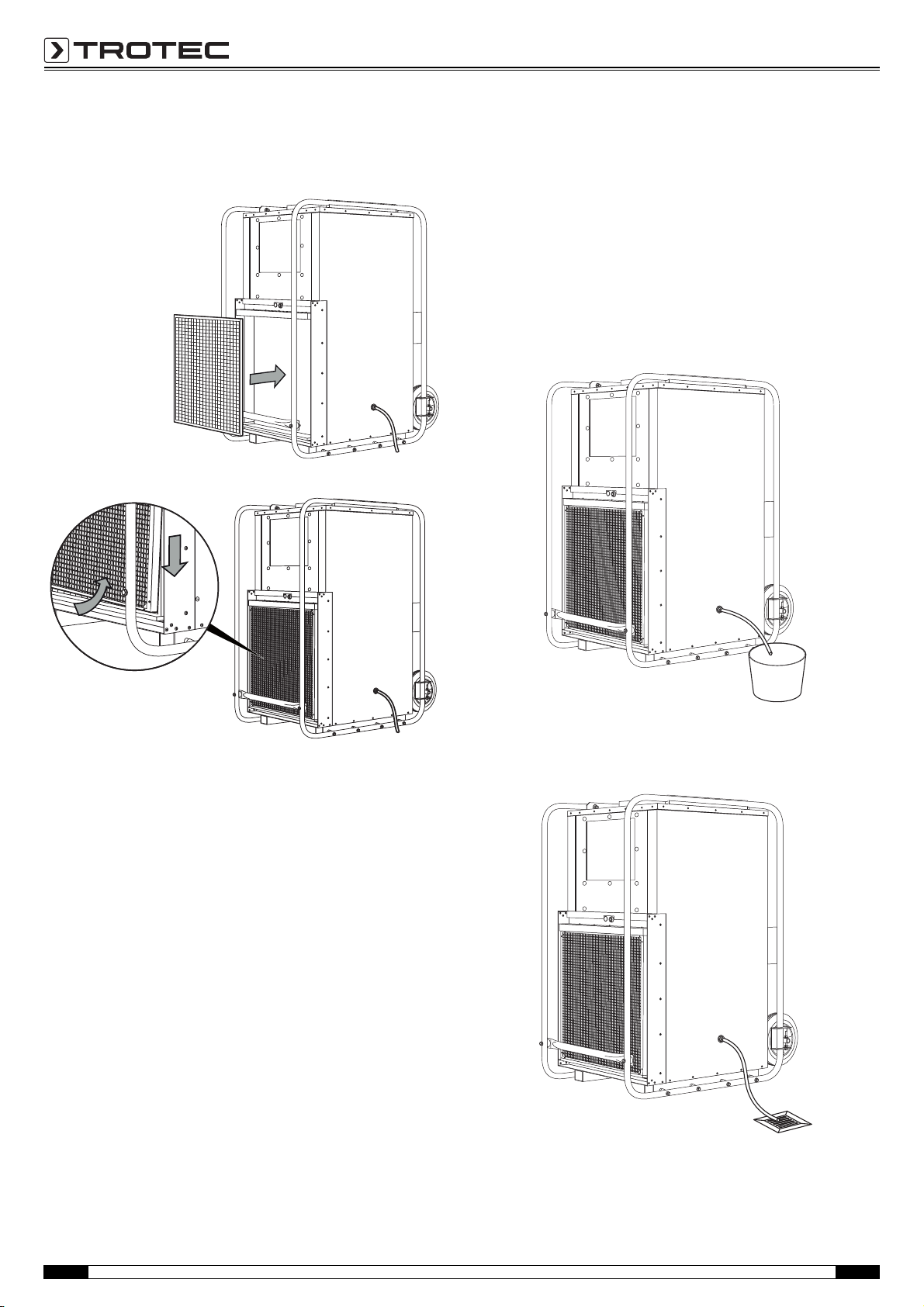

Insert air filter

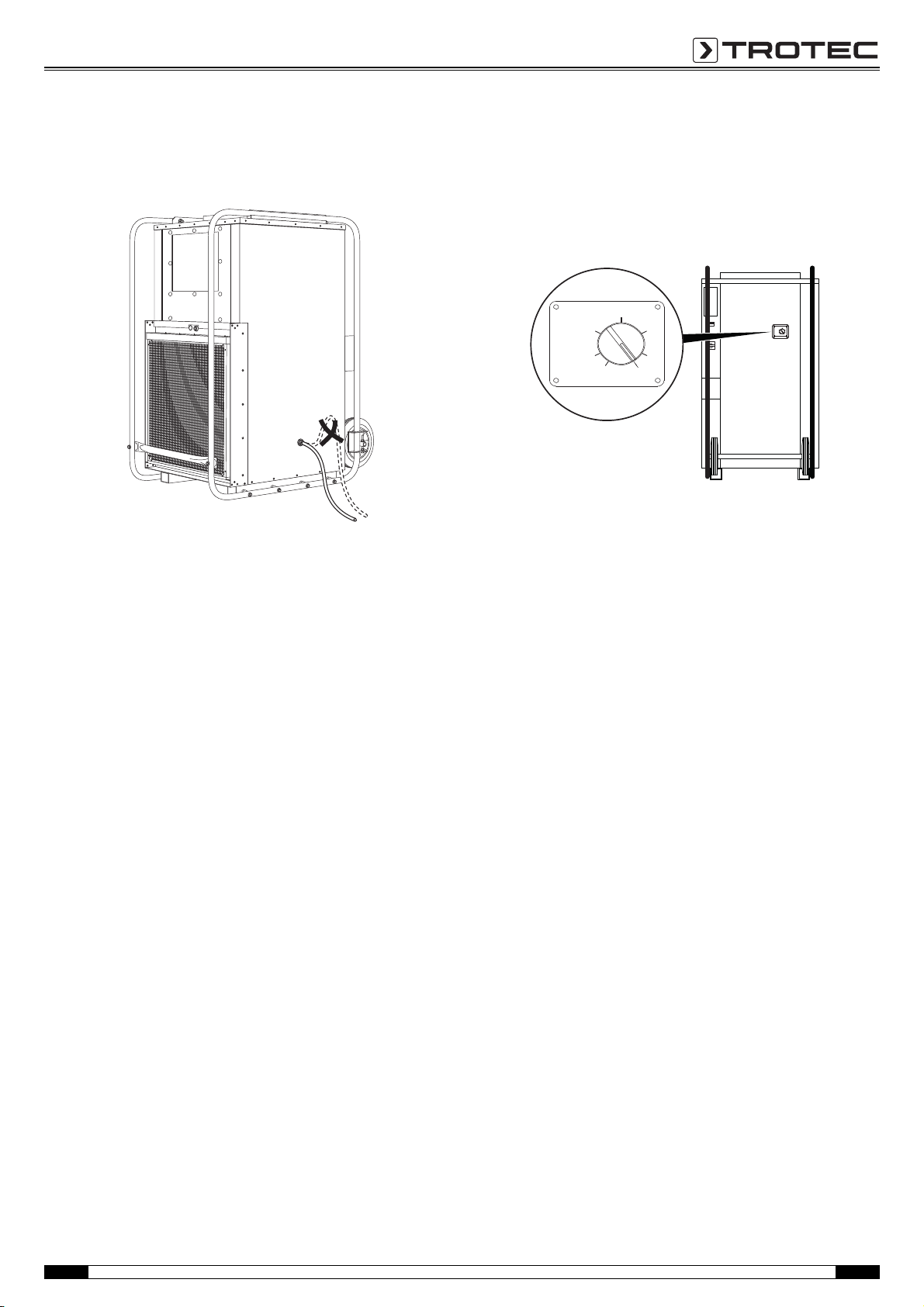

Positioning the condensation drain hose
Note:
The condensation drain hose is already installed when the device
is delivered.
1. Ensure that the condensation drain hose is properly connected
to the device and is free of damage.
2. Depending on use, position the end of the condensation drain
hose as follows:
– Position a sufficiently large container (at least 90 litres)
beside the device and insert the hose end. Check the fill level
of the container regularly.
– Position the end of the condensation drain hose above a
water drain. For larger distances, a longer hose of the same
type can also be used.
A.
B.

EN Operating Manual – Dehumidifier TTK 1500 9
– The device can also be operated with a condensation pump.
Contact Trotec customer service if you want this alternative
version.
3. Ensure that the condensation drain hose always descends.
Switching on the device
1. Ensure that the condensation drain hose (4) has been laid and
connected properly. Do not create tripping hazards.
2. Ensure that the condensation drain hose (4) is not bent or
jammed and that there are no objects on the condensation
drain hose (4).
3. Ensure that the condensation can run off properly.
4. Insert the mains plug into a properly secured mains power
socket. Do not create tripping hazards.
5. Empty any condensation from the device by pressing the
button for draining residual water from the condensation pump
(optional).
6. Switch on the device at the mains switch (13).
"Continuous" operation mode
In continuous operation mode, the device dehumidifies the air
constantly, regardless of the humidity in the air.
"Humidistat" operation mode (optional)
The device can also be operated with a humidistat.
The humidistat switches the device on or off depending on the
humidity.
If you choose to operate the device with an optional humidistat, set
the desired humidity at the humidistat (see operating manual of
the optional humidistat).
Automatic defrost
Depending on the air temperature and the relative humidity, the
evaporator fins may become covered in frost. The hot gas
automatic defrost which is installed in the device switches back on
as needed. Dehumidify mode is briefly interrupted during
defrosting.
Shut down procedure
1. Switch off the device at the mains switch (13).
2. Empty any condensation from the device by pressing the
button for draining residual water from the condensation pump
(optional).
3. Do not touch the mains plug with wet or damp hands.
4. Remove the mains plug from the mains socket.
5. Remove the condensation drain hose (4) and any residual fluid
from it.
6. Clean the device, and especially the air filter, according to
chapter "Maintenance".
7. Store the device according to chapter "Storage".
16x1 mm
D
I
I
M
U
H
S
T
A
40%
30%
20%
60%
80%
OFF ON
T
OFF
ON
00000.00
D
I
I
M
U
H
S
T
A
40%
30%
20%
60%
80%
OFF ON
T

10 Operating Manual – Dehumidifier TTK 1500 EN
The accurate functionality of the device was tested during
production a number of times. However, if functionality faults do
occur, then check the device according to the following list.
Caution!
To prevent damages to the device and to prevent the
fuse or motor protection switch from tripping, ensure
the device is switched off and wait at least 5 minutes
before switching the device back on.
The device does not start:
• Check the mains power (400 V/3~/50 Hz).
• Check the mains plug for damages.
• Check whether the mains switch (13) is in the "ON" position.
• Check the fuse (home).
• If you operate the device with a humidistat, check the desired
humidity. The humidity in the room must be above the selected
range. Reduce that the selected humidity.
• Have the electrics checked by a specialist company for cooling
and air-conditioning or by Trotec.
The device runs but forms no condensation:
• Check the condensation drain hose is positioned correctly.
• Check that the condensation pump functions properly. Check
for abnormal vibrations and sounds. Remove external dirt.
• Check the room temperature. Check the device's permissible
working range complies with the technical data.
• Ensure that the relative humidity complies with the technical
data.
• If you operate the device with a humidistat, check the desired
humidity. The humidity in the room must be above the selected
range. Reduce that the selected humidity.
• Check the air filter is not dirty. If necessary, clean or replace
the air filter.
The device is loud or vibrates; condensation leaks:
• Check whether the device is standing upright and on an even
surface.
The device gets very warm, is loud or is losing performance:
• Check the air inlets and air filter are not dirty. Remove external
dirt.
• Check the inside of the device for dirt (see chapter
"Maintenance"). Clean the inside of the device as described in
the chapter "Cleaning the inside with compressed air".
Does your device still not operate correctly after these
checks?
Bring the device to a specialist company for cooling and air-
conditioning or to Trotec for repairs.
Errors and faults

EN Operating Manual – Dehumidifier TTK 1500 11
Maintenance intervals
Maintenance and care log
Device type: ........................................ Device number: ........................................
Maintenance
Maintenance and care interval before every start when neces-
sary
at least every
2 weeks
at least every
4 weeks
at least every
6 months
at least annu-
ally
empty the condensation pump, condensation tray and/or
construction dryer X
check air inlets and outlets for dirt and foreign objects
and clean if necessary XX X
visually check whether the inside of the device is dirty X X
clean the inside with compressed air X X
check air inlet grid and air filter for dirt and foreign
objects and clean or replace if necessary XX
replace air filter X
check for damages X
check attachment screws X X
carry out a test run X
Maintenanceandcareinterval 12345678910111213141516
check air inlets and outlets for dirt and foreign objects
and clean if necessary
clean housing
visually check whether the inside of the device is dirty
clean the inside with compressed air
check air inlet grid and air filter for dirt and foreign
objects and clean or replace if necessary
replace air filter
check for damages
check attachment screws
carry out a test run
Remarks:
1. Date:
Signature: 2. Date: Signature: 3. Date: Signature: 4. Date: Signature:
5. Date:
Signature: 6. Date: Signature: 7. Date: Signature: 8. Date: Signature:
9. Date:
Signature: 10. Date: Signature: 11. Date: Signature: 12. Date: Signature:
13. Date:
Signature: 14. Date: Signature: 15. Date: Signature: 16. Date: Signature:

12 Operating Manual – Dehumidifier TTK 1500 EN
Activities for before the start of maintenance
1. Do not touch the mains plug with wet or damp hands.
2. Before any work, detach the mains plug!
Maintenance tasks at the electrical equipment or
the air-conditioning technology must only be
carried out by specialist companies for cooling and
air-conditioning or by Trotec.
Visual check for dirt in the inside of the device
1. Remove the air filter (see chapter "Cleaning the air inlets and
the air filter").
2. Shine a torch through the opening of the device.
3. Check the inside of the device for dirt.
4. If you find dirt, use a high pressure cleaner to clean the device
according to "Cleaning the air inlets and the air filter".
5. Put the air filter back in.

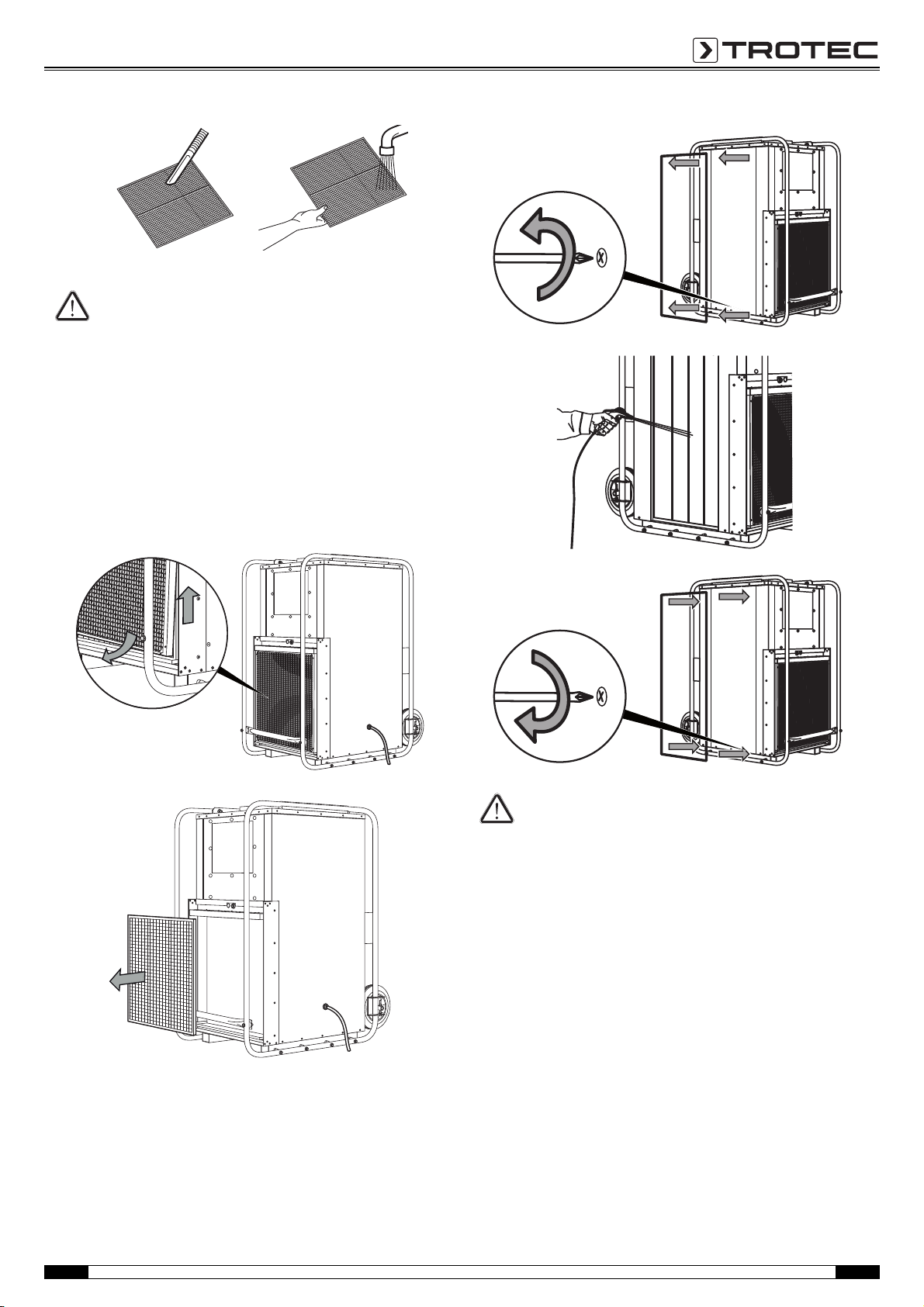

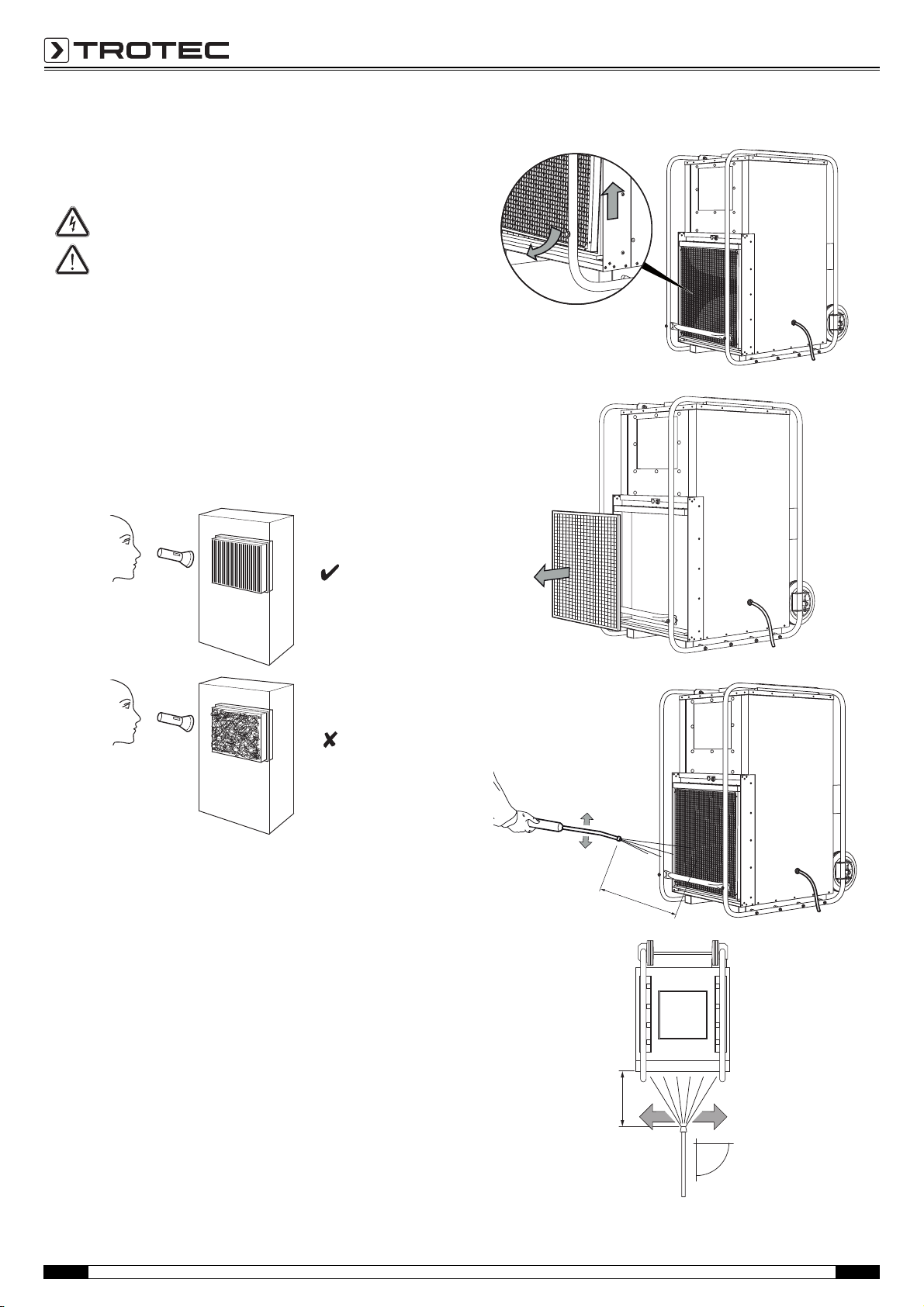

Cleaning the air inlets and the air filter
A.
50 cm
B.
C.
90°
50 cm

EN Operating Manual – Dehumidifier TTK 1500 13
Caution!
After you have cleaned the device with a high pressure
cleaner, check the air filter, which you have already
removed, for damages. The corners and edges must not
be rounded or misshaped.
Before reinserting the air filter, ensure that it is dry and
is not damaged!
Read the chapter "Maintenance intervals" and replace
the air filter punctually!
Cleaning the inside with compressed air
Caution!
When cleaning the inside, take care not to bend the fins
of the condenser and evaporator. Do not damage the
insulation.
D.
A.
B.
C.
D.
E.

14 Operating Manual – Dehumidifier TTK 1500 EN

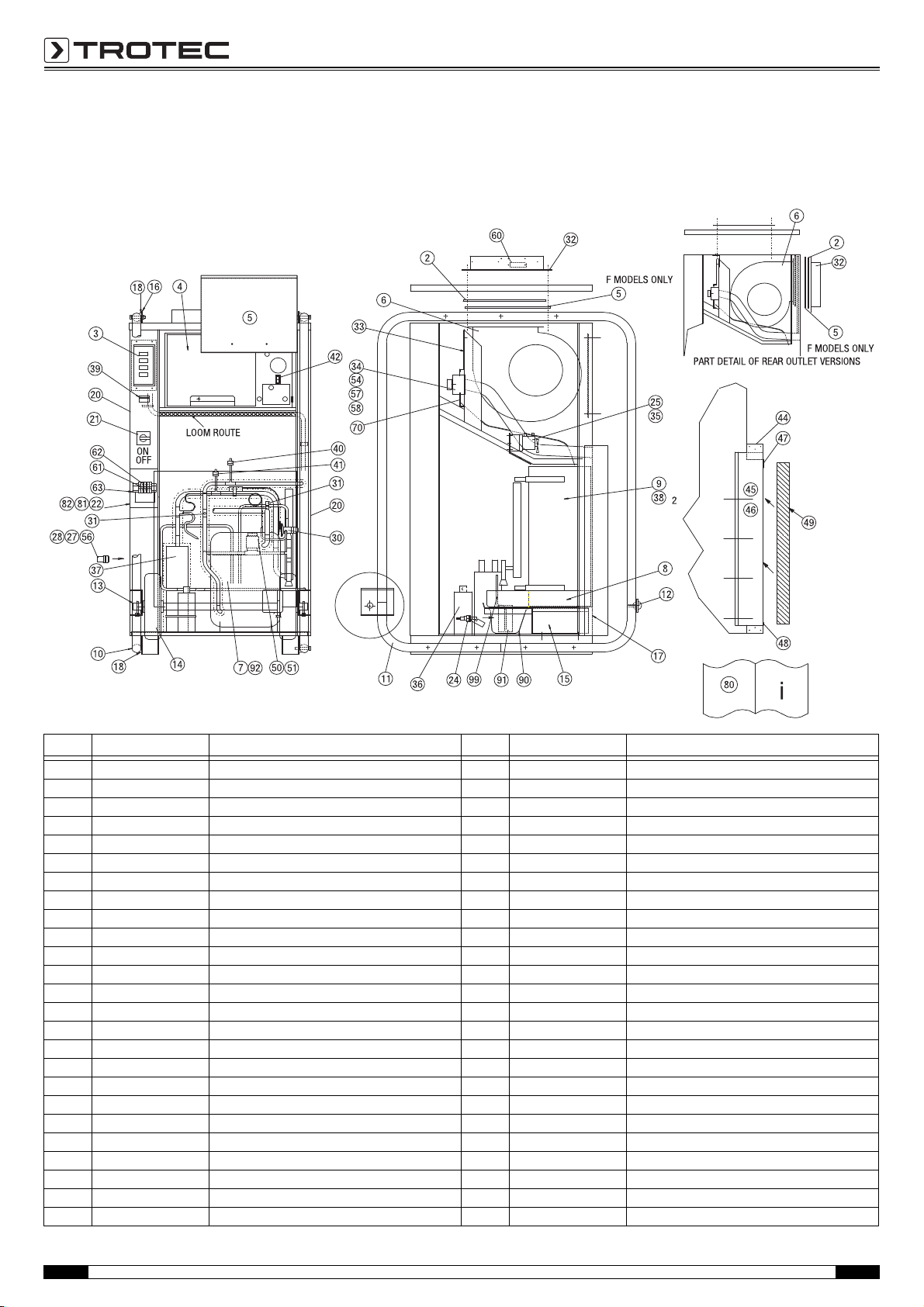

Overview and list of spare parts
Main components
Note!
The position numbers of the spare parts differ from those
describing the positions of other parts mentioned in this
operating manual.
No. Item number Spare part No. Item number Spare part
1 SD062150 electric box lid 30 SD086951 TEV INE-3-GA
2 SD071750 outlet grille 31 SP066350 Schrader valve
3 SA205501 console assembly 32 SD071650 duct flange
4 SA582501 electric box assembly 33 SD086350 support bkt
6 7150001210 fan assembly (drilled) 34 SD080650 component box ABS drilled
7 7161000283 compressor 35 SD300550 pump bracket
8 7310000886 drip tray 36 SD149650 receiver/drier
9 SD141553 evaporator 37 7140000899 operating hours counter (panel mount)
10 SD289750 frame (left side) 38 SD097250 evaporator spacer
11 SD289751 frame (right side) 40 SD266450 HP switch ACB-DB88 400 psi
12 SD291850 crash bar 41 SD266550 LP switch LCB-DA15 7 psi
13 SD289850 axle 42 SD188950 rocker switch 1 pole c/o
14 7600000080 wheel 44 SD085150 duct flange top and bottom
15 SD288750 support bracket 45 SD085250 duct flange side
16 SD290150 bracket 46 SD085251 duct flange side
17 SD288850 blanking panel 47 SD175750 filter bracket
18 SD289550 saddle washer 48 SD175850 filter bracket
19 SD520851 spacer mounting tube 42 mm long 49 7710000911 filter washable
20 SD011450 side panel 50 SD166250 solenoid valve 3/8
21 SD232150 isolator switch 51 SD166550 solenoid coil 230 V, 50 Hz
22 7242000887 mains in box 54 SP152150 M20 plastic gland back nut
24 7130000912 float switch (62-00-554) 56 7310000349 tube insert (62-00-094)
25 7170000191 peristaltic pump 11 litre per hr. 57 SD062350 humidistat
27 SD294650 bulkhead connector 58 SD041450 control knob
28 7310000348 locking collet 60 SD293050 damper plate

EN Operating Manual – Dehumidifier TTK 1500 15
Components – Electrical equipment
61 SD098950 terminal block earth EK4 82 SD188450 locknut M25
62 SD099050 terminal block SAK6N 90 SD304501 drip tray
63 SD120550 din rail 91 SD306050 water filter
70 SD117950 bracket 92 SP182554 refrigerant R407c
80 SD208052 user manual 99 SD295550 water suction
81 SD188550 M25 bush
No. Item number Spare part No. Item number Spare part
R3
11
10
6
R1 R2
F1A F7A
F1A F7AF3A
518 28 12
1829 12 29
1228
1
1 6
1 6
F3A
1514
16
17
13513
14642
A1 A2
Note!
The position numbers of the spare parts differ from those
describing the positions of other parts mentioned in this
operating manual.
No. Item number Spare part
1 SD062001 electrical box steel plated
5 SD403950 end bracket EW35 (8.5)
6 7140000196 relay c/o 2 pole 16 A 230 V AC coil
10 7140000203 contactor 9 A 3+1 N/O aux
11 7140000164 delay timer 7 sec to 9 min
12 SD216550 fuse holder
14 SD271250 capacitor 8 μF
15 SD072650 terminal block 6 way
16 SA582601 loom assembly
17 7140000928 defrost stat/timer
18 SD035353 fuse 1/4 x 1 1/4, 1 A
28 SD035350 fuse 3 A
29 SD035352 fuse 1/4 x 1 1/4, 7 A

16 Operating Manual – Dehumidifier TTK 1500 EN
Control panel
FAULT
DEFROST
MAINS
4
3
2
5
M/C ON
1
Note!
The position numbers of the spare parts differ from those
describing the positions of other parts mentioned in this
operating manual.
No. Item number Spare part
1 7310001153 console moulding
2 7141000891 pilot light red rectangular 250 V
3 7141000889 pilot light amber rectangular
4 7141000890 pilot light white rectangular
5 7130000892 rocker switch illuminated red

EN Operating Manual – Dehumidifier TTK 1500 17
In the European Union, electronic equipment must not
be treated as domestic waste, but must be disposed
of professionally in accordance with Directive 2002/
96/EC of the European Parliament and Council of 27th
January 2003 concerning old electrical and electronic equipment.
At the end of its life, please dispose of this instrument in a manner
appropriate to the relevant legal requirements.
The device uses an environmentally friendly and ozone-neutral
refrigerant (see chapter "Technical data"). Dispose of the
refrigerant/oil mixture appropriately and according to the national
regulations.
in accordance with the EC Low Voltage Directive 2006/95/EC and
the EC Directive 2004/108/EC about electromagnetic
compatibility.
Herewith, we declare that the dehumidifier TTK 1500 was
developed, constructed and produced in compliance with the
named EC directives.
Applied harmonised standards:
IEC 60335-1:2001/A2:2006
IEC 60335-2-40:2002/A1:2005
IEC 62233:2005
The marking is found on the device nameplate.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Heinsberg, 30/10/2009
Managing Director: Detlef von der Lieck
Disposal Declaration of conformity

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[e-mail]
www.trotec.com
