Trotec TTW 25000 S User manual

TRT-BA-TTW25000S/TTW35000S-TC-005-EN
TTW 25000 S / TTW 35000 S
EN
ORIGINAL INSTRUCTIONS
WIND MACHINE

1 EN
wind machine TTW 25000 S / TTW 35000 S
Table of contents
Notes regarding the operating manual.................................1
Safety .....................................................................................1
Information about the device................................................4
Transport and storage...........................................................4
Assembly and start-up..........................................................5
Operation ...............................................................................6
Errors and faults....................................................................6
Maintenance ..........................................................................7
Technical annex.....................................................................7
Disposal .................................................................................9
Declaration of conformity .....................................................9
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
TTW 25000 S
https://hub.trotec.com/?id=42732
TTW 35000 S
https://hub.trotec.com/?id=42733
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Do not tilt the fan during operation.
Make sure to always switch the device off, before
adjusting the inclination angle.
Please observe the warning on the device.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.

EN 2
wind machine TTW 25000 S / TTW 35000 S
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the technical data when selecting extensions to
the power cable. Completely unroll the extension cable.
Avoid electrical overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• When positioning the device, observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that there are no loose items located in the
immediate surroundings of air inlet and air outlet.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Do not tilt the fan during operation.
Make sure to always switch the device off, before
adjusting the inclination angle.
Please observe the warning on the device.
1. Loosen the handwheel(5).
ðThen the inclination angle can be adjusted in both
directions up to the stop.
Note
Never go past the stop bolts when adjusting the fan
position! Do not remove the stop bolts!

3 EN
wind machine TTW 25000 S / TTW 35000 S
Intended use
Use the wind machine TTW25000S/ TTW35000S for air
circulation whilst adhering to the technical data and the safety
instructions. The device was designed for the generation of a
powerful, large-volume air circulation, e.g. for the accelerated
drying of buildings and rooms. The device is suited for both
indoor and outdoor use.
Improper use
The wind machine TTW25000S/ TTW35000S is not suited for
the installation in fluids or on flooded or boggy grounds. Any
unauthorised changes, modifications or alterations to the device
are forbidden.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when using high-
performance fans.
• have read and understood the instructions, especially the
Safety chapter.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution
Risk of injury due to parts being whirled up by the
strong air current.
Before switching the device on, make sure that there
are no loose parts (clothing, hair etc.) located near the
air inlet or outlet!
Note
Do not use abrasive cleaners or solvents to clean the
device.
Behaviour in the event of an emergency
1. In an emergency, disconnect the device from the mains
feed-in: Switch the device off and disconnect it from the
mains.
2. Remove persons from the danger area.
3. Do not reconnect a defective device to the mains.
Overheating protection
The device is equipped with an automatic overheating
protection.
If the motor overheats (exceeds the operating temperature), the
device will be switched off.
When the device has cooled down sufficiently, it will be
switched back on.

EN 4
wind machine TTW 25000 S / TTW 35000 S
Information about the device
Device description
The wind machine TTW25000S/ TTW35000S was designed
for a high air volume flow. The device is designed for indoor and
outdoor air circulation tasks.
The ready-for-use device has a galvanized housing with
chassis, which supports the adjustable two-stage fan in an
inclinable drum. Thanks to the adjustable inclination angle, the
wind machine can be variably aligned up to a vertical flow
position.
The fan motor is equipped with an automatic overheating
protection, which interrupts the power supply as soon as the
device begins to overheat.
To make the device easier to transport, it is fitted with a
transport handle and two wheels. Two feet with rubber buffers
prevent the device from rolling away.
Device depiction
1
2
4
5
6
3
7
No. Designation
1 Air outlet
2 Wheels
3 Power cable with Schuko plug

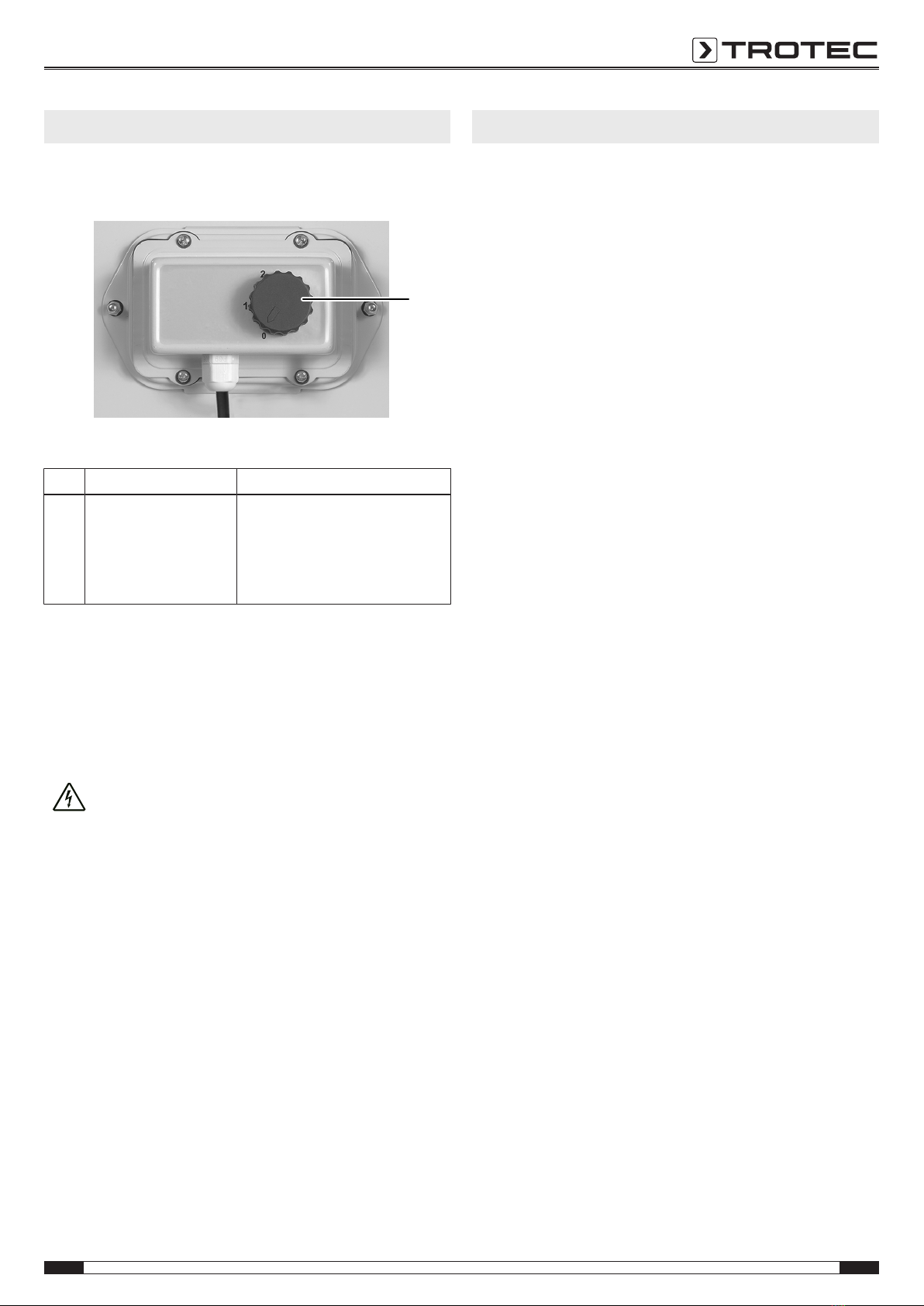

4 Rotary switch for the fan stage
5 Handwheel
6 Chassis
7 Feet
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• To make the device easier to transport, it is fitted with
wheels.
• Do not use the power cable to drag the device.
• Only wheel the device on a level and smooth surface.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.

5 EN
wind machine TTW 25000 S / TTW 35000 S
Assembly and start-up
Scope of delivery
• 1x Device
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Assembly
1. Unpack the device, the wheels and front feet.
2. Place the device on level ground and carefully tilt it
forward so that the tubular frame becomes accessible for
mounting the wheels.
3. Remove the screws from the wheel assembly.
4. Attach the wheel assembly to the bottom of the tubular
frame by aligning the holes in wheel assembly and tubular
frame.
5. Refit the screws.
Note
Make sure that the screws are tightened correctly and
do not get jammed.
6. Make sure that the wheels are running freely.
7. Then bring the device back into an upright position.
8. Remove the screws of the front feet.
9. Insert the front feet into the connecting pieces at the
bottom by aligning the holes in the feet and tubular frame.
10. Refit the screws.
Start-up
When positioning the device, observe the minimum distance
from walls or other objects as described in the Technical data
chapter.
D
B
C C
A
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Make sure the device is only placed on firm, dry and
vibration-free ground.
• Make sure that extension cables are completely unrolled.
• Make sure that the air inlet and outlet are not obstructed.
• When positioning the device, keep a sufficient distance to
heat sources.
• Insert the mains plug into a properly secured mains
socket.

EN 6
wind machine TTW 25000 S / TTW 35000 S
Operation
Operating elements
4
No. Designation Meaning
4 Rotary switch for the
fan stage
0
1
2
Setting the fan speed:
stage0=off
stage1=medium
stage2=high
Switching the device on
üThe device has been completely installed as described in
the Assembly and start-up chapter.
1. Switch the device on by turning the rotary switch for the
fan stage(4) to the desired position.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
1. Switch the device off by turning the rotary switch for the
fan stage(4) to the 0position.
2. Hold onto the mains plug while pulling the power cable out
of the socket.
3. Clean the device according to the Maintenance chapter.
4. Store the device according to the Storage chapter.
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The fan is not running:
• Check whether the device is switched on.
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
The fan operates only for a brief period, then switches off:
• Check whether the protective grid at the air inlet is
obstructed in some way. If applicable, remove foreign
objects.
• The motor bearing might be damaged. Please contact the
customer service.
The motor or fan is noisy or runs unevenly:
• The fan is soiled. Clean the fan according to the
Maintenance chapter.
• The fan or the blower unit is damaged. Please contact the
customer service. If necessary, bring the device to an
authorized specialist electrical company or to Trotec for
repair.
• The motor bearing might be damaged. Please contact the
customer service. If necessary, bring the device to an
authorized specialist electrical company or to Trotec for
repair.
The fan produces grinding noises:
• The fan blades are dirty or foreign objects are located in
the rotation range of the fan. Clean the fan blades or the
blower unit according to the Maintenance chapter.
• The fan blades might be damaged. Please contact the
customer service. If necessary, bring the device to an
authorized specialist electrical company or to Trotec for
repair.
The device vibrates heavily:
• Check the floor space of the fan. Position the device on a
level and firm surface.
• Check the screwed connections, particularly between
blower unit and tubular frame. If necessary, retighten the
screws.
• Check the fan blades for dirt and clean them if required.
• There might be an imbalance in the fan blades. Please
contact the customer service. If necessary, bring the
device to an authorized specialist electrical company or to
Trotec for repair.
The fan changes its position during operation:
• Check the locking screws at the foot for tight fit and
retighten them if necessary.

7 EN
wind machine TTW 25000 S / TTW 35000 S
The air flow rate is low:
• Check whether the protective grid is blocked and clean it if
required.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorized specialist electrical company or to
Trotec for repair.
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
Cleaning the housing
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Cleaning the fan and device interior
• Check fan and protective grid for perfect condition before
and after each application.
• Clean the fan at regular intervals.
• If required during cleaning, remove the protective grid by
unscrewing the eight screws, and put it back in its original
place after the work has been completed.
• Other than that, the device does not require maintenance.
Technical annex
Technical data
Parameter Value
Model TTW 25000 S TTW 35000 S
Article number 1.510.004.020 1.510.004.025
Air volume:
stage1:
stage2:
21000 m3/h
27600 m3/h
24600 m3/h
32400 m3/h
Max. air pressure 160 Pa 160 Pa
Voltage 230V/ 50Hz 230V/ 50Hz
Power input:
stage1:
stage2:
520W
650W
620W
750W
Fusing 16A 16A
Transport medium
temperature
max. 40°C max. 40°C
Sound level:
stage1:
stage2:
65dB(A)
75dB(A)
65dB(A)
75dB(A)
Mobility Wheeled Wheeled
Dimensions (L x W x H) 1060x 525x
1140mm
1290x 380x
1210mm
Minimum distance to walls
and other objects
top (A):
rear/ suction side(B):
sides (C):
front (D):
50cm
3m
50cm
50cm
50cm
3m
50cm
50cm
Weight 44 kg 49 kg

EN 8
wind machine TTW 25000 S / TTW 35000 S

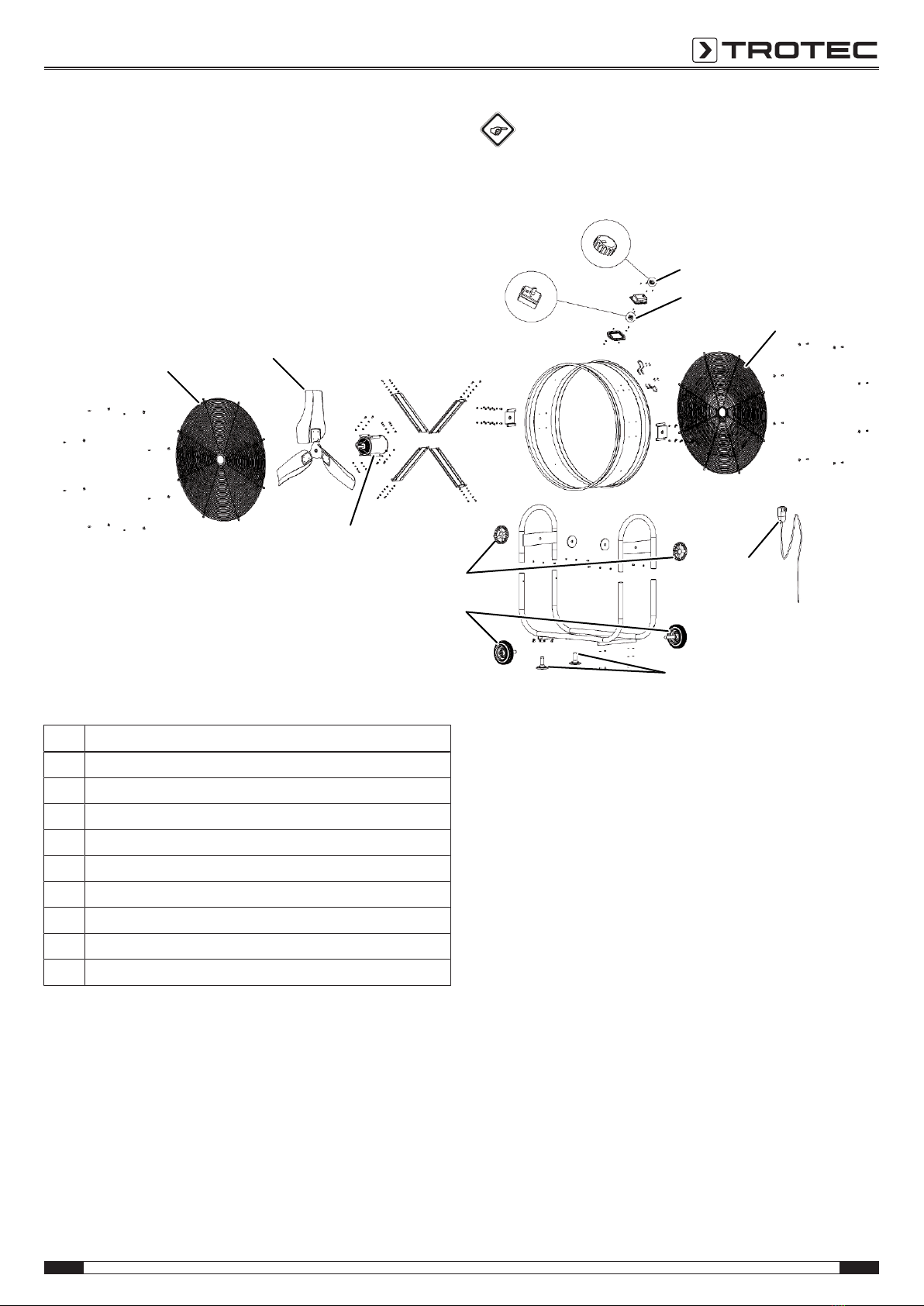

Exploded assembly drawing TTW25000S/ TTW35000S Info
The position numbers of the spare parts differ from
those describing the positions of other parts mentioned
in this operating manual.
1
2
2
3
4
89
5
6
7
Parts list TTW25000S/ TTW35000S
No. Designation
1 Fan wheel
2 Protective grid
3 Motor
4 Wheels (pair)
5 Switch
6 Button/rotary control
7 Front feet (pair)
8 Inclination handwheel
9 Power cable

9 EN
wind machine TTW 25000 S / TTW 35000 S
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Declaration of conformity
The text below sets out the contents of the declaration of
conformity. The signed declaration of conformity can be found
at https://hub.trotec.com/?id=42732.
Declaration of conformity
In accordance with the ECMachinery Directive 2006/42/EC,
AnnexII, part1, SectionA
Herewith, we– Trotec GmbH&Co.KG– declare that the
machinery designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: TTW 25000 S
TTW 35000 S
Product type: wind machine
Year of manufacture as of: 2018
Relevant EU directives:
• 2011/65/EU: 1July 2011
• 2014/30/EU: 29March 2014
• 2009/125/EC: 21/07/2015
Applied harmonised standards:
• EN ISO 12100:2010
• EN 55014-1:2006+A1:2009+A2:2011
• EN 55014-2:2015
• EN 60335-1:2012+A11:2014+A13:2017
• EN 60335-2-80:2003+A1:2004+A2:2009
• EN61000-3-2:2014
• EN 61000-3-3:2013
• EN 62233:2008
Applied national standards and technical specifications:
• Regulation(EU) No 327/2011
• ISO 5801:2017
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH & Co. KG
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 06.07.2016
Detlef von der Lieck, Managing Director

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
